Kia Carens. Manual - part 51

  2001 > 1.8L DOHC >



INSPECTION

Drive belt

1. Check the drive belts for wear cracks and fraying.

Replace if necessary.

2. Verify that the drive belts are correctly mounted on the pulley.

3. Check the drive belt deflection by applying moderate pressure 98N(10kg, 22lb) midway between the

pulleys.

Deflection

Drive belt

New

Used

Generator

0.24~0.32in (6.0~8.0mm)

0.28~0.35in (7.0~9.0mm)

P/S, P/S+A/C

0.32~0.35in (8.0~0.35mm)

0.36~0.39in (9.0~10.0mm)

• Measure the belt deflection between the specified pulleys.
• Consider the belt as a new one if it has been used on a running engine for less than five minutes.
• Check the belt deflection when the engine is cold or at less 30minutes after the engine is stopped.

ADJUSTMENT

Generator drive belt

1. Loosen the mounting bolt (A), (B) and adjust the belt deflection by turning the adjusting bolt (C).

2. Tighten the mounting bolts (A), (B)

Tightening torque
(A) : 28~38lb·ft (37~52N·m, 3.8~5.3kg-m)
(B) : 14~19lb·ft (19~25N·m, 1.9~2.6kg-m)

Power steering + Air conditioner drive belt

1. Loosen the bolt (A), nut (B), nut (C), for power steering pump.

2. Adjust the belt deflection by turning the adjusting bolt (D)

3. Tighten the bolt (A), nut (B), nut(C).

Tightening torque
(A) : 27~40lb·ft (36~54N·m, 3.7~5.5kg-m)
(B) : 14~19lb·ft (19~25N·m, 1.9~2.6kg-m)
(C) : 23~34lb·ft (31~46N·m, 3.2~4.7kg-m)

Engine Mechanical System

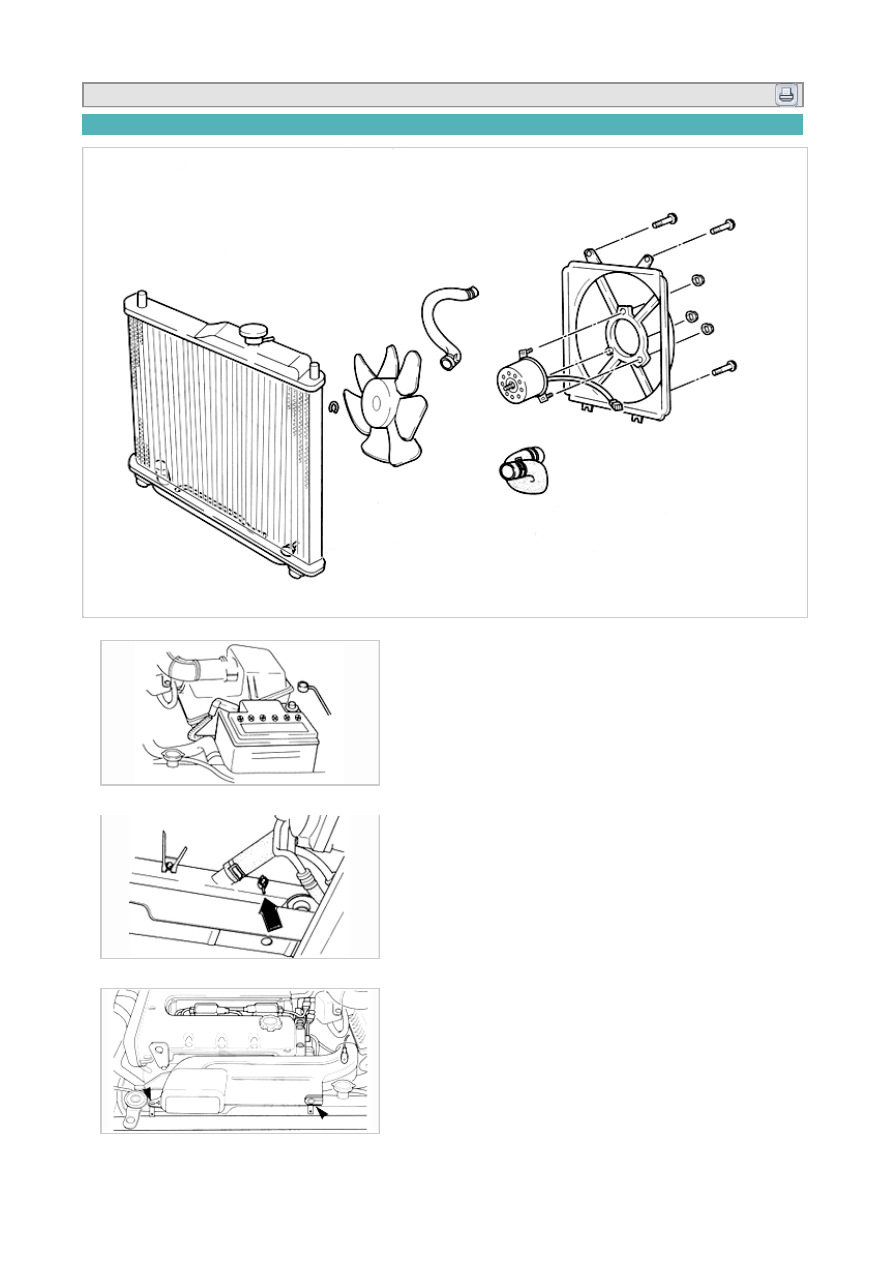

 Cooling System - Cooling Fan Motor Assembly

Engine Mechanical System

  2001 > 1.8L DOHC >



Removal

1. Disconnect negative battery cable.

2. Drain engine coolant.

3. Remove fresh air duct.
