Kia Carens. Manual - part 15

  2001 > 1.8L DOHC >



REMOVAL

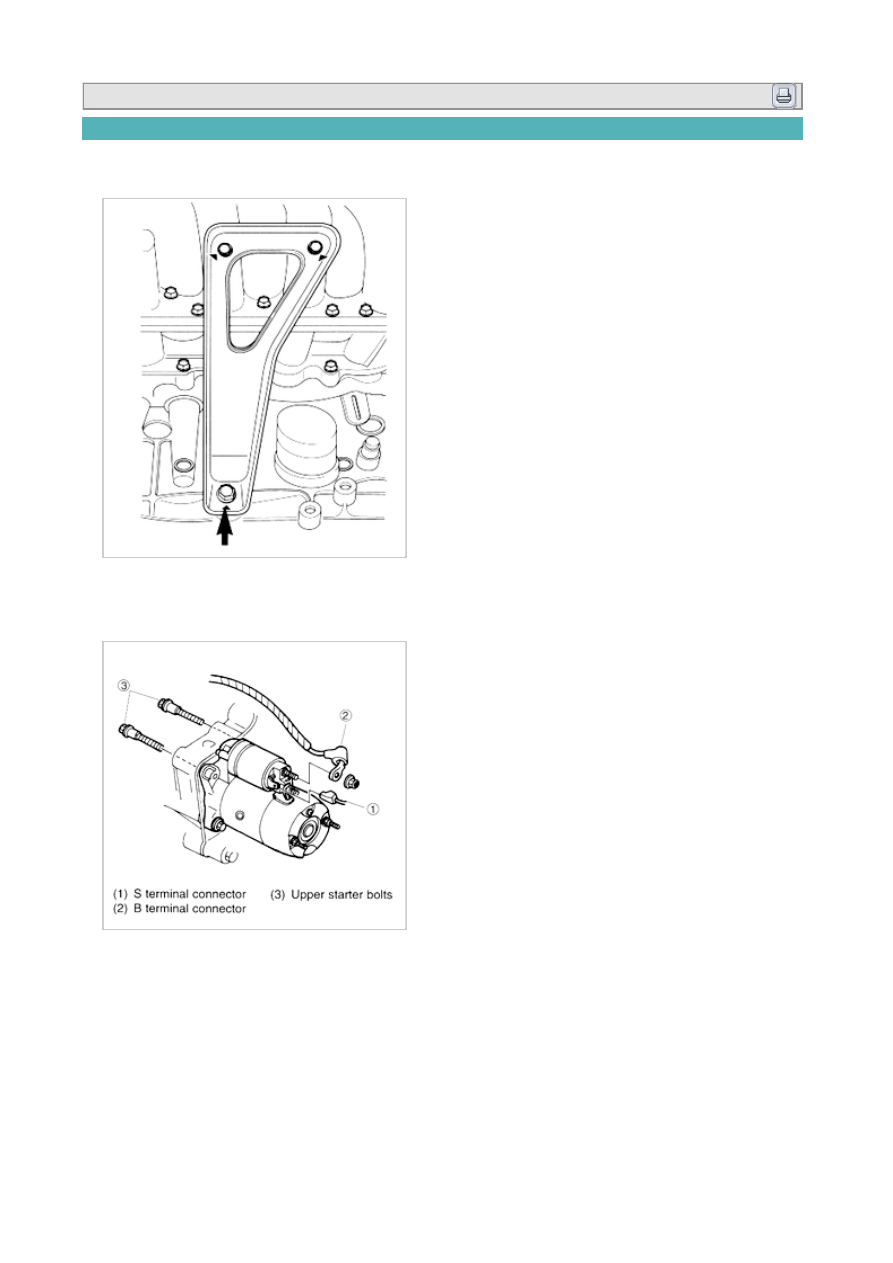

1. Disconnect negative battery terminal.

2. Remove two upper intake manifold support bracket bolts.

3. Disconnect S terminal connector.

4. Disconnect B terminal connector.

5. Remove two upper starter bolts.

6. Raise vehicle support with safety stands.

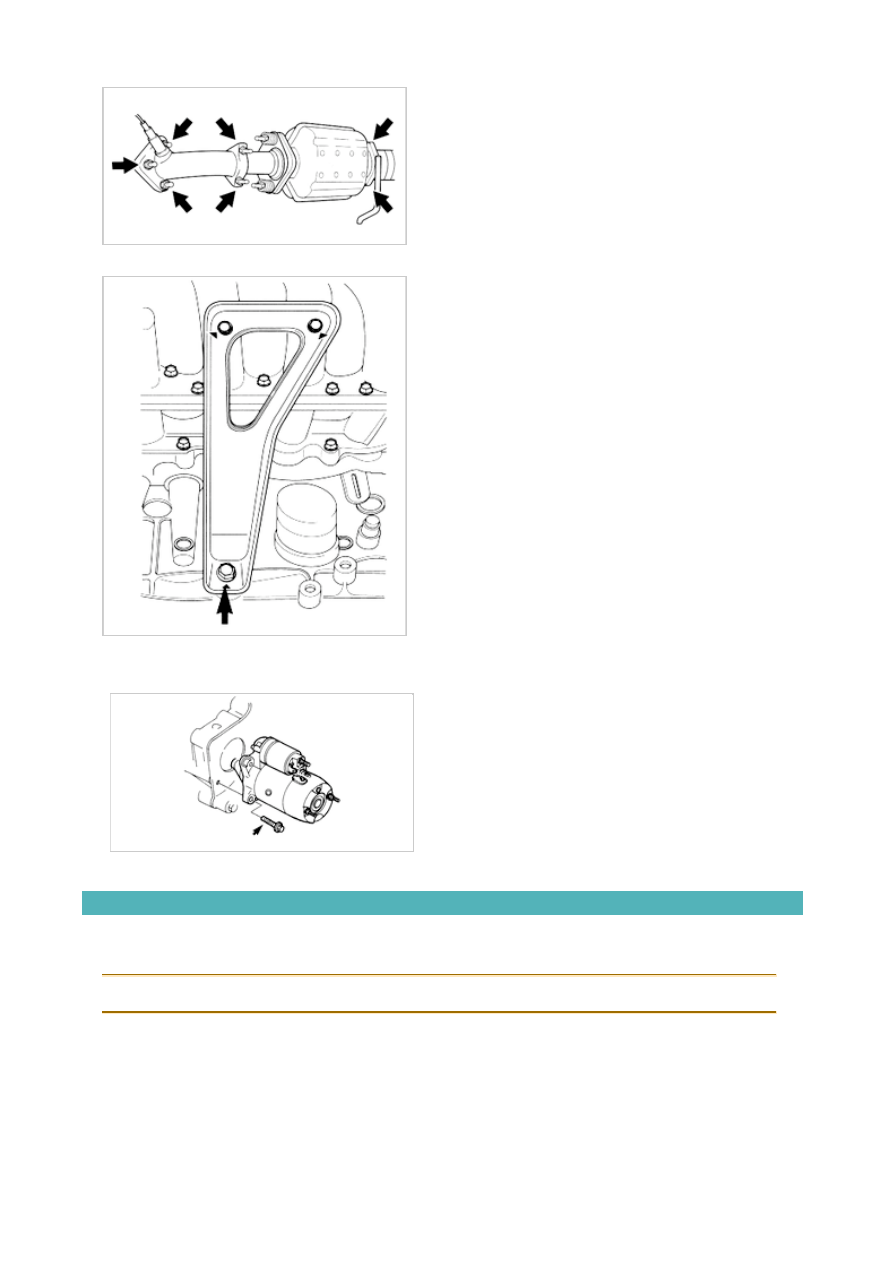

7. Remove exhaust pipe.

8. Remove lower intake manifold support bracket bolt.

9. Remove intake manifold support bracket.

10. Remove lower starter bolt.

11. Remove starter.

INSTALLATION

1. Place starter in engine.

2. Insert lower starter bolt and tighten.

Tightening torque : 27~38lb-ft (37~52N·m, 3.7~5.3kg-m)

3. Connect B terminal connector and tighten.

Tightening torque : 7.2~8.9N·m, 1~1.2kg-m)

4. Connect S terminal connector.

5. Place intake manifold support bracket.

6. Insert three intake manifold support bracket bolts. and tighten lower intake manifold support brake bolts.

Tightening torque : 27~38lb-ft (37~52N·m, 1~1.2kg-m)

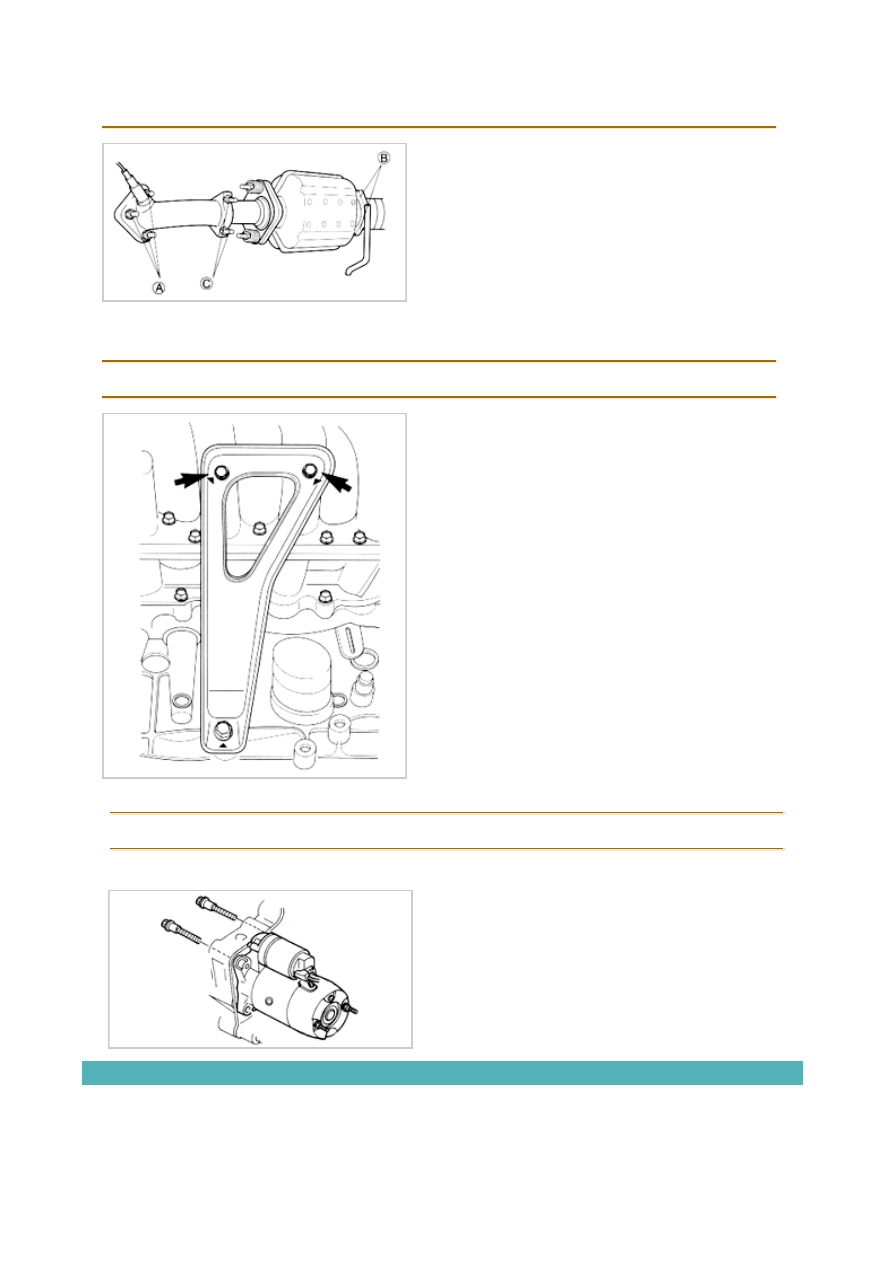

7. Position exhaust pipe and tighten bolts.

Tightening torque :
A : 29.7~40.5lb-ft (40.2~54.9N·m, 4.1~5.1kg-m)

B : 51~69lb-ft (69~94N·m, 6.9~9.4kg-m)
C : 15.2~20.2lb-ft (20.6~27.4N·m, 2.8kg-m)

8. Lower vehicle.

9. Tighten two upper intake manifold support bracket bolts.

Tightening torque : 27~38lb-ft (37~52N·m, 1~1.2kg-m)

10. Place two starter bolts and tighten.

Tightening torque : 27~38lb-ft (37~52N·m, 1~1.2kg-m)

11. Connect negative battery terminal.

DISASSEMBLY

1. Remove nut from M terminal.

2. Remove field wire from M terminal.
