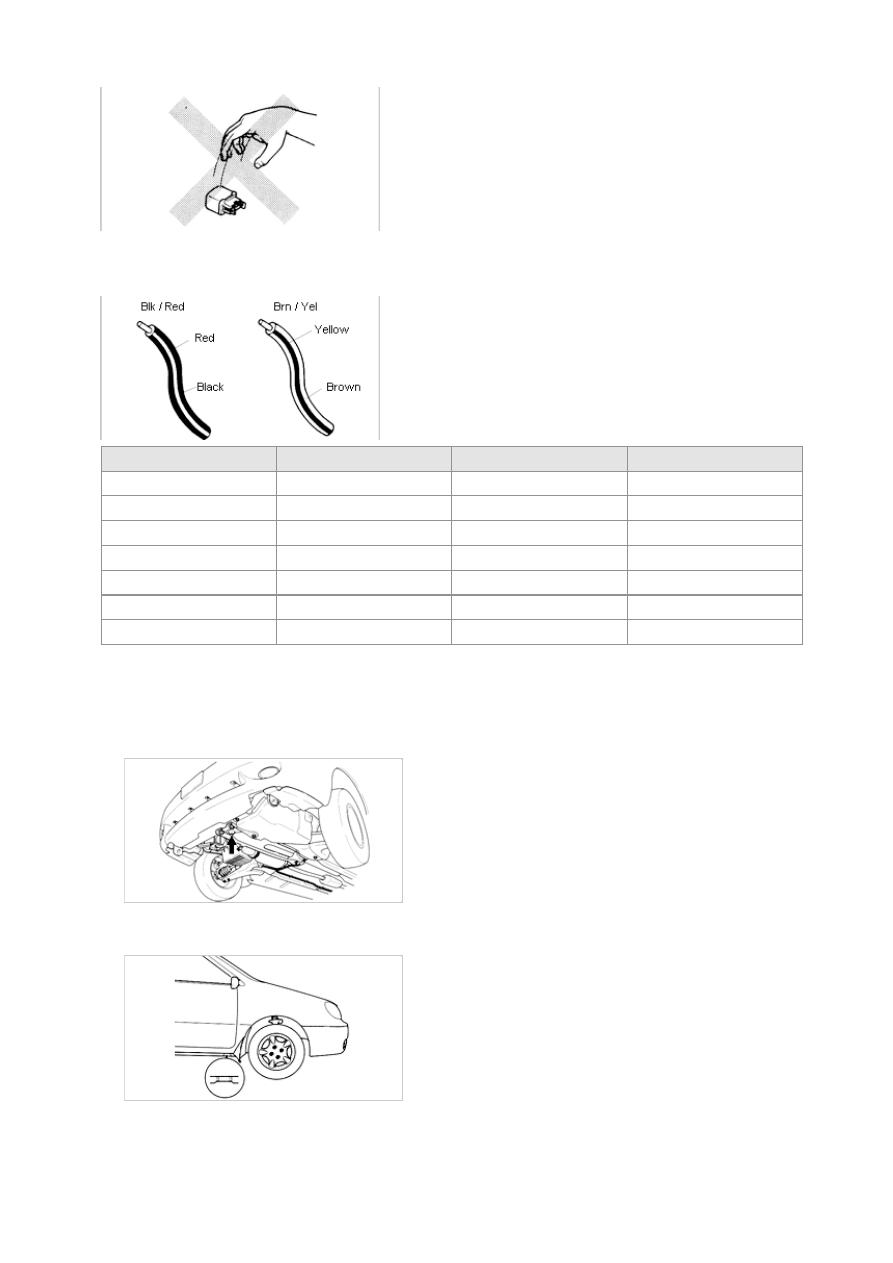

4. Wiring color codes.

Two-color wires are indicated by two color code symbols. The first code symbol indicates the base color of the wire,
and the second the color of the stripe on the base color.

Code

Color

Code

Color

BLK

Black

ORN

Orange

BRN

Brown

PNK

Pink

GRN

Green

RED

Red

GRY

Gray

VIO

Violet

BLU

Blue

WHT

White

LT BLU

Light Blue

YEL

Yellow

LT GRN

Light Green

LT GRY

Light gray

JACK AND SAFETY STAND POSITIONS

1. Front end

(1) Jack position :

At the front subframe

2. Safety stand positions :

(1) On both sides of the side sills

3. Rear end

(1) Jack position :

At the center of the rear crossmember

4. Safety stand positions :

(1) On both sides of the side sills

VEHICLE LIFT (2-SUPPORT TYPE) POSITIONS

1. Front end / Rear end

Side sills (both sides)

2. Rear end

Side sills (both sides)

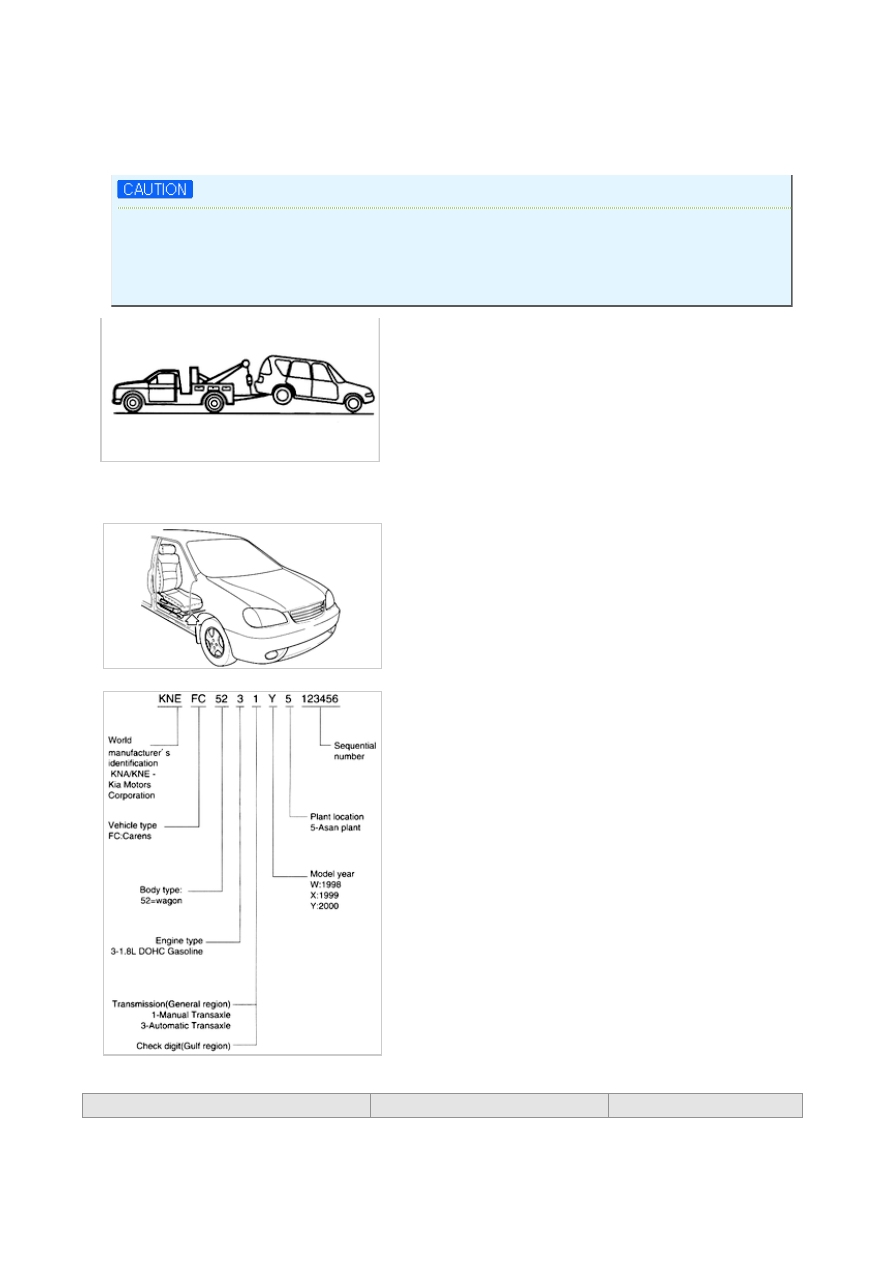

TOWING

• Proper towing equipment is necessary to prevent damage to the vehicle.

Always observe laws and regulations applicable to vehicles in tow. As a general rule, towed vehicles should be pulled
with the driving wheels off the ground. If excessive damage or other conditions prevent towing the vehicle with the
driving wheels off the ground, use wheel dollies.

With either automatic or manual transmission :

1. Set the ignition switch in the ACC position.

2. Place the selector lever or shift lever in N (Neutral).

3. Release the parking brake.

• Do not tow the vehicle backward with driving wheels on the ground. This may cause internal damage to the

transmission.

• Do not use the hook loops under the front and rear of the vehicle for towing purposes. These hook loops are

designed ONLY for transport tie-down. If tie-down hook loops are used for towing, the front/rear bumper will
be damaged.

VIN locations

• Vin locations

Vehicle identification number arrangement

ENGLISH/METRIC CONVERSION TABLE

MULTIPLY

BY

TO GET

inch (")
foot (ft.)
yard (yd.)
mile

LENGTH

25.4

0.3048
0.9144

1.609

millimeters (mm)

meters (m)

meters

kilometers (km)

inch² (in²)

Foot² (ft²)
yard² (yd³)

AREA

645.2

6.45

0.0929
0.8361

millimeters² (mm²)

centimeters² (cm²)

meters² (m²)
meters² (m²)

inch³(in³)

quart (qt.)
gallon (gal.)
yard³ (yd³)

VOLUME

16387

16.387
0.0164
0.9464
3.7854
0.7646

mm³

cm³

liters (l)

liters
liters

meters³(m³)

pound (lb.)
ton

MASS

0.4536
907.18

kilograms (kg)

kilograms(kg)

kilogram (kg)
ounce (oz.)
pound (lb)

FORCE

9.807

0.2780

4.448

newtons (n)

newtons
newtons

foot/second² (ft/sec²)
inch/second² (in/sec²)

ACCELERATION

0.3048
0.0254

meter/sec² (m/s²)
meter/sec² (m/s²)

pound-inch (lb-in)
pound-foot (lb-ft)

TORQUE

0.11298

1.355 8

newton-meters (N·m)
newton-meters (N·m)

horsepower (hp)

POWER

0.746

kilowatts (kW)

pounds/inch² (psi)

PRESSURE

6.895

kilopascals (kPa)

foot-pound
kilowatt-hour

ENERGY

1.355 8

3,600,000

joules (J)
joules (J)

miles/gallon (mpg)

FUEL PERFORMANCE

0.4251

kilometers/liter (km/l)

miles/hour (mph)

VELOCITY

1.6093

kilometers/hour

TEMPERATURE

to convert fahrenheit temperature to Celsius
temperature, use formula :

C

5/9 (F-32)

F

9/5 C (+32)

UNITS

ft-lb or in-lb (N·m)

Torque

rpm

Rotational speed

A

Amperes

V

Volts
