FANUC I/O Unit-MODEL A. CONNECTION AND MAINTENANCE MANUAL (B-61813E/04)

B-61813E/04

CONNECTION 8.HIGH-SPEED COUNTER MODULE

8.6

CONNECTION WITH MACHINE (POWER MAGNETICS

CABINET)

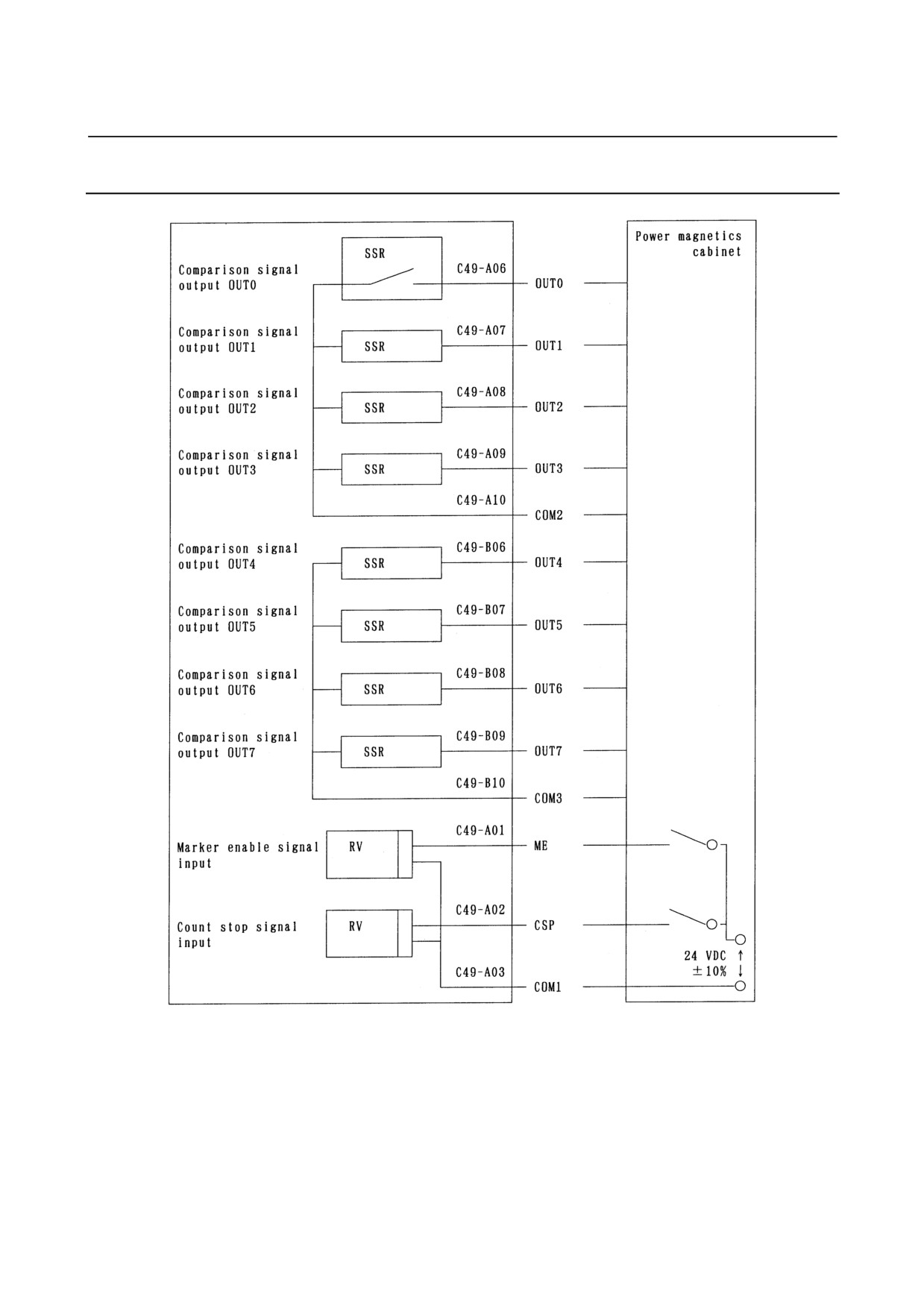

8.6.1

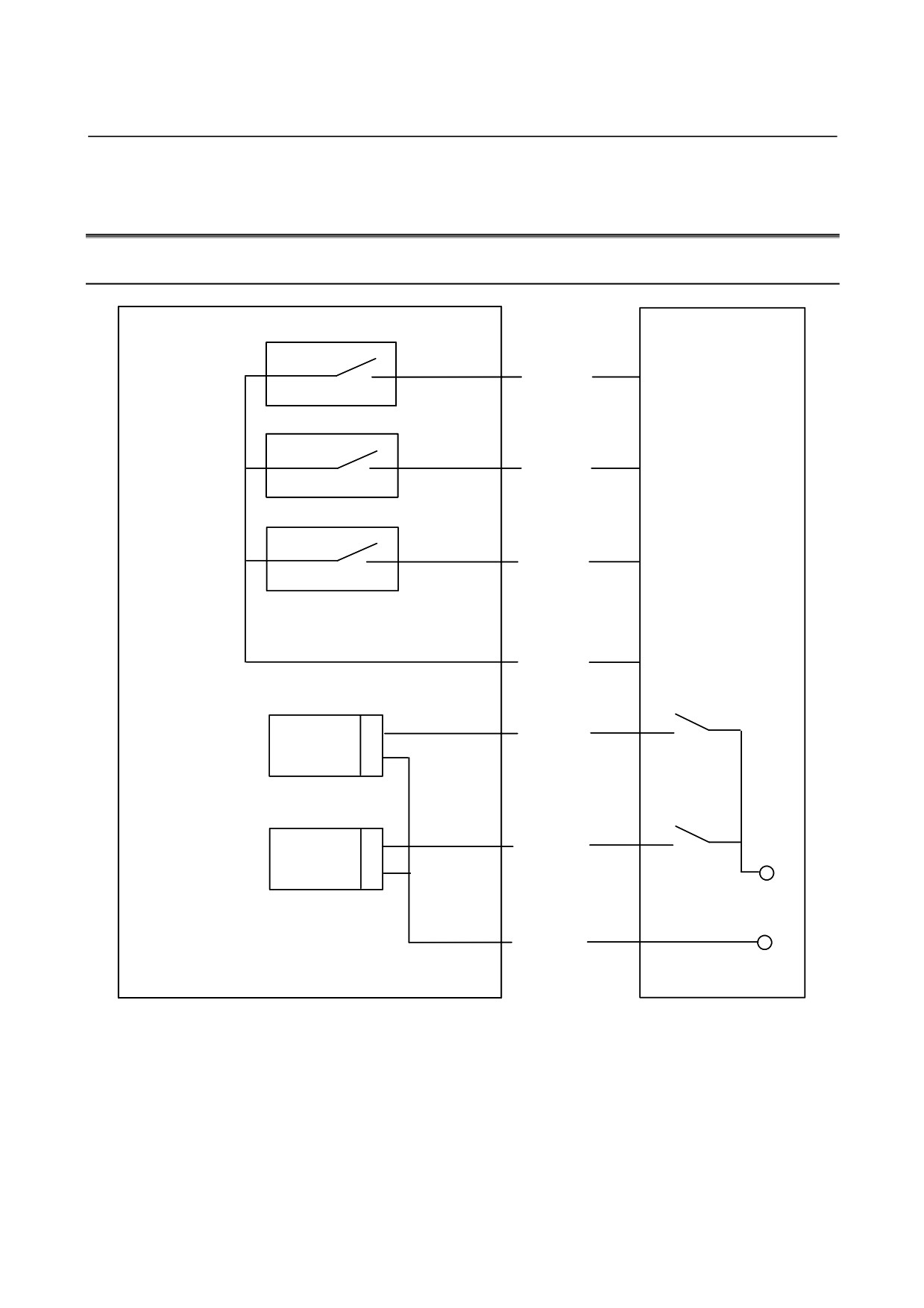

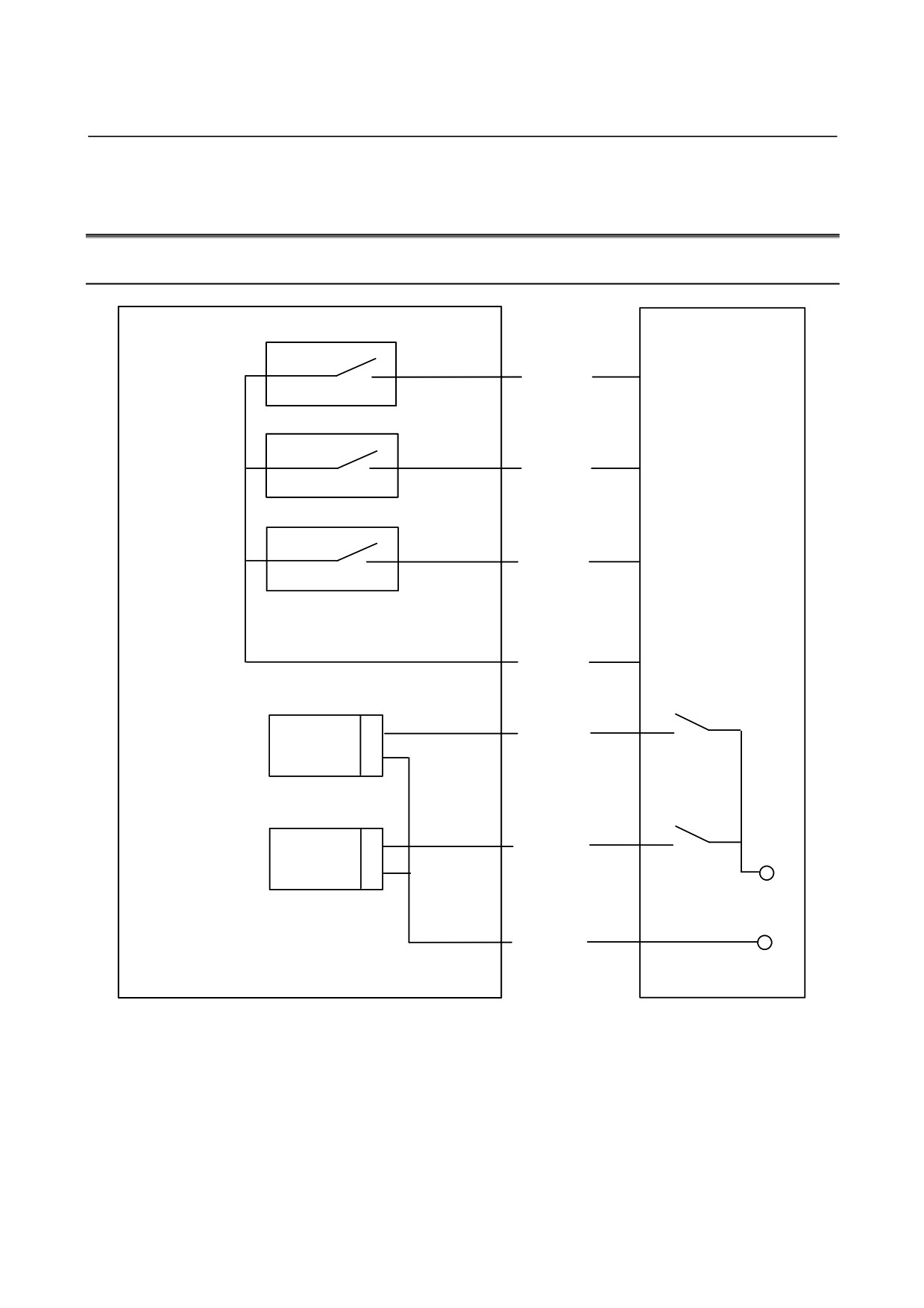

Use in Mode A

Machine (power

magnetics cabinet)

SSR

Comparison

C49-A06

CMP A

signal output

SSR

Comparison

C49-A07

CMPＢ

signal output

SSR

Comparison

C49-A08

CMPC

signal output

C49-A10

COM2

C49-A01

Marker enable

signal input

Count stop

C49-A02

CSP

signal input

24VDC

↑

±10%

↓

C49-A03

COM1

- 121 -

B-61813E/04

CONNECTION 8.HIGH-SPEED COUNTER MODULE

8.7

I/O SIGNALS CONVENTIONS

8.7.1

Solid State Relay Output Signals (OUT0 to OUT7)

The solid state relay output signals drive relays in the machine (power

magnetics cabinet) side and indicator LEDs.

(1) Solid state relays

(a) Maximum load current at output-on

250 mA: Up to three outputs set to on

125 mA: Eight outputs set to on

(b) Saturation voltage at output-on

Not more than 6 × IL [V] (IL: load current)

30 VDC max. even for instantaneous voltage

(d) Leak current at output-off

Not more than 100µA

(2) Output circuit

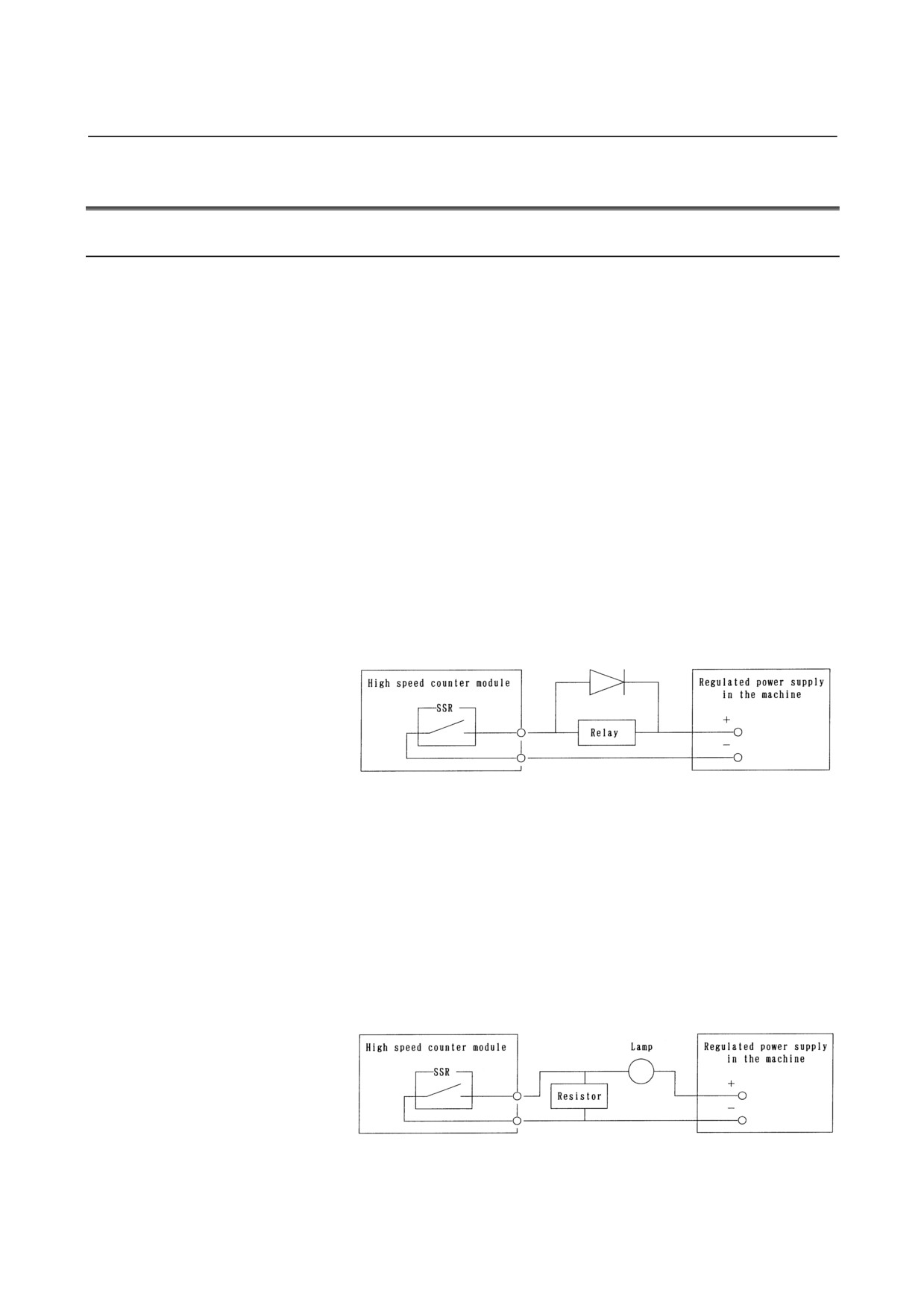

(3) Always install spark arresters when inductive loads such as relays

are connected in the machine. Insert the spark arresters as near the

load as possible (less than 20 cm). When capacitive loads are used

in the machine, insert current limiting resistors in series with the

loads to prevent the instantaneous current and voltage from

exceeding the rated values.

(4) If a lamp is turned on by a solid state relay output, the resulting

surge current may damage the solid state relay. Thus, as shown in

the figure below, provide a protective resistor to prevent the

instantaneous current and voltage from exceeding the rated values.

- 123 -

8.HIGH-SPEED COUNTER MODULE CONNECTION

B-61813E/04

8.7.2

DC Input Signals (ME and CSP)

The DC input signals (such as relay contact signal) are sent from the

machine (control circuit) to the pulse counter module.

(1) Input conditions

On voltage and current: 15 VDC or more, 4.5 mA or more

Off voltage and current: 6 VDC or less, 2 mA or less

Response time: 20 ms or less

(2) Voltage and polarity

Voltage

24 VDC +10%, -20%

Polarity

: Positive or negative polarity available (The power is

not supplied from the pulse counter module.)

(3) Logical correspondence

Contact

Logic

Open

Closed

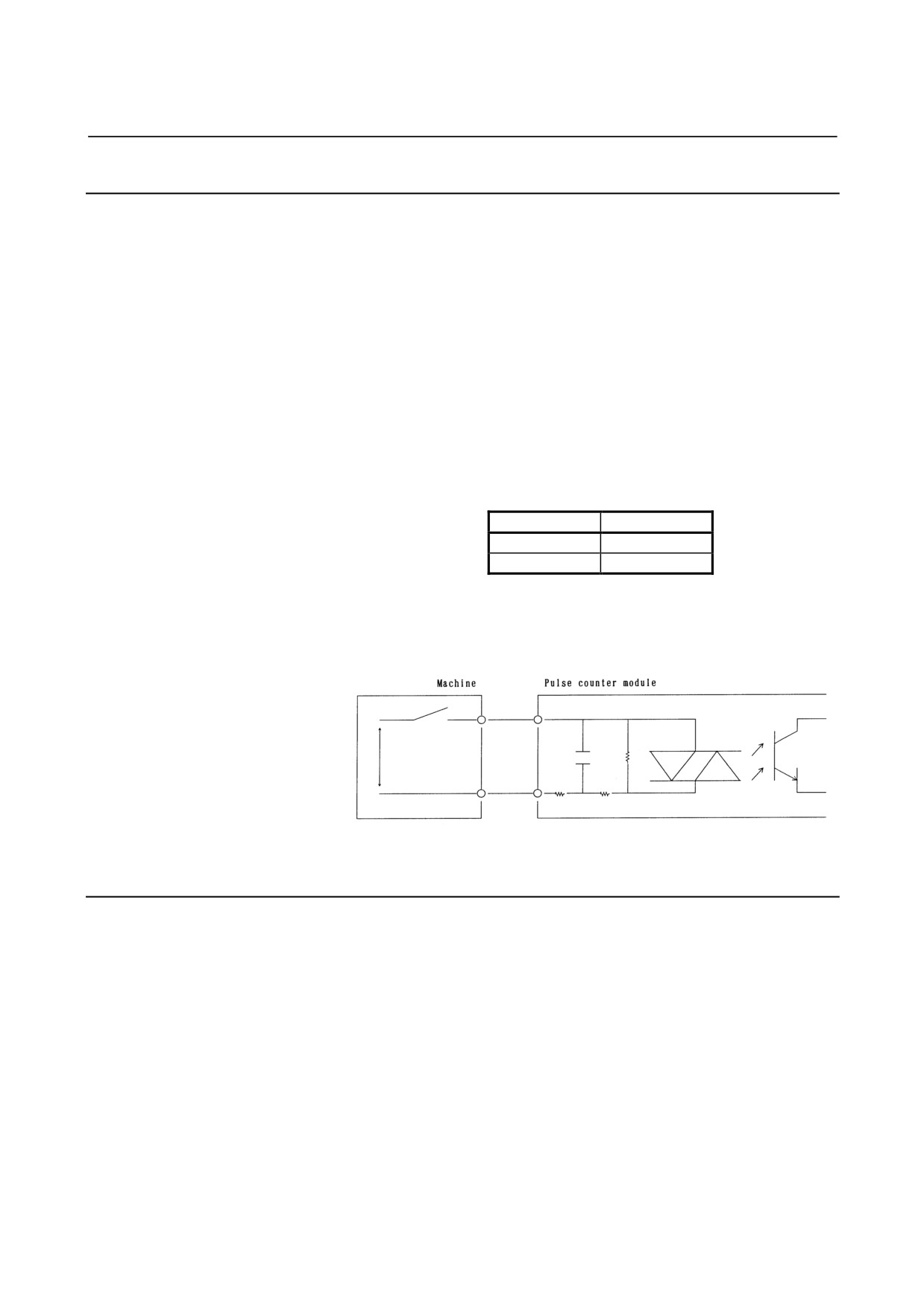

(4) Receiver circuit of DC input signal

Machine Pulse counter module

24 VDC +10%

-20%

8.7.3

+5-V Output from JA9 Connector

• A voltage of +5 V on the JA9 connector of this module is the

output of the counter module (300 mA maximum).

It is necessary to satisfy Table 4.4 in Section 4.4, "Required

Current", though.

Example: Assuming that 100 mA is supplied from the +5-V pin

of the JA9 connector:

170 + 0.3 × 100 = 200

Thus, the required current is 200 mA.

- 124 -

B-61813E/04

CONNECTION 8.HIGH-SPEED COUNTER MODULE

8.8

SUPPLEMENT

8.8.1

Configuration of Mode A

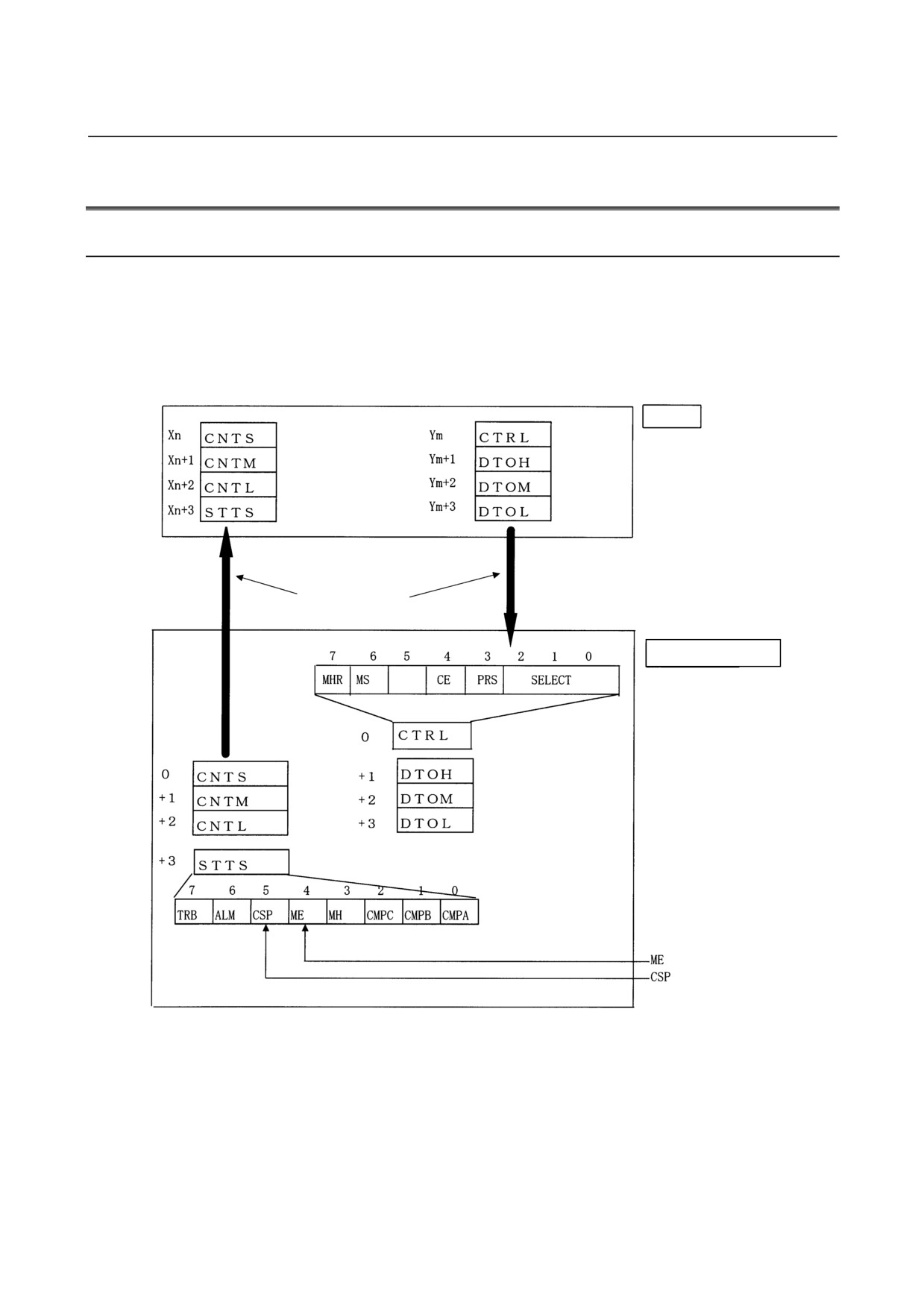

How mode A is configured is shown below. The contents of the CNTS,

CNTM, CNTL, and STTS on a high-speed counter module are sent to

the X area assigned on the master via the I/O link. The contents of the Y

area assigned on the master are sent to CTRL, DTOH, DTOM, and

DTOL on the high-speed counter module, via the I/O link.

Master

Via the I/O link

(period of 2 ms)

High-speed counter

- 125 -

8.HIGH-SPEED COUNTER MODULE CONNECTION

B-61813E/04

8.8.2

Counter Presetting and Counting

(1) Presetting a counter value

(using the external signal MKS)

To preset a counter value, using the MKS signal, follow this

procedure:

(a) Reset the MH (marker hold) signal.

(b) Preset a value in the counter at the rising edge of the MKS

signal.

The MH signal is set at the same time the counter is preset with

data.

(a) Resetting the MH signal

For mode A, both methods, (i) and (ii), are usable. For mode

B, method (ii) is usable.

(i)

Resetting the MS bit (bit 6) of the CTRL (control)

Control example 1

(ii) Setting the MHR bit (bit 7) of the CTRL register to 1

.........................................Control example 2

Condition

Status

ME of

MKS of

MHR of

MS of

ME of

MH of

external

CTRL

STTS

signal

Changes

(i)

to 0.

Changes

(ii)

to 0.

•

The cross × in the above table means that the corresponding bit can be either 0 or 1.

(The ME bit of the STTS register corresponds to the state of the external signal ME.)

(b) Presetting a counter value

For both methods, (i) and (ii), the presetting is completed

within 100 µs after the MKS has arisen.

Condition

Status

ME of

MKS of

MHR of

MS of

ME of

MH of

external

CTRL

STTS

signal

Contact

(i), (ii)

First ↑ state

"Closed"

• Contact "Closed" in the above table means that 24 V is applied to the ME pin.

(2) Presetting a counter value (operating the PRS bit by ladder)

<1> Load the 3 low-order CTRL bits (SELECT) with 001 by

ladder.

<2> Preset the DTOH, DTOM, and DTOL by ladder.

<3> Invert the PRS bit by ladder.

(If the PRS is 0, set it to 1. If it is 1, reset it to 0.)

- 126 -

B-61813E/04

CONNECTION 8.HIGH-SPEED COUNTER MODULE

NOTE

1 Once the PRS bit has been inverted, do not change

the content of the DTOH, DTOM, DTOL, or CTRL

within the period of two ladder cycle scans.

Also do not invert the PRS bit again within the same

period.

2 It takes about 5 ms for the counter to be preset since

the inversion of the PRS bit.

Control example 1:

(Hatching

means that the bit can be either 0 or 1.)

Counter

Preset

Control example 2:

(Hatching

means that the bit can be either 0 or 1.)

Counter

Preset

(3) Count

The following table lists the conditions for counting by this

module.

Condition

Status

CSP of

PSEL of

CE of

CSP of

external

CTRL

STTS

signal

Contact

Count (A/B phase pulse)

Open

Reset to 0.

"Open"

Contact

Connected to

Count (+/- pulse)

Reset to 0.

"Open"

0 V

• Contact "Open" in the above table means that the CSP pin is open (0 or

NEG).

- 127 -

8.HIGH-SPEED COUNTER MODULE CONNECTION

B-61813E/04

NOTE

The count value does not become negative. The

highest-order bit of the CNTS register is the TRA bit

(see Subsection 8.8.4).

Count-down: +1(00 0001H)→0(00

0000H)→+8,388,607(7F FFFFH)→+8,388,606(7F

FFFEH)

(4) Stopping counting

The following table lists the condition for this module to stop

counting.

Condition

Status

CSP of

PSEL of

CE of

CSP of

external

CTRL

STTS

signal

Count stop method 1

Contact

Count stop method 2

Reset to 1.

“Closed”

• Contact “Closed” in the above table means that 24 V is applied to the CSP

pin (1 or POS).

• The cross × in the above table means that the corresponding bit can be

either 0 or 1.

(The × state of the CSP pin of the STTS register corresponds to the state of

the external signal CSP.)

- 128 -

B-61813E/04

CONNECTION 8.HIGH-SPEED COUNTER MODULE

8.8.3

Setting Data

Data for some models (such as the FS15 and FS18) is in the opposite

order to that of the NC data. In this case, convert (rearrange) the data in

byte units.

[Example of setting]

CTRL

DTOH

PRS

SELECT

DTOM

DTOL

Example 1 :

To preset the counter preset register with a specific value (the

counter is also set to preset value), follow the steps below.

(1) Preset the DTOH, DTOM, and DTOL with a desired value.

(2) Set SELECT to 001.

(3) Reverse the setting of the PRS (from 0 to 1 or from 1 to 0).

(4) Wait for two scanning periods.

• Another method for presetting the counter is to use the

MKS external signal (see Subsection 8.8.2). It takes a

maximum of 5 ms to preset using the first method, while

it takes only a maximum of 100 µs to preset using the

MKS external signal.

Example 2 :

To set the comparison control register with the setting (0 or 1) of

CMA, CMB, and CMC, follow the steps below.

(1) Set DTOH bits 0, 1, and 2 to the desired data.

(2) Set SELECT to 000.

(3) Reverse the setting of the PRS (from 0 to 1 or from 1 to 0).

(4) Wait for two scanning periods.

Example 3 :

To set comparison register B to a desired comparison value,

follow the steps below.

(1) Set DTOH, DTOM, and DTOL to the desired comparison

value.

(2) Set SELECT to 011.

(3) Reverse the setting of the PRS (from 0 to 1 or from 1 to 0).

(4) Wait for two scanning periods.

The result of comparing comparison registers A, B, and C with the

pulse counter is output via OUT0 to OUT2 of connector C49 of this

counter module (A → OUT0, B → OUT1, and C → OUT2).

Their output status is output via OUT0 to OUT2 of the LED indication

panel (A → OUT0, B → OUT1, and C → OUT2).

The result of comparison can be confirmed by checking STTS bits 0, 1,

and 2 (CMPA, CMPB, and CMPC) with the PMC.

- 129 -

8.HIGH-SPEED COUNTER MODULE CONNECTION

B-61813E/04

8.8.4

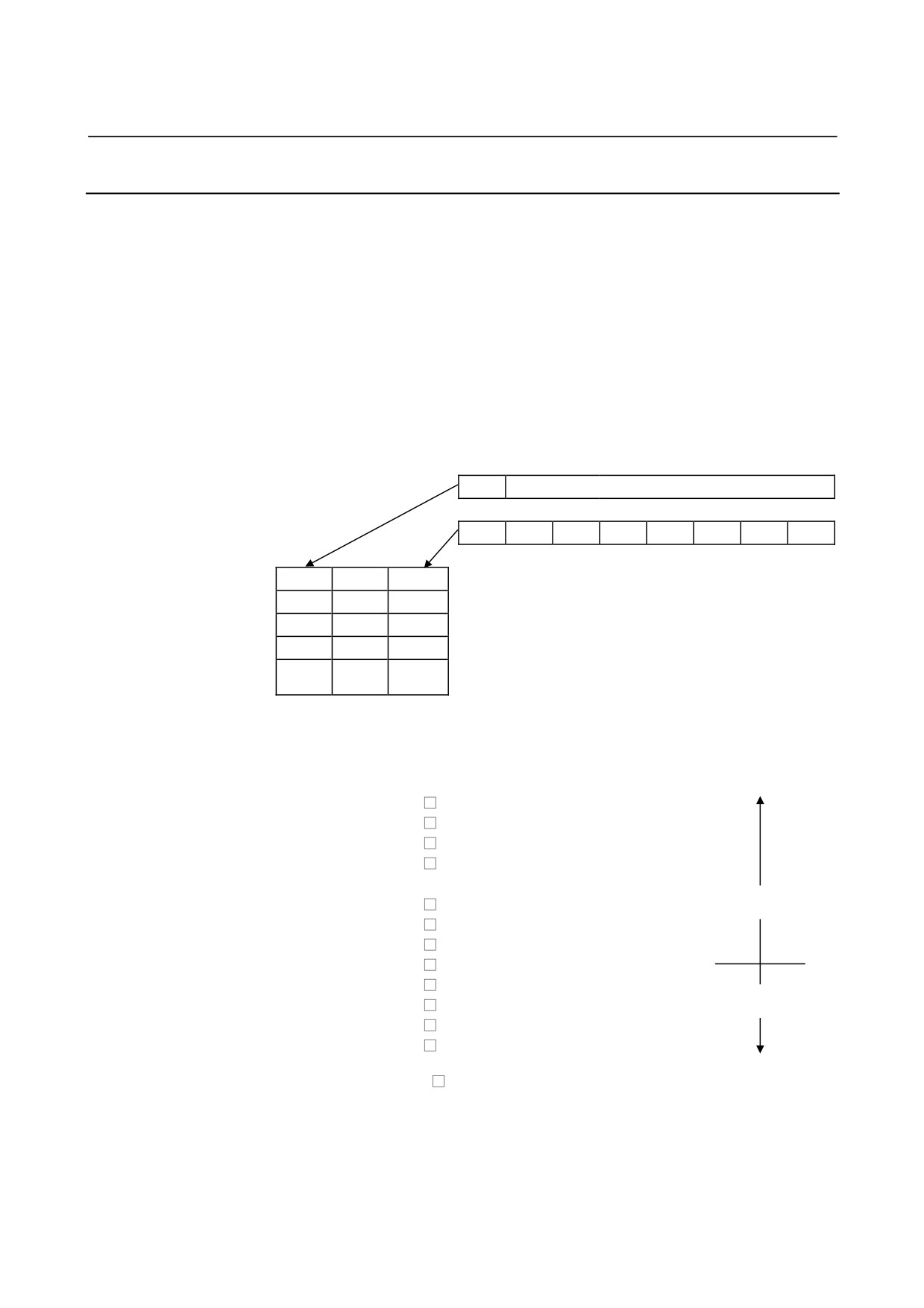

Reading Data

The CNTS and STTS are two of the four input bytes. The most

significant bit, TRA, of the CNTS and the most significant bit, TRB, of

the STTS can be used to determine whether the count data is correct. If

both TRA and TRB are 0 or 1, the count data is correct. The

time during which the TRA and TRB bits have a different value from

each other is abut 2 msec.

In almost all cases, both TRA and TRB will be 0 or 1 when you view the

diagnostic display. (Do not determine that the data has not changed

because of the fact that the TRA and TRB do not become 0 or 1

alternately.) Note that the count data does not take a negative

value.

(CNTS)

TRA

Counter H

(STTS)

TRB

ALM

CSP

CMPC

CMPB

CMPA

The TRA and TRB bits provide timing signals used to check

count data. The count data is 3 bytes. After sent to the host

TRA

TRB

Validity

via the I/O Link, its 2 bytes (CNTS and CNTM bytes) are first

Correct

written to memory. If the count data is accessed at this

Incorrect

moment, it does not represent a true value because the

Incorrect

CNTL remains in the previous state. Both the TRA and TRB

bits become 0 or 1 only after all 4 bytes (3 count data bytes +

Correct

1 STTS byte) are written to memory.

The counter assumes the following data when it is incremented or

decremented.

Contents of [ CNTS CNTM CNTL

]

0000000 00000000 00000010

0000000 00000000 00000001

0000000 00000000 00000000

1111111 11111111 11111111

Increment

0000000 00000000 00000011

0000000 00000000 00000010

0000000 00000000 00000001

0000000 00000000 00000000

1111111 11111111 11111111

Decrement

1111111 11111111 11111110

1111111 11111111 11111101

1111111 11111111 11111100

The square

represents the TRA. (The most significant bit is the TRA.

It is not a sign bit.)

- 130 -

B-61813E/04

CONNECTION 8.HIGH-SPEED COUNTER MODULE

8.9

EXAMPLE OF STARTING UP ACT01A

8.9.1

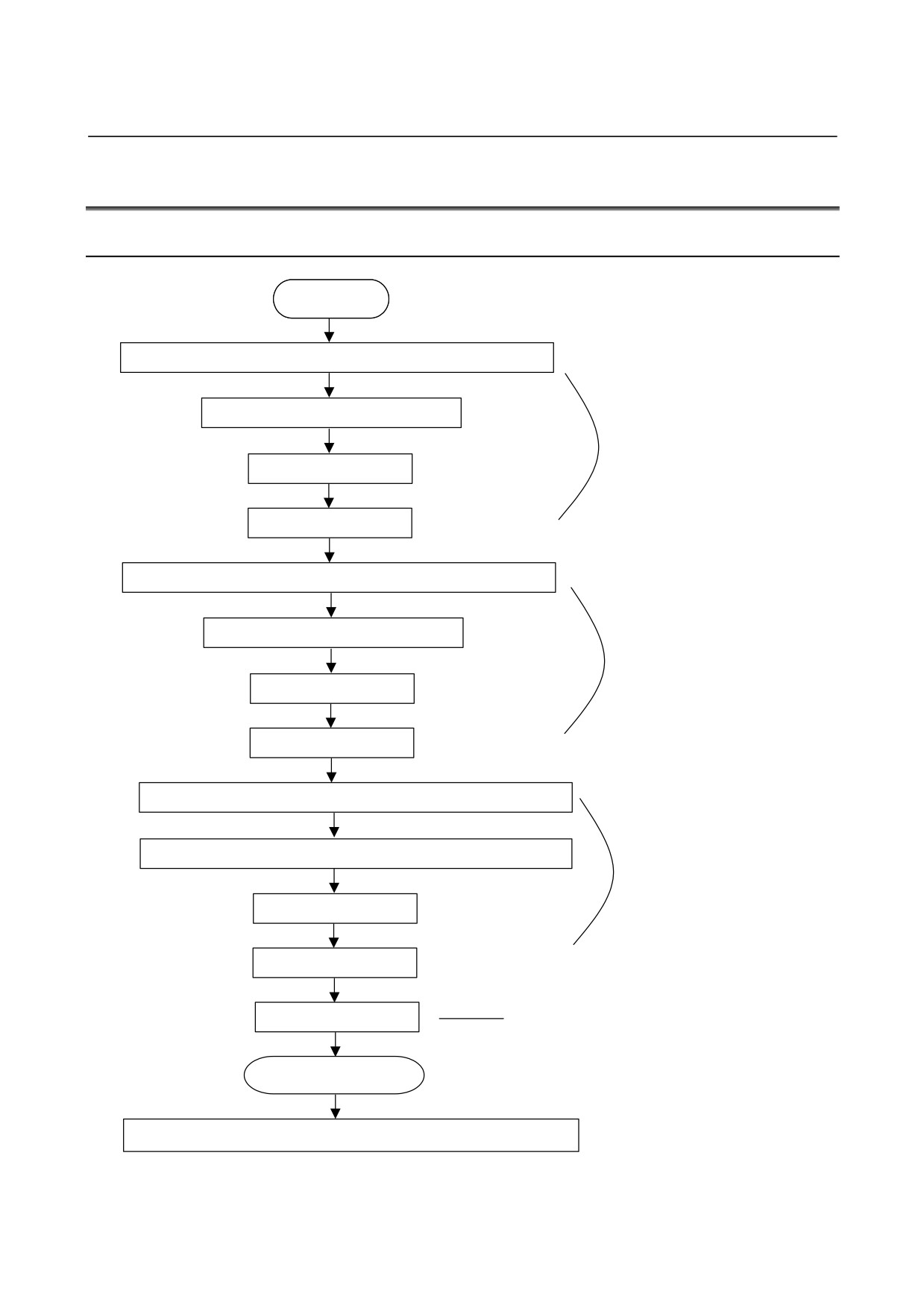

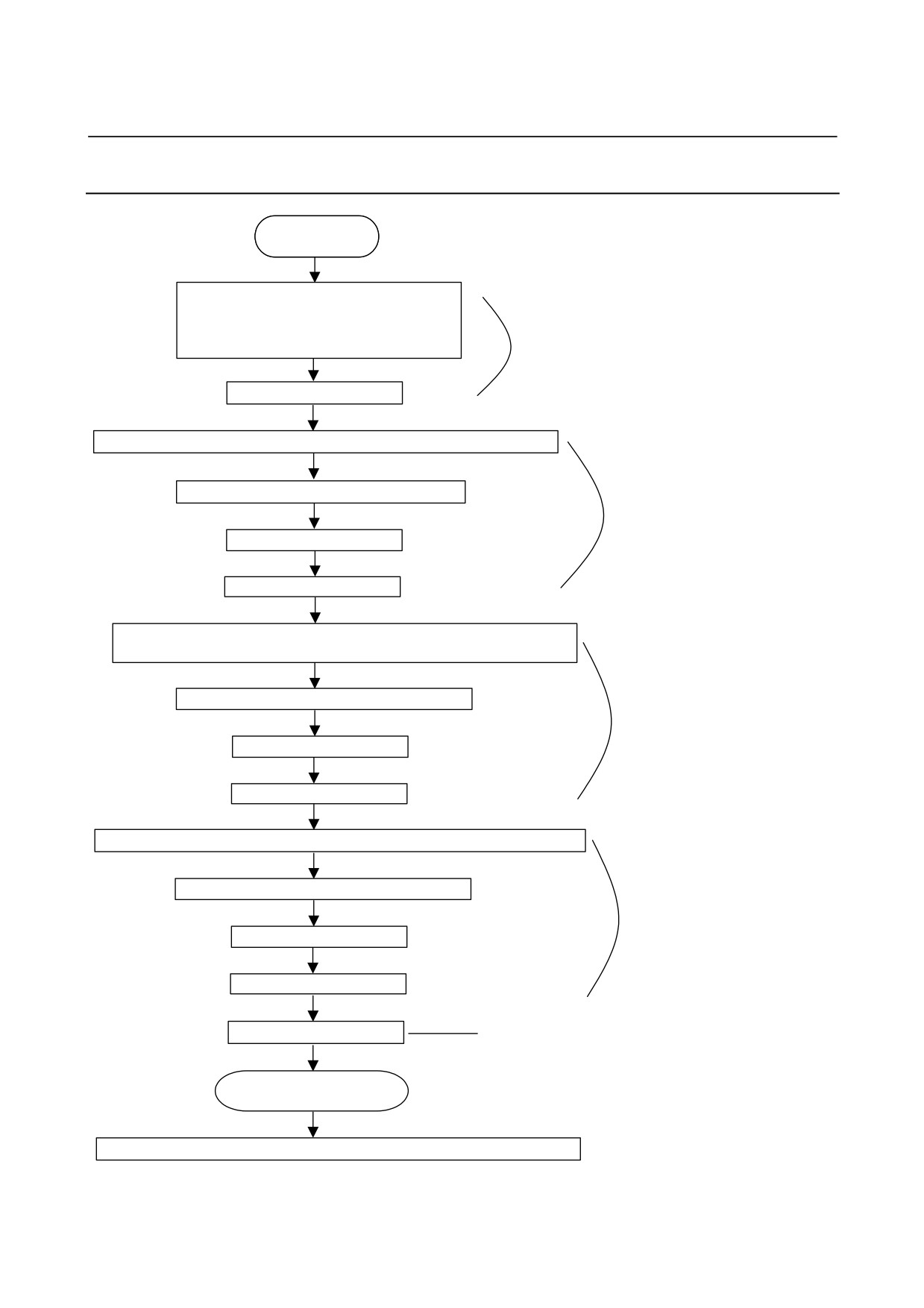

Mode A Startup Flowchart

Start

Note: The PRS bit is reset to "0" at the start.

Load DTOH, DTOM, and DTOL with desired preset values.

Set SELECT to 001.

Preset values are specified.

Set PRS to 1.

Wait for 2 scan cycles.

Load DTOH bits 0 to 2 with desired value.

Set SELECT to 000.

Compare output

values are specified.

Set PRS to 0.

Wait for 2 scan cycles.

Load DTOH, DTOM, and DTOL with desired comparison values.

Comparison values are specified.

Note: If compare registers B and

Set SELECT to 010 (to select compare register A).

C are also to be used,

repeat these steps for

them with different

SELECT values.

Set PRS to 1.

Note: The PRS bit is inverted (0

→ 1 or 1 → 0) each time a

value is specified.

Wait for 2 scan cycles.

Set CE to 1.

Counting is enabled.

Start counting.

*1 The CNTH is the 7 low-order bits

Count values are the CNTH^(*1), CNTM, and CNTL that are read when TRA = TRB.

of the CNTS.

- 131 -

8.HIGH-SPEED COUNTER MODULE CONNECTION

B-61813E/04

8.9.2

Example of Mode A Ladder

Allotment

Address

Group

Base

Slot

Module name Address

Group

Base

Slot

Module name

The ACT01A is allocated to X0010 to X0013 and Y0010 to Y0013.

Y0000 to Y0003 are the addresses used to confirm count values.

Ladder example

R0100.1 is used as a normally ON coil.

The timer is used to generate a timing signal at

intervals of 16 ms (2 scan cycles).

R0000.0 is turned on 16 ms (2 scan cycles)

after RUN.

R0000.1 is turned on 32 ms (4 scan cycles)

after RUN.

R0000.2 is turned on 48 ms (6 scan cycles)

after RUN.

R0000.3 is turned on 64 ms (8 scan cycles)

after RUN.

- 132 -

B-61813E/04

CONNECTION 8.HIGH-SPEED COUNTER MODULE

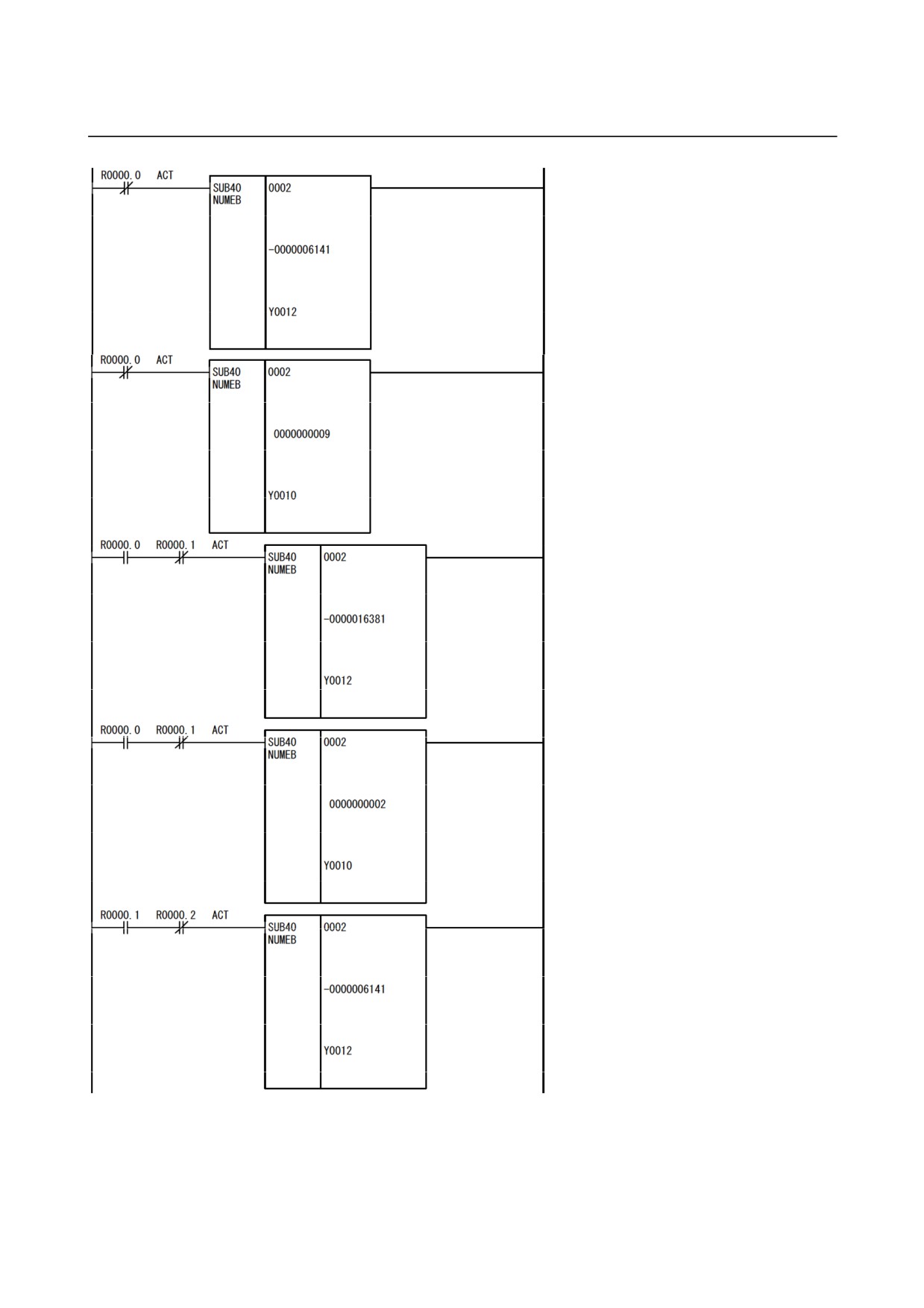

A preset value is specified right after RUN.

A preset value of +1000 is used here.

If +1000 → 0003E8h, the following are

written:

Y0011: DTOH ← 00h

Y0012: DTOM ← 03h

Y0013: DTOL ← E8h

If Y0012 to Y0013 have 1-word data, E803h

→ -6141 is written.

In addition, if SELECT = 001 and PRS = 1,

Y0010:00001001 is set to 9 (Y0011 is 0).

Compare register A is loaded with a

comparison value 2 scan cycles after RUN.

A preset value of +960 is used here.

If +960 → 0003C0h, the following are written:

Y0011: DTOH ← 00h

Y0012: DTOM ← 03h

Y0013: DTOL ← C0h

If Y0012 to Y0013 have 1-word data, C003h →

-16381 is written.

In addition, if SELECT = 010 and PRS = 0,

Y0010:00000010 is set to 2 (Y0011 is 0).

Compare register B is loaded with a

comparison value 4 scan cycles after RUN.

A preset value of +1000 is used here.

If +1000 → 0003E8h, the following are written:

Y0011: DTOH ← 00h

Y0012: DTOM ← 03h

Y0013: DTOL ← E8h

If Y0012 to Y0013 have 1-word data, E803h →

-6141 is written.

- 133 -

8.HIGH-SPEED COUNTER MODULE CONNECTION

B-61813E/04

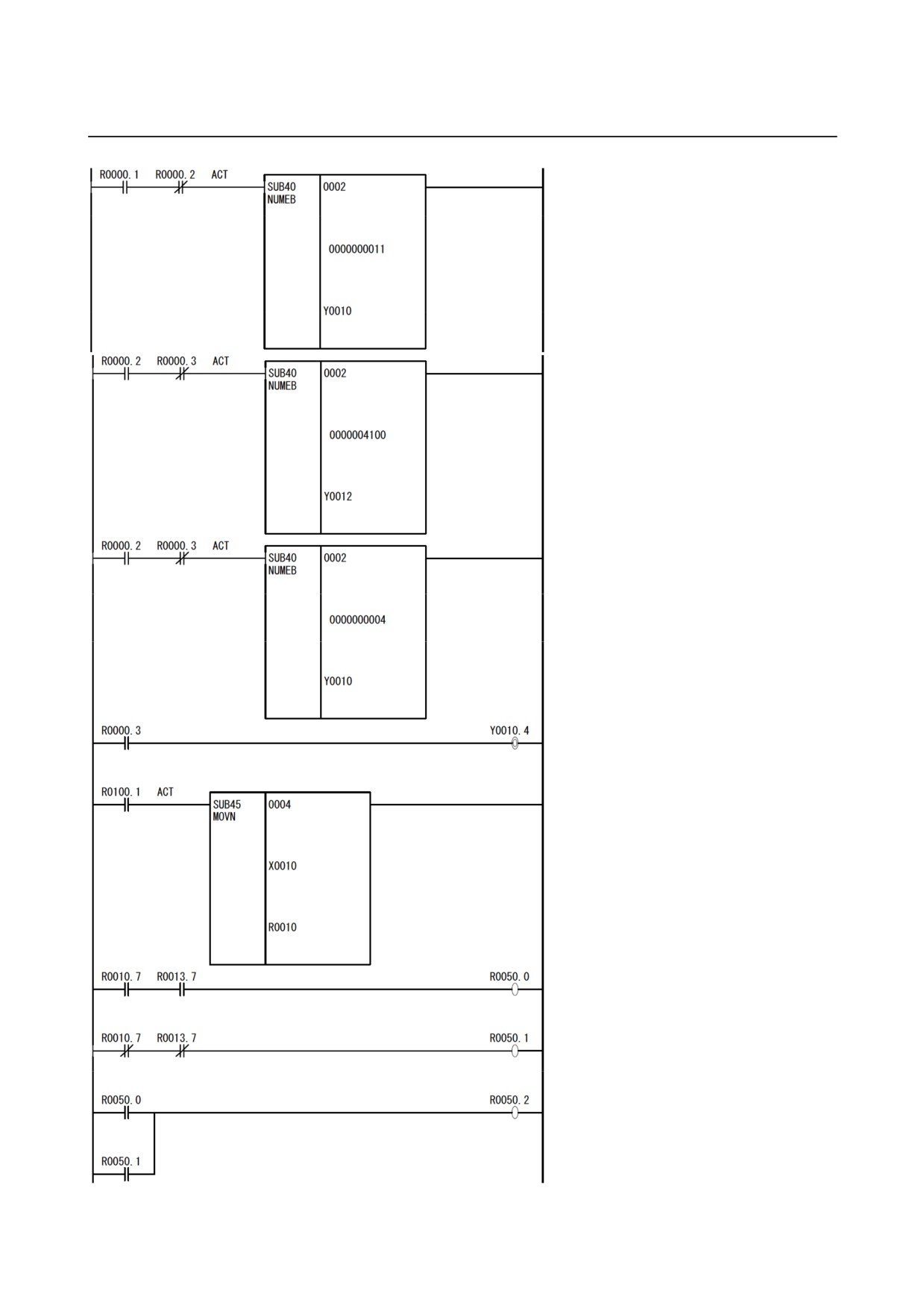

In addition, if SELECT = 011 and PRS = 1,

Y0010:00001011 is set to 11 (Y0011 is 0).

Compare register C is loaded with a

comparison value 6 scan cycles after RUN.

A preset value of +1040 is used here.

If +1040 → 000410h, the following are written:

Y0011: DTOH ← 00h

Y0012: DTOM ← 04h

Y0013: DTOL ← 10h

If Y0012 to Y0013 have 1-word data, 1004h →

+4100 is written.

In addition, if SELECT = 100 and PRS = 0,

Y0010:00000100 is set to 4 (Y0011 is 0).

The counter is enabled 8 scan cycles after

RUN.

X0010 to X0013 are sent to R0010 to R0013 to

maintain data consistency.

A timing signal indicating TRA = TRB is

generated.

If TRA = TRB = 1 or TRA = TRB = 0, R50.2

becomes 1.

- 134 -

B-61813E/04

CONNECTION 8.HIGH-SPEED COUNTER MODULE

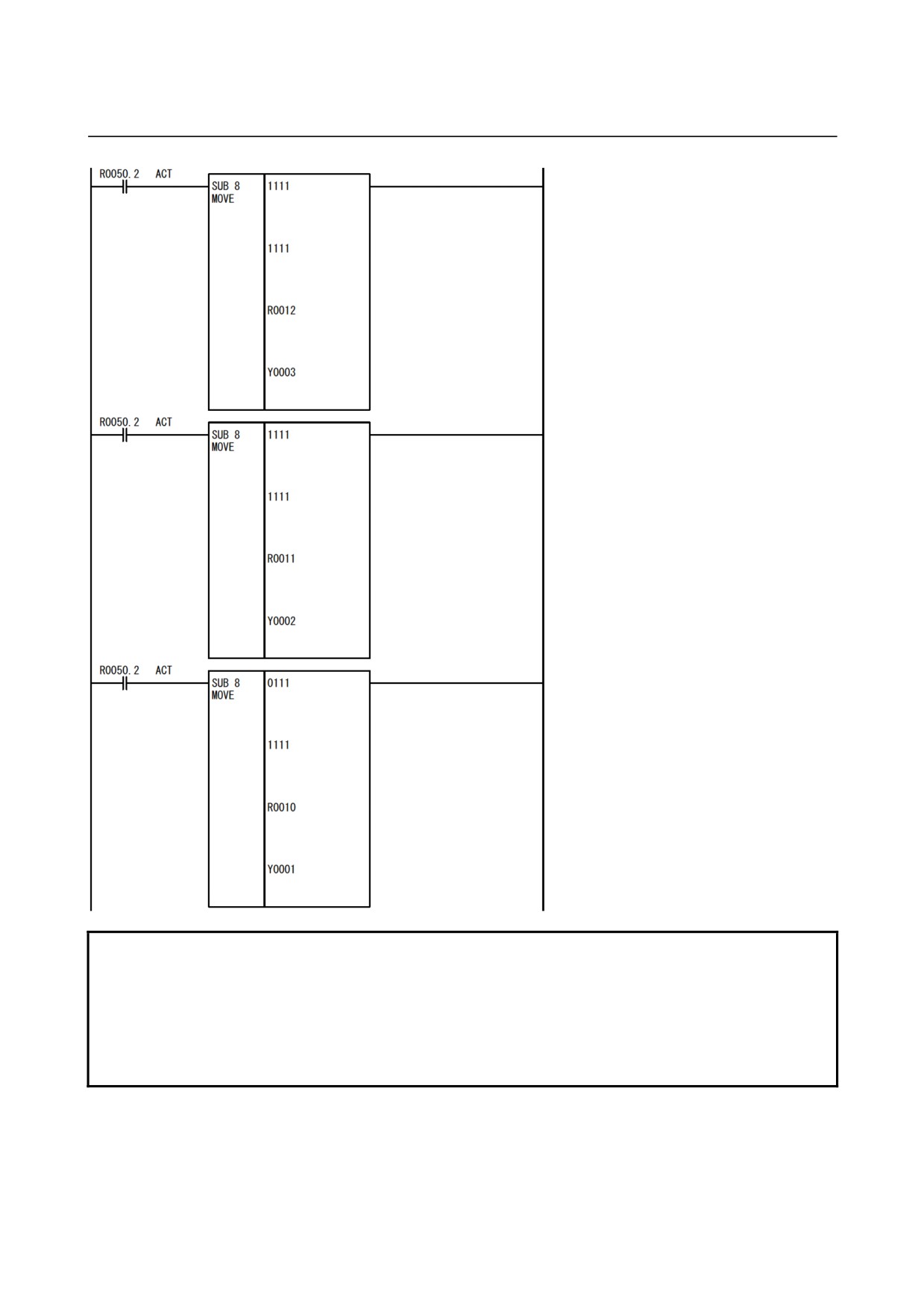

The counter value is output to Y0001 to Y0003

when TRA = TRB.

CNTH→Y0001

CNTM→Y0002

CNTL→Y0003

The highest-order bit (TRA) is masked

because CNTH is 7-bit data.

NOTE

1 This sample ladder does not specify what the compare output is. To have it specify,

perform the same operation as for setting the compare register by changing the

SELECT value. Note that it is necessary to invert the PRS bit (0 → 1 or 1 → 0) each

time a value is specified.

2 The compare output value and comparison value can be specified in any order until

CE = 1 (counter enable).

- 135 -

8.HIGH-SPEED COUNTER MODULE CONNECTION

B-61813E/04

8.9.3

Mode B Startup Flowchart

Start

Note: For both modes A and B, the PRS bit is reset to "0" at the start.

CTRL:0Fh (SELECT=7, PRS=1)

DTOH:01h

DTOM:00h

DTOL:00h

Mode B is entered.

Write the above values.

Wait for 2 scan cycles.

Load DTOH, DTOM, and DTOL with desired preset values.

Preset values are specified.

Set SELECT to 22(16Hex).

Note: The PRS bit hereafter

works as the PRS bit (bit

5) for mode B.

Set PRS to 1.

Wait for 2 scan cycles.

Set DTOH, DTOM, and DTOL with compare results (8 bits) output,

Compare result output values are

respectively, for partition #0, #1, and #2.

specified.

Note: If compare result output

values for other partitions

Set SELECT to 16(10Hex).

(#3 to #16) are to be used,

repeat the same operation

by changing the SELECT

Set PRS to 0.

value.

Note: The PRS bit is inverted (0 →

1 or 1 →0) each time a

Wait for 2 scan cycles.

value is specified.

Comparison values are specified.

Set DTOH, DTOM, and DTOL with desired comparison values for partition #0.

Note: If comparison values for

other partitions (#1 to #15)

Set SELECT to 0.

are to be used, repeat the

same operation by

changing the SELECT

Set PRS to 1.

value.

Note: The PRS bit is inverted (0

→ 1 or 1 → 0) each time a

Wait for 2 scan cycles.

value is specified.

Set CE to 1.

Counting is enabled.

Start counting.

(*1)

The CNTH is the 7 low-order bits

Count values are the CNTH^(*1), CNTM, and CNTL that are read when TRA = TRB.

of the CNTS.

- 136 -

B-61813E/04

CONNECTION 8.HIGH-SPEED COUNTER MODULE

8.9.4

Example of Mode B Ladder

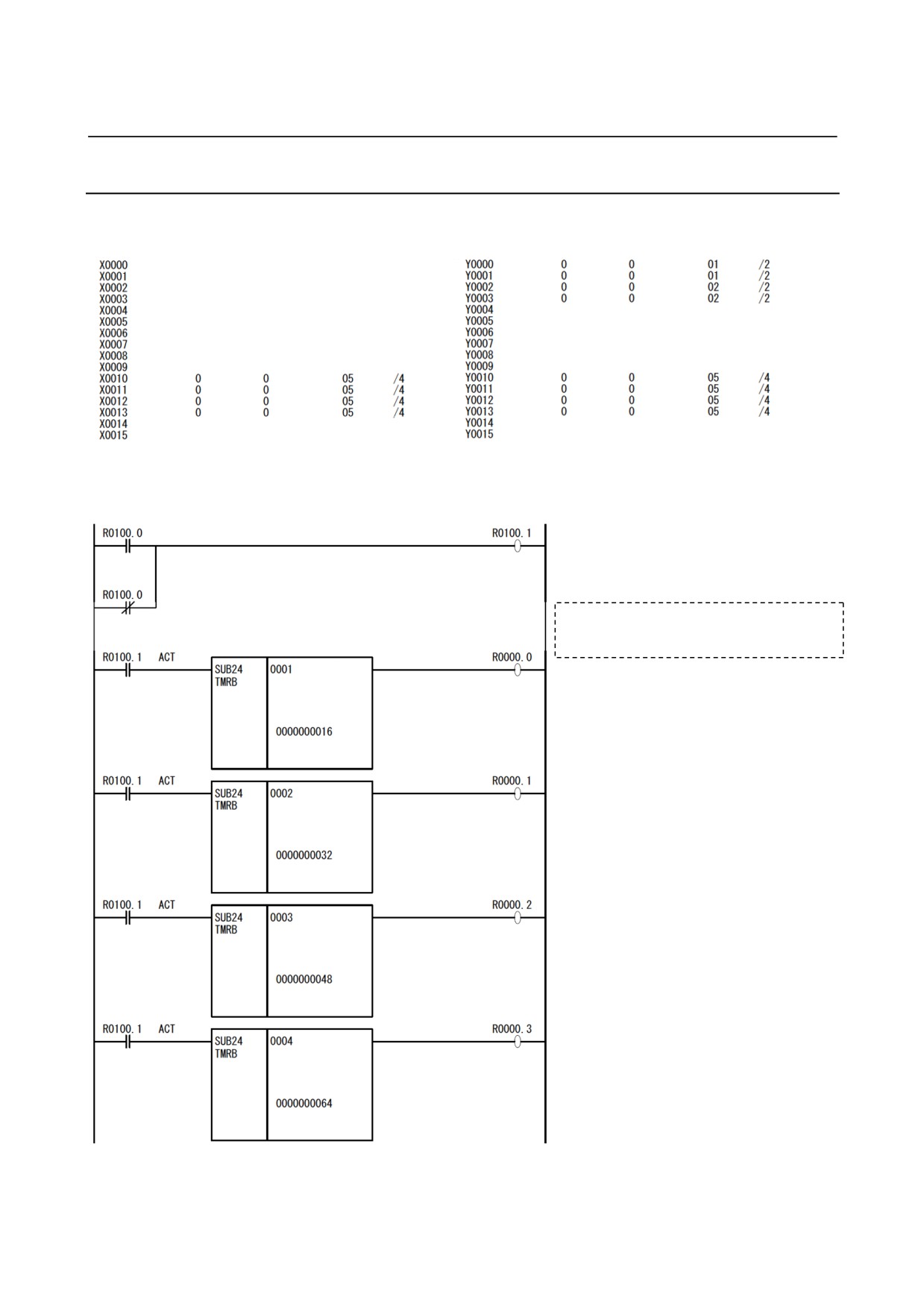

Allotment

Address

Group

Base

Slot

Module name Address

Group

Base

Slot

Module name

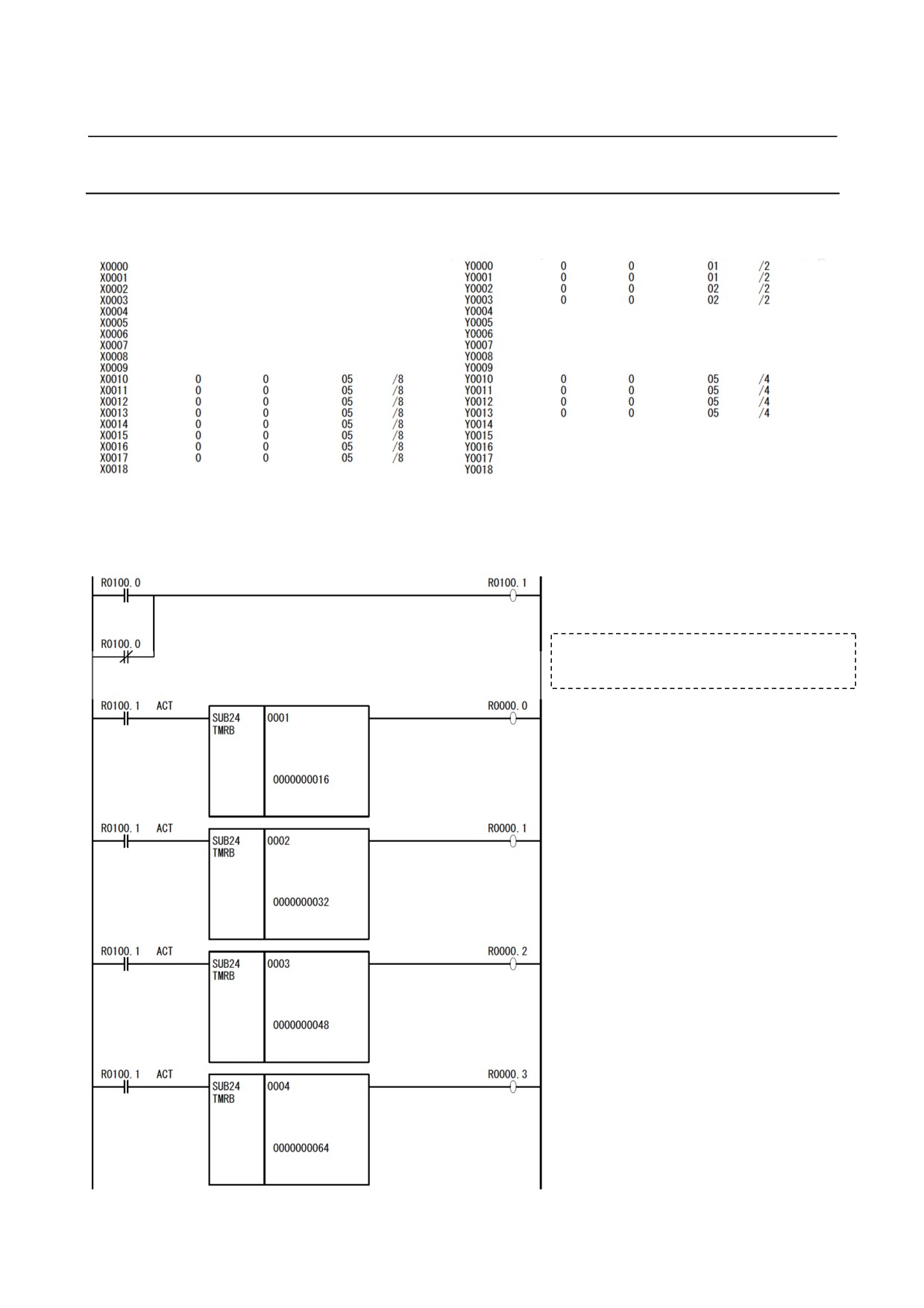

The ACT01A is allocated to X0010 to X0017 and Y0010 to Y0013.

Y0000 to Y0003 are the addresses used to confirm count values.

Ladder example

R0100.1 is used as a normally ON coil.

The timer is used to generate a timing signal at

intervals of 16 ms (2 scan cycles).

R0000.0 is turned on 16 ms (2 scan cycles)

after RUN.

R0000.1 is turned on 32 ms (4 scan cycles)

after RUN.

R0000.2 is turned on 48 ms (6 scan cycles)

after RUN.

R0000.3 is turned on 64 ms (8 scan cycles)

after RUN.

- 137 -

8.HIGH-SPEED COUNTER MODULE CONNECTION

B-61813E/04

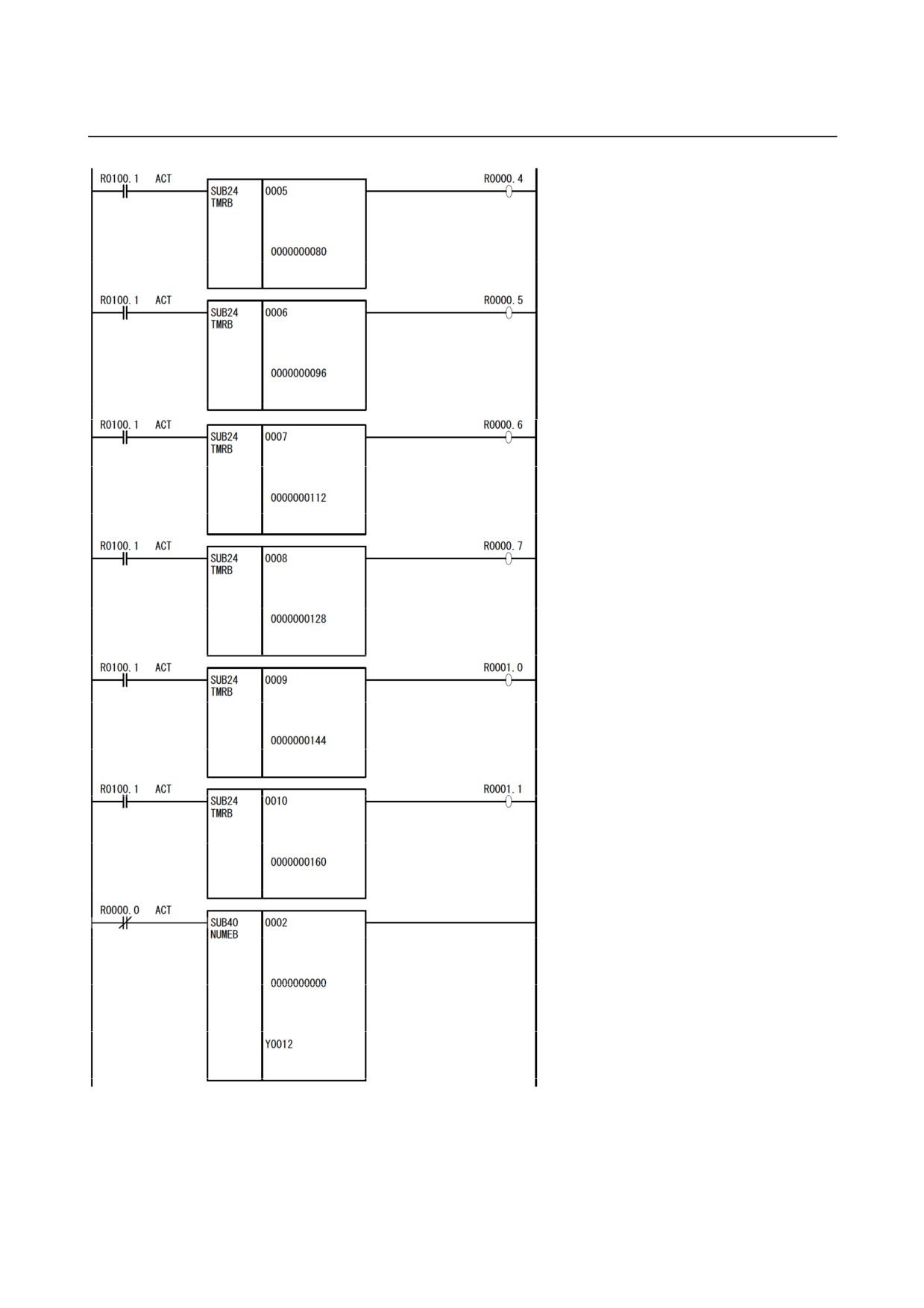

R0000.4 is turned on 80 ms (10 scan cycles)

after RUN.

R0000.5 is turned on 96 ms (12 scan cycles)

after RUN.

R0000.6 is turned on 112 ms (14 scan cycles)

after RUN.

R0000.7 is turned on 128 ms (16 scan cycles)

after RUN.

R0001.0 is turned on 144 ms (18 scan cycles)

after RUN.

R0001.1 is turned on 160 ms (20 scan cycles)

after RUN.

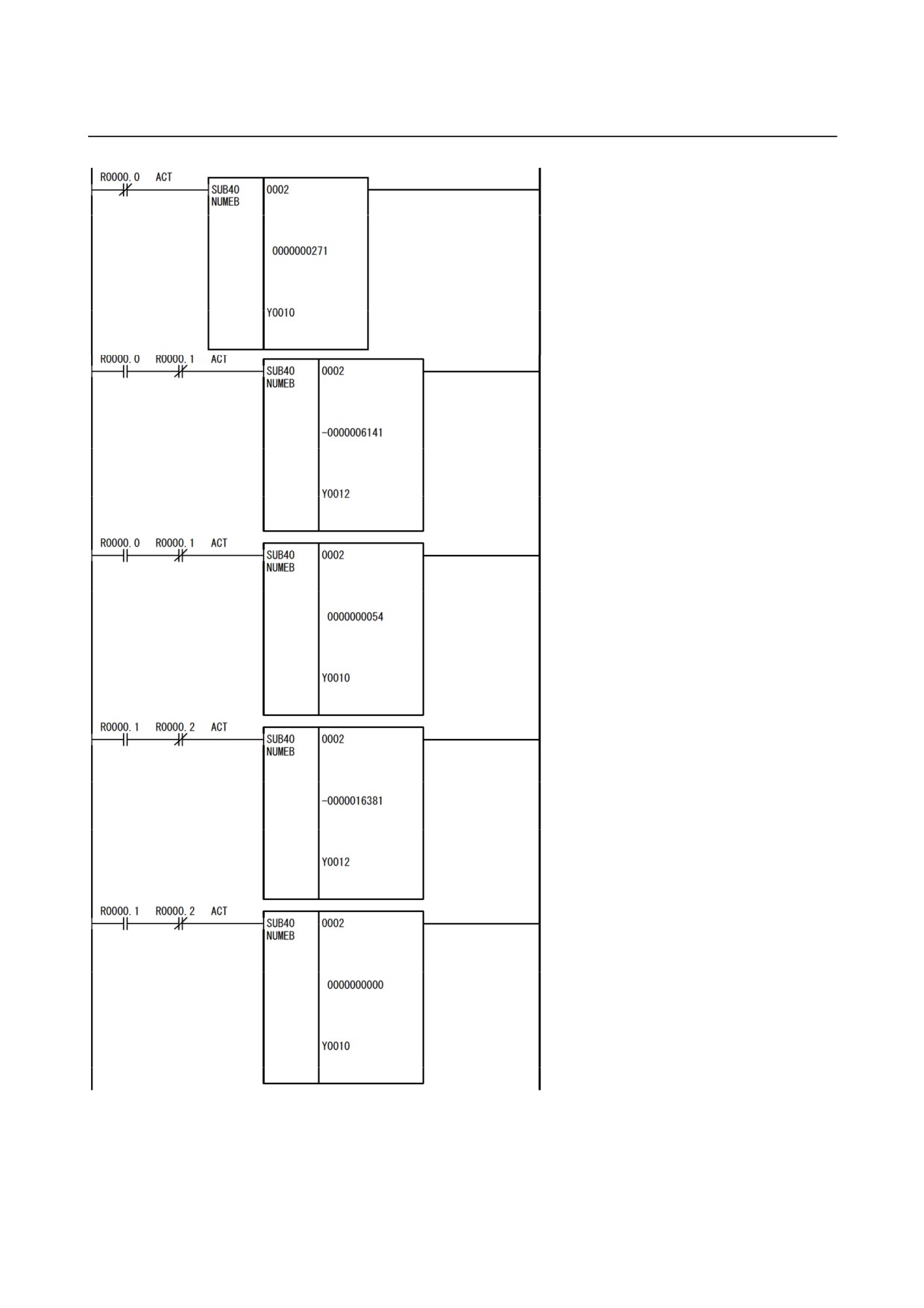

Mode B is entered right after RUN.

The following are written:

CTRL: 0Fh (SELECT = 7 and PRS = 1)

DTOH: 01h

DTOM: 00h

DTOL: 00h

- 138 -

B-61813E/04

CONNECTION 8.HIGH-SPEED COUNTER MODULE

Continued from mode B writing

A preset value is specified 2 scan cycles after RUN.

A preset value of +1000 is used here.

If +1000 → 0003E8h, the following are written:

Y0011: DTOH ← 00h

Y0012: DTOM ← 03h

Y0013: DTOL ← E8h

If Y0012 to Y0013 have 1-word data, E803h → -6141

is written.

In addition, if SELECT = 22(16h) and PRS = 1,

Y0010:00110110 is set to 36h → +54 (Y0011 is 0).

A comparison value for partition #0 is specified 4

scan cycles after RUN.

A comparison value of +960 is used here. (A range

from 0 to +960 becomes partition #0.)

If +960 → 0003C0h, the following are written:

Y0011: DTOH ← 00h

Y0012: DTOM ← 03h

Y0013: DTOL ← C0h

If Y0012 to Y0013 have 1-word data, C003h →

-16381 is written.

In addition, if SELECT = 0 and PRS = 0, Y0010 is

set to 0 (Y0011 is 0).

- 139 -

8.HIGH-SPEED COUNTER MODULE CONNECTION

B-61813E/04

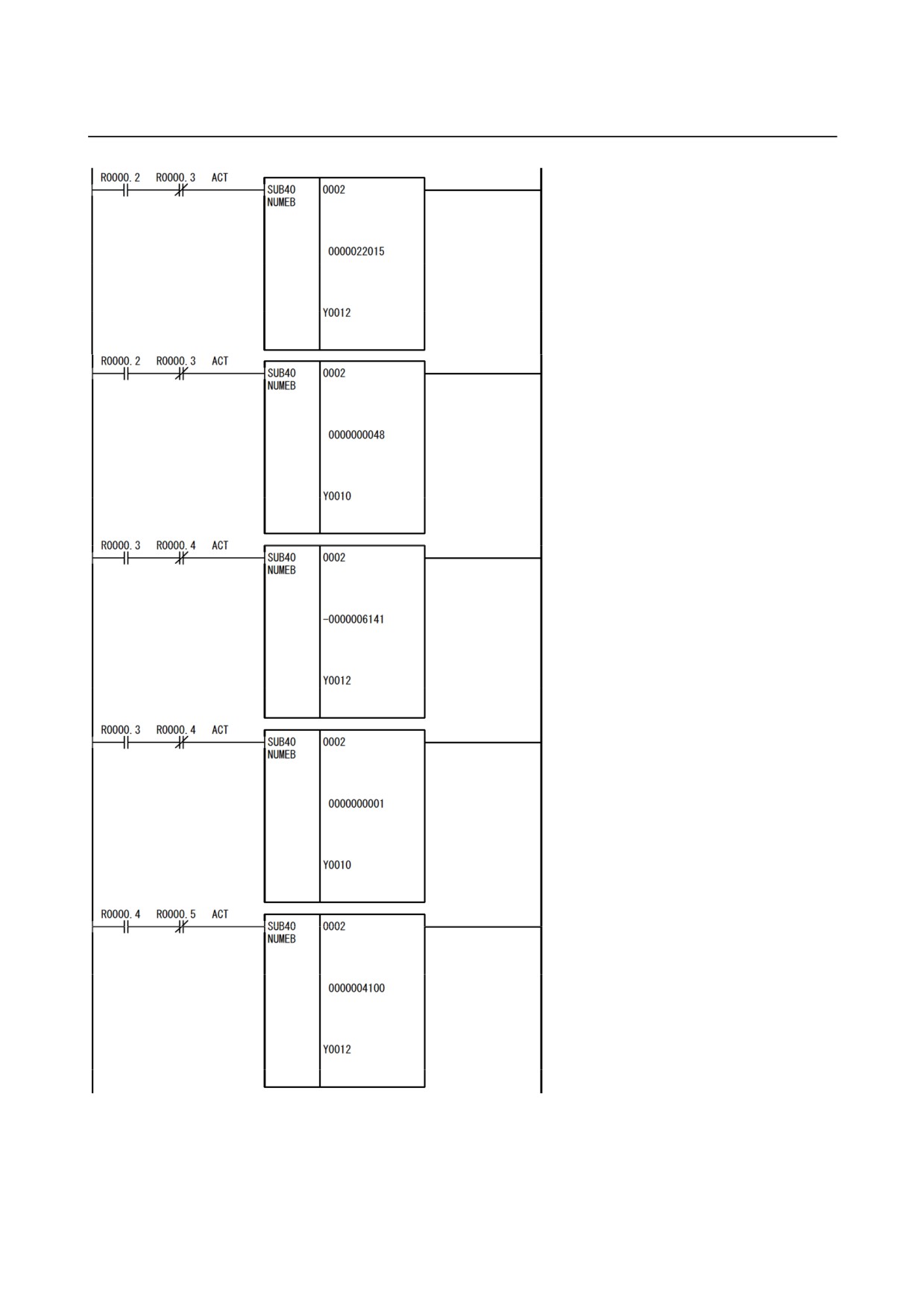

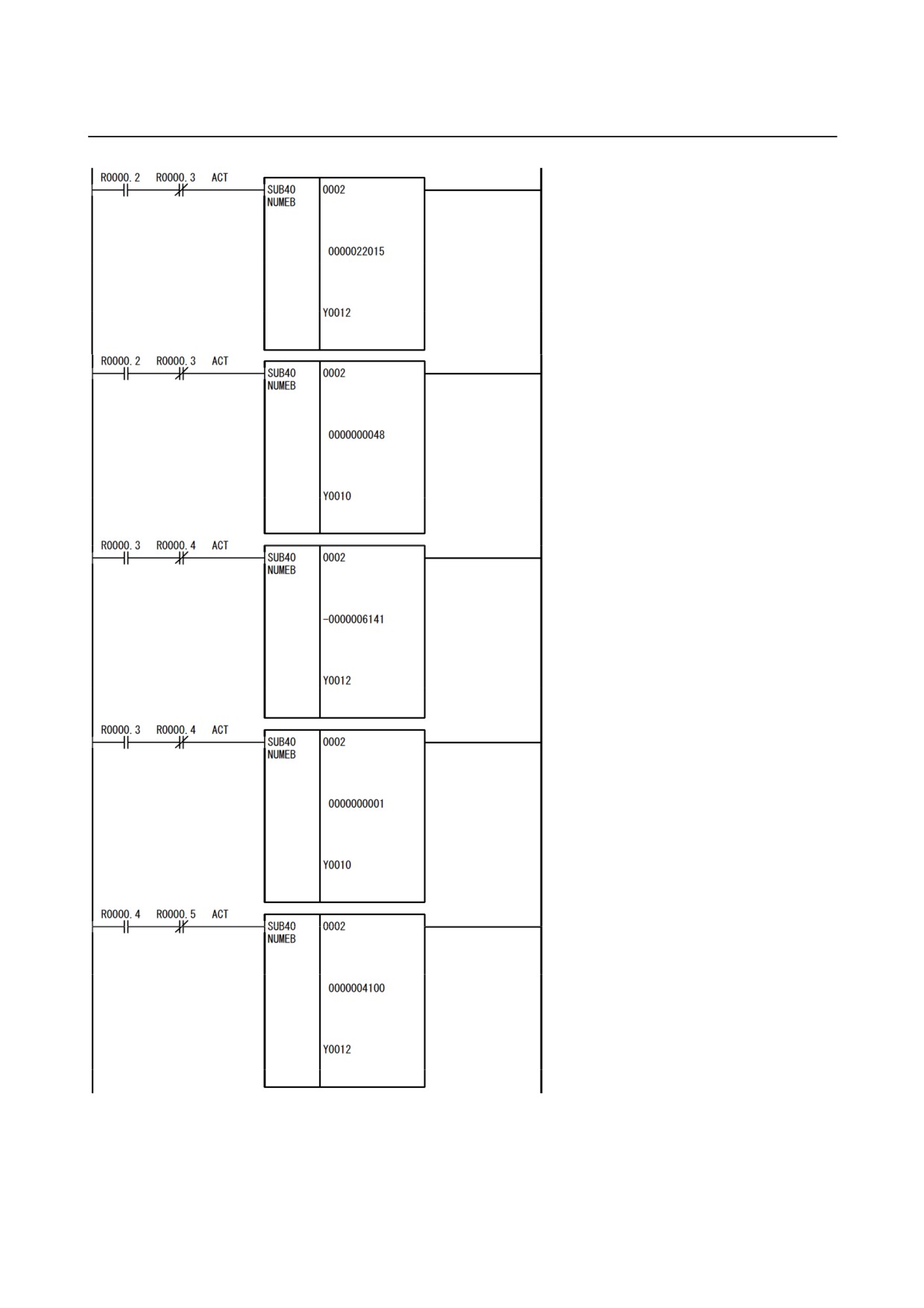

An output value for partition #0 to #2 is

specified 6 scan cycles after RUN.

To be specific, the following are output.

Partition #0: Y0011 ← 00h

Partition #1: Y0012 ← FFh

Partition #2: Y0013 ← 55h

If Y0012 to Y0013 have 1-word data, 55FFh →

+22015 is written.

In addition, if SELECT = 16(10h) and PRS = 1,

Y0010=0011000 is set to 30h → +48 (Y0011 is

0).

A comparison value for partition #1 is specified 8

scan cycles after RUN.

A comparison value of +1000 is used here. (A range

from +960 to +1000 becomes partition #1.)

If +1000 → 0003E8h, the following are written:

Y0011: DTOH ← 00h

Y0012: DTOM ← 03h

Y0013: DTOL ← E8h

If Y0012 to Y0013 have 1-word data, E803h → -6141

is written.

In addition, if SELECT = 1 and PRS = 0, Y0010 is set

to 00000001 (Y0011 is 0).

A comparison value for partition #2 is specified 10

scan cycles after RUN.

A comparison value of +1040 is used here. (A range

from +1000 to +1040 becomes partition #2.)

If +1040 → 000410h, the following are written:

Y0011: DTOH ← 00h

Y0012: DTOM ← 04h

Y0013: DTOL ← 10h

If Y0012 to Y0013 have 1-word data, 1004h →

+4100 is written.

- 140 -

B-61813E/04

CONNECTION 8.HIGH-SPEED COUNTER MODULE

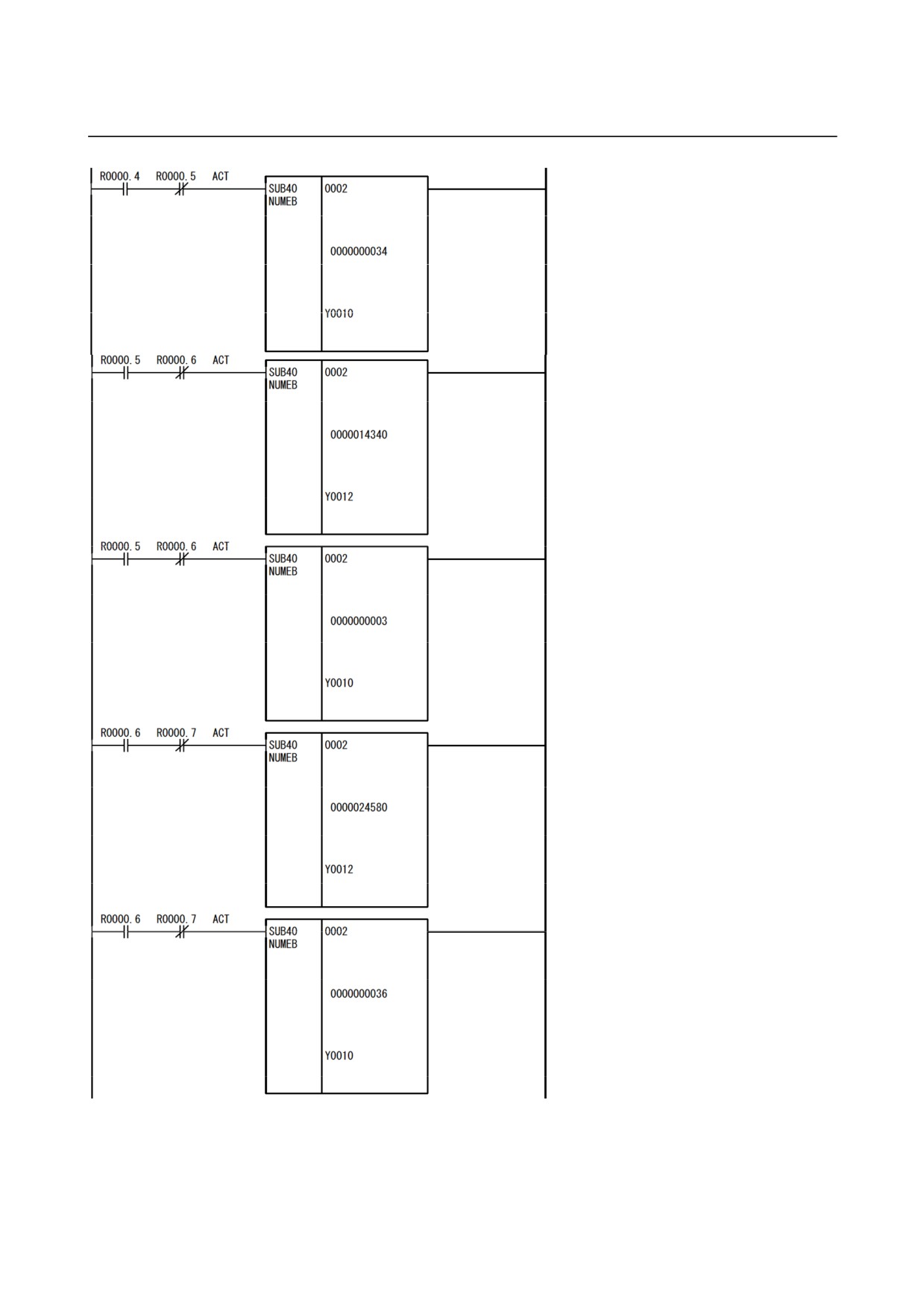

In addition, if SELECT = 2 and PRS = 1,

Y0010=00100010 is set to 22h → +34 (Y0011

is 0).

A comparison value for partition #3 is

specified 12 scan cycles after RUN.

A comparison value of +1080 is used here. (A

range from +1040 to +1080 becomes partition

#3.)

If +1080 → 000438h, the following are written:

Y0011: DTOH ← 00h

Y0012: DTOM ← 04h

Y0013: DTOL ← 38h

If Y0012 to Y0013 have 1-word data, 3804h →

+14340 is written.

In addition, if SELECT = 3 and PRS = 0,

Y0010=00000011 is set to +3 (Y0011 is 0).

A comparison value for partition #4 is specified

14 scan cycles after RUN.

A comparison value of +1120 is used here. (A

range from +1080 to +1120 becomes partition

#4.)

If +1120 → 000460h, the following are written:

Y0011: DTOH ← 00h

Y0012: DTOM ← 04h

Y0013: DTOL ← 60h

If Y0012 to Y0013 have 1-word data, 6004h →

+24580 is written.

In addition, if SELECT = 4 and PRS = 1,

Y0010=00100100 is set to 24h → +36 (Y0011

is 0).

- 141 -

8.HIGH-SPEED COUNTER MODULE CONNECTION

B-61813E/04

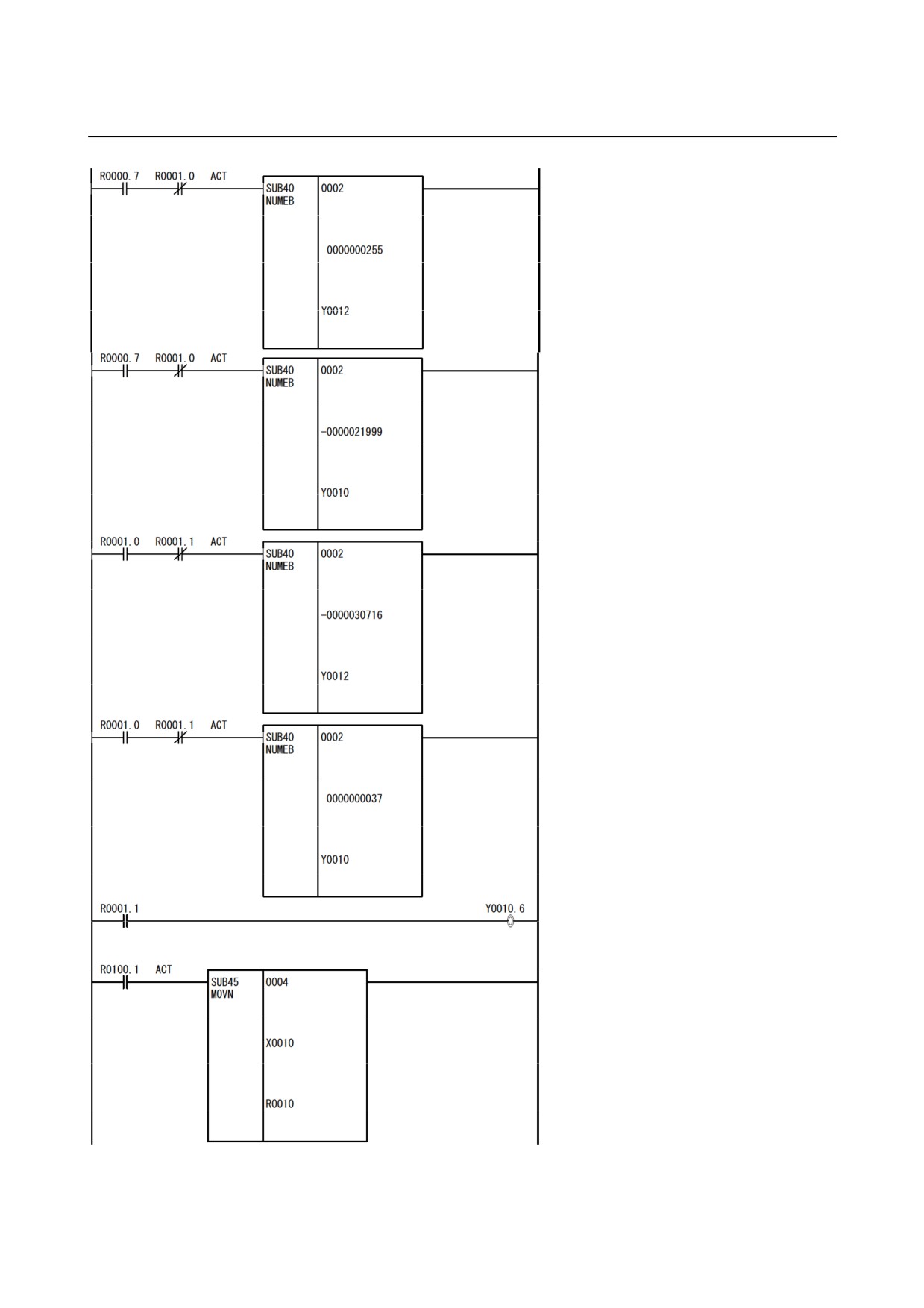

An output value for partition #3 to #5 is specified

16 scan cycles after RUN.

To be specific, the following are output.

Partition #3: Y0011 ← AAh

Partition #4: Y0012 ← FFh

Partition #5: Y0013 ← 00h

If Y0012 to Y0013 have 1-word data, 00FFh →

+255 is written.

In addition, if SELECT = 17(11h) and PRS = 0,

1-word data AA11h → -21999 is written to

Y0010 to Y0011 because Y0010 = 0001001 =

11h and Y0011 = AAh.

A comparison value for partition #5 is specified

18 scan cycles after RUN.

A comparison value of +1160 is used here. (A

range from +1120 to +1160 becomes partition

#5.)

If +1160 → 000488h, the following are written:

Y0011: DTOH ← 00h

Y0012: DTOM ← 04h

Y0013: DTOL ← 88h

If Y0012 to Y0013 have 1-word data, 8804h →

-30716 is written.

In addition, if SELECT = 5 and PRS = 1,

Y0010=00100101 is set to 25h → +37 (Y0011 is

0).

The counter is enabled 20 scan cycles after

RUN.

X0010 to X0013 are sent to R0010 to R0013 to

maintain data consistency.

- 142 -

B-61813E/04

CONNECTION 8.HIGH-SPEED COUNTER MODULE

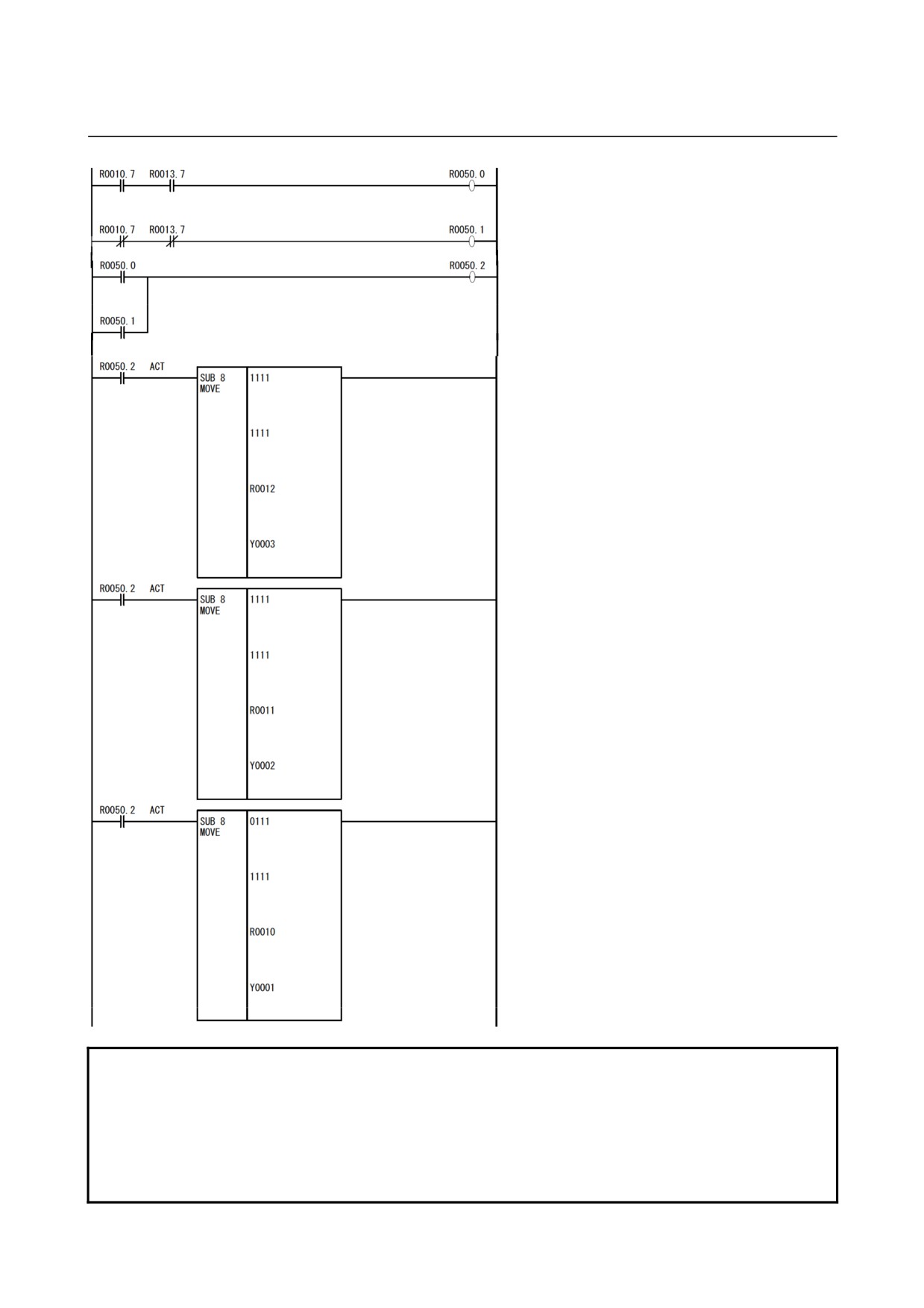

A timing signal indicating TRA = TRB is generated.

If TRA = TRB = 1 or TRA = TRB = 0, R50.2

becomes 1.

The counter value is output to Y0001 to Y0003

when TRA = TRB.

CNTH → Y0001

CNTM → Y0002

CNTL → Y0003

The highest-order bit (TRA) is masked because

CNTH is 7-bit data.

NOTE

1 This sample ladder does not set a comparison value or output value for partition #6 and

above. If comparison and output values for these partitions are to be used, repeat the

same operation as for partition #6 and below by changing the SELECT value.

Be sure to invert the PRS bit (0 → 1 or 1 → 0) each time a value is specified.

2 The comparison and compare output values for each partition can be specified in any

order until CE = 1 (counter enable).

- 143 -

B-61813E/04

CONNECTION

9.TEMPERATURE INPUT MODULE

9.1

OVERVIEW

A temperature input module is used to measure the temperature of

machine tools and similar equipment. The temperature input module

can be either of the following, depending on the type of the sensor used.

• Thermoresistance-type temperature input module: ATI04A

• Thermocouple-type temperature input module: ATI04B

These modules can measure temperature on up to four channels. For the

thermoresistance-type temperature input module, either JPt100Ω or

Pt100Ω can be selected. For the thermocouple-type temperature input

module, either K or J thermocouple input can be selected. This selection

is made using the PMC user program (ladder).

- 145 -

9.TEMPERATURE INPUT MODULE CONNECTION

B-61813E/04

9.2

TEMPERATURE INPUT MODULE SPECIFICATION

Input signal types and

• Types ATI04A

number of input

Three-wire thermoresistance (JPt100Ω)

channels

Three-wire thermoresistance (Pt100Ω)

ATI04B

J thermocouple (can also be used with

the tip grounded)

K thermocouple (can also be used with

the tip grounded)

• Number of input channels

2/4, for all for which the input is the same

Input signal switching

• User program (ladder)

method

Temperature

• Thermoresistance type (ATI04A)

measurement range

-50 to 300.0°C

and precision

Resolution

0.1°C

Overall precision

±1%FS

• Thermocouple type (ATI04B)

0 to 600.0°C

Resolution

0.1°C

Overall precision

±1%FS

Data sampling period

• 0.3 s per two channels

setting ^(Note)

• 0.5 s per four channels to 10 s per four channels

(4 s per four channels is assumed if no specification is

made)

System failure check

• Self-diagnosis

A watchdog timer is used.

• Abnormal temperature (including sensor input

disconnection)

Failure information about each abnormal channel

is sent to the PMC.

Interface with the PMC

• PMC → temperature module

Information format: Binary or bit

Signals: 32 points

• Temperature module → PMC

Information format: Binary or bit

Signals: 32 points

External connection

Connector

(Hirose Electric : HIF3BA-34PA-2.54DS)

NOTE

The actual response time is the sum of the time

required for the signal to pass the filter and the scan

time that is determined depending on the system1

- 146 -

B-61813E/04

CONNECTION

9.TEMPERATURE INPUT MODULE

9.3

PMC INTERFACE

9.3.1

PMC I/O Area

This temperature module uses an input/output area consisting of four

bytes for input and the same number of bytes for output. Each byte of

the input/output area has the following meanings. The terms "input"

and "output" are used in reference to the PMC. When input/output

addresses are assigned to the module, "/4" is used as the module name.

(1) Output (PMC → temperature module)

Addresses in the module

DO07 to DO00

Period for 4-channel automatic measurement mode

(lower 8 bits)

DO15 to DO08

Period for 4-channel automatic measurement mode

(higher 8 bits)

DO23 to DO16

Module setting data and timing data

DO31 to DO24

Module setting data and timing data

(2) Input (temperature module → PMC)

Addresses in the module

DI07 to DI00

CH1 temperature data, CH3 temperature data, or

abnormality data (lower 8 bits)

DI12 to DI08

CH1 temperature data, CH3 temperature data, or

abnormality data (higher 5 bits)

DI15 to DI13

Status signal

DI23 to DI16

CH2 temperature data, CH4 temperature data, or

abnormality data (lower 8 bits)

DI28 to DI24

CH2 temperature data, CH4 temperature data, or

abnormality data (higher 5 bits)

DI31 to DI29

Status signal

NOTE

If you are using the PMC-N, NA, or QA (the PMC for

Series 15 or F-D Mate), all addresses up to those

listed above can be used without modifying them if

the data is manipulated in byte (8-bit) units. When

manipulating data in word (16-bit) units, note that the

byte addresses are transposed as shown below.

Addresses for word-unit operation in the PMC-N, NA, and QA

PMC → Temperature module

Temperature module → PMC

High-order bits Low-order bits

Addresses in the module

DO07 to DO00

DO15 to DO08

DI07 to DI00

DI15 to DI08

DO23 to DO16

DO31 to DO24

DI23 to DI16

DI31 to DI24

- 147 -

9.TEMPERATURE INPUT MODULE CONNECTION

B-61813E/04

9.3.2

Measurement Mode

This temperature module can operate in any of the following three

measurement modes. The mode to use can be selected using a user

program (ladder).

(1)

2-channel measurement mode

This mode uses two channels, CH1 and CH2, for measurement.

Data on each channel is updated every 0.3 s.

(2)

4-channel automatic measurement mode

This mode uses four channels, CH1 to CH4, for measurement.

Input switching from CH1 and CH2 data to CH3 and CH4 data and

vice versa is performed automatically. Data on each channel is

updated at a specified interval, say, every 0.5 to 10 s.

(3)

4-channel manual measurement mode

This mode uses four channels, CH1 to CH4, for measurement. The

PMC can reference CH1 and CH2 data or CH3 and CH4 data at

the desired timing.

9.3.3

Details of Output Signals (PMC → Temperature Module)

DO07

DO06

DO05

DO04

DO03

DO02

DO01

DO00

DO15

DO14

DO13

DO12

DO11

DO10

DO09

DO08

DO22

DO19

DO18

DO17

DO16

DO26

DO25

DO24

(1) Before setting the module setting data bit (NC READY (DO16))

to "1", set the following bits.

DO00 (LSB) to DO15 (MSB):

Channel switching period for

4-channel automatic

measurement mode

These bits are set with a binary number representing the

channel switching period for the 4-channel automatic

measurement mode. They need not be set for the

2-channel mode.

The period can be varied in a range between 0.5 s and 10

s. When setting the bits, use a value ten times the

desired period.

(Example) 2 s → 20 (14h)

The valid data range is between 5 and 100 (64h). Any

value out of this range is regarded as being 40 (28h),

that is, 4 s. If nothing is specified, a period of 4 s is

again assumed.

- 148 -

B-61813E/04

CONNECTION

9.TEMPERATURE INPUT MODULE

DO17 :

Module type

This bit is set according to the type of the temperature

module being used.

0 :Thermocouple-type module (ATI04B)

1 :Thermoresistance-type module (ATI04A)

DO18 :

Sensor type

This bit is set according to the type of the temperature

sensor being used.

• ATI04A

0 : Pt

1 : JPt

• ATI04B

0 : K

1 : J

DO19 :

Reserved for future use

This bit must always be set to "0".

DO24 :

Number of channels

This bit is used to specify the number of channels to be

measured.

0 : 2 channels

1 : 4 channels (if 1 is selected, DO25 must also be

used.)

DO25 :

4-channel mode specification

This bit is used to select the 4-channel mode to be used.

0 :Automatic measurement (the period is specified

using DO00 to DO15.)

1 :Manual measurement (a request is issued using

DO22 and DO26 at every data read.)

Timing data

DO16 : NC READY

When the power is switched on, this bit is set to "1" to

cause the module setting data to be set in the

temperature module.

The NC READY bit is enabled only once after the

power is switched on. To rewrite the module setting

data, switch the power off and then on again.

- 149 -

9.TEMPERATURE INPUT MODULE CONNECTION

B-61813E/04

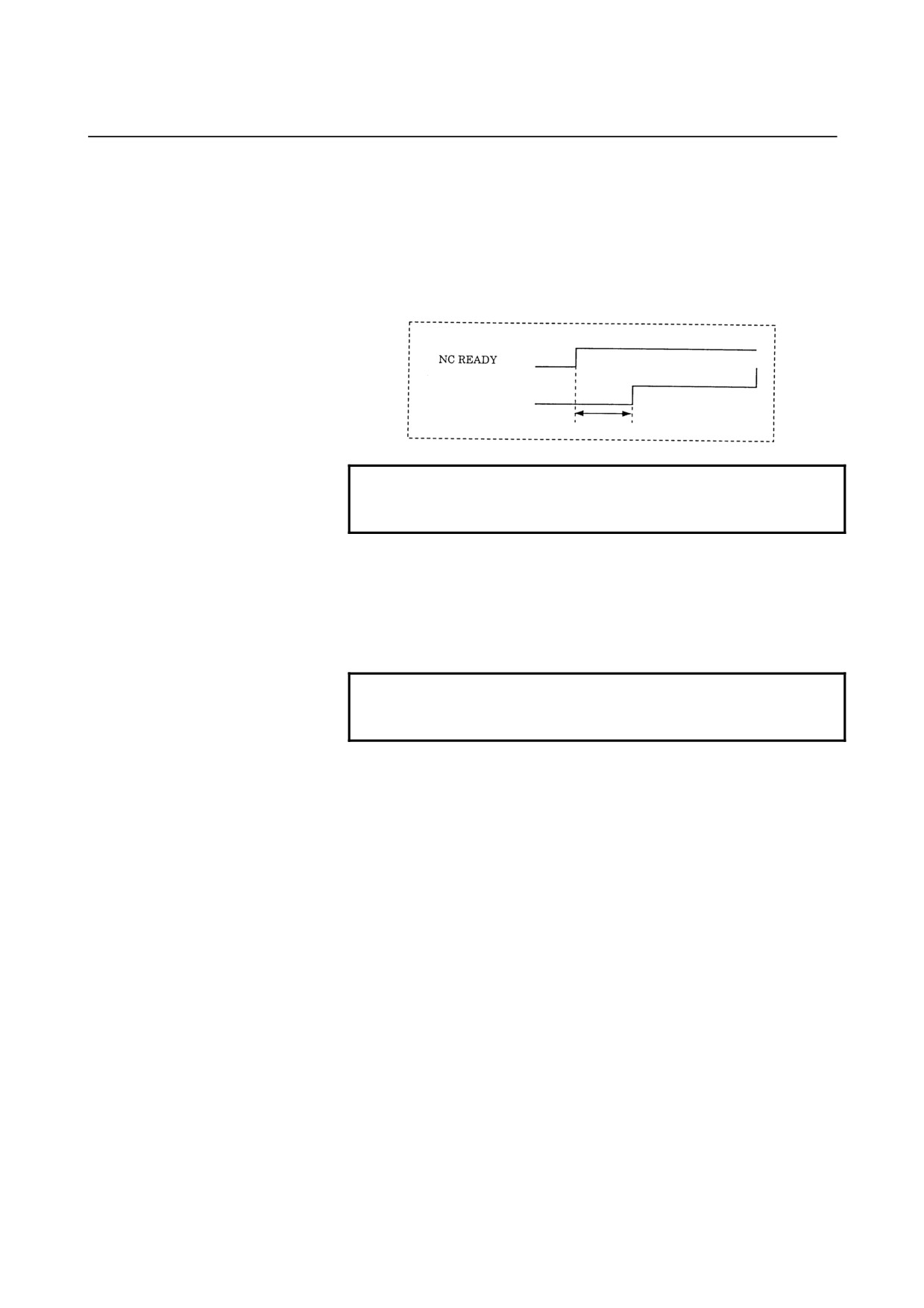

DO22 : READ request

This bit serves as the timing signal used in 4-channel

manual measurement mode. Setting the bit to "1" issues

a request for temperature data. When the input signal

data READY signal becomes "1", read the temperature

data.

This bit need not be set for 2-channel mode.

READ request

1 s or longer

NOTE

After setting the NC READY bit to "1", wait for one

second, and then set the READ request to "1".

DO26 : Channel select

This bit is used to specify channel switching for

4-channel manual measurement mode.

0: Channels 1 and 2

1: Channels 3 and 4

NOTE

See Section 9.5, "Timing Charts," for concrete

explanations about how to handle the timing data.

- 150 -

B-61813E/04

CONNECTION

9.TEMPERATURE INPUT MODULE

9.3.4

Details of Input Signals (Temperature Module → PMC)

(1) Status signals and CH1 temperature data, CH3 temperature data,

or abnormality data

DI07

DI06

DI05

DI04

DI03

DI02

DI01

DI00

DI15

DI14

DI13

DI12

DI11

DI10

DI09

DI08

•

Status signals

DI13 : Abnormality sign bit

1 : This bit is set to "1" when the temperature

input is abnormal. DI00 to DI12 are used to

describe the abnormality.

0 : DI00 to DI12 are used to indicate the

temperature data.

DI14 : CH1 data READY

1 : Read the CH1 temperature data from DI00

to DI12 when this bit is set to "1".

DI15 : CH3 data READY

1 : Read the CH3 temperature data from DI00

to DI12 when this bit is set to "1".

• CH1 temperature data, CH3 temperature data, or abnormality

data

DI00 (LSB) to DI12 (MSB):

These bits indicate temperature input data

(CH1/CH3) or abnormality data.

Temperature input data

The temperature input data is in binary. It is ten times the actual

temperature.

Example

(83EDh → 1005 → 100.5°C)

The highest three bits are status signals.

For the thermoresistance-type module (ATI04A), the DI12 bit is a sign

bit. (Negative data is represented in two's complement.)

Example

(9F9Ch → -10.0°C)

The highest three bits are status signals.

- 151 -

FANUC I/O Unit-MODEL A. CONNECTION AND MAINTENANCE MANUAL (B-61813E/04) - page 5
