FANUC Series 90-30 PLC. Installation and Hardware Manual (GFK-0356Q)

Cables

Cable Data Sheets

The next section of this chapter contains cable data sheets. These are listed in numerical order by

catalog number, where possible. However, some data sheets cover more than one catalog number,

so some catalog numbers may be out of order.

Cable data sheets are listed in this order:

Cable Data Sheet Catalog

Description

Numbers

IC647CBL704

Workstation Interface board to Series 90 CPU

IC690CBL701

PCM to Workmaster (IBM PC-XT)

IC690CBL702

PCM to IBM PC-AT

IC690CBL705

PCM to Workmaster II (IBM PS/2)

IC690CBL714

Series 90 Multidrop

IC693CBL300/301/302/312/313/314

I/O Bus Expansion cables, continuous shield. This data sheet also

includes information on building custom length I/O Bus Expansion

Cables.

IC693CBL303

Hand-Held Programmer cable, 6 feet (2 meters)

IC693CBL304/305

WYE cables - Port expansion cable s used with PCM 300,

PCM301, PCM311, and CMM311

IC693CBL306/307

Extension cables for 50-pin connectors on high-density I/O

modules

IC693CBL308/309

I/O Interface cables for 50-pin connectors on high-density I/O

modules

IC693CBL310

I/O Interface cable for 24-pin connectors on high-density I/O

modules, 10 ft. (3 m). Obsolete.

IC693CBL311/317/319/320

I/O Interface cables for 24-pin connectors on APU301/302

IC693CBL315

I/O Interface cable for 24-pin connectors on high-density I/O

modules, 10 ft. (3 m). Obsolete.

IC693CBL316

“Station Manager Cable.” Serial cable, 3-feet long, with 9-pin D-

shell to 6-pin RJ-11 connectors.

IC693CBL321/322/323

I/O straight connector cables, faceplate to terminal block, 24-pins.

Obsolete.

IC693CBL327/328

I/O right angle connector cables, faceplate to stripped leads

IC693CBL329/330/331/332/333/334

I/O right angle connector, faceplate to terminal block, 24-pin.

Includes information on cable kits IC693CBK002/003/004.

IC693CBL340/341

PTM interface cables. Connect between PTMPM module (mounts

in Series 90-30 baseplate) and PTMIM board (DIN-rail mounted).

GFK-0356Q

Chapter 10 Cables

10-7

IC647CBL704

Workstation Interface to Series 90 CPU (SNP Port) Cable

(Includes Instructions on Building Custom Length Cables)

Function of cable

The serial Work Station Interface cable has a 15-pin D connector on one end and a 37-pin D

connector on the other end. This cable connects the CPUs serial port to the Work station Interface

board installed in the programming computer through an isolated shielded, twisted pair.

Cable Specifications

Cable Length

10 feet (3 meters)

Connectors

CPU Side

15-pin male, D-subminiature type with M3 screws and AMP hood 207908-4, or

equivalent

Programmer Side

37-pin male, D-subminiature type with 4-40 screws and AMP hood 1-207908-0, or

equivalent

Hardware Kit

AMP 207871-1. Kit includes two metric screws and two screw clips.

Cable Type

24 AWG (.21 mm²), 30V computer grade. Extra flexible construction

recommended for short lengths.

Connecting the Cable

Attach the 15-pin D connector to the serial connector on the PLC power supply on the CPU

baseplate.

Attach the 37-pin D connector to the 37-pin D connector on the Work Station Interface board.

WSI

SERIAL

SERIES 90-30

SERIAL

CABLE

PROGRAMMER

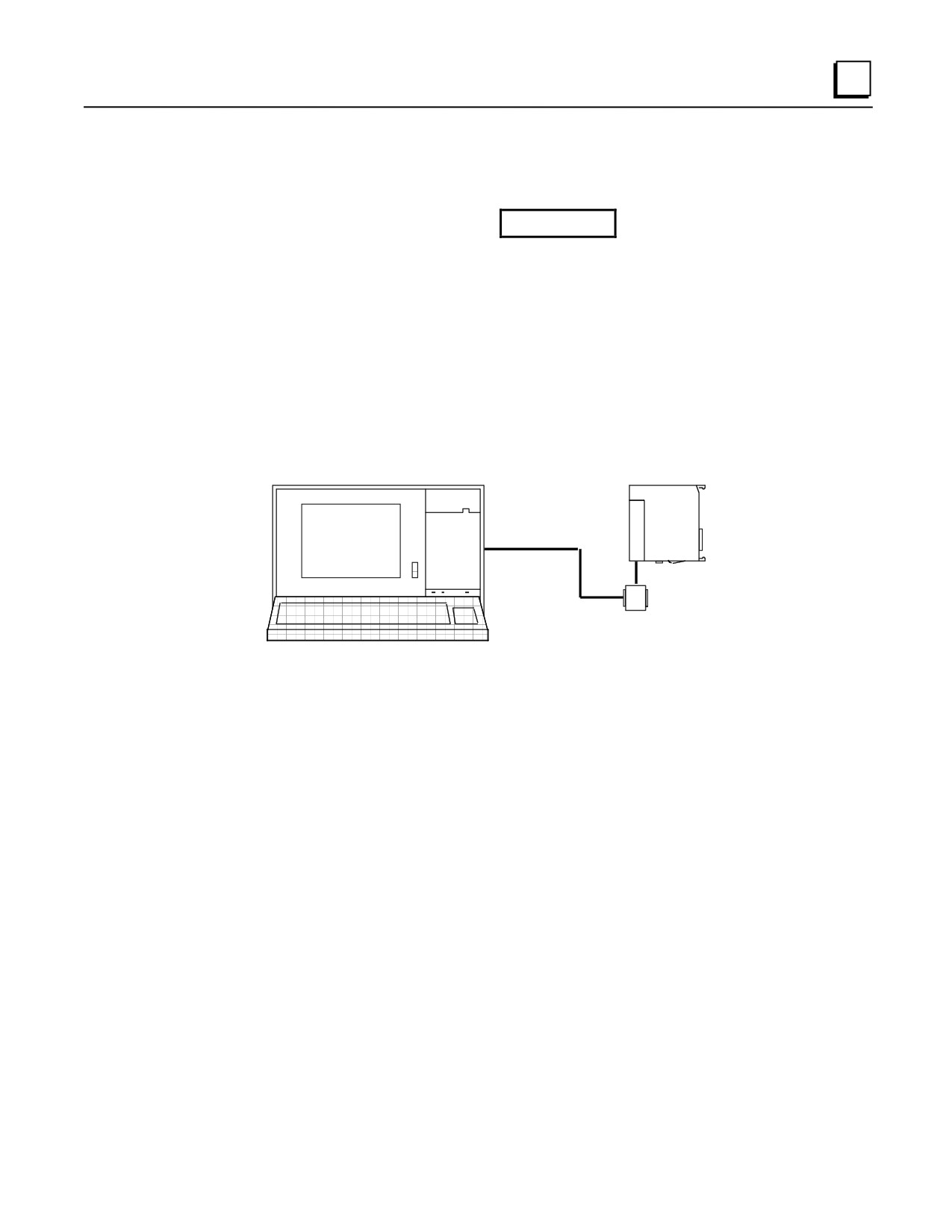

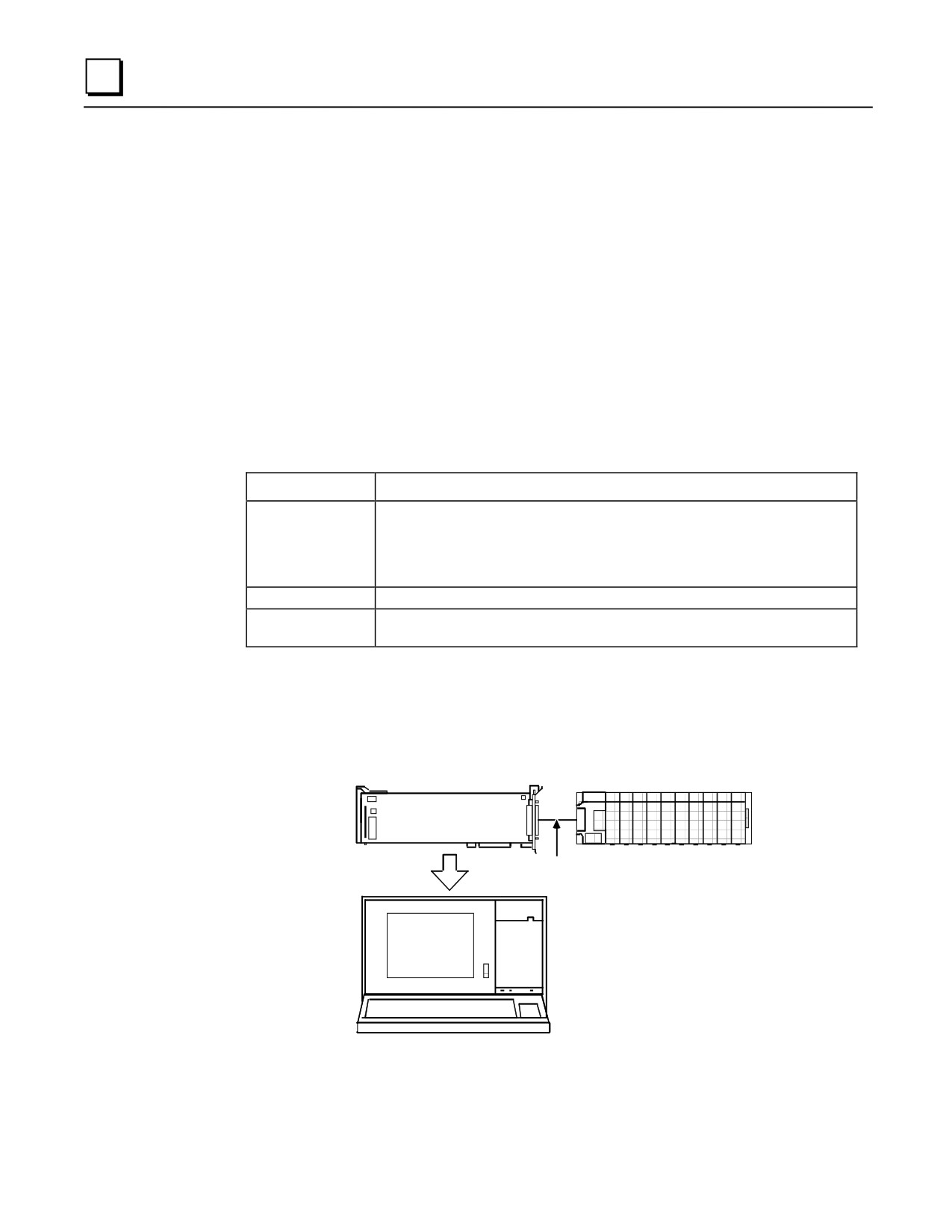

Figure 10-1. Serial Port to Work Station Interface Board Cable Connection

10-8

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q

Cables

Building Custom Length Cables

The following information is provided for those users who may want to build a serial cable with a

different length for connecting a Series 90 PLC to a Workmaster II computer.

SD (B)

RD (B')

SD (A)

RD (A')

WORKSTATION

SERIES

INTERFACE

CTS (A)

RTS (B)

90-70

(WS9A1)

(CPU)

CTS (B)

RTS (A)

RTS (B)

CTS (B')

SERIES

RTS (A)

CTS (A')

90-30

(PS)

RD (B)

SD (B)

RD (A)

SD (A)

SHLD

4000 FEET

37- PIN

15- PIN

(1200 METERS)

FEMALE

MALE

MAXIMUM

MALE

FEMALE

D-TYPE

CONNECTOR

Figure 10-2. Series 90 PLC to Workmaster II Serial Cable

Cable Type - 24 AWG (.22 mm²), 30V computer grade. Extra flexible construction

recommended for short lengths.

Connectors - 37-pin male D-type with 4-40 screws and AMP hood No. 1-207908-0 or

equivalent.

15-pin male D-type with M3 screws and AMP hood No. 207908-4, or equivalent.

An AMP connector is not supplied with M3 (metric) screws.

Hardware Kit - AMP 207871-1. This kit includes two metric screws, and two screw clips.

Multidrop Configuration, Workmaster II to Series 90 PLCs

The following illustrations show the wiring diagram and requirements for connecting a

Workmaster II, Workmaster, or compatible computer to Series 90 PLCs in an 8-wire multidrop,

serial data configuration.

The figure below is an example of the wiring configuration required for the multidrop

configuration when using the RS-422/RS-485 to RS-232 converter.

Note

The connector to the PLC serial port in the Series 90-30 PLC must be a right

angle connector in order for the hinged door to close properly.

GFK-0356Q

Chapter 10 Cables

10-9

IC690CBL705 OR EQUIVALENT

RS-232/RS-422

RS-422

RS-232 SHIELDED PAIRS

CONVERTER

MAKE CONNECTIONS

(IC690ACC900)

INSIDE D-CONNECTORS

SLAVE

STATION

DCD ( A )

SD ( A )

DCD ( B )

SD ( B )

RTS

CTS

RD ( A' )

CTS

DTR

RD ( B' )

SERIES

DCD

SD ( A )

90-70

DTR

GND

SD ( B )

RTS ( A )

CPU

WORKMASTER II

GND

SHLD

RTS ( B )

RS-422

CTS ( A' )

PORT

RS-232

CTS ( B' )

PORT

RTS ( A )

+5V

RTS ( B )

+5V

SHLD

25- PIN

25-PIN

15-PIN

15- PIN

MALE

FEMALE

MALE

FEMALE

MALE

FEMALE

RS-232

RS-422

PORT

LAST

STATION

POWER

SD ( A )

NOTE

SOURCE

SD ( B )

WHEN WIRING RS-422 /485 MULTIDROP CABLES REFLECTIONS ON THE

FOR

RD ( A' )

TRANSMISSION LINE CAN BE REDUCED BY CONFIGURING THE CABLE IN A

CONVERTER

RD ( B' )

SERIES

DAISY CHAIN FASHION AS SHOWN BELOW.

90-30

RTS ( A )

MASTER

CONVERTER SLAVE STATION LAST STATION

RTS ( B )

RS-422

CTS ( A' )

PORT

PLC 15-PIN CONNECTOR

CTS ( B' )

SERIES 90-30 LOCATED

+5V

ON POWER SUPPLY

SERIES 90-70 LOCATED

SHLD

ON THE CPU BOARD

ALSO IT IS RECOMMENDED TO MAKE ANY NECESSARY CONNECTIONS

INSIDE THE CABLE CONNECTOR TO BE MOUNTED ON THE PLC. IT IS

NOT RECOMMENDED TO USE TERMINAL STRIPS TO OTHER TYPES OF

CONNECTORS ALONG THE LENGTH OF THE TRANSMISSION LINE.

15- PIN

TO OTHER PLCs

MALE

FEMALE

* TERMINATION RESISTANCE FOR THE RECEIVE DATA (RD) SIGNAL NEEDS TO BE CONNECTED ONLY ON UNITS AT THE END OF THE LINES. THIS TERMINATION IS MADE

ON THE SERIES 90 PLC PRODUCTS BY CONNECTING A JUMPER BETWEEN PIN 9 AND PIN 10 INSIDE THE 15-PIN D-SHELL WITH THE FOLLOWING EXCEPTION. FOR SERIES

90-70 PLCs, CATALOG NUMBERS IC697CPU731 AND IC697CPU771, THE TERMINATION FOR RD AT THE PLC IS IMPLEMENTED BY A JUMPER BETWEEN PIN 9 AND PIN 11.

GROUND POTENTIAL: MULTIPLE UNITS, NOT CONNECTED TO THE SAME POWER SOURCE, MUST HAVE COMMON GROUND POTENTIALS OR GROUND ISOLATION FOR PROPER

OPERATION OF THIS SYSTEM.

Figure 10-3. Example of Multidrop Configuration with Converter

The following figure is an example of the wiring configuration required when a Work Station

Interface board is installed in the computer. The 15-pin serial port connector for the 90-30 PLC is

on the power supply; the 37-pin serial port connector for Workmaster II and Workmaster

computers is on the Work Station Interface board in the programming computer. The cable type

for these connections should be 24 AWG (.22 mm²), 30V computer grade. Extra flexible

construction is recommended for short lengths.

10-10

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q

Cables

WORKMASTER OR

MAKE CONNECTIONS

WORKMASTER II

SHIELDED

INSIDE D-CONNECTORS

SERIES

TWISTED

90 PLC

WSI

PAIRS

SD (A)

RD (A')

SD (B)

RD (B')

RD (A')

SD (A)

RD (B')

SD (B)

CTS (A')

RTS (A)

CTS (B')

RTS (B)

RTS (A)

CTS (A')

RTS (B)

CTS (B')

SHIELD

37-PIN

15-PIN

CONNECTOR

UP TO A

MAXIMUM OF

4,000 FEET

SERIES

(1,200 METERS)

90 PLC

RD (A')

RD (B')

SD (A)

SD (B)

RTS (A)

RTS (B)

NOTE

CTS (A')

WHEN WIRING RS-422/485 MULTIDROP

CTS (B')

CABLES, REFLECTIONS ON THE TRANS-

MISSION LINE CAN BE REDUCED BY CON

FIGURING THE CABLE IN A DAISY CHAIN

SHIELD

FASHION AS SHOWN BELOW.

WORKMASTER

PLC 1

15-PIN

CONNECTOR

SERIES

PLC 3

PLC 2

90 PLC

RD (A')

RD (B')

SD (A)

SD (B)

RTS (A)

ALSO IT IS RECOMMENDED TO MAKE ANY

RTS (B)

CTS (A')

IMPORTANT !

NECESSARY CONNECTIONS INSIDE THE

CABLE CONNECTOR TO BE MOUNTED ON

CTS (B')

THE PLC.

IT IS NOT RECOMMENDED TO USE TERMI

NAL STRIPS OR OTHER TYPES OF CON

SHIELD

NECTORS ALONG THE LENGTH OF THE

DO NOT

TRANSMISSION LINE.

USE TERMINAL STRIPS

OR OTHER TYPES OF

15-PIN

CONNECTOR

CONNECTORS ALONG THE

LENGTH OF THE TRANSMISSION

LINE WHEN WIRING A

MULTIDROP SERIAL DATA

TO OTHER PLCs

CONFIGURATION

(MAXIMUM OF 8 PLCs ON A MULTIDROP)

TERMINATION RESISTANCE FOR THE RECEIVE DATA (RD) SIGNAL NEEDS TO BE CON

NECTED ONLY ON UNITS AT THE END OF THE LINES. THIS TERMINATION IS MADE ON

THE SERIES 90 PLC PRODUCTS BY CONNECTING A JUMPER BETWEEN PIN 9 AND PIN 10

INSIDE THE 15-PIN D-SHELL, WITH THE FOLLOWING EXCEPTION. FOR SERIES 90-70 PLCs,

CATALOG NUMBERS IC697CPU731 AND IC697CPU771, THE TERMINATION FOR

RD AT THE PLC IS IMPLEMENTED BY A JUMPER BETWEEN PIN 9 AND PIN 11.

CAUTION

GROUND POTENTIAL: MULTIPLE UNITS, NOT CONNECTED TO THE SAME POWER

SOURCE, MUST HAVE GROUND POTENTIAL WITHIN " 7V FOR PROPER OPERATION

OF THIS SYSTEM. FAILURE TO PROVIDE A COMMON GROUND MAY CAUSE DAMAGE

TO PLC COMPONENTS.

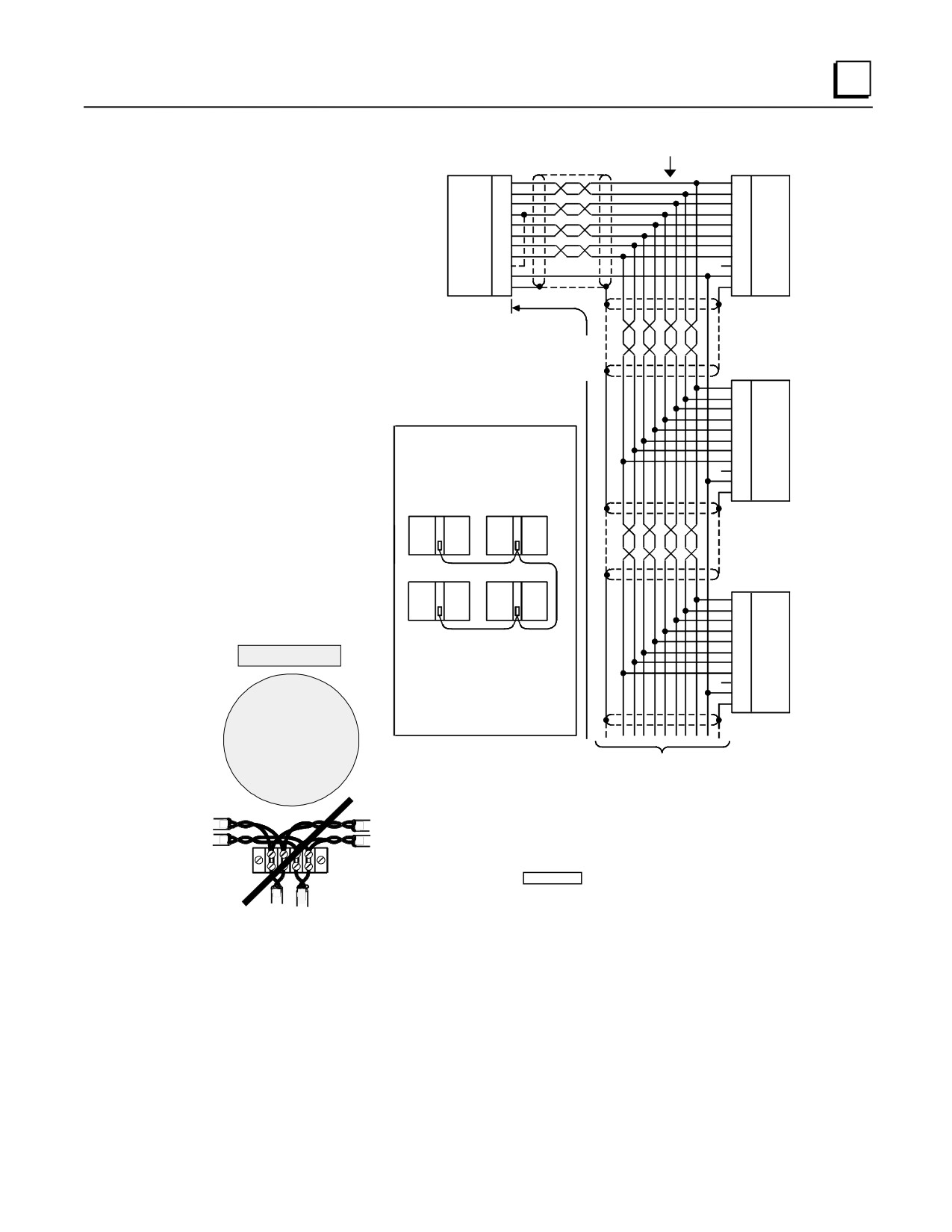

Figure 10-4. Series 90 PLC to Programmer 8-Wire Multidrop, Serial Data Configuration

GFK-0356Q

Chapter 10 Cables

10-11

IC690CBL701

PCM, ADC, CMM to Workmaster (PC-XT) Cable

Note: This cable was designed for use with older computers such as PC or XT

types and would not likely be used for new projects.

Function of cable

This cable provides RS-232 signal connections between the RS-232 port on a PCM, ADC, or

CMM module and a serial port on a Workmaster computer or IBM-XT or equivalent Personal

Computer.

Cable Specifications

Cable Length

10 feet (3 meters)

Connectors

PCM/ADC/CMM Side

25-pin male, D-subminiature type, AMP 205208-1, or equivalent

Programmer Side

9-pin male, D-subminiature type, AMP 205203-1, or equivalent

Cable Clamps

25-pin

AMP 207908-7 or equivalent

9-pin

AMP 207908-1 or equivalent

Cable Type

Six conductor, overall shield, non-paired AWG #24 (.21 mm²), Belden 9536 or

equivalent

Wiring Diagram

RTS

CTS

WORKMASTER

CTS

DTR

PCM

DCD

DTR

SHLD

IBM PC-XT

GND

9- PIN

25- PIN

FEMALE

MALE

FEMALE

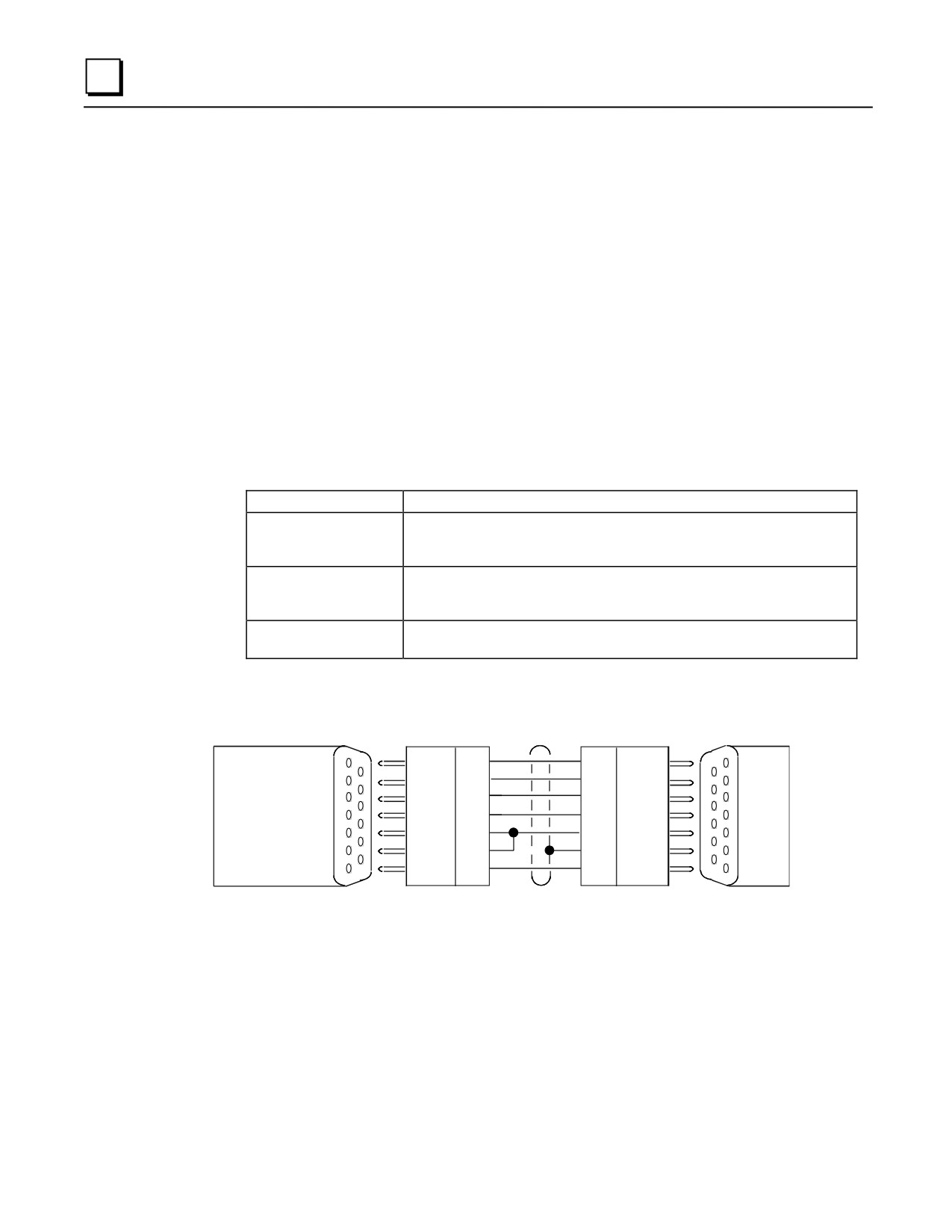

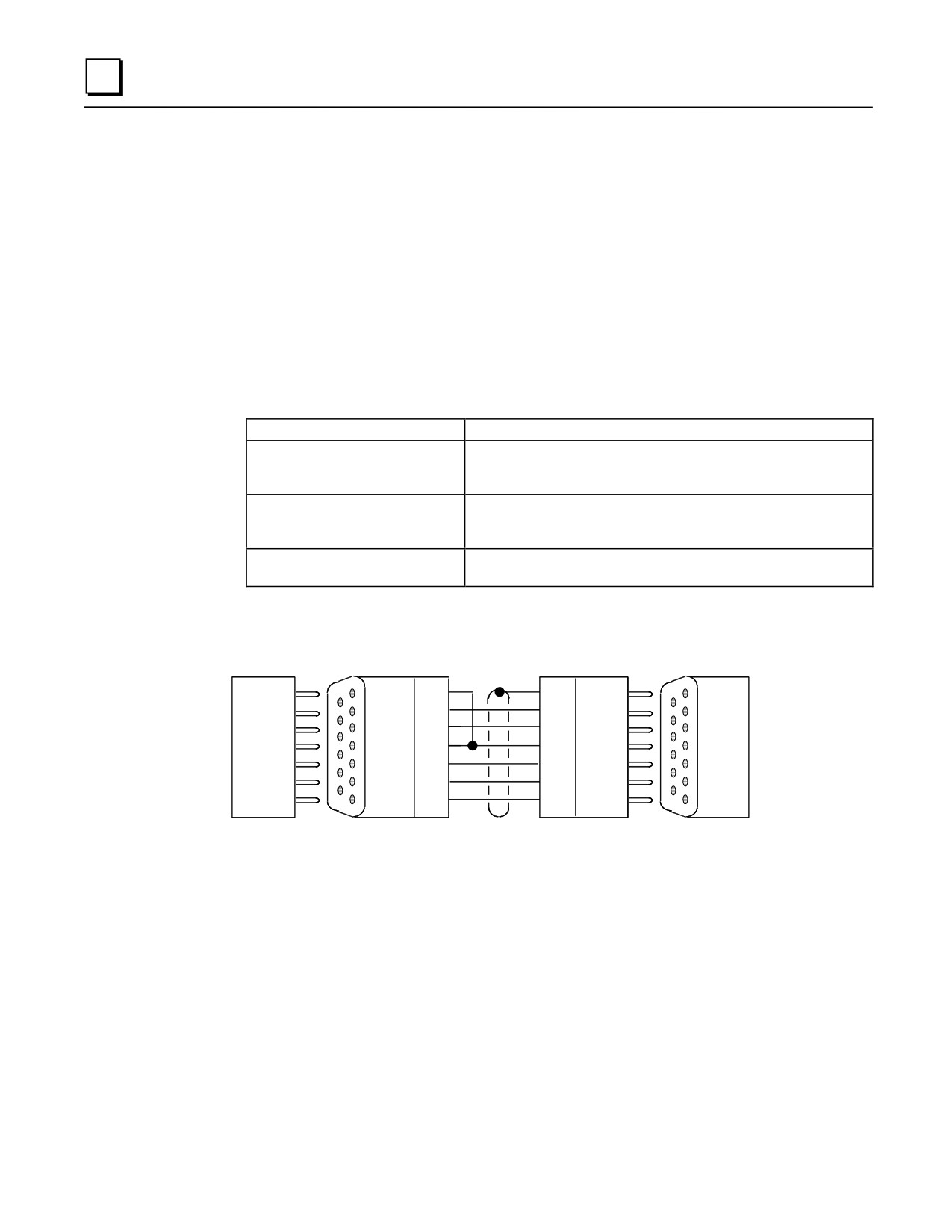

Figure 10-5. PCM, ADC, or CMM to Workmaster or PC-XT Serial Cable

Note

Although the IC690CBL701 and 702 cables look identical (except for catalog

number labeling), the internal pin connections are different.

10-12

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q

Cables

PCM to Programmer Cable Installation

Caution

The Series 90-30 PLC baseplate that contains the PCM, ADC, or CMM and

the programmer ground connections must be at the same ground potential.

Incorrect wiring will result in damage to the programmer or the module.

Select the WYE cable (IC693CBL305 or IC693CBL304).

Connect the IC690CBL701 cable’s 9-pin female connector to the male RS-232 connector

(serial port) on the selected programming device.

Connect the cable’s 25-pin male connector to the Port 1 connector on the WYE cable.

Connect the 25-pin male connector on the WYE cable to the female connector on the front of

the PCM, ADC, or CMM module.

WORKMASTER

IC690CBL701

RS-232

PCM

(DEFAULT PORT)

IC693CBL305B

PORT 1

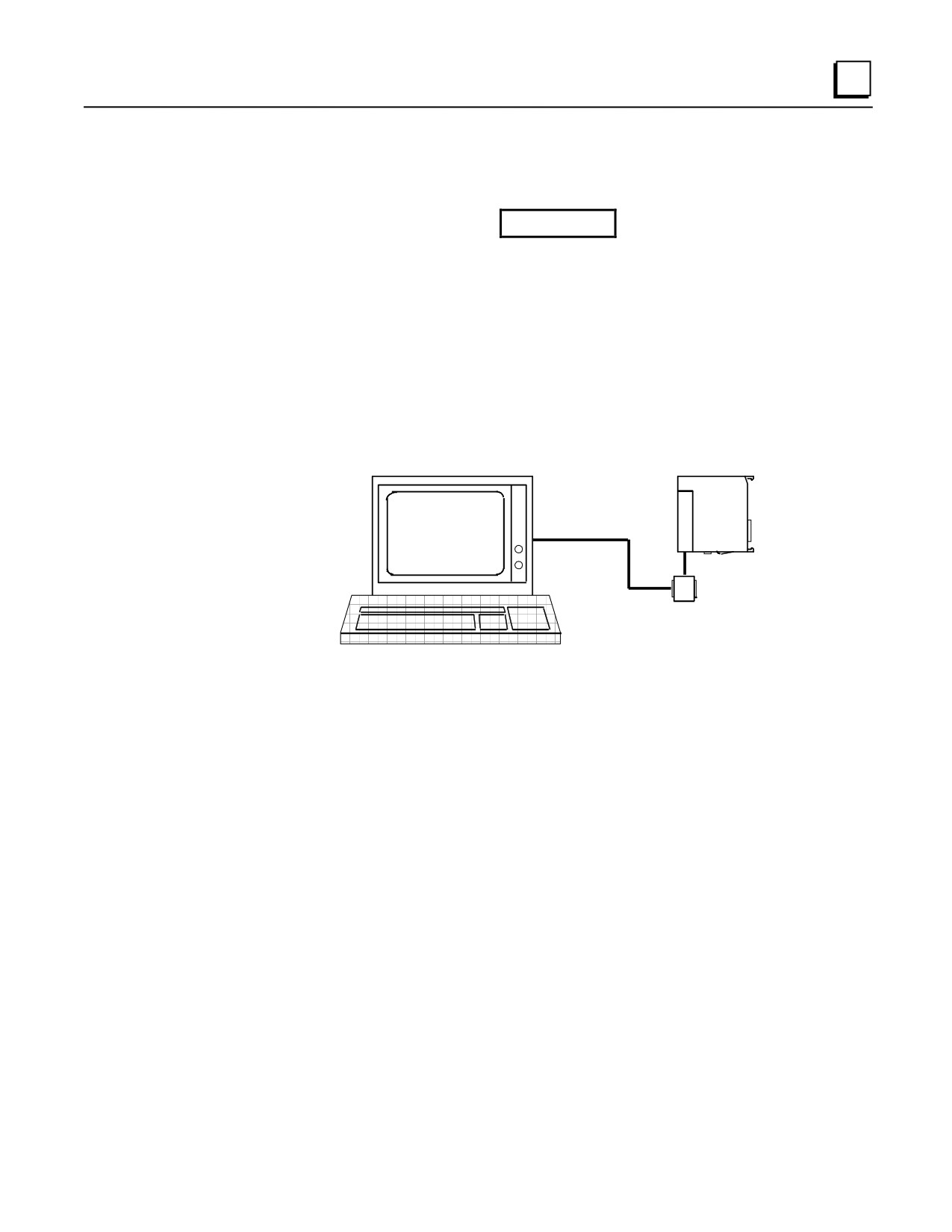

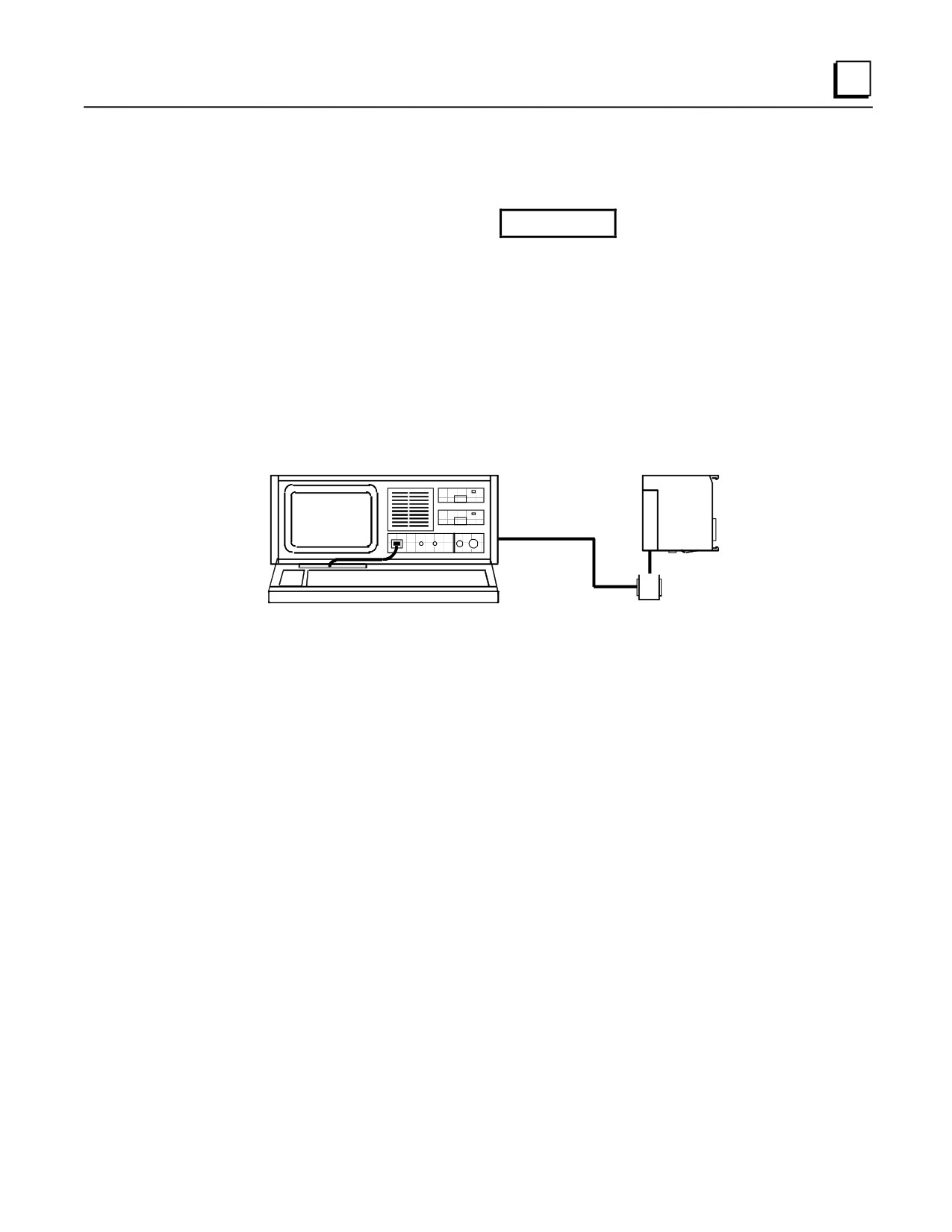

Figure 10-6. PCM to Workmaster Computer or PC-XT Personal Computer

GFK-0356Q

Chapter 10 Cables

10-13

IC690CBL702

PC-AT to PCM, ADC, CMM Cable

Function of cable

This cable provides RS-232 signal connections between the RS-232 port on a PCM, ADC, or

CMM module and a serial port on an IBM PC-AT or equivalent Personal Computer.

Cable Specifications

Cable Length

10 feet (3 meters)

Connectors

PCM/ADC/CMM Side

25-pin male, D-subminiature type, AMP 205208-1, or equivalent

Programmer Side

9-pin male, D-subminiature type, AMP 205203-1, or equivalent

Cable Clamps

25-pin

AMP 207908-7 or equivalent

9-pin

AMP 207908-1 or equivalent

Cable Type

Six conductor, overall shield, non-paired AWG #24 (.21 mm²), Belden

9536 or equivalent

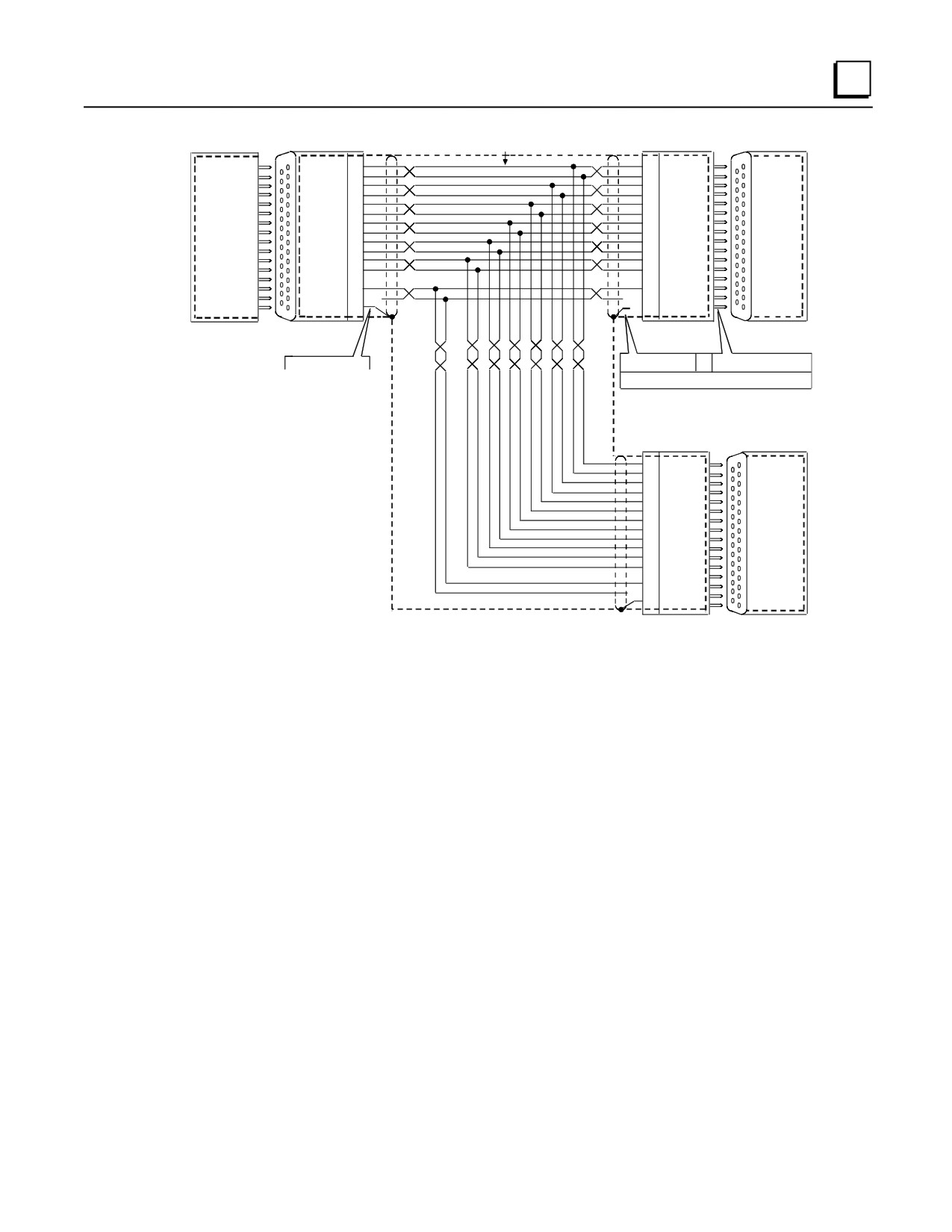

Wiring Diagram

a42832

DCD

SHLD

DTR

DCD

PC-AT

PCM

RTS

CTS

DTR

GND

9- PIN

25- PIN

MALE

FEMALE

MALE

FEMALE

Figure 10-7. PCM, ADC, or CMM to Workmaster or PC-AT Serial Cable

Note

Although the IC690CBL701 and 702 cables physically look identical (except for

catalog number labeling), the internal pin connections are different.

10-14

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q

Cables

PCM to Programmer Cable Installation

Caution

The Series 90-30 PLC baseplate that contains the PCM, ADC, or CMM and

the programmer ground connections must be at the same ground potential.

Incorrect wiring will result in damage to the programmer or the module.

Select the WYE cable (IC693CBL305 or IC693CBL304).

Connect the IC690CBL702 cable’s 9-pin female connector to the male RS-232 connector

(serial port) on the selected programming device.

Connect the cable’s 25-pin male connector to the Port 1 connector on the WYE cable.

Connect the 25-pin male connector on the WYE cable to the female connector on the front of

the PCM, ADC, or CMM module.

PC-AT

IC690CBL702

RS-232

PCM

(DEFAULT PORT)

IC693CBL305B

PORT 1

Figure 10-8. PCM to PC-AT Personal Computer

GFK-0356Q

Chapter 10 Cables

10-15

IC690CBL705

Workmaster II (PS/2) to PCM, ADC, CMM Cable

Function of cable

This cable provides RTS-232 signal connections between the RS-232 port on a PCM, ADC, or

CMM module and a serial port on a Workmaster II or an IBM Personal System 2 (PS/2) or

equivalent Personal Computer.

Cable Specifications

Cable Length

10 feet (3 meters)

Connectors

PCM/ADC/CMM Side

25-pin male, D-subminiature type, AMP 205208-1, or equivalent

Programmer Side

25-pin female, D-subminiature type, AMP 205207-1, or equivalent

Cable Clamps

25-pin

AMP 207908-7 or equivalent

Cable Type

Six conductor, overall shield, non-paired AWG #24 (.21 mm²), Belden 9536 or

equivalent

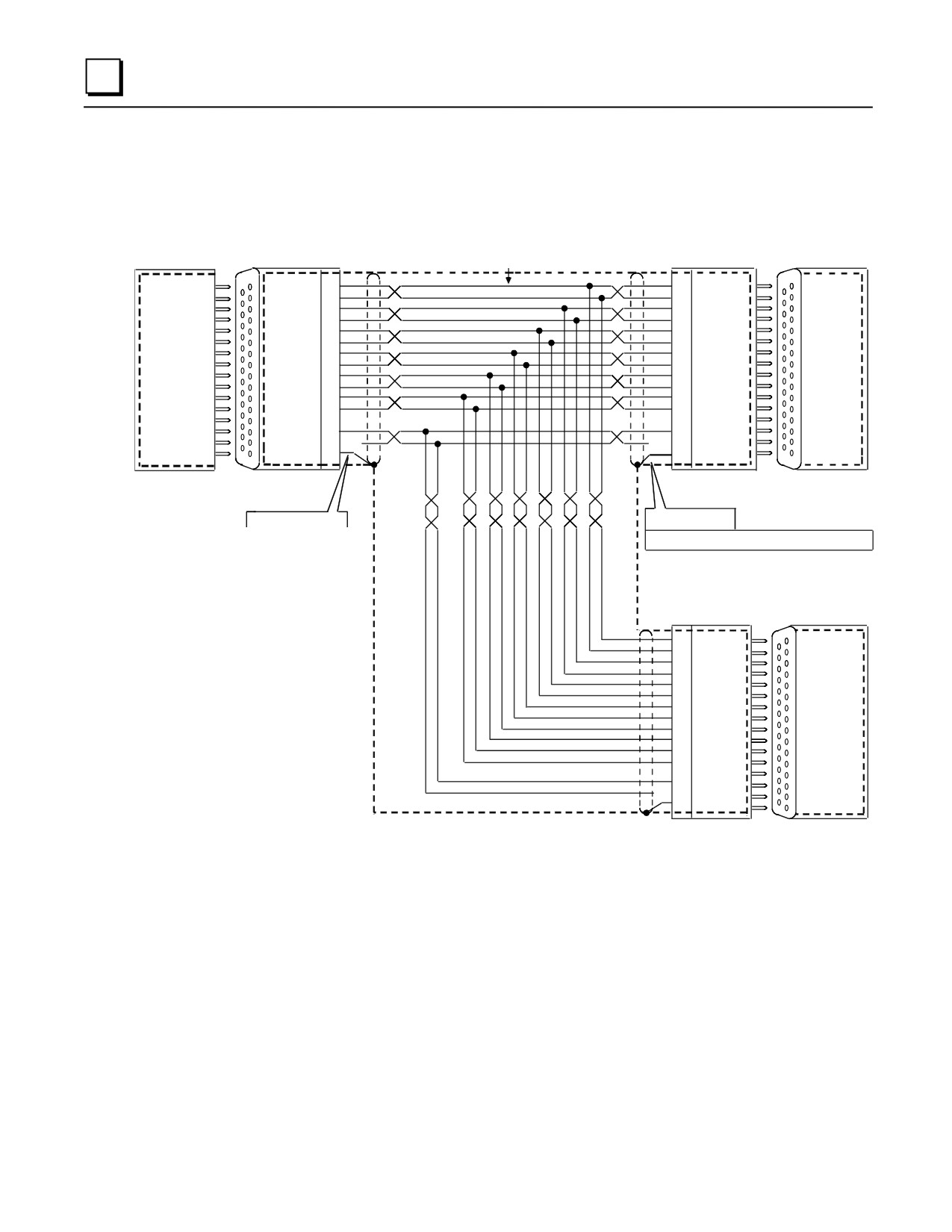

Wiring Diagram

WORKMASTER II

RTS

CTS

AND

CTS

DTR

PCM

IBM PS/2

DCD

DTR

SHLD

GND

25- PIN

MALE

FEMALE

MALE

FEMALE

Figure 10-9. PCM, ADC, or CMM to Workmaster II or PS/2 Serial Cable

10-16

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q

Cables

PCM to Programmer Cable Installation

Caution

The Series 90-30 PLC baseplate that contains the PCM, ADC, or CMM and

the programmer ground connections must be at the same ground potential.

Incorrect wiring will result in damage to the programmer or the module.

Select the WYE cable (IC693CBL305 or IC693CBL304).

Connect the IC690CBL705 cable’s 25-pin female connector to the male RS-232 connector

(serial port) on the selected programming device.

Connect the cable’s 25-pin male connector to the Port 1 connector on the WYE cable.

Connect the 25-pin male connector on the WYE cable to the female connector on the front of

the PCM, ADC, or CMM module.

WORKMASTER II

IC690CBL705

RS-232

PCM

(DEFAULT PORT)

IC693CBL305B

PORT 1

Figure 10-10. PCM to Workmaster II Computer or PS/2 Computer

GFK-0356Q

Chapter 10 Cables

10-17

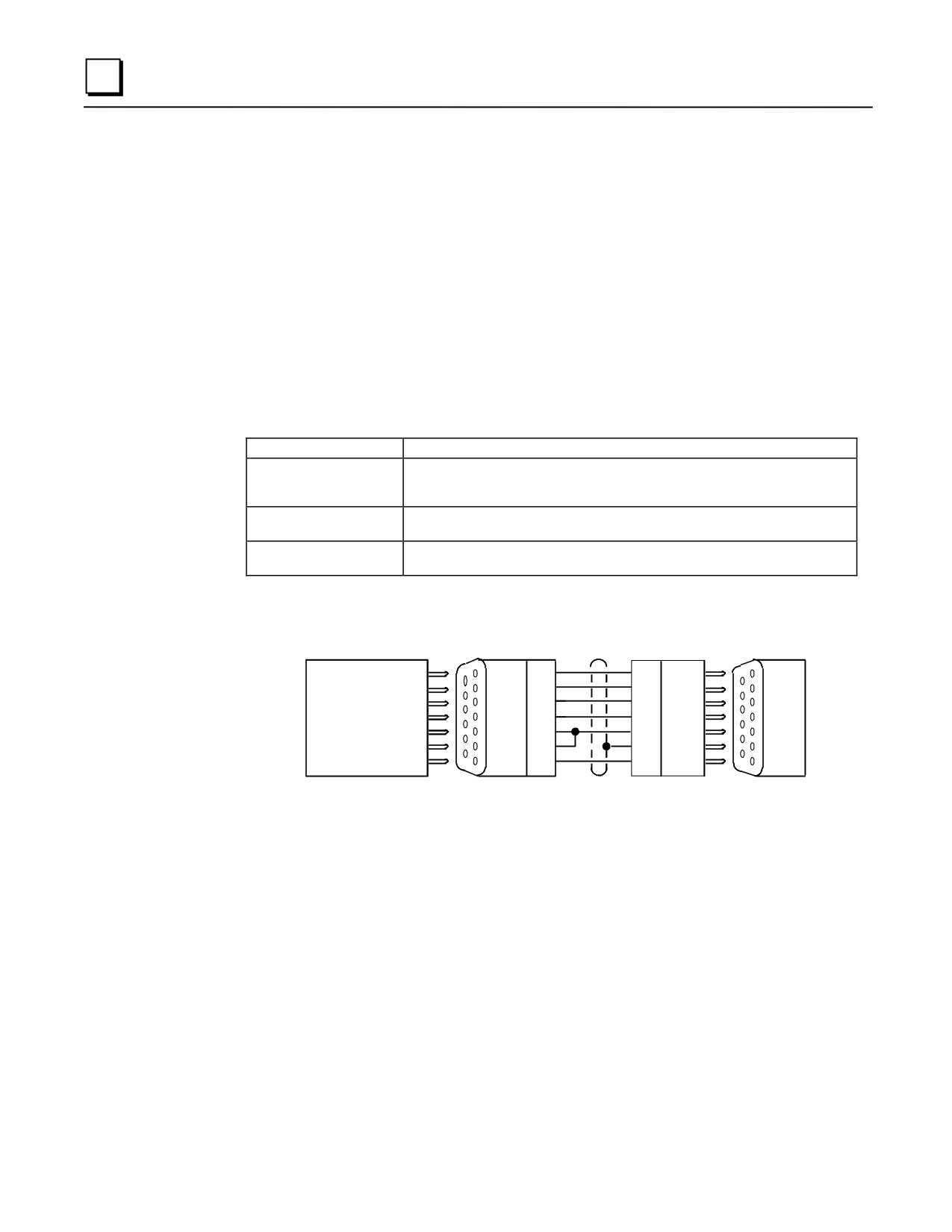

IC690CBL714A Multidrop Cable

Purpose

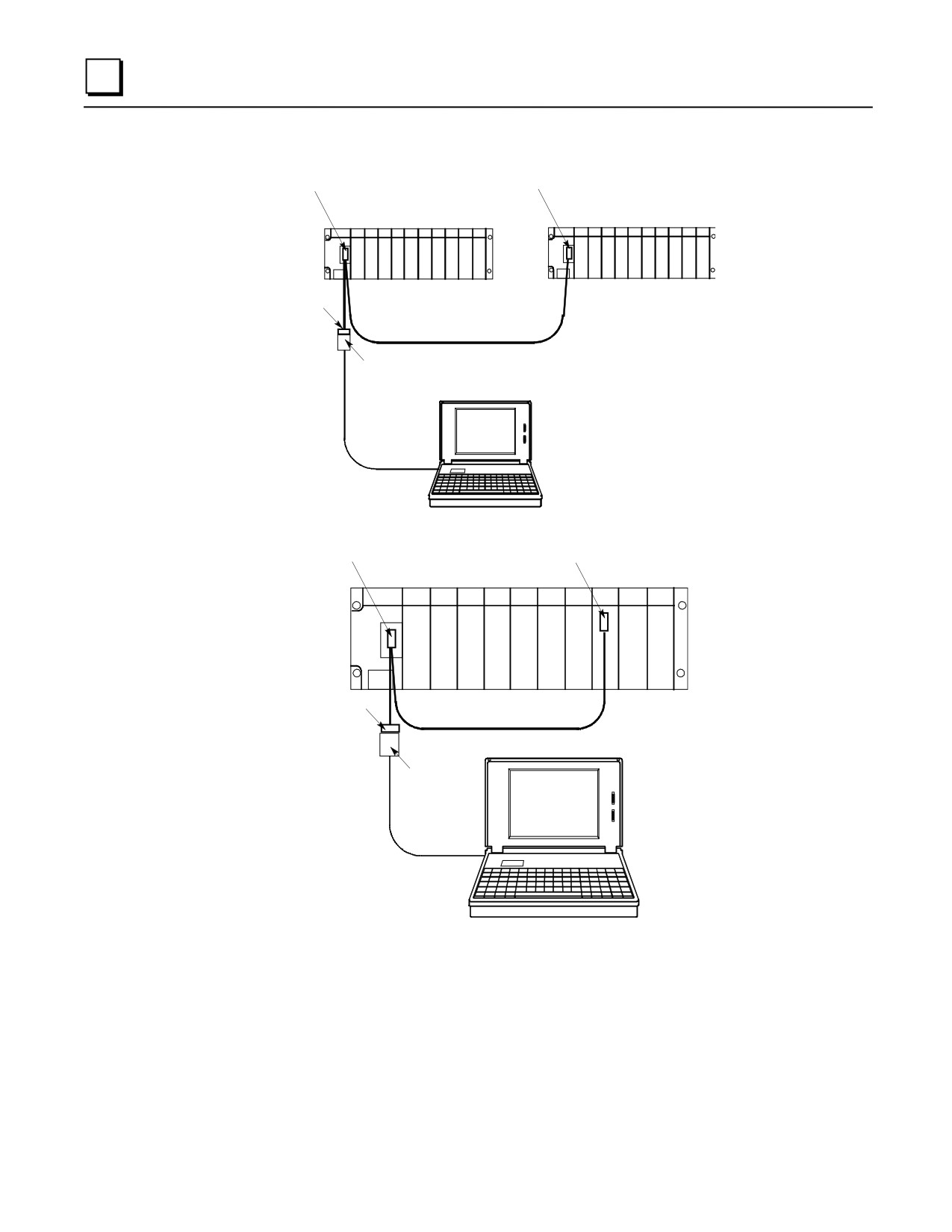

This cable has a number of possible applications with Series 90 products:

To interconnect Series 90-30 PLCs or redundant Series 90-30 PLCs in a multidrop

configuration.

To interconnect a Series 90-30 PLC and APM module in a multidrop configuration with a

single personal computer (programmer). This allows programming and troubleshooting both

PLC and APM without moving connection cables.

To interconnect Series 90-70 or redundant Series 90-70 PLCs in a multidrop configuration.

Specifications

Connector A: DB15F, 15-pin female connector with M3 latchblocks

Connectors B and C: DB15M, 15-pin right angle, male connector with spring clips

Wire: Cable consists of three individually shielded pairs of 22-gauge stranded conductors.

Belden #8777 or equivalent.

Jumpers: All jumpers are made of #22 AWG (UL1061) type individual wires.

Length: The length from the back of Connector A to entry into Connector B is 6 inches (+/-

0.5 inch). The length from the back of Connector C to entry into Connector B is 40 inches (+/-

1.0 inch).

Connector B

Connector C

Connector A

Pin 1

M3 Latching

Blocks (2)

Pin 1

M3 pan head screws (2).

Screws must not protrude

through the end of the Latching

Blocks.

10-18

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q

IC693CBL300/301/302/312/313/314

I/O Bus Expansion Cables

(Includes Instructions for Building Custom Length Cables)

Description

I/O bus expansion cables (IC693CBL300, 301, 312, 313, 314), called “Wye cables,” have a single

male 25-pin D connector on one end and a two-headed (one male, one female) 25-pin D connector

on the other end as shown in (A) of the figure. The 50 foot (15m) (IC693CBL302) cable has a

single male connector on the CPU baseplate end and a single terminated male connector on the

expansion baseplate end. The 3 foot cable (IC693CBL300) can also be used as a WYE adapter

cable to simplify building custom length cables (see the section “Cable Application Suggestions”

later in this Chapter).

FEMALE

CONNECTOR

.5, 3, 6, 26 FOOT

CABLES

MALE

CONNECTOR

50 FOOT

CABLE

MALE

CONNECTOR

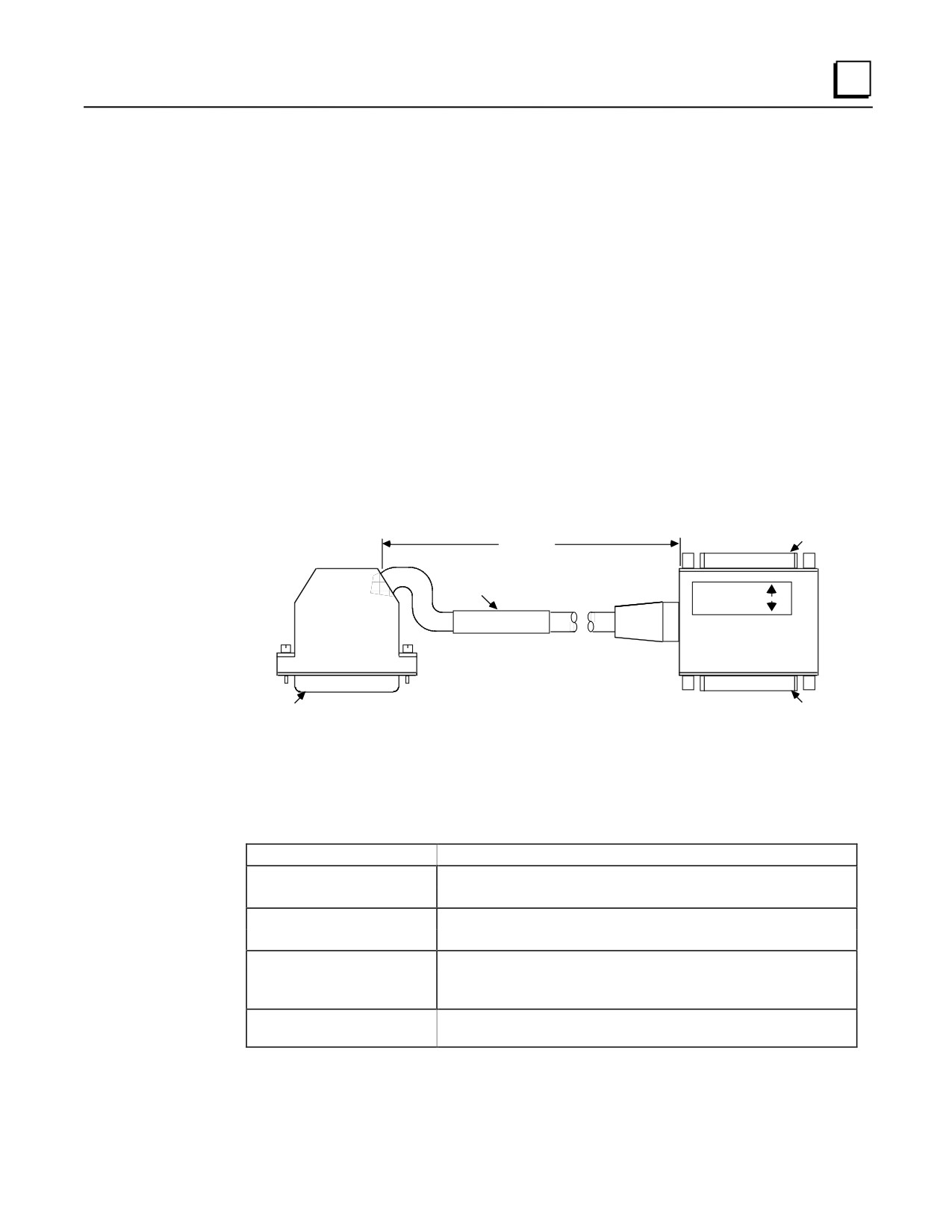

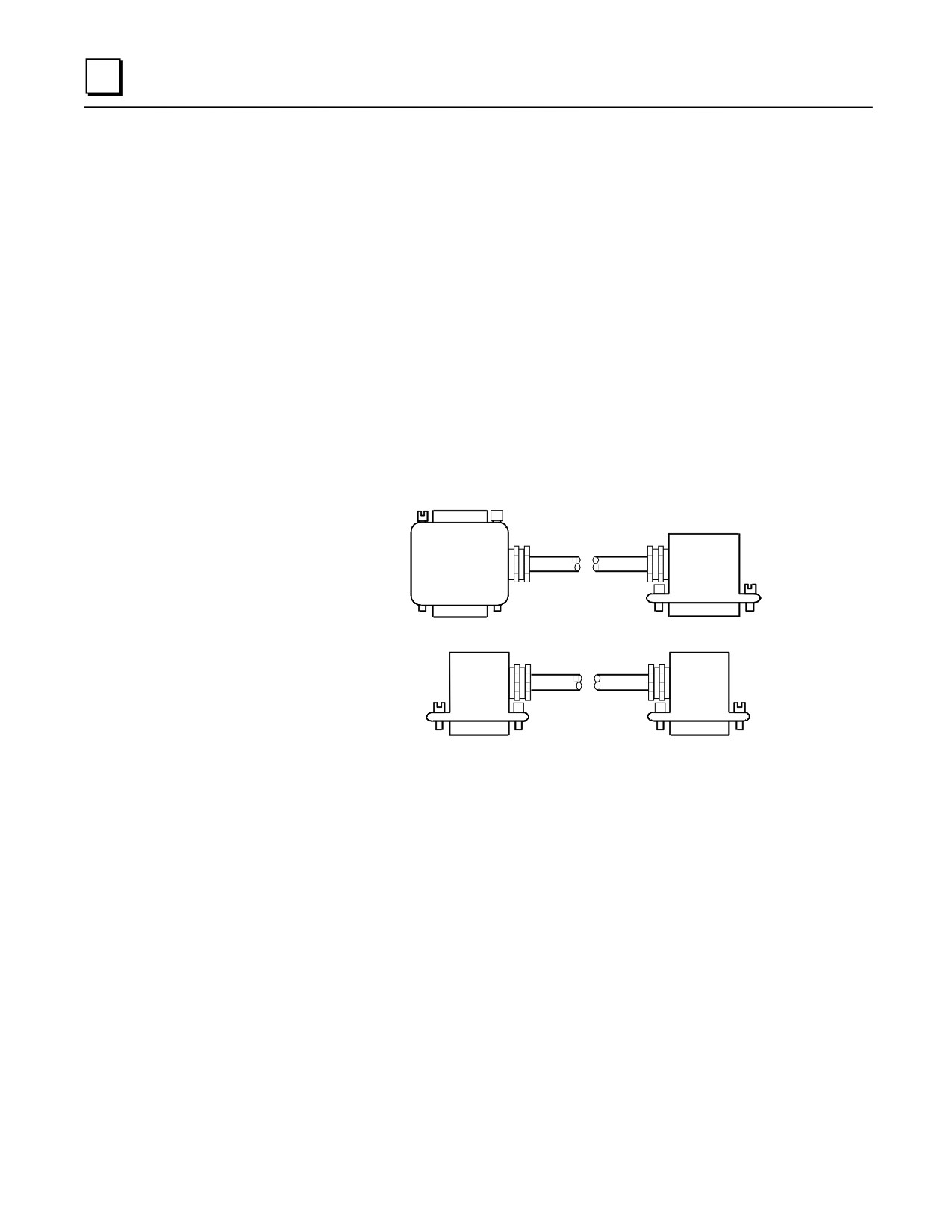

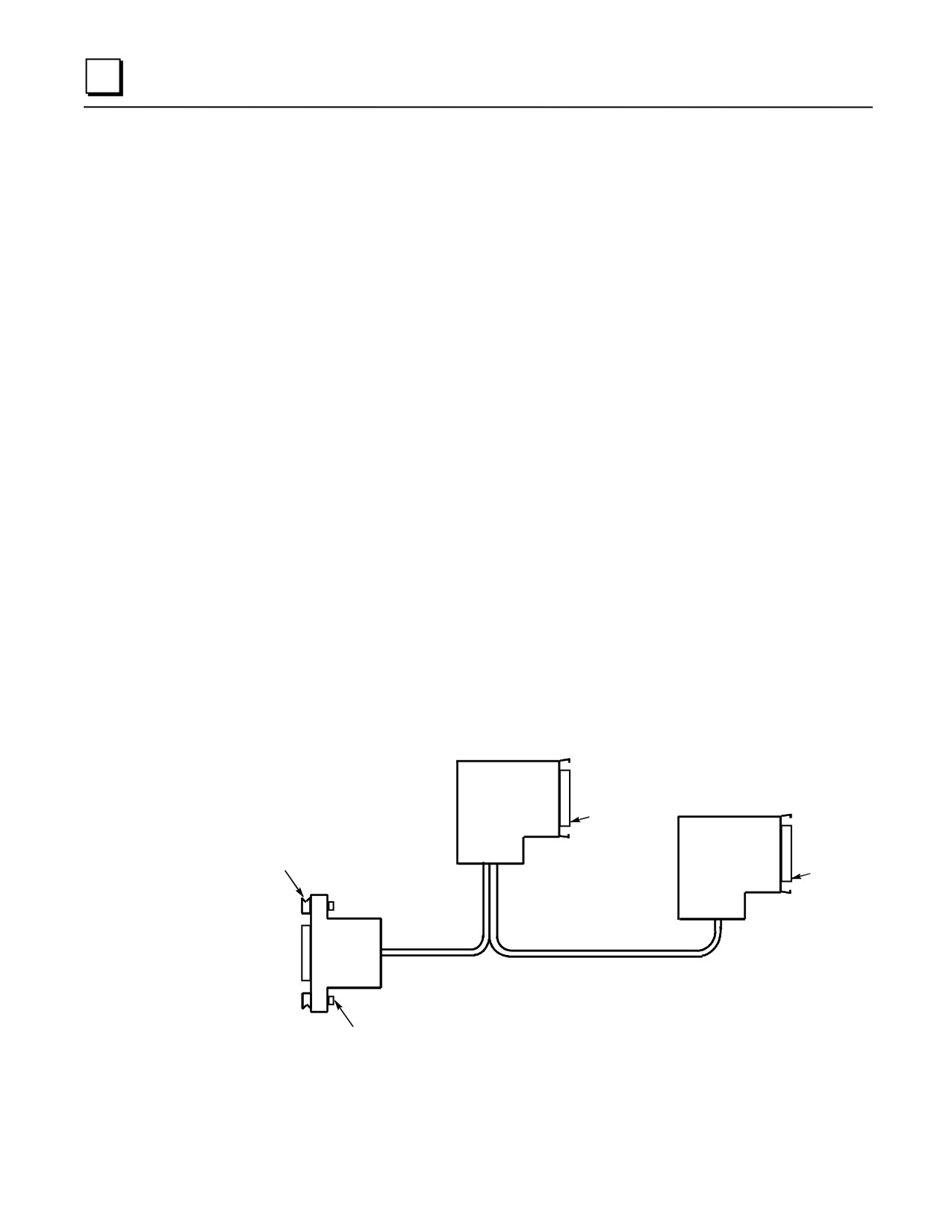

Figure 10-15. Detail of I/O Bus Expansion Cables

Cable Lengths

IC693CBL300

3 feet (1 meter), continuous shield

IC693CBL301

6 feet (2 meters), continuous shield

IC693CBL302 or IC693CBL314

50 feet (15 meters), continuous shield

IC693CBL312

0.5 feet (0.15 meters), continuous shield

IC693CBL313

25 feet (8 meters), continuous shield

Function of Cables

The I/O Bus expansion cables are used to extend the I/O bus to expansion or remote baseplates in

a Series 90-30 I/O system when additional I/O slots are needed or baseplates are required some

distance from the CPU baseplate. The prewired I/O bus expansion cables can be used for

connecting either expansion or remote baseplates. Where required cable length is not available in a

10-22

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q

Cables

standard cable, a custom cable must be built (see the section “Building Custom Length I/O Bus

Expansion Cables” for detailed instructions).

Connecting the Cables

Connect the single male connector to the 25-pin female connector on the right side of the CPU

baseplate.

Connect the male connector on the dual connector end of the cable to the 25-pin female

connector on the first expansion baseplate.

Connect the unused 25-pin female connector on the dual connector end of the cable to either

the single male connector of a second I/O bus expansion cable to continue the I/O bus

expansion chain, or to an I/O bus Terminator plug if this is the last cable in the expansion

chain.

Important Notes About I/O Bus Expansion Cables

The maximum number of cables that can be included in an I/O expansion system is seven, and

the total maximum cable length between the CPU baseplate and the last expansion baseplate is

50 feet (15 meters). The total maximum cable length between the CPU baseplate and the last

remote baseplate is 700 feet (213 meters). Failure to observe these maximum cable lengths

could result in erratic operation of the PLC system.

CPUs 350 - 374 support a maximum of seven I/O expansion cables. CPUs 331 - 341 support a

maximum of four I/O expansion cables.

The 50 foot (15 meter) I/O bus expansion cable (IC693CBL302), which has a male connector

on each end, has the I/O bus terminating resistors built into the end connector on the cable. If

this cable is used, you would not install a separate terminator block.

Caution

I/O Bus Expansion cables should NOT be connected or disconnected with

power applied to the I/O expansion baseplate(s). Unexpected PLC operation

may result.

Cable Application Suggestions

In general, it is advantageous to use standard, factory-built cables, where possible, to save time and

avoid wiring errors.

Using Standard Cables

For connecting between baseplates (either between a CPU and expansion baseplate, between

two expansion baseplates or between two remote baseplates) in the same cabinet when a

standard length (0.5, 1, 2, 8, or 15 meters) will fit the need.

As a Wye jumper for custom built point-to-point cables (IC693CBL300 is often used for this).

This combination saves time since a point-to-point cable can be built much faster than a Wye

cable. An example of this is shown in Figure 10-23.

GFK-0356Q

Chapter 10 Cables

10-23

Using Custom Built cables

When you need a cable length not available in a standard size.

When a cable must be routed through a conduit that is not large enough for a standard cable’s

connector to fit through.

Building Custom Length I/O Bus Expansion Cables

This section provides details needed to create custom length I/O Bus Expansion cables.

Two Types of Custom Built Cables

The two types are:

Point-to-Point - these have a single male connector on one end and a single female connector

on the other end. These are usually used with the IC693CBL300 which supplies the Wye

connection. This combination saves time since a point-to-point cable can be built much faster

than a Wye cable.

Wye - these have a single male connector on one end and two connectors (one male and one

female) on the other end.

Components Needed to Build Custom Length I/O Bus Expansion Cables

Note: the special two-headed Wye connector used on the standard Wye cables

is not available as a separate component.

Item

Description

Cable:

Belden 8107 only (no substitutes):

Computer cable, overall braid over foil shield, twisted-pair

30 volt/80°C (176°F)

24 AWG (.22 mm²) tinned copper, 7 x 32 stranding

Velocity of propagation = 70% *

Nominal impedance = 100Ω

25 Pin Male Connector:

Crimp Plug = Amp 207464-1; Pin = Amp 66506-9

Solder Plug = Amp 747912-2

25 Pin Female Connector:

Crimp Receptacle = Amp 207463-2; Pin = Amp 66504-9

Solder Receptacle = Amp 747913-2

Connector Shell:

Kit - Amp 745833-5:

Metal-plated plastic (plastic with nickel over copper) **

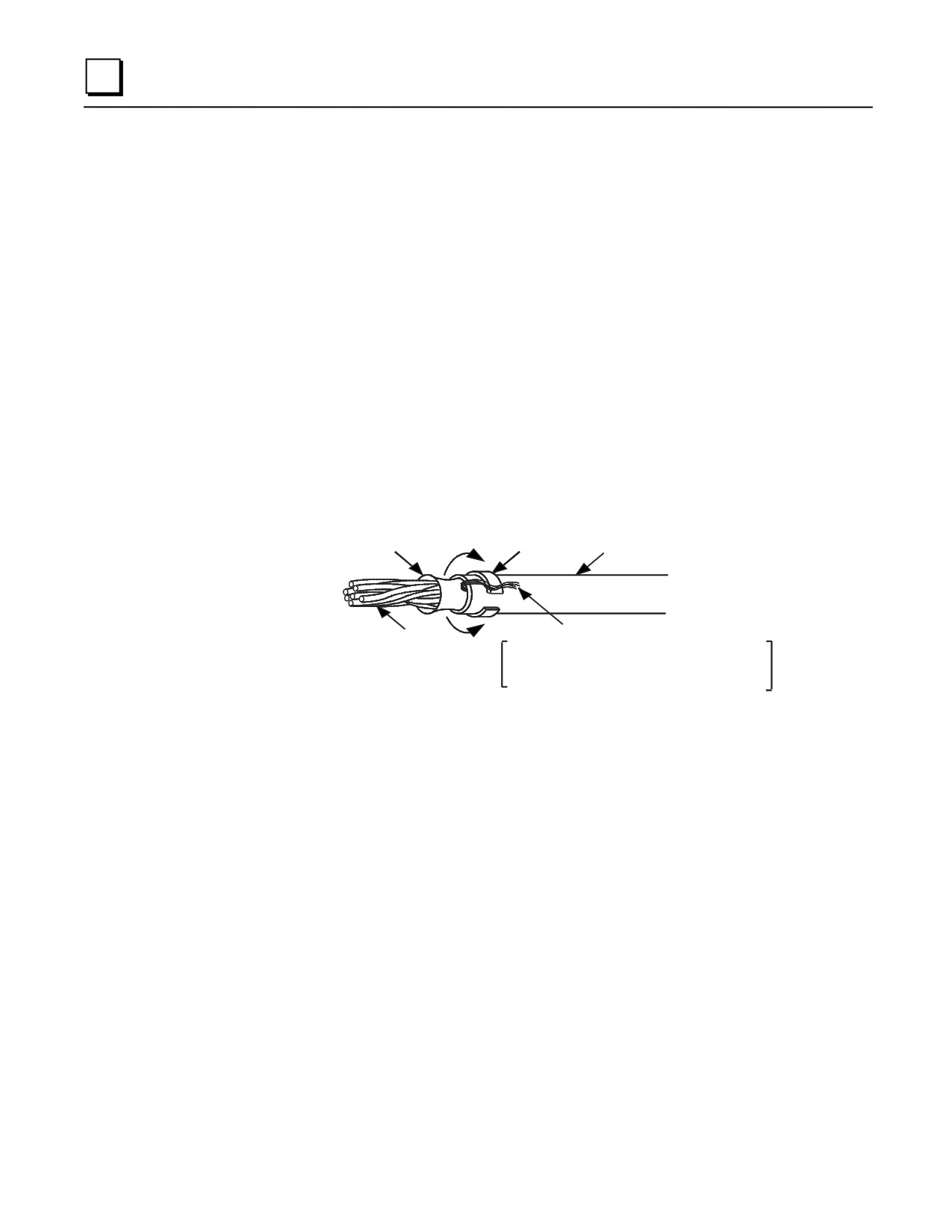

Crimp ring - Amp 745508-1, split ring ferrule

= Critical Information

** Vendor part numbers listed for user assembled cables are provided for reference only and do not suggest

or imply that they are preferred. Any part meeting the same specification can be used.

10-24

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q

Cables

Expansion Port Pin Assignments

The following table lists the expansion port pin assignments you will need when building remote

cables. All connections between cables are point-to point, that is, pin 2 of one end to pin 2 of the

opposite end, pin 3 to pin 3, etc.

Table 10-2. Expansion Port Pin Assignments

Pin Number

Signal Name

Function

DIODT

I/O Serial Data Positive

DIODT/

I/O Serial Data Negative

DIOCLK

I/O Serial Clock Positive

DIOCLK/

I/O Serial Clock Negative

DRSEL

Remote Select Positive

DRSEL/

Remote Select Negative

DRPERR

Parity Error Positive

DRPERR/

Parity Error Negative

DRMRUN

Remote Run Positive

DRMRUN/

Remote Run Negative

DFRAME

Cycle Frame Positive

DFRAME/

Cycle Frame Negative

FGND

Frame Ground for Cable Shield

Logic Ground

I/O Expansion Bus Termination

When two or more baseplates are cabled together in an expansion system, the I/O expansion bus

must be properly terminated. The I/O bus must be terminated at the last baseplate in an expansion

system. Each signal pair is terminated with 120 ohm, 1/4 watt resistors wired between the

appropriate pins, as follows (see the above table, also):

pins 16 - 17; 24 - 25;

20 - 21;

12 - 13;

8 - 9;

2 - 3

The I/O bus termination can be done one of the following ways:

■ By installing an I/O Bus Terminator Plug, catalog number IC693ACC307, on the last

expansion baseplate (local expansion baseplate or remote baseplate) in the system. The

Terminator Plug has a resistor pack physically mounted inside of a connector. The I/O Bus

Terminator Plug is shipped with each baseplate; only the last baseplate in the expansion chain

can have the I/O Bus Terminator Plug installed. Unused I/O Bus Terminator Plugs can be

discarded or saved as spares.

■ If an expansion system has only one expansion baseplate, the I/O bus can be terminated by

installing as the last cable, the 50 foot (15 meter) I/O Expansion cable, catalog number

IC693CBL302 or IC693CBL314. These cables have the termination resistors installed in the

end that connects to the expansion baseplate connector.

■ You can also build a custom cable with termination resistors wired to the appropriate pins for

installation at the end of the bus.

GFK-0356Q

Chapter 10 Cables

10-25

Shield Treatment

All GE Fanuc factory made cables are made with a continuous, or 100% shield. This means that

the braided cable shield is connected to the metal shell of the connector around the entire perimeter

of the connector. This provides a low impedance path to frame ground for any noise energy that is

coupled onto the cable shield.

For custom length cables made per Figure 10-18, the best noise immunity is achieved when using a

metallized connector cover that makes contact with the cable’s braided and foil shielding and with

the connector shell on the terminating end.

Note

It is not sufficient to only solder the drain wire to the connector shell. It is

required that the cable’s shield be continuous across the entire length of the

cable, including at the terminations. The figure below shows the recommended

method for folding the braided shield back before inserting the cable into a

metallized cover.

Foil & Braid

(to be folded back

over ferrule and

Split-Ring

Cable

ground wire)

Ferrule

Jacket

Ground Wire

Conductors

Attach to Pin 1 for custom length cables

Fold back for custom Wye cables. *

* See “Alert for Users of Early Remote Baseplate Versions" for

description of when to attach drain wire to pin 1.

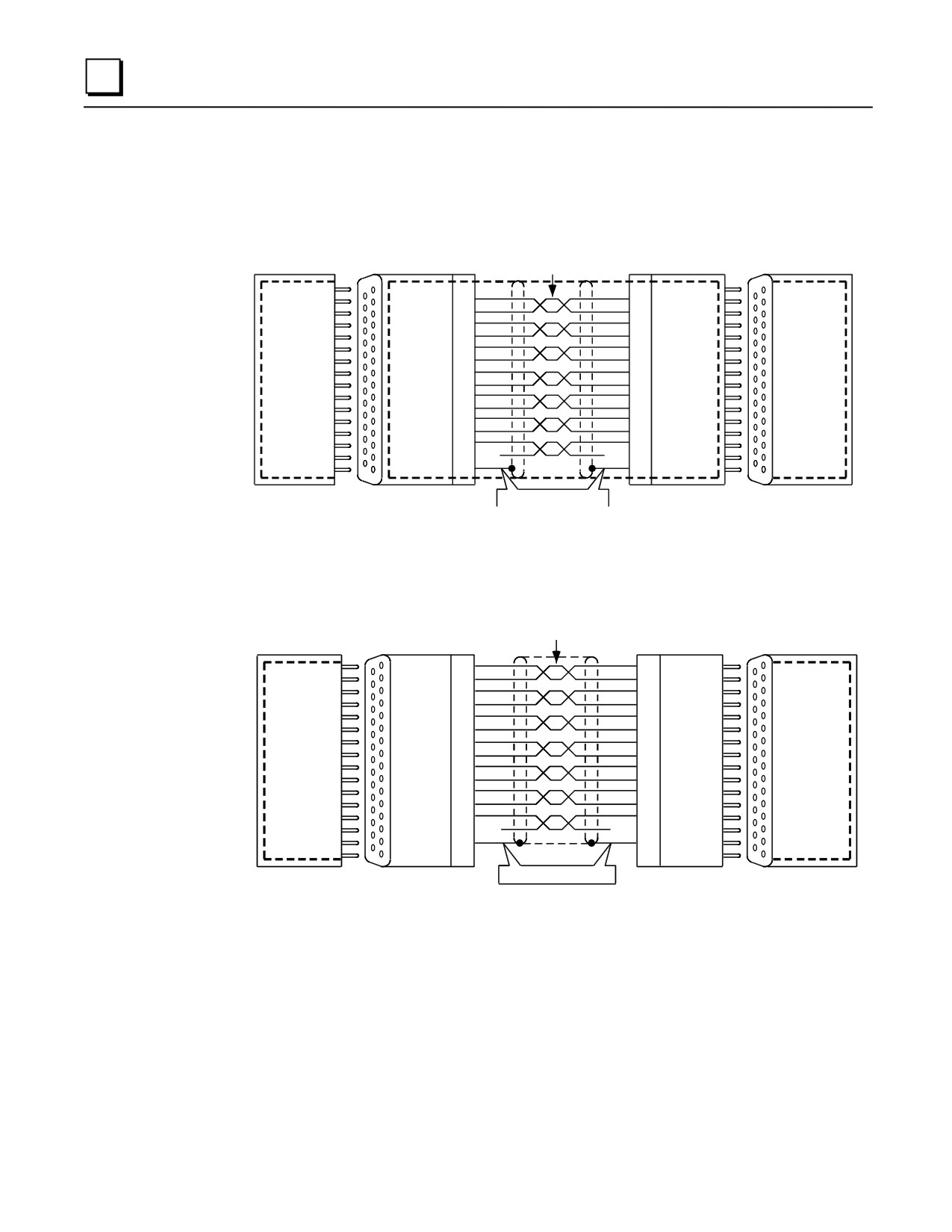

Figure 10-16. How to use Split-Ring Ferrules for Foil and Braided Cable Shield

For typical industrial applications, all expansion and remote baseplate cables can be made with

plastic shell covers and should be wired as shown in Figure 10-19. In either case, pin 1 should be

wired into both ends of the custom length cable and the recommendations listed below should be

followed for the Wye cables treatment in the remote (IC693CHS392/399) baseplates.

When using 100% shielded cables all local (CPU and expansion) baseplates in the system must be

solidly referenced to the same ground point or a potential difference between baseplates could

disturb signal transmission.

Alert for Users of Early Remote Baseplate Versions

In early remote baseplates versions, IC693CHS393E (and earlier) and IC693CHS399D (and

earlier), it is necessary to remove pin 1 of the mating cable where the cable plugs into the baseplate.

This means that when using a factory made Wye cable, such as IC693CBL300, you must break pin

1 out of the male end where it plugs into the remote baseplate before using it with one of these

baseplates. Custom built Wye cables for these baseplates should be built using Figure 10-20.

10-26

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q

Cables

Remote baseplates IC693CHS393F (and later) and IC693CHS399E (and later) have a change

inside the baseplate which eliminates the need to remove pin 1 from the mating cable. When using

factory made Wye cable with these baseplates, it is not necessary to remove pin 1 from the cable.

Custom built Wye cables for these baseplates can be made using either Figure 10-20 or Figure 10-

21. Figure 10-21 shows how the standard (factory made) Wye cables are made.

By removing pin 1 in custom built Wye cables made for the earlier versions of remote baseplates,

the pin 7 (0V) signal reference originates in the main (CPU) baseplate. In these earlier versions of

the remote baseplates, pin 1 was tied to pin 7 (0V) and also AC coupled to the remote frame

ground. When using these baseplates in combination with the 100% shielded Wye cables, the pin 7

(0V) reference would be improperly DC coupled to the remote frame ground through the D-

subminiature connector shell, which is DC coupled to the remote frame ground.

In the remote baseplates IC693CHS393F (and later) and IC693CHS399E (and later), the pin 1

shield signal is DC coupled to the remote frame ground and not attached to pin 7 (0V). This allows

the best noise immunity by providing a good continuous cable shield, and still allows the pin 7

(0V) signal reference to originate in the CPU baseplate without the need for removing pin 1 in any

factory or custom built cable. The D-subminiature connector shell is still DC coupled to the remote

frame ground.

Making a 100% Shielded Cable

Use the following steps to build a 100% shielded cable:

Strip approximately 5/8 inch of insulation from your custom cable to expose the shield.

Remove the male Pin 1 from any connector plugging directly into an older version remote

baseplate (IC693CHS393E, IC693CHS399D, or earlier).

Put split-ring ferrule over cable insulation (Figure 10-17).

Fold the shield back over top of the cable insulation and ferrule.

Place the collar of the metal hood over top of the folded shield and securely clamp the hood.

Test your cable for continuity between both connector shells. Connect an ohmmeter between

the shells and flex the cable at both ends. If the metallized connector hood is not making

proper contact with the cable shield at either end, the connection will show intermittent

continuity on the ohmmeter.

Plug the metal hooded cable onto a remote baseplate expansion port connector or into a GE

Fanuc WYE cable and securely tighten the two screws. Installing and tightening the screws

will electrically connect the shield to the remote baseplate frame ground, which should in turn

should be connected to earth ground as instructed in the “Installation” chapter, under the

heading “Baseplate Safety Grounding.”

GFK-0356Q

Chapter 10 Cables

10-27

Wiring Diagrams

The following wiring diagrams show the wiring configuration for I/O expansion system cables.

Wiring diagrams are provided for both point-to-point cables and Wye cables.

TWISTED PAIRS, SHIELDED

a45525

(7 PAIRS)

DIODT

DIODT/

SERIES

DIOCLK

90-30

DIOCLK/

BASEPLATE

DRSEL

EXPANSION

WYE

DRSEL/

PORT

CABLE

DPRERR

SINGLE

DPRERR/

CONNECTOR

END

DRMRUN

DRMRUN/

WYE

CABLE

DPFRAME

DOUBLE

DPFRAME/

CONNECTOR

END

FGND

25-PIN

SHIELD DRAIN WIRE

25-PIN

MALE

FEMALE

MALE

FEMALE

METALIZED SHELL

NOTE:

Bold dashed line shows continuous (100%) shielding when metallized shell connectors are plugged together.

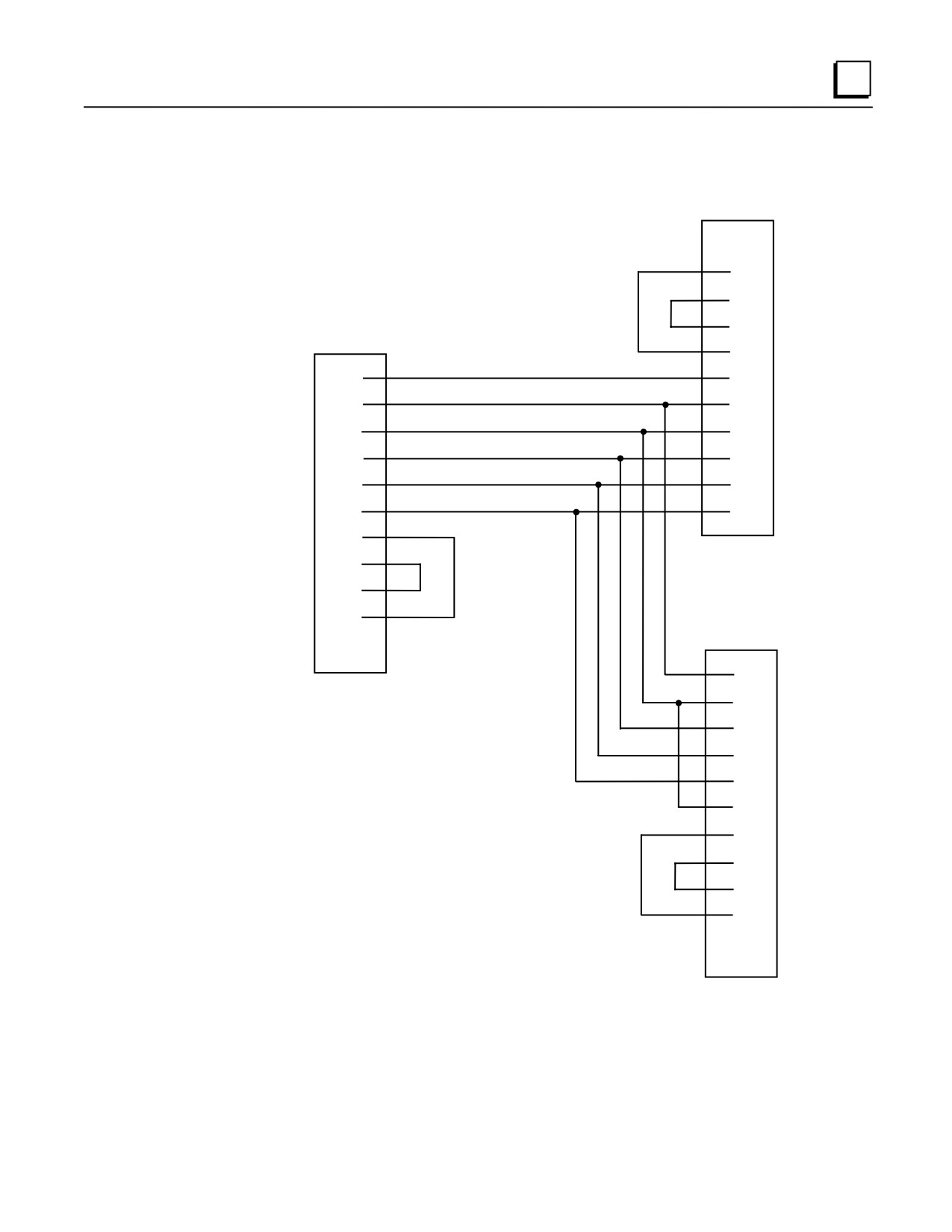

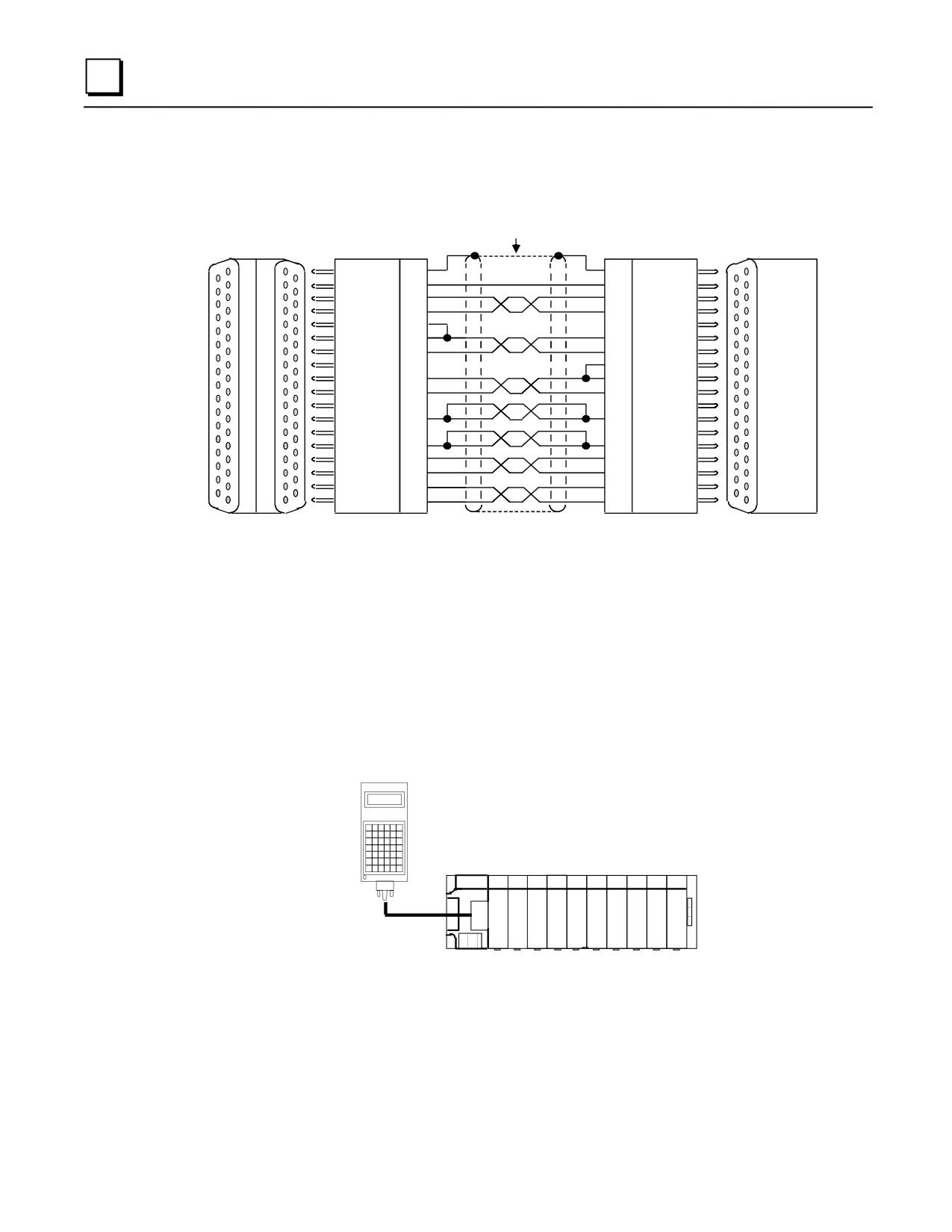

Figure 10-17. Point-To-Point Cable Wiring for Continuous Shield Custom Length Cables

TWISTED PAIRS, SHIELDED

a45527

(7 PAIRS)

DIODT

DIODT/

DIOCLK

DIOCLK/

SERIES

DRSEL

WYE

90-30

DRSEL/

CABLE

BASEPLATE

DRPERR

EXPANSION

DRPERR/

SINGLE

PORT

DRMRUN

CONNECTOR

DRMRUN/

END

DFRAME

DFRAME/

WYE

CABLE

FGND

25-PIN

25- PIN

SHIELD DRAIN WIRE

25- PIN

FEMALE

MALE

FEMALE

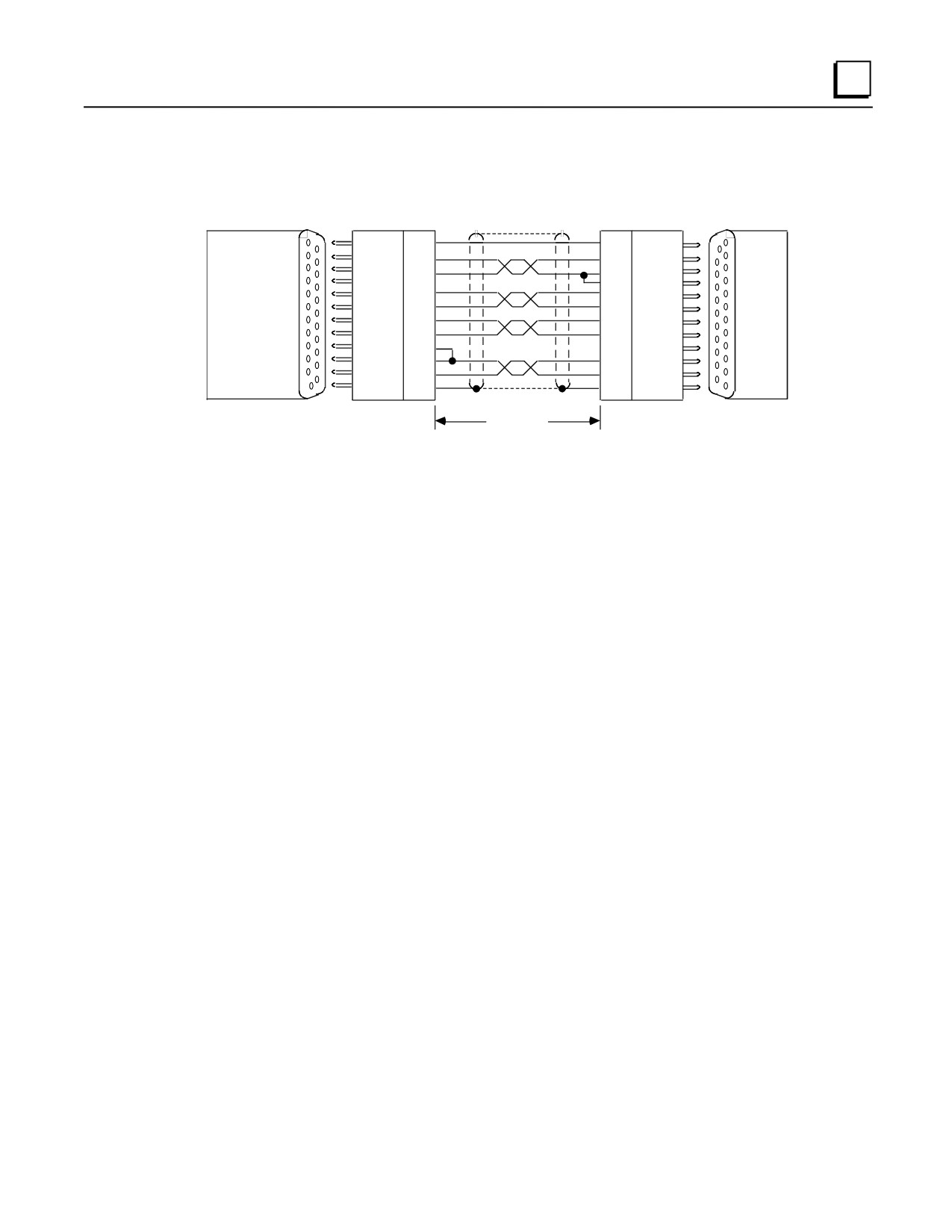

Figure 10-18. Point-To-Point Cable Wiring Diagram for Applications Requiring Less Noise Immunity

10-28

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q

Cables

TWISTED SHIELDED

PAIRS

DIODT

DIODT/

DIOCLK

CABLE

DIOCLK/

DRSEL

DOWNSTREAM

DRSEL/

RACK

REMOTE

DRPERR

EXPANSION

TERMINATION

DRPERR/

BASEPLATE

PLUG

DRMRUN

CONNECTOR

DRMRUN/

DPFRAME

DPFRAME/

FGND

25-PIN

MALE

FEMALE

MALE

FEMAL

Metallized Shell

Metallized

SHIELD DRAIN

CUT PIN 1 HERE

SHIELD DRAIN WIRE

NOT CONNECTED

FACTORY MADE WYE

ONLY FOR REMOTE BASEPLATES

IC693CHS399D (AND EARLIER REVISIONS OF

DIODT

DIODT/

DIOCLK

DIOCLK/

DRSEL

DRSEL/

DRPERR

CABLE

DRPERR/

FROM

UPSTREAM

DRMRUN

RACK

DRMRUN/

DPFRAME

DPFRAME/

FGND

25-PIN

MALE

FEMALE

Metallized Shell

NOTE:

Bold dashed line shows continuous (100%) shielding when metallized shell connectors are plugged together.

Figure 10-19. Earlier Versions of Remote Baseplate Custom WYE Cable Wiring Diagram

Note: In remote baseplates, IC693CHS393E (and earlier) and IC693CHS399D

(and earlier), it is necessary to remove pin 1 of the mating cable where

the cable plugs into the baseplate. This means that when using a factory

made Wye cable, IC693CBL300, you must break pin 1 out of the male

end where it plugs into the remote baseplate before using it with one of

these baseplates. Custom built Wye cables for these baseplates should

be built using Figure 10-20. See the section “Alert to Users of Early

Remote Baseplate Versions” for more details.

GFK-0356Q

Chapter 10 Cables

10-29

Remote baseplates IC693CHS393F (and later( and IC693CHS399E (and later) have a change

inside the baseplate which alleviates the need to remove pin 1 from the mating cable. When using

factory made Wye cable with these baseplates, it is not necessary to remove pin 1 from the cable.

Custom built Wye cables for these baseplates can be made using either Figure 10-20 or Figure 10-

21. Figure 10-21 shows how the factory made Wye cable are made.

TWISTED SHIELDED

PAIRS

DIODT

DIODT/

DIOCLK

CABLE

DIOCLK/

DRSEL

DOWNSTREAM

RACK

DRSEL/

REMOTE

DRPERR

EXPANSION

TERMINATION

DRPERR/

BASEPLATE

PLUG

CONNECTOR

DRMRUN

DRMRUN/

DPFRAME

DPFRAME/

FGND

25-PIN

MALE

FEMALE

MALE

FEMAL

Metallized Shell

Metallized

SHIELD DRAIN

SHIELD DRAIN WIRE

CONNECTED

FOR REMOTE BASEPLATES

IC693CHS399E (AND EARLIER REVISIONS OF EACH)

DIODT

DIODT/

DIOCLK

DIOCLK/

DRSEL

DRSEL/

DRPERR

CABLE

FROM

DRPERR/

UPSTREAM

DRMRUN

RACK

DRMRUN/

DPFRAME

DPFRAME/

FGND

25-PIN

MALE

FEMALE

Metallized Shell

NOTE:

Bold dashed line shows continuous (100%) shielding when metallized shell connectors are plugged together.

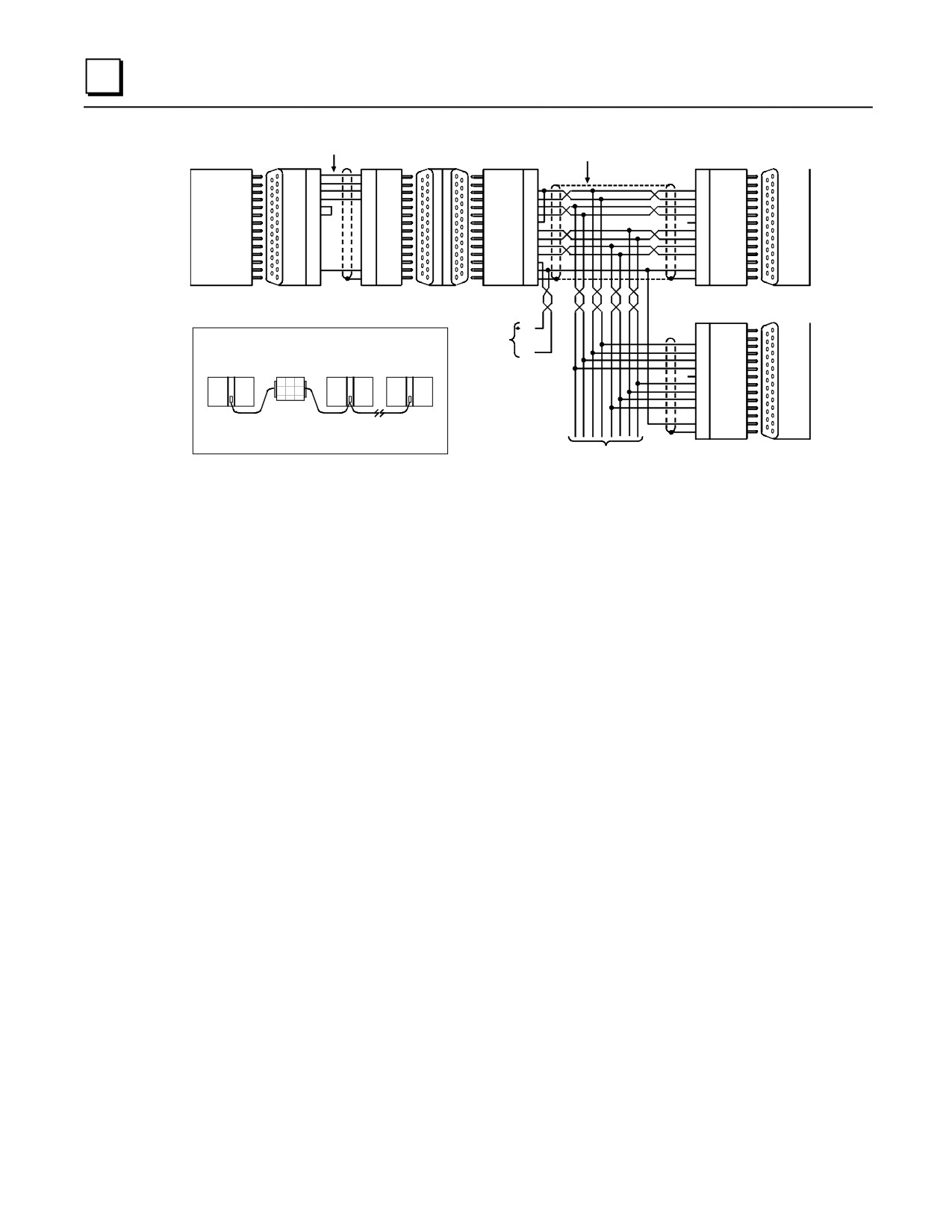

Figure 10-20. Current Remote baseplate (IC693CHS393/399) Custom Wye Cable Wiring Diagram

10-30

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q

Cables

Application Examples

Expansion System Cable Connections

The following example shows cable connections in a system that has expansion baseplates but no

remote baseplates.

PROGRAMMER

CPU BASEPLATE

SERIAL

NOTE

TOTAL MAXIMUM

DISTANCE FROM

CPU BASEPLATE

DISCRETE/ANALOG/OPTION

TO LAST EXPANSION

BASEPLATE IS

EXPANSION BASEPLATE

50 FEET (15 METERS)

I/O EXPANSION CABLES

DISCRETE/ANALOG/OPTION

IC693CBL300, 3 FT. (1 METER)

IC693CBL301, 6 FT. (1.8 METERS)

EXPANSION BASEPLATE

IC693CBL302/314, 50 FT. (15 METERS) *

IC693CBL312, 0.5 FT. (.15 METERS)

IC693CBL313, 25 FT. (8 METERS)

* See NOTE

DISCRETE/ANALOG/OPTION

EXPANSION BASEPLATE

*NOTE

Each signal pair on the I/O bus must

be terminated at the end of the I/O

bus with120 ohm resistors. This

meination can be done with the I/O

Bus Terminator Plug (IC693ACC307),

by using the 50 foot (15 meter) cable

DISCRETE/ANALOG/OPTION

(IC693CBL302/314) with built-in termi

nating resistors, or by building a

EXPANSION BASEPLATE

I/O BUS

om cable with the resistors

TERMINATOR

the connector at the end of the bus.

PLUG (See *NOTE)

IC693ACC307

DISCRETE/ANALOG/OPTION

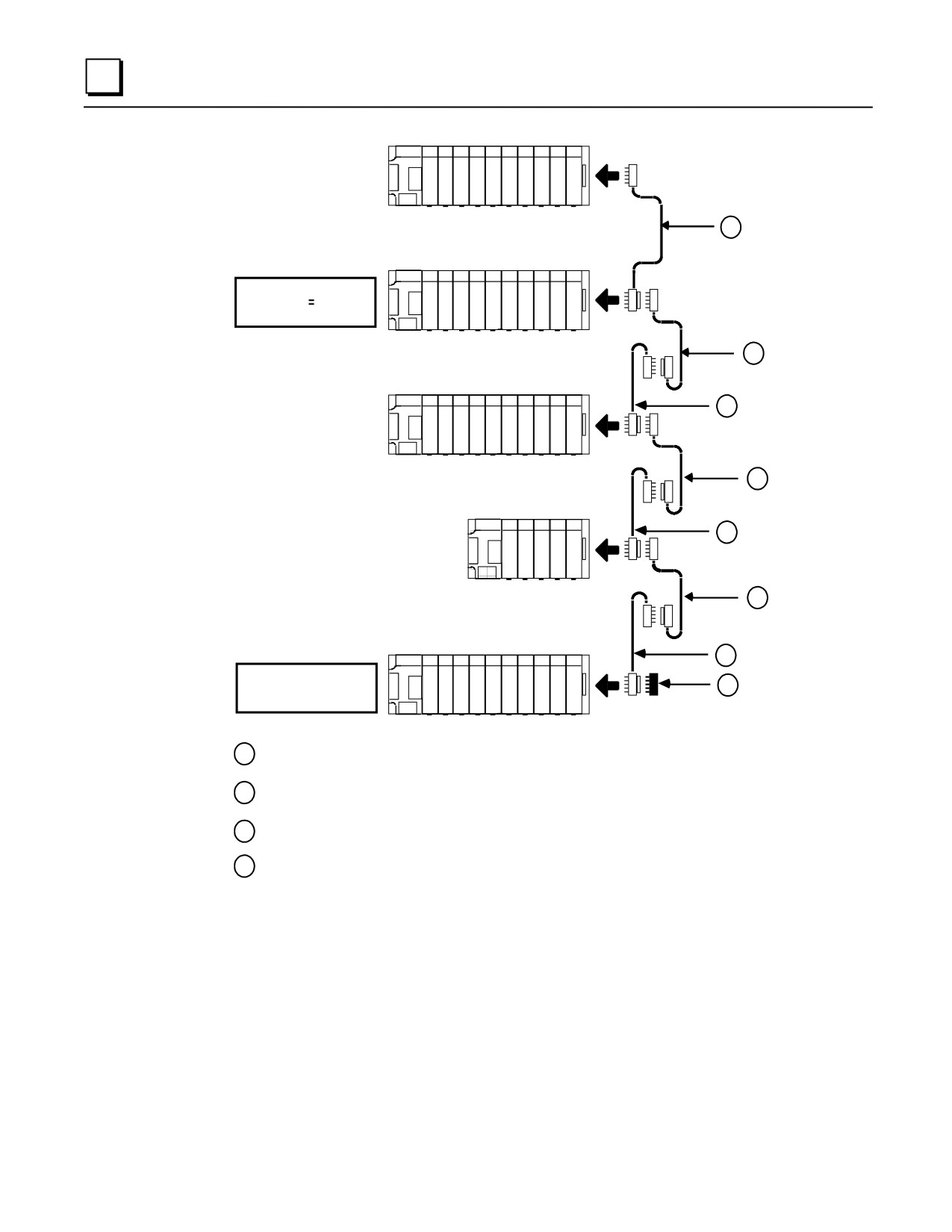

Figure 10-21. Example of Connecting Expansion Baseplates

Remote and Expansion System Cable Connection Example

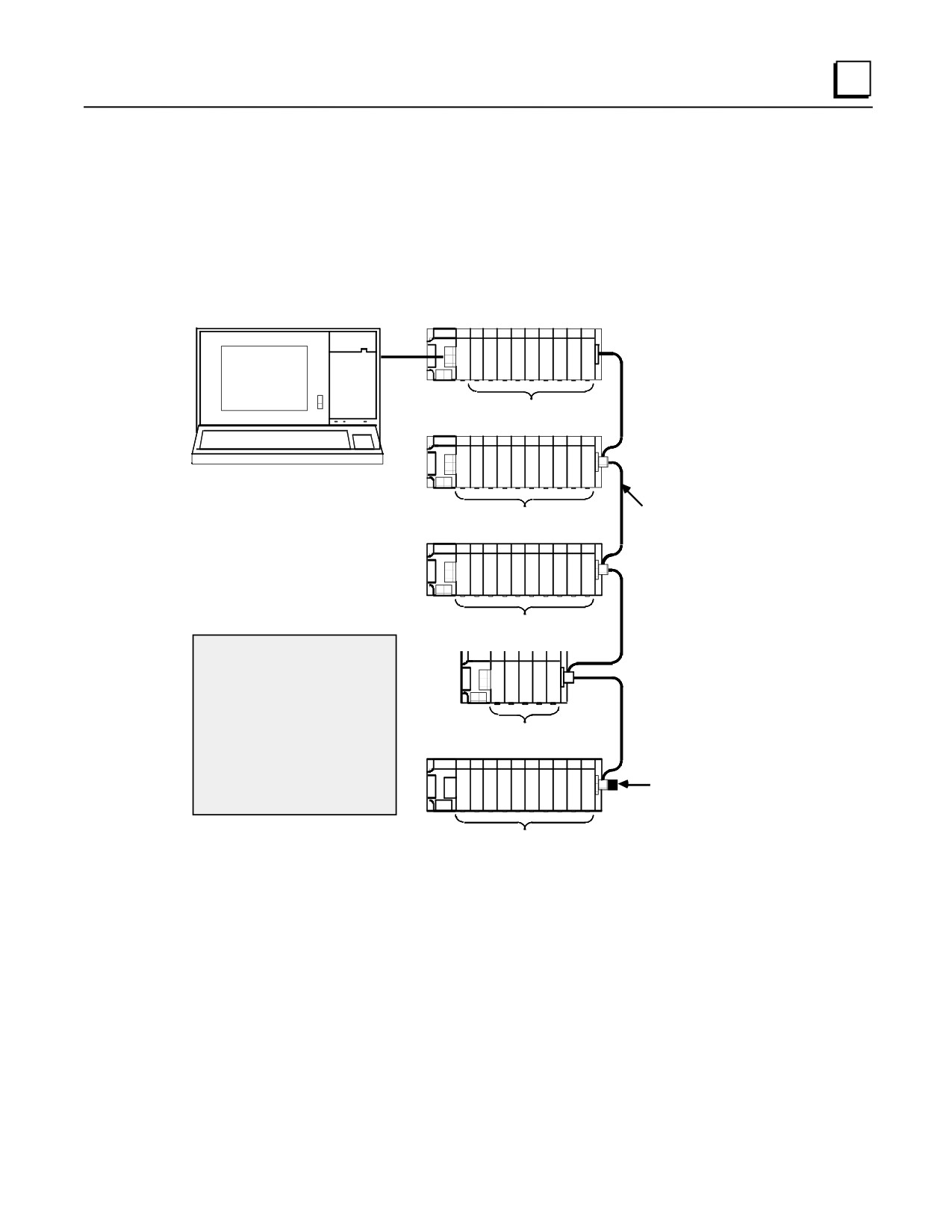

The following example shows cable connections in a system that includes both remote and

expansion baseplates. A system can have a combination of remote and expansion baseplates as

long as the distance and cable requirements are followed.

GFK-0356Q

Chapter 10 Cables

10-31

CPU BASEPLATE

CPU

BASEPLATE

IC693CHS391/397

EXPANSION

BASEPLATE

EXPANSION BASEPLATE

IC693CHS392/398

MAXIMUM DISTANCE

FROM CPU

50 FEET

(15 METERS)

REMOTE BASEPLATE

REMOTE

BASEPLATE

IC693CHS393/399

REMOTE BASEPLATE

REMOTE

BASEPLATE

IC693CHS393/399

REMOTE

BASEPLATE

REMOTE BASEPLATE

IC693CHS393/399

MAXIMUM DISTANCE

FROM CPU= 700 FEET

(213 METERS)

Standard Wye Cable

Custom Built Point-to-Point Cable

IC693CBL300 Standard Wye Cable, Used as Wye Jumper

IC693ACC307 Bus Terminator

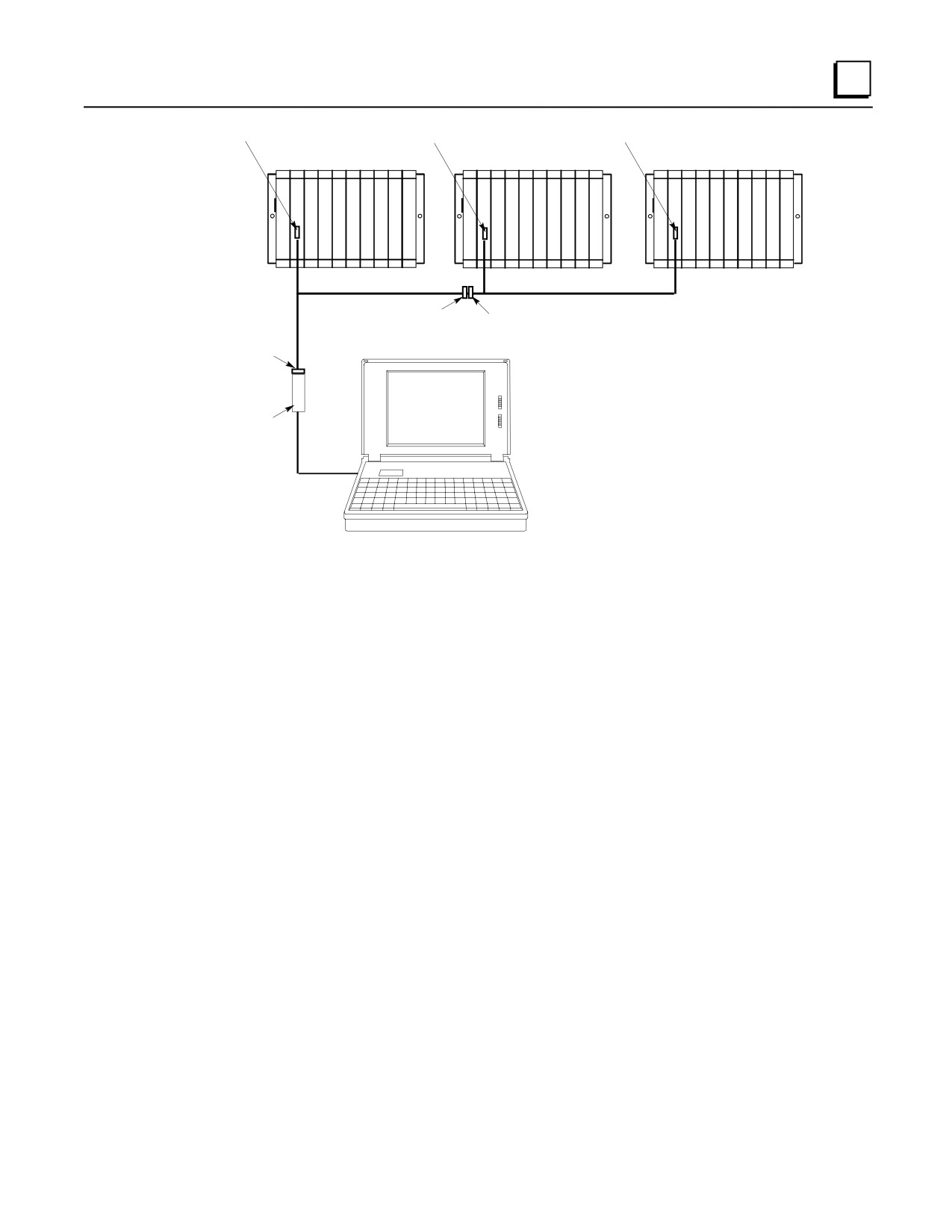

Figure 10-22. Example of Connecting Expansion and Remote Baseplates

10-32

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q

Cables

IC693CBL303

Hand-Hand Programmer and Converter (IC690ACC900) Cable

Function of cable

The Hand-Held Programmer cable provides the connections that allow the Hand-Held Programmer

and the Programmable Logic Controller to communicate. This cable also provides the power

connections for the HHP, and a signal which indicates to the PLC that the HHP is attached to the

PLC serial port. It can also be used to connect the RS-485 serial port on the PLC to the RS-

422/RS-485 to RS-232 converter (IC690ACC900).

Cable Specifications

The prewired cable (IC693CBL303) is 6 feet (2 meters) long. If a different length cable is required

for connection to the converter, refer to the information below for specifications and wiring

information.

This information is essential if you intend to build your own cable. The recommended cable types

for this cable are listed below and depend on the length of the cable.

Specifications for IC693CBL303 Prewired cable

Item

Description

Connectors

15-pin male, D-Subminiature Type, Canon DA15S (solder pot)

Same connector is on

both

ends

Hood

AMP 207470-1 connector shell

Hardware kit

AMP 207871-1 Kit includes 2 metric screws and 2 screw clips

Cable Type

Belden 9508:

AWG #24 (.22 mm²)

Cable Length

6 feet (2 meters)

Wire Types for Custom Cables

Cable Length

Wire Size

Catalog Number

30 feet (10m)

22 (.36 mm²)

Belden 9309

>30 (10m) feet to

22 (.36 mm²)

Same as for 30 feet. In addition, the+5 VDC logic power source for the

980 feet (300m)

converter cannot be supplied by the PLC. It must be provided by an

external power supply connected to the +5V and SG pins at the converter end of

the connector. The +5V pin at the PLC connector must not be connected to the

cable. The +5V and SG connections from the power supply must be isolated from

its own power line ground connection. Be sure that there is no connection between

the external supply and the PLC except the SG cable connection.

Catalog numbers are provided as suggestions only. Any cable having the same electrical characteristics is acceptable.

It is strongly recommended that you use stranded wire. Since it is sometimes hard to find a cable with the desired

number of twisted pairs (the Belden 9309 has an extra pair), you may end up with a cable with extra pairs.

A greater cable length between the PLC and the converter increases the possibility of noise coupling into the data and

converter logic power circuits within the cable. The cable should be as short as possible in noisy environments. In

extreme cases, additional noise protection measures, such as double-shielded cables, may be required.

GFK-0356Q

Chapter 10 Cables

10-33

Wiring Diagram

The following wiring diagram applies to the IC693CBL303 cable and to custom-built cables.

RS-422

RS-232/RS-485

TWISTED SHIELDED PAIRS

CONVERTER

a44750

(IC690ACC900)

SHLD

ATTCH

DCD (A)

DCD (B)

RD (A')

SD (A)

RD (B')

SD (B)

SERIES

90 PLC

RS-422

SD (A)

RD (A')

PORT

SD (B)

RD (B')

+5V

RTS (A)

CTS (A')

RTS (B)

CTS (B')

CTS (A')

RTS (A)

CTS (B')

RTS (B)

25-PI

15-PIN

FEMALE

MALE

FEMALE

RS-232 PORT

RS-485 PORT

PINS 9 AND 10 ARE JUMPERED AT BOTH ENDS OF CABLE TO CONNECT TERMINATING

RESISTORS FOR THE RD SIGNAL WHICH IS INSIDE THE PLC POWER SUPPLY.

NOTE:

Figure 10-23. Wiring Connections for IC693CBL303 and Custom-Built Cables

Connecting the Cable

Attach the 15-pin male D connector to the serial port connector on the PLC power supply.

Attach the D connector on the other end to the mating connector on the HHP. These

connections are shown in the following figure.

HAND-HELD

PROGRAMMER

SERIES 90-30

CABLE

(IC693CBL303)

Figure 10-24. Hand-Held Programmer Cable Connection to a Series 90-30 PLC

10-34

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q

Cables

IC693CBL304/305

Port Expansion (WYE) Cables for PCM, ADC, and CMM

Function of cable

A WYE cable (IC693CBL304 for PCM300; IC693CBL305 for PCM301/311, ADC311, CMM311,

AD693CMM301, and SLP300) is supplied with each PCM, ADC, and CMM module. The WYE

cable is used to separate two ports available on a single physical connector; the cable separates the

RS-232 from the RS-485 signals. In addition, the WYE cable allows cables used with the Series

90-70 PCM to be fully compatible with the Series 90-30 PCM. The WYE cable and cable

connections are shown below and on the following page.

Each WYE cable is 1 foot in length and has a right angle male connector on one end that connects

to the PCM module. The other end has a dual female connector with one connector for port 1 and

the other for port 2.

RS-232

25-PIN FEMALE

CONNECTOR

PIN 1

1 FOOT

(+2.0 INCH, -0 INCH)

LABEL

PORT 1

PORT 2

PCM COMM. CABLE

IC693CBL305

PIN 1

RS-232

RS-232/RS-485

PIN 1

25-PIN MALE

25-PIN FEMALE

CONNECTOR

Figure 10-25. Wye Cable

Cable Specifications

Cable Length

1 foot (0.3 meters)

25 Pin Male Connector:

Crimp Plug = Amp 207464-1; Pin = Amp 66506-9

Solder Plug = Amp 747912-2

25 Pin Female Connector:

Crimp Receptacle = Amp 207463-2; Pin = Amp 66504-9

Solder Receptacle = Amp 747913-2

Connector Shell:

Kit - Amp 207908-7

Separate Shell = Amp 207345-1;

Male Screw Retainer = Amp 205980-1

Cable Type

27 conductor cable, 28 AWG (.09 mm²), with overall shield, extra

flexible

GFK-0356Q

Chapter 10 Cables

10-35

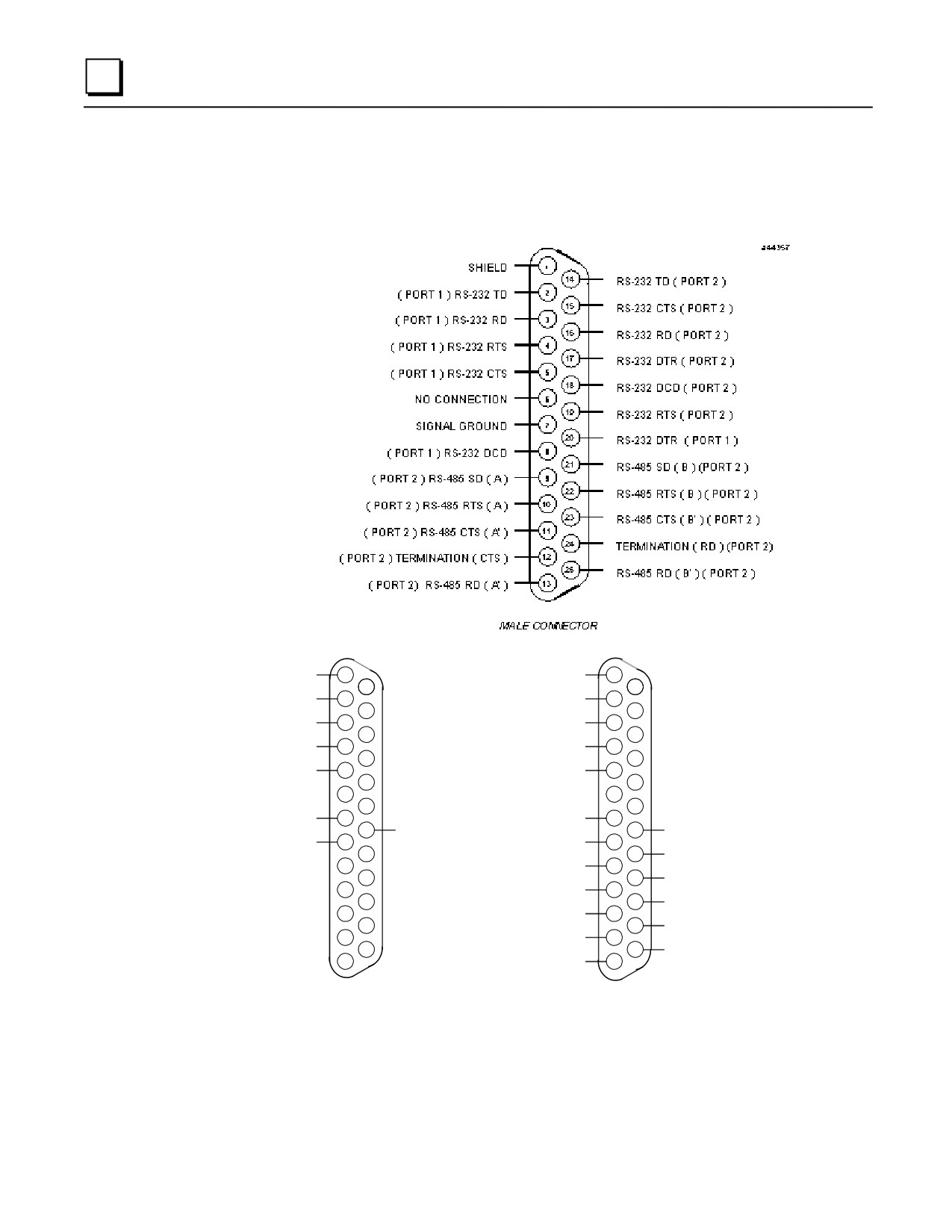

Wiring Information

The following figure shows the pin configuration for each of the connectors on the WYE cable.

PORT 1

PORT 2

SHIELD

RS-232 TD

RS-232 RD

RS-232 RTS

RS-232 CTS

SIGNAL GROUND

RS-232 DTR

RS-232 DCD

RS-485 SD ( B )

RS-485 SD ( A )

RS-485 RTS ( B )

RS-485 RTS ( A )

RS-485 CTS ( B' )

RS-485 CTS ( A' )

TERMINATION ( RD )

TERMINATION ( CTS )

RS-485 RD ( B' )

RS-485 RD ( A' )

DUAL FEMALE CONNECTORS

Figure 10-26. Wye Cable Connections

The WYE cable is 1 foot in length and has a right angle male connector on one end that connects to

the PCM module. The other end has a dual female connector with one connector for port 1 and the

other for port 2.

10-36

Series 90-30 PLC Installation and Hardware Manual - August 2002

GFK-0356Q

FANUC Series 90-30 PLC. Installation and Hardware Manual (GFK-0356Q) - page 9
