FANUC Series 30i-MODEL B, 31i-MODEL B, 32i-MODEL B. MAINTENANCE MANUAL

11.MOTOR/DETECTOR/AMPLIFIER PREVENTIVE MAINTENANCE

B-64485EN/01

(2) Servo amplifier

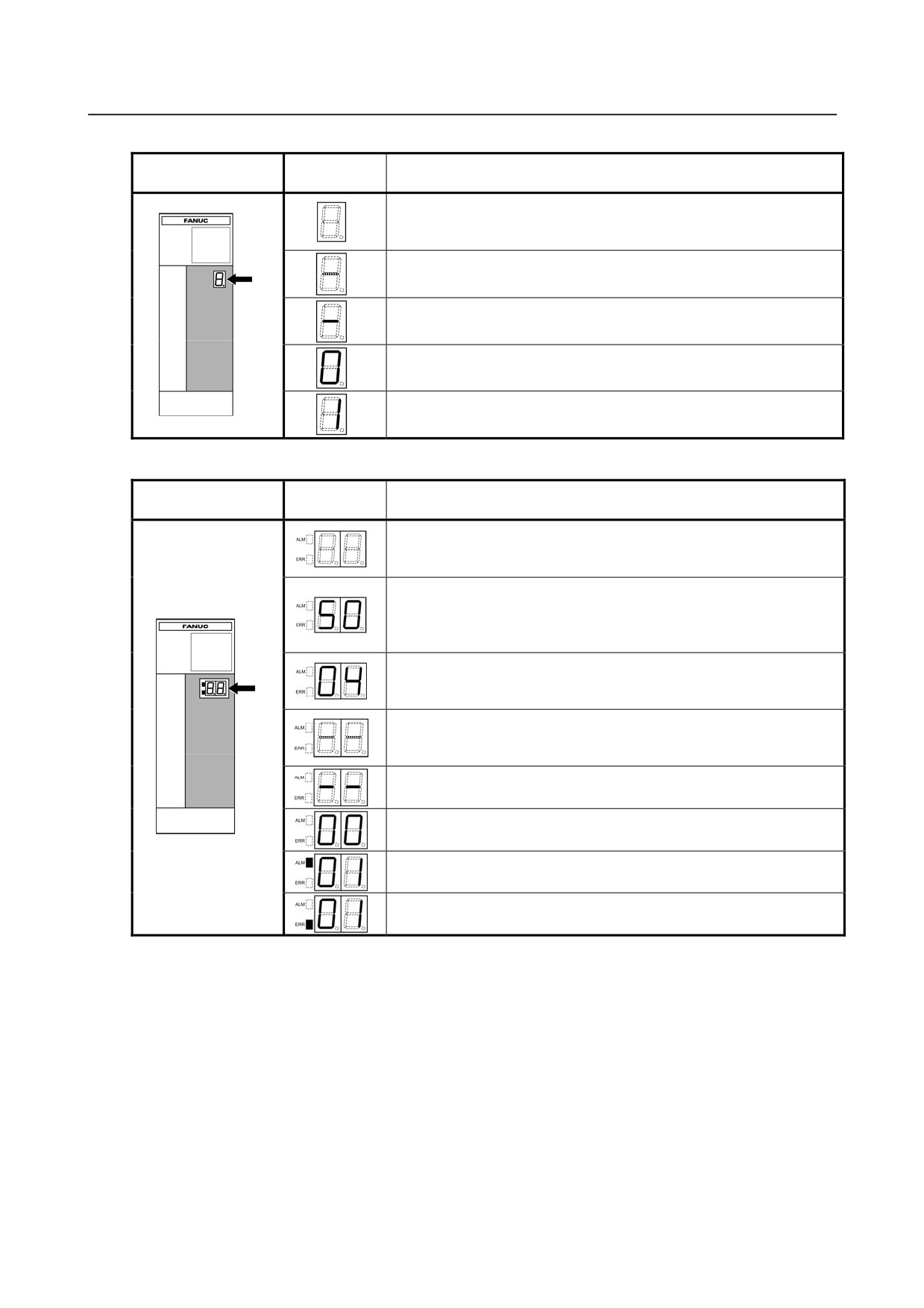

STATUS LED

STATUS

Description

position

display

The STATUS LED is off.

Control power has not been supplied, cable is faulty, or control

Nameplate

power circuit is defective.

The control power is short-circuited (- blinks).

Blink

Cable failure

Waiting for the READY signal from the CNC.

Ready status

The servo motor is excited.

Alarm status

The alarm type is indicated by the character displayed.

(3) Spindle amplifier

STATUS LED

STATUS

Description

position

display

The STATUS LED is off.

Control power has not been supplied, cable is faulty, or control

power circuit is defective.

After control power is turned on, the spindle software series is

displayed (for approx. 1 second).

The last two digits of the spindle software series number are

displayed.

Nameplate

The spindle software version is displayed (for approx. 1 second

following the display of the spindle software series).

[Display] 01,02,03,･･･

→ [Version] A, B, C,･･･

The CNC is not powered on (- - blinks).

Blink

Waiting for serial communication and parameter loading

completion.

Parameter loading completed

The motor is not excited.

Ready status

The spindle motor is excited.

Alarm status

The alarm type is indicated by the character displayed.

Error status (invalid sequence or parameter setting error)

The error type is indicated by the character displayed.

- 612 -

B-64485EN/01

11.MOTOR/DETECTOR/AMPLIFIER PREVENTIVE MAINTENANCE

[βi SV series]

(yellow)

(green)

(yellow)

(green)

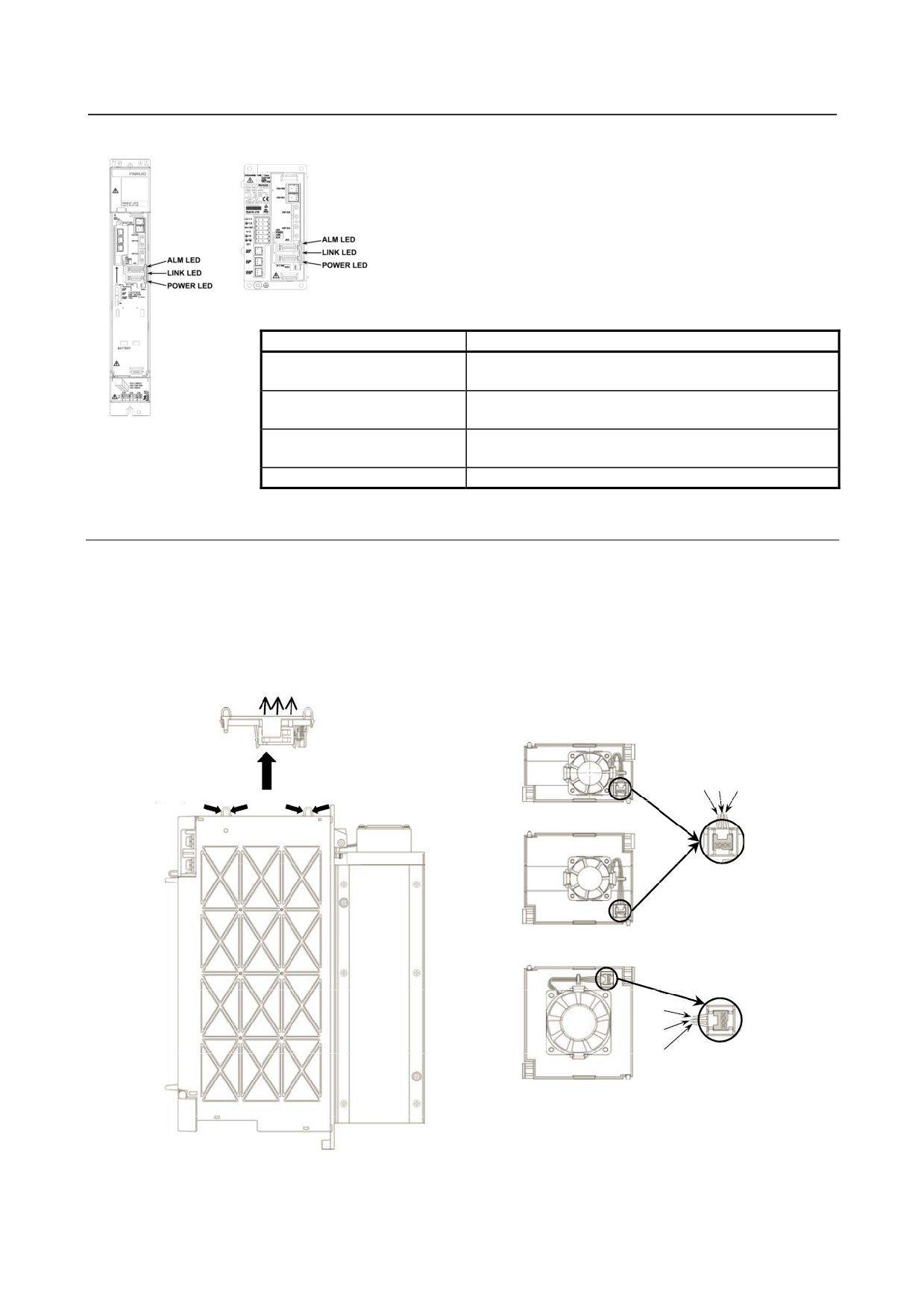

STATUS LED

Description

Control power has not been supplied, cable is faulty, or

None of the LEDs is on.

control power circuit is defective.

Alarm status

The ALM LED (yellow) is on.

The alarm type is indicated by the character displayed.

Communication between CNC and servo amplifier is

The LINK LED (green) is on.

progressing normally.

The POWER LED (green) is on.

The control power of the servo amplifier (5 V) is normal.

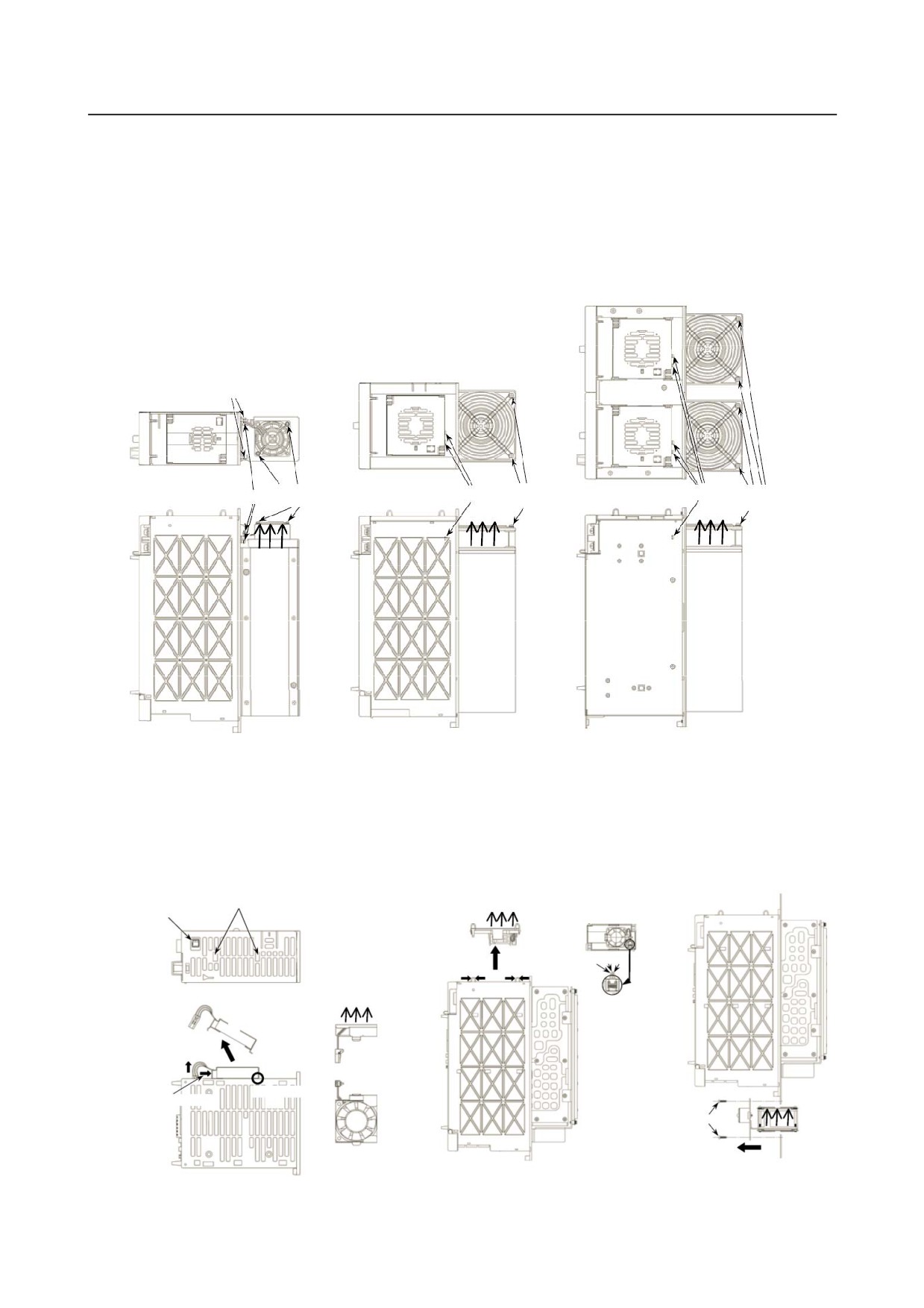

11.3.3.2 Replacement of a fan motor

[αi series]

(1) Fan motor for internal cooling

Replace the internal fan motor, according to the procedure shown in the figure below.

When replacing the fan motor, be careful about the direction of the fan motor (air blow direction),

the direction of the connector, etc.

Air blow direction

Fan unit

(1) Hold the two tabs

(2) Remove the fan

and get the fan unit

unit by pulling it

White Black Red

upward.

off the latch.

Fan unit (60-mm-wide)

Tab

Be careful about the

connector key direction.

Fan unit (90-mm-wide)

Red

Black

White

Be careful about the

connector key direction.

Fan unit (150-mm-wide)

* Be careful about the fan motor and connector directions.

- 613 -

11.MOTOR/DETECTOR/AMPLIFIER PREVENTIVE MAINTENANCE

B-64485EN/01

(2) Fan motor for cooling external heat sink

<1> Remove the two sheet metal mounting screws (for the 60-mm-wide model only), and detach the

fan motor from the unit together with the sheet metal.

<2> Remove the fan motor mounting screws (two for one fan motor and four for two fan motors).

<3> Remove the connector mounting screws (two and four for the 300-mm-wide model).

When replacing the fan motor, be careful about the direction of the fan motor (air blow direction),

the direction of the connector, etc.

Sheet metal mounting screws

Fan motor

Connector mounting screw

mounting screw

Air blow

direction

60 mm wide/90 mm wide

150 mm wide

300 mm wide

[βi series]

Replace the fan motor, according to the procedure shown in the figure below.

When replacing the fan motor, be careful about the direction of the fan motor (air blow direction), the

direction of the connector, etc.

Fan motor mounting notch

Air blow direction

Fan connector

Fan unit

(2) Pull the fan unit _{White Black Red}

(1) Push the hooks to set

upward.

the fan unit loose.

Top view of the amplifier

Air blow direction

Be careful about the

Fan connector

(4) Lift the fan unit

connector key direction.

toward you.

(1) Pull up the fan

connector to

remove it.

(3) Set the fan unit

Air blow

(2) Push down

the fan unit

loose.

direction

to get it off

(1) Remove four M4

the hooks.

screws.

Fan unit

(2) Pull out the fan

unit.

βiSV4, 20 (internal fan)

βiSV40, 80 (internal fan)

βiSV40, 80 (external fan)

- 614 -

B-64485EN/01

APPENDIX

A.ALARM LIST

A ALARM LIST

Appendix A, "ALARM LIST", consists of the following sections:

A.1 ALARM LIST (CNC)

617

(1) Alarms on program and operation (PS alarm)

617

(2) Background edit alarms (BG alarm)

617

(3) Communication alarms (SR alarm)

617

(4) Parameter writing alarm (SW alarm)

663

(5) Servo alarms (SV alarm)

663

(6) Overtravel alarms (OT alarm)

670

(7) Memory file alarms (IO alarm)

671

(8) Alarms requiring power to be turned off (PW alarm)

672

(9) Spindle alarms (SP alarm)

673

(10) Overheat alarms (OH alarm)

675

(11) Other alarms (DS alarm)

676

(12) Malfunction prevention function alarms (IE alarm)

681

A.2 ALARM LIST (PMC)

681

A.2.1 Messages That May Be Displayed on the PMC Alarm Screen

681

A.2.2 PMC System Alarm Messages

690

A.2.3 Operation Errors

695

A.2.4 I/O Communication Error Messages

710

A.3 ALARM LIST (SERIAL SPINDLE)

715

A.4 ERROR CODES (SERIAL SPINDLE)

727

A.1 ALARM LIST (CNC)

(1) Alarms on program and operation (PS alarm)

(2) Background edit alarms (BG alarm)

(3) Communication alarms (SR alarm)

Alarm numbers are common to all these alarm types.

Depending on the state, an alarm is displayed as in the following examples:

PS"alarm number" Example: PS0003

BG"alarm number" Example: BG0085

SR"alarm number" Example: SR0001

Number

Message

Description

0001

TH ERROR

A TH error was detected during reading from an input device.

The read code that caused the TH error and how many

statements it is from the block can be verified in the

diagnostics screen.

0002

TV ERROR

An error was detected during the single-block TV error.

The TV check can be suppressed by setting bit 0 (TVC) of

parameter No. 0000 to “0”.

0003

TOO MANY DIGIT

Data entered with more digits than permitted in the NC

instruction word.

The number of permissible digits varies according to the

function and the word.

0004

INVALID BREAK POINT OF WORDS

NC word(s) address + numerical value not in word format.

This alarm is also generated when a custom macro does not

contain a reserved word, or does not conform to the syntax.

- 617 -
