9. EDITING PROGRAMS

9.6.3

A new program can be created by moving part of a program.

Moving Part of a

Before copy

After copy

Program

Oxxxx

Oxxxx

Oyyyy

A

Copy

A

B

C

B

C

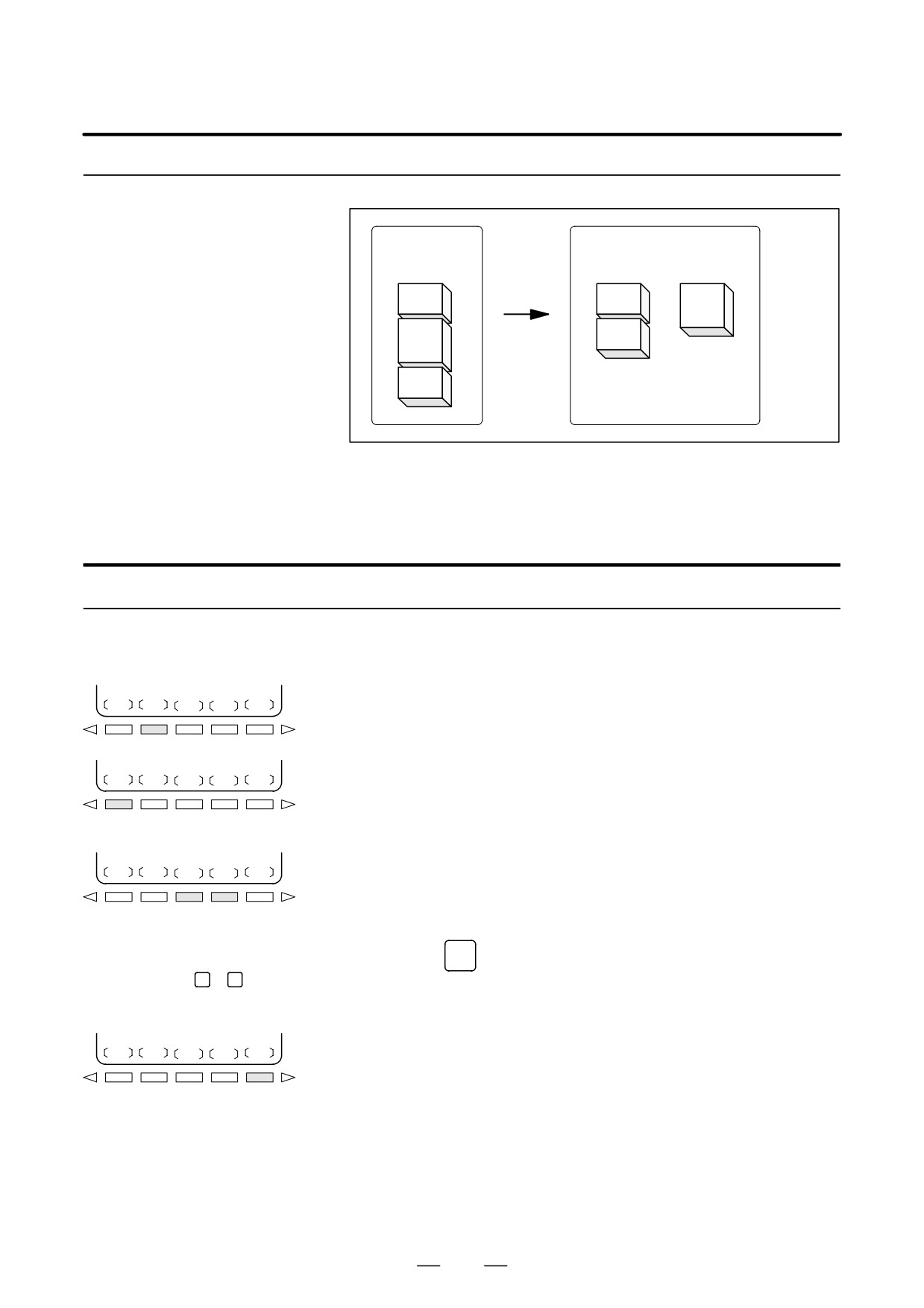

Fig. 9.6.3 Moving part of a program

In Fig. 9.6.3, part B of the program with program number xxxx is moved

to a newly created program with program number yyyy; part B is deleted

from the program with program number xxxx.

Procedure for moving part of a program

1

Perform steps 1 to 5 in III-9.6.1.

2

Check that the screen for the program to be moved is selected and

MOVE

press soft key [MOVE].

3

Move the cursor to the start of the range to be moved and press soft

CRSR

key [CRSR

].

4

Move the cursor to the end of the range to be moved and press soft key

[ CRSR] or [ BTTM](in the latter case, the range to the end of the

CRSR

BTTM

program is copied regardless of the position of the cursor).

5

Enter the number of the new program (with only numeric keys) and

press the

INPUT

key.

Numeric

keys

0

9

6

Press soft key [EXEC].

EXEC

613

9. EDITING PROGRAMS

OPERATION

B-64124EN/01

9.6.4

Another program can be inserted at an arbitrary position in the current

program.

Merging a Program

Before merge

After merge

Oxxxx

Oyyyy

Oxxxx

Oyyyy

A

B

Merge

A

B

C

B

Merge

location

C

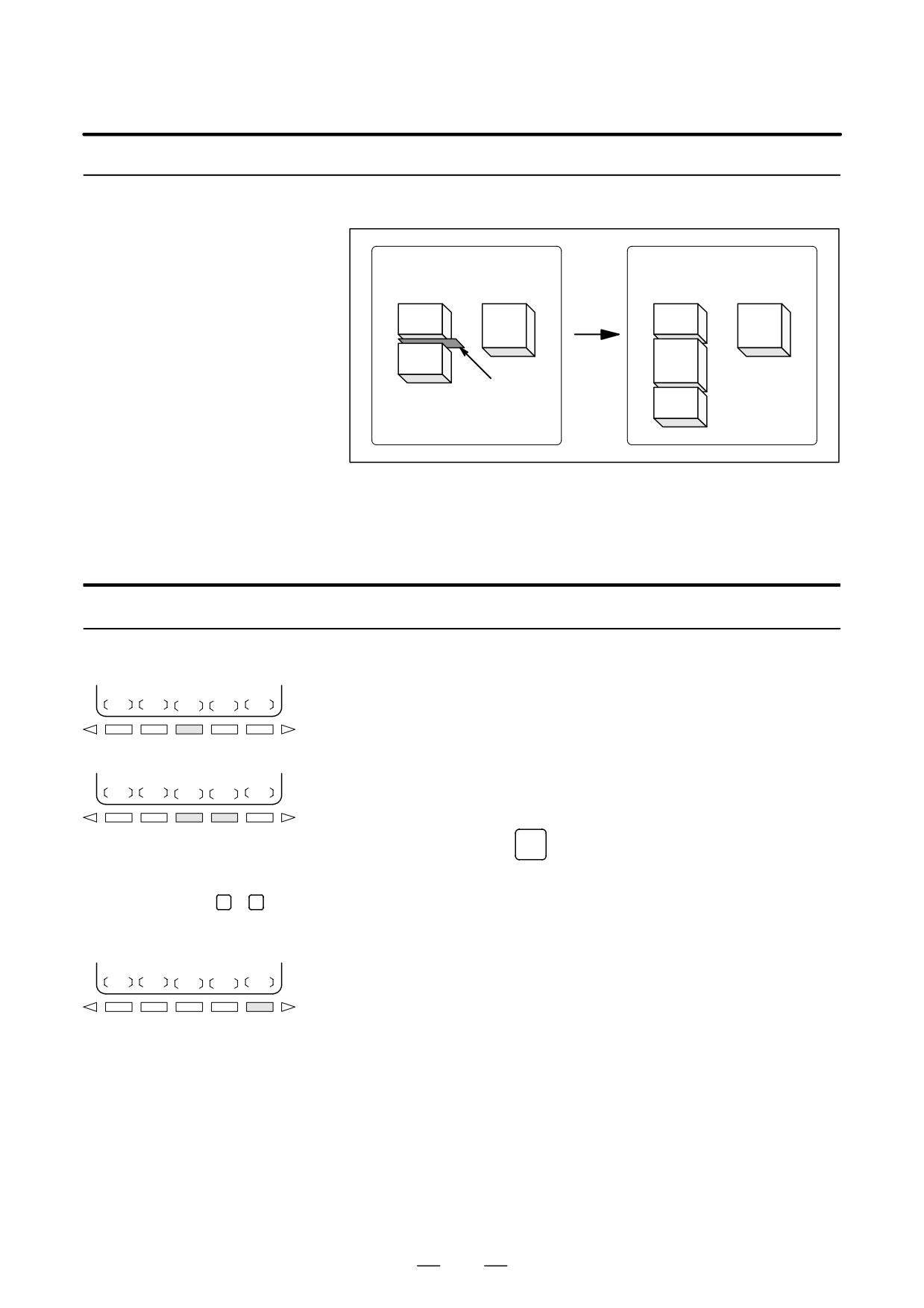

Fig. 9.6.4 Merging a program at a specified location

In Fig. 9.6.4, the program with program number XXXX is merged with the

program with program number YYYY. The OYYYY program remains

unchanged after merge operation.

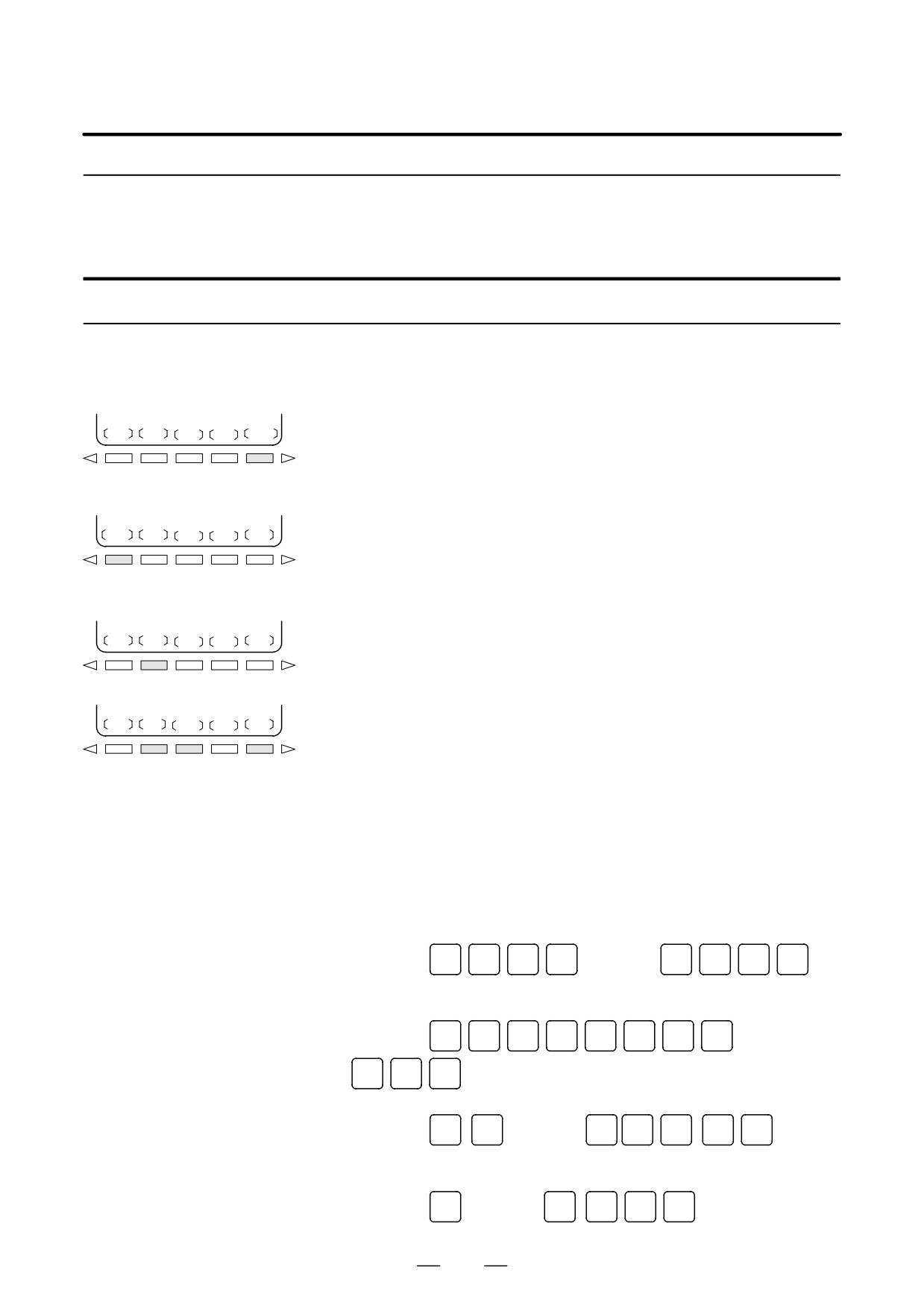

Procedure for merging a program

1

Perform steps 1 to 5 in III-9.6.1.

2

Check that the screen for the program to be edited is selected and press

MERGE

soft key [MERGE].

3

Move the cursor to the position at which another program is to be

inserted and press soft key [

’CRSR] or [ BTTM’](in the latter case,

the end of the current program is displayed).

’CRSR

BTTM’

4

Enter the number of the program to be inserted (with only numeric

keys) and press the

INPUT

key.

5

Press soft key [EXEC].

Numeric keys

0

9

The program with the number specified in step 4 is inserted before the

cursor positioned in step 3.

EXEC

614

9. EDITING PROGRAMS

OPERATION

B-64124EN/01

Alarm

Alarm no.

Contents

Memory became insufficient while copying or inserting

70

a program. Copy or insertion is terminated.

The power was interrupted during copying, moving, or

inserting a program and memory used for editing must

be cleared. When this alarm occurs, press the key

RESET

101

while pressing function key

PROG

Only the program being edited is deleted.

616

B-64124EN/01

OPERATION

9. EDITING PROGRAMS

9.6.6

Replace one or more specified words.

Replacement can be applied to all occurrences or just one occurrence of

Replacement of

specified words or addresses in the program.

Words and Addresses

Procedure for hange of words or addresses

1

Perform steps 1 to 5 in III-9.6.1.

2

Press soft key [CHANGE].

CHANGE

3

Enter the word or address to be replaced.

BEFORE

4

Press soft key [BEFORE].

5

Enter the new word or address.

AFTER

6

Press soft key [AFTER].

SKIP

1-EXEC

EXEC

7

Press soft key [EXEC] to replace all the specified words or addresses

after the cursor.

Press soft key [1-EXEC] to search for and replace the first occurrence

of the specified word or adress after the cursor.

Press soft key [SKIP] to only search for the first occurrence of the

specified word or address after the cursor.

Examples

D Replace X100 with Y200

[CHANGE]

X

1

0

0

[BEFORE]

Y

2

0

0

[AFTER][EXEC]

D Replace X100Y200 with

[CHANGE]

X

1

0

0

Y

2

0

0

[BEFORE]

X30

X

3

0

[AFTER][EXEC]

D Replace IF with WHILE

[CHANGE]

I

F

[BEFORE]

W

H

I

L

E

[AFTER]

[EXEC]

D Replace X with ,C10

[CHANGE]

[BEFORE]

,

[AFTER][EXEC]

X

C

1

0

617

9. EDITING PROGRAMS

OPERATION

B-64124EN/01

Editing a program while executing another program is called background

9.8

editing. The method of editing is the same as for ordinary editing

BACKGROUND

(foreground editing).

EDITING

A program edited in the background should be registered in foreground

program memory by performing the following operation:

During background editing, all programs cannot be deleted at once.

Procedure for background editing

1

Enter EDIT or MEMORY mode.

Memory mode is allowed even while the program is being executed.

2

Press function key

PROG

3

Press soft key [(OPRT)], then press soft key [BG-EDT].

The background editing screen is displayed

(PROGRAM

(BG-EDIT) is displayed at the top left of the screen).

4

Edit a program on the background editing screen in the same way as

for ordinary program editing.

5

After editing is completed, press soft key [(OPRT)], then press soft

key [BG-EDT]. The edited program is registered in foreground

program memory.

Explanation

D Alarms during

Alarms that may occur during background editing do not affect

background editing

foreground operation. Conversely, alarms that may occur during

foreground operation do not affect background editing. In background

editing, if an attempt is made to edit a program selected for foreground

operation, a BP/S alarm (No. 140) is raised. On the other hand, if an

attempt is made to select a program subjected to background editing

during foreground operation (by means of subprogram calling or program

number search operation using an external signal), a P/S alarm (Nos. 059,

078) is raised in foreground operation. As with foreground program

editing, P/S alarms occur in background editing. However, to distinguish

these alarms from foreground alarms, BP/S is displayed in the data input

line on the background editing screen.

620

B-64124EN/01

OPERATION

9. EDITING PROGRAMS

The password function (bit 4 (NE9) of parameter No. 3202) can be locked

9.9

using parameter No.

3210

(PASSWD) and parameter No.

3211

PASSWORD

(KEYWD) to protect program Nos. 9000 to 9999. In the locked state,

FUNCTION

parameter NE9 cannot be set to 0. In this state, program Nos. 9000 to 9999

cannot be modified unless the correct keyword is set.

A locked state means that the value set in the parameter PASSWD differs

from the value set in the parameter KEYWD. The values set in these

parameters are not displayed. The locked state is released when the value

already set in the parameter PASSWD is also set in parameter KEYWD.

When 0 is displayed in parameter PASSWD, parameter PASSWD is not

set.

Procedure for locking and unlocking

Locking

1

Set the MDI mode.

2

Enable parameter writing. At this time, P/S alarm No. 100 is issued

on the CNC.

3

Set parameter No. 3210 (PASSWD). At this time, the locked state is

set.

4

Disable parameter writing.

5

Press the

RESET

key to release the alarm state.

Unlocking

1

Set the MDI mode.

2

Enable parameter writing. At this time, P/S alarm No. 100 is issued

on the CNC.

3

In parameter No. 3211 (KEYWD), set the same value as set in

parameter No. 3210 (PASSWD) for locking. At this time, the locked

state is released.

4

Set bit 4 (NE9) of parameter No. 3202 to 0.

5

Disable parameter writing.

6

Press the

RESET

key to release the alarm state.

7

Subprograms from program Nos. 9000 to 9999 can now be edited.

Explanations

D Setting parameter

The locked state is set when a value is set in the parameter PASSWD.

PASSWD

However, note that parameter PASSWD can be set only when the locked

state is not set (when PASSWD = 0, or PASSWD = KEYWD). If an

attempt is made to set parameter PASSWD in other cases, a warning is

given to indicate that writing is disabled. When the locked state is set

(when PASSWD = 0 and PASSWD = KEYWD), parameter NE9 is

automatically set to 1. If an attempt is made to set NE9 to 0, a warning

is given to indicate that writing is disabled.

D Changing parameter

Parameter PASSWD can be changed when the locked state is released

PASSWD

(when PASSWD = 0, or PASSWD = KEYWD). After step 3 in the

procedure for unlocking, a new value can be set in the parameter

PASSWD. From that time on, this new value must be set in parameter

KEYWD to release the locked state.

621

10. CREATING PROGRAMS

OPERATION

B-64124EN/01

Programs can be created in the EDIT mode using the program editing

10.1

functions described in III-9.

CREATING

PROGRAMS USING

THE MDI PANEL

Procedure for Creating Programs Using the MDI Panel

Procedure

1

Enter the EDIT mode.

2

Press the

PROG

key.

3

Press address key

O

and enter the program number.

4

Press the

INSERT

key.

5

Create a program using the program editing functions described in

III-9.

Explanation

D Comments in a program

Comments can be written in a program using the control in/out codes.

Example) O0001 (FANUC SERIES 16) ;

M08 (COOLANT ON) ;

S When the

INSERT

key is pressed after the control-out code

“(”,

comments, and control-in code “)” have been typed, the typed

comments are registered.

S When the

INSERT

key is pressed midway through comments, to enter

the rest of comments later, the data typed before the

INSERT

key is

pressed may not be correctly registered (not entered, modified, or lost)

because the data is subject to an entry check which is performed in

normal editing.

Note the following to enter a comment:

S Control-in code “)” cannot be registered by itself.

S Comments entered after the

INSERT

key is pressed must not begin with

a number, space, or address O.

S If an abbreviation for a macro is entered, the abbreviation is converted

into a macro word and registered (see Section 9.7).

S Address O and subsequent numbers, or a space can be entered but are

omitted when registered.

624

B-64124EN/01

OPERATION

10. CREATING PROGRAMS

Sequence numbers can be automatically inserted in each block when a

10.2

program is created using the MDI keys in the EDIT mode.

AUTOMATIC

Set the increment for sequence numbers in parameter 3216.

INSERTION OF

SEQUENCE

NUMBERS

Procedure for automatic insertion of sequence numbers

Procedure

1

Set 1 for SEQUENCE NO. (see III-11.4.3).

2

Enter the EDIT mode.

3

Press

PROG

to display the program screen.

4

Search for or register the number of a program to be edited and move

the cursor to the EOB (;) of the block after which automatic insertion

of sequence numbers is started.

When a program number is registered and an EOB (;) is entered with

the

INSERT

key, sequence numbers are automatically inserted starting

with 0. Change the initial value, if required, according to step 10, then

skip to step 7.

5

Press address key

N

and enter the initial value of N.

6

Press

INSERT

7

Enter each word of a block.

8

Press

EOB

625

10. CREATING PROGRAMS

OPERATION

B-64124EN/01

9

Press

INSERT

. The EOB is registered in memory and sequence numbers

are automatically inserted. For example, if the initial value of N is 10

and the parameter for the increment is set to 2, N12 inserted and

displayed below the line where a new block is specified.

PROGRAM

O0040 N00012

O0040 ;

N10 G92 X0 Y0 Z0 ;

N12

%

_

EDIT

* * * *

* * *

* * *

13 : 18 : 08

PRGRM

LIB

C.A.P

(OPRT)

10

S In the example above, if N12 is not necessary in the next block,

pressing the

DELETE

key after N12 is displayed deletes N12.

S To insert N100 in the next block instead of N12, enter N100 and

press

ALTER

after N12 is displayed. N100 is registered and initial

value is changed to 100.

626

B-64124EN/01

OPERATION

10. CREATING PROGRAMS

The TEACH IN JOG mode and TEACH IN HANDLE mode are added. In

10.3

these modes, a machine position along the X, Y, and Z axes obtained by

CREATING

manual operation is stored in memory as a program position to create a

PROGRAMS IN

program.

The words other than X, Y, and Z, which include O, N, G, R, F, C, M, S,

TEACH IN MODE

T, P, Q, and EOB, can be stored in memory in the same way as in EDIT

(PLAYBACK)

mode.

Procedure for Creating Programs in TEACH IN Mode

Procedure

The procedure described below can be used to store a machine position

along the X, Y, and Z axes.

1

Select the TEACH IN JOG mode or TEACH IN HANDLE mode.

2

Move the tool to the desired position with jog or handle.

3

Press

PROG

key to display the program screen. Search for or register

the number of a program to be edited and move the cursor to the

position where the machine position along each axis is to be

registered (inserted).

4

Key in address

X

5

Press the

INSERT

key. Then a machine position along the X axis is

stored in memory.

(Example) X10.521 Absolute positon (for mm input)

X10521

Data stored in memory

6

Similarly, key in

, then press the

INSERT

key. Then a machine

Y

position along the Y axis is stored in memory. Further, key in

Z

,

then press the

INSERT

key. Then a machine position along the Z axis is

stored in memory.

All coordinates stored using this method are absolute coordinates.

Examples

O1234 ;

N1 G92 X10000 Y0 Z10000 ;

N2 G00 G90 X3025 Y23723 ;

N3 G01 Z-325 F300 ;

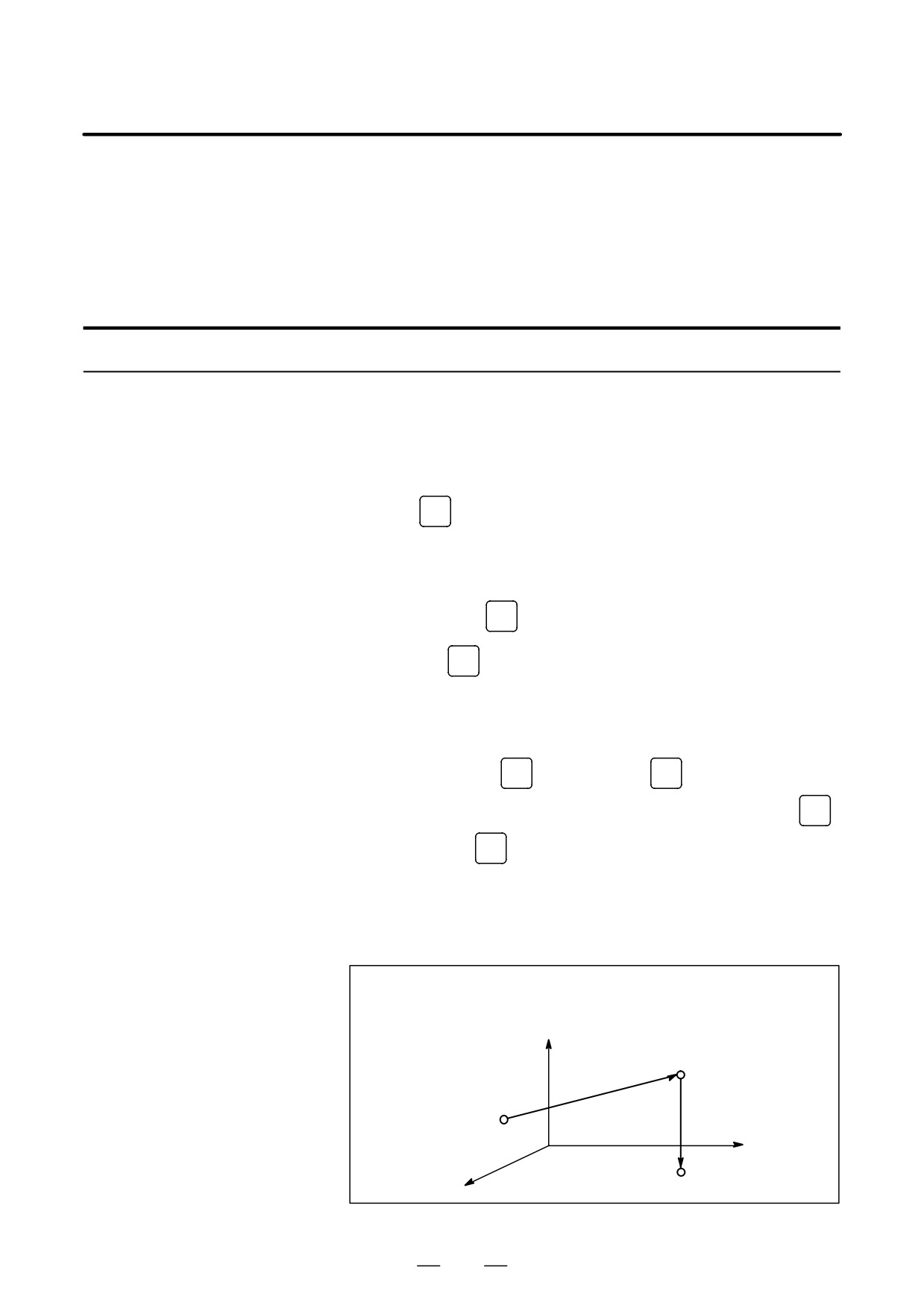

Z

N4 M02 ;

P1

(3.025, 23.723, 10.0)

P0

Y

(10.0, 0, 10.0)

X

(3.025, 23.723, -0.325)

P2

627

10. CREATING PROGRAMS

OPERATION

B-64124EN/01

1

Set the setting data SEQUENCE NO. to 1 (on). (The incremental value

parameter (No. 3216) is assumed to be “1”.)

2

Select the TEACH IN HANDLE mode.

3

Make positioning at position P0 by the manual pulse generator.

4

Select the program screen.

5

Enter program number O1234 as follows:

O

1

2

3

4

INSERT

This operation registers program number O1234 in memory.

Next, press the following keys:

EOB

INSERT

An EOB (;) is entered after program number O1234. Because no

number is specified after N, sequence numbers are automatically

inserted for N0 and the first block (N1) is registered in memory.

6

Enter the P0 machine position for data of the first block as follows:

G

9

2

INSERT

X

INSERT

Y

INSERT

Z

INSERT

EOB

INSERT

This operation registers G92X10000Y0Z10000; in memory. The

automatic sequence number insertion function registers N2 of the

second block in memory.

7

Position the tool at P1 with the manual pulse generator.

8

Enter the P1 machine position for data of the second block as follows:

G

0

0

INSERT

G

9

0

X

INSERT

Y

INSERT

EOB

INSERT

This operation registers G00G90X3025Z23723; in memory. The

automatic sequence number insertion function registers N3 of the third

block in memory.

9

Position the tool at P2 with the manual pulse generator.

10

Enter the P2 machine position for data of the third block as follows:

G

0

1

INSERT

Z

INSERT

F

3

0

0

INSERT

EOB

INSERT

This operation registers G01Z -325F300; in memory.

The automatic sequence number insertion function registers N4 of the

fourth block in memory.

11

Register M02; in memory as follows:

INSERT

EOB

INSERT

M

0

2

N5 indicating the fifth block is stored in memory using the automatic

sequence number insertion function. Press the

DELETE

key to delete it.

This completes the registration of the sample program.

628

B-64124EN/01

OPERATION

10. CREATING PROGRAMS

Explanations

D Checking contents of the

The contents of memory can be checked in the TEACH IN mode by using

memory

the same procedure as in EDIT mode.

PROGRAM

O1234 N00004

(RELATIVE)

(ABSOLUTE)

X

-6.975

X

3.025

Y

23.723

Y

23.723

Z

-10.325

Z

-0.325

O1234 ;

N1 G92 X10000 Y0 Z10000 ;

N2 G00 G90 X3025 Y23723 ;

N3 G01 Z-325 F300 ;

N4 M02

;

%

_

THND

* * * *

* * *

* * *

14 : 17 : 27

PRGRM

LIB

(OPRT)

D Registering a position

When a value is keyed in after keying in address

X

,

Y

, or

Z

,

with compensation

then the

INSERT

key is pressed, the value keyed in for a machine position

is added for registration. This operation is useful to correct a machine

position by key-in operation.

D Registering commands

Commands to be entered before and after a machine position must be

other than position

entered before and after the machine position is registered, by using the

commands

same operation as program editing in EDIT mode.

629

10. CREATING PROGRAMS

OPERATION

B-64124EN/01

Programs can be created block after block on the conversational screen

10.4

while displaying the G code menu.

CONVERSATIONAL

Blocks in a program can be modified, inserted, or deleted using the G code

PROGRAMMING

menu and conversational screen.

WITH GRAPHIC

FUNCTION

Procedure for Conversational Programming with Graphic Function

Procedure 1

1

Enter the EDIT mode.

Creating a program

2

Press

PROG

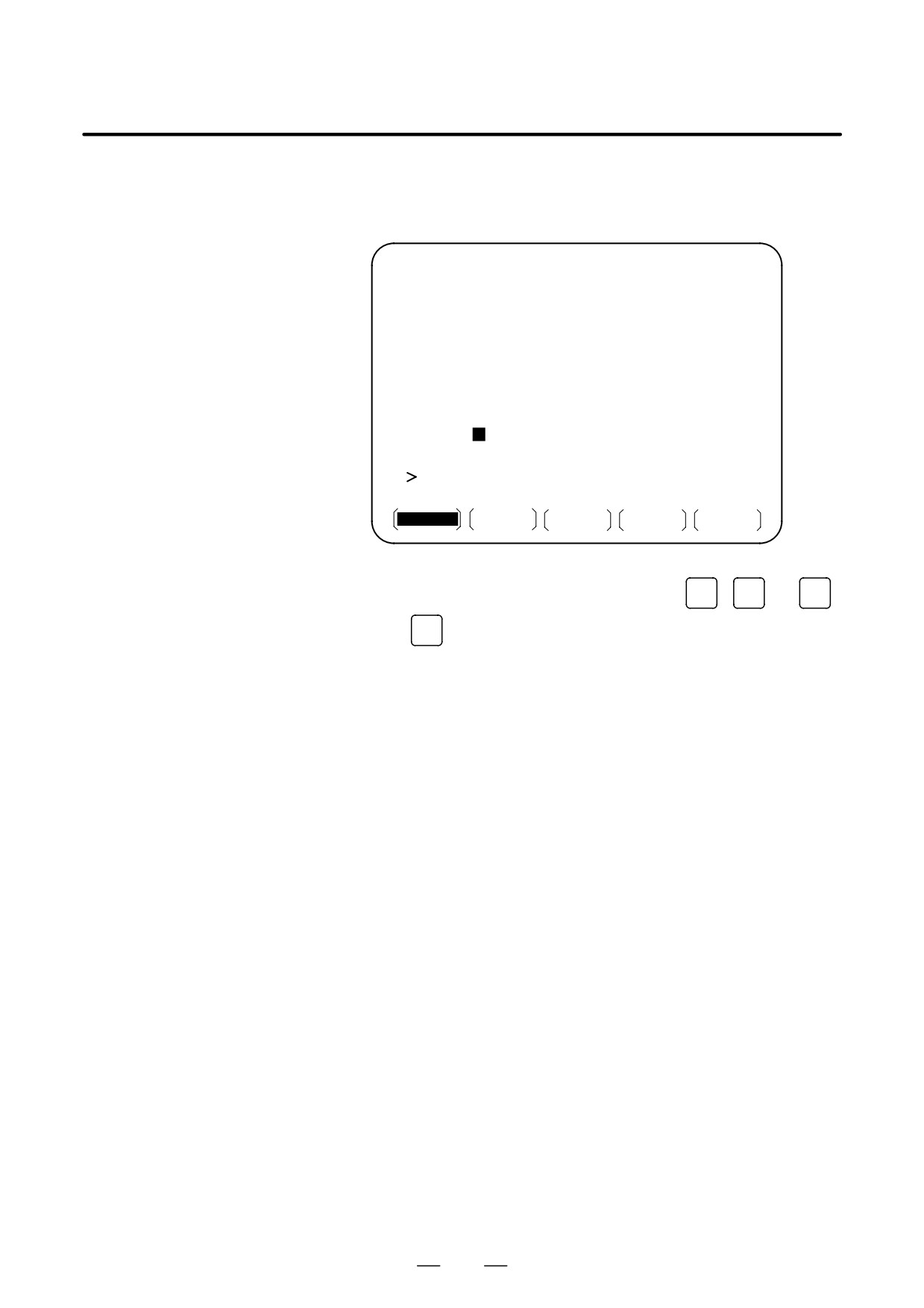

. If no program is registered, the following screen is

displayed. If a program is registered, the program currently selected

is displayed.

PROGRAM

O0000 N0000

_

EDIT

* * * *

* * *

* * *

11 : 59 : 46

PRGRM

DIR

C.A.P

(OPRT)

3

Key in the program number of a program to be registered after keying

in address O, then press

INSERT

. For example, when a program with

program number 10 is to be registered, key in

O

1

0

, then

press

INSERT

. This registers a new program O0010.

630

B-64124EN/01

OPERATION

10. CREATING PROGRAMS

4

Press the [C.A.P] soft key. The following G code menu is displayed

on the screen.

If soft keys different from those shown in step 2 are displayed, press

the menu return key

to display the correct soft keys.

PROGRAM

O1234 N00004

G00

: POSITIONING

G01

: LINEAR IPL

G02

: CIRCULAR IPL. CW

G03

: CIRCULAR IPL. CCW

G04

: DWELL

G09

: EXACT STOP CHECK

G10

: OFFSET&TLC VALUE SETTING (0)

G17

: XY PLANE

G18

: ZX PLANE

G19

: YZ PLANE

G20

: INCH

G21

: METRIC

_

EDIT

* * * *

* * *

* * *

14 : 26 : 15

PRGRM

G.MENU

BLOCK

5

Key in the G code corresponding to a function to be programmed.

When the positioning function is desired, for example, the G code

menu lists the function with the G code G00. So key in G00. If the

screen does not indicate a function to be programmed, press the page

key ^PAGE

to display the next G code menu screen. Repeat this

operation until a desired function appears. If a desired function is not

a G code, key in no data.

6

Press the soft key [BLOCK] to display a detailed screen for a keyed in

G code. The figure below shows an example of detailed screen for

G00.

PROGRAM

O1234 N00000

G00 : POSITIONING

G00

G G G

X

100. Y

50.0

Z

(X, Y, Z, )

H

OFFSET NO.

M

S

T

B

:

EDIT

* * * *

* * *

* * *

14 : 32 : 57

PRGRM

G.MENU

BLOCK

(OPRT)

631

10. CREATING PROGRAMS

OPERATION

B-64124EN/01

When no keys are pressed, the standard details screen is displayed.

PROGRAM

O0010 N00000

G

G G G

X

Y

Z

H

F

R

M

S

T

B

I

J

K

P

Q

L

:

EDIT

* * * *

* * *

* * *

14 : 41 : 10

PRGRM

G.MENU

BLOCK

(OPRT)

7

Move the cursor to the block to be modified on the program screen.

At this time, a data address with the cursor blinks.

8

Enter numeric data by pressing the numeric keys and press the

[INPUT] soft key or

INPUT

key. This completes the input of one data

item.

9

Repeat this operation until all data required for the entered G code is

entered.

10

Press the

INSERT

key. This completes the registration of data of one

block in program memory. On the screen, the G code menu screen is

displayed, allowing the user to enter data for another block. Repeat

the procedure starting with 5 as required.

11

After registering all programs, press the [PRGRM] soft key. The

registered programs are converted to the converssational format and

displayed.

12

Press the

RESET

key to return to the program head.

Procedure 2

1

Move the cursor to the block to be modified on the program screen

Modifying a block

and press the [C.A.P] soft key. Or, press the [C.A.P] soft key first to

display the conversational screen, then press the ^PAGE

or

page

PAGE

key until the block to be modified is displayed.

2

When data other than a G code is to be altered, just move the cursor to

the data and key in a desired value, then press the [INPUT] soft key or

INPUT

key.

3

When a G code is to be altered, press the menu return key

and the

soft key [G.MENU]. Then the G code menu appears. Select a desired

G code, then key in the value. For example, to specify a cutting feed,

since the G code menu indicates G01, key in G01. Then press the soft

key [BLOCK]. The detailed screen of the G code is displayed, so enter

the data.

632

11. SETTING AND DISPLAYING DATA

OPERATION

B-64124EN/01

SETTING AND DISPLAYING DATA

11

General

To operate a CNC machine tool, various data must be set on the MDI panel

for the CNC. The operator can monitor the state of operation with data

displayed during operation.

This chapter describes how to display and set data for each function.

Explanations

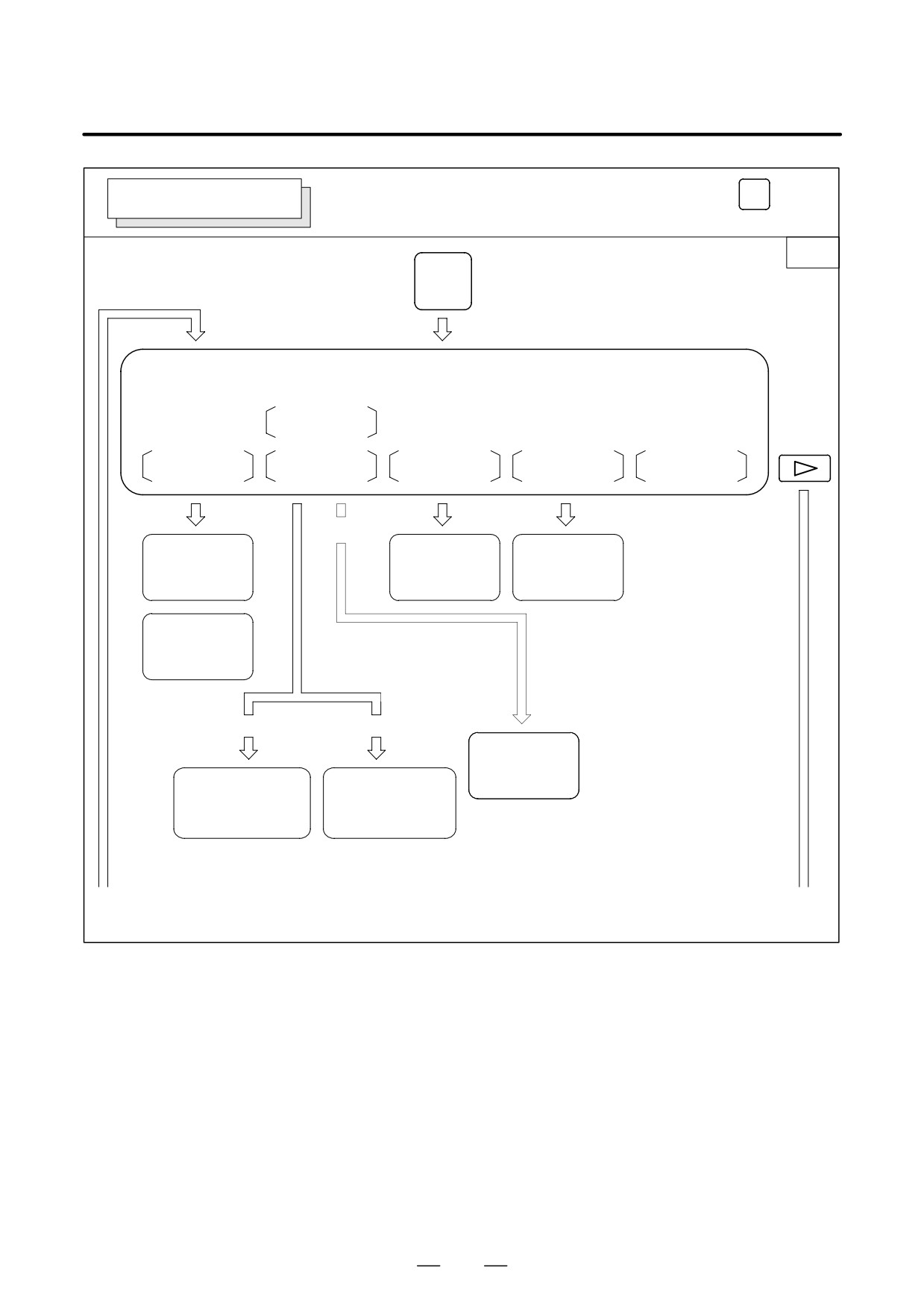

⋅Screen transition chart

The screen transition for when each function key on the MDI panel is

pressed is shown below. The subsections referenced for each screen are

OFFSET

also shown. See the appropriate subsection for details of each screen and

HELP

POS

PROG

SETTING

the setting procedure on the screen. See other chapters for screens not

CUSTOM

described in this chapter.

SYSTEM

MESSAGE

GRAPH

See Chapter 7 for the screen that appears when function key

MESSAGE

is

MDI function keys

pressed. See Chapter 12 for the screen that appears when function key

(Shaded keys (

) are described

in this chapter.)

CUSTOM

GRAPH

is pressed. See Chapter 13 for the screen that appears when function

key

HELP

is pressed. Refer to the manual issued by the machine tool

CUSTOM

builder for the screen that appears when function key

GRAPH

is pressed.

D Data protection key

The machine may have a data protection key to protect part programs,

tool compensation values, setting data, and custom macro variables.

Refer to the manual issued by the machine tool builder for where the data

protection key is located and how to use it.

634

B-64124EN/01

OPERATION

11. SETTING AND DISPLAYING DATA

POSITION DISPLAY SCREEN

Screen transition triggered by the function key

POS

POS

Current position screen

ABS

REL

ALL

HNDL

(OPRT)

Position display of

Position displays

Total position display

Manual handle

work coordinate

relative coordinate

of each coordinate

interruption

system

system

system

⇒See III-4.7.

⇒ See III-11.1.3.

⇒ See III-11.1.1.

⇒ See III-11.1.2.

Display of part

Display of part

Display of part

count and run

count and run

count and run

time

time

time

⇒ See III-11.1.6.

⇒ See III-11.1.6.

⇒ See III-11.1.6.

Display of actual

Display of actual

Display of actual

speed

speed

speed

⇒ See III-11.1.5.

⇒ See III-11.1.5.

⇒ See III-11.1.5.

Setting of relative

Setting of relative

coordinate values

coordinate values

⇒ See III-11.1.2.

⇒ See III-11.1.2.

Current position screen

MONI

(OPRT)

Display of operĆ

ating monitor

⇒See III-11.1.7.

635

11. SETTING AND DISPLAYING DATA

OPERATION

B-64124EN/01

PROGRAM SCREEN

Screen transition triggered by the function key

PROG

in the MEMORY or MDI mode

1/2

PROG

Program screen

*: Displayed in MDI mode

MDI

MDI

MEM

PRGRM

CHECK

CURRNT

NEXT

(OPRT)

[MDI] *

Display of proĆ

Display of current

Display of current

gram contents

block and modal

block and next

data

block

⇒See III-11.2.1.

⇒See III-11.2.2.

⇒See III-11.2.3.

Display of proĆ

gram number and

sequence number

⇒See III-11.6.1.

[ABS]

[REL]

Command

for MDI operation

Program being executed

Program being executed

⇒See III-11.2.5.

Absolute coordinate value

Relative coordinate value

Distance to go

Distance to go

Modal values

Modal values

(Displayed in the

⇒See III-11.2.4.

⇒See III-11.2.4.

MDI mode)

1*

1*

To next page

To next page

636

B-64124EN/01

OPERATION

11. SETTING AND DISPLAYING DATA

2/2

1*

1*

Program screen

MDI

MEM

RSTR

DIR

(OPRT)

Program restart

Display of program

memory and proĆ

screen

gram directory

⇒See III-4.4.

⇒See III-11.3.1.

Program screen

MEM

FL.SDL

(OPRT)

[PRGRM]

[DIR]

[SCHDUL]

Display of file

Setting of

directory

schedule

⇒See III-4.5.

⇒See III-4.5.

637

11. SETTING AND DISPLAYING DATA

OPERATION

B-64124EN/01

Screen transition triggered by the function key

PROG

PROGRAM SCREEN

in the EDIT mode

PROG

Program screen

EDIT

PRGRM

LIB

C.A.P.

(OPRT)

Program editing

Program memory

Conversational

screen

and program diĆ

programming

⇒ See III-9

rectory

screen

⇒ See III-11.3.1.

⇒See III-10.4

Program screen

EDIT

FLOPPY

(OPRT)

File directory

screen for

floppy disks

⇒ See III-8.8

638

B-64124EN/01

OPERATION

11. SETTING AND DISPLAYING DATA

OFFSET

OFFSET/SETTING SCREEN

Screen transition triggered by the function key

SETTING

OFFSET

SETTING

Tool offset value

OFFSET

SETTING

WORK

(OPRT)

Display of tool

Display of setĆ

Display of workĆ

piece coordinate

offset value

ting data

system

⇒ See III-11.4.1.

⇒ See III-11.4.3

⇒ See III-11.4.6

Setting of tool

Parameter setting

Setting of work

⇒ See III-11.4.3.

offset data

origin offset value

⇒ See III-11.4.1.

Setting sequence

⇒ See III-11.4.6.

number comparison

Tool length

and stop

⇒ See III-11.4.4.

measurement

⇒ See III-11.4.2.

Setting run time and

parts count

⇒ See III-11.4.5.

Setting the number of parts required

⇒ See III-11.4.5.

Displaying setĆ

ting time

⇒ See III-11.4.5.

Tool offset value

MACRO

MENU

OPR

TOOLLF

(OPRT)

Displaying pattern

Displaying software

Displaying tool life

Display of

operator's panel

management data

menu

macro variables

åSee subsec. 11.4.10.

åSee subsec.

åSee subsec. 11.4.9.

åSee subsec. 11.4.8.

11.4.11.

Setting macro

Displaying pattern

Software operator's

Presetting tool life counter

variables

data

panel switch

Clearing executing data

åSee subsec. 11.4.11.

åSee subsec. 11.4.8.

åSee subsec. 11.4.9.

åSee subsec. 11.4.10.

Displaying extended tool life management data

åSee subsec. 11.4.12.

Editing extended tool life management data

åSee subsec. 11.4.12.

639

11. SETTING AND DISPLAYING DATA

OPERATION

B-64124EN/01

SYSTEM SCREEN

Screen transition triggered by the function key

SYSTEM

SYSTEM

Parameter screen

PARAM

DGNOS

PMC

SYSTEM

(OPRT)

Display of

Display of

diagnosis

parameter screen

screen

⇒ See III-11.5.1

⇒ See III-7.3

Setting of parameter

⇒ See III-11.5.1

Parameter screen

PITCH

SV.PRM

SP.PRM

(OPRT)

Display of pitch

error data

⇒ See III-11.5.2.

640

B-64124EN/01

OPERATION

11. SETTING AND DISPLAYING DATA

D Setting screens

The table below lists the data set on each screen.

Table.11. Setting screens and data on them

Reference

No.

Setting screen

Contents of setting

item

1

Tool offset value

Tool offset value

III-11.4.1

Tool length offset value

Cutter compensation value

Tool length measurement

III-11.4.2

2

Setting data(handy)

Parameter write

III-11.4.3

TV check

Punch code

Input unit (mm/inch)

I/O channel

Automatic insert of Sequence No.

Conversion of tape format (F10/11)

Sequence number comparison and stop

III-11.4.4

3

Setting data (mirror image)

Mirror image

III-11.4.3

4

Setting data (timer)

Parts required

III-11.4.5

5

Macro variables

Custom macro common variables

III-11.4.8

(#100 to #199)

(#500 to #999)

6

Parameter

Parameter

III-11.5.1

7

Pitch error

Pitch error compensation data

III-11.5.2

8

software operator’s panel

Mode selection

III-11.4.10

Jog feed axis selection

Jog rapid traverse

Axis selection for Manual pulse generator

Multiplication for manual pulse generator

Jog feedrate

Feedrate override

Rapid traverse override

Optional block skip

Single block

Machine lock

Dry run

Protect key

Feed hold

9

Tool life data

Life count

III-11.4.11

(Tool life management)

10

Tool life data

Life count type (cycle or minute)

III-11.4.12

(Extended tool life man-

Life value

agement)

Life counter

Tool number

H code

D code

New tool group

New tool number

Skipping tool

Clearing tool

11

Workpiece coordinate sys-

Workpiece origin offset value

III-11.4.6

tem setting

641

Content      ..     20      21      22      23     ..
