FANUC Series 30i/300i/300is-MODEL A. Machining Center System. User's manual - page 241





12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1884 -

MSTR

: Manual numerical command start state (The state in

which a manual numerical command is being executed)
Alternatively, tool retract and recover operation state
(The state in which a recover operation and
repositioning operation are being performed)



  (3) Axis moving status/dwell status

MTN

: Indicates that the axis is moving.

DWL

: Indicates the dwell state.

***

: Indicates a state other than the above.



  (4) State in which an auxiliary function is being executed

FIN

: Indicates the state in which an auxiliary function is

being executed. (Waiting for the complete signal from
the PMC)

***

: Indicates a state other than the above.



  (5) Emergency stop or reset status

--EMG--

: Indicates emergency stop.(Blinks in reversed display.)

-RESET- : Indicates that the reset signal is being received.


  (6) Alarm status

ALM



: Indicates that an alarm is issued. (Blinks in reversed

display.)

BAT

: Indicates that the voltage of the lithium battery (the

backup battery of the CNC) has decreased. (Blinks in
reversed display.)

APC

: Indicates that the voltage of the backup battery of the

absolute pulse coder has decreased. (Blinks in reversed
display.)

FAN

: Indicates that the rotation speed of the fan has

decreased. (Blinks in reversed display.)

Space

: Indicates a state other than the above.



  (7) Current time

hh : mm : ss    -      Hours, minutes, and seconds


  (8) Program editing status

INPUT

: Indicates that data is being input.

OUTPUT

: Indicates that data is being output.

SEARCH

: Indicates that a search is being performed.

EDIT

: Indicates that another editing operation is being

performed (insertion, modification, etc.)

LSK

: Indicates that labels are skipped when data is input.

RSTR

: Indicates that the program is being restarted

COMPARE : Indicates that a data comparison is being made.
OFST

: Indicates that the tool length compensation amount

measurement mode is set (for the machining center
system) or that the tool length compensation
amount write mode is set (for the lathe system).

WOFS

: Indicates that the workpiece origin offset amount

measurement mode is set.

B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1885 -

AICC1

: Indicates that operation is being performed in the AI

contour control I mode.

AICC2

: Indicates that operation is being performed in the AI

contour control II mode.

MEM-CHK : Indicates that a program memory check is being

made.

WSFT

: Indicates that the workpiece shift amount write

mode is set.

LEN

: Indicates that the active offset value change mode

(tool length offset value of the M series) is set.

RAD

: Indicates that the active offset value change mode

(tool radius compensation amount of the M series)
is set.

WZR

: Indicates that the active offset value change mode

(workpiece origin offset value) is set.

TOFS

: Indicates that the active offset value change mode

(tool offset value of the T series) is set.

OFSX

: Indicates that the active offset value change mode

(X-axis tool offset value of the T series) is set.

OFSZ

: Indicates that the active offset value change mode

(Z-axis tool offset value of the T series) is set.

OFSY

: Indicates that the active offset value change mode

(Y-axis tool offset value of the T series).

TCP

: Indicates that operation is being performed in the

tool center point control.

TWP

: Indicates that operation is being performed in the

tilted working plane command mode.

Space

: Indicates that no editing operation is being

performed.



  (9) Warning for data setting or input/output operation

When invalid data is entered (wrong format, value out of range, etc.),
when input is disabled (wrong mode, write disabled, etc.), or when
input/output operation is incorrect (wrong mode, etc.), a warning
message is displayed. In this case, the CNC does not accept the setting
or input/output operation (retry the operation according to the
message).

Example 1)


When a parameter is entered







Example 2)


When a parameter is entered





12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1886 -



Example 3)


When a parameter is output to an external input/output device







  (10) Tool post name

The number of a path whose status is indicated is displayed.
PATH1  :  Indicates that the status being indicated is for path 1.

Other names can be used depending on the settings of
parameters 3141 to 3147. The tool post name is displayed
at the position where (8) is now displayed. While the
program is edited, (8) is displayed.



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1887 -

Screens of a 15-inch display unit



12.6.3

Displaying the Program Number, Program Name, and

Sequence Number (15-inch Display Unit)


The number and name of the program currently selected or currently
executed and the current sequence number are indicated in the upper
right part as shown below.

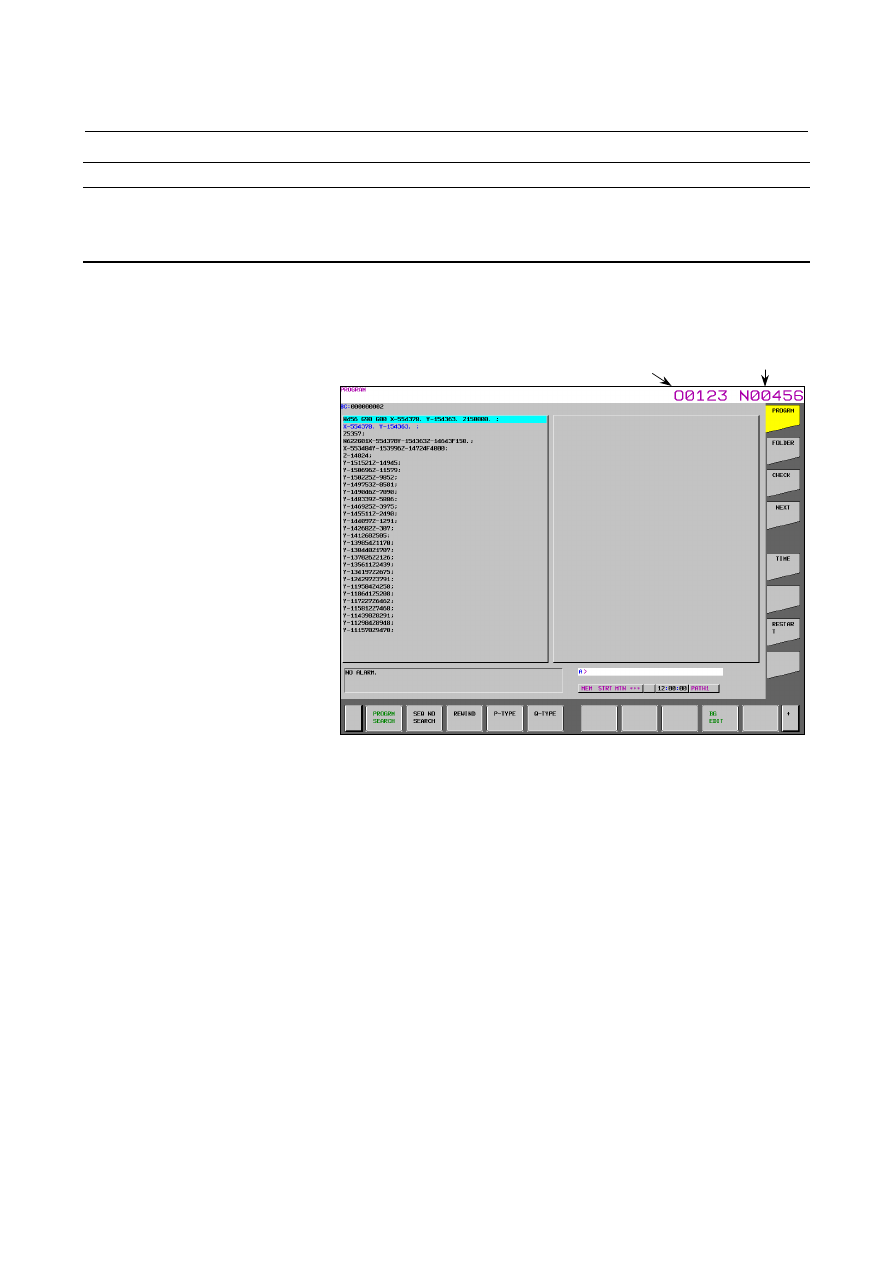

Fig. 12.6.3 (a) Program number and sequence number (15-inch)


In the EDIT mode, the number and name of the program currently
edited in the foreground are indicated.


Sequence number

Program number

12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1888 -

12.6.4

Displaying the Status and Warning for Data Setting or

Input/Output Operation (15-inch Display Unit)


The current mode, automatic operation state, alarm state, and program
editing state are displayed on the next to last line on the screen
allowing the operator to readily understand the operation condition of
the system. If data setting or the input/output operation is incorrect,
the CNC does not accept the operation and a warning message is
displayed on the next to last line of the screen. This prevents invalid
data setting and input/output errors.


Explanation
  - Description of each display
















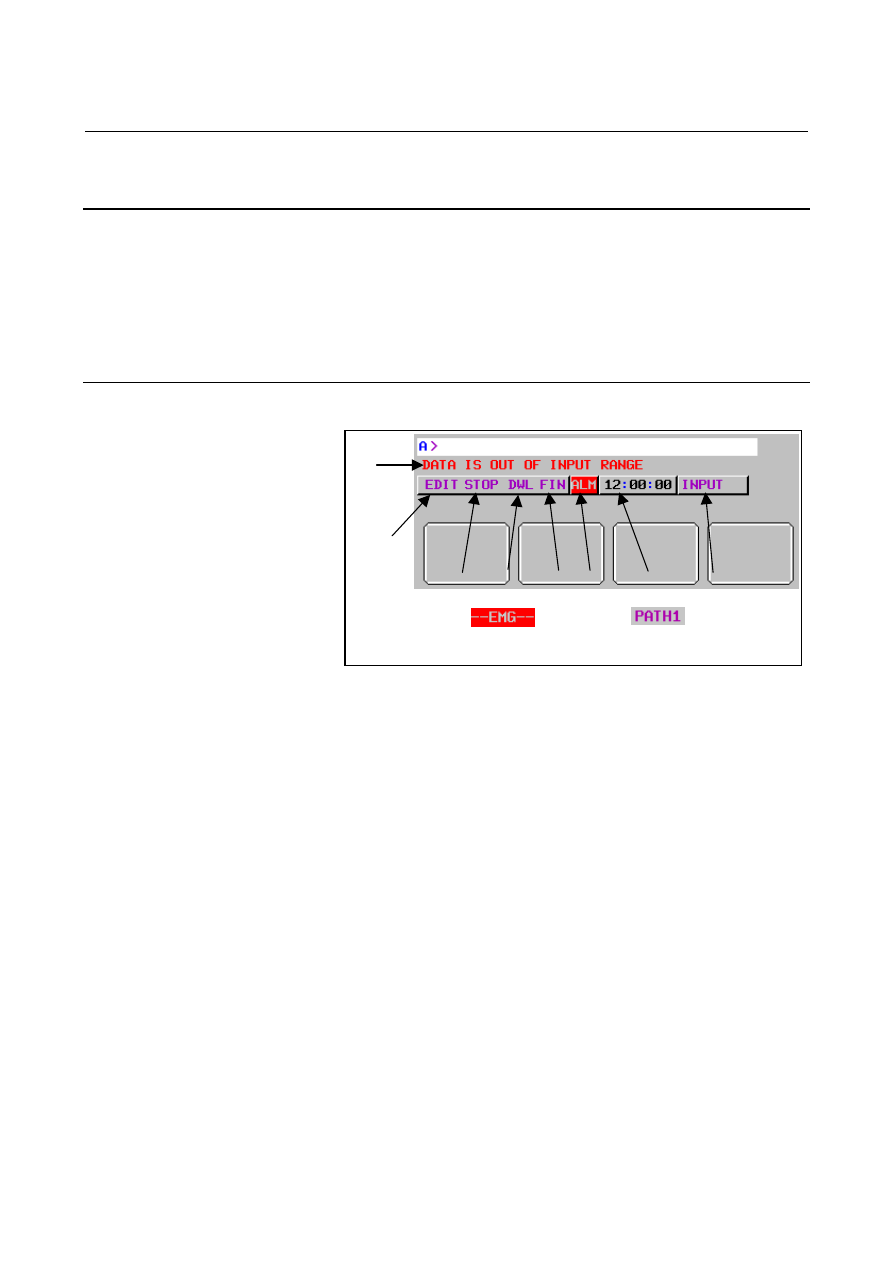

Fig. 12.6.4 (a) Positions of status indications

  (1) Current mode

MDI

: Manual data input, MDI operation

MEM

: Automatic operation (memory operation)

RMT

: Automatic operation (DNC operation, or such like)

EDIT : Memory

editing

HND

: Manual handle feed

JOG : Jog

feed

INC

: Manual incremental feed

REF

: Manual reference position return

****

: Mode other than the above

  (2) Automatic operation status

****

: Reset (When the power is turned on or the state in

which program execution has terminated and automatic
operation has terminated.)

STOP

: Automatic operation stop (The state in which one block

has been executed and automatic operation is stopped.)

HOLD : Feed hold (The state in which execution of one block

has been interrupted and automatic operation is
stopped.)

STRT  : Automatic operation start-up (The state in which the

system operates automatically)

(1)

(2)

(3)

(4)

(5) :

(5) is displayed in the
area for (3) and (4).

(7)

(8)

(10) :



(10) is displayed at the position
where (8) is now displayed.

(6)

(9)

B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1889 -

MSTR

: Manual numerical command start state (The state in

which a manual numerical command is being executed)
Alternatively, tool retract and recover operation state
(The state in which a recover operation and
repositioning operation are being performed)

  (3) Axis moving status/dwell status

MTN

: Indicates that the axis is moving.

DWL

: Indicates the dwell state.

***

: Indicates a state other than the above.



  (4) State in which an auxiliary function is being executed

FIN

: Indicates the state in which an auxiliary function is

being executed. (Waiting for the complete signal from
the PMC)

***

: Indicates a state other than the above.



  (5) Emergency stop or reset status

--EMG--

: Indicates emergency stop.(Blinks in reversed display.)

-RESET- : Indicates that the reset signal is being received.


  (6) Alarm status

ALM



: Indicates that an alarm is issued. (Blinks in reversed

display.)

BAT

: Indicates that the voltage of the lithium battery (the

backup battery of the CNC) has decreased. (Blinks in
reversed display.)

APC

: Indicates that the voltage of the backup battery of the

absolute pulse coder has decreased. (Blinks in reversed
display.)

FAN

: Indicates that the rotation speed of the fan has

decreased. (Blinks in reversed display.)

Space

: Indicates a state other than the above.



  (7) Current time

hh : mm : ss    -      Hours, minutes, and seconds


  (8) Program editing status

INPUT

: Indicates that data is being input.

OUTPUT

: Indicates that data is being output.

SEARCH

: Indicates that a search is being performed.

EDIT

: Indicates that another editing operation is being

performed (insertion, modification, etc.)

LSK

: Indicates that labels are skipped when data is input.

RSTR

: Indicates that the program is being restarted

COMPARE : Indicates that a data comparison is being made.
OFST

: Indicates that the tool length compensation amount

measurement mode is set (for the machining center
system) or that the tool length compensation
amount write mode is set (for the lathe system).

WOFS

: Indicates that the workpiece origin offset amount

measurement mode is set.

12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1890 -

AICC1

: Indicates that operation is being performed in the AI

contour control I mode.

AICC2

: Indicates that operation is being performed in the AI

contour control II mode.

MEM-CHK : Indicates that a program memory check is being

made.

WSFT

: Indicates that the workpiece shift amount write

mode is set.

LEN

: Indicates that the active offset value change mode

(tool length offset value of the M series) is set.

RAD

: Indicates that the active offset value change mode

(tool radius compensation amount of the M series)
is set.

WZR

: Indicates that the active offset value change mode

(workpiece origin offset value) is set.

TOFS

: Indicates that the active offset value change mode

(tool offset value of the T series) is set.

OFSX

: Indicates that the active offset value change mode

(X-axis tool offset value of the T series) is set.

OFSZ

: Indicates that the active offset value change mode

(Z-axis tool offset value of the T series) is set.

OFSY

: Indicates that the active offset value change mode

(Y-axis tool offset value of the T series).

TCP

: Indicates that operation is being performed in the

tool center point control.

TWP

: Indicates that operation is being performed in the

tilted working plane command mode.

Space

: Indicates that no editing operation is being

performed.



  (9) Warning for data setting or input/output operation

When invalid data is entered (wrong format, value out of range, etc.),
when input is disabled (wrong mode, write disabled, etc.), or when
input/output operation is incorrect (wrong mode, etc.), a warning
message is displayed. In this case, the CNC does not accept the setting
or input/output operation (retry the operation according to the
message).

Example 1)


When a parameter is entered







B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1891 -

Example 2)


When a parameter is entered






Example 3)


When a parameter is output to an external input/output device







  (10) Tool post name

The number of a path whose status is indicated is displayed.
PATH1  :  Indicates that the status being indicated is for path 1.

Other names can be used depending on the settings of
parameters 3141 to 3147. The tool post name is displayed
at the position where (8) is now displayed. While the
program is edited, (8) is displayed.


















Content      ..     239      240      241      242     ..
