12.4.15.1

Alarm history


From all history data recorded, only alarm history is extracted and
displayed on the screen. Note that when the amount of history data
exceeds the storage capacity, history data is automatically erased in
order from the oldest history data.

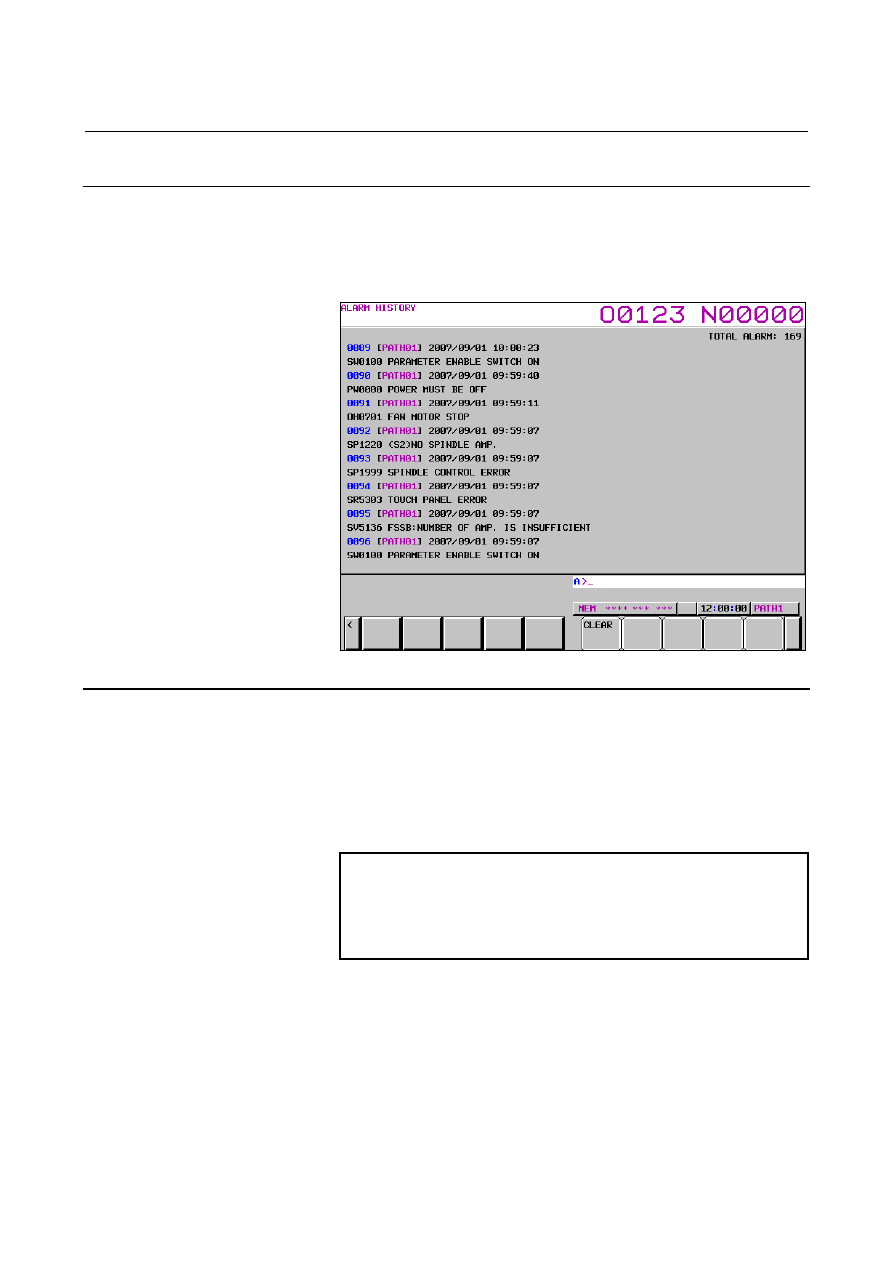

Fig. 12.4.15.1 (a) Alarm history screen



Screen display

Issued alarms are displayed sequentially from the latest alarm.
The following information is displayed for each alarm:

•



Path name (only when multipath operation is performed)

•



Time and date of alarm occurrence

•



Type and number of the alarm

•

 Alarm

message



NOTE



To record also external alarm and macro alarm
messages as history data, set bit 3 (EAH) of
parameter No. 3112 to 1, and at the same time set
bit 7 (HAL) of parameter No. 3196 to 0.


When a name such as a path name, axis name, or spindle name has
been changed after the issuance of an alarm, a newly assigned name is
displayed on the alarm history screen.
When modal O data that is a program name is output, only the first
five characters are output.


12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1782 -

Procedure

1

Press function key

  to display a screen of parameters and

so on.

2

Press return menu key

.

3  Press continuous menu key

 several times until soft key

[HISTRY] is displayed

.



4  Press soft key [HISTRY]. The alarm history screen is then

displayed.

5

The screen display can be changed to the previous page and the
next page by using page keys



 and



.





Erasing history data from the alarm history screen

Procedure

1

Display the alarm history screen.

2

Press soft key [(OPRT)].

3

Press soft key [CLEAR]. All history data is then erased.



NOTE



When history data is erased, not only alarm history
data but also other history data such as external
operator message history data and operation
history data is erased. It is impossible to erase
only a specific history.



Display of external alarms and macro alarms

When an external alarm or macro alarm is issued, it becomes possible
to record its message as well as the alarm number in the alarm history
if the parameter shown below is set. As the message of an external
alarm or macro alarm, the first 32 characters for the external alarm or
the first 26 characters for the macro alarm are recorded.





#7 #6 #5 #4 #3 #2 #1 #0

3112





EAH





 [Data

type]

Bit


        # 3

EAH

  Messages of the external alarm/macro alarm in alarm or operation

history:
0: Not

recorded

1: Recorded


NOTE



This parameter is valid when bit 7 (HAL) of
parameter No. 3196 is set to 0.



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1783 -



#7 #6 #5 #4 #3 #2 #1 #0

3196



HAL





 [Data

type]

Bit


        # 7

HAL

  When an alarm is issued, additional information (modal data, absolute

coordinates, and machine coordinates present at the issuance of the
alarm) is:
0:  Recorded in the operation history and alarm history.
1:  Not recorded in the operation history and alarm history.


NOTE

1  History data such as alarm history data, operation

history data, external operator message history
data, and data modification history data is stored in
the same storage area. Therefore, alarm history
data may be erased when the storage capacity is
exceeded by other history data.

2  The maximum number of history data items that

can be stored is as follows, where the history data
is assumed to include alarm data only:
When bit 7 (HAL) of parameter No. 3196 is set to 1,
up to about 4000 history data items can be stored.
When bit 7 (HAL) of parameter No. 3196 is set to 0,
modal information and coordinates observed when
an alarm is issued are also recorded, so the
maximum number of history data items that can be
stored varies from system to system. (Example:
For a 5-axis system, up to about 280 data items
can be stored; for a 10-axis system, up to about
200 data items can be stored.)
When bit 3 (EAH) of parameter No. 3112 is set to
1, however, macro and external alarm messages
are also stored, so the number of data items that
can be stored further decreases.



12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1784 -

12.4.15.2

External operator message history


From all history data recorded, only external operator message history
and macro message history are extracted and displayed on the screen.
When the amount of history data exceeds the storage capacity, history
data is automatically erased in order from the oldest history data.

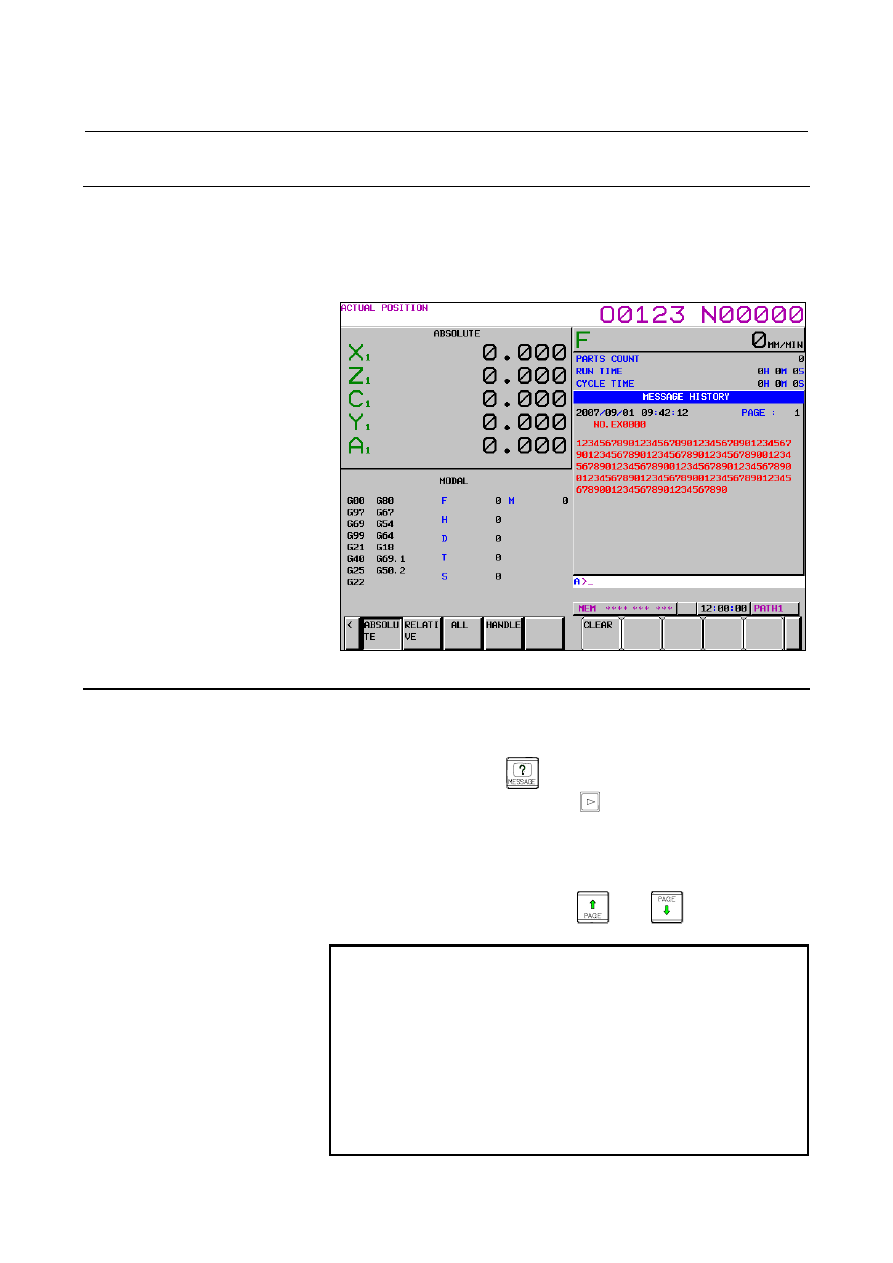

Fig. 12.4.15.2 (a) External operator message history screen



Screen display



Procedure

1

Press function key

.

2  Press continuous menu key

 several times until soft key

[MESSAGE HISTRY] is displayed.

3  Press soft key [MESSAGE HISTRY]. The external operator

message history screen is displayed.

4

The screen display can be changed to the previous page and the
next page by using page keys



 and



.



NOTE

1  History data such as external operator message

history data, operation history data, alarm history
data, and data modification history data is stored in
the same storage area. Therefore, external operator
message history data may be erased when the
storage capacity is exceeded by other history data.

2  The maximum number of history data items that can

be stored is about 150 if the history data includes
external operator message data only.

B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1785 -



Erasing history data from the external operator message history screen



Procedure

1

Display the external operator message history screen.

2

Press soft key [(OPRT)].

3

Press soft key [CLEAR]. All history data is then erased.



NOTE



When history data is erased, not only external
operator message history data but also other
history data such as operation history data and
alarm history data is erased. It is impossible to
erase only a specific history.



Parameter setting





#7 #6 #5 #4 #3 #2 #1 #0

3112





OMH





 [Data

type]

Bit


        # 2

OMH

  The external operator message history screen is:

0: Not

displayed.

1: Displayed.




#7 #6 #5 #4 #3 #2 #1 #0

3196





HOM





 [Data

type]

Bit


        # 6

HOM

  A history of external operator messages and macro messages is:

0: Recorded.
1: Not

recorded.



12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1786 -

12.4.15.3

Operation history


This function displays a history of the operator's key operations and
signal operations made when a failure occurred or an alarm was issued,
and also information about alarms.
The following data is recorded:

a Operation

history

ⅰ

    MDI key operations made by the operator

ⅱ

    I/O signal (X,Y,G,F) on/off switching

b Alarm

history

ⅰ

  Alarms issued

ⅱ

  Modal information in a block executed and coordinates

observed when an alarm was issued
(Not displayed on the screen)

c

Data modification history

ⅰ

    Modification of tool offset data

(When bit 0 (HTO) of parameter No. 3196 is set to 1)

ⅱ

  Modification of workpiece offset data/extended workpiece

offset data/workpiece shift (T series)
(When bit 1 (HWO) of parameter No. 3196 is set to 1)

ⅲ

  Modification of parameters

(When bit 2 (HPM) of parameter No. 3196 is set to 1)

ⅳ

    Modification of custom macro common variable data

(When bit 3 (HMV) of parameter No. 3196 is set to 1)

d

External operator message history and macro message history
(When bit 6 (HOM) of parameter No. 3196 is set to 0)

e

Time stamp (time and date)


With some exceptions, history data of the operation history and alarm
history can be viewed on the operation history screen. (The data
modification history, external operator message history, and alarm
messages are not displayed.)
All recorded history data can be output to external input/output
devices.


NOTE



Up to about 8000 items of history data can be
recorded if the data includes history data of MDI
key operations only. However, because history data
varies in size, the maximum number of history data
items that can be recorded is not fixed.



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1787 -

Parameter setting



#7 #6 #5 #4 #3 #2 #1 #0

3106





OPH





 [Data

type]

Bit


        # 4

OPH

  The operation history screen is:

0: Not

displayed.

1: Displayed.


3122



Time interval used to record time data in operation history





[Input type]  Parameter input



[Data type]  Word path



[Unit of data]  min

  [Valid data range]  0 to 1440

When history data is recorded within a set time period, the time for
each set time period is recorded in the history data.
When 0 is set, the specification of a time period of 10 minutes is
assumed.
If no data is recorded within a set time period, the time for that period
is not recorded.


NOTE



The same value must be set in this parameter for
all paths.





#7 #6 #5 #4 #3 #2 #1 #0

3195



EKE

HDE

HKE







[Input type]  Parameter input



[Data type]  Common to the bit system



        # 5

HKE

  A key operation history is:

0: Recorded.
1: Not

recorded.



        # 6

HDE

  A DI/DO history is:

0: Recorded.
1: Not

recorded.



        # 7

EKE

  Soft key [ALL CLEAR] for clearing all history data is:

0: Not

displayed.

1: Displayed.
