FANUC Series 30i/300i/300is-MODEL A. Machining Center System. User's manual - page 138

3.MANUAL OPERATION

 OPERATION

B-63944EN/03





- 1060 -

  - M codes (Auxiliary functions)

After address M, specify a numeric value of no more than the number
of digits specified by parameter No. 3030. When M98 or M99 is
specified, it is executed but not output to the PMC.



NOTE



Neither subprogram calls nor custom macro calls
can be performed using M codes.



  - S codes (spindle speed functions)

After address S, specify a numeric value of no more than the number
of digits specified by parameter No. 3031.



NOTE



Subprogram calls cannot be performed using S
codes.



  - T codes (tool functions)

After address T, specify a numeric value of no more than the number
of digits specified by parameter No. 3032.


NOTE

1  Subprogram calls cannot be performed using T

codes.

2  In lathe systems, tool compensation by T code

commands is not performed.



  - B codes (second auxiliary functions)

After address B, specify a numeric value of no more than the number
of digits specified by parameter No. 3033.


NOTE

1  B codes can be renamed "U," "V," "W," "A," or "C"

by setting parameter No. 3460.    If the new name is
the same as an axis name address, "B" is used.
Note that "U," "V," and "W" can be used for the T
codes only when the G codes are B or C.

2  Subprogram calls cannot be performed using B

codes.



 - Data input

(1)  When addresses and numeric values of a command are typed,

then soft key [INPUT] is pressed, the entered data is set. In this
case, the input unit is either the least input increment or
calculator-type input format, according to the setting of bit 0
(DPI) of parameter No. 3401.

 The    key on the MDI panel can be used instead of soft key

[INPUT].

B-63944EN/03

 OPERATION

3.MANUAL OPERATION





- 1061 -

(2)  Commands can be typed successively.
(3)  Key entry is disabled during execution.


If soft key [INPUT] or the

 key on the MDI panel is

pressed during execution, an "EXECUTION/MODE
SWITCHING IN PROGRESS" warning is output.

(4)  If input data contains an error, the following warnings may

appear:

Warning Description

FORMAT
ERROR

-  A G code other than G00, G01, and G28 has been entered.
-  An address other than those displayed on the manual

numerical command screen has been entered.

A value that exceeds the following limitations has been
entered.
- Address G:............ 2 digits
- Address P: ............ 1 digit
-  Axis address: ........ 9 digits
-  M, S, T, B: ............ The parameter-set number of digits



NOTE



Even when the memory protection key is set, key
input can nevertheless be performed.



 - Erasing data

(1)  When soft key [CLEAR] is pressed, followed by soft key

[EXEC], all the set data is cleared.    In this case, however, the G
codes are set to G00 or G01, depending on the setting of bit 0
(G01) of parameter No. 3402.



Data can also be cleared by pressing the

  key on the MDI

panel.


(2) If soft key [CLEAR] is pressed during execution, an

"EXECUTION/MODE SWITCHING IN PROGRESS" warning
is output.



 - Scrolling pages

If the whole axis information cannot be displayed on a single page,
you can scroll pages by pressing the

 or

 key.



 - Halting execution

If one of the following occurs during execution, execution is halted,
and the data is cleared in the same way as when soft key [CLEAR] is
pressed. The remaining distance to be traveled is canceled.
(1)  When a feed hold is applied
(2)  When the mode is changed to other than jog feed mode
(3)  When an alarm is generated
(4)  When a reset or emergency stop is applied
The M, S, T, and B functions remain effective even upon the
occurrence of the above events, with the exception of (4).


3.MANUAL OPERATION

 OPERATION

B-63944EN/03





- 1062 -

 - Modal information

Modal G codes and addresses used in automatic operation or MDI
operation are not affected by the execution of commands specified
using the manual numerical command function.


 - Jog feed

When the tool is moved along an axis using a feed axis and direction
selection switch on the manual numerical command screen, the
remaining amount of travel is always shown as "0".


  - Disabling the M, S, T, and B functions

By setting bit 0 to bit 3 (JMF, JSF, JTF, and JBF) of parameter No.
7002, the M, S, T, and B functions can be disabled.  If a disabled
function is specified, the warning "THIS COMMAND CANNOT BE
EXECUTED." is issued.


Limitation
  - M, S, T, and B functions

While automatic operation is halted, manual numerical commands can
be executed. In the following cases, however, a "START REJECTED
(ALREADY EXECUTING)" warning is output, and command
execution is disabled.
(1)  When an M, S, T, or B function is already being executed, a

manual numerical command containing an M, S, T, or B function
cannot be executed.

(2)  When an M, S, T, or B function is already being executed, and

that function alone is specified or a block specifying that
function also contains another function (such as a move
command or dwell function) which has already been completed,
a manual numerical command cannot be executed.



 - Jog feed

When a manual numerical command is specified while the tool is
being moved along an axis by using a feed axis and direction selection
switch, the axial movement is interrupted, and the manual numerical
command is executed. Therefore, the tool cannot be moved along an
axis by using a feed axis and direction selection switch during
execution of a manual numerical command.


 - Mirror image

A mirror image cannot be produced for the direction of a specified
axial movement.


 - REF mode

The manual numerical command screen is not displayed in the REF
mode.


B-63944EN/03

 OPERATION

3.MANUAL OPERATION





- 1063 -

  - Indexing of the index table and chopping

Commands cannot be specified for an axis along which operation is
being performed during indexing or chopping.
If such an axis is specified for execution, a "THIS COMMAND CAN
NOT EXECUTE" warning is output.


  - Functions that cannot be specified

Commands cannot be specified for axes that operate using any of the
following functions.

•



Index table indexing

•

 Chopping

•

 Spindle

positioning

•

 Polygon

turning

•



Synchronous, composite, and superimposed control

If the commands are executed for any such axis, a "THIS
COMMAND CAN NOT EXECUTE" warning is generated.


  - Functions that cannot be used

Commands cannot be specified for the following functions.

•



Extended axis name

•



Extended spindle name

•



Address P command for multi spindle

•



Cs contour control function



3.MANUAL OPERATION

 OPERATION

B-63944EN/03





- 1064 -

3.9

THREE-DIMENSIONAL MANUAL FEED


This function enables the use of the following functions.


•



Three-dimensional manual feed
-

Tool axis direction handle feed/tool axis direction JOG
feed/tool axis direction incremental feed

-  Tool axis right-angle direction handle feed/tool axis

right-angle direction JOG feed/tool axis right-angle
direction incremental feed

-

Tool tip center rotation handle feed/tool tip center rotation
JOG feed/tool tip center rotation incremental feed

-

Table vertical direction handle feed/table vertical direction
JOG feed/table vertical direction incremental feed

-  Table horizontal direction handle feed/table horizontal

direction JOG feed/table horizontal direction incremental
feed


A handle interrupt can be generated for each handle feed.
Handle interrupts work according to the corresponding handle
feed specifications described hereinafter unless otherwise noted.


•



Screen display functions
-

Display of the coordinate of the tool tip

-

Display of pulse values

-

Display of the amount of machine axes movement



NOTE

1  To execute three-dimensional handle feed requires

the manual handle feed option.    Also, to generate
three-dimensional handle interrupts requires the
manual handle interrupt option.

2  A three-dimensional handle interrupt must not be

generated when a rotation axis command is being
executed during automatic operation.

3  Three-dimensional manual feed is disabled when

the manual reference position return mode is
selected.



B-63944EN/03

 OPERATION

3.MANUAL OPERATION





- 1065 -

3.9.1

Tool Axis Direction Handle Feed / Tool Axis Direction JOG

Feed / Tool Axis Direction Incremental Feed



Overview

In the tool axis direction handle feed, tool axis direction JOG feed,
and tool axis direction incremental feed, the tool or table is moved in
the tool axis direction.


Explanation

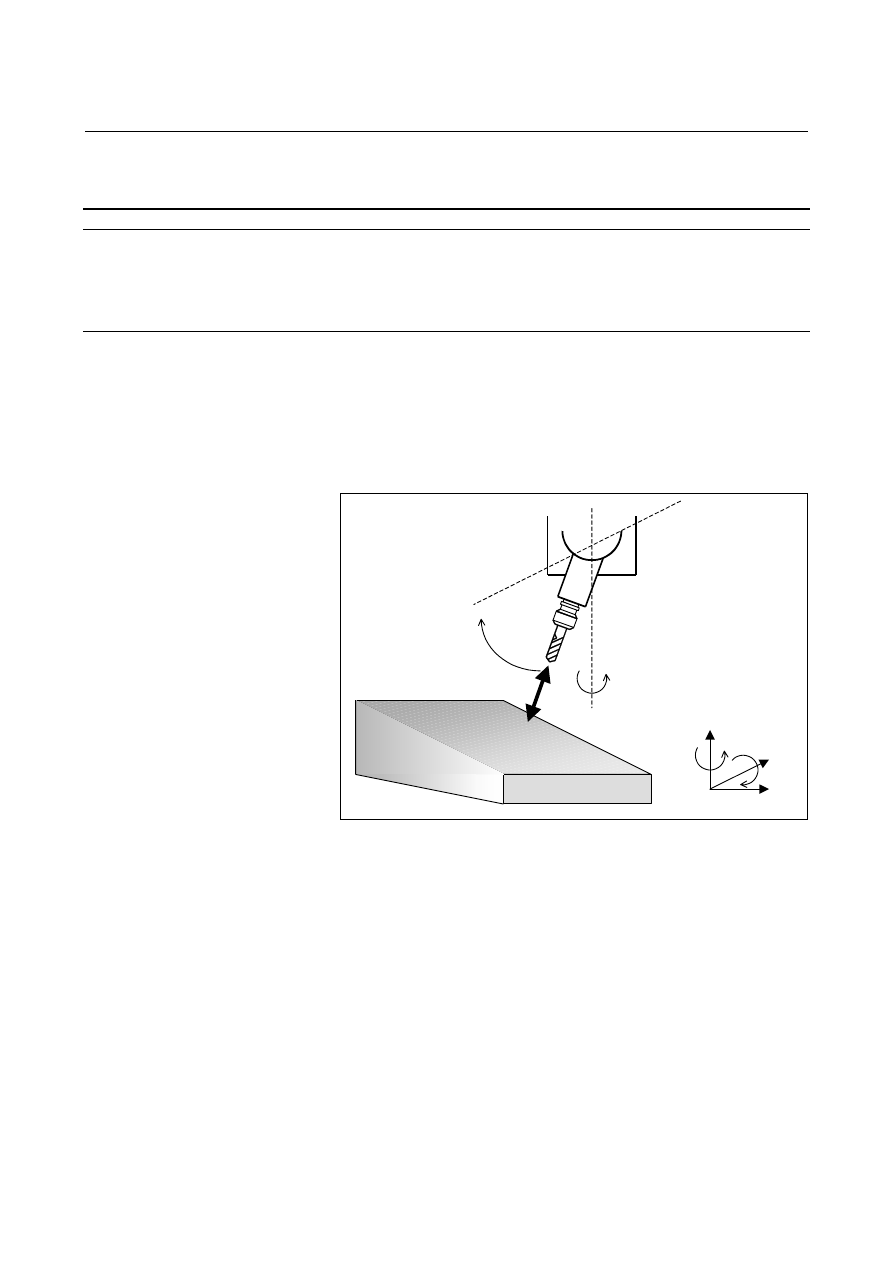

  - Tool axis direction

The tool axis direction that is taken when all the rotation axes for
controlling the tool are at an angle of 0 degree is specified in
parameters No.19697, No.19698, and No.19699.  As the rotation
axes for controlling the tool rotate, the tool axis direction changes
according to the rotation axis angle.


C

B

Z

Y

X

Workpiece

C

B

Tool axis direction





  - Tool axis direction feed in the tilted working plane command mode

If bit 0 (TWD) of parameter No. 12320 is set to 1, the feed direction of
the tool axis direction feed in the tilted working plane command mode
is assumed to be the Z direction in the feature coordinate system of the
tilted working plane command.



  - Tool axis direction handle feed

The tool axis direction handle feed is enabled when the following four
conditions are satisfied:
<1>  Handle mode is selected.
<2>  The tool axis direction feed mode signal (ALNGH) is set to "1"

and the table base signal (TB_BASE) is set to "0".

<3>  The state of the first manual handle feed axis selection signals

(HS1A - HS1E) to make the tool axis direction handle feed
mode effective is set in parameter No.12310.

<4>  The value of parameter No.12310 matches the first manual

handle feed axis selection signals (HS1A - HS1E).

3.MANUAL OPERATION

 OPERATION

B-63944EN/03





- 1066 -



    Amount of movement

When the manual pulse generator is rotated, the tool is moved in the
tool axis direction by the amount of rotation.


    Feedrate clamp

The feedrate is clamped so that the speed of each moving axis dose
not exceed the manual rapid traverse rate (parameter No.1424).
Handle pulses generated while the clamp feedrate is exceeded are
ignored.


  - Tool axis direction JOG feed/tool axis direction incremental feed

The tool axis direction JOG feed or tool axis direction incremental
feed is enabled when the following three conditions are satisfied:
<1>  JOG mode or incremental feed mode is selected.
<2> The tool axis direction feed mode signal (ALNGH) is set to "1"

and the table base signal (TB_BASE) is set to "0".

<3>  The feed axis direction selection signal (+Jn, -Jn (where n = 1 to

the number of controlled axes)) is set to "1" for the axis
corresponding to the direction specified by parameter No.19697.
(Even when the tool axis direction is slant because of the settings
of parameters No.19698 and No.19699, the signal that activates
the tool axis direction JOG feed or tool axis direction incremental
feed is determined by parameter No.19697 only.)
Ex.)  No.19697 = 3 (+Z-axis direction); Z-axis is the 3rd axis.

•



+J3  : Tool axis direction +

•



-J3  : Tool axis direction -



    Feedrate

The feedrate is the dry run rate (parameter No.1410).  The manual
feedrate override feature is available.
If bit 2 (JFR) of parameter No. 12320 is set to 1, the feedrate of a
rotation axis is the jog feedrate of the axis to be rotated (parameter No.
1423).    The manual feedrate override feature is available.


    Feedrate clamp

The feedrate is clamped so that the speed of each moving axis dose
not exceed the manual rapid traverse rate (parameter No.1424).


B-63944EN/03

 OPERATION

3.MANUAL OPERATION





- 1067 -

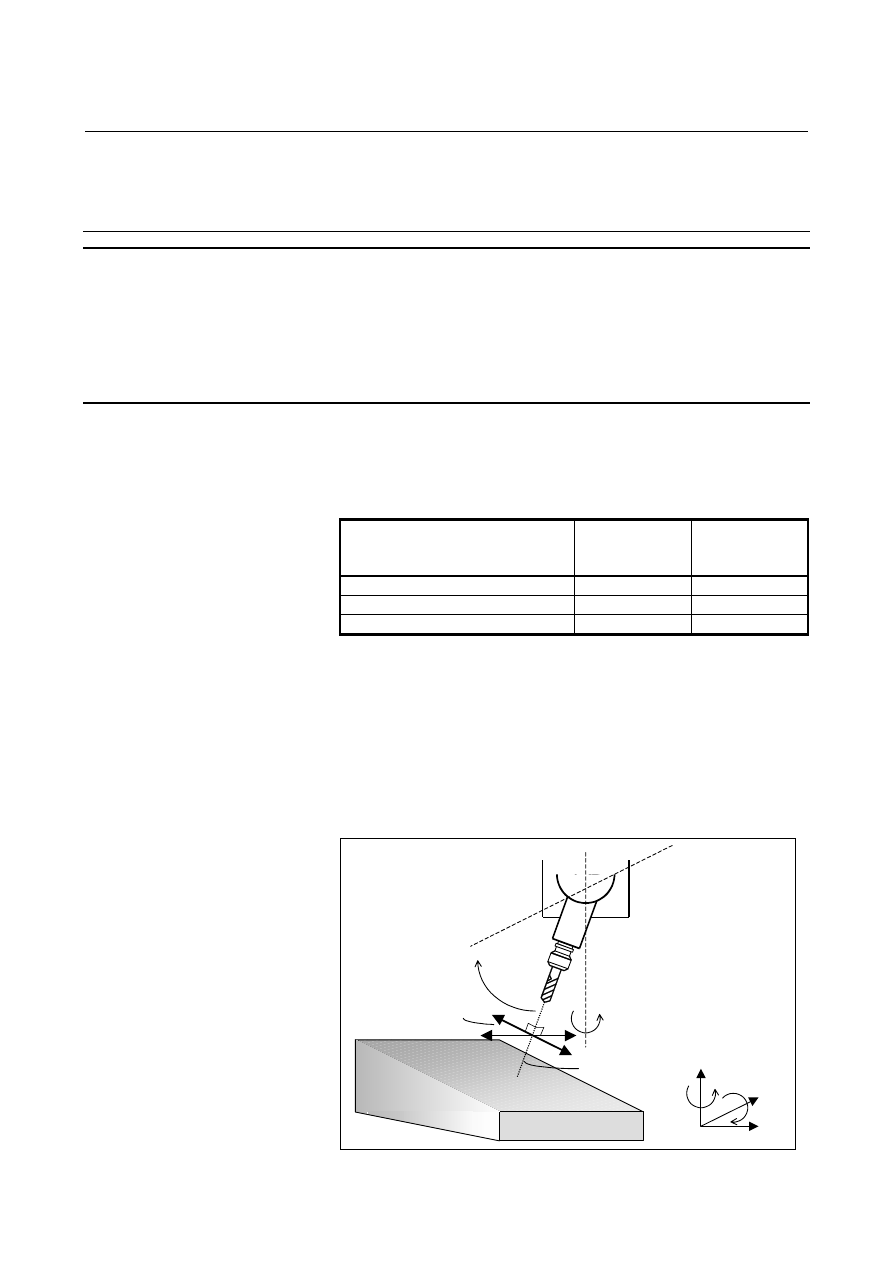

3.9.2

Tool Axis Right-Angle Direction Handle Feed / Tool Axis

Right-Angle Direction JOG Feed / Tool Axis Right-Angle

Direction Incremental Feed



Overview

In the tool axis right-angle direction handle feed, tool axis direction
JOG feed, or tool axis direction incremental feed, the tool or table is
moved in the tool axis direction.
If bit 1 (FLL) of parameter No. 12320 is set to 1, the tool or table is
moved in the latitude or longitude direction determined by the tool
axis direction vector.



Explanation



  - Tool axis right-angle direction

There are two tool axis right-angle directions, which are perpendicular
to the tool axis direction (see the previous section).



Parameter No.19697

Tool axis

right-angle

direction 1

Tool axis

right-angle

direction 2

1 (The reference tool direction is +X.)

+Y direction

+Z direction

2 (The reference tool direction is +Y.)

+Z direction

+X direction

3 (The reference tool direction is +Z.)

+X direction

+Y direction


This table shows the tool axis right-angle directions that may be taken
when the angles of all the rotation axes for controlling the tool are 0
degree and when parameters No.19698 and No.19699 are both set to
0.
When the reference tool axis direction is inclined based on the settings
of parameters No.19698 and No.19699, the tool axis right-angle
direction is also inclined as much.
As the rotation axes for controlling the tool rotate, the tool axis
right-angle direction changes according to the rotation axis angle.



C

B

Z

Y

X

Workpiece

C

B

Tool axis

direction

Tool axis right-

angle direction
