23.MUITI-PATH CONTROL FUNCTION

 PROGRAMMING

B-63944EN/03





- 972 -

23.3

COMMON MEMORY BETWEEN EACH PATH



Overview

In a multi-path system, this function enables data within the specified
range to be accessed as data common to all paths.    The data includes
tool compensation memory and custom macro common variables.


Explanation

The path common memory function enables the following operations.


  - Tool compensation memory

Part or all of tool compensation memory for individual paths can be
used as common data by setting parameter No. 5029.


Tool
compensation

number 20

Tool
compensation

number 1

50 tool

offset

pairs

30 tool

offset

pairs

Tool offset pairs of path

2 on lathe system

No.5029=20

Tool offset pairs of path

1 on lathe system





NOTE

1  When a combined system including a machining

center system and lathe system is used, data is
made common according to the same path control
type.

2  The same unit for tool compensation (bits 0 to 3 of

parameter No. 5042) must be set for each of the
machining center and lathe systems.

3  Set a value less than the number of tool

compensation values for each path for parameter
No. 5029.

4  If the value set for parameter No. 5029 is greater

than the number of tool compensation values for
each path, the minimum number of tool
compensation values for individual paths is
assumed.

5  For details, refer to the relevant manual of the

machine tool builder.

B-63944EN/03

 PROGRAMMING

23.MUITI-PATH CONTROL FUNCTION





- 973 -

  - Custom macro common variables


All or part of custom macro common variables #100 to #149 (, #199,
or #499) and #500 to #599 (or #999) can be used as common data by
setting parameters No. 6036 (#100 to #149 (, #199, or #499)) and
6037 (#500 to #599 (or #999)).


50 macro
variables

50 macro

variables

Macro variable number 119

Macro variable number 100

Macro variables

for path 1

No.6036=20

Macro variables

for path 2





NOTE

1  If the value of parameter No. 6036 or 6037 exceeds

the maximum number of macro common variables,
the maximum number of macro common variables
is assumed.

2  Common variables #150 to #199, #150 to #499,

and #600 to #999 are optional functions.




23.MUITI-PATH CONTROL FUNCTION

 PROGRAMMING

B-63944EN/03





- 974 -

23.4

SPINDLE CONTROL BETWEEN EACH PATH



Overview

This function allows a workpiece attached to one spindle to be
machined simultaneously with two tool posts and each of two
workpieces attached to each of two spindles to be machined
simultaneously with each of two tool posts.


Spindle

Tool post 1

Tool post 2



Fig. 23.4 (a)    Application to a lathe with one spindle and two tool posts



¥

Tool post 2

Spindle 1

Tool post 1

Spindle 2



Fig. 1.1 (b)    Application to a lathe with two spindles and two tool posts


The spindle belonging to each path can generally be controlled by
programmed commands for the path.  With path spindle command
selection signals, programmed commands for any path can control the
spindle belonging to any path.


NOTE



For the method of spindle command selection, refer
to the relevant manual of the machine tool builder.

B-63944EN/03

 PROGRAMMING

23.MUITI-PATH CONTROL FUNCTION





- 975 -

23.5

SYNCHRONOUS/COMPOSITE/SUPERIMPOSED
CONTROL



Overview

In multi-path control, the synchronous control function, composite
control function, and superimposed control function enable
synchronous control, composite control, and superimposed control in
a single path system or between multi-path systems.


Explanation
 - Synchronous control

•

  Synchronizes movement along an axis of one system with that

along an axis of the other path.
Example)

Synchronizing movement along the Z1 (master) and Z2 (slave)
axes (in the case of turning)



Workpiece

Z2 (Synchronized with

movement along the Z1 axis)

Z1

Turret 1

X1

Machining according to a program for path 1



23.MUITI-PATH CONTROL FUNCTION

 PROGRAMMING

B-63944EN/03





- 976 -

•

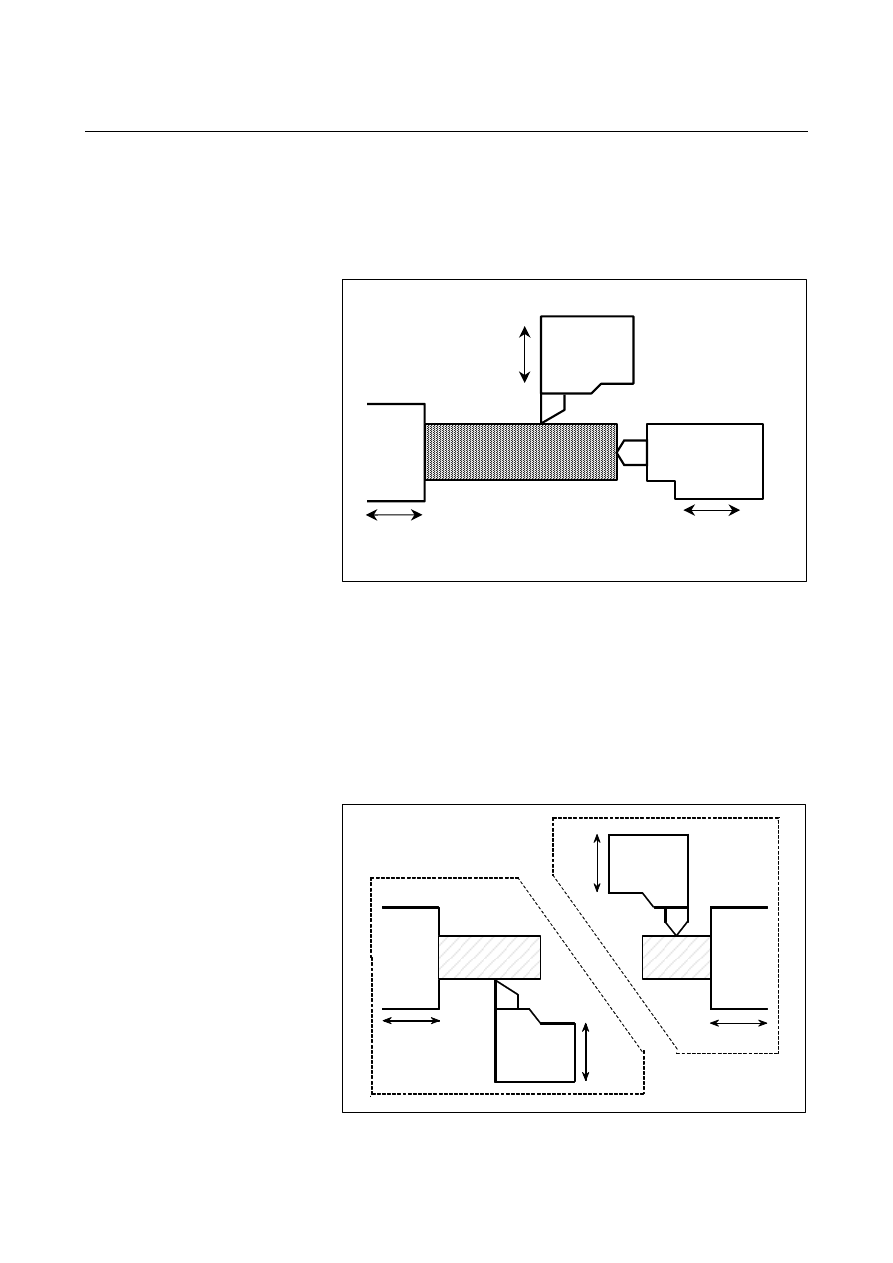

  Synchronizes movement along an axis of one path with that along

another axis of the same path.
Example)

Synchronizing movement along the Z1 (master) and B1 (slave)
axes (in the case of turning)



B1 (Synchronized with
movement along the Z1

axis)

Workpiece 1

Z1

Turret 1

X1

Tail stock



 - Composite control

•

  Exchanges the move commands for different axes of different path.



Example)

Exchanging the commands for the X1 and X2 axes (in the case
of turning)

→

  Upon the execution of a command programmed for path 1,

movement is performed along the X2 and Z1 axes.



Upon the execution of a command programmed for path 2,
movement is performed along the X1 and Z2 axes.



Machining according to a program
for path 1

Machining according to
a program for path 2

Workpiece 1

Turret 1

Workpiece 2

Turret 1

Z1

X2

Z2

X1



B-63944EN/03

 PROGRAMMING

23.MUITI-PATH CONTROL FUNCTION





- 977 -

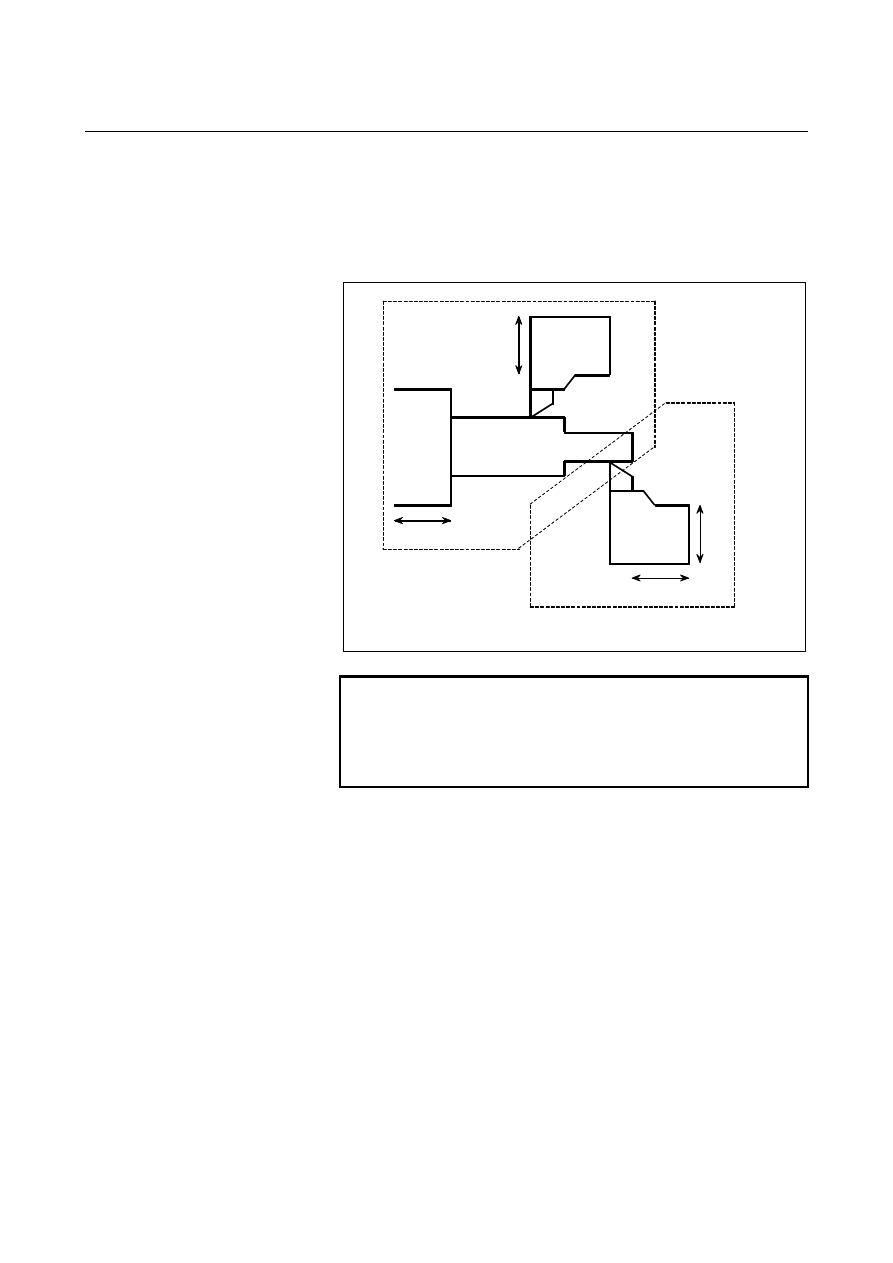

 - Superimposed control

•

  Provides a move command of an axis for a different axis in another

path.
Example)

Providing the Z2 (slave) axis with a move command specified
for the Z1 (master) axis (in the case of turning)

Machining according to a program
for path 2

Workpiece 1

Turret 1

Turret 2

Z1

X2

Z2

X1

Machining according to
a program for path 1





NOTE



The method used to specify synchronous,
composite, or superimposed control varies with the
machine tool builder.    For details, refer to the
manual supplied by the machine tool builder.
