Kawasaki Robot Controller F Series. Installation and Connection Manual (2016) - page 1

Preface

This manual describes the installation and connection of the controller.

This manual covers the installation and wiring of the controllers and connection with external
power. Please refer to “Operation Manual” and “External I/O Manual” for the operation of the
controller.

Read and understand the contents of this and “Safety Manual” thoroughly and strictly observe
all rules for safety before proceeding with any operation.

This manual describes only the installation and connection of the controller. For the robot
arms, please refer to the separate manuals for them.

This manual also describes devices equipped as an option. However, all the controllers might
not include the devices explained here.

1. This manual does not constitute a guarantee of the systems in which the robot is utilized.

Accordingly, Kawasaki is not responsible for any accidents, damages, and/or problems
relating to industrial property rights as a result of using the system.

2. It is recommended that all personnel assigned for activation of operation, teaching,

maintenance or inspection of the robot attend the necessary education/training course(s)
prepared by Kawasaki, before assuming their responsibilities.

3. Kawasaki reserves the right to change, revise, or update this manual without prior notice.
4. This manual may not, in whole or in part, be reprinted or copied without the prior written

consent of Kawasaki.

5. Store this manual with care and keep it available for use at any time. If the robot is

reinstalled or moved to a different site or sold off to a different user, attach this manual to
the robot without fail. In the event the manual is lost or damaged severely, contact
Kawasaki.

This manual is applicable to the following controller models.

F60

[

NOTE

]

F Series Controller

Symbols

Kawasaki Robot    Installation and Connection Manual

ii

Symbols

The items that require special attention in this manual are designated with the following
symbols.

Ensure proper and safe operation of the robot and prevent physical injury or property damage
by complying with the safety matters given in the boxes with these symbols.













DANGER



Failure to comply with indicated matters can result in imminent injury or
death.

WARNING



Failure to comply with indicated matters may possibly lead to injury or
death.



CAUTION



Failure to comply with indicated matters may lead to physical injury
and/or mechanical damage.



Denotes precautions regarding robot specification, handling, teaching,
operation, and maintenance.

[

NOTE

]

WARNING

1.  The accuracy and effectiveness of the diagrams, procedures, and

detail explanations given in this manual cannot be confirmed with
absolute certainty. Accordingly, it is necessary to give one’s fullest
attention when using this manual to perform any work. Should any
unexplained questions or problems arise, please contact Kawasaki.

2.  Safety related contents described in this manual apply to each

individual work and not to all robot work.

3.  In order to perform every work in safety, read and fully understand

“Safety Manual”, all pertinent laws, regulations and related materials
as well as all the safety explanations described in each chapter, and
prepare safety measures suitable for actual work.

！





！





！





！





F Series Controller

Introductory Notes

Kawasaki Robot    Installation and Connection Manual

iii

Introductory Notes





Hardware keys and switches (button)

F series controller provides hardware keys and switches on the operation panel and the teach
pendant for various kinds of operations. In this manual, the names of keys and switches are
indicated as follows.

•

The names of the hardware keys and switches are enclosed with a square.

•

The terms “key” or “switch” which should follow the relevant names are sometimes
omitted for simpler expression.

•

When pressing two or more keys at the same time, the keys are indicated by “+”.



Example

ENTER:

The hardware key “ENTER”.

TEACH/REPEAT:  The mode switch “TEACH/REPEAT” on the operation panel
A+MENU:

Press MENU while pressing and holding down A.








Software keys and switches

F series controller provides software keys and switches which are displayed on the screen of
the teach pendant for various kinds of operations depending on specifications and situations.
In this manual, the names of keys and switches are indicated as follows.

•

The names of software keys and switches are enclosed by “<XXX>” parentheses.

•

The terms “key” or “switch” which should follow the relevant names are sometimes
omitted for simpler expression.



Example

<ENTER>:

“ENTER” key that appears on the teach pendant screen

<Next Page>:

“Next Page” key on the teach pendant screen








Selection items

Very often an item must be selected from a menu or pull-down menu on the teach pendant
screen. In this manual, the items are indicated as follows.

•

The names of these menu items are enclosed in brackets [XXX].

•

To select an item, move the cursor to the relevant item by the arrow keys, and press the

↵



key. For detailed description, this procedure should be described every time, however,
“select [XXX] item” will be used instead for simpler expression.



Example

[Auxiliary Function]: expresses the item “Auxiliary Function” in a menu.

F Series Controller

Introductory Notes

Kawasaki Robot    Installation and Connection Manual

iv





Abbreviation

•

“TP” will be used instead of “teach pendant” for simpler expression.

•

“F key” will be used instead of “function key” for simpler expression.

F Series Controller

Table of Contents

Kawasaki Robot    Installation and Connection Manual

v

Table of Contents


Preface········································································································ i



Symbols ····································································································· ii



Introductory Notes ························································································ iii



1



Safety ······························································································· 1



1.1



Precautions during Transportation, Installation and Storage of Controller ··············· 1



1.2



Sealed Specification ·············································································· 3



1.3



Installation Environments of Controller ······················································· 4



1.4



Precautions When Connecting the Harness ··················································· 7



1.5



Precautions When Connecting the External Power ·········································· 8



1.6



Warning Labels ·················································································· 10



1.7



Battery and Fuse Use and Disposal ··························································· 13



1.8



Safety Features ··················································································· 15



1.9



Emergency Movement without Drive Power ················································ 16



2



Workflow - Robot Controller Installation and Connection ································ 20



3



Appearance and Specifications of Robot Controller ······································· 21



3.1



Controller Appearance ·········································································· 21



3.2



TP Appearance ··················································································· 23



3.3



F60 Controller Specifications ·································································· 24



4



Transportation of Robot Controller ··························································· 26



5



Arrangement of Robot Controller ····························································· 27



5.1



Horizontal Arrangement of Controller ························································ 27



5.2



Vertical Arrangement of Controller ··························································· 29



5.3



Tap Position on the Side of Controller ························································ 31



6



Connection Instructions ········································································· 33



6.1



Connection between Controller and Robot ·················································· 33



6.2



Connection between Controller and TP ······················································ 45



7



Connection of External Power ································································· 46



8



Connection of Peripheral Control Equipment ··············································· 49



8.1



Precautions When Connected ·································································· 49



8.2



Connection of General Purpose Signal ······················································· 50



8.3



Connection of Hardware Dedicated Signal ·················································· 50



8.4



Connection of Personal Computer ···························································· 51



8.5



Connection of RS-232C Serial Signal (Option) ············································· 51



8.6



Connection of Ethernet Communication Signal ············································· 51



8.7



Connection of Fieldbus (Option) ······························································ 51



F Series Controller

1 Safety

Kawasaki Robot  Installation and Connection Manual

1

1  Safety

This chapter only describes safety precautions during installation and connection of the
controller. For all other safety matters, refer to the “Safety Manual”, a separate-volume.



1.1  Precautions during Transportation, Installation and Storage of Controller

When installing the Kawasaki Robot controller, strictly observe the following cautions while
carrying out the transportation, installation and storage work.








The installation shall be made by qualified installation personnel and should
conform to all national and local codes.

[

NOTE

]

CAUTION

1.  Strictly observe the following when carrying out the transportation,

installation and storage work. The controller is composed of precision
parts.
When transporting or storing a controller:
(1)  keep the ambient temperature within the range of minus 20 to

70

°

C. (Ambient temperature during operating time: 0 to 45°C, see

“3.3”.)

(2)  keep the relative humidity within the range of 35 to 85% RH (Non

condensing)

(3)  keep free from shock and vibration.

*See “3.3” for vibration conditions during operation.

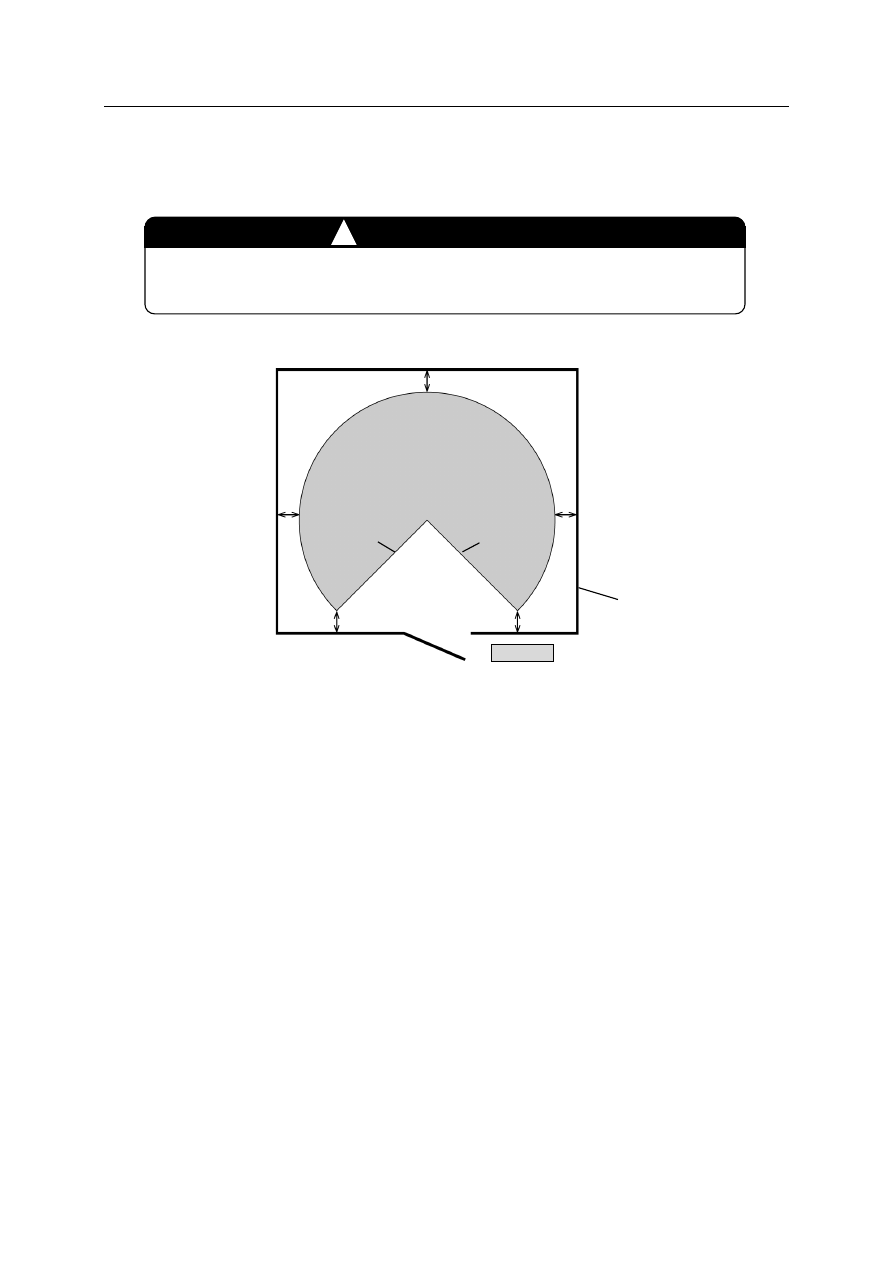

2.  To carry out smooth and safe installation, remove all obstacles before

installing a controller.

3.  Clear a passage for the transportation of controller before using a

crane or forklift.

！





F Series Controller

1 Safety

Kawasaki Robot  Installation and Connection Manual

2










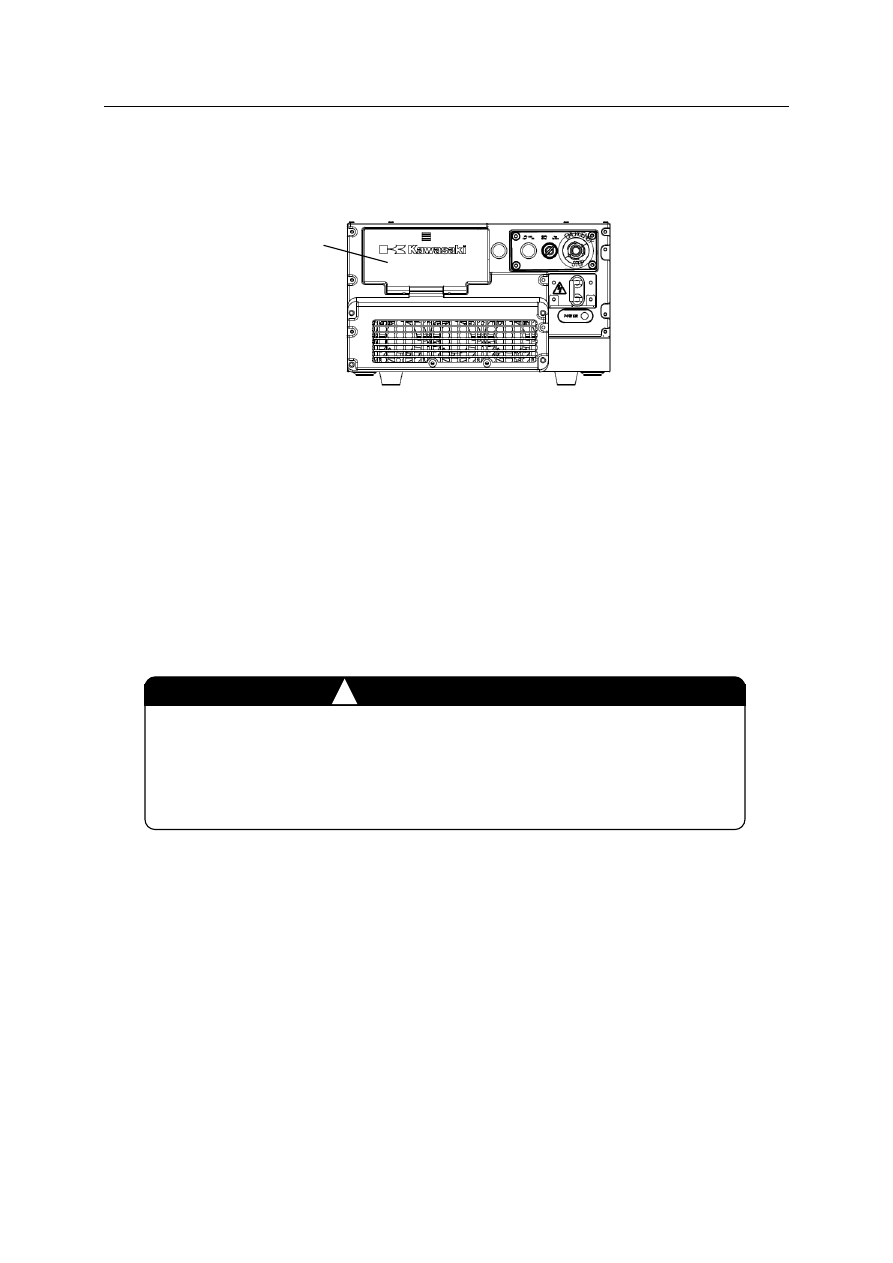

Front view of the Controller with air filter attached



Be sure to check the environmental conditions and select the chassis
specification.



In case of standard F60 open specification (IP20)
No protection is provided against objects thinner than a finger, conductive
foreign matter such as metal particles or other foreign matter that can
become conductive in humid conditions, and water. In environments at
contamination level 2 or lower where foreign matter such as
non-conductive particles or dust can easily enter the controller and affect
its functions, attach an optional air filter (see the figure below).



In case of F60 sealed specification (IP54)
This specification prevents dust particle penetration that may cause
controller’s functional loss and is splash proof. In environments at
contamination level 3 where conductive foreign matter can be generated
and enter the controller, attach an optional sealed chassis. Even with the
optional sealed chassis attached, avoid environments where a large amount
of metal particles are generated and the controller is exposed directly to
the metal particles.
Avoid environments where oil mist is floating in the air leading to high oil
content.



CAUTION

！



Air filter

F Series Controller

1 Safety

Kawasaki Robot  Installation and Connection Manual

3

1.2  Sealed Specification

The F60 controller has an open structure as standard. When installing the controller in an
environment at contamination level 3 specified by IEC60664-1, an optional sealed chassis
must be attached.

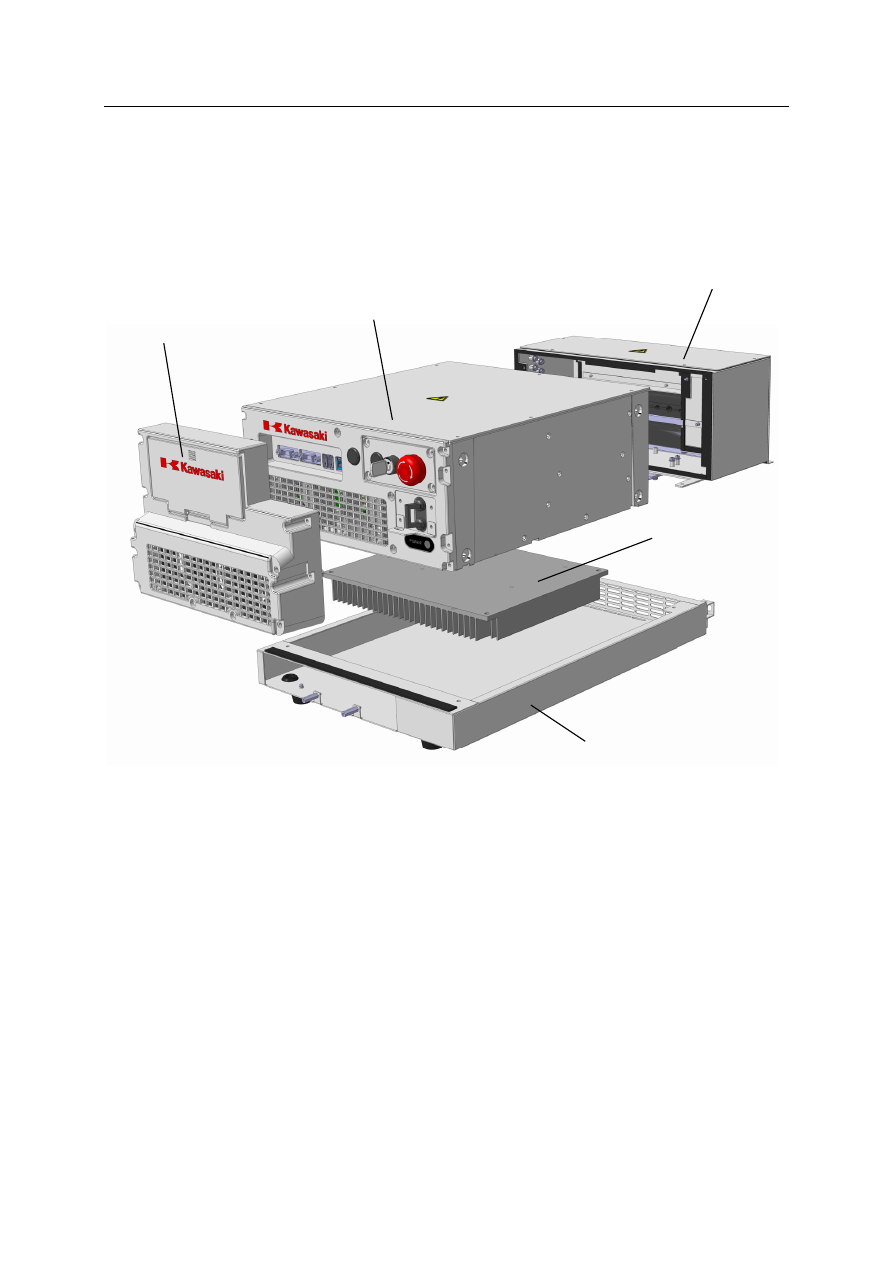

See the figure below for the optional sealed chassis.







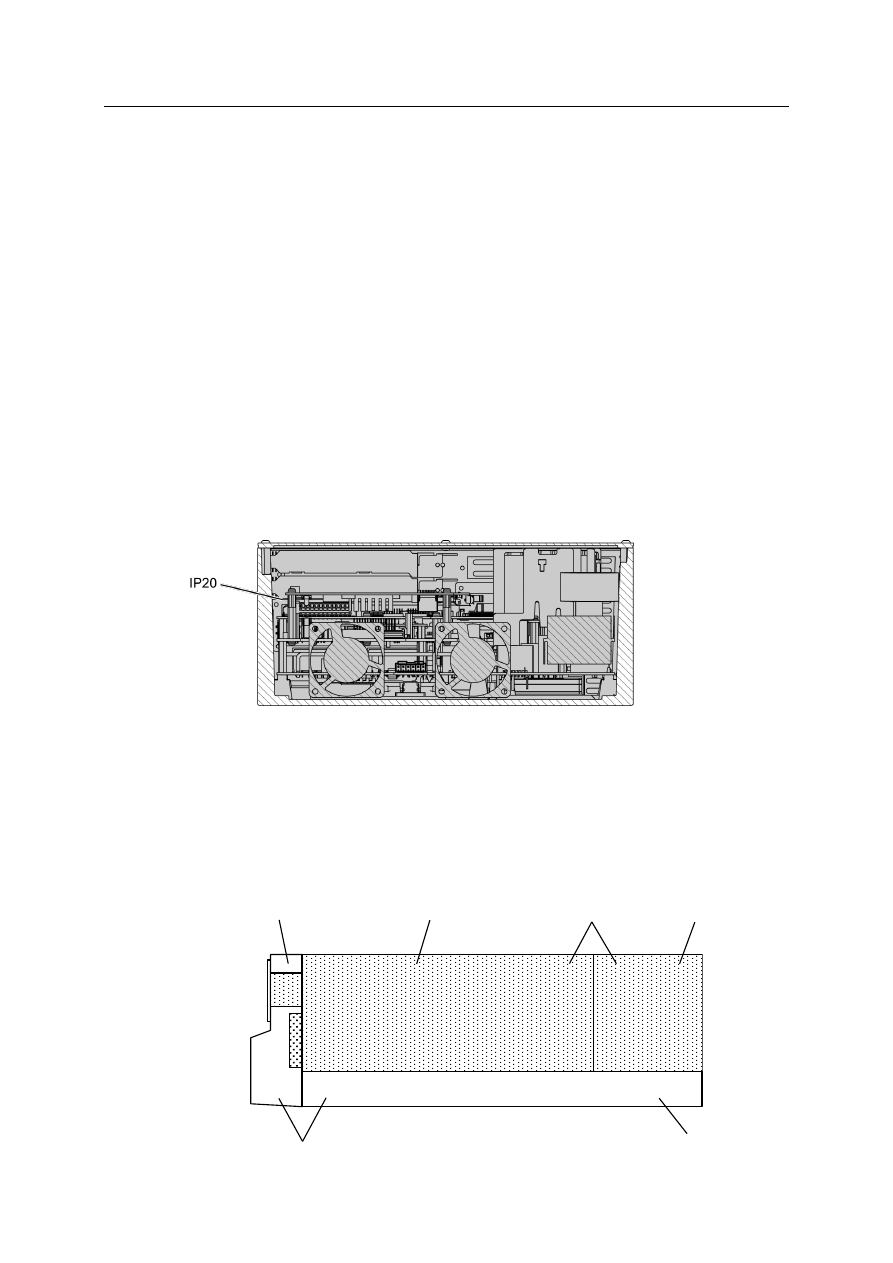

In the following pages, the chassis consisting of the standard F60 open structure controller
and an optional sealed chassis is referred to as “F60 sealed specification”. Refer to the
“Options Installation Manual” for how to install the optional sealed chassis.




Sealed chassis front

panel

Standard F60 open

specification

Sealed chassis rear unit

Heat sink

Sealed chassis base unit

F Series Controller

1 Safety

Kawasaki Robot  Installation and Connection Manual

4

1.3  Installation Environments of Controller

Install the controller in a site that satisfies all the following environmental conditions:

1.  Ambient temperature during operation: within 0 to 45

°

C

2.  Relative humidity: 35 to 85%RH (Non condensing)
3.  Altitude: up to 1000 meters above mean sea level
4.  Environmental conditions related to foreign materials

•

See the precautions in “1.1 Precautions during Transportation, Installation and
Storage of Controller”.

In case of standard F60 open specification
–  Contamination level 2 or lower (no condensation)*

※



The contamination level is according to IEC60664-1.
See the figure below for the controller protection class specified by
IEC60529.



Front view

In case of F60 sealed specification
–  Contamination level 3 or lower (no condensation)*

※



The contamination level is according to IEC60664-1.
See the figure below for the controller protection class specified by
IEC60529.







Side view

Sealed chassis front

unit

Standard F60 open

structure

Sealed chassis rear

unit

IP54

IP20

Sealed chassis rear

unit

F Series Controller

1 Safety

Kawasaki Robot  Installation and Connection Manual

5

Note:





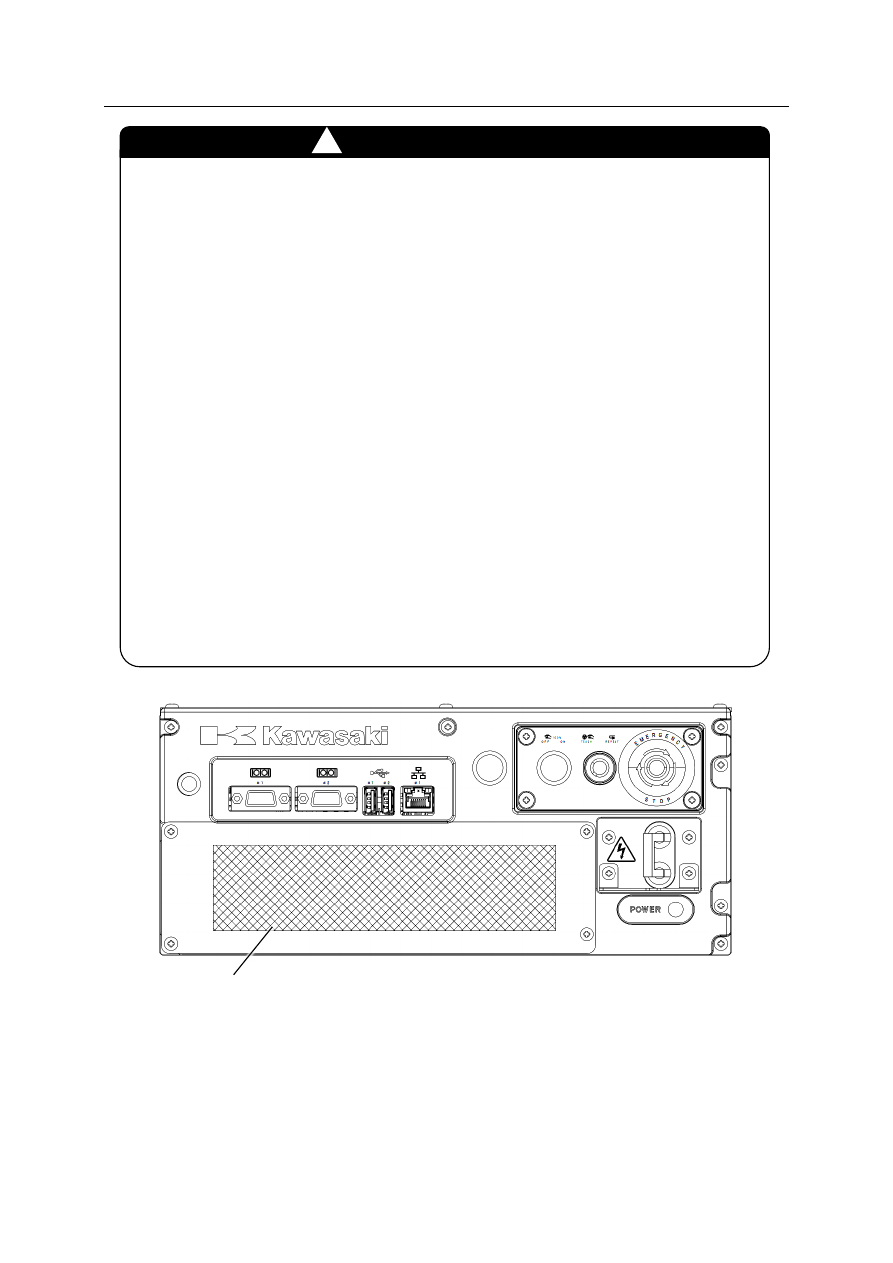

Close the accessory panel cover of the sealed chassis front unit to ensure the
sealability.



Front view of F60 sealed specification







Read the precautions for the F60 sealed specification in “6.1 Connection
between Controller and Robot” carefully.





Refer to the separate “Options Installation Manual” for the precautions for
assembly.



5.  Installation site

•

Free from electrical noise interference.
Controller external power noise: 1 kV/1 µs or less



•

Free from flammable and/or corrosive liquid and gas. (e.g.: hydrogen sulfide)

•

Free from excessively strong vibration.

•

Place where power is supplied within specifications.
Variation rate: ±10% or less

•

Place where dedicated grounding is provided. (100

Ω

 or less)



6.  Installation conditions of safety fence

•

Safety fence should be installed with margin (min. 1 m) from outside the motion
range of robot (with tools and workpieces).

•

Ensure the followings when installing a safety fence.
–  Enough space for easy access to the controller in maintenance
–  Installing an entrance gate with a safety plug to the safety fence

If the controller is installed near equipment that generates a lot of
electrical noise, be sure to provide appropriate surge killers around that
equipment. Noise producing equipment includes: induction motors,
electromagnetic brakes, solenoids, or contact equipment, etc.


CAUTION

！





Accessory panel cover

F Series Controller

1 Safety

Kawasaki Robot  Installation and Connection Manual

6

–  Referring the requirements established in each region for details of the safety

fence
(e.g. ISO 13854, 13855, 14119, and 14120)











The controller shall not be located inside of the robot’s motion range/
work cell/safety fence.

CAUTION

Controller

Motion range of robot arm

(tool and workpiece included)

Gate with safety plug

Approx.1 m

Approx.1 m

Approx.1 m

Approx.

1 m

Approx.

1 m

Safety fence

Mechanical

stopper

Mechanical

stopper

！





F Series Controller

1 Safety

Kawasaki Robot  Installation and Connection Manual

7

1.4  Precautions When Connecting the Harness

Strictly observe the following precautions when connecting the robot with the controller.










WARNING

In order to prevent electric shock accidents, do not connect the external
power until connections between the robot and the controller are
complete.

CAUTION

1.  Do not mistake the destination of connectors when connecting the

harnesses. Forcing to connect the harness wrongly may damage
connectors or cause a break in the electrical system.

2.  Prevent people or equipment (forklift etc.) from stepping on or riding

over the harnesses. Otherwise, the harness may become damaged or
the electrical system may break.

3.  Separate the harnesses from any nearby high voltage lines.

(1)  Do not run the harnesses in parallel with other power lines.
(2)  Do not bundle the harnesses.
(3)  Separate the harnesses for 1 m or more from any nearby high

voltage/high current power lines. Otherwise, the noise is generated
from power lines and will cause malfunctions.

4.  Even when the harnesses are long, do not bundle them winded or

bended. Bundling the harness causes the heat to build up in the
harness, resulting in over-heat and furthermore may cause fire.

！





！





F Series Controller

1 Safety

Kawasaki Robot  Installation and Connection Manual

8

1.5  Precautions When Connecting the External Power

Strictly observe the following precautions when connecting the external power.












1.  Before connecting the external power, confirm that the external power

supply for the controller is cut off at the source. Connecting
components while power is supplied may cause electric shock.

2.  To prevent external power from being turned ON accidentally, tag the

breaker and indicate clearly that work is in progress. Or, assign a
supervisor in front of the breaker until the connection is complete.

DANGER

WARNING

1.  Confirm that the connected supplying power to the controller meets

specifications shown on the rating plate. Supplying
out-of-specification power will damage electric components in the
controller.

2.  Ground the controller to prevent against electrical shock and noise

without fail.
(1)  Dedicated ground:

100

Ω

 or less

(2)  Recommended power cable size:  ground wire which is 2.0 mm

2

 or

more (AWG #14 or more)

3.  Never share a ground line with workpiece to be welded or another

machine (weld machine, etc.).

4.  Strictly observe the following precautions when conducting the arc

welding.
(1)  Connect the minus pole of the weld power supply to a jig or

directly to workpiece to be welded.

(2)  Insulate the robot body and controller so that they do not share a

common ground line.

5.  Before turning ON the external power to controller, make sure the

power supply wiring is complete and all the covers are attached
properly. Failure to do so may cause electric shock.

！





！





F Series Controller

1 Safety

Kawasaki Robot  Installation and Connection Manual

9







CAUTION

1.  Prepare external power that meets the specifications of the controller

in terms of momentary power interruption, voltage fluctuation, power
capacity, etc. Supplying out-of-specification power is connected, the
power monitoring circuit activates cutting off the power, and an error
may be returned.

2.  If the external power emits a lot of electrical noise, set up a noise filter

to reduce the interference.

3.  Confirm that there are no low noise-resistant devices in the vicinity

beforehand. PWM noise generated from robot motor lines may cause
malfunction of the devices via external power line.

4.  Install a separate external power switch (breaker) for the robot,

independent and unconnected to the other device such as weld
machine.

5.  To prevent shorting or accidental leakage on the external power

switch, install a time delay type ground leakage breaker (sensitivity of
100 mA or more.).

6.  If there is a possibility that surge voltage such as lightning surge

might be applied from external power line, decrease the surge voltage
level by mounting a surge absorber, etc.

！





F Series Controller

1 Safety

Kawasaki Robot  Installation and Connection Manual

10

1.6  Warning Labels

Warning labels for electric shock and high temperature are located on the controller shown
below.






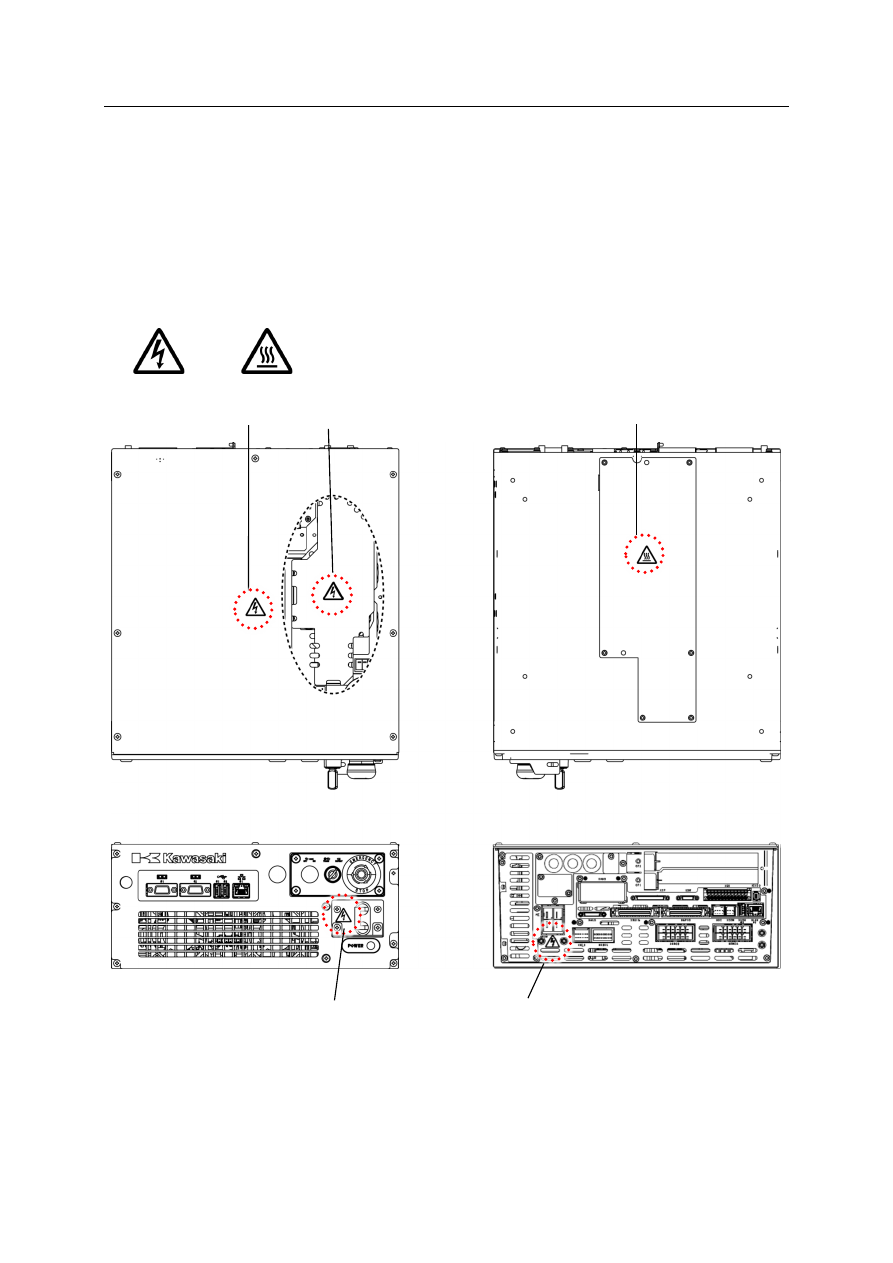

F60 controller





Standard open specification



1



2















1

Ceiling board

1

External power inlet

1

Cover on power/6-axis amplifier board

(2AU/2AC board)

2

Regenerative resistor

Top

Front

Bottom

Rear

1

Controller power switch

F Series Controller

1 Safety

Kawasaki Robot  Installation and Connection Manual

11





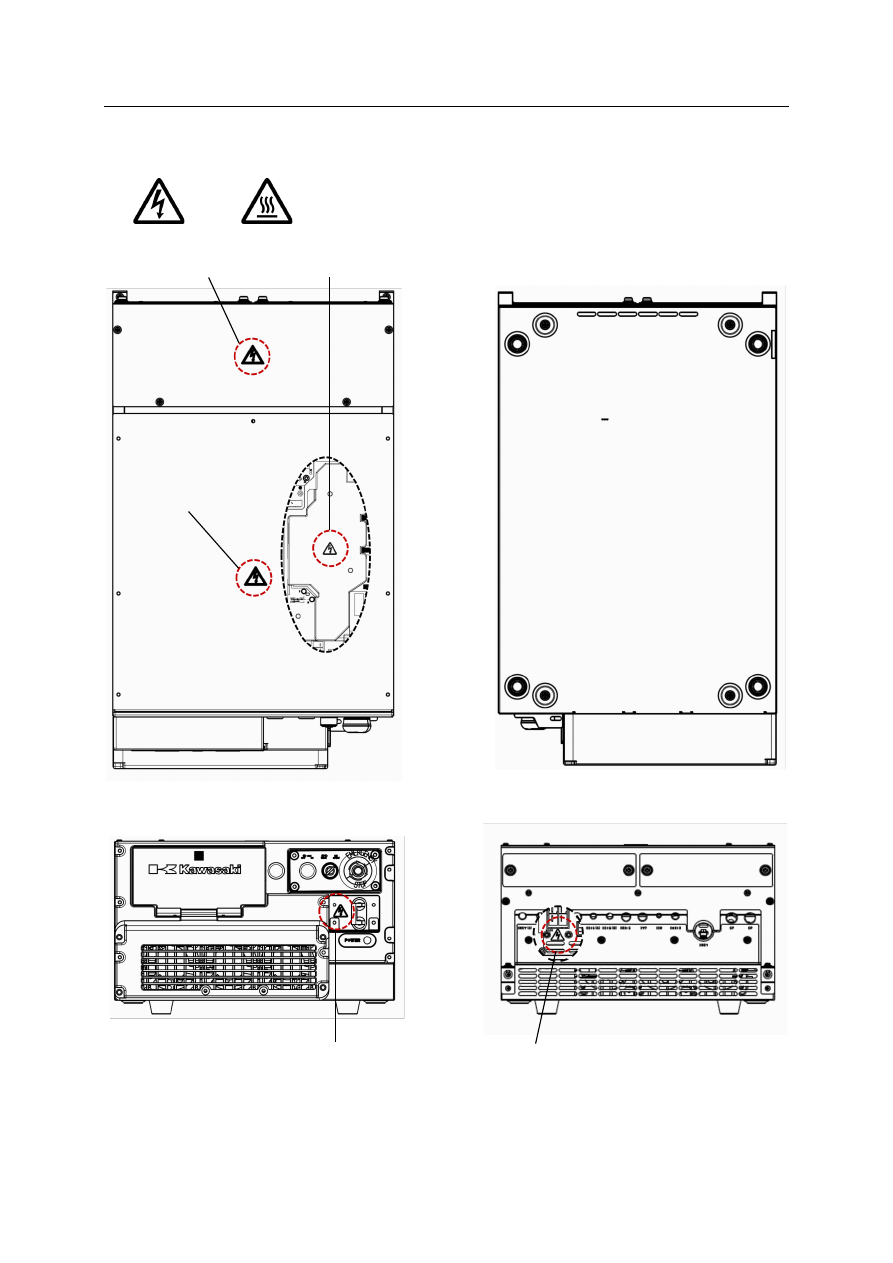

Sealed specification



1



2















1

Ceiling board

1

External power inlet

(Rear part of standard

open structure)

1

Cover on power/6-axis amplifier board

(2AU/2AC board)

Top

Front

Bottom

Rear

1

Controller power switch

1

Upper part of sealed

chassis rear unit
