Lotus Service Notes



    Section GJ

Note that the Pirelli P-Zero tread pattern

is asymetrical, so that when fitting tyres, atten-

tion must be paid to the sidewall marking, and

the side of the car for which the wheel and tyre

is intended.  Wear indicators are moulded into

the bottom of the tread grooves at intervals

around the tyre, indicated by small pointers on

the outer tread blocks.  The tyres should be

replaced before being worn to this minimum

legal tread depth.

Tyre type                 Pirelli P-Zero

Size          - front       225/40 ZR18

            - rear        255/35 ZR19

Pressure (cold) - normal driving conditions

            - front       2.3 bar (33.5 psi)

            - rear        2.5 bar (36 psi)

          - high loads and/or speed

            - front       2.8 bar (40.5 psi)

            - rear        3.0 bar   (43.5 psi)



GJ.6 - WINTER TYRES & SNOW CHAINS

If the car is to be used in very cold climates, or driven on snow covered roads, it is recommended to fit a

complete vehicle set of winter tyres developed specifically for such conditions.  For the Evora, Lotus recom-

mends the use of Yokohama W.drive V-902 winter tyres in sizes specified below.

Wear indicators are moulded into the bottom of the tread grooves at intervals around the tyre, indicated

by small pointers on the outer tread blocks.  In order that these tyres maintain their design performance on

snow covered roads, the minimum tread depth is designated as 4 mm, which is reflected in the height of a

secondary set of wear indicators.

Note that the W.drive tread pattern is asymetrical, so that when fitting tyres, attention must be paid to the

sidewall marking, and the side of the car for which the wheel and tyre is intended.

Winter Tyres   - type           Yokohama W.drive V-902

          - size  - front       215/40 R18

              - rear        245/35 R19

Pressure (cold) - front           2.3 bar (33.5 lb/in²)

          - rear            2.5 bar (36 lb/in²)



WARNING:

-

When winter tyres are fitted, a maximum speed of 118 mph (190 km/h) must be observed.

-

The tyres are NOT suitable for studding.

Snow Chains

In extreme weather conditions, Lotus approves the fitment of RUD-matic DISC snow chains (Lotus part

number A132G6004F), used only in conjunction with winter tyres (see above) and fitted only on the rear wheels.

Close attention should be paid to the fitting and tensioning instructions supplied with the chains.  The chains

should be removed as soon as road conditions allow.



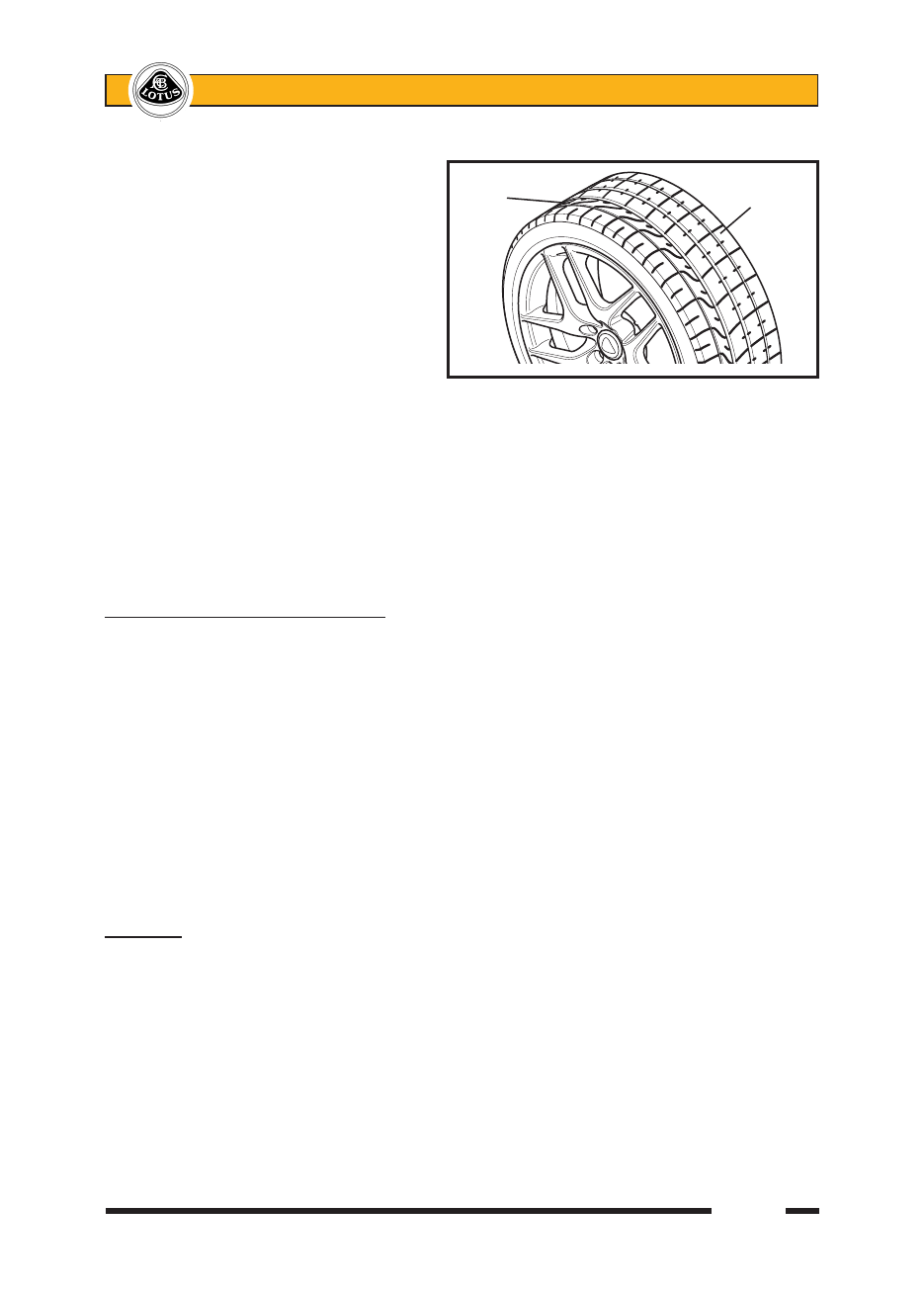

Outboard tread                 Inboard tread

  pattern                      pattern



g23





Lotus Service Notes



    Section GJ

GJ.7 - PUNCTURED TYRE EMERGENCY INFLATOR (If fitted)

In  order  fully  to  exploit  the  benefits  of

light weight, and to maximise stowage space,

the Evora has no provision for spare wheel

carriage or lifting jack.  A temporary puncture

sealing facility is provided in the form of an

emergency tyre inflator aerosol mounted in a

spring clip at the extreme right hand side of

the boot.  If possible, avoid driving on a de-

flated tyre, or irreparable damage to the tyre

structure may be caused.

When  the  aerosol  is  connected  to  the

tyre valve, and the button pressed, a mixture

of liquid latex and propellant is injected into the

tyre, such that the solidifying latex is forced into

the puncture site at the same time as the tyre

is  inflated,  effecting  a  temporary  repair  and

enabling the car to be driven at low speed to

the nearest tyre depot.

WARNING:

-

Use of the aerosol does not constitute a permanent repair, but is designed to allow the car to be

driven to the nearest tyre depot.  At the earliest opportunity, the tyre should be professionally

repaired or replaced dependent on the severity of the damage.

-

Until the tyre is repaired or replaced, the car should be driven only in a moderate manner, not

exceeding 30 mph (45 km/h).

-

Do not use the aerosol for large holes or repairs, or when the tyre sidewall has been damaged, or

if the tyre has been displaced from the rim.

-

For safety reasons, the aerosol should be carried at all times in the designated stowage position.

Never carry in the passenger compartment.

As soon as a puncture is suspected, the car should be stopped at the first safe opportunity.  Continued

driving on a deflated tyre will cause irreparable damage to the tyre.

Directions for use of the aerosol:

  Before using, carefully read all the instructions on the canister, or on any

literature accompanying the product.  The following instructions apply to the use of Holts Tyreweld:

1.  Remove the object causing the puncture, and position the wheel with the puncture site lowermost.  Deflate

tyre fully.

2.

  Shake the can vigorously.  In cold conditions, warm the can using the car's heater outlets, or by body

warmth.

3.  Screw the aerosol tube onto the tyre valve, remove the cap, hold the can upright and press the button until

the tyre is firmly inflated.

4.  Immediately drive for 6 - 12 miles (10 - 20 km) (or to the tyre depot if nearer) in a moderate manner and not

exceeding 30 mph (45 km/h), to allow the sealant to spread.  Then check and adjust the tyre pressure.

5.  Have the tyre professionally repaired or replaced at the earliest opportunity, and until such time, limit

speed to 30 mph (45 km/h) with a moderate driving manner.  Note that some tyre repairers may make an

additional charge for cleaning the sealant off the tyre before repair, and that any subsequent repairs may

not be guaranteed.  Be aware that the electronic pressure sensor mounted inside the tyre and integral

with the tyre valve, could be obstructed by the sealant, and should be renewed.

6.  Renew the puncture repair aerosol.



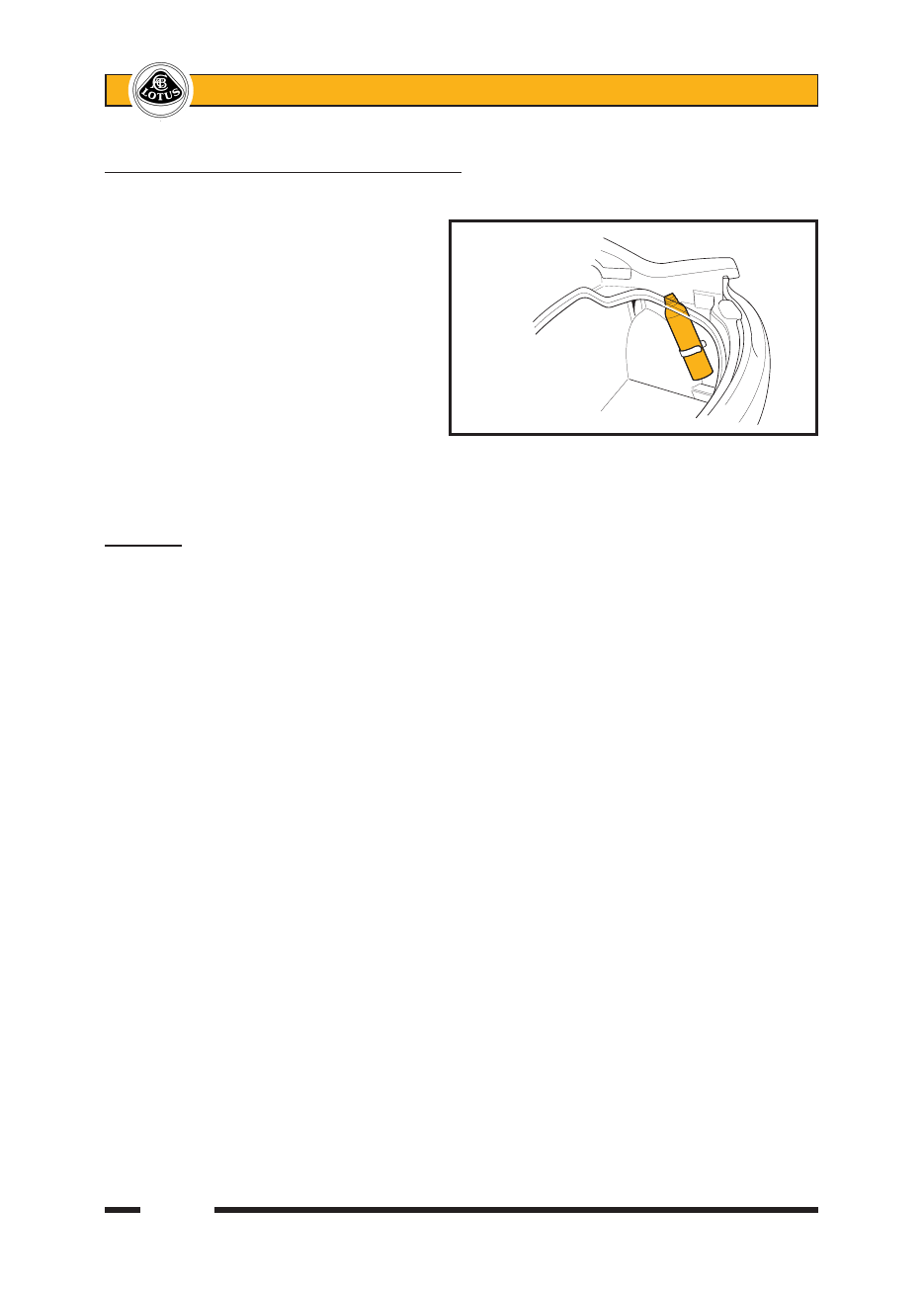

TYRE EMERGENCY

INFLATOR AEROSOL



ohe42





Lotus Service Notes





    Section HI

STEERING

SECTION HI

                                                  Sub-Section   Page

      General Description                              HI.1      2

      Power Steering Rack Operation                       HI.2      3

      PAS Fluid Check & Refill Procedure                    HI.3      6

      Steering Wheel                                 HI.4      6

      Steering Column Assembly                          HI.5      7

      Intermediate Column                              HI.4      8

      Track Rod Ends & Rack Gaiters                       HI.5      9

      Front Wheel Alignment & Rack Gaiters                  HI.5      8

      Rack & Pinion Assembly Removal/Replacement             HI.6      10

      PAS Pump & Testing Procedure                       HI.7      11







Lotus Service Notes





    Section HI

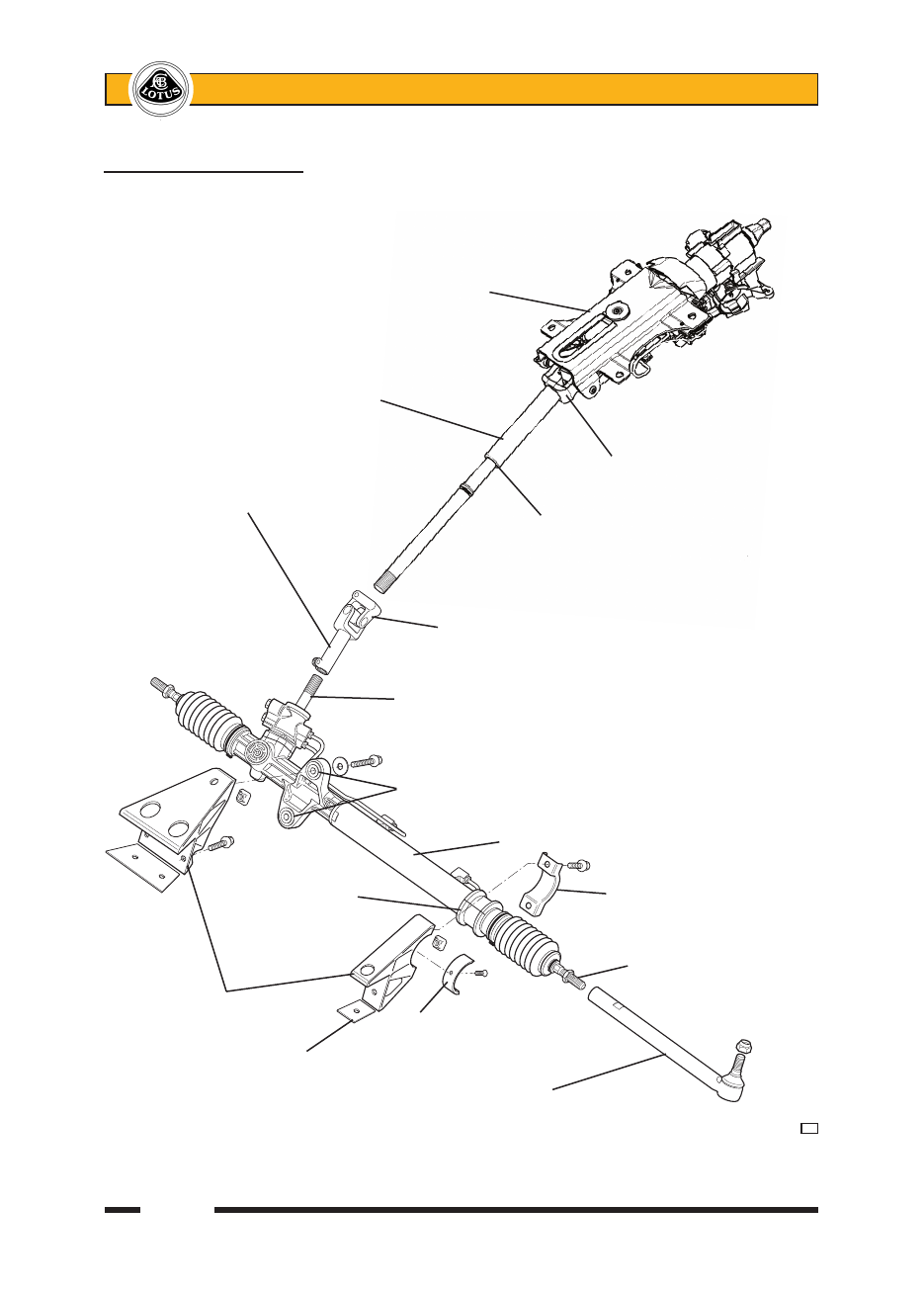

Column and Rack Assembly

                    Upper column assembly

            Intermediate column

                                                Upper universal joint

        Lower column

                                          Collapsible joint



                                Lower universal joint



                            Pinion shaft

                            Pinion end solid mountings

                                      Rack and pinion assembly



              Rubber sleeve                         Non-pinion end clamp



                                                  Tie rod



Mounting bracket to chassis

                            Alloy insert

            Shim plate

                                    Track rod



h62
