Variable Traction & Launch Control (if fitted)

Cars equipped with the optional variable traction and lauch control, have a rotary control knob mounted

above the LTC ‘off’ button on the switch panel.

Variable Traction Control

Each time the ignition is turned on, normal full LTC is activated.  To enable variable traction control, turn

on the ignition and hold the LTC ‘off’ button pressed for 2 seconds.  Do not touch the throttle pedal.  Check that

the tell tale in the switch button is lit.  Start the engine.  Note that if the ignition is switched off (e.g. prior to a

second start attempt), the above procedure must be repeated in sequence.

With the switch button tell tale lit and the engine running, the rotary knob may then be used to select the

degree of traction control desired:

•

For maximum traction control (0% slip) turn the knob fully counterclockwise.

•

To reduce traction control (to allow up to 12% slip), turn the knob progressively clockwise.

•

Fully clockwise, traction control is disabled, as indicated by the lighting of the instrument panel tell tale.

Variable Launch Control

This feature allows the engine rpm to be limited during a competition start in order to balance engine power

against available grip and provide a controlled degree of wheelspin for the first moment of acceleration, until

superseded by the traction control system at around 6 mph.

To enable this feature, turn on the ignition and hold the LTC ‘off’ button pressed for 2 seconds.  Check that

the tell tale in the switch button is lit.  Then;

•

With ignition on, engine

stopped, fully depress the throttle pedal for 5 seconds.

•

Tacho will now show launch rpm.  Turn the rotary knob as necessary to select any desired launch rpm

between 2000 and 8000.

•

Release throttle and start engine.

•

Turn the rotary knob to select the desired level of traction control (see above), noting that the launch control

setting will not be affected.

•

Engage first gear, apply full throttle (ECU limits engine speed to selected launch rpm), and rapidly ‘drop’

clutch.

•

Maintain full throttle throughout the transition from launch to traction control (at around 6 mph) until the

first gear change is required.

•

To disable launch control when variable traction control is still required, reset launch rpm to 8,000.

NOTE

•

Do not attempt to slip the clutch during this process, as overheating or damage to the clutch mechanism

may occur.  An instant clutch engagement is required to ‘break’ rear tyre traction and initiate wheelspin.

•

Do not attempt LC starts in any gear other than first.

•

Do not hold the engine at or near maximum rpm for more than a few seconds.

•

Under no circumstances should this track feature be employed on the public road.

•

Use of Launch Control is an ultimate technique designed to produce the fastest possible race start.

Always allow the clutch to cool and recover before repeating a launch controlled start.  The extreme

loads associated with such starts will result in reduced transmission component life cycles.

•

At the next key-on, the system will default to full LTC and Launch Control off.  Turning on the ignition and

holding the LTC 'off' button pressed for 2 seconds will restore the previous traction and launch settings.

Adjustment Tips

Note that the optimum settings for variable traction and launch control will differ for each set of track sur-

face, tyre and ambient conditions.  A suggested adjustment logic follows:

•

Set the traction control to a mid position.

•

Start with a low launch rpm e.g. 4,000 rpm.

•

Trial launch and assess initial wheelspin control and transition into traction control.

•

If launch control is set too low, the engine may ‘bog down’ and fall out of the power band.  If set too high,

too much initial wheelspin may result, with poor step off from the line.

•

Similar logic applies to traction control adjustment when this system takes over above about 6 mph.

Page 23





Lotus Service Notes





        2-Eleven

Battery Access

The lightweight 'Odyssey' battery uses absorbed glass mat, dry cell technology to provide high electrical

performance with minimum weight and size.  The battery is located centrally in the cabin rear bulkhead, protected

by a composite cover.  No routine inspection or topping up of the electrolyte is required, but at every service in-

terval, the battery terminals should be checked for security and condition, and protected with petroleum jelly.

For access to the terminals, the bulkhead cover must first be removed.  Use the 3mm hexagonal key to

remove the four fixings securing the battery cover to the chassis and bulkhead, and disconnect the auxiliary

power socket lead (if applicable).

Battery Isolator Switch

A battery master switch is mounted on the left hand side of the rear scuttle, and is provided as a safety

feature to allow a third party, from outside the vehicle, to turn off the engine and islolate all battery power.

This facility should be used only when necessary for safety reasons, or prior to removing the battery from

the car.  If possible, do not operate the swtich until at least 10 seconds after switching off the ignition, in order

to allow the engine management system to adjust the setting of some components ready for re-starting, and

to avoid the loss of adaptive learn memory in the ECU.

To turn off battery power, turn the red key (knurled alloy knob on road cars) a quarter turn counterclockwise

until aligned fore/aft.  Remove the key to prevent loss and fit the rubber cap to protect from rain ingress.  To

turn on, insert the key, press down and turn a quarter clockwise.  The key is now captive.

Battery Charging

The Odyssey PC680 battery fitted to the 2-Eleven uses aborbed glass mat (AGM) technology to provide

the virtues of  both deep cycling ability and high cranking power.  Thus low rate long duration drains and short

duration high amperage pulses are accommodated.  The battery is fully sealed, recycling all gases internally

and using no external vent.  There is also no electrolytic corrosion of the positive terminal, or corrosion to the

surrounding area.  Never attempt to remove the top decal cover, or failure of the battery will ensue.

The state of charge in the battery can be determined from the following table:

Voltmeter reading      State of charge

12.84 V            100%

12.50 V            75%

12.18 V            50%

11.88 V             25%

The battery does not lose its charged energy during cold storage temperatures, so there should be no

need to trickle or float charge during the winter months.  To store off season, measure the battery voltage to

ensure it is fully charged; 12.8 volts or greater, and recharge if necessary. Turn off the battery isolator switch, or

disonnect the negative battery cable to prevent any applied electrical load during storage.  The battery should

not freeze in temperatures down to - 40°C, so can be left in the vehicle except in the most extreme climates.

The battery can be stored for 2 years or more at temperatures below 25°C.

Under conditions of normal daily use, it should not be necessary to use external battery charging equip-

ment.  If the battery becomes discharged to the extent that the car cannot be started, the recommended course

of action is to fit a substitute battery whilst the original battery is trickle charged.  If, in an emergency, the car has



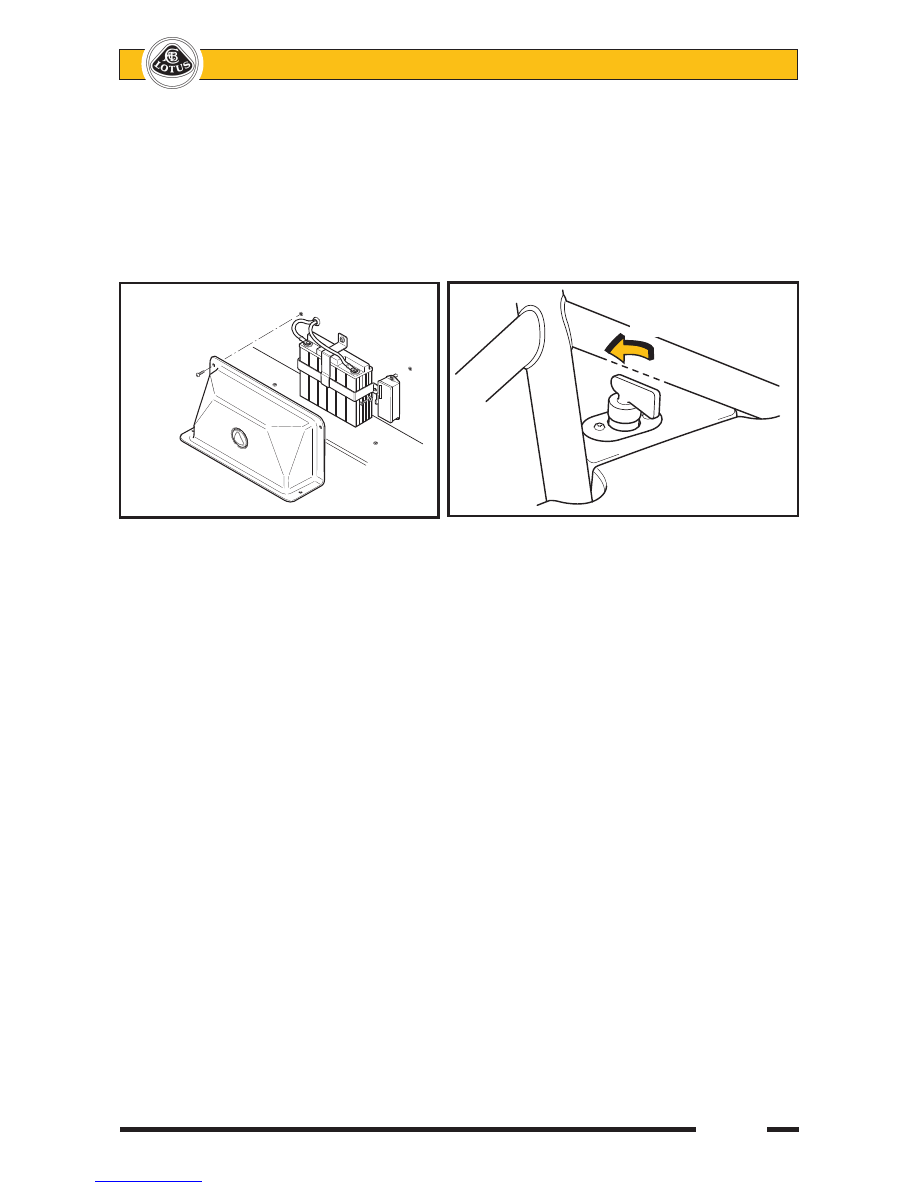

 BATTERY ACCESS

























































ccbatteryB





OFF





m264G



BATTERY ISOLATOR





Lotus Service Notes





        2-Eleven

Page 24

to be ‘jump’ started, the subsequent conditions of vehicle use may not allow for sufficient alternator charging

of the battery to achieve a fully charged state. The battery should be trickle charged by external means until

12.8 volts is recorded.

The battery manufacturer recommends an Odyssey EPS 8A charger, which would require around 2½

hours to re-charge a fully discharged battery.  Note that a trickle charger will not be capable of re-charging a

fully discharged Odyssey battery. Putting the battery into service at a less than fully charged state will reduce

the time period for which the car can be parked without subsequent starting difficulties.  A battery left in a fully

discharged state for a prolonged period, may not be recoverable to its original condition.  Allow several hours

after disconnecting a charger before measuring the battery voltage.

WARNING:

•

Hydrogen gas generated by the battery could cause an explosion, resulting in severe personal

injuries.

•

Charge battery in a well ventilated area.

•

Never charge a frozen battery.  It may explode because of gas trapped in the ice.  Allow a frozen

battery to thaw out first.

•

If you get electrolyte, which is an acid, in your eyes or on your skin, immediately rinse with cold

water for several minutes and call a doctor.

Auxiliary Power Socket

An auxiliary power socket is fitted in the right hand side of the battery cover.  The socket is operative at

all times, and is provided with a protective hinged flap.

The format of the socket allows a standard cigarette lighter element to be used, or other electrical acces-

sories requiring this type of fitting.  Maximum current draw should not exceed 15 amps.

Page 25





Lotus Service Notes





        2-Eleven

Fuses

Two 4-slot fuseboxes are mounted on the rear bulkhead and control the principal engine circuits.  Track cars

fitted with rear lamps, use a third 4-slot fusebox, located within the battery compartment for the lighting circuits.

Cars with full lighting sets replace this 4-slot box with a 22-slot fusebox within the battery compartment.

The ‘Littel’ type fuses are numbered and coloured according to their amperage rating, and may be removed

by withdrawing from their slots.

Engine Bay Fuses

Track Lights Fusebox

Full Lighting Set Fusebox

ABS Fuse:  A 60A Maxi fuse protecting the ABS circuits is located within the battery box.

Fuse colours:

2A - Black;

3A - Violet;

4A - Pink;

5A - Orange;

7.5A - Brown;

10A - Red;

15A - Light Blue;

20A - Yellow;

25A - Clear.

Slot  Rate Circuit

E1   7.5A  Engine control

        relay

E2   15A  Cooling fan 1

E3   15A  Cooling fan 2

E4   -    Not used

Slot  Rate Circuit

F1   15A  Batt. services

F2   15A  Ign. services

F3   20A  Fuel pump

F4   10A  Main relay

Slot  Rate Circuit

R1  5A   Turn lamps

R2  5A   Rain lamp

Slot  Rate Circuit

R3  5A   Rvrs. lamps

R4   5A   Stop lamps

Slot  Rate Circuit

A1   -    Not used

A2  -    Not used

A3   7.5A  Reverse lamps

A4   -    Not used

A5   5A   Brake lamps

A6   7.5A  Turn lamps

A 7   -    Not used

A8   -    Not used

A9   10A  Hazard

A10  7.5A  Horn

A11  -     Not used

A12  20A  Aux power socket

Slot  Rate Circuit

A13  -    Not used

A14  -    Not used

A15  15A  Switch pack &

        dipswitch

A16  10A  Sidelamps, rear

        fog

 A17  10A  Dip beam LH

A18  10A  Dip beam RH

A19  -    Not used

A20  10A  Main beam LH

A21  10A  Main beam RH

A22  -    Not used



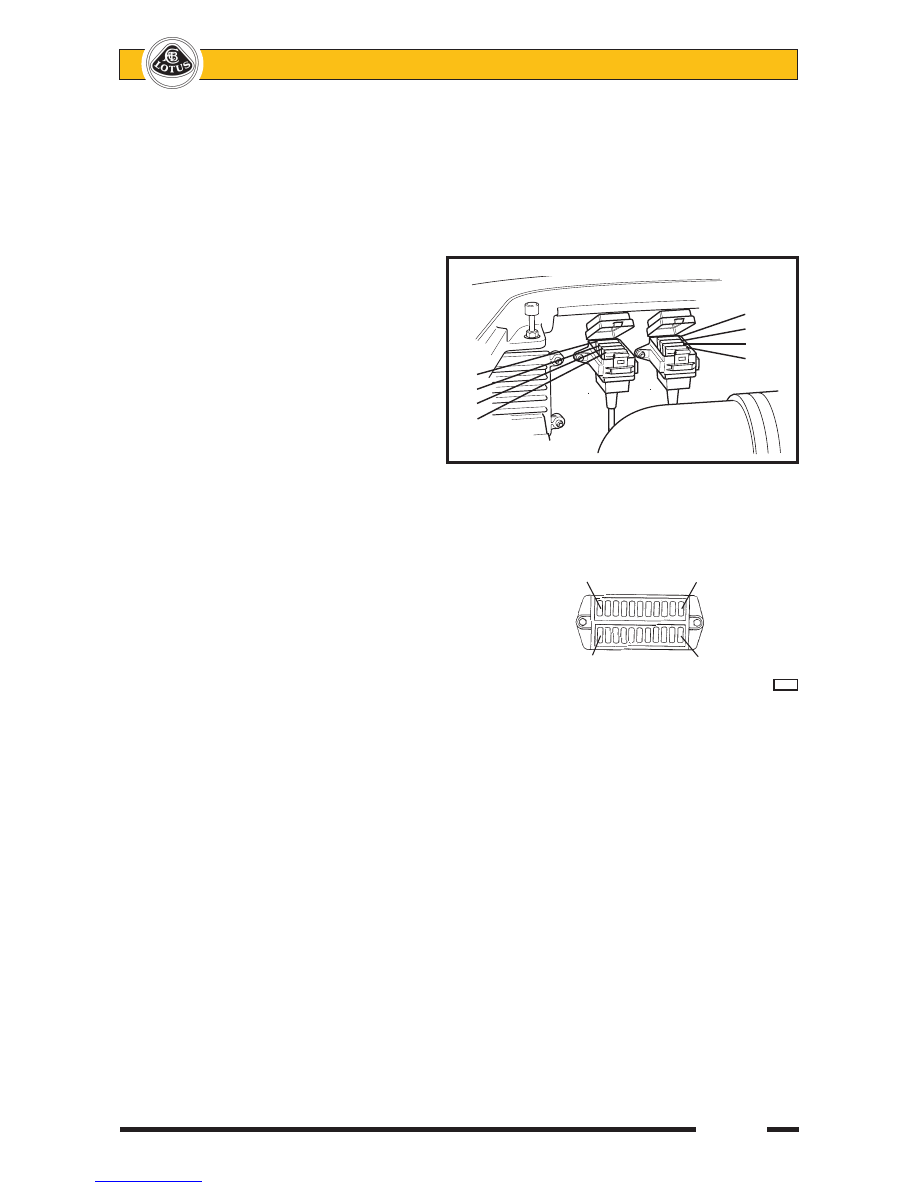

ENGINE BAY FUSES

m265

                              F4

                              F3

                              F2

                              F1

   E4

   E3

   E2

   E1



Fuse 1

Fuse 11

Fuse 12

Fuse 22

RHD front

LHD front



 m255
