Lotus Service Notes

Section MP.14e

MP.14e - CIRCUIT DIAGRAMS

Circuit Sheet Page

Battery Supply A1 3

Accessory Key In A2 4

Accessory Supply A3 4

Ignition Supply A4 6

Charging System A5 7

CAN Network A6 8

Diagnostic Link Connector A7 9

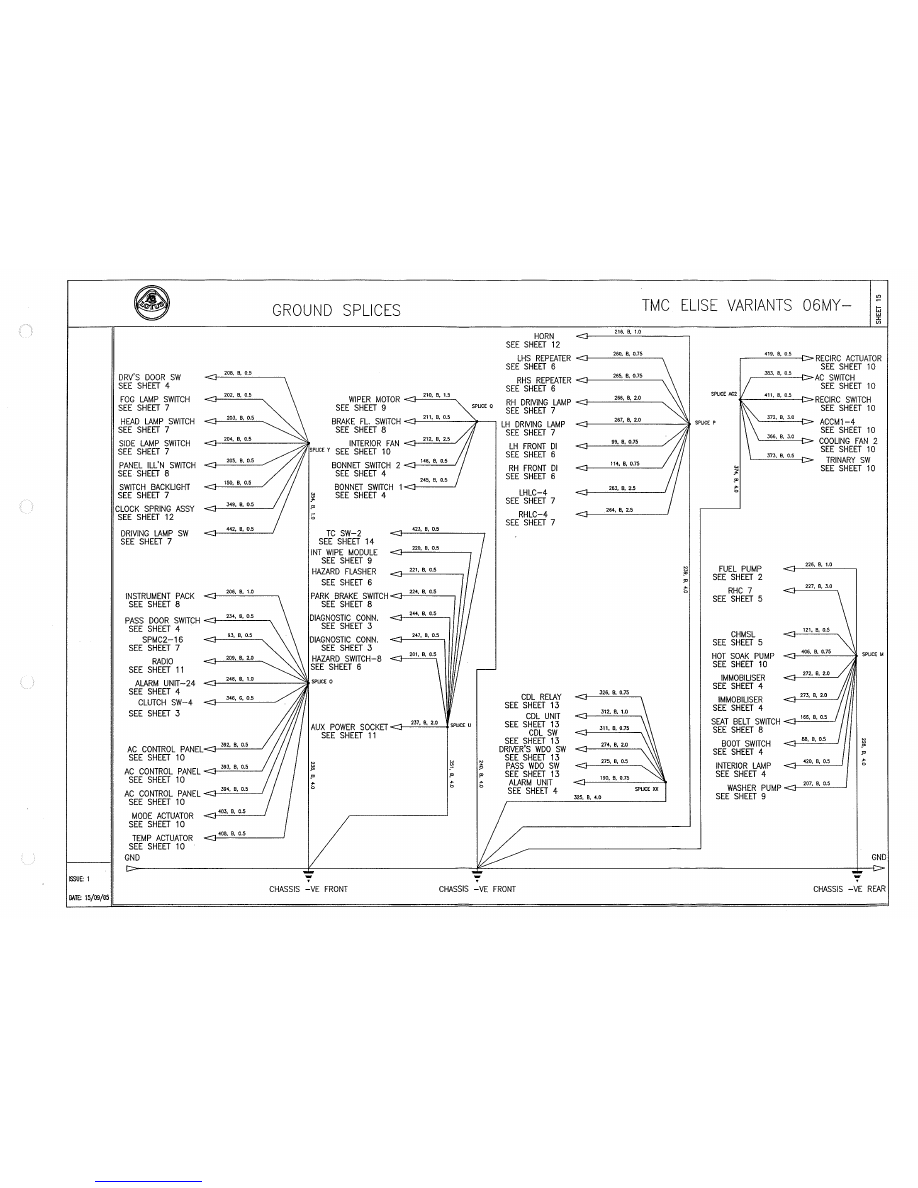

Grounding Structure A8 10

Cranking B1 11

Alarm & Immobiliser B2 12

Central Locking B3 13

EMS Power & Ground C1 14

EMS Fuel Injection C2 15

EMS Ignition Coils C3 16

EMS, TMAF, Purge, Oil Pressure SW & Knock Sensors C4 17

EMS Cam & Crank Sensors C5 18

EMS Coolant Sensing & Fan Contol C6 19

EMS Throttle Actuation C7 20

EMS Fuel Pump & Fuel level Sensing. Clutch Potentiometer C8 21

EMS O2 Sensors C9 22

EMS CVCV C10 23

Cruise Control C11 24

EMS Valvetronic C12 25

Daytime Running / Side Lamps, Non - USA D1A 26

Daytime Running / Side Lamps, USA D1B 27

Headlamps D2 28

Driving Lamps D3 29

Fog Lamps Non USA D4 30

Direction Indicators & Hazard Lamps, Non - USA D5A 31

Direction Indicators & Hazard Lamps, USA D5B 32

Brake Lamps , Non - USA D6A 33

Brake Lamps , USA D6B 34

Reverse Lamps & Parking Sensors, Non - USA D7A 35

Reverse Lamps & Parking Sensors, USA D7B 36

Airbags E1 37

Anti-Lock Brakes & Traction Control E2 38

Instrument Cluster E3 39

HVAC System Part 1 E4A 40

HVAC System Part 2 E4B 41

HVAC System Part 3 GCC - Aux HVAC E4C 42

Wash Wipe System. E5 43

Window Lift E6A 44

Tyre Pressure Monitoring E7 45

I.C.E. E8 46

Horn & Power Socket E9 47
