Lotus Service Notes                                  Section HG

Page 10

Provision is made for the adjustment of front wheel alignment at the joint between the steering rack track

(tie) rods, and the outer ball joints ('track rod ends').  The required ride height and alignment specification is

detailed in sub-section CI.2.

Note that in order to preserve the required bump steer characteristic and steering symmetry, the effective

length of each track rod must remain equal - adjust each track rod by a similar amount:

Hold the track rod end using the flats provided, and slacken the locknut.  Repeat for the opposite side.

Turn each track rod a similar amount.  As a guide, turning both track rods by one quarter of a turn will alter

overall toe-out by approx. 2.0 mm.

When adjustment is correct, hold each track rod end and tighten the locknuts to 45 Nm (33 lbf.ft).

When slackening or tightening the track rod end locknuts, it is important that the torque reaction is resisted

using the track rod end flats, and that the ball joint itself is not allowed to be stressed.

Track Rod Ends

The track rod ends are sealed for life and maintenance free, but if replacement is required; remove the

ball pin nut and use a ball joint splitter tool to separate the joint from the steering arm.  Unscrew the joint from

the track rod.  On re-assembly, tighten the ball joint to steering arm nut to 30 Nm, and set the front wheel align-

ment as detailed in sub-section CI.2.

Steering Rack Gaiters

The convoluted gaiters sealing each end of the steering rack housing to the track rods, should be inspected

at service intervals and replaced immediately if found to be torn, cracked or otherwise damaged.  The ingress

of dirt or water into the rack housing will cause rapid deterioration of the track rod inner ball joints and rack and

pinion mechanism.

To replace a gaiter, remove the track rod end (see above), release the gaiter clips, and slide the gaiter off

the housing and track rod.  Check for consequent damage or wear and replace the steering gear assembly if

necessary.  Fit the new gaiter into position, and secure with new retaining clips.

HG.6 - RACK & PINION ASSEMBlY REMOVAl/REPlACEMENT

The rack and pinion assembly is mounted inside an extruded chassis box section crossmember at the

top front of the footwell.  Each of the two rack housing mounting plinths uses an M10 (upper) and M8 (lower)

fixing bolt to secure the housing to the vertical rear face of the crossmember.  A steel reinforcement channel is

bonded to the outside of the crossmember, with a riveted height setting plate to define the vertical position of the

housing.  Note that the only approved repairs or adjustments to the steering rack assembly are the replacement

of the track rod ends and rack housing gaiters, and the adjustment of the rack pressure pad.





















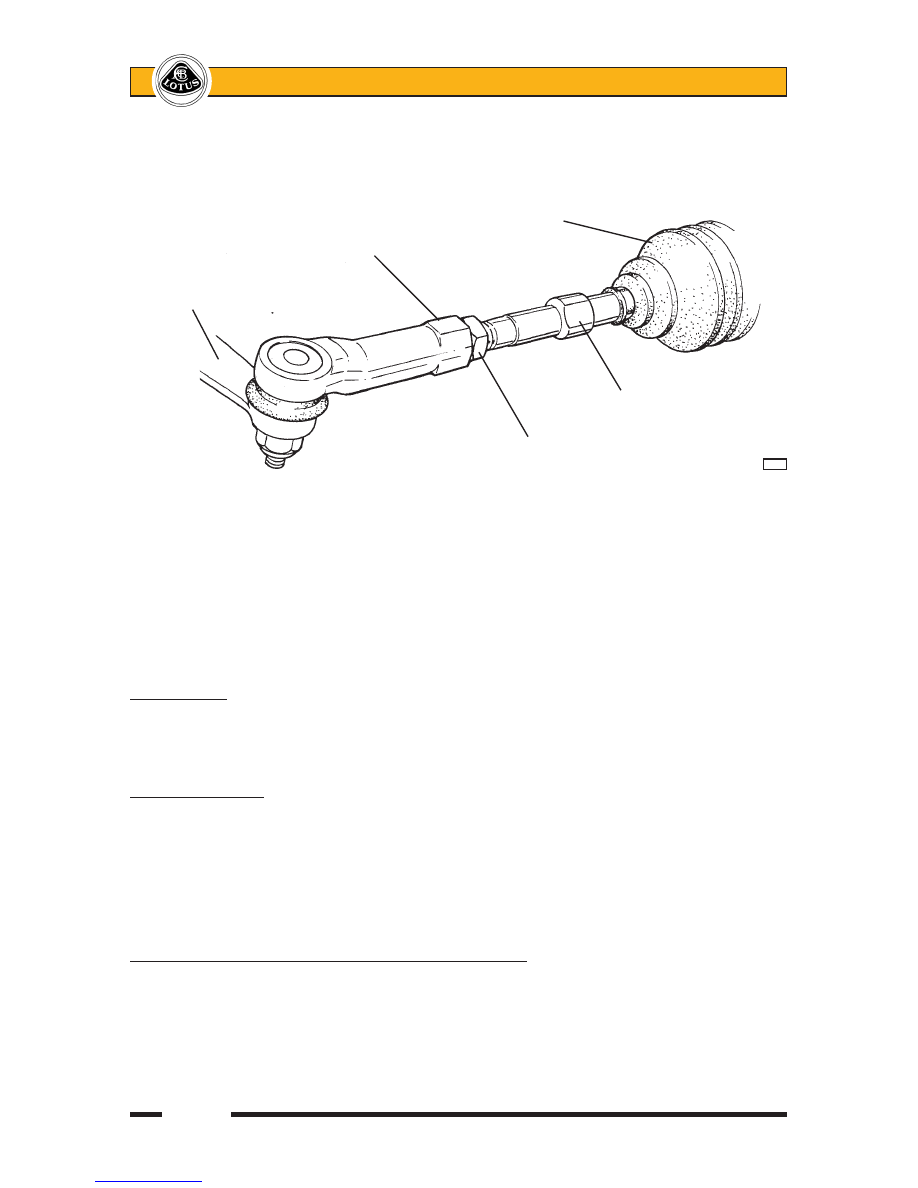

Gaiter







Track rod end flats

Steering arm

































Steering track rod flats



















Track rod end locknut

































       c28a







Lotus Service Notes                                  Section HG

Page 11

To Remove/Replace Steering Assembly

1.  Remove the nut securing each track rod end to the steering arm, and use a ball joint splitter to separate

the joint.

2.  From inside the footwell, match mark the pinion shaft against the u/j yoke to aid steering wheel alignment

on re-assembly, and remove the pinch bolt.

3.  From inside the footwell, remove the two M8 and M10 bolts securing the rack housing.

4.  Draw the housing forwards to disengage the intermediate shaft u/j, and manoeuvre the assembly out of

the chassis crossmember.

5.  On re-assembly, check that the correct rack height setting plate is fitted.  For the standard ride height of

130/130 or 135/135, the '6 notch' plate A111H0017 should be fitted.  Fitment of the wrong plate (identified

by the number of notches in the vertical edges) will result in an incorrect bump steer characteristic and

degraded handling.  The plate is secured to the chassis by a single pop rivet.

6.  Feed the rack assembly into the chassis crossmember and engage the pinion shaft into the lower u/j with

the match marks aligned.  If a new assembly is being fitted, follow the 'Steering Wheel Alignment' proce-

dure in sub-section HG.2.

7.  New fixing bolts for the steering rack housing are precoated with thread locking compound.  If existing

bolts are to be re-used, wire brush the threads before re-applying a suitable thread locking compound and

torque tightening the M8 bolts to 22.5 Nm, and the M10 bolts to 45 Nm.

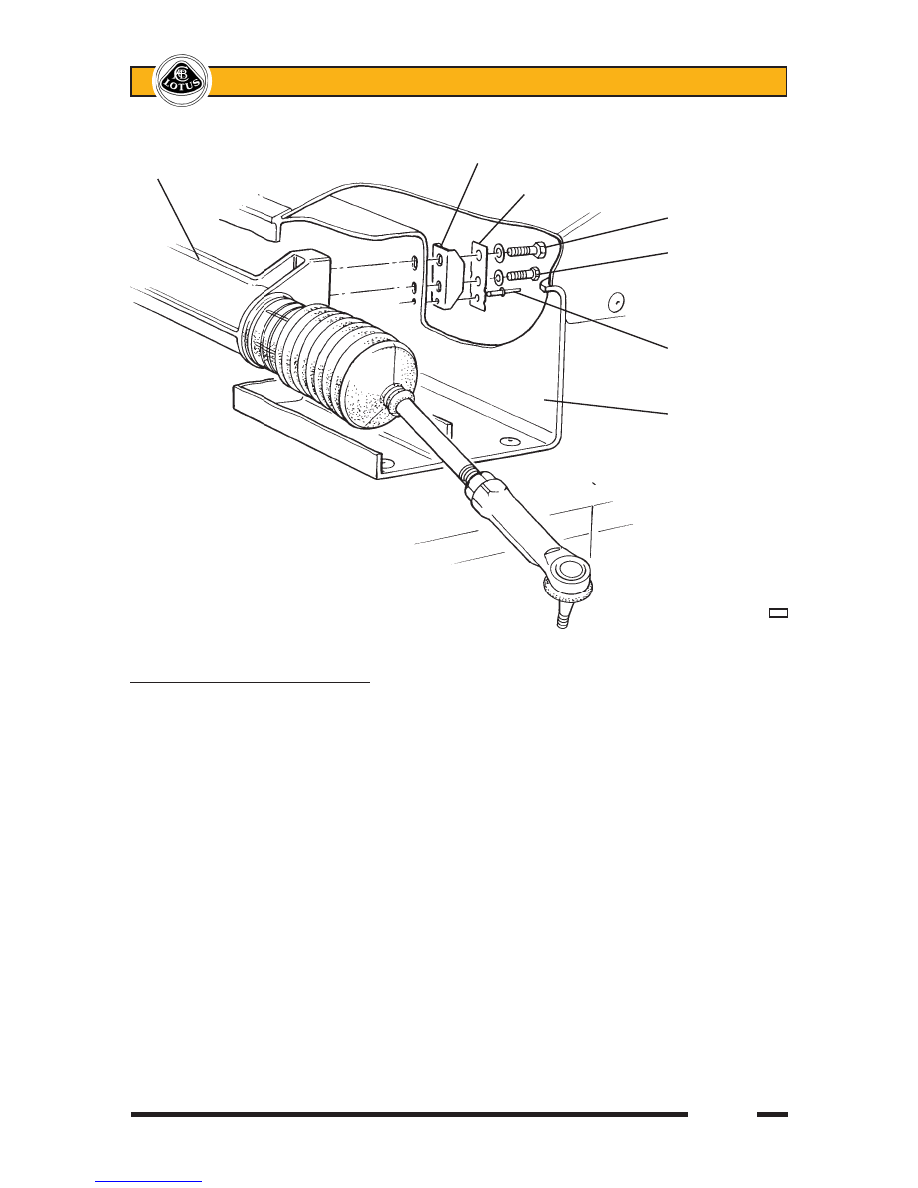

Steering rack











Steel reinforcement channel (bonded)

assembly





















Height setting plate





























M10 fixing bolt





























M8 fixing bolt





























Pop rivet





























Chassis





























crossmember























                      h54







Lotus Service Notes                                  Section HG

Page 12

8.  Fit the lower u/j pinch bolt, and tighten to 35 Nm.

9.  Fit the track rod ends into the steering arms, and tighten the nuts to 30 Nm.

10.  Check and adjust the front wheel alignment as detailed in sub-section CI.2.

HG.7 - ADJUSTMENT OF RACK BAR THRUST PAD

The following information applies to one-piece alloy bodied steering rack units:

A thrust pad backed by a pair of belleville washers, is used to control the preload between the rack bar

teeth and the pinion gear, and is adjustable via a threaded backstop plug.  The correct preload allows the hori-

zontally mounted rack bar (column disconnected) to be pulled through its full travel by a steady force of 50 - 70

N (12 - 16 lbf).  The rack and pinion assembly must be removed from the chassis before any adjustment may

be carried out.

To adjust the thrust pad, release the locknut (36mm socket) and use a 5.5mm hexagonal bit to adjust the

backstop as required before tightening the locknut.  For an approximate initial setting, screw in the backstop

plug until solid, then back off ½ turn.

The following information applies to alloy/steel tube type steering rack units:

A thrust pad backed by a coil spring, is used to control the preload between the rack bar teeth and the pinion

gear, and is adjustable via a threaded backstop plug.  The correct preload allows the horizontally mounted rack

bar (column disconnected) to be pulled through its full travel by a steady force of 50 - 100 N (12 - 20 lbf).  The

rack and pinion assembly must be removed from the chassis before any adjustment may be carried out.

To adjust the thrust pad, release the locknut (36mm socket) and use a 19mm hexagonal bit to adjust the

backstop as required before tightening the locknut.  For an approximate initial setting, screw in the backstop

plug until solid, then back off ¼ turn.





















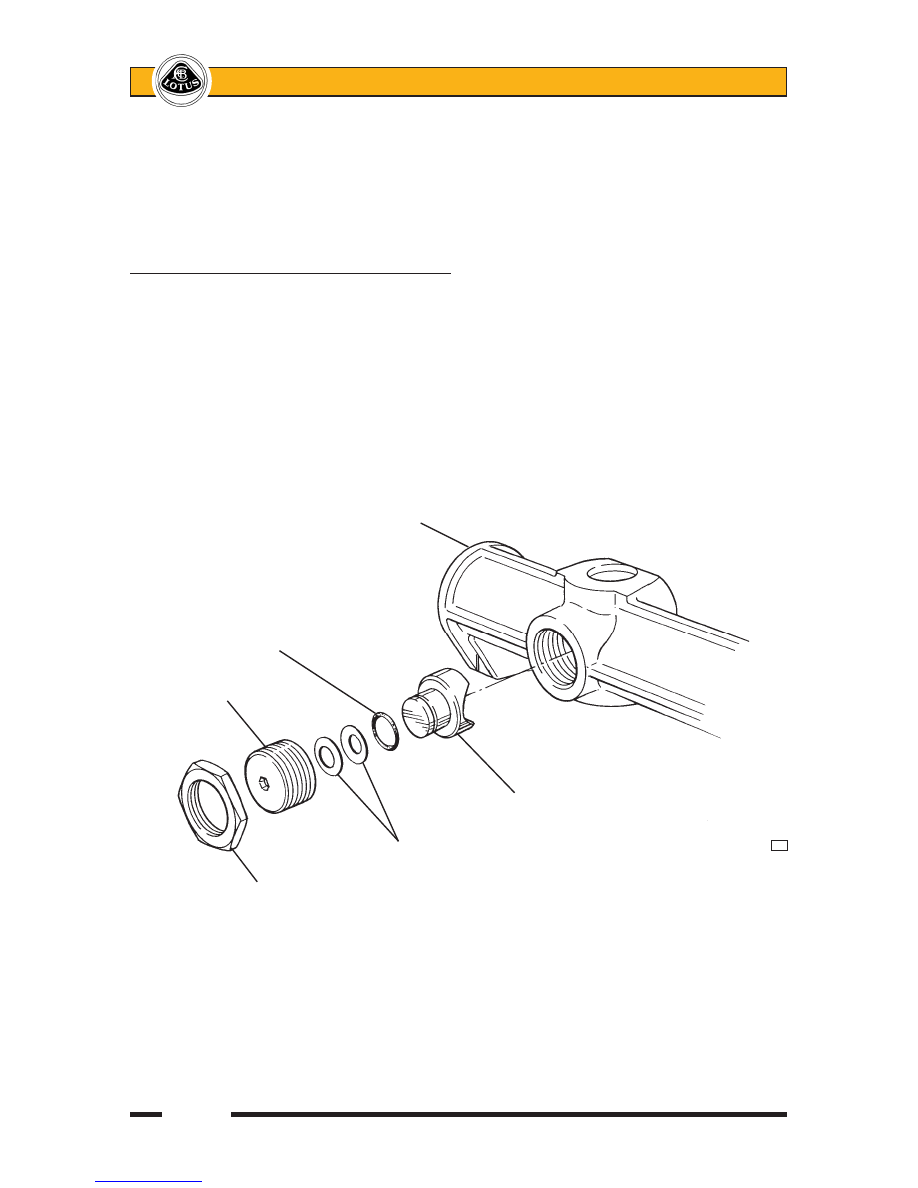

Rack housing





     'O' ring

Threaded plug





















Thrust pad















Belleville washers











          h56















Locknut







Lotus Service Notes                                  Section HG

Page 13

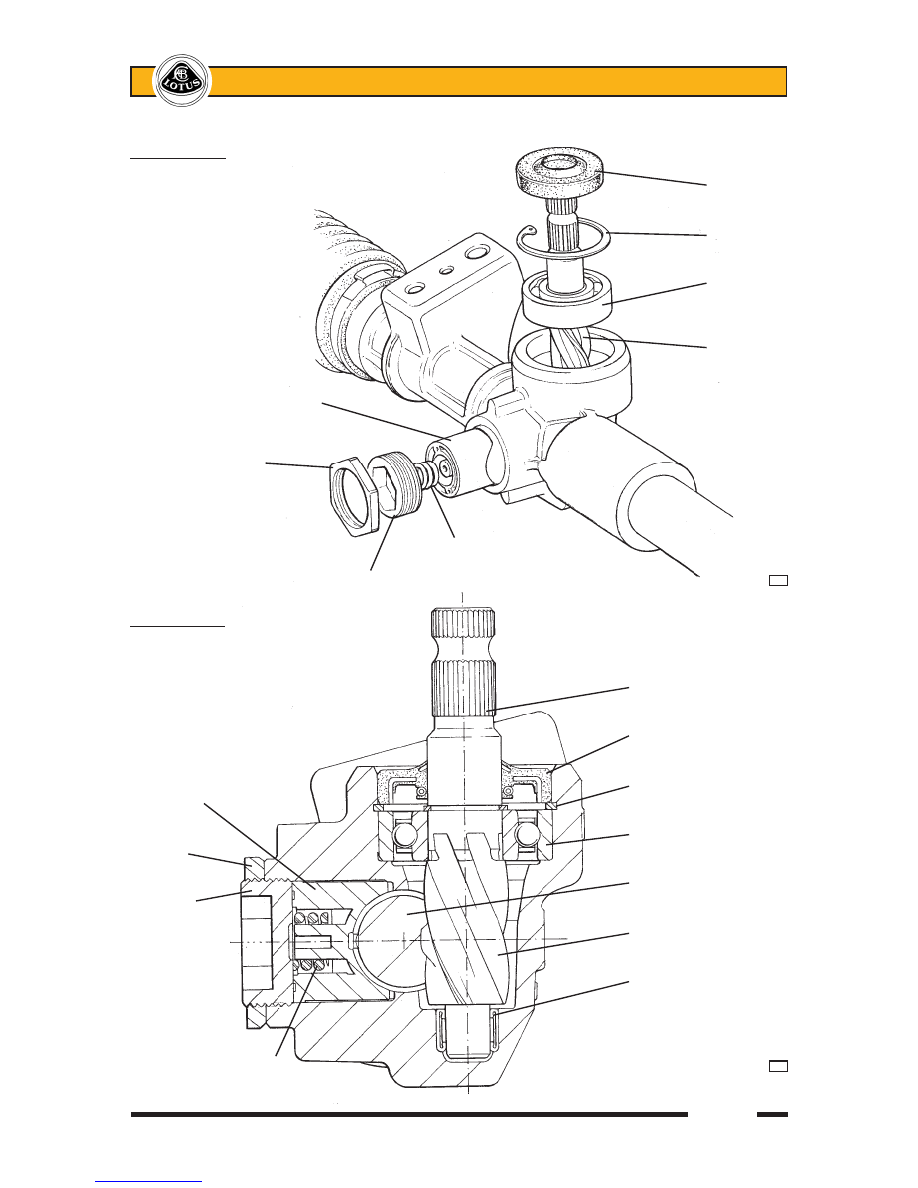

Exploded View































Oil seal





























































Circlip































Ball

































bearing

































Pinion





































Thrust pad





Locknut

















Coil spring









Threaded plug

















          h59

Sectional View





















































Pinion shaft







































Oil seal



























Circlip

Thrust pad





















































Ball bearing

Locknut



























Rack bar

Threaded























plug



























Pinion





















































Needle roller bearing





Coil spring























          h60
