Haima S5 1.5T. Service Manual - part 3



Engine block 1A-29









3.  Mark every bolt head.

4.  According to the bolt-tightening sequence

(Step 2) illustrated in the figure,

Each bolt

with a reference mark, rotated by 90 °, then
rotated 90 °.

 (see the figure).



Explanations on the camshaft mounting

Notice



Since the camshaft’s mounting clearance is

small, make sure that the camshaft journal is
closely attached to the bearing seat during the
mounting process, or the contact surface
between the shaft and bearing will incur
excessive pressure and in turn suffer damage.
To avoid foresaid situation, regulations below
shall be observed:

1.  Smear some oil onto the camshaft journal and

bearing seat.

2.  Mount the camshaft into camshaft bearing

seat, making camshaft journal closely
attached to the bearing seat.

3.  Mount the camshaft bearing cover onto

corresponding journal according to the
sequence.

4.  Tighten the bolts according to the sequence

illustrated in the figure: first, tighten every
camshaft cover bolt, and then tighten the front
camshaft bearing cover bolt.



Explanations on the VVT mounting

1.  Rotate the camshaft to make the dowel pin

keep upward.

2.  Smear some oil onto the VVT assembly’s

inserting part, align the VVT assembly
location hole to the camshaft dowel pin, and
mount the VVT assembly slowly.

3.  Lock the camshaft’s hexagon part with a

wrench (see the figure), so as to tighten
VVT’s fixing bolts.





Paint mark place
after Step 4

Initial paint mark

VVT assembly location
hole (align camshaft
dowel pin)

VVT assembly
inserting part (smear
some oil around)



Engine block 1A-30



1.10.2 Valve Mechanism Dismantling/
Mounting

1.  Dismantle cylinder head(see the cylinder head

dismantling).

2.  Dismantle parts according to sequence

illustrated in the figure. .

3.  Mount the parts according to the sequence

reverse to the dismantling process.







1

Valve Half (see dismantling/mounting
explanations)

2

Valve spring upper seat

3

Valve spring (see the mounting
explanations)

4

Valve spring lower seat

5

Valve (see the mounting explanations)

6 Valve

oil

seal



Explanations on dismantling of valve
keeper

Use special tool valve spring pressure, remove the
valve keeper.



Explanations on inspection of valve
clearance

1.  Dismantle the cylinder head hood (see

cylinder head hood dismantling part).

2.  Confirm if the engine has been cooled.

3.  Measure valve clearance.

(1)  Rotate the crankshaft along the clockwise

direction, making the piston located at the
stopping place on No.1 Cylinder, namely, gas
distribution mark shall be adjusted to the
position indicated in the right figure.







(2)  Use plug gauge to measure valve clearances

of all cylinders at Mark A indicated in the
figure.



★

  Note:If the valve clearance exceeds the

standard value, replace the tappet(see the
valve clearance’s adjustment)valve
clearance’s standard value (when engine is in
cooling state):



Engine block 1A-31



Intake:0.18～0.26mm
Exhaust:0.26～0.34mm

(3)  Rotate the crankshaft for 360 degrees along

the clockwise direction, making the piston
located at the stopping place on No.4
Cylinder, namely, gas distribution mark shall
be adjusted to the position indicated in the
figure below.



(4)  Use plug gauge to measure valve clearances

of all cylinders at Mark B indicated in the
figure above.

★

  Note:If the clearance exceeds standard value,

tappet shall be replaced(see the valve
clearance’s adjustment)

Valve clearance’s standard value (when the engine
is in cooling state):

ON:0.18～0.26mm

OFF:0.26～0.34mm

4.  Mount cylinder head hood (see the timing

chain, cylinder head hood mounting part).

Explanations on the valve clearance’s
adjustment

To adjust the valve clearance, operation steps
below shall be observed:

1.  Dismantle camshaft (see the camshaft

dismantling part).

2.  Take out the tappet at the place where the

valve clearance shall be adjusted.

3.  Select an apposite tappet. New tappet’s

thickness =old tappet’s thickness + measured
valve clearance － standard valve clearance.
(standard valve clearance: ON, 0.22mm; OFF,
0.30mm)

4.  Mount the selected tappet into the tappet hole.

5.  Confirm the valve clearance again (see valve

clearance, valve clearance inspection).



Notice:

  If the valve clearance will be adjusted when

there is not timing chain, make the crankshaft
dowel pin towards side face, in order to
prevent the valve from colliding with the
piston top during the valve clearance
adjustment process.

  Mark the tappet thickness inside the tapper

with 3 digits, see figure below:





1.10.3 Cylinder Head Inspection /Repair





1.  Inspect the cylinder head’s defect. If

Thickness mark



Engine block 1A-32



necessary, replace the cylinder head.

2.  Inspect the following items, repair and

replacement shall be conducted if necessary.

(1).  If there is indentation at the valve seat.

(2).  If the camshaft journal clearance and end gap

is excessive.

3.  Use the Straight Edge Ruler and plug gauge

to inspect if the cylinder head is distorted
along six directions, see the figure.

Maximum distortion:

 0.03mm

4.  If the cylinder head’s distortion exceeds the

maximum value, inspect the cylinder head’s
height. If the height stays beyond the standard
value, replace the cylinder head.

Standard height:112.9-113.1mm

5.  If the cylinder head’s distortion exceeds the

maximum value, and the height stays within
the standard value, grind the height or replace
the cylinder head.

Maximum grinding volume:0.20mm

6.  Use the Straight Edge Ruler and plug gauge

to measure the cylinder head intake/ exhaust
manifold flange’s distortions along different
directions, see the figure.

Maximum distortion:

0.15mm







7.  If the distortion measured in Step 6 exceeds

the maximum value, grind the surface or
replace the cylinder head.

Maximum grinding volume: 0.20mm

1.10.4 Inspection of Valve and Valve
Guide

1.  Measure thickness of every valve’s head rim.

If necessary, replace the valve.

Standard thickness: intake valve: 1.35mm; exhaust
valve: 1.85mm.

Minimum thickness: intake valve: 0.85mm;
exhaust valve: 1.35mm.



2.  Measure every valve’s length. If necessary,

replace the valve.

Standard length

Intake valve:

89.51～90.01mm



Exhaust valve:

90.69～91.19mm



Minimum length

Intake valve:

89.31mm

Exhaust valve:

90.49mm

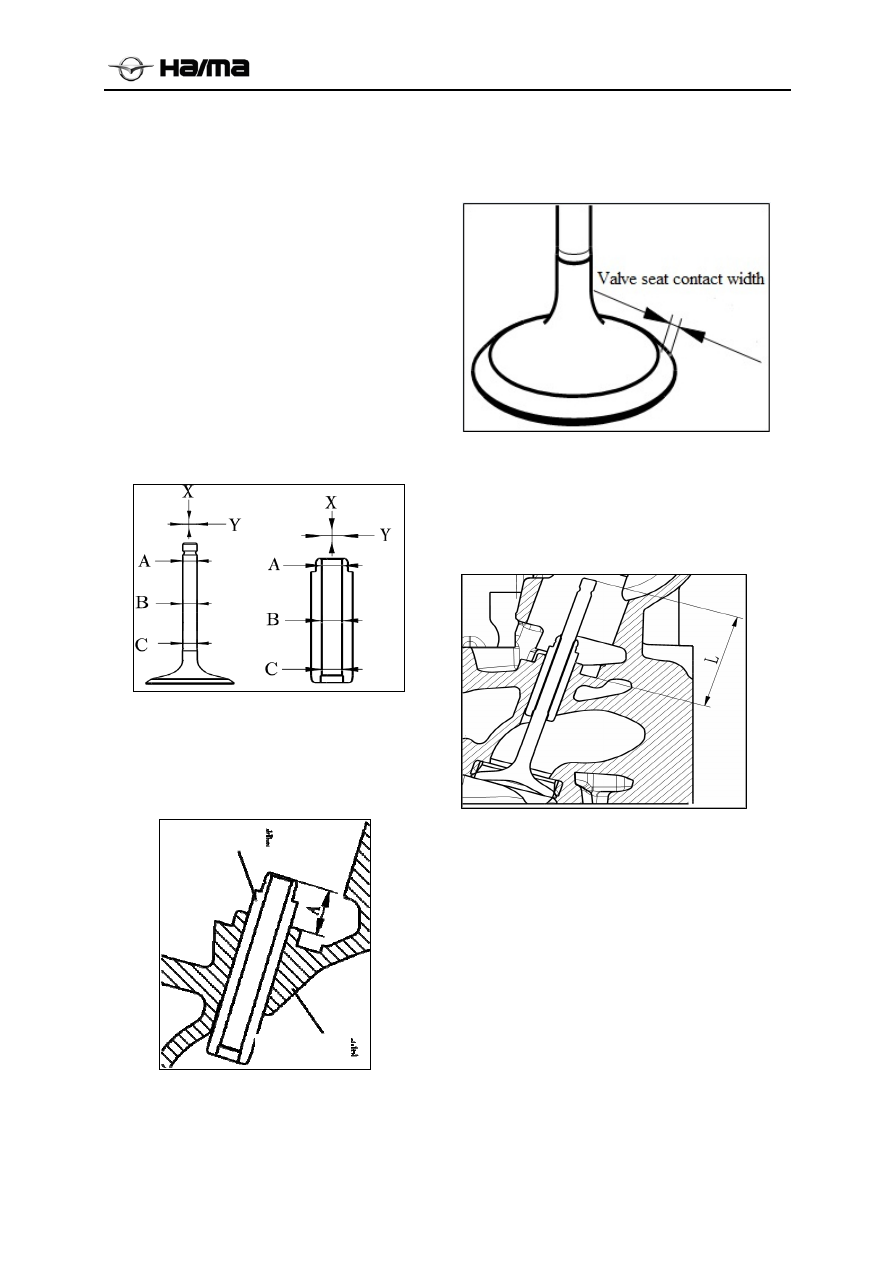

3. Measure every valve’s rod diameter

respectively at A, B, C point (see the figure)

Brim th

ic

knes

s



Engine block 1A-33



along X and Y direction. If necessary, replace
the valve.

Standard diameter

Intake valve: 4.965～4.980mm

Exhaust valve: 4.955～4.970mm

Minimum diameter

Intake valve: 4.915mm

Exhaust valve: 4.905mm

4.  Measure every valve guide’s inner diameter

respectively at A, B, and C point along X and
Y direction (see the figure). If necessary,
replace the valve guide.

Standard inner diameter

Standard:5.0～5.012mm



5.  When there is not valve spring’s lower seat,

measure every valve guide’s extrusion height
(Size A). If necessary, replace the valve
guide.

Standard height:12.7～13.3mm



1.10.5 Explanations on inspection of valve
seat

1. S

urface painted with a method to measure the

valve seat contact width. If necessary, use a 44
° valve seat cutter reworked valve or valve
seat surface.



Standard width: 1.1 ~ 1.5mm



2.

Check valve seat depression. Measure the
valve stem projecting length (size L). If
necessary, replace the cylinder head.
Standard size L

Intake: 38.16 ~ 38.76mm
Exhaust: 38.16 ~ 38.76mm



1.10.6 Explanations on inspection of valve
spring

1.  Use the special tools to exert pressure on the

valve spring, and inspect the spring height. If
necessary, replace the valve spring. Exert
pressure on the valve spring, and compress
the spring to a given height, when the
pressure value exceeds the specified range,
the valve spring shall be replaced.

When the height is 33.4mm, the pressure is 142.2～
161.8N{14.51～16.51kgf};

When the height is 24.9mm, the pressure is
293.4～324.4N{29.94～33.10kgf}.

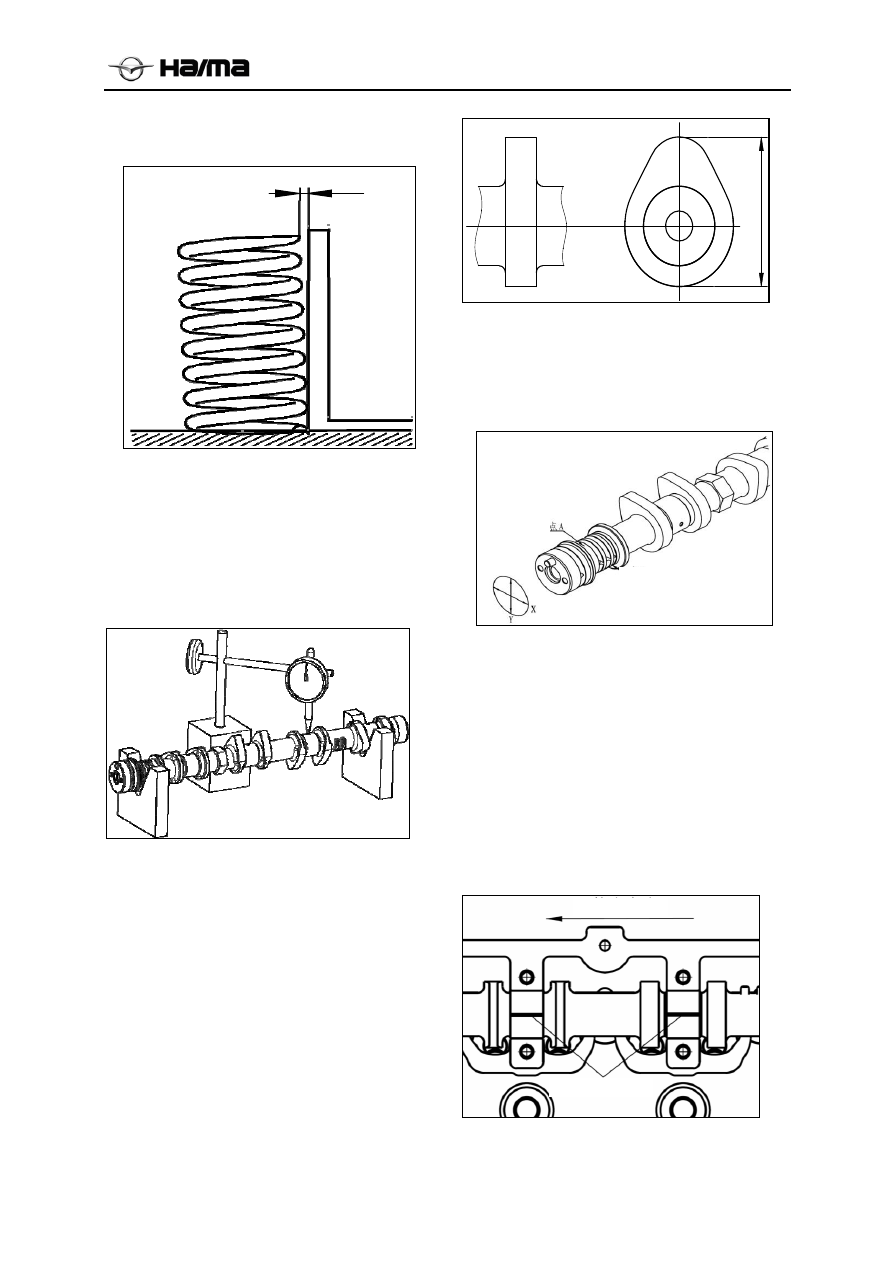

2.  Measure the valve spring verticality, and if

the verticality goes beyond the standard, the

Valve guide

Cylinder head



Engine block 1A-34



valve spring shall be replaced.

Valve spring’s maximum verticality:1.50mm



1.10.7 Explanations on the inspection of
camshaft

1.  Place the camshaft’s No. 1 and No. 5 journals

onto the V-shaped block to measure the
camshaft’s radial run-out. If necessary,
replace the camshaft.

Radial run-out: 0.03mm





2.  Measure heights of the two convex parts (see

the figure). If necessary, replace the camshaft.

Standard height

Intake side:

44.5mm



Exhaust side:

43.8mm



Minimum height

Intake side:

44.2mm



Exhaust side:

43.5mm





3.  Measure the journal diameter respectively at

A and B point along X and Y direction. If
necessary, replace the camshaft.

Standard diameter:

25.945～25.96mm



Minimum diameter:

25.915mm





4.  Dismantle the tappet, and measure camshaft

journal clearance according to steps below:

(1). Remove all oil on the journal and bearing

seat’s internal surface.

(2).  Put the camshaft into the bearing seat.

(3). Make the plastic gauge match the bearing

width (see the figure), and then put it on the
top of journal along the axial direction.

(4).  Mount the camshaft cover (see cylinder head

dismantling/mounting, camshaft mounting
attentions).



Notice

Point A

Point B

Axial direction

Plastic gauge



Engine block 1A-35



  When measuring the clearance, do not rotate

the camshaft

(5).  Dismantle camshaft cover (see cylinder head

dismantling/mounting, camshaft dismantling
attentions).

(6). Use the scale on the plastic gauge bag to

measure the widest point on the plastic
gauge’s extruded part, and then calculate out
the journal clearance.

If necessary, replace the cylinder head and
camshaft cover.

Standard journal clearance:0.040～0.076mm



5.  Mount the camshaft cover (see cylinder head

dismantling/mounting, camshaft mounting
attentions).

6.  Mount the dial gauge, push camshaft forward

or backward at the end of camshaft (see the
figure), and measure the camshaft end gap. If
necessary, replace the cylinder head or
camshaft.

Caution

  Do not push the camshaft at the cam part, so

as to prevent the cam from being damaged.

Standard end gap:0.08～0.20mm

Maximum end gap:0.21mm



1.10.8 Explanations on inspection of
tappet hole and tappet

1.  Measure every tappet mounting hole’s inner

diameter respectively at A and B Point (see
the figure) along X and Y direction.

Standard inner diameter:31.000～31.025mm



2.  Measure every tappet’s diameter respectively

at the A and B point (see the figure) along X
and Y direction.

Standard diameter:30.964～30.980mm



3.  Calculate the clearance between tappet and

corresponding tappet hole. If necessary, replace
the tappet or cylinder head.

Standard clearance:0.020～0.061mm

Maximum clearance:0.180mm













Engine block 1A-36



1.11 Flywheel, clutch



1.11.1 Flywheel and Clutch Dismantling/Mounting

1.  If the crankshaft’s back cover needs to be dismantled, oil sump body shall be dismantled at first (see

lubricating system, oil sump body dismantling and mounting).

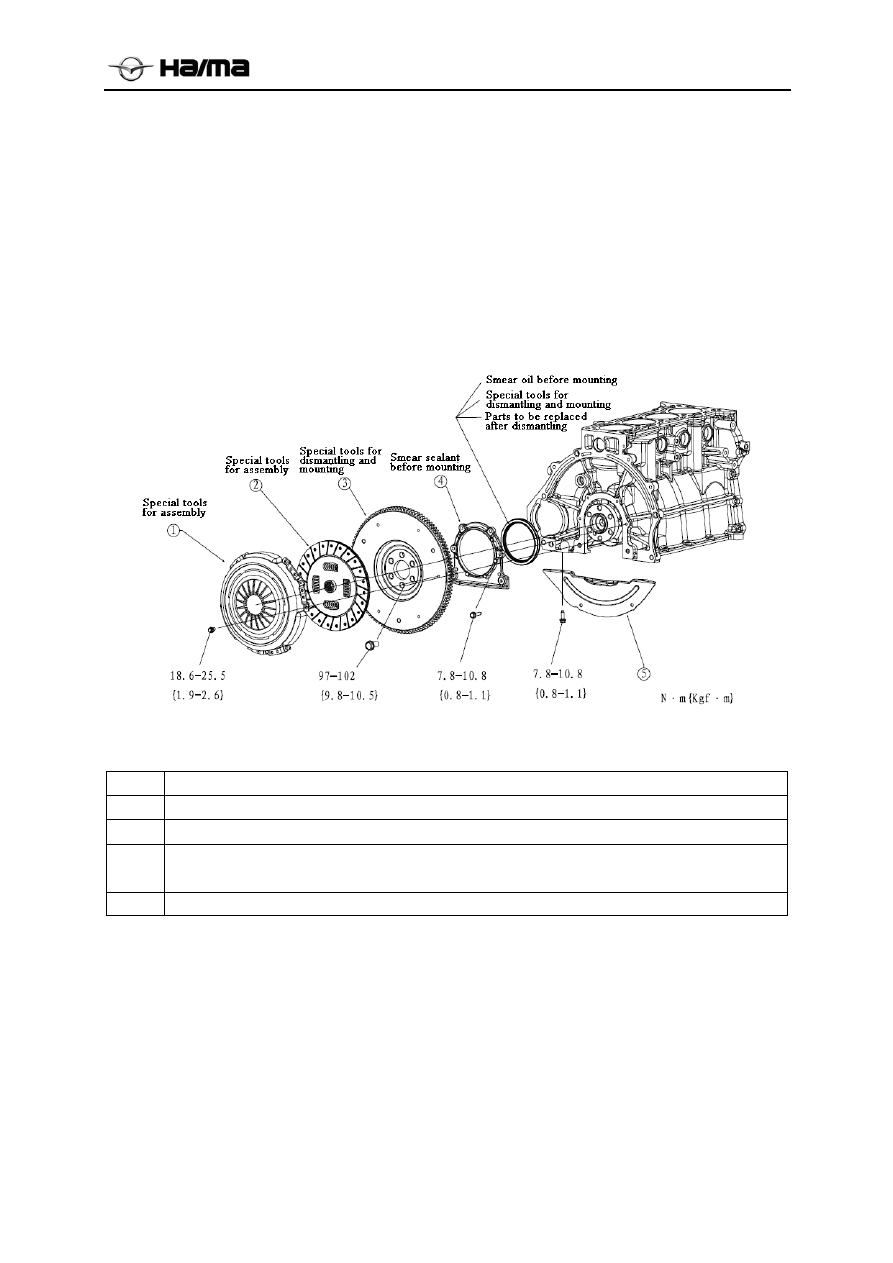

2.  Dismantle parts according to sequence illustrated in the figure. .

3.  Mount the parts according to the sequence reverse to the dismantling process.









1

clutch pressure disc

(see dismantling explanations/see mounting explanations)

2

Clutch friction disc (see dismantling explanations/see mounting explanations)

3

flywheel

(see dismantling explanations/see mounting explanations)

4

Crankshaft’s back cover

(see the rear oil seal dismantling explanations /see rear oil seal

mounting explanations /see mounting explanations)

5 Transmission’s

baffle

plate















Engine block 1A-37



1.11.2 Explanations on Clutch Pressure
Disc/Friction Disc Dismantling

1.  Use the special tools to lock the flywheel, and

locate the clutch(see the figure).

2.  Loosen the bolt in a disposable manner

according to the sequence of right-angled
intersection till the diaphragm spring’s
pressure is released.

3.  Dismantle the clutch pressure disc and

friction disc.



Explanations on flywheel dismantling

1.  Use the special tools (see the figure) to lock

the flywheel.

2.  Follow the right-angled intersection sequence

to evenly dismantle the mounting bolt (see the
figure), and dismantle the flywheel.



Explanations on Rear Oil Seal
Dismantling/Mounting

1.  Use the screwdriver, wrapped with protective

cloth, to dismantle the oil seal(see the figure)

Notice

  Normally, there is no need to dismantle the oil

seal, unless being replaced.

2.  Add clean oil onto the oil seal opening.

3.  Mount the oil seal with hands.

4.  Use the special tools and hammer to compress

the oil seal.

Compression depth:0～0.5mm







Explanations on the crankshaft’s back
cover mounting

1.  Smear evenly sealant onto indentation of the

crankshaft’s back cover (see the figure).

Sealant diameter:Φ1.5～Φ2.5mm



Explanations on the flywheel mounting
/inspection

1.  Mount the flywheel onto the crankshaft.

2.  Clean the thread and hole before mounting the

bolt.

3.  Smear evenly the sealant onto the thread.

Notice

  There is no need to smear the sealant when

using new bolt



4.  Tighten the flywheel bolt with hands.

5.  Mount special tools onto the flywheel (see the

figure).

6. Follow the sequence of right-angled

Protective
cloth

Smear sealant

Clutch plate setting tool

Gear ring fixture unit

Gear ring fixture unit



Engine block 1A-38



intersection to tighten the flywheel bolt little
by little.



7.  Mount the dial gauge onto the cylinder body.

8.  Rotate the flywheel and measure the

flywheel’s end-on circle run-out. If it exceeds
the standard, replace the flywheel.

Maximum end-on circle run-out:0.13mm

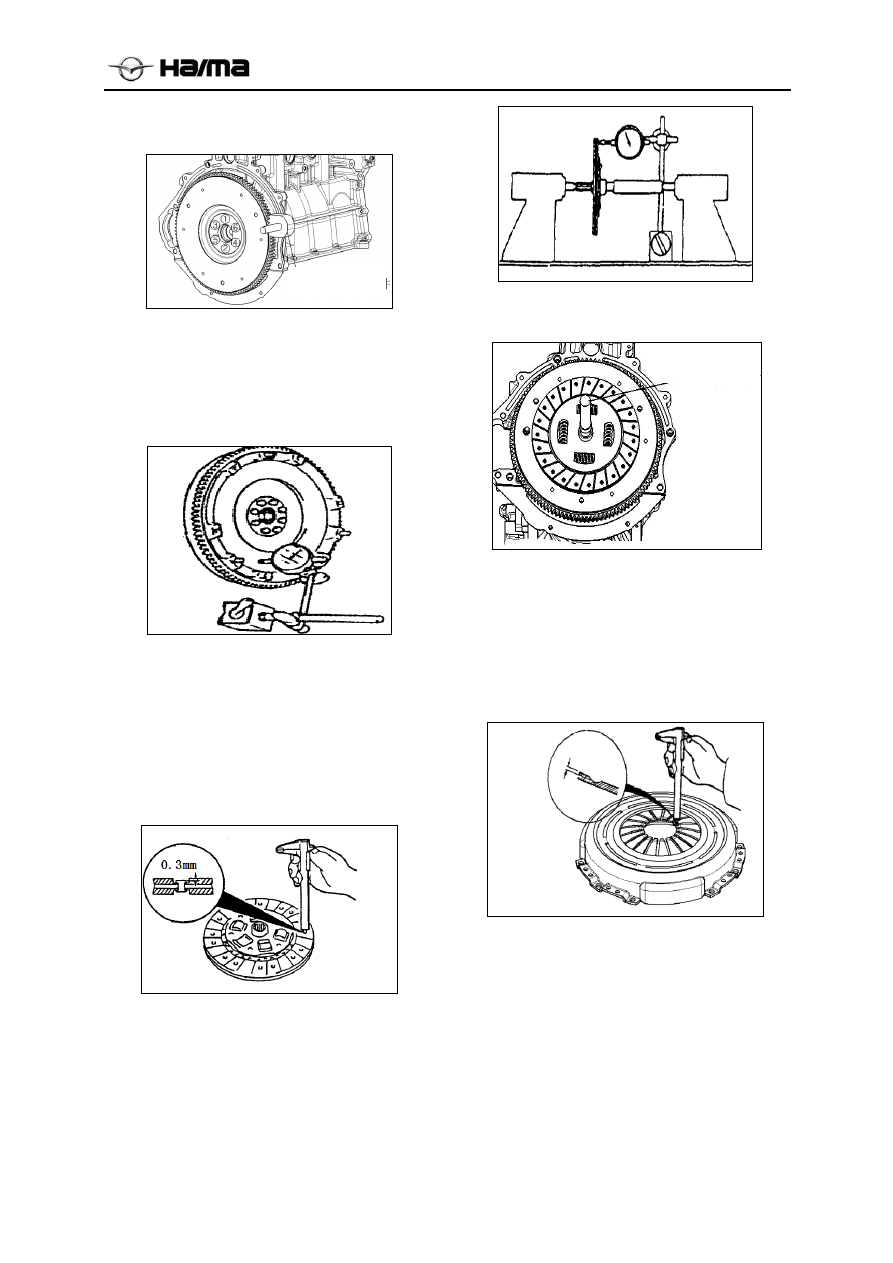

1.11.3 Explanations on the clutch friction
disc inspection /mounting

Use the vernier caliper to measure rivets on both
sides and the friction disc surface’s depth.

If it exceeds the standard, replace the clutch
friction disc

Minimum depth:0.3mm



Use the dial gauge to measure the clutch friction
disc’s end-on circle run-out.

If it exceeds standard, replace the clutch
friction disc

Maximum end-on circle run-out:0.7mm



Use the special tools to secure the clutch friction
disc’s position (see the figure).



1.11.4 Explanations on the clutch pressure
disc inspection/mounting

1.  Measure the diaphragm spring’s abrasion.

If it exceeds standard, replace the clutch
pressure disc

Maximum height: 0.6mm



2.  Use the Straight Edge Ruler and plug gauge

to measure the pressure disc’s flatness.

If it exceeds standard, replace the clutch
assembly.

Maximum clearance: 0.05mm

Gear ring fixture
unit

Clutch disc
locator



Engine block 1A-39





3.  Use the special tools to lock the flywheel, and

locate the clutch(see the figure).



4.  Follow the right-angled intersection sequence

to evenly tighten bolts.

5.  Mount the dial gauge onto the cylinder body,

and rotate the flywheel to inspect the
diaphragm spring’s radial run-out.

If it exceeds standard, replace the clutch
pressure plate

Maximum radial circle run-out:0.6mm



1.12 Cylinder body, Crank
Connecting Rod Mechanism

1.12.1 Cylinder Body, Crank Connecting
Rod Mechanism Dismantling/Mounting

1.  Dismantle the cylinder head (see the cylinder

head part), oil sump, oil pump, and timing
chain case assembly (see lubricating system
part) and crankshaft’s back cover (see
flywheel, clutch part).

2.  Dismantle parts according to sequence

illustrated in the figure. .

3.  Mount parts according to the sequence

reverse to the dismantling process.







1

connecting rod
cover (see the
mounting
explanations)

7

connecting rod

2

connecting rod
bearing

8

Main bearing cover
(see the mounting
explanations)

3

piston ring(see the
mounting
explanations)

9 thrust

bearing

Clutch disc setting tool

Gear ring fixture unit

Smear oil
before
mounting

⑩

Smear oil

before
mounting

②

Smear oil

before mounting



Engine block 1A-40



4

Piston pin retainer

10 Crankshaft

bearing

5

Piston pin (see the
mounting
explanations)

11

Crankshaft

6 piston

12

Cylinder

body

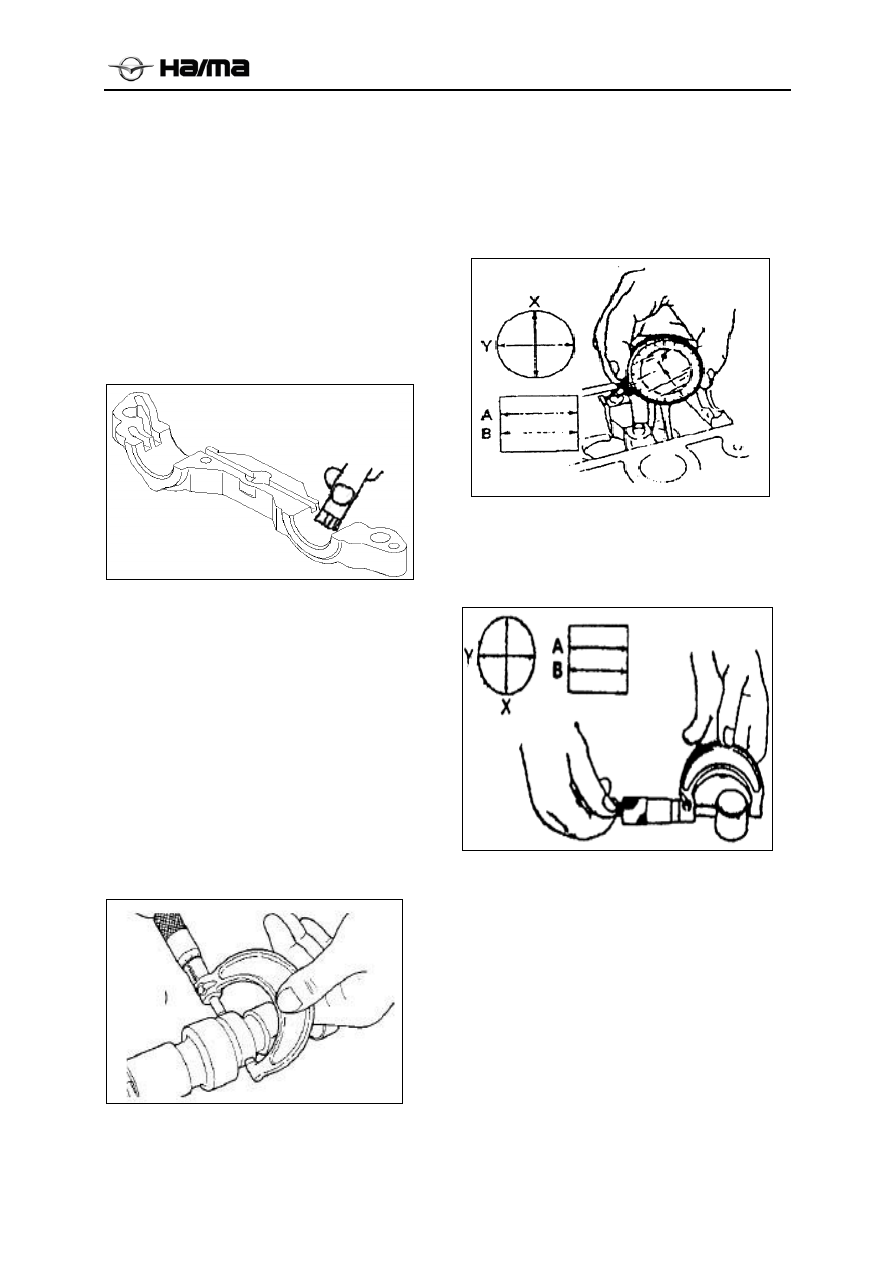

Explanations on connecting rod cover
dismantling

Inspect the connecting rod end gap (see connecting
rod inspection part).

Explanations on piston pin dismantling

1. The piston pin retainer with the tool removed.

2.Hand push the piston pin, which was pushed out.

Explanations on main bearing cover
dismantling

1.  Inspect the crankshaft end gap (see the

crankshaft inspection /repair part).

2.  Loosen the main bearing cover’s bolt

according to steps illustrated in the figure.



Explanations on the crankshaft
dismantling

Inspect the main journal clearance (see the
crankshaft inspection /repair part).

Explanations on the main bearing cover
mounting

1.  Measure every bolt’s length. If the length

exceeds the standard value, replace the bolt.

Standard length: 74.15～74.85mm

Maximum length: 75.05mm



2.  Tighten main bearing cover’s bolt to specified

torque by steps according to the sequence
illustrated in the figure, as well as mark every
bolt head. Tightening torque:

33 ～

37N·m{3.357～3.784kgf·m}

3.  according to the bolt-tightening sequence

(Step 2) illustrated in the figure, rotate every
bolt for 60°～64° from the mark.



Explanations on the piston pin mounting

1. Removing the piston, piston pin into the ring at

one end.

2. The clean oil applied to the piston pin.

3. Place the piston and connecting rod to press-fit

the stage, piston "→" on the mark side and
the link "HMA" or logo side, as shown.

4. The piston pin into the piston, connecting rod

assembly, to be assembled in place, on the
other side of the piston pin into the piston
rings.

Explanations on the piston ring mounting

1.  The following figure, the first spiral spring

loaded oil ring body support groove Connect
with the latch pin connector.

2. The oil ring was placed in an oil ring groove.

3. The support spring connectors and oil ring body

openings staggered 180 °.



Engine block 1A-41







4.  Use the piston ring dilator to mount the No. 2

and No.1 piston ring.

5. Keep the marker side upward during the

mounting process.

6.  Align all rings’ opening locations (see the

figure).



Explanations on piston connecting rod
assembly mounting

1.

Pistons forward flag "          " for the front of
the engine.





Explanations on the connecting rod cover
mounting

1.  The bolt can be reused, but when the outer

diameter difference at the two points
illustrated below exceeds 0.1mm, the bolt
shall not be further used.



2.  Tigthen the connecting rod bolt to specified

torque by steps according to the sequence
illustrated in the figure.

Tightening torque:

18.0 ～ 22.0N·m{1.84 ～

2.45kgf·m}



3.  Mark every bolt head.

4.  According to the bolt-tightening sequence

(Step 2) illustrated in the figure, rotate every
bolt for 90°～94° from its marker.

1.12.2 Cylinder Body Inspection /Repair

1.  Use the Straight Edge Ruler and plug gauge

Piston ring dilator

Outer

diam

eter

Outer

diam

eter

    In

Front

Row



Engine block 1A-42



to measure the distortion on the cylinder
body’s upper surface along six directions
illustrated in the figure.

Cylinder body’s maximum distortion:0.1mm



2.  If the distortion on the cylinder body’s upper

surface exceeds the maximum value, inspect
the cylinder body’s height. If the height stays
beyond the standard value, replace the
cylinder body.



Cylinder body

Standard height:204.95～205.05mm

3.  If the cylinder body’s distortion goes beyond

the maximum value and the height stays
within the standard value, grind the height or
replace the cylinder body.



Maximum grinding volume: 0.20mm

4.  Use the inside dial indicator to measure the

cylinder’s inner diameter at the place 60mm
away from upper surface along the X and Y
direction (see the figure).



5.  If the cylinder’s inner diameter goes beyond

the abrasion limit, replace the cylinder body,
and install the corresponding piston, in order
to make it accord with the standard clearance
between piston and cylinder. Abrasion limit:
0.135mm

Size Diameter

Standard

74.8～74.815

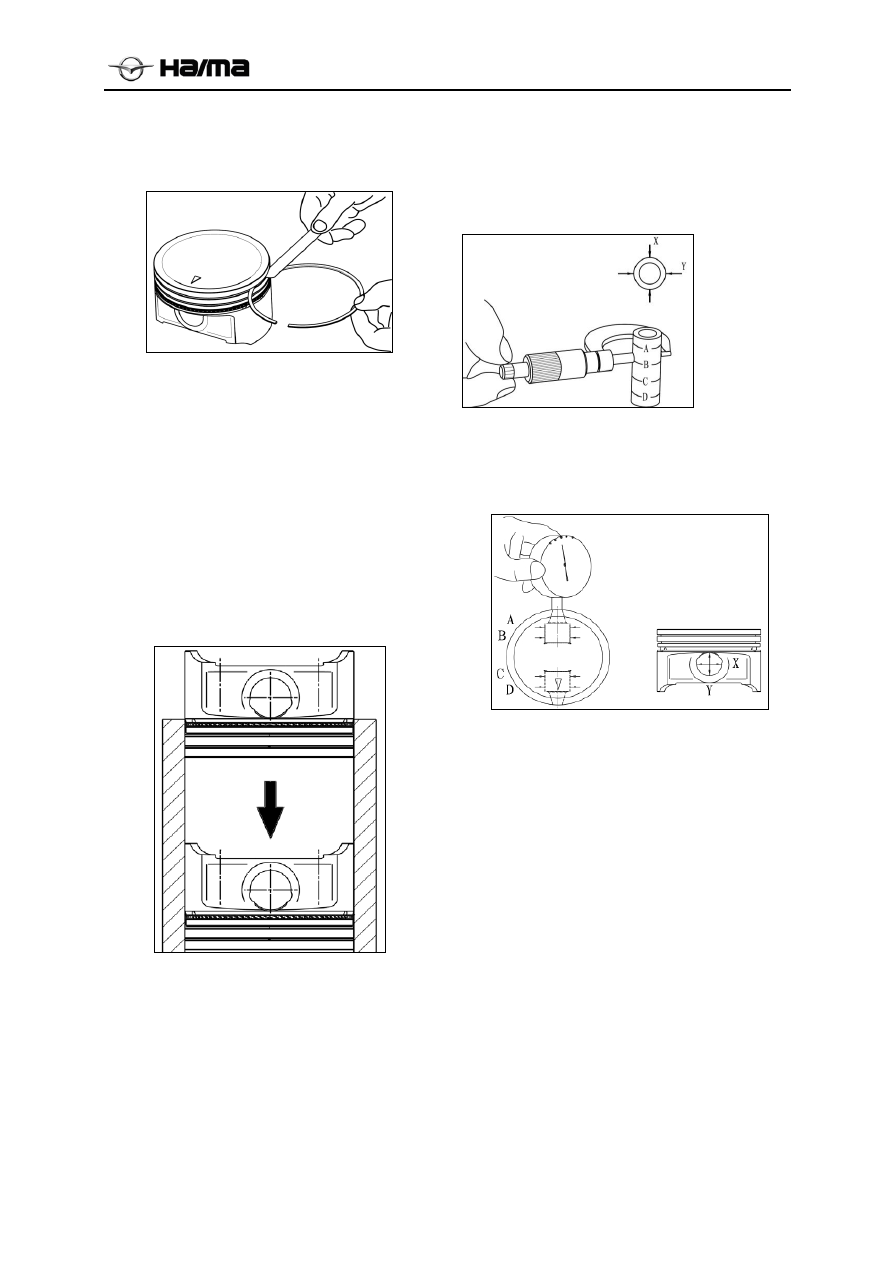

1.12.3 Piston, Piston Ring, and Piston Pin
Inspection

1. Along the vertical direction of piston pin hole’s
axial line, measure the piston’s diameter at the
place that is 19.38mm below the lower rim of the
oil control ring groove



Piston diameter

   (mm)

Size Diameter

Standard

74.7625～74.7775

Calculate the clearance between piston and
cylinder. If necessary, replace the piston.

Standard clearance

:0.0225～0.0525mm



Maximum clearance: 0.10mm

2.  If replacing the piston, piston ring shall be

replaced as well.

Cylinder body’s upper surface



Engine block 1A-43



3.  Use the plug gauge to measure the clearance

between piston ring and ring slot along the
entire perimeter (see the figure). If necessary,
replace the piston and piston ring.



Standard clearance

Ring 1:

0.040～0.085mm



Ring 2:

0.030～0.070mm



Oil ring:

 0.020～0.060mm

Maximum clearance

Ring 1, Ring2:    0.15mm

Oil ring:  0.15mm.

4.  Put the piston ring into cylinder with hands,

and use the piston to push the piston ring to
the bottom of the cylinder bore stroke.



5.  Use the plug gauge to measure every piston

ring’s opening clearance. If necessary, replace
the piston ring.

Standard opening clearance:

Ring 1:

 0.20～0.35mm



Ring 2:

0.40～0.60mm



Oil Ring:

0.20～0.40mm



Maximum opening clearance:1.0mm

6. Respectively at A, B, C, and D point along X
and Y direction, measure every piston pin hole’s
diameter.

Standard diameter:

17.996～18.000mm





7. Respectively at A, B, C, and D point along X
and Y direction, measure every piston pin’s
diameter

Standard diameter:

18.004～18.010mm





8. Calculate out the clearance between piston pin
and piston pin hole. If necessary, replace the piston
or piston pin.

Standard clearance:

0.004～0.014mm

9.  Measure the connecting rod’s small head

diameter (see connecting rod inspection), and
calculate the clearance between connecting
rod’s small head and piston pin. If necessary,
replace the connecting rod or piston pin.
Standard clearance:

-0.010～-0.027mm.



1.12.4 Connecting Rod Inspection

1.  Use the plug gauge to measure the connecting

rod’s end gap. If necessary, replace the
connecting rod and connecting rod cover.



Engine block 1A-44





Standard clearance

:0.10～0.30

mm

Maximum clearance:0.40mm

2.  Measure the crank pin journal clearance

according to steps below.

(1). Remove all oil on the journal and bearing

seat’s internal surface.

(2). Make the plastic gauge match the bearing

width and then put it on the top of journal,
keeping parallel with the axial line.

(3).  Mount the connecting rod cover (see piston

and connecting rod mounting part).

(4). Dismantle the connecting rod cover’s bolt,

and slowly take off the connecting rod cover.

(5). Use the plastic gauge scale to measure the

widest point on the plastic gauge’s extruded
part, and then calculate out the journal
clearance. If the clearance exceeds the
maximum value, replace the crankshaft and
corresponding connecting rod bearing to
ensure the standard clearance.

Standard clearance

:0.024～0.056mm



Maximum clearance:0.10mm

Rod bearing matching table            mm

Crank pin diameter  Rod bearing thickness

φ43.979～φ43.986

blue

1.489～1.494



φ43.986～φ43.993

yellow

1.486～1.491



43.993～φ44.000



red

1.483～1.488



3. As shown in X and Y direction of each of the

connecting rod small end diameter
measurement.

Standard diameter:

 18.010～18.023mm







1.12.5 Inspection of Piston Connecting
Rod Assembly

Inspect the swaying torque (see the figure). If the
big head fails to drop down by virtue of its own
weight, replace the piston or piston pin.



1.12.6 Crankshaft Inspection /Repair

1.  Mount the dial gauge, use the screwdriver to

push the crankshaft frontward and backward,
and measure the crankshaft end gap (see the
figure). If the end gap surpasses the maximum
value, replace the thrust bearing or crankshaft
to fit the standard end gap.

Drop down by virtue
of its own weight
