Suspension system 2D-4



1.  As shown in the figure, align the mark of

lower swing arm to small bump behind lower
swing arm bush.





2.  Install the lower swing arm on SST special

service tool.

3.  Press new bush of lower swing arm with SST

special service tool.





Keypoints for installing the lower swing front
bush

Press a new bush into swing arm body with SST
special service tool.



Keypoints for installing the dust cover

1.  Wipe off the grease from the ball head bolt.

2.  Fill the grease into the new dust cover.

3.  Press the dust cover on the ball joint with SST

special service tool.

4.  Wipe off the excessive grease.



Check of front lower swing arm

1.  Remove lower swing arm from the vehicle.

2.  Check it for damages, cracks and bends.

3.  Check the rotation torque of ball joint.

(1)  Turn the ball joint five times.

(2)  Connect SST special service tool to ball head

bolt, and measure its rotation torque with a
tension meter. If unqualified, replace the
lower swing arm.

Pre-load of ball joint: 1.0 -4.9N.m {0.1-0.5kgf.cm,
0.74-3.6in.lbf}

Reading of tension meter: 10-49N {1-5kgf, 0.225-
1.1lbf}





Removal/installation of front transverse
stabilizer bar

1.  Remove the front suspension crossbeam

assembly (refer to the removal/installation of
R-9 front suspension crossbeam assembly).

2. Remove front control connecting rod

assembly lower fixing nut or lower bush
assembly ①.

3. Remove front control connecting rod

assembly and stabilizer bar connecting nut ②.

4.  Remove front transverse stabilizer bar fixing

plate nut, front transverse stabilizer bar fixing
plate, and stabilizer bar rubber sleeve ③.

5.  Install it in the reverse sequence of removal.

Small bump

Mark



Press in



Hydraulic machine is
pressed in by force

Special tools

Special tools

Front bush



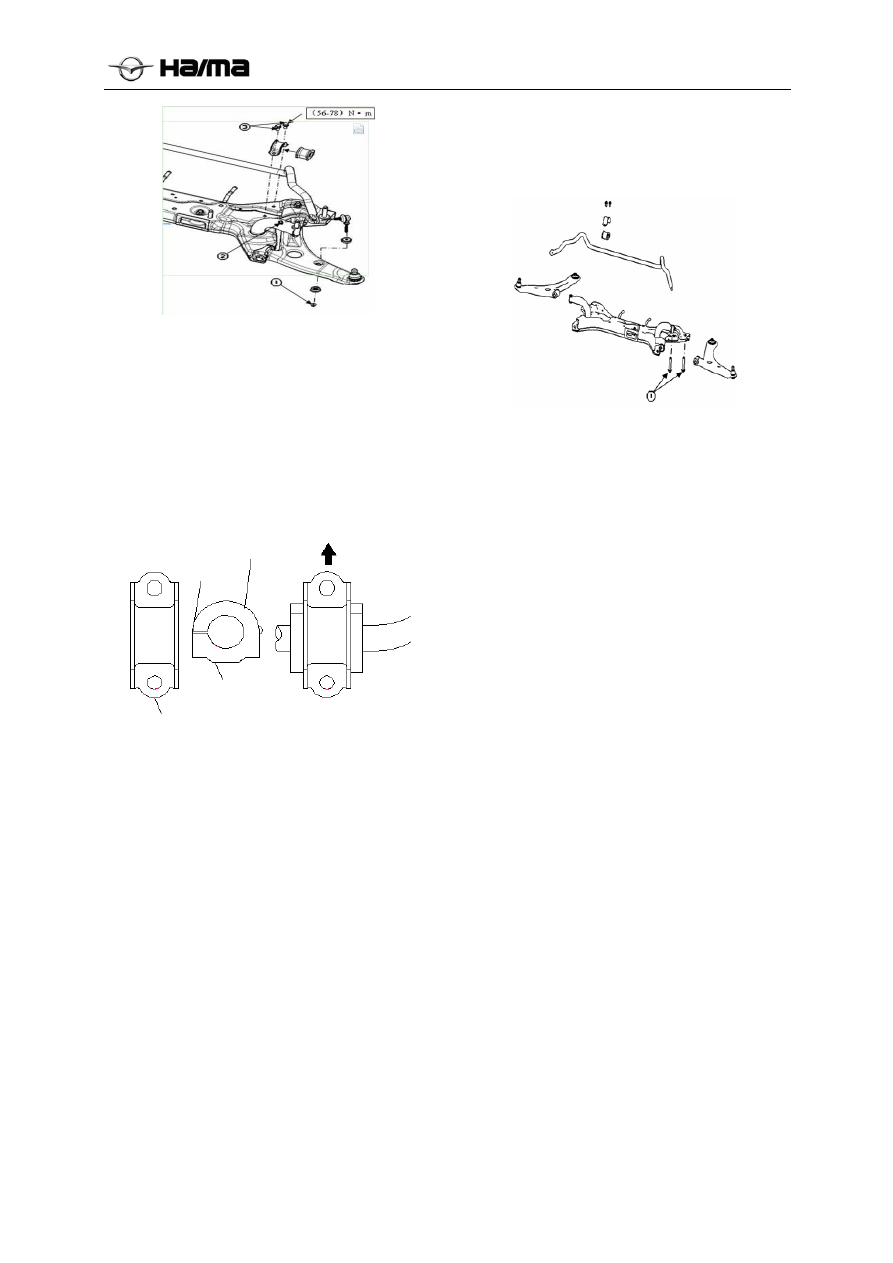

Suspension system 2D-5





Keypoints for installing front transverse
stabilizer bar fixing plate

1.  Apply the rubber grease to inner surface of

stabilizer bar rubber sleeve.

2.  In case of installing the rubber sleeve, make

the cut of rubber sleeve towards the rear of
vehicle, and align its boss to the notch of front
beam.

3.  Front transverse stabilizer bar fixing plate.



Removal/installation of front suspension
crossbeam assembly

1.  Remove the rubber lug of exhaust pipe (refer

to removal/installation of F exhaust system).

2.  Remove the engine mounting arm (refer to the

keypoints for removing B engine support
beam).

3.  Remove the steering gear and tie rod(refer to

removal/installation of N steering gear and tie
rod).

4.  Remove the front suspension lower swing

arm assembly(refer to removal/installation of
R-6 front suspension lower swing arm
assembly).

5.  Remove front transverse stabilizer bar(Refer

to removal/installation of R-8 front transverse
stabilizer bar).

6.  Remove the fixing bolt ①of front suspension

crossbeam assembly.

7.  Install the assembly in the reverse sequence of

removal.

8.  Check the location of front wheel, and adjust

its location if necessary.



Keypoints for removing the front suspension
crossbeam assembly

1.  Support the front suspension crossbeam

assembly with a jack, and remove the bolts
connected to vehicle body.

Bolt torque: 141 to 223N.m {14.1 to 22.3 kgf.m,
104 to 165in.lbf }

2.  Remove the front suspension crossbeam

assembly.

Rear suspension

Removal/installation of rear shock
absorber and spring

Note:

In case of not removing ABS anti-lock brake
system wheel speed sensor first, carry out the
following operation procedures. If the sensor is
inadvertently pulled, it may cause the broken
circuit of wire. Before carrying out the following
operation procedures, remove ABS wheel speed
sensor from axle side, and fix it in appropriate
position to prevent the sensor from inadvertent
pulling during the repair of vehicle. During the use
of jack, be sure to avoid the damages of brake pipe
and brake hose.

1.  Remove them in the sequence shown in the

table.

2.  Install them in the reverse sequence of

removal.

Stabilizer bar rubber

sleeve



Front



Notch



Boss



Stabilizer bar fixing plate



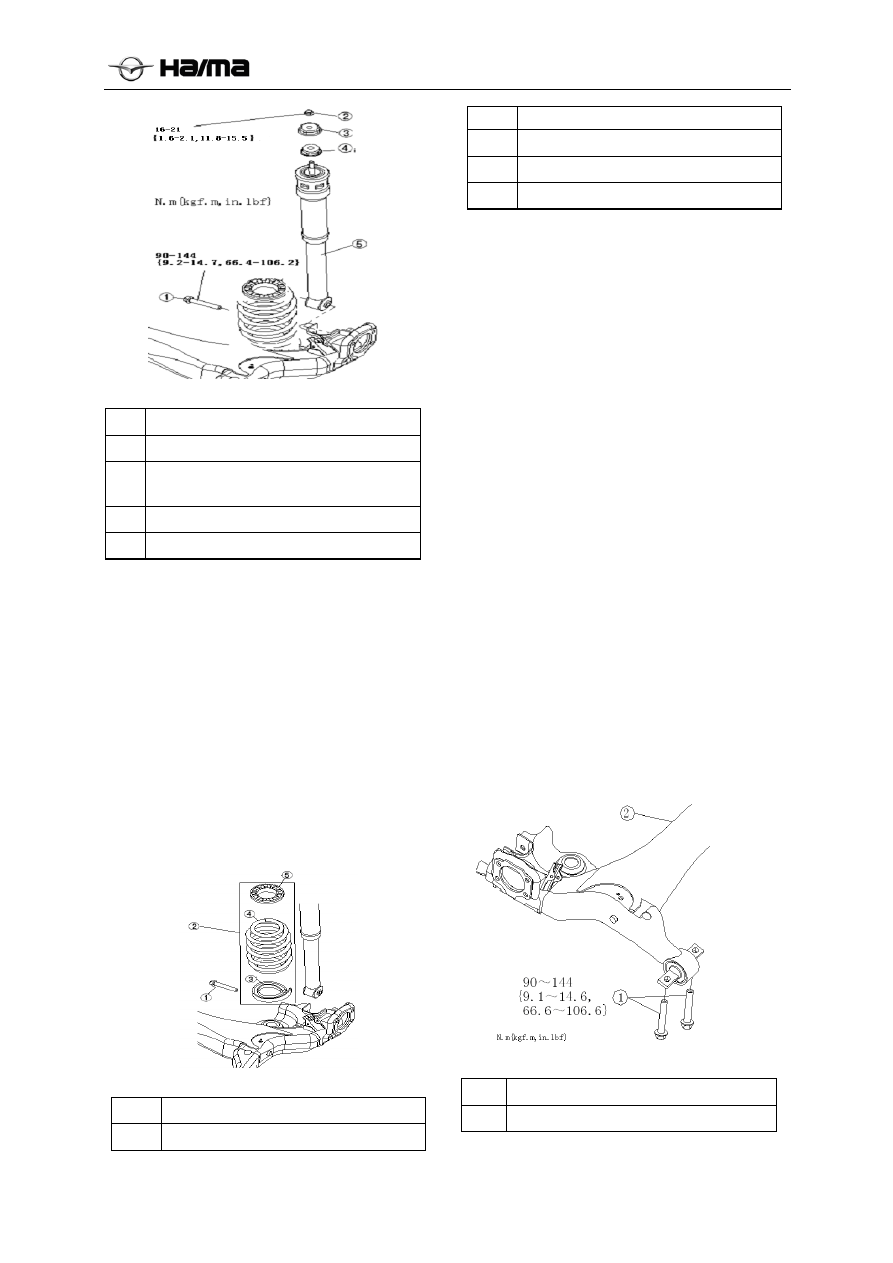

Suspension system 2D-6







1 Hexagon

flange

bolt

2 Self-lock

nut

3  Upper mounting cover of rear shock

absorber

4 Upper

bush

5

Rear shock absorber assembly

Check of rear shock absorber

Check rear shock absorber by adopting the same
method as that of front shock absorber (refer to the
check of R-6 front shock absorber).

Scrapping of rear shock absorber

Handle rear shock absorber by adopting the same
method as that of front shock absorber (refer to the
scrapping of R-6 front shock absorber).

Removal/installation of rear spiral spring

1.  Remove rear shock absorber assembly.

2.  Remove it in the sequence shown in the table.

3.  Install it in the reverse sequence of removal.





1 Hexagon

flange

bolt

2

Spiral spring and upper/lower rubber

mount

3

Rear spiral spring lower rubber mount

4

Rear spiral spring

5

Rear spiral spring upper rubber mount



Notes for mounting rear spiral spring

Install the spiral spring with its open end in front
of vehicle, and ensure that the opening of rear
spiral spring lower rubber mount is always
clamped.

Warning

It’s very dangerous to install the spiral spring,
because the spiral spring may fly off and lead to
serious injury or death.

Removal/installation of torsion beam
integral axle

1.  Lift the vehicle to its appropriate position, and

remove the tire(refer to the installation
sequence of 2E-8 wheel).

2.  Remove the rear brake drum assembly (refer

to Section 2E Wheel and Tire).

3.  Jack up rear torsion beam assembly with a

screw block.

4.  Remove rear shock absorber assembly (refer

to removal/installation of R-10 rear shock
absorber and spring).

5. Remove rear spiral spring (refer to

removal/installation of R-11 rear spiral
spring).

6.  Remove it in the sequence shown in the table.

7.  Install it in the reverse sequence of removal.





1 Hexagon

flange

bolt

2

Rear torsion beam assembly



Steering system 2F-1



Chapter 14

Steering system





General procedures ................................................................................................................................. 2E-2

Attentions for steering system........................................................................................................... 2E-2

Removal/installation of power steering assembly............................................................................. 2E-2

Disconnection and connection of joint.............................................................................................. 2E-2

Engine speed sensing power steering..................................................................................................... 2E-2

Exhaustion of air ............................................................................................................................... 2E-2

Check of power steering oil .............................................................................................................. 2E-2

Check of steering wheel and steering column................................................................................... 2E-4

Removal and installation of steering wheel and steering column ....................................................... 2E-5

Removal and installation of steering gear and connecting rod.......................................................... 2E-9

Disassembly of steering gear and connecting rod ........................................................................... 2E-11

Check of steering gear and connecting rod ..................................................................................... 2E-14

Assembling of steering gear and connecting rod ............................................................................ 2E-16

Removal and installation of power steering pump .......................................................................... 2E-20

Disassembly and assembly of power steering pump....................................................................... 2E-21









Steering system 2F-2



General procedures

Attentions for steering system

For removal/installation of wheel and tire

The installation steps of wheel and tire are not
described in this chapter.

After removing the wheel, its tightening torque
during the reinstallation: 110N.m(100 to 120 N.m).

Removal/installation of power steering
assembly

If the power steering oil pipe is broken during the
operation, add in some

ATF-III or DEXRON-

III power steering oil after completing the
operation

. Bleed the air out of power steering

pipe, and check it for leakage.

Disconnection and connection of joint

Before any work to contact the plug by hands,
disconnect the negative cable of battery. The cable
can be reconnected only after finishing the work.

Engine speed sensing power
steering

Exhaustion of air

1.  Check the level of power steering oil(refer to

the check of power steering oil, and check of
liquid level).

2.  Jack up the front end of vehicle with a jack,

and support it with a safety support.

3.  Turn the steering wheel to left or right

furthest several times at the shutdown state of
engine.

4.  Check the level of power steering oil again. If

its level is reduced, refill the power steering
oil.

5.  Repeat Steps 3-4 until the liquid level

stabilizes at the specified value.

6.  Lay down the vehicle.

7.  Start the engine, and keep it idling.

8.  Turn the steering wheel to left or right

furthest several times.

9.  Confirm that the power steering oil shall have

no bubbles and its level shall not be reduced
any longer.

  If its level has been reduced, add in the power

steering oil as per the demands, and repeat
Steps 8 and 9.

Check of power steering oil

Check of oil level

Check the level of power steering oil.

If necessary, add in the power steering oil up to
the specified level. The model of such power
steering oil is

ATF-III or DEXRON-III.









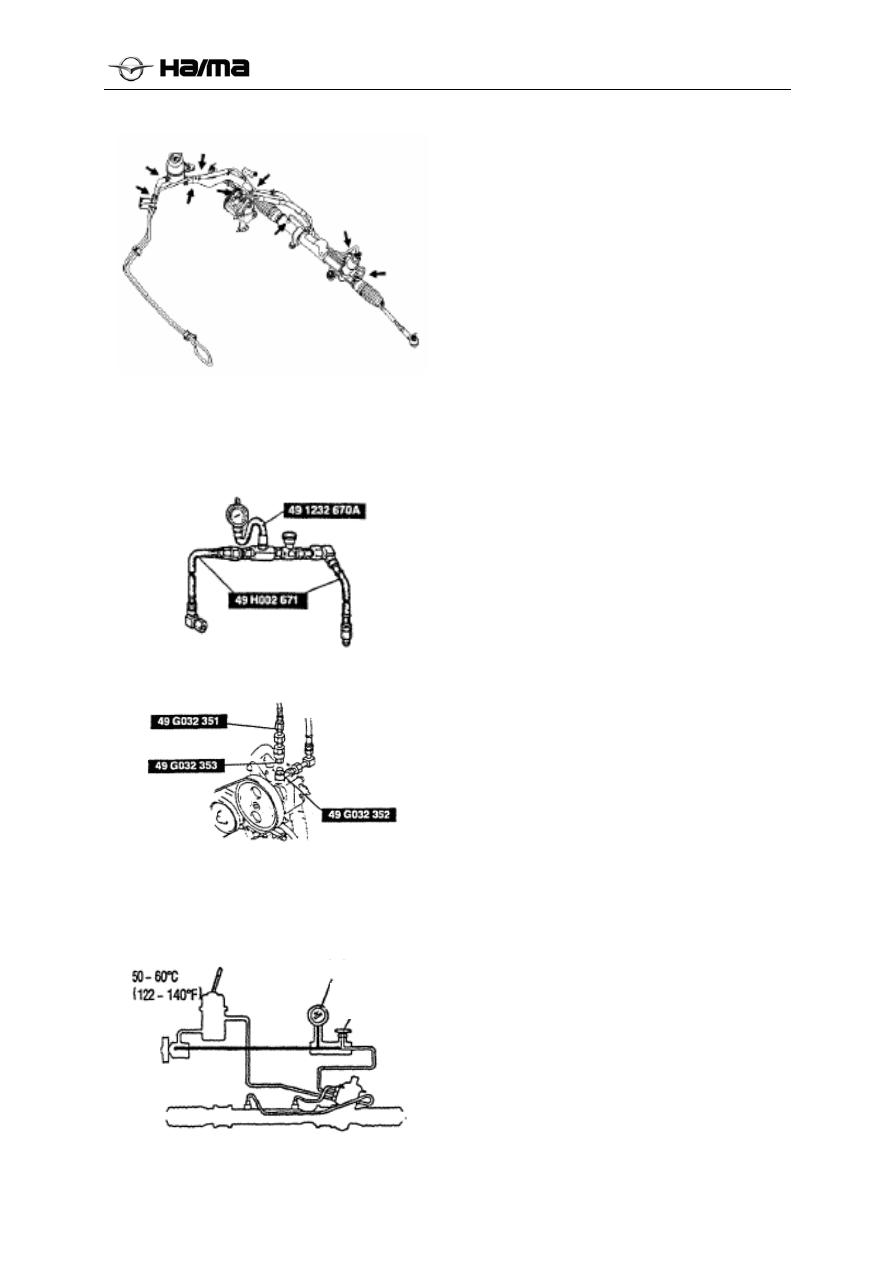

Steering system 2F-3











Leakage check of power steering oil

Note:

●

  In case of keeping the steering wheel in the

extreme steering position for over 5s, the
temperature of power steering oil will be
increased to an extreme value, and produce
adverse influences on the power steering pump.

1.  Start the engine, and idle it.

2.  Turn the steering wheel to left or right furthest

several times to make the oil pressure produced
in every position.

Note:

●

  The parts shown with the arrows of figure may

be leaked.

3.  Check them for leakage.





1.  Install the special tool as shown in the figure.

2.  Disconnect the high-pressure pipe from the oil

pump, and connect to its special tool.

Tightening torque:40-50N·m{4.0-5.0kgf.m}

3.  Bleed the air out of the system.

4.  Fully open the valve of pressure gauge.

Check of power steering hydraulic force







5.  Start the engine, and turn the steering wheel to

left or right furthest to make the temperature of
power steering oil up to 50-60°C{122-140°F}.

6.  Fully close the valve of pressure gauge.

Note:

If the valve is closed for over 5s, the temperature of
power steering oil will be increased to an extreme
value, and produce adverse influences on the power
steering pump.

7.  Increase the engine speed up to 1000-1500rpm,

and measure the pressure of power steering oil.

`



  If the hydraulic pressure is not within the

specified range, it’s required to repair or
replace the power steering pump assembly.

Hydraulic pressure of power steering oil pump:

5.7-6.4Mpa{58.0-65.0kgf/cm

2

,826-928psi}

Note:

●

In case of keeping the steering wheel in the
extreme steering position for over 5s, the
temperature of power steering oil will be

Thermometer



Pressure gauge

Valve fully closed

Valve iron

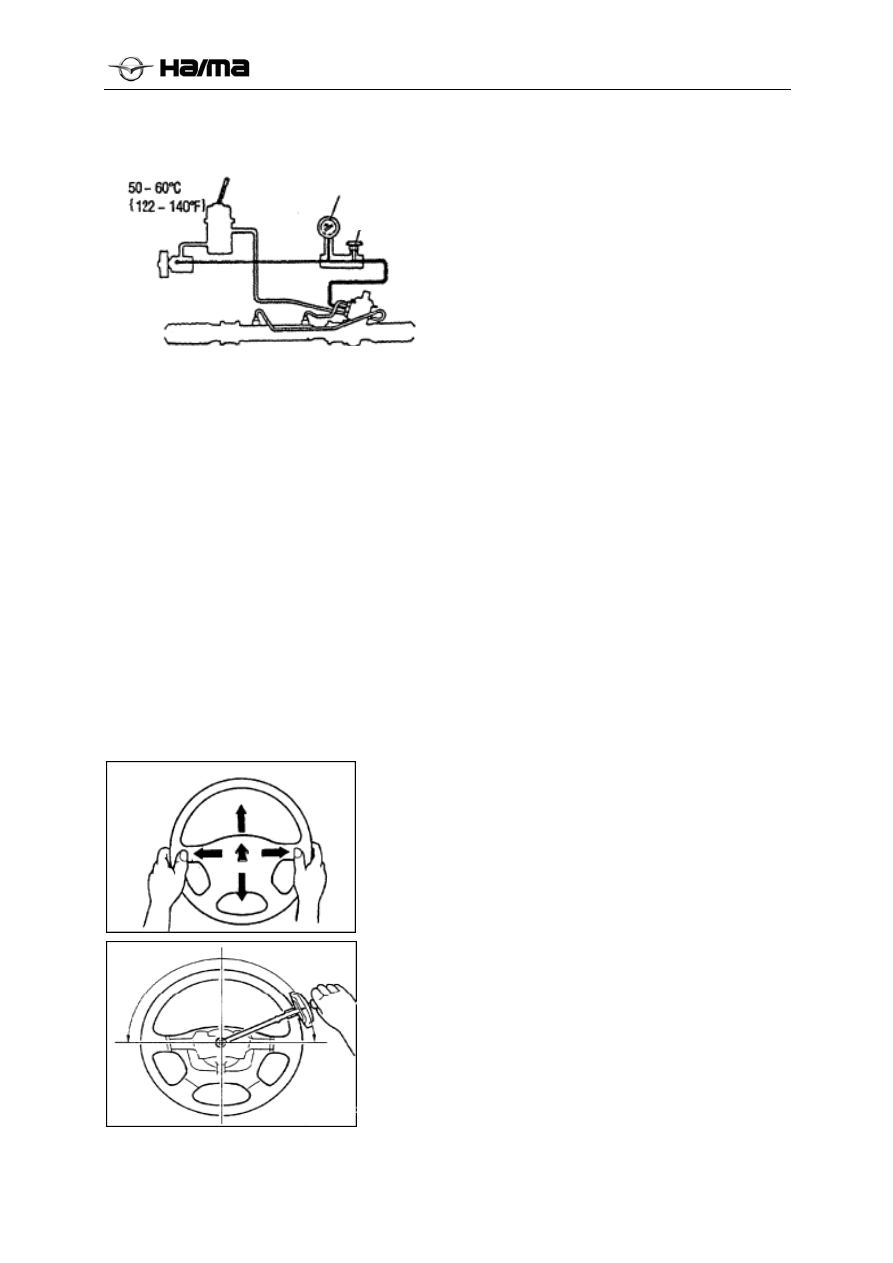

Steering system 2F-4



increased to an extreme value, and produce
adverse influences on the power steering pump.



8.  Fully open the valve of pressure gauge, and

increase the engine speed up to 1,000-
1,500rpm.

9.  Turn the steering wheel to left or right furthest,

and then measure the hydraulic pressure
produced in the gear chamber.

  If the pressure is not within the specified range,

it’s required to repair or replace the steering
gear assembly.

Hydraulic pressure in gear chamber (pump
chamber):

5.7-6.4Mpa{58.0-65.0kgf/cm

2

,826-928psi}

10.  Remove the special tool.

11.  Install and tighten the high-pressure pipe, and

tighten it up to the specified torque.

Tightening torque:

40-50N.m{4, 0-5. 0kgf.m}

12.  Bleed the air out of system.



Check of steering wheel and steering column

Check of steering wheel clearance

Stop the wheel directly in front, turn the steering wheel lightly to left or right, and confirm whether its
oscillation amplitude is within the specified range.

●

  If the clearance is not within the specified range, it may be caused by wears of steering knuckle or

excessive clearance of steering gear, and apply the necessary corrections to it. Clearance: 0-30mm{0-1.
18in}.



Check of steering wheel loosening

Shake the steering wheel in the shown direction,
check the steering column bearing sleeve, steering
shaft hinge for oscillation, steering wheel for
loosening or steering column for loosening, etc.







Thermometer



Pressure gauge

Valve fully

closed



Steering system 2F-5



Check of steering wheel steering force

1.  Check the following items.

•

Tire size and tire pressure.

•

Level of power steering oil.

•

Slack of drive belt.

2.  Stop the wheel on firm or level road surface,

and make the wheel directly in front.

3.  Start the engine, and increase the temperature

of power steering oil up to 50-60°C{122-
140°F}.

4.  Remove the safety airbag module.

Warning:

●

  For removal/installation of safety airbag

module after the check, refer to
removal/installation of T safety airbag module
on driver’s side.

5.  Measure the steering force F with a torque

wrench.

●

  If not within the specified range, pay attention

to the following items:

－

 Existence of air in the system

－

 Hose or joint for leakage

－

 The performances of power steering pump and

gear are perfect.

Steering force: 7.8N·m{78kgf }.cm.

Note:

●

In order to judge the conformity of results,
check the steering operation of another
vehicle with the same model with the same
method under the same conditions, and
compare the test results.

●

The rotation torque of steering wheel varies
under the different conditions, as said below:

－

 Road conditions, e.g. dry or wet road surface,

asphalt or cement road surface.

－

 Tire conditions, e.g. tire patterns, wears, tire

pressure, etc.

Removal and installation of steering wheel and steering column

Warning:

●

  Incorrect handling of safety airbag module

will make the safety airbag suddenly opened,
and it may cause the personal injury, so it’s
required to handle the safety airbag. Please
first read “Warning for Safety Airbag” (refer

to the repair warning for safety airbag system.)

1.  Remove them in the sequence shown in the

table.

2.  Install them in the reverse sequence of

removal.





Steering system 2F-7







1



Safety airbag: refer to removal/installation of safety airbag system,T dirver’s safety
airbag;



2



Lock nut



3



Steering wheel: refer to its removal instructions; refer to its installation instructions.



4



Steering column cover



5



Clock spring



6



Combination switch



7



Lower cover plate



8



Steering column: refer to its installation instructions.



9



Steering column lock sleeve



10



Steering column mount



11



Removed assembly of steering column: refer to its removal instructions.





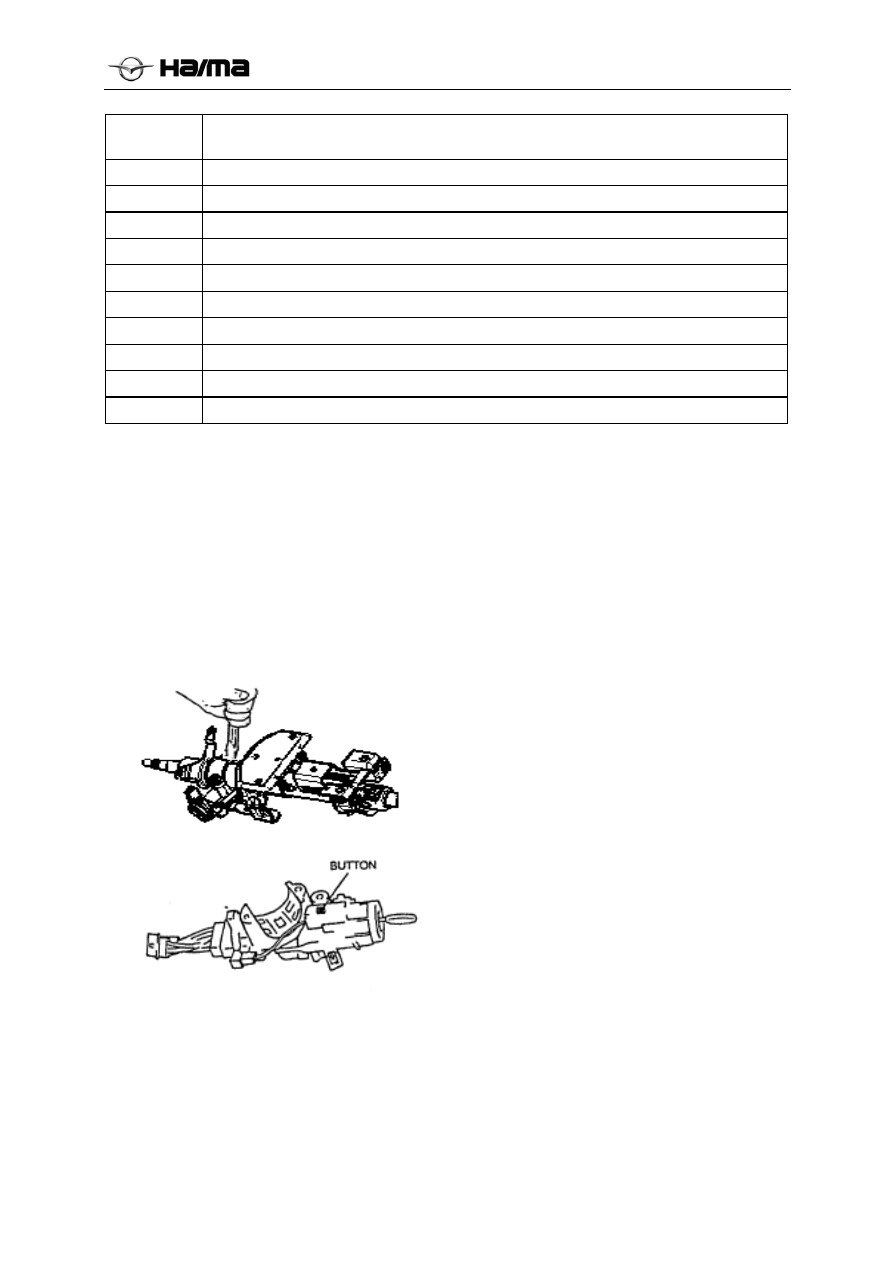

Keypoints for removing the steering wheel

Note:

●

  Don’t hit the steering shaft with a hammer

while removing the steering wheel, thus it will
cause the collapse of steering column.

1.  Make the wheel directly in front, and stop the

vehicle.

2.  Remove the steering wheel with an appropriate

puller.





Keypoints for removal of steering lock bolt
and support

1.  Make a groove in the lock bolt with a hammer

and chisel.

2.  Remove the bolt with a straight screwdriver.

3.  Disassemble the steering lock assembly.





Keypoints for removing the steering
column external assembly

Note:

  During the replacement of its external

assembly, its coil must be replaced.

1.  Turn the ignition key to “ACC” position.

2.  Press down the lock button, and pull out the

steering column external assembly.





Steering system 2F-8

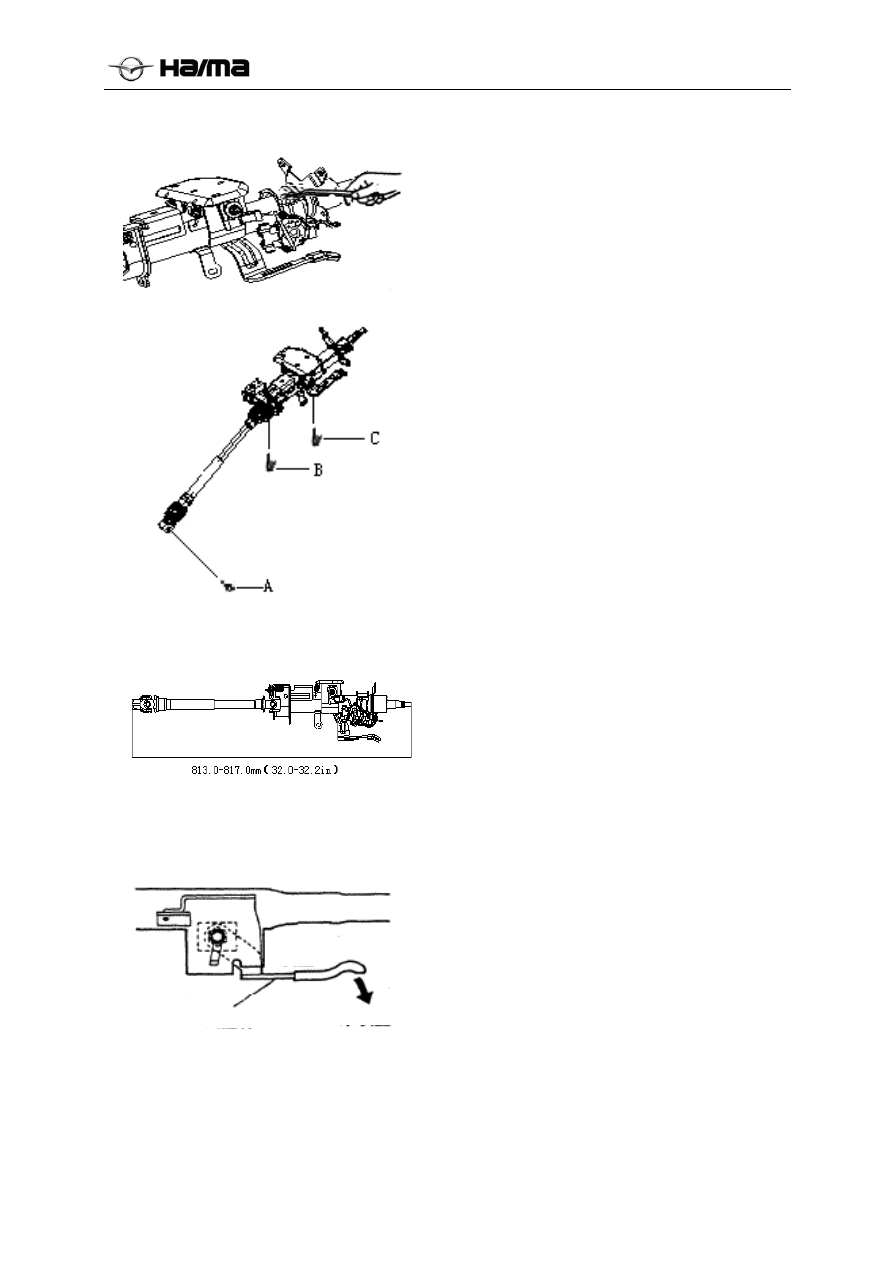

Keypoints for installing the steering lock
bolt and support

1.  Install the steering lock assembly on the

steering shaft.

2.  Confirm the correct locking operation.

3.  Install the steering lock bolt.

4.  Tighten the bolt until its head falls off.





Keypoints for installing the steering shaft

Note:

●

 Don’t shake the steering shaft in axial

direction.

1.  Tighten the bolt A.

2.  After tightening the bolt B, tighten the bolt C.



Keypoints for installing the steering wheel

1.  Adjust the sensing spring (refer to the

adjustment of safety airbag system sensing
spring).

2.  Make the wheel directly in front, and install the

steering wheel.





Check of steering shaft

1.  Check the following items, and replace the

steering shaft assembly if necessary:

－

 Steering column bearing for damages.

－

 Length of steering shaft.

Length: 813. 0-817. 0 mm{32. 0-32. 2in}





2. Inclination

operation

●

  Confirm that the adjusting lever can move

stably from its unlocked position to locked
position.

●

  Confirm that the steering shaft isn’t loosened

when the adjusting lever is locked.











Lock



Adjusting lever



Unlock



Steering system 2F-9



Removal and installation of steering gear
and connecting rod

Note:

●

  In case of not removing the wheel speed

sensor from ABS system, carry out the
following operation. When the wire is
wrongly pulled, it may cause the broken
circuit of wire. Before carrying out the
following operation procedures, remove
wheel speed sensor (from axle side), and
place it in appropriate position to prevent it

from wrong pulling during the repair of
vehicle.

1.  Remove front exhaust pipe fixing rubber

sleeve. (refer to the exhaust system,
removal/installation of exhaust system).

2.  Remove it in the sequence shown in the table.

3.  Install it in the reverse sequence of removal.

4.  After installing it, check the toe-in of wheel

(refer to the location of wheel, location of
front wheel).







1

Bolt(telescopic shaft) refer to its removal instructions; refer to its installation instructions.

2 Split

pin

3 Flange

nut

4

Steering tie rod tail end ball head: refer to its removal instructions; refer to its removal
instructions.

5

Oil return pipe

6

High-pressure oil pipe

7 Bolt(reinforced

plate)

8 Nut(reinforced

plate)

9

For steering gear and joint, refer to their removal instructions.

10 Dust

cover





Steering system 2F-10

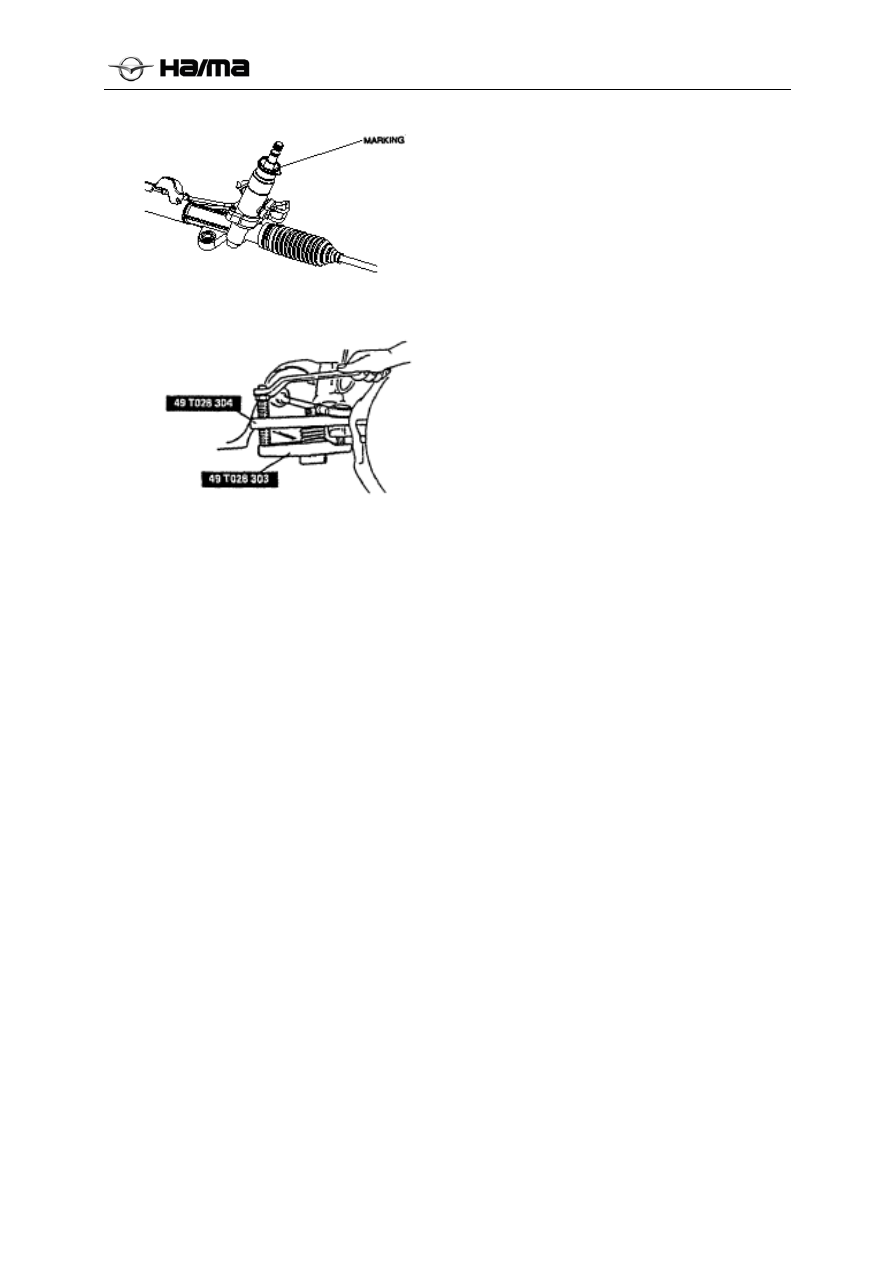

Keypoints for removing the bolt (telescopic shaft)

Make the aligning marks of gear shaft and gear
chamber for the purpose of correct installation.



Keypoints for installing the bolt (telescopic shaft)

After aligning the marks, install the intermediate
shaft and bolt.





Keypoints for removing the Steering tie rod tail
end ball head

1.  Remove the end rod nut.

2.  Remove the end post from steering knuckle

with a special tool.



Keypoints for removing the steering gear and
joint

Draw the steering gear and joint out of right side.













Steering system 2F-11



Disassembly of steering gear and connecting rod

1.  Disassemble it in the sequence shown in the table.



1

Heat shield



21

Assembly of control valve

2

Oil pipe 1



22

Seal ring

3

Oil pipe 2



23

Gear shaft

4

Steering tie rod tail end



24

Valve chamber assembly

5

Lock nut(end post head)



25

Upper bearing: refer to its disassembly
instructions.

6

Spring clip



26

Oil seal: refer to its disassembly instructions.

7

Dust jacket wire



27

Valve chamber

8 Dust

jacket



28

Supporting block: refer to its disassembly
instructions.

9

Steering tie rod: refer to its disassembly
instructions.

 29

U

tie

10 Washer



30

“O”

ring

11

Lock nut (adjusting cover) : refer to its
disassembly instructions.

 31

Steering

rack

12

Adjusting cover: refer to its disassembly
instructions.

 32

Seal

ring

13

Hold down spring



33

“O” ring

14 Limit

washer



34

Inner guide sleeve: refer to its disassembly
instructions.

15

“O”ring



35

Oil seal: refer to its disassembly instructions.

16

Dust cover



36

Fixed support

17

Socket bolt



37

Cushion block

18

Assembly of gear shaft and gear chamber:
refer to its disassembly instructions.

 38

Rubber cushion block: refer to its disassembly
instructions.

19

Gear shaft assembly



39

Gearbox

20

Snap ring: refer to its disassembly
instructions.

 40

Steering tie rod ball head gasket: refer to its
disassembly instructions.



Steering system 2F-12

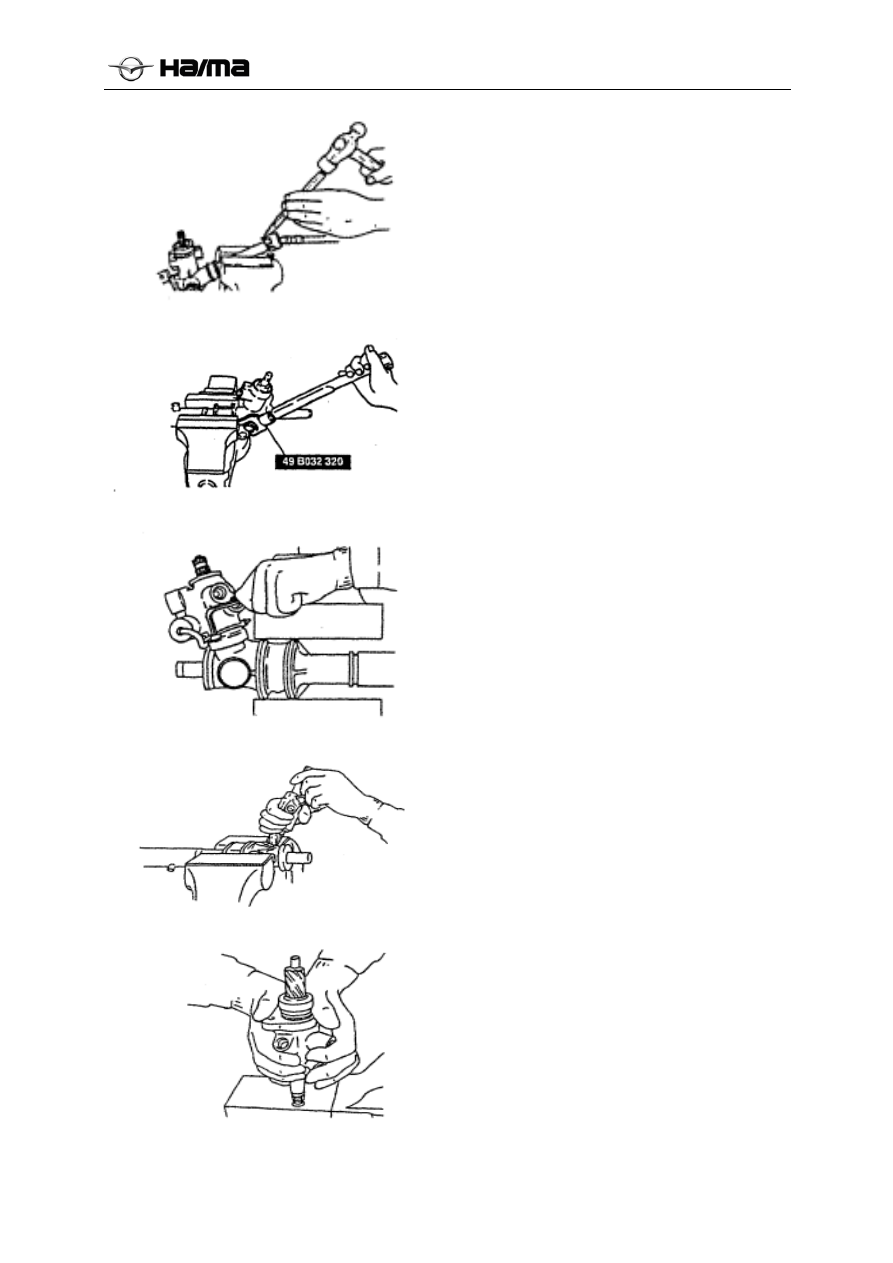

Keypoints for disassembling the steering tie rod

1.  Remove the dust jacket.

2.  Remove the steering tie rod.





Keypoints for disassembling the lock nut
(adjusting cover)

Remove the lock nut with a special tool.





Assembly of gear shaft and valve chamber

1.  Remove the bolts connected to gear shaft and

valve chamber (2 pcs).





2.  As shown in the figure, grasp the gear shaft,

and pull out the assembly of gear shaft and
gear chamber.





Keypoints for disassembling the gear shaft
assembly

●

  If the gear shaft is difficult to pull out, remove

it by pressing it down.

Push the gear shaft out of valve chamber, as shown
in the figure.



Steering system 2F-13









Keypoints for disassembling the snap spring

Remove the snap spring carefully, and don’t
damage the gear shaft assembly.





Keypoints for disassembling the upper bearing
and oil seal

1.  Install the special tool as shown in the figure.

2.  Press out the oil seal and upper bearing with a

special tool, and don’t press the edges of valve
chamber.





Keypoints for disassembling the hoop

Drill the surface part padded with anvil by adopting
a drill.





Note:

●

  Pull out the hoop carefully, and don’t damage

the U tie.

●

  Remove the hoop with a special tool.







Snap spring



Guide shaft

shoulder





Steering system 2F-14

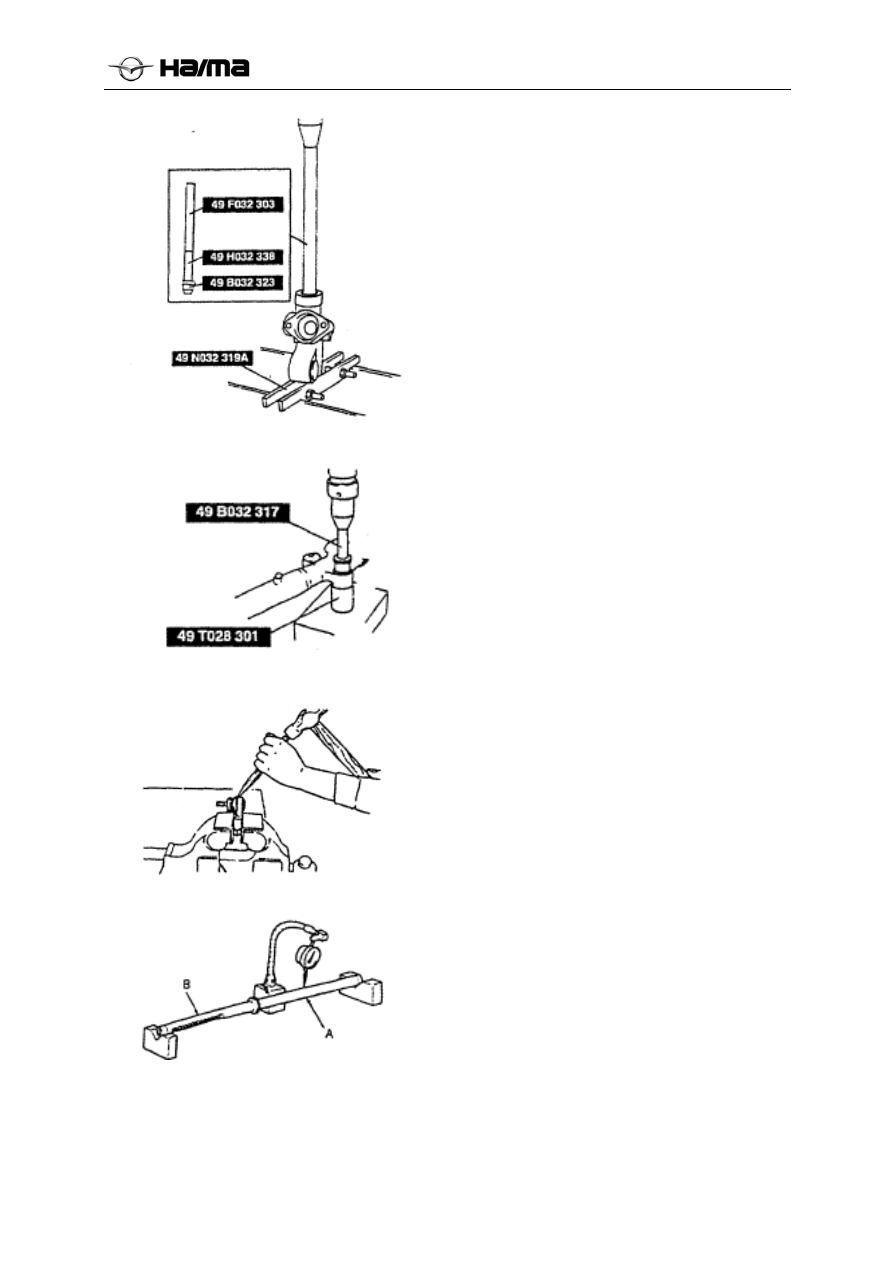

Keypoints for disassembling the inner guide
sleeve and oil seal

1.  Attach the special tool to the side of valve.

2.  Install the special tool into the gear chamber.

3.  Press out the oil seal and inner guide sleeve.





Keypoints for removing the rubber cushion
block

Press the rubber cushion block out of gear chamber
with a special tool and press.





Keypoints for disassembling the steering tie rod
end gasket

1.  Place and clamp the end of tie rod in the

fixture.

2.  Clamp the end of tie rod at the shown angle,

and align the chisel to end shim.

3.  Hit the chisel with a hammer to remove the end

shim.



Check of steering gear and connecting rod

Check of rack

1.  Check the rack for fracture, damages or broken

teeth, etc.

  If any, replace the rack.

2.  Measure the radial runout of rack. If not within

the specified range, replace the rack. Radial
runout

Near to A point: 0.15mm{0.006 in}

Near to B point: 0.20mm{0.008 in}
