Haima M3. Service Manual - part 7



Fuel System 1C-8



1.  Loosen the special tool unit.

12.  Connect the main fuel hose with main fuel

pipe.

13.  Complete the inspection work after repair

(see Inspection Work after Repair).

Fuel Pump Assembly Dismantling
/Mounting

Dismantle /Mount Fuel Pump Assembly (see
Cylinder Dismantling/Mounting)

Warning

  Fuel pump assembly cannot be disassembled

Inspection of Fuel Pump Assembly

Simulation Test

Inspect the fuel pump’s working condition (see
Fault Diagnosis, Inspection of Engine Control
System’s Working Condition, Inspection of Fuel
Pump’s Working Condition).

  If the condition is abnormal, conduct further

inspection to the fuel pump assembly.

Inspection of Conducting/Non-conducting
State

Notice

  Inspection below can be conducted if

necessary

1.  Loosen the accumulator’s negative cable.

2.  Remove the second-row seats (see Seats,

Second-row Seats Dismantling /Mounting).

3.  Dismantle the oil tank’s repair cover plate.

4.  Loosen the fuel pump assembly’s connector.

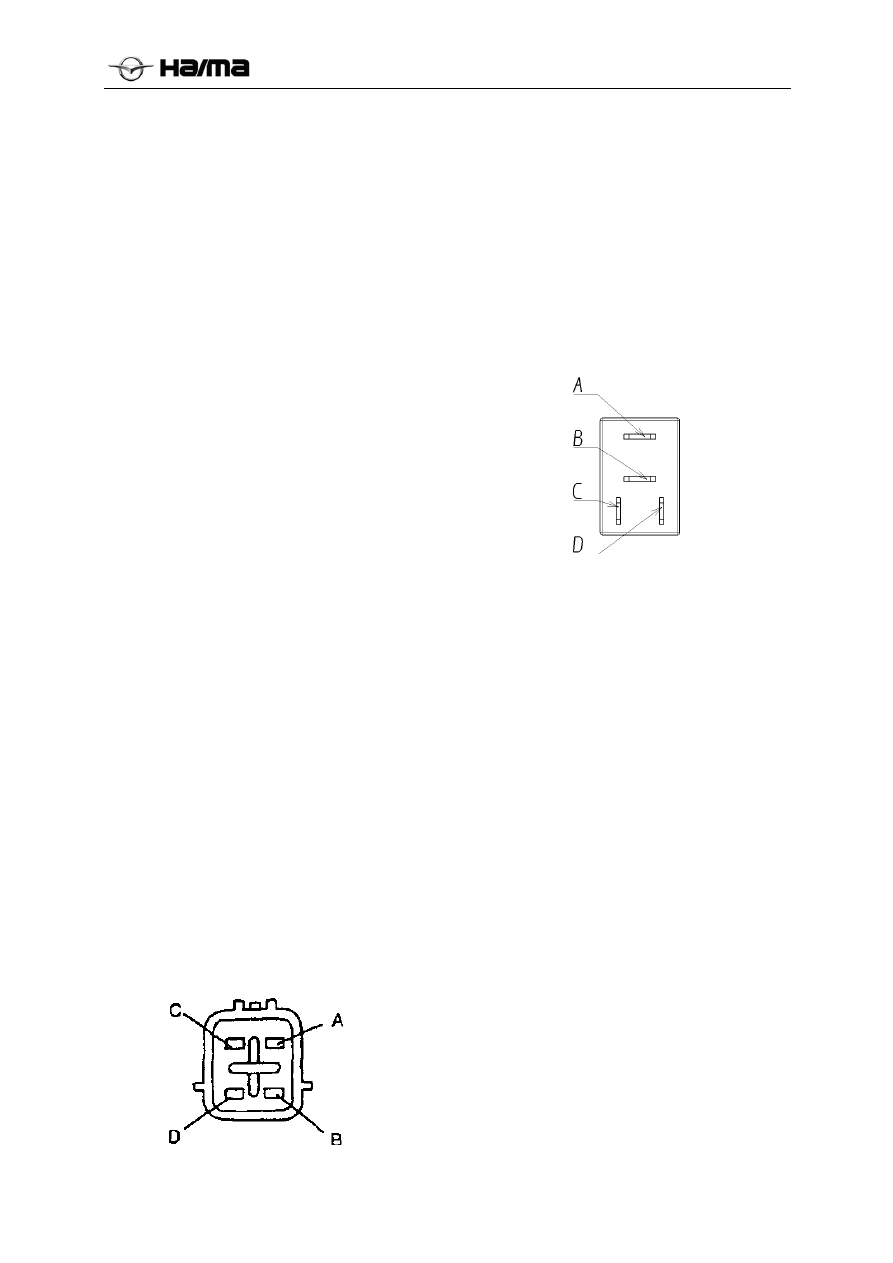

5.  Inspect the conducting/non-conducting state

between fuel pump or connector’s wiring
terminal B and wiring terminal D. If it is in
conducting state but the simulation test is
abnormal, inspect if the circuit suffers
short/open circuit. If it is in non-conducting
state, replace the fuel pump assembly.



Inspection of Open/Short Circuit

1.  Inspect if there is open/short circuit on the

following wiring harnesses. If there is, repair
or replace corresponding wiring harness:

Open Circuit

  Earting circuit (between fuel pump assembly’s

connector D and the vehicle body GND)

  Power circuit (between the fuel pump relay

connector A and fuel pump assembly
connector B, and there is public connector)



Short Circuit

  The circuit between the fuel pump assembly

connector B and fuel pump relay connector E,
in which there is public connector and ground
short circuit (electrical ground)

2.  Remount the fuel pump assembly connector.

3.  Remount the oil tank’s repair cover plate.

4.  Remount the second-row seats (see Seats,

Second-row Seats Dismantling /Mounting).

5.  Remount the accumulator’s negative cable.

Inspection of Fuel Pump’s Maximum
Pressure

Warning

  Fuel overflow or leakage is dangerous, and the

fuel is combustible, which may lead to personnel
injury and property loss. Due to this,
under-mentioned operations shall not be started
until the engine stops.

Caution

  Dismantling/mounting quick connector before

cleaning will lead to damage of the fuel pipe
and quick connector. Due to this, cleaning to
the quick connector’s contacting zone is a must
before dismantling /mounting, in order to make
sure that no foreign objects enter the oil pipe

Fuel pump relay



Fuel System 1C-9



and connector.

Notice

  The following tests can be conducted if

necessary

1. Complete

preparatory

work before repair (see

Preparatory Work before Repair)

2.  Loosen the accumulator’s negative cable.

Caution

  To avoid the quick connector’s damage or oil

leakage, follow the “Explanations on plastic
fuel pipe dismantling/ mounting” to complete
the under-mentioned work (see the Fuel
System, Explanations on Plastic Fuel Pipe
Dismantling)

3.  Dismantle the main fuel hose (fuel supply

pipe assembly) from the main pipe
(vaporation rigid pipe).

4.  Turn the switch handle to the position

illustrated in the figure to block the special
tool’s port.

5.  Push the special tool’s quick connector into

the main pipe (fuel rigid pipe) till there is a
“click” sound.

6.  Put the hose into a vessel in order to avoid the

fuel overflow.



7.  Remount the accumulator’s negative cable.

Caution

  Wrong connection with other wiring terminals

may lead to fault, and so caution is needed
during the connection process.

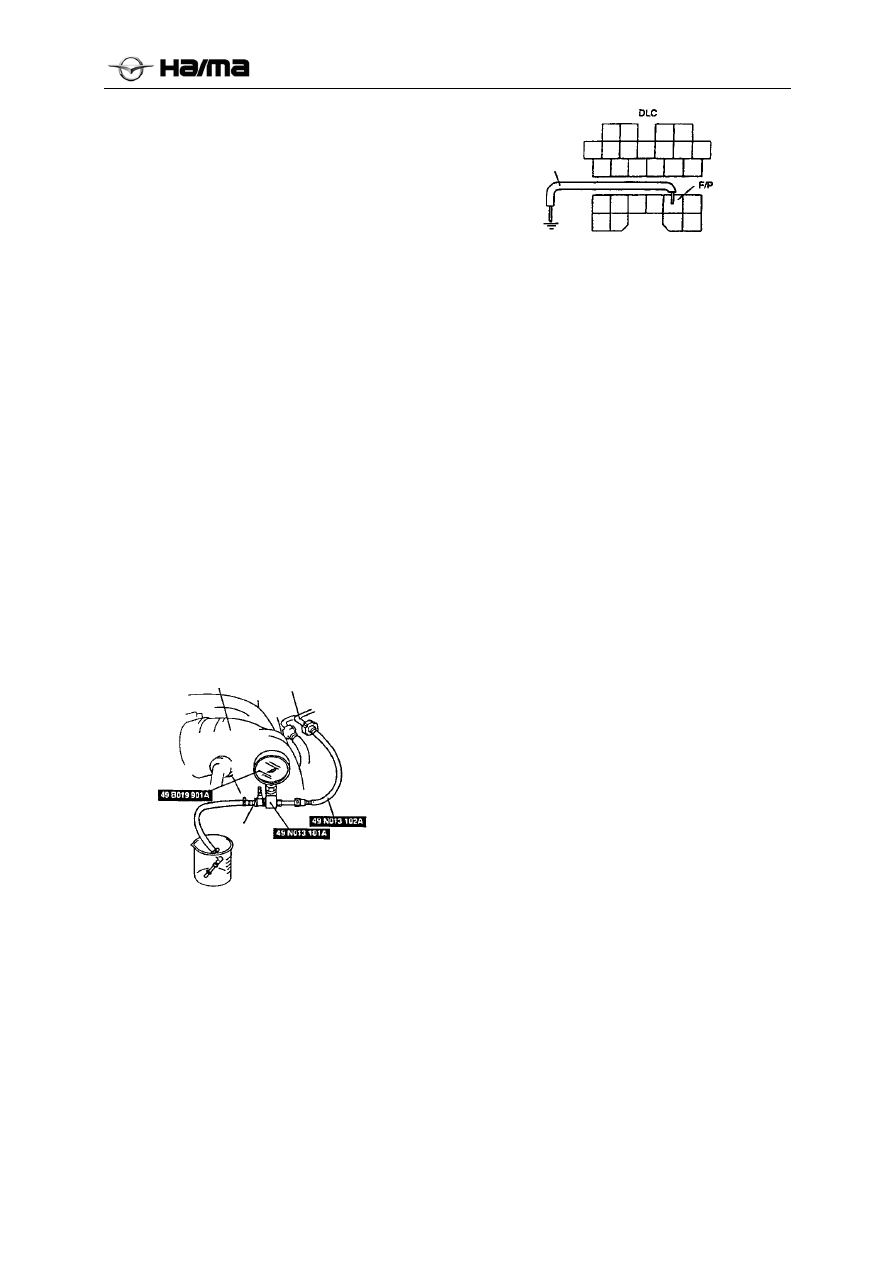

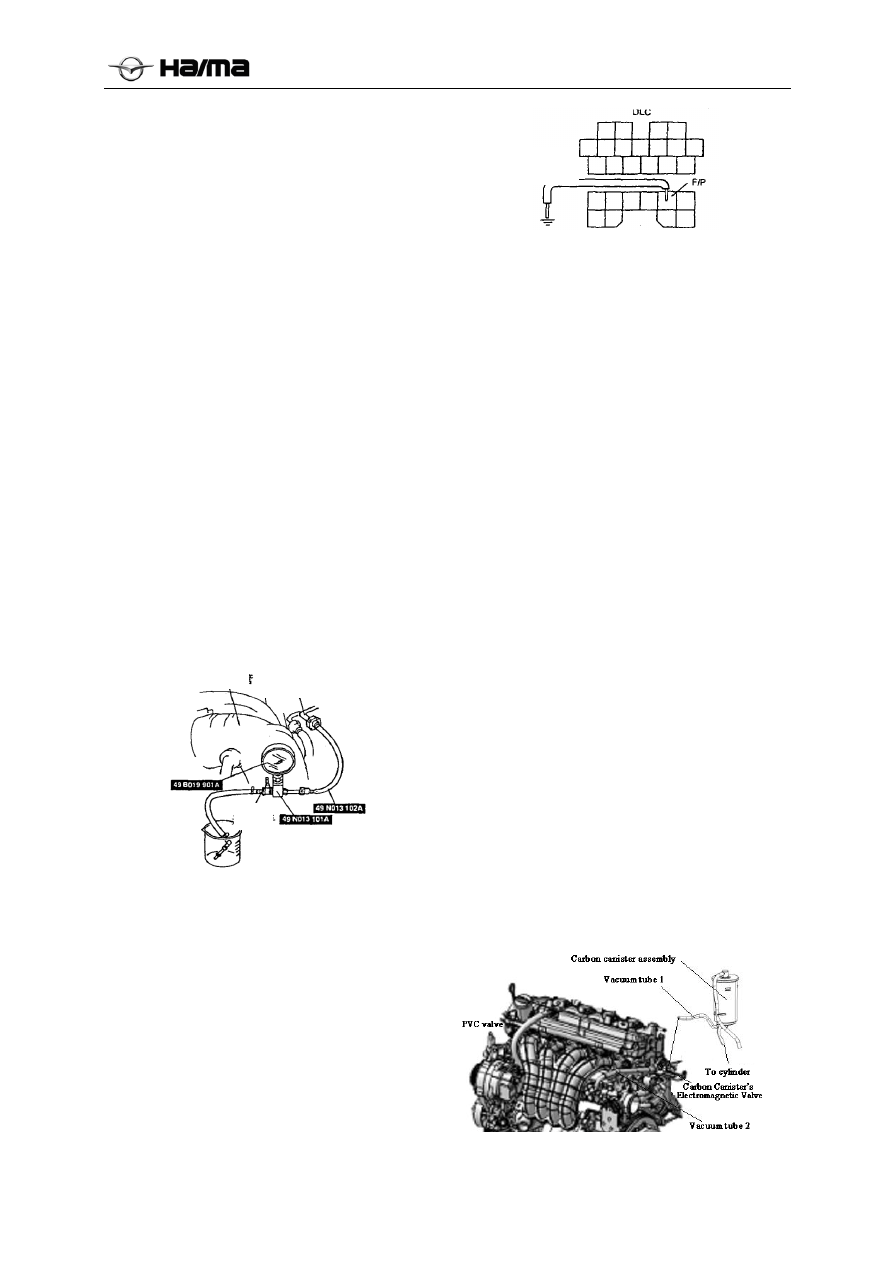

8.  Connect the DLC’s wiring terminal F/P with

the vehicle body’s earthing point GND with a
jumper wire.



9.  Turn the ignition switch to the “ON” position to

make the fuel pump run, and measure the fuel
pump’s maximum output oil pressure.

Fuel pump’s maximum output oil pressure: 650～
900kpa

10. Turn the ignition switch to the “OFF”

position and loosen the jumper wire.

If the maximum output oil pressure goes
beyond the specified range, inspect items below:

—Fuel pump relay (see Inspection of Fuel Pump
Relay)

—If the fuel filter (LV, HV) suffers blockage.

—If the fuel pipeline suffers blockage or leakage.

11.  Dismantle the special tool.

Caution

  To avoid the quick connector’s damage or oil

leakage, follow the “Explanations on plastic
fuel pipe dismantling” to complete the
under-mentioned work (see the Fuel System,
Explanations on Plastic Fuel Pipe Dismantling)

12.  Remount the main fuel hose (fuel supply pipe

assembly).

13.  Complete the inspection work after repair (see

Inspection Work after Repair)

Inspection of Fuel Pump Oil Pressure
Maintenance

Warning

  Fuel overflow or leakage is dangerous, and the

fuel is combustible, which may lead to
personnel injury and property loss. Due to this,
under-mentioned operations shall not be
started until the engine stops.

Caution

  Dismantling/mounting quick connector before

cleaning will lead to damage of the fuel pipe
and quick connector. Due to this, cleaning to
the quick connector’s contacting zone is a must
before dismantling /mounting, in order to make
sure that no foreign objects enter the oil pipe

Jumper wire



Fuel System 1C-10



and connector.

Notice

  The following tests can be conducted if

necessary

1. Complete

preparatory

work before repair (see

Preparatory Work before Repair).

2.  Loosen the accumulator’s negative cable.

Caution

  To avoid the quick connector’s damage or oil

leakage, follow the “Explanations on plastic
fuel pipe dismantling” to complete the
under-mentioned work (see the Fuel System,
Explanations on Plastic Fuel Pipe Dismantling)

3.  Dismantle the main fuel hose (fuel supply

pipe assembly) from the main pipe (fuel rigid
pipe).

4.  Turn the switch handle along the direction

illustrated in the figure to block the special
tool’s port.

5.  Push the special tool’s quick connector into

the main pipe (fuel rigid pipe) till there is a
“click” sound.

6.  Put the hose into a vessel in order to avoid the

fuel overflow.



7.  Remount the accumulator’s negative cable.

Caution

  Wrong connection with other wiring terminals

may lead to fault, and so caution is needed
during the connection process.

8.  Connect the DLC’s wiring terminal F/P with

the vehicle body’s earthing point GND with a
jumper wire.



9.  Turn the ignition switch to the “ON” position

to make fuel pump run for 10s or so.

10. Turn the ignition switch to the “OFF”

position. After 5 minutes, inspect the fuel
pump’s oil pressure maintenance.

Fuel pump’s oil pressure maintenance: ＞
410kpa(4.1kgf/cm2, 59psi)

11.  Loosen the jumper wire.

12.  Remove the special tool.

13.  Connect the main fuel hose (fuel supply pipe

assembly) with the main pipe(fuel rigid pipe).

If the oil pressure maintenance fails to accord
with standard, replace the fuel pump assembly
(see Fuel Pump Assembly
Dismantling/Mounting)

14.  Confirm if around the quick plug’s bonding

zone there is not oil leakage.

15. Complete the inspection work after

repair(see Inspection Work after Repair)

Spray Nozzle Dismantling /Mounting

(see the Control System)

Inspection of Spray Nozzle

(see the Control System)

Fuel Vaporation and Absorption
System

Location of Combustion Vaporation &
Absorption System’s Components (in Engine
Compartment)



Earthing
jumper

Air hose  Main fuel pipe

Switch
handle



Fuel System 1C-11





Inspection of Carbon Canister Assembly

1.  Remove the carbon canister.

2.  Block the interface on the carbon canister’s

ventilation side and the interface on the
carbon canister’s electromagnetic valve side.

3.  Blow air into the carbon canister’s oil tank

interface, and Confirm if there is no air
leakage (If there is air leakage, replace carbon
canister).

Inspection of Carbon Canister’s
Electromagnetic Valve

Conduct simulation test

Inspect the carbon canister’s electromagnetic
valve (see Fault Diagnosis, Inspection of Engine
Control System’s Working Condition, Inspection
of Carbon Canister’s Electromagnetic Valve); if it
is abnormal, conduct further inspection to the
carbon canister’s electromagnetic valve.





Inspection of Ventilation Condition

Notice

  The following tests can be conducted if

necessary

1.  Loosen the accumulator’s negative cable.

2.

Dismantle the carbon canister’s
electromagnetic valve .

3.  Inspect ventilation condition of the carbon

canister’s electromagnetic valve

(If normal, inspect if there is open /short circuit,
and if the vacuum hose is correctly arranged or
suffers distortion and air leakage. If abnormal,
replace the carbon canister’s electromagnetic
valve ).





Inspection of Open/Short Circuit

1.  Inspect if there is open/short circuit on the

following wiring harnesses (If there is,
overhaul or replace corresponding wiring
harness).

Open Circuit

  Earthing circuit (the circuit between the carbon

canister’s electromagnetic valve connector 1
and ECU connector terminal 46, in which there
is public connector)

  Power circuit (the circuit between the carbon

canister’s electromagnetic valve connector
terminal 2 and main circuit breaker connector
terminal D, in which there is public connector)







Short Circuit

  Electrical ground between carbon canister’s

electromagnetic valve connector terminal 2 and
ECU connector terminal 46, in which there is
public connector.

2.

Remount the carbon canister’s
electromagnetic valve.

3.  Remount the accumulator’s negative cable.











Connect with air hose

Connect with cylinder

Connect with vacuum
tube, to carbon canister’s
electromagnetic valve



Main relay

Connector on wiring harness’s side

  (viewing from the electrode terminal side)



Intake and Exhaust System

1D-1



Chapter 4  Intake and Exhaust System

Table of Contents



Intake system ·······································································································1D-2

Exhaust System·····································································································1D-2

Accelerating System ·······························································································1D-3



























































Intake and Exhaust System

1D-2



Intake system

Intake System Dismantling/Mounting

Warning

  When the engine and intake system stay at high

temperature, they can easily lead to personnel
injury. Before mounting or dismantling the intake
system, operation shall not be conducted until the
engine has stopped and cooled down.

  Fuel vapor is dangerous and combustible, which

may lead to serious injury and damage. Due to this,
avoid spark or naked flame at the place where there
is fuel.

  Fuel overflow or leakage is dangerous, which may

lead to personnel injury and property loss. In
addition, the fuel can irritate the skin and eye. Due
to this, Oil Circuit Safety Procedure shall be
always observed during the operation process.

1.  Disconnect the accumulator’s negative cable.

2.  Dismantle parts according to the sequence

illustrated in the table.

3.  Mount parts according to the sequence reverse to

the dismantling process.



1 Intake

duct



2 Intake

hose

3 Air

filter



Exhaust System

Inspection of Exhaust System

1.  Start the engine, and inspect if the exhaust

pipeline suffers air leakage (If there is air
leakage, overhaul the exhaust pipeline, or
replace it if necessary).

Exhaust System Dismantling/Mounting

Warning

  When the engine and exhaust system have yet to

cool down, they may scald the skin. Due to this,
dismantling work shall not be started until the
engine has stopped and cooled down.

1.  Loosen the accumulator’s negative cable.

2.  Dismantle parts according to the sequence

illustrated in the figure.

3.  Mount parts according to sequence reverse to the



Intake and Exhaust System

1D-3



dismantling process.

1

Front muffler assembly

2

Rear muffler assembly

3

Rear oxygen sensor

4

Three-way catalyst converter

Accelerating System

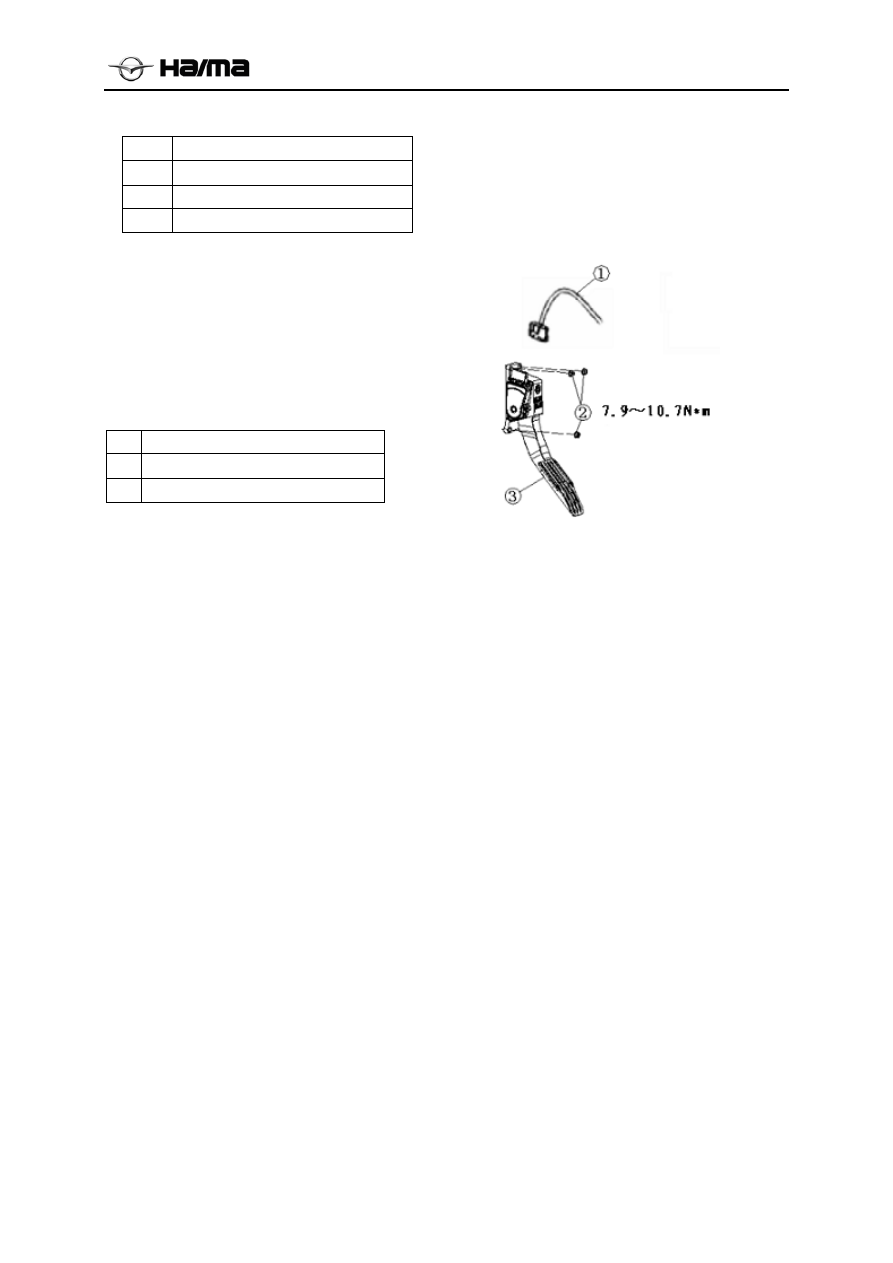

Accelerating System Dismantling/Mounting

1.  Dismantle parts according to the sequence

illustrated in the table;

2.  Mount parts according to the sequence reverse to

the dismantling process.

1

Accelerator pedal’s wiring harness

2 Nut
3 Accelerator

pedal



Notice

  Connect the wiring harness with the accelerator

pedal with caution, and insert the joint uprightly.























Cooling System

 1E-1



Chapter 5    Cooling System

Table of Contents



Warning on Cooling System Maintenance······································································1E-2

Engine Coolant ·····································································································1E-2

Inspection of Engine Coolant’s Liquid Level ····························································1E-2

Replace Engine Coolant·····················································································1E-2

Inspection of Engine Coolant Leakage····································································1E-3

Inspection of Heat Sink Lid ··················································································1E-3

Heat Sink Dismantling/Mounting················································································1E-4

Fan Parts Dismantling/Mounting ··········································································1E-4

Thermostat ····································································································1E-4

Water Pump Dismantling/Mounting·············································································1E-5

Fan Motor ···········································································································1E-5

Fan Relay············································································································1E-5







































Cooling System

 1E-2



Warning on Cooling System
Maintenance

When the engine is running or the engine and heat
sink are hot, do not dismantle the heat sink lid or
loosen the heat sink’s drain valve because hot
coolant and vapor may spout, which will result in
serious casualties and damage to the engine and
cooling system

Turn off the engine, and conduct further operation
after the engine cools down. Then, keep mindful
when removing the heat sink’s filler lid, and wrap
the filler lid with thick cloth and slowly turn it to the
first stop position along the anticlockwise direction.
When the pressure declines, turn it along the reverse
direction;

If there is not pressure, press the heat sink lid with
cloth and dismantle it.

Engine Coolant

Inspection of Engine Coolant’s Liquid
Level

1.  Confirm if the coolant’s liquid level in
subsidiary water tank ranges between FULL and
LOW.

If the engine coolant’s liquid level stays below
LOW, open the subsidiary water tank’s lid and add
the coolant near to the FULL mark.

If there is no coolant in the subsidiary water tank,
wait till the engine cools down, and open the heat
sink’s filler lid to add coolant from the heat sink
filler port till the coolant’s liquid level can be seen
from the filler port. Then, mount the heat sink’s
filler lid, and continue adding the coolant near to
the FULL mark.

Replace Engine Coolant

1.  Dismantle the subsidiary water tank, drain the

coolant in the subsidiary water tank, and clean
the subsidiary water tank.

2.  Take off the heat sink’s filler lid, and loosen

the water tank’s drain valve to drain the
coolant into a vessel.

3.  Wash the heat sink with water till all colored

marks have been removed.

4.  Dry completely the heat sink and subsidiary

water tank in the air.

5.  Mount the water tank’s drain plug and

subsidiary water tank.



Warning

Alcohol or methanol antifreeze may damage
aluminum parts on the engine, and so alcohol or
methanol shall not be used in the cooling system,
and only the glycol-based coolant can be used.

Only the softening (demineralization) water can
be used to mix with the coolant, and water
containing minerals will compromise the coolant’s
effect.

Engine coolant will result in damage to the
lacquer surface, and so the engine coolant shall be
rinsed out in no time when it touches the lacquer
surface.

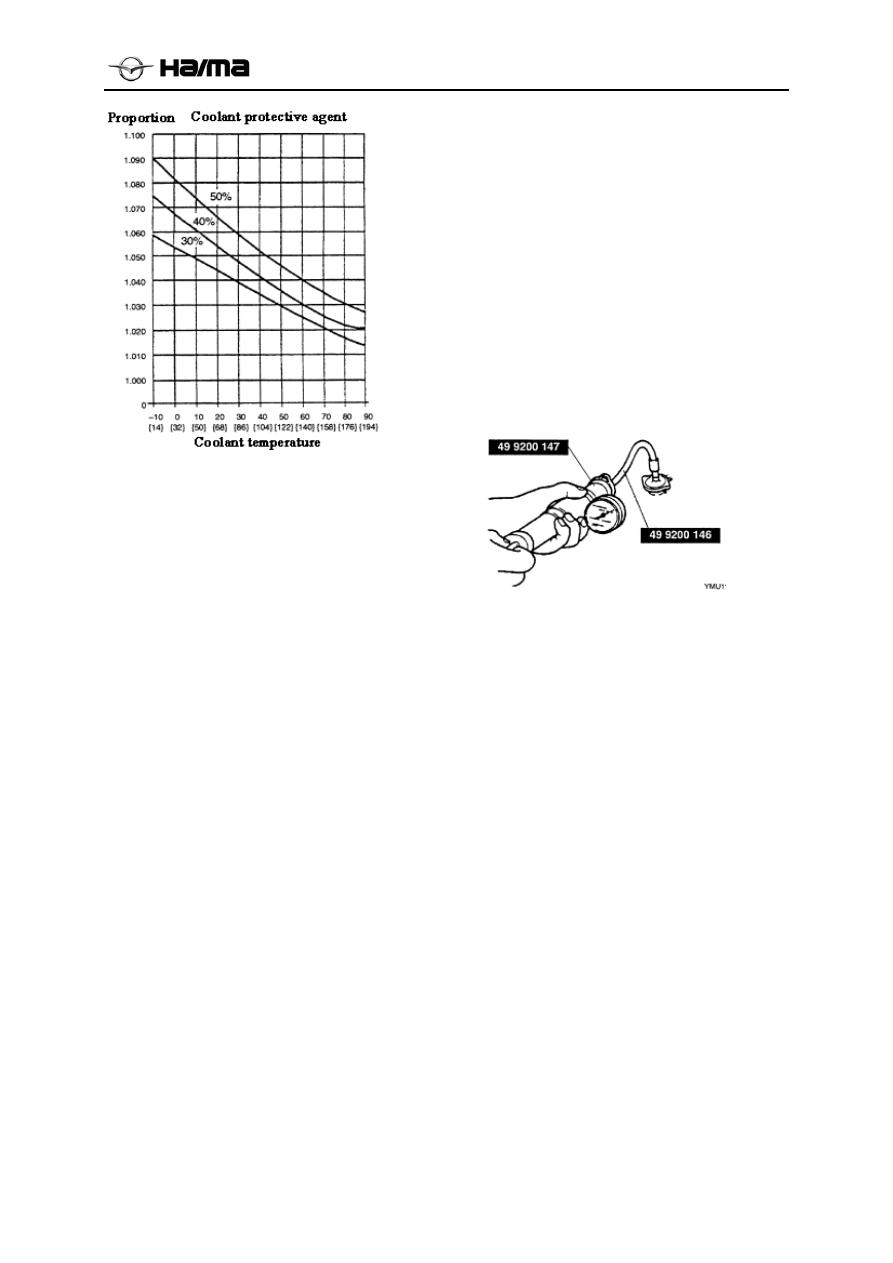

6.  Refer to table below to select appropriate

volume percentage for mixture of water and
coolant. Add slowly the coolant into the
water tank till the coolant reaches the filler
port.

Filling speed:1.0L(1.1USqt 、 0.9impqt)/min.
[Maximum Value]

Volume

percentage

Coolant

protective agent

Water Coolant

Proportion at

20 {68ºF}

℃



Higher than

-16 {3ºF}

℃



65 35

1.054

Higher than

-26 {

℃

-15ºF}

55 45

1.066

Higher than

-40 {

℃

-40ºF}

45 55

1.078

Drain valve



Cooling System

 1E-3





7.  Open the heat sink’s filler lid, and add the

coolant from the filler port till the coolant’s
liquid level can be seen from the filler port.

8.  Tighten the heat sink lid, and add the coolant

near to the FULL mark from subsidiary water
tank.

9.  Start the engine and maintain the idling speed

till the cooling fan begins to work.

Notice

  If the coolant temperature is over high, stop the

engine to prevent the coolant from being
overheated.

10.  Conduct the following operations after the

engine temperature rises:

(1)  Make the engine run for one minute at the

rotating speed of 4000rpm;

(2)  Make the engine run for one minute at the

idling speed;

(3)  Repeat Step 1 and Step 2 for several times;

(4)  Turn on the front/rear heater unit (if has), and

confirm if there is hot air exhausted from the
heater unit’s ventilation opening.

11.  Stop the engine and wait till it cools down.

12.  Confirm if there is coolant leakage.

13.  Inspect the coolant’s liquid level. If the level

is relatively low, add the coolant into the
subsidiary water tank till it reaches the F
mark.

Inspection of Engine Coolant Leakage

1.  Inspect the coolant’s liquid level.

2.  Take off the heat sink lid.

3.  Connect the heat sink lid tester and SST

special maintenance tool with the heat sink’s
filler port.

Notice

  If the pressure surpasses 123kPa {1.25kgf/cm2,

17.8psi}, hose joint and other parts will be
damaged, which will in turn lead to leakage.

4.  Make the heat sink reach specified

pressure:

Pressure:123kPa{1.25kgf/cm2, 17.8psi}



4.  Inspect if the pressure can be maintained. If

cannot, inspect if the system suffers coolant
leakage.

Inspection of Heat Sink Lid

Warning

  When the engine is running or the engine and

heat sink are hot, do not dismantle the heat sink
lid because hot coolant and vapor may spout,
which will result in serious casualties and
damage to the engine and cooling system

  Turn off the engine, and conduct further

operation after the engine cools down. Then,
wrap the heat sink lid with thick cloth carefully,
and slowly turn it to the first stop position
along the anticlockwise direction. When the
pressure declines, turn it along the reverse
direction;

  If there is not pressure, press the heat sink lid

with cloth and dismantle it.

1.  Use the SST special service tool to connect

the heat sink lid with the tester.

2.  Increase the pressure little by little.

3.  Inspect if the pressure stays within the

specified range. If the pressure can keep for
10s, it indicates that the heat sink lid is



Cooling System

 1E-4



normal.

Pressure range:94-122kPa{0.95-1.25kgf/cm2,
13.5-17.7psi}



Heat Sink Dismantling/Mounting

Fan Parts Dismantling/Mounting

1.  Disconnect the accumulator’s negative cable;

2.  Drain the engine coolant;

3.  Dismantle the front grille;

4.  Dismantle the heat sink bracket bolt and

condenser fixing bolt;

4.  Dismantle the subsidiary water tank’s hose

(connect with the heat sink end);

5.  Dismantle parts according to the sequence

illustrated in the table;

6.  Mount parts according to the sequence

reverse to the dismantling process.



1  Upper water pipe
2 Lower

water

pipe



3  Fan wiring harness connector
4  Subsidiary water tank assembly
5 Fan

assembly



6 Heat

sink

assembly



Thermostat

Thermostat Dismantling/Mounting

1.  Drain the engine coolant.

2.  Dismantle parts according to the sequence

illustrated in the table.

3.  Mount parts according to the sequence

reverse to the dismantling process.



①

 Upper heat sink hose

②

 Thermostat lid

③

 O-ring

④

 Thermostat Mounting Attentions

Instructions for installing the thermostat

1.  Mount the thermostat onto the thermostat

housing, pay attention to the thermostat’s
direction, with clamping pin facing upward.



Thermostat Inspection

1.  Inspect thermostat according to items below.

—Valve temperature when being turned on or off.

—Valve’s critical temperature in full opening or

full closing state. If technical requirements
cannot be met, replace the thermostat.

Condition Action

Temperature℃

Temperature rising
process

Initial
opening

81

(

8.8-12.7)N*m

(

4.5-6.0)N*m

Clamping pin



Cooling System

 1E-5



Full
opening

93

Start
closing

90

Temperature
decline process

Full
closing

79

Water Pump Dismantling/Mounting

See Engine Water Pump Dismantling/ Mounting
for the water pump dismantling/ mounting.

Fan Motor

Fan Motor Inspection

1.  Confirm if the accumulator has been fully

charged.

2.  Connect the accumulator’s positive electrode

and amperemeter with the fan motor plug.

3.  Confirm if the fan motor runs stably while

being driven by standard current. Replace fan
motor if it fails to meet technical
requirements.



Standard Current:

①

Connected, High-speed Action 11-12.5A [12V]

①

Disconnected, Low-speed Action 9-10.5A [12V]

Fan Motor Dismantling/Mounting

1.  Dismantle the cooling fan.

2.  Dismantle parts according to the sequence

illustrated in the table.

3.  Mount parts according to the sequence reverse

to the dismantling process.







1 Cooling

fan

blade



2

Fan motor assembly

Fan Relay

Inspection of Fan Relay

1.  Disconnect the accumulator’s negative cable

2.  Dismantle the fan relay from the relay box.







Use the ohmmeter and 12V power supply to
inspect the fan relay’s quality. If the relay is unable
to run normally or meet technical requirements,
replace the fan relay. See table below for the relay
inspection:

Step

Port

Compliance

standard

1 Ohmmeter

tests

Infinite

High-speed relay socket

Low-speed
relay socket

Connect with the ECU control end

①



Connect with the power supply end



Cooling System

 1E-6



resistance at both ends of
Pin 30 and Pin 87

resistance

2

Both ends of Pin 85 and
Pin 86 directly link with
12V power supply

Hear the
relay’s
actuation
voice

3

Keep the relay’s
actuation state, and again
use the ohmmeter to test
resistance at both ends of
Pin 30 and Pin 87

Resistance is
zero

Remark

High/low-speed relay pins have the
same definition

Relay Diagram





































































Accessory-Belt

 1F-1





Chapter 6  Engine Accessory-Belt

Table of Contents

Driving Belt ·········································································································1P-2

A/C Compressor Multi-wedge V Belt Adjustment ····························································1P-2

Power Steering Pump Belt Adjustment ·········································································1P-3



























































Accessory-Belt

 1F-2



Driving Belt

If necessary, inspect the driving belt’s distortion
and tension.

Inspection of Driving Belt’s Distortion

Notice:

  After 30 minutes since the automobile engine

stops, inspect the belt distortion with a belt
tensiometer, in order to confirm if the belt
tension stays within the standard value.

  If the belt tension goes beyond the specified

range, adjust the driving belt (see Adjustment
of Driving Belt)









Inspection of Driving Belt Tension

Notice

  The inspection shall be conducted after the

engine cools down

Use SST to inspect the tension of belt between two
driving wheels.

  If the tension goes beyond the specified range,

make adjustment (see Adjustment of Driving
Belt)





A/C Compressor Multi-wedge V Belt
Adjustment

1.  Loosen appropriately the nut on the power

generator’s pivot bolt.

2.  Loosen the power generator’s fixing bolt, and

then tighten it for about 5N.m, in order to
avoid the pulley’s deflection.





3.  Use the adjusting bolt to adjust the belt

tension and belt deflection to the standard
value.

4.  Tighten the power generator’s pivot nut.

Tightening torque:  39.5±4N·m

5.  Tighten the power generator’s fixing bolt.

Tightening torque: 20±2N·m









When measuring

When mounting

Adjust bolt

Fix power generator bolt

Power generator pivot nut



Accessory-Belt

 1F-3



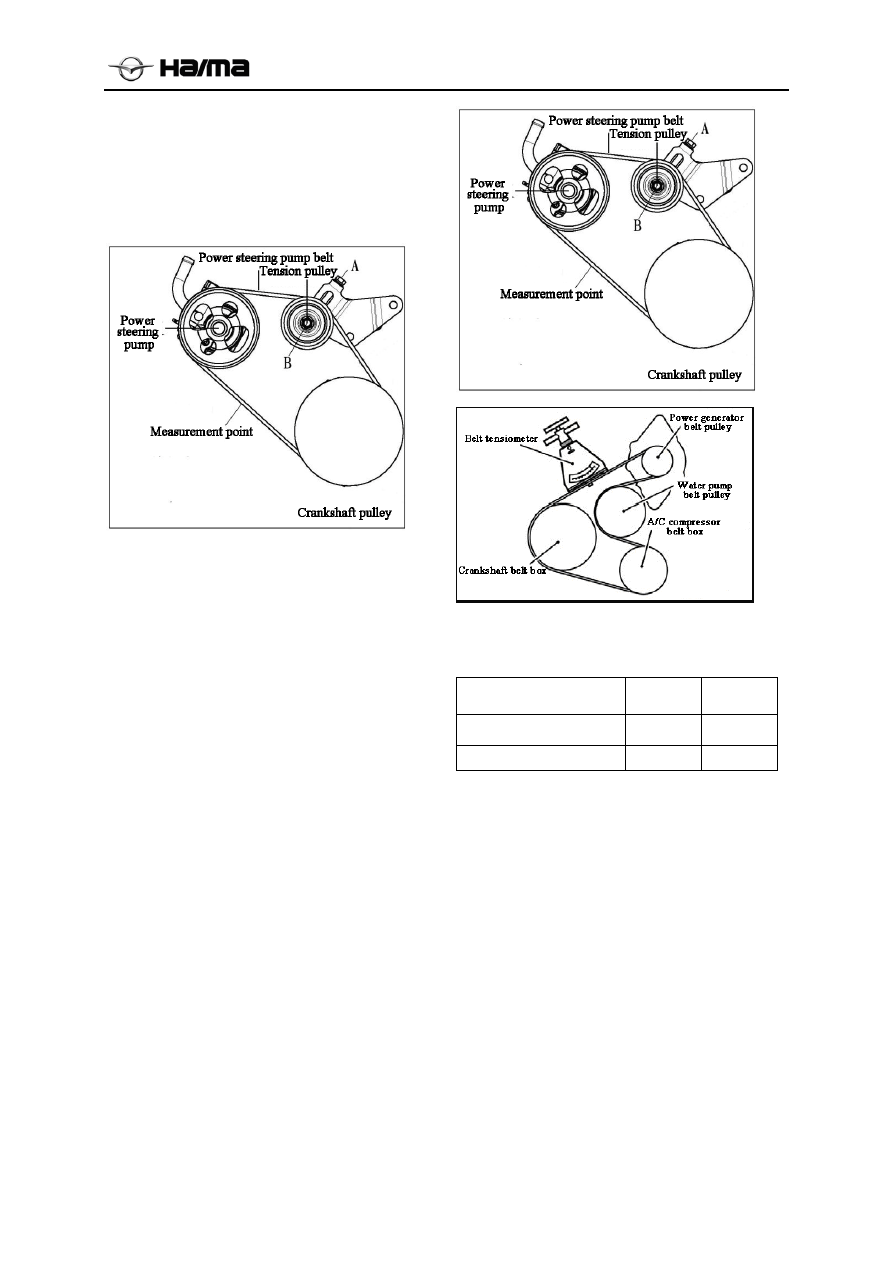

Power Steering Pump Belt
Adjustment

1.  First, loosen the tension pulley’s nut B, and

then tighten it for about 5N.m, in order to
avoid the pulley deflection.





2.  Adjust the stud bolt A to drive the tension

pulley’s location change in the tension pulley
bracket’s slot, so as to adjust the belt tension.

3.  After the tension meets requirements, tighten

the tension pulley nut B, Tightening
torque:40～48N.m

Notice

  If mounting new driving belt or running

driving belt for not greater than 5minutes,
adjustment shall be made according to the new
part’s standard value.

  If running the driving belt for more than 5

minutes, adjustment shall be made according
to the old part’s standard value.







Distortion (mm/98N)

Driving Belt

New

Old

A/C Compressor Belt  600N-700N500N-600N

Power Steering Pump Belt400N-500N300N-350N
