Engine block 1A-28



Valve Mechanism Dismantling/ Mounting

1.  Dismantle cylinder head(see the cylinder head

dismantling).

2.  Dismantle parts according to sequence

illustrated in the figure. .

3.  Mount the parts according to the sequence

reverse to the dismantling process.







1

Valve Half (see dismantling/mounting
explanations)

2

Valve spring upper seat

3

Valve spring (see the mounting
explanations)

4

Valve spring lower seat

5

Valve (see the mounting explanations)

6 Valve

oil

seal



Explanations on inspection of valve
clearance

1.  Dismantle the cylinder head hood (see

cylinder head hood dismantling part).

2.  Confirm if the engine has been cooled.

3.  Measure valve clearance.

(1)  Rotate the crankshaft along the clockwise

direction, making the piston located at the
stopping place on No.1 Cylinder, namely, gas
distribution mark shall be adjusted to the
position indicated in the right figure.

(2)  Use plug gauge to measure valve clearances

of all cylinders at Mark A indicated in the
figure.



★

  Note:If the valve clearance exceeds the

standard value, replace the tappet(see the
valve clearance’s adjustment)valve
clearance’s standard value (when engine is in
cooling state):
Intake:0.18～0.26mm
Exhaust:0.26～0.34mm

(3)  Rotate the crankshaft for 360 degrees along

the clockwise direction, making the piston
located at the stopping place on No.4
Cylinder, namely, gas distribution mark shall
be adjusted to the position indicated in the
figure below.



(4)  Use plug gauge to measure valve clearances

of all cylinders at Mark B indicated in the
figure above.

★

  Note:If the clearance exceeds standard value,

tappet shall be replaced(see the valve
clearance’s adjustment)

Valve clearance’s standard value (when the engine
is in cooling state):

ON:0.18～0.26mm

OFF:0.26～0.34mm

4.  Mount cylinder head hood (see the timing

chain, cylinder head hood mounting part).



Engine block 1A-29



Explanations on the valve clearance’s
adjustment

To adjust the valve clearance, operation steps
below shall be observed:

1.  Dismantle camshaft (see the camshaft

dismantling part).

2.  Take out the tappet at the place where the

valve clearance shall be adjusted.

3.  Select an apposite tappet. New tappet’s

thickness =old tappet’s thickness + measured
valve clearance － standard valve clearance.
(standard valve clearance: ON, 0.22mm; OFF,
0.30mm)

4.  Mount the selected tappet into the tappet hole.

5.  Confirm the valve clearance again (see valve

clearance, valve clearance inspection).



Notice:

  If the valve clearance will be adjusted when

there is not timing chain, make the crankshaft
dowel pin towards side face, in order to
prevent the valve from colliding with the
piston top during the valve clearance
adjustment process.

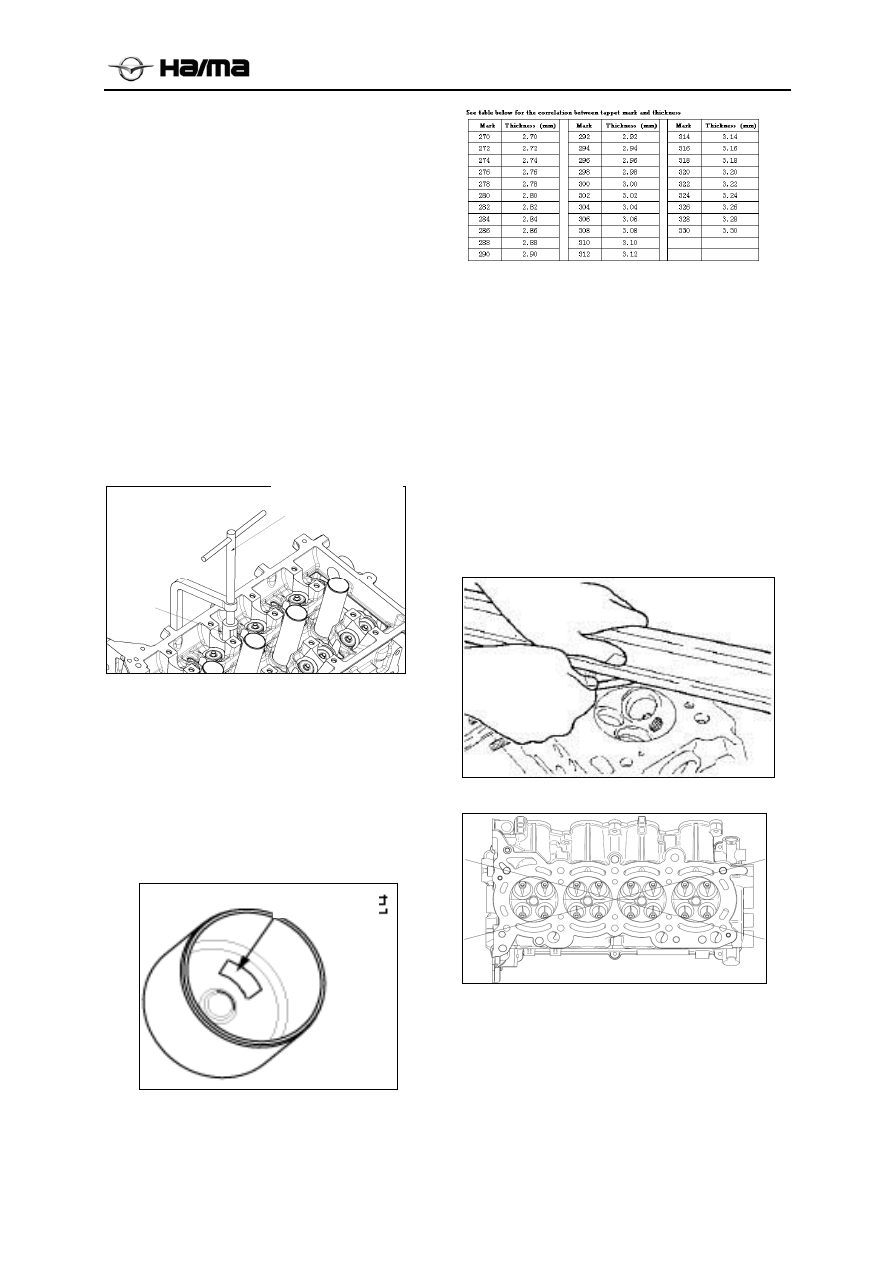

  Mark the tappet thickness inside the tapper

with 3 digits, see figure below:





Cylinder Head Inspection /Repair

1.  Inspect the cylinder head’s defect. If

necessary, replace the cylinder head.

2.  Inspect the following items, repair and

replacement shall be conducted if necessary.

(1).  If there is indentation at the valve seat.

(2).  If the camshaft journal clearance and end gap

is excessive.

3.  Use the Straight Edge Ruler and plug gauge

to inspect if the cylinder head is distorted
along six directions, see the figure.

Maximum distortion: 0.06mm







4.  If the cylinder head’s distortion exceeds the

maximum value, inspect the cylinder head’s
height. If the height stays beyond the standard
value, replace the cylinder head.

Standard height:112.9-113.1mm

Valve spring ejector

Pivot



Thickness mark



Engine block 1A-30



5.  If the cylinder head’s distortion exceeds the

maximum value, and the height stays within
the standard value, grind the height or replace
the cylinder head.

Maximum grinding volume:0.20mm

6.  Use the Straight Edge Ruler and plug gauge

to measure the cylinder head intake/ exhaust
manifold flange’s distortions along different
directions, see the figure.

Maximum distortion: 0.05mm







7.  If the distortion measured in Step 6 exceeds

the maximum value, grind the surface or
replace the cylinder head.

Maximum grinding volume: 0.20mm

Inspection of Valve and Valve Guide

1.  Measure thickness of every valve’s head rim.

If necessary, replace the valve.

Standard thickness: intake valve: 1.35mm; exhaust
valve: 1.85mm.

Minimum thickness: intake valve: 0.85mm;
exhaust valve: 1.35mm.









2.  Measure every valve’s length. If necessary,

replace the valve.

Standard length

Intake valve:89.31～89.91mm

Exhaust valve:90.63～91.23mm

Minimum length

Intake valve: 89.11mm

Exhaust valve: 90.43mm

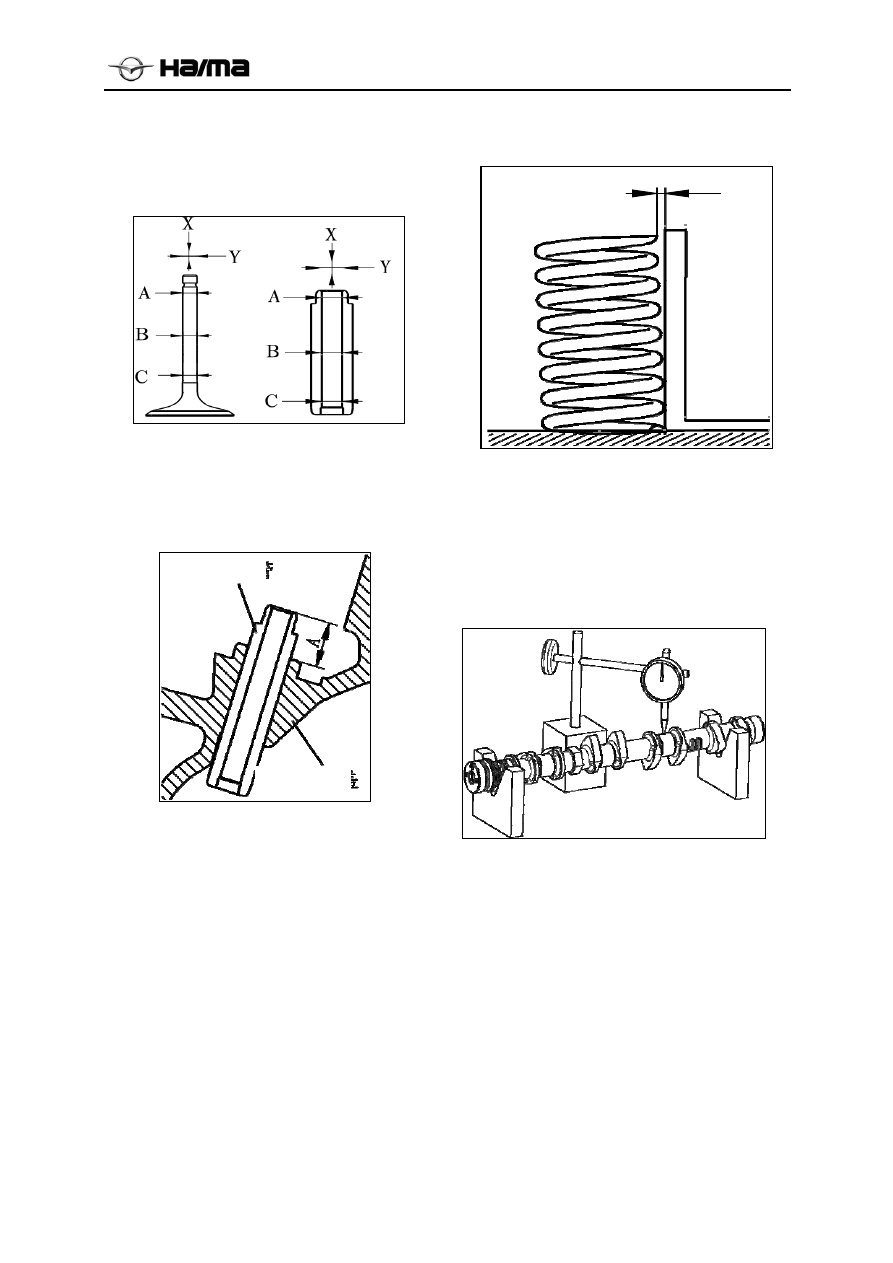

3. Measure every valve’s rod diameter

respectively at A, B, C point (see the figure)
along X and Y direction. If necessary, replace
the valve.

Standard diameter

Intake valve: 4.965～4.980mm

Exhaust valve: 4.955～4.970mm

Minimum diameter

Intake valve: 4.915mm

Exhaust valve: 4.905mm

4.  Measure every valve guide’s inner diameter

respectively at A, B, and C point along X and

Brim th

ic

knes

s



Engine block 1A-31



Y direction (see the figure). If necessary,
replace the valve guide.

Standard inner diameter

Standard:5.0～5.012mm



5.  When there is not valve spring’s lower seat,

measure every valve guide’s extrusion height
(Size A). If necessary, replace the valve
guide.

Standard height:12.7～13.3mm



Explanations on inspection of valve
spring

1.  Use the special tools to exert pressure on the

valve spring, and inspect the spring height. If
necessary, replace the valve spring. Exert
pressure on the valve spring, and compress
the spring to a given height, when the
pressure value exceeds the specified range,
the valve spring shall be replaced.

When the height is 33.4mm, the pressure is 142.2～
161.8N{14.51～16.51kgf};

When the height is 24.9mm, the pressure is
293.4～324.4N{29.94～33.10kgf}.

2.  Measure the valve spring verticality, and if

the verticality goes beyond the standard, the

valve spring shall be replaced.

Valve spring’s maximum verticality:1.50mm



Explanations on the inspection of
camshaft

1.  Place the camshaft’s No. 1 and No. 5 journals

onto the V-shaped block to measure the
camshaft’s radial run-out. If necessary,
replace the camshaft.

Radial run-out: 0.03mm

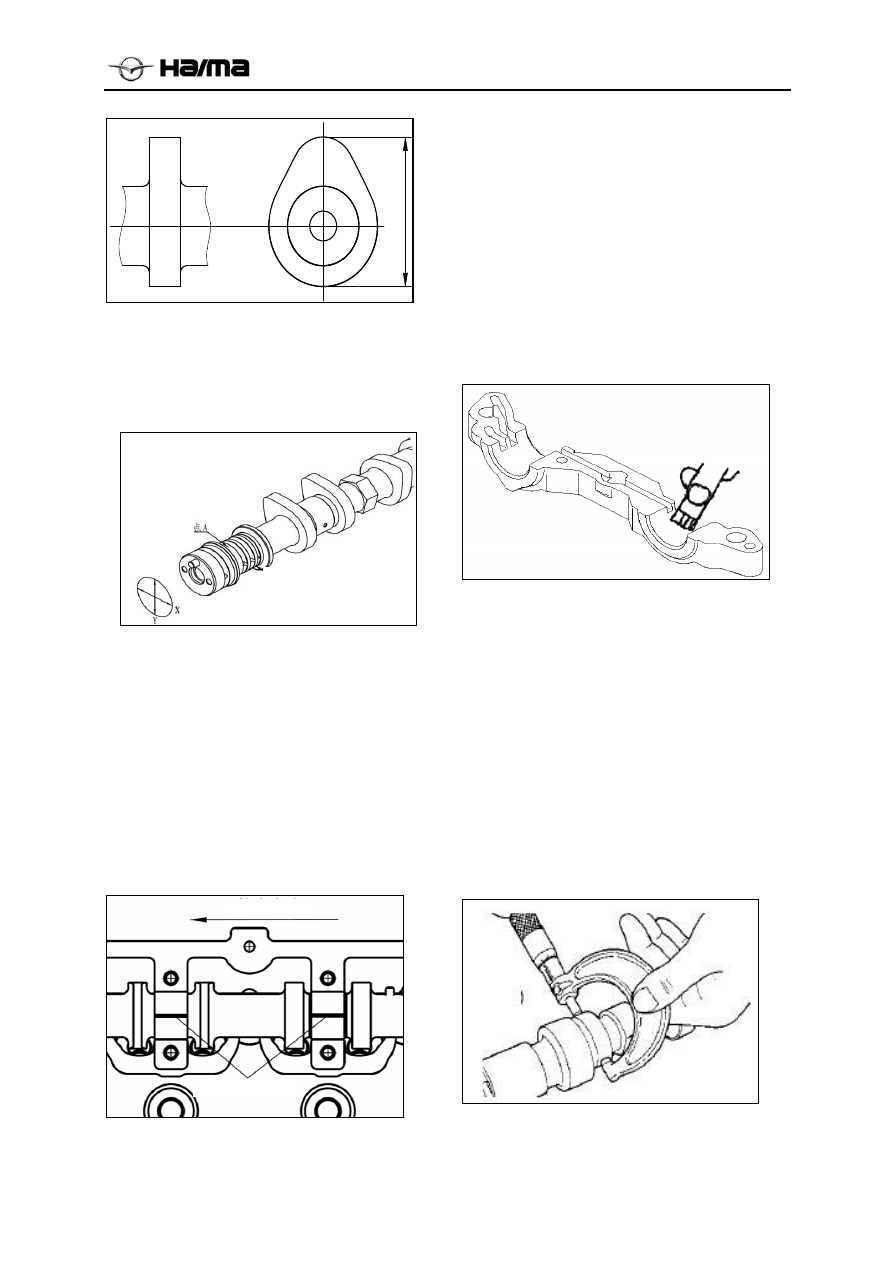

2.  Measure heights of the two convex parts (see

the figure). If necessary, replace the camshaft.

Standard height

Intake side: 44.71mm

Exhaust side: 44.28mm

Minimum height

Intake side: 44.51mm

Exhaust side: 44.08mm

Valve guide

Cylinder head



Engine block 1A-32





3.  Measure the journal diameter respectively at

A and B point along X and Y direction. If
necessary, replace the camshaft.

Standard diameter:25.940～25.965mm

Minimum diameter: 25.910mm



4.  Dismantle the tappet, and measure camshaft

journal clearance according to steps below:

(1). Remove all oil on the journal and bearing

seat’s internal surface.

(2).  Put the camshaft into the bearing seat.

(3). Make the plastic gauge match the bearing

width (see the figure), and then put it on the
top of journal along the axial direction.

(4).  Mount the camshaft cover (see cylinder head

dismantling/mounting, camshaft mounting
attentions).



Notice

  When measuring the clearance, do not rotate

the camshaft

(5).  Dismantle camshaft cover (see cylinder head

dismantling/mounting, camshaft dismantling
attentions).

(6). Use the scale on the plastic gauge bag to

measure the widest point on the plastic
gauge’s extruded part, and then calculate out
the journal clearance.

If necessary, replace the cylinder head and
camshaft cover.

Standard journal clearance:0.040～0.076mm



5.  Mount the camshaft cover (see cylinder head

dismantling/mounting, camshaft mounting
attentions).

6.  Mount the dial gauge, push camshaft forward

or backward at the end of camshaft (see the
figure), and measure the camshaft end gap. If
necessary, replace the cylinder head or
camshaft.

Caution

  Do not push the camshaft at the cam part, so

as to prevent the cam from being damaged.

Standard end gap:0.08～0.20mm

Maximum end gap:0.21mm



Point A

Point B

Axial direction

Plastic gauge



Engine block 1A-33



Explanations on inspection of tappet hole
and tappet

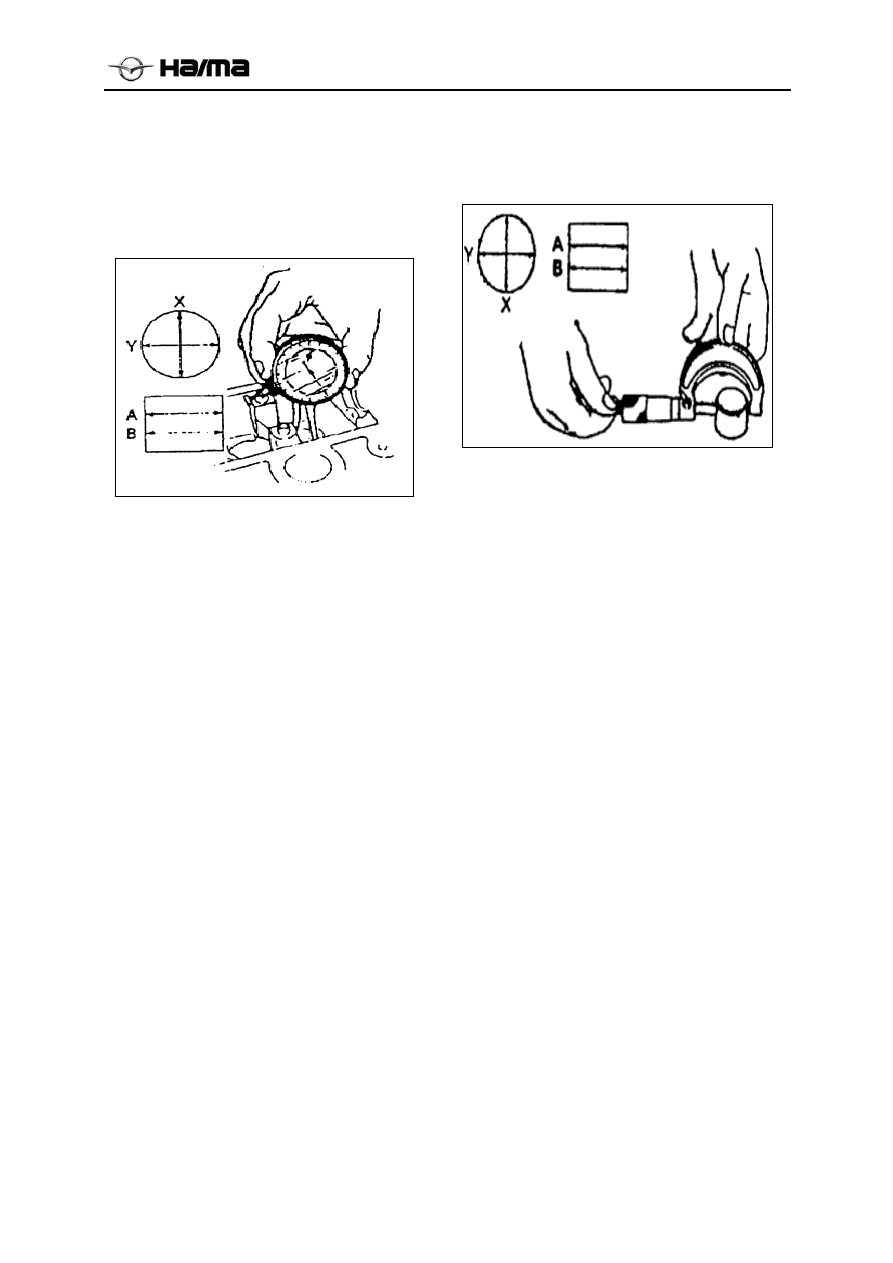

1.  Measure every tappet mounting hole’s inner

diameter respectively at A and B Point (see
the figure) along X and Y direction.

Standard inner diameter:31.000～31.025mm















































2.  Measure every tappet’s diameter respectively

at the A and B point (see the figure) along X
and Y direction.

Standard diameter:30.964～30.980mm



3.  Calculate the clearance between tappet and

corresponding tappet hole. If necessary, replace
the tappet or cylinder head.

Standard clearance:0.020～0.061mm

Maximum clearance:0.180mm









































Engine block 1A-34



Flywheel, clutch



Flywheel and Clutch Dismantling/Mounting

1.  If the crankshaft’s back cover needs to be dismantled, oil sump body shall be dismantled at first (see

lubricating system, oil sump body dismantling and mounting).

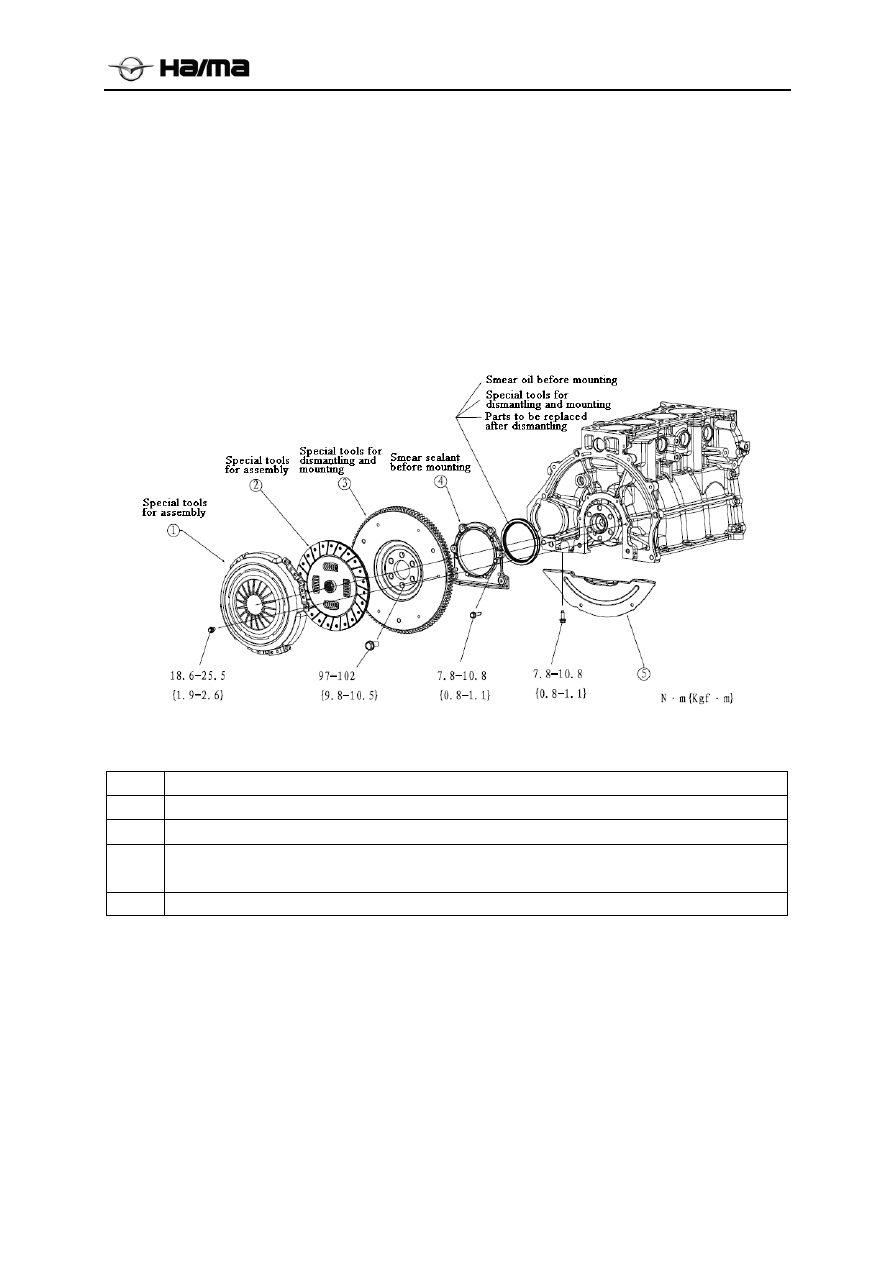

2.  Dismantle parts according to sequence illustrated in the figure. .

3.  Mount the parts according to the sequence reverse to the dismantling process.









1

clutch pressure plate  (see dismantling explanations/see mounting explanations)

2

Clutch friction disc (see dismantling explanations/see mounting explanations)

3

flywheel

(see dismantling explanations/see mounting explanations)

4

Crankshaft’s back cover

(see the rear oil seal dismantling explanations /see rear oil seal

mounting explanations /see mounting explanations)

5 Transmission’s

baffle

plate















Engine block 1A-35



Explanations on Clutch Pressure
Plate/Friction Disc Dismantling

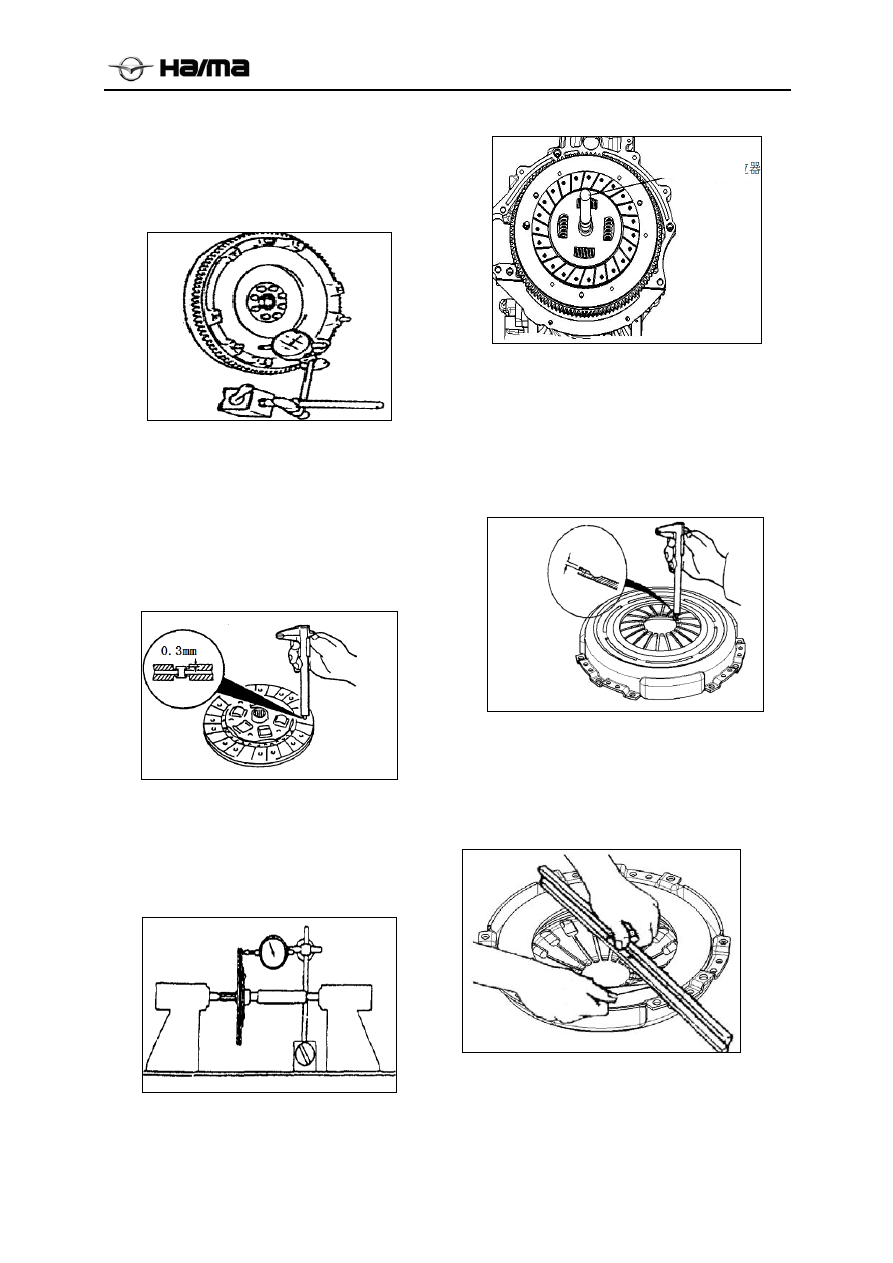

1.  Use the special tools to lock the flywheel, and

locate the clutch(see the figure).

2.  Loosen the bolt in a disposable manner

according to the sequence of right-angled
intersection till the diaphragm spring’s
pressure is released.

3.  Dismantle the clutch pressure plate and

friction disc.



Explanations on flywheel dismantling

1.  Use the special tools (see the figure) to lock

the flywheel.

2.  Follow the right-angled intersection sequence

to evenly dismantle the mounting bolt (see the
figure), and dismantle the flywheel.



Explanations on Rear Oil Seal
Dismantling/Mounting

1.  Use the screwdriver, wrapped with protective

cloth, to dismantle the oil seal(see the figure)

Notice

  Normally, there is no need to dismantle the oil

seal, unless being replaced.

2.  Add clean oil onto the oil seal opening.

3.  Mount the oil seal with hands.

4.  Use the special tools and hammer to compress

the oil seal.

Compression depth:0～0.5mm







Explanations on the crankshaft’s back
cover mounting

1.  Smear evenly sealant onto indentation of the

crankshaft’s back cover (see the figure).

Sealant diameter:Φ1.5～Φ2.5mm



Explanations on the flywheel mounting
/inspection

1.  Mount the flywheel onto the crankshaft.

2.  Clean the thread and hole before mounting the

bolt.

3.  Smear evenly the sealant onto the thread.

Notice

  There is no need to smear the sealant when

using new bolt

4.  Tighten the flywheel bolt with hands.

5.  Mount special tools onto the flywheel (see the

figure).

6. Follow the sequence of right-angled

intersection to tighten the flywheel bolt little
by little.



Protective
cloth

Smear sealant

Clutch plate setting tool

Gear ring fixture unit

Gear ring fixture unit

Gear ring fixture
unit



Engine block 1A-36



7.  Mount the dial gauge onto the cylinder body.

8.  Rotate the flywheel and measure the

flywheel’s end-on circle run-out. If it exceeds
the standard, replace the flywheel.

Maximum end-on circle run-out:0.13mm



Explanations on the clutch friction disc
inspection /mounting

Use the vernier caliper to measure rivets on both
sides and the friction disc surface’s depth.

If it exceeds the standard, replace the clutch
friction disc

Minimum depth:0.3mm



Use the dial gauge to measure the clutch friction
disc’s end-on circle run-out.

If it exceeds standard, replace the clutch
friction disc

Maximum end-on circle run-out:0.7mm



Use the special tools to secure the clutch friction
disc’s position (see the figure).





Explanations on the clutch pressure plate
inspection/mounting

1.  Measure the diaphragm spring’s abrasion.

If it exceeds standard, replace the clutch
pressure plate

Maximum height: 0.6mm



2.  Use the Straight Edge Ruler and plug gauge

to measure the pressure plate’s flatness.

If it exceeds standard, replace the clutch
assembly.

Maximum clearance: 0.05mm



3.  Use the special tools to lock the flywheel, and

locate the clutch(see the figure).



Clutch plate
locator



Engine block 1A-37







4.  Follow the right-angled intersection sequence

to evenly tighten bolts.

5.  Mount the dial gauge onto the cylinder body,

and rotate the flywheel to inspect the
diaphragm spring’s radial run-out.

If it exceeds standard, replace the clutch
pressure plate

Maximum radial circle run-out:0.6mm



Cylinder body, Crank Connecting
Rod Mechanism

Cylinder Body, Crank Connecting Rod
Mechanism Dismantling/Mounting

1.  Dismantle the cylinder head (see the cylinder

head part), oil sump, oil pump, and timing
chain case assembly (see lubricating system
part) and crankshaft’s back cover (see
flywheel, clutch part).

2.  Dismantle parts according to sequence

illustrated in the figure. .

3.  Mount parts according to the sequence

reverse to the dismantling process.









1

connecting rod
cover (see the
mounting
explanations)

7

Main bearing cover
(see the mounting
explanations)

2

connecting rod
bearing

8 thrust

bearing

3

piston ring(see the
mounting
explanations)

9 Crankshaft

bearing

4

Piston pin (see the
mounting
explanations)

10 Crankshaft

5 piston

11  Cylinder body

6 connecting

rod



Explanations on connecting rod cover
dismantling

Inspect the connecting rod end gap (see connecting
rod inspection part).

Explanations on piston pin dismantling

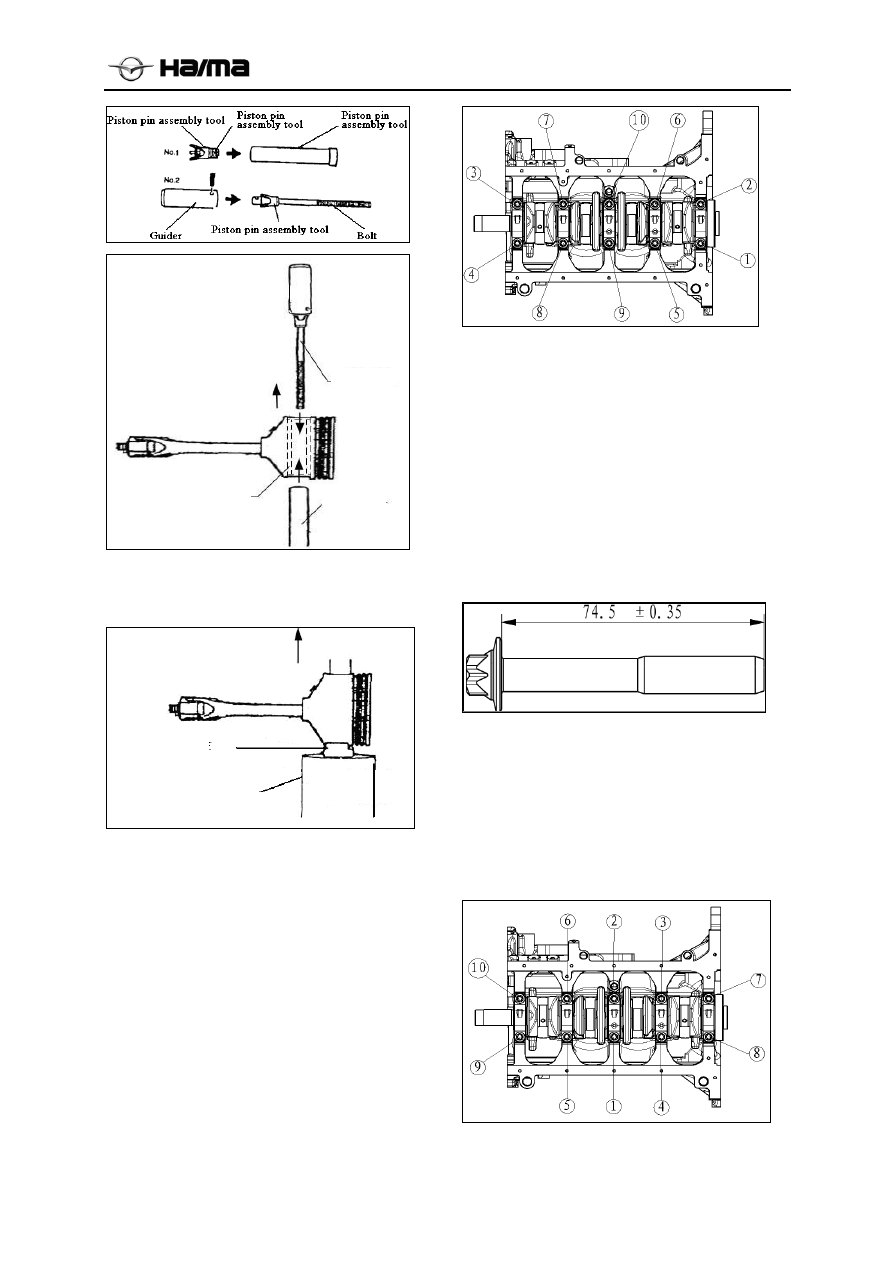

1.  Mount No. 1 and No. 2 special tools and

insert the No. 2 special tool into piston pin
and tighten it (see the figure)

Clutch plate setting tool

Gear ring fixture unit

Smear oil
before
mounting

⑨

Smear oil

before
mounting

②

Smear oil

before mounting



Engine block 1A-38







2.  Mount the special tools and piston connecting

rod assembly, which have been assembled in
Step 2, onto the special tools (see the figure).



3.  Use the press machine to extrude the piston

pin.

Explanations on main bearing cover
dismantling

1.  Inspect the crankshaft end gap (see the

crankshaft inspection /repair part).

2.  Loosen the main bearing cover’s bolt

according to steps illustrated in the figure.








Explanations on the crankshaft
dismantling

Inspect the main journal clearance (see the
crankshaft inspection /repair part).

Explanations on the main bearing cover
mounting

1.  Measure every bolt’s length. If the length

exceeds the standard value, replace the bolt.

Standard length: 74.15～74.85mm

Maximum length: 75.05mm



2.  Tighten main bearing cover’s bolt to specified

torque by steps according to the sequence
illustrated in the figure, as well as mark every
bolt head. Tightening torque:33 ～
35N·m{3.357～3.784kgf·m}

3.  according to the bolt-tightening sequence

(Step 2) illustrated in the figure, rotate every
bolt for 60°～64° from the mark.



Piston F’s mark side

Piston F’s mark side

No. 1 tool

No. 2 tool

Piston pin

Extrusion direction

Catch bolt

Piston pin assembly tool



Engine block 1A-39



Explanations on the piston pin mounting

1.  Use the special tools for mounting.

2.  Measure the following sizes (see the figure):

(1)A: exterior size of piston’s pin seat convex
plate

(2)B: piston cavity’s spread width

(3)C: piston pin length

(4)D: connecting rod’s small head width

(5) Put measured values into the formula
below:





3.  Insert the No. 2 special tool into the piston pin

and tighten it onto the No. 1 special tool.

4.  Measure length of No. 2 special tool’s

guiding part (L2), and adjust it to compress
the special tool (catch bolt), so as to make the
L’s size equal to L2＋h.



5.  Smear the clean engine oil onto the piston pin.











6.  Place the piston and connecting rod onto the

compression platform, and keep upward the
piston “F” mark side and connecting
rod“HM15A” or “474Q-C” mark side (see the
figure).



7.  Insert the piston pin and the special tool that

has been assembled in Step 2 into the piston
and connecting rod (see the figure).

8.  Use the press machine to press the piston pin

into the piston and connecting rod till No. 2
special tool (guide) contact the special
tool(catch bolt).

9.  When pressing the piston pin, inspect the

compression pressure. If the pressure is
lower than the index, replace the piston
pin or connecting rod.

Pressure:5～11kN(510～1122kgf)



10.  Inspect the piston pin’s compression depth, if

it goes beyond the standard value, repeat the
operation from step 1.

Piston pin’s compression depth:0.350～1.375mm

h=

B

CAD

2

Piston pin
assembly tool

Piston pin
assembly tool

Catch bolt

Piston F’s mark side

Connecting rod“HM15” mark side

Piston

Piston pin

Connecting rod

No. 1 tool

No. 2 tool

Connecting rod

“F” mark side



Engine block 1A-40

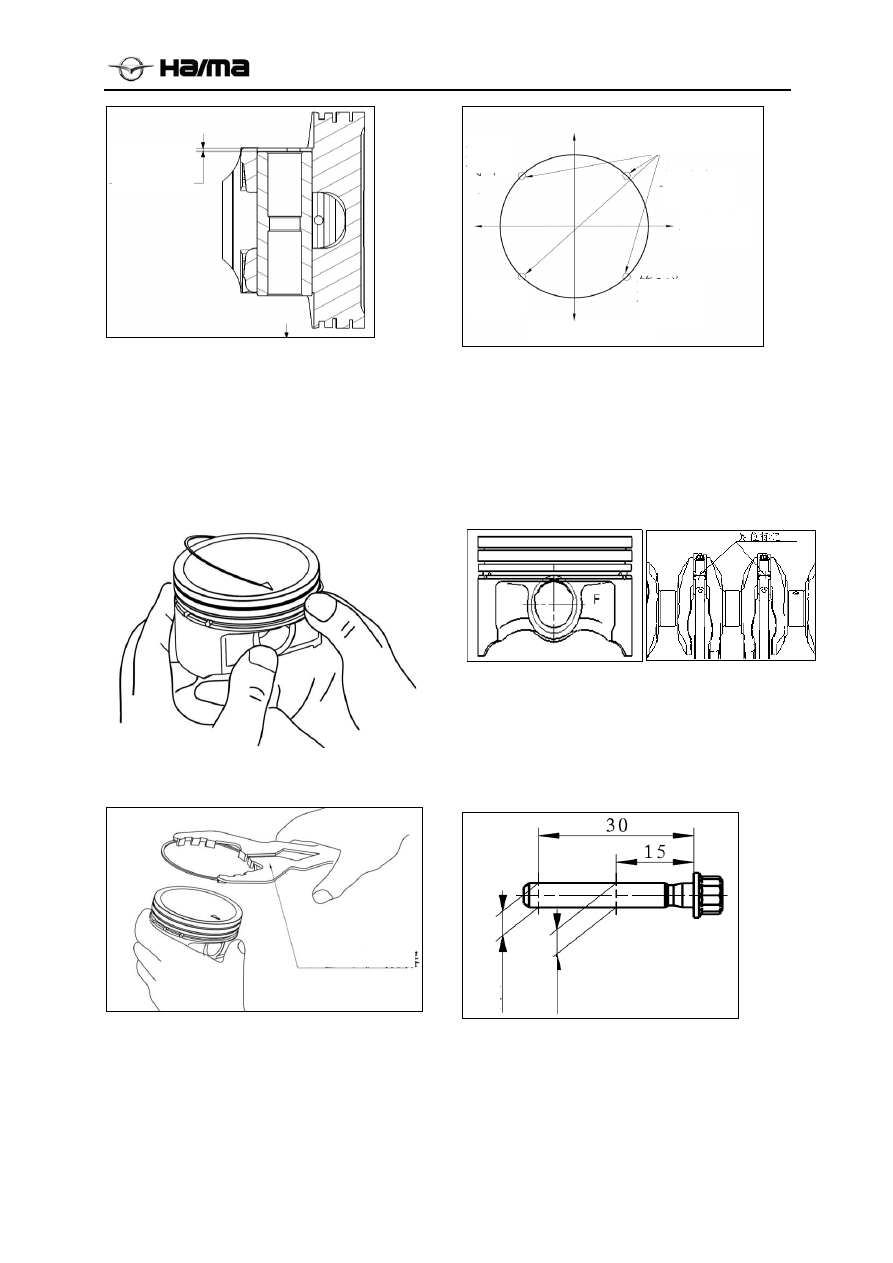

Explanations on the piston ring mounting

1.  Mount the corrugated ring into the piston ring

slot, and then mount one end of the oil scraper
into the slot with hands. After that, compress
other parts (see the figure). After the
mounting, inspect if all pieces can move
smoothly along two directions.

Caution

  Do not use the piston ring dilator to mount the

oil scraper, or rupture may be caused.



2.  Use the piston ring dilator to mount the No. 2

and No.1 piston ring. Keep the marker side
upward during the mounting process.

3.  Align all rings’ opening locations (see the

figure).





Explanations on piston connecting rod
assembly mounting

1.  Keep the piston “F” marker side face towards

the engine’s frontal part;

2.  When mounting the connecting rod cover,

align the connecting rod cover’s location
marker.



Explanations on the connecting rod cover
mounting

1.  The bolt can be reused, but when the outer

diameter difference at the two points
illustrated below exceeds 0.1mm, the bolt
shall not be further used.



2.  Tigthen the connecting rod bolt to specified

torque by steps according to the sequence
illustrated in the figure.

Tightening torque:13.0 ～ 17.0N·m{1.32 ～
1.74kgf·m}

Piston pin’s
depth in the
convex plate

No. 1
gas ring

Possible locations of all
piston rings’ abutment joints

Upper
scraper



Thrusting
direction



Lower
scraper



No. 2 gas
ring

Piston pin direction



Piston ring dilator

Outer

diam

eter

Outer

diam

eter



Engine block 1A-41





3.  Mark every bolt head.

4.  According to the bolt-tightening sequence

(Step 2) illustrated in the figure, rotate every
bolt for 90°～94° from its marker.

Cylinder Body Inspection /Repair

1.  Use the Straight Edge Ruler and plug gauge

to measure the distortion on the cylinder
body’s upper surface along six directions
illustrated in the figure.

Cylinder body’s maximum distortion:0.1mm



2.  If the distortion on the cylinder body’s upper

surface exceeds the maximum value, inspect
the cylinder body’s height. If the height stays
beyond the standard value, replace the
cylinder body.



Cylinder body

Standard height:204.95～205.05mm

3.  If the cylinder body’s distortion goes beyond

the maximum value and the height stays
within the standard value, grind the height or
replace the cylinder body.



Maximum grinding volume: 0.20mm

4.  Use the inside dial indicator to measure the

cylinder’s inner diameter at the place 60mm
away from upper surface along the X and Y
direction (see the figure).



5.  If the cylinder’s inner diameter goes beyond

the abrasion limit, replace the cylinder body,
and install the corresponding piston, in order
to make it accord with the standard clearance
between piston and cylinder. Abrasion limit:
0.135mm

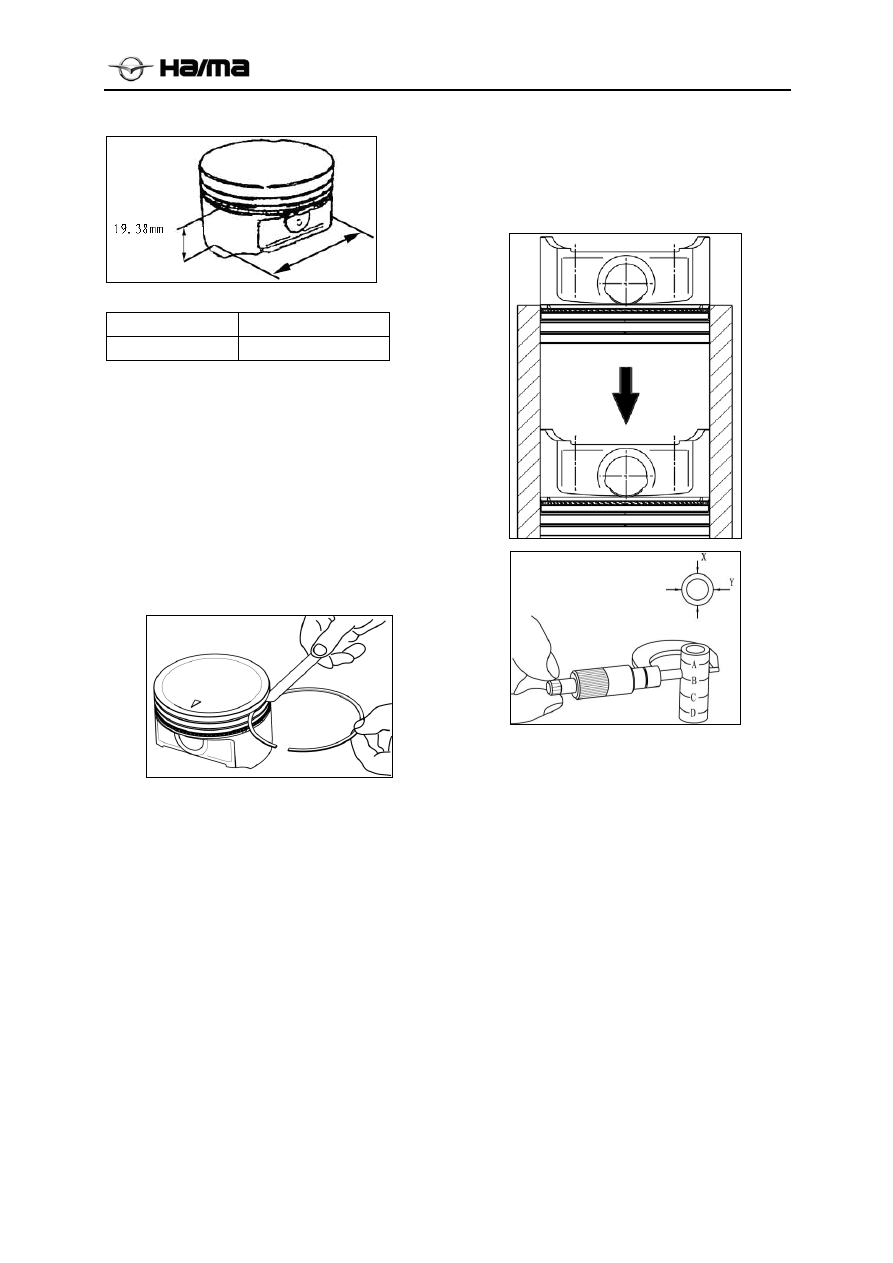

Piston, Piston Ring, and Piston Pin
Inspection

Along the vertical direction of piston pin hole’s
axial line, measure the piston’s diameter at the
place that is 19.38mm below the lower rim of the
oil control ring groove



    In

Front

Row

Cylinder body’s upper surface



Engine block 1A-42







Piston diameter

   (mm)

Size Diameter

Standard 74.78～74.79

Calculate the clearance between piston and
cylinder. If necessary, replace the piston.

Standard clearance:0.010～0.035mm

Maximum clearance: 0.10mm

1.  If replacing the piston, piston ring shall be

replaced as well.

2.  Use the plug gauge to measure the clearance

between piston ring and ring slot along the
entire perimeter (see the figure). If necessary,
replace the piston and piston ring.



Standard clearance

Ring 1:0.030～0.070mm

Ring 2:0.020～0.060mm

Oil ring:0.040～0.12mm

Maximum clearance

Ring 1, Ring2:0.15mm

Oil ring:0.15mm.

3.  Put the piston ring into cylinder with hands,

and use the piston to push the piston ring to
the bottom of the cylinder bore stroke.

4.  Use the plug gauge to measure every piston

ring’s opening clearance. If necessary, replace
the piston ring.

Standard opening clearance:

Ring 1:0.15～0.30mm

Ring 2:0.20～0.40mm

Oil Ring:0.10～0.40mm

Maximum opening clearance:1.0mm





Respectively at A, B, C, and D point along X and
Y direction, measure every piston pin hole’s
diameter.

Standard diameter:18.010～18.014mm

Respectively at A, B, C, and D point along X and
Y direction, measure every piston pin’s diameter

Standard diameter:18.001～18.005mm; Calculate
out the clearance between piston pin and piston pin
hole. If necessary, replace the piston or piston pin.

Standard clearance:0.005～0.013mm

5.  Measure the connecting rod’s small head

diameter (see connecting rod inspection), and
calculate the clearance between connecting
rod’s small head and piston pin. If necessary,
replace the connecting rod or piston pin.
Standard clearance:-0.031～-0.016mm.

Connecting Rod Inspection

1.  Use the plug gauge to measure the connecting



Engine block 1A-43



rod’s end gap. If necessary, replace the
connecting rod and connecting rod cover.



Standard clearance:0.100～0.350mm

Maximum clearance:0.40mm

2.  Measure the crank pin journal clearance

according to steps below.

(1). Remove all oil on the journal and bearing

seat’s internal surface.

(2). Make the plastic gauge match the bearing

width and then put it on the top of journal,
keeping parallel with the axial line.

(3).  Mount the connecting rod cover (see piston

and connecting rod mounting part).

(4). Dismantle the connecting rod cover’s bolt,

and slowly take off the connecting rod cover.

(5). Use the plastic gauge scale to measure the

widest point on the plastic gauge’s extruded
part, and then calculate out the journal
clearance. If the clearance exceeds the
maximum value, replace the crankshaft and
corresponding connecting rod bearing to
ensure the standard clearance.

Standard clearance:0.014～0.058mm



Maximum clearance:0.10mm

Size of connecting

rod bearing

Thickness of connecting

rod bearing

Standard 1.485～1.496



Inspection of Piston Connecting Rod
Assembly

Inspect the swaying torque (see the figure). If the
big head fails to drop down by virtue of its own
weight, replace the piston or piston pin.



Crankshaft Inspection /Repair

1.  Mount the dial gauge, use the screwdriver to

push the crankshaft frontward and backward,
and measure the crankshaft end gap (see the
figure). If the end gap surpasses the maximum
value, replace the thrust bearing or crankshaft
to fit the standard end gap.

Standard end gap:0.09～0.273mm
Maximum end gap:0.30mm

Thrust bearing’s sizeThrust bearing’s thickness

Standard 3.205～3.255

Drop down by virtue
of its own weight
