5-2. Steps to take in an emergency

Scion_xD_OM_OM52E36U_(U)

If your vehicle overheats

Correction procedures

Stop the vehicle in a safe place and turn off the air condition-
ing system, and then stop the engine.

If you see steam:

Carefully lift the hood after the steam subsides.

If you do not see steam:

Carefully lift the hood.

After the engine has cooled
down sufficiently, inspect the
hoses and radiator core (radia-
tor) for any leaks.

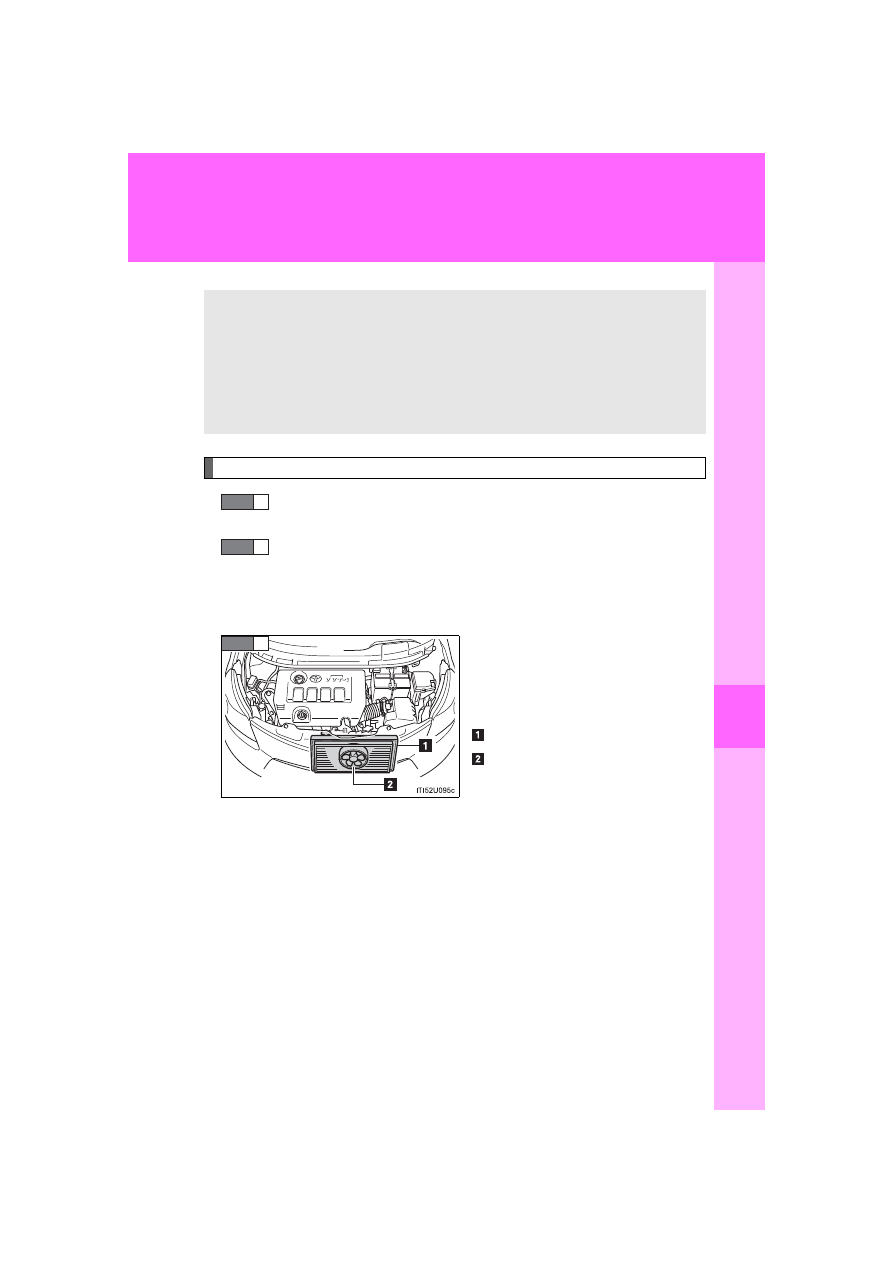

Radiator

Cooling fan

If a large amount of coolant leaks,
immediately contact your Scion
dealer.

The following may indicate that your vehicle is overheating.

● The high engine coolant temperature warning light (P. 305)

comes on or a loss of engine power is experienced. (For exam-
ple, the vehicle speed does not increase.)

● Steam comes out from under the hood.

STEP

1

STEP

2

STEP

5

STEP

3

342

5-2. Steps to take in an emergency

Scion_xD_OM_OM52E36U_(U)

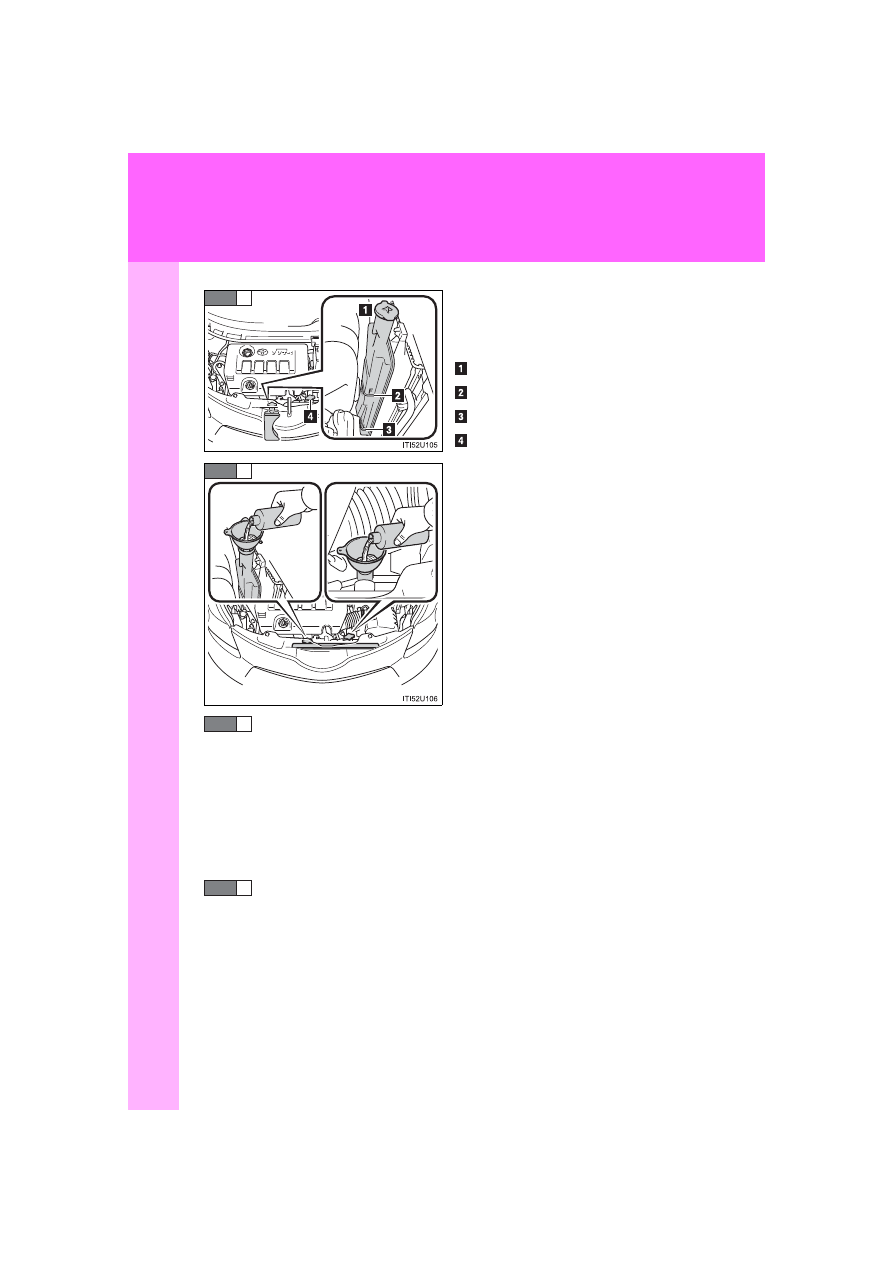

The coolant level is satisfactory if
it is between the “F” and “L” lines
on the reservoir.

Reservoir

Full

Low

Radiator cap

Add coolant if necessary.

Water can be used in an emer-
gency if coolant is unavailable.

Start the engine and turn the air conditioning system on to
check that the radiator cooling fan operates and to check for
coolant leaks from the radiator or hoses.

The fan operates when the air conditioning system is turned on
immediately after a cold start. Confirm that the fan is operating by
checking the fan sound and air flow. If it is difficult to check these,
turn the air conditioning system on and off repeatedly.
(The fan may not operate in freezing temperatures.)

If the fan is not operating:

Stop the engine immediately and contact your Scion dealer.

If the fan is operating:

Have the vehicle inspected at the nearest Scion dealer.

STEP

5

STEP

4

STEP

5

STEP

6

STEP

7

5

W
hen

 troub

le
arises

343

5-2. Steps to take in an emergency

Scion_xD_OM_OM52E36U_(U)

CAUTION

■

To prevent an accident or injury when inspecting under the hood of
your vehicle

●

If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injuries such as burns.

●

Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fan and belts. Failure to do so may cause the hands or clothing to be
caught, resulting in serious injury.

●

Do not loosen the radiator cap and the coolant reservoir cap while the
engine and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.

NOTICE

■

When adding engine coolant

Wait until the engine has cooled down before adding coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.

■

To prevent damage to the cooling system

Observe the following precautions:

●

Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).

●

Do not use any coolant additive.

344

5-2. Steps to take in an emergency

Scion_xD_OM_OM52E36U_(U)

If the vehicle becomes stuck

CAUTION

■

When attempting to free a stuck vehicle

If you choose to push the vehicle back and forth to free it, make sure the sur-
rounding area is clear to avoid striking other vehicles, objects or people. The
vehicle may also lunge forward or lunge back suddenly as it becomes free.
Use extreme caution.

■

When shifting the shift lever

For vehicles with an automatic transmission, be careful not to shift the shift
lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.

Carry out the following procedures if the tires spin or the vehicle

becomes stuck in mud, dirt or snow:

Stop the engine. Set the parking brake and shift the shift
lever to P (automatic transmission) or N (manual transmis-
sion).

Remove the mud, snow or sand from around the stuck tire.

Place wood, stones or some other material under the tires
to help provide traction.

Restart the engine.

Shift the shift lever to the D or R position (automatic trans-
mission) or 1 or R position (manual transmission) and care-
fully apply the accelerator to free the vehicle.
Turn off TRAC and VSC if these functions are hampering
your attempts to free the vehicle. (

P. 165)

STEP

1

STEP

2

STEP

3

STEP

4

STEP

5

5

W
hen

 troub

le
arises

345

5-2. Steps to take in an emergency

Scion_xD_OM_OM52E36U_(U)

NOTICE

■

To avoid damage to the transmission and other components

●

Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.

●

If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

346

5-2. Steps to take in an emergency

Scion_xD_OM_OM52E36U_(U)

If your vehicle has to be stopped in an emergency

Only in an emergency, such as if it becomes impossible to stop the

vehicle in the normal way, stop the vehicle using the following pro-

cedure:

Steadily step on the brake pedal with both feet and firmly
depress it.

Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.

Shift the shift lever to N.

If the shift lever is shifted to N

After slowing down, stop the vehicle in a safe place by the
road.

Stop the engine.

If the shift lever cannot be shifted to N

Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.

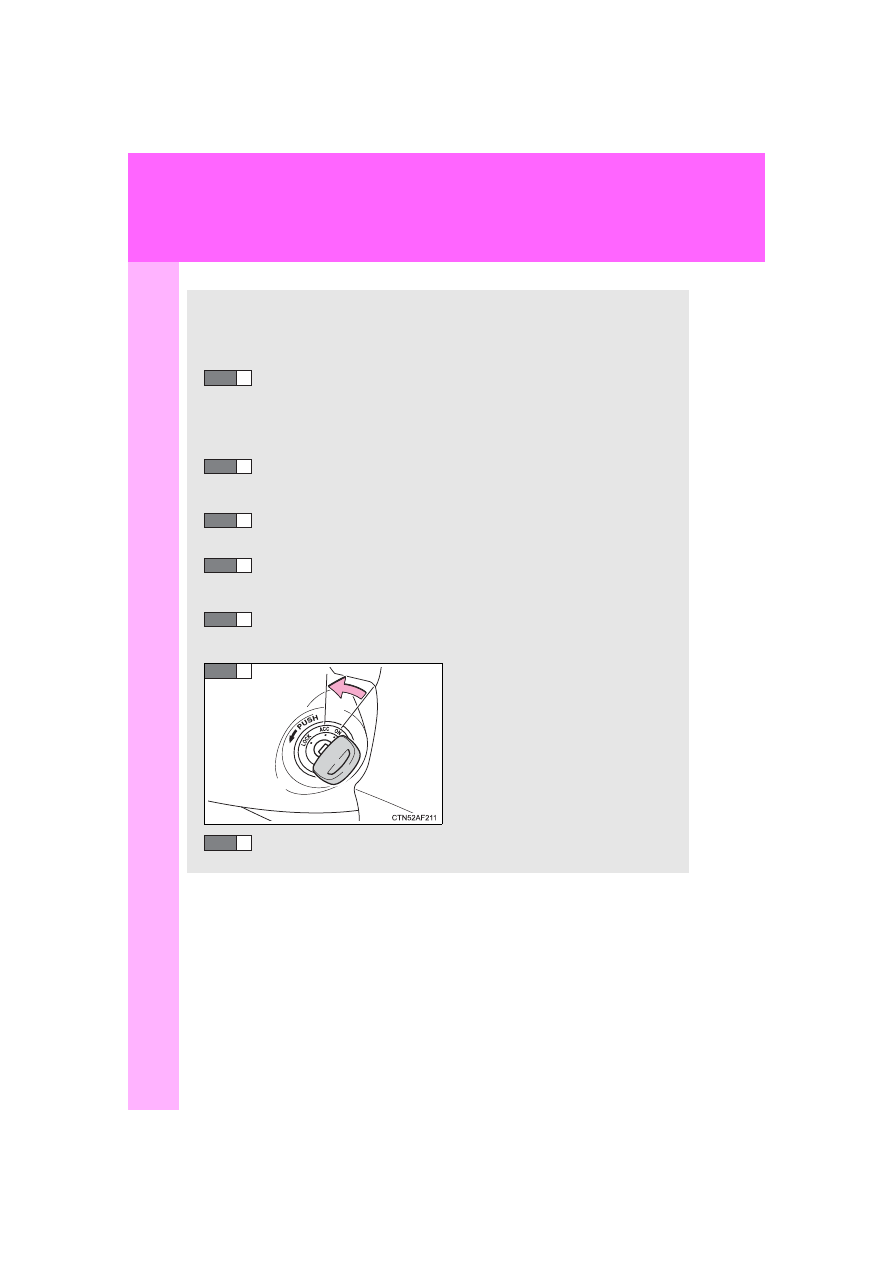

Stop the engine by turning the
engine switch to the “ACC”
position.

Stop the vehicle in a safe place by the road.

STEP

1

STEP

2

STEP

3

STEP

4

STEP

3

STEP

4

STEP

5

5

W
hen

 troub

le
arises

347

5-2. Steps to take in an emergency

Scion_xD_OM_OM52E36U_(U)

CAUTION

■

If the engine has to be turned off while driving

●

Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.

●

Never attempt to remove the key, as doing so will lock the steering wheel.

Vehicle specifications

6

349

Scion_xD_OM_OM52E36U_(U)

6-1. Specifications

Maintenance data

(fuel, oil level, etc.) .........  350

Fuel information ...............  361

Tire information ................  365

6-2. Customization

Customizable features .....  378

6-3. Initialization

Items to initialize ..............  380

350

Scion_xD_OM_OM52E36U_(U)

6-1. Specifications

Maintenance data (fuel, oil level, etc.)

Dimensions and weight

*

: Unladen vehicles

Vehicle identification

■

Vehicle identification number

The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Scion. It is used in registering the ownership of your vehicle.

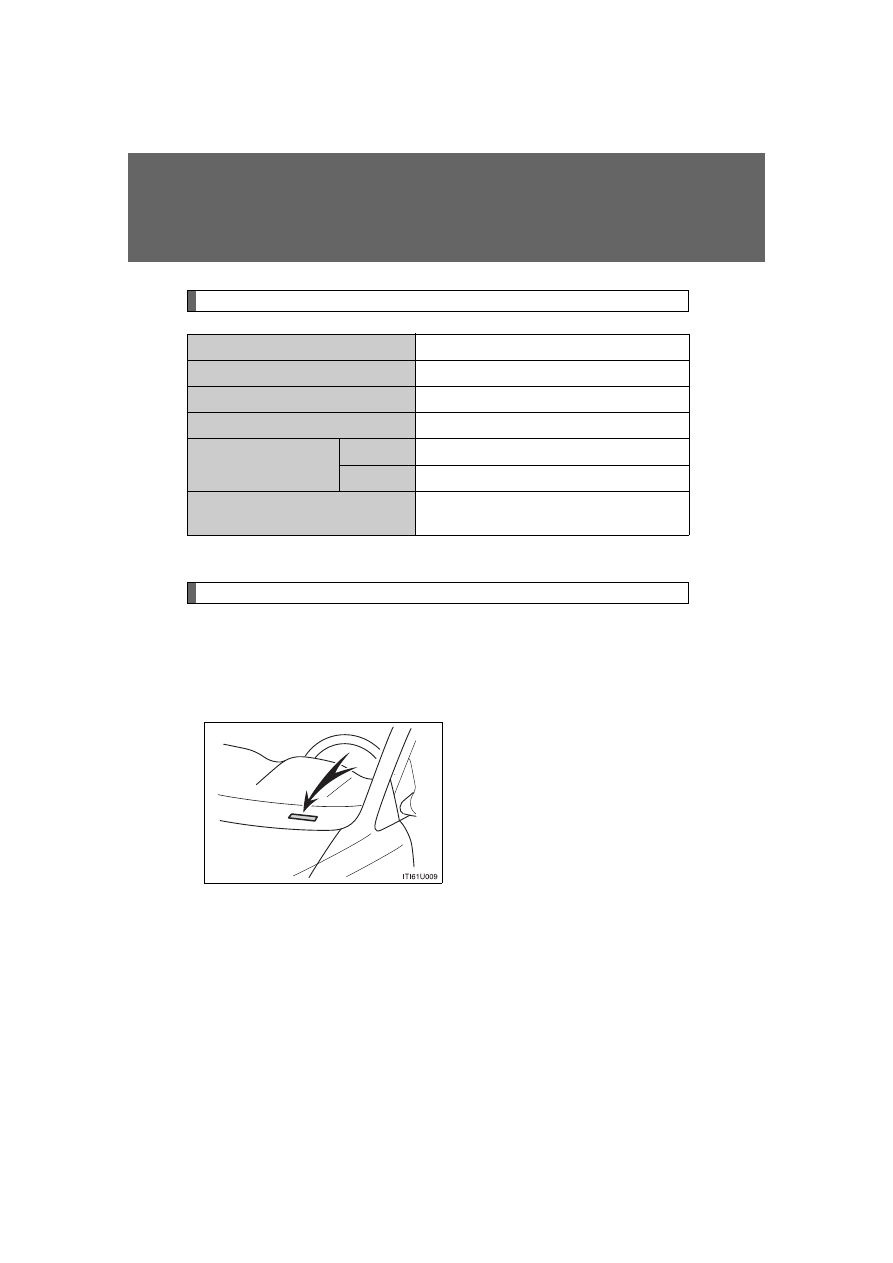

This number is stamped on the
top left of the instrument panel.

Overall length

154.7 in. (3930 mm)

Overall width

67.9 in. (1725 mm)

Overall height

*

60.0 in. (1525 mm)

Wheelbase

96.9 in. (2460 mm)

Tread

Front

58.5 in. (1485 mm)

Rear

58.7 in. (1490 mm)

Vehicle capacity weight
(occupants + luggage)

845 lb. (383 kg)

351

6-1. Specifications

6

Veh

icle speci

fic

a

tions

Scion_xD_OM_OM52E36U_(U)

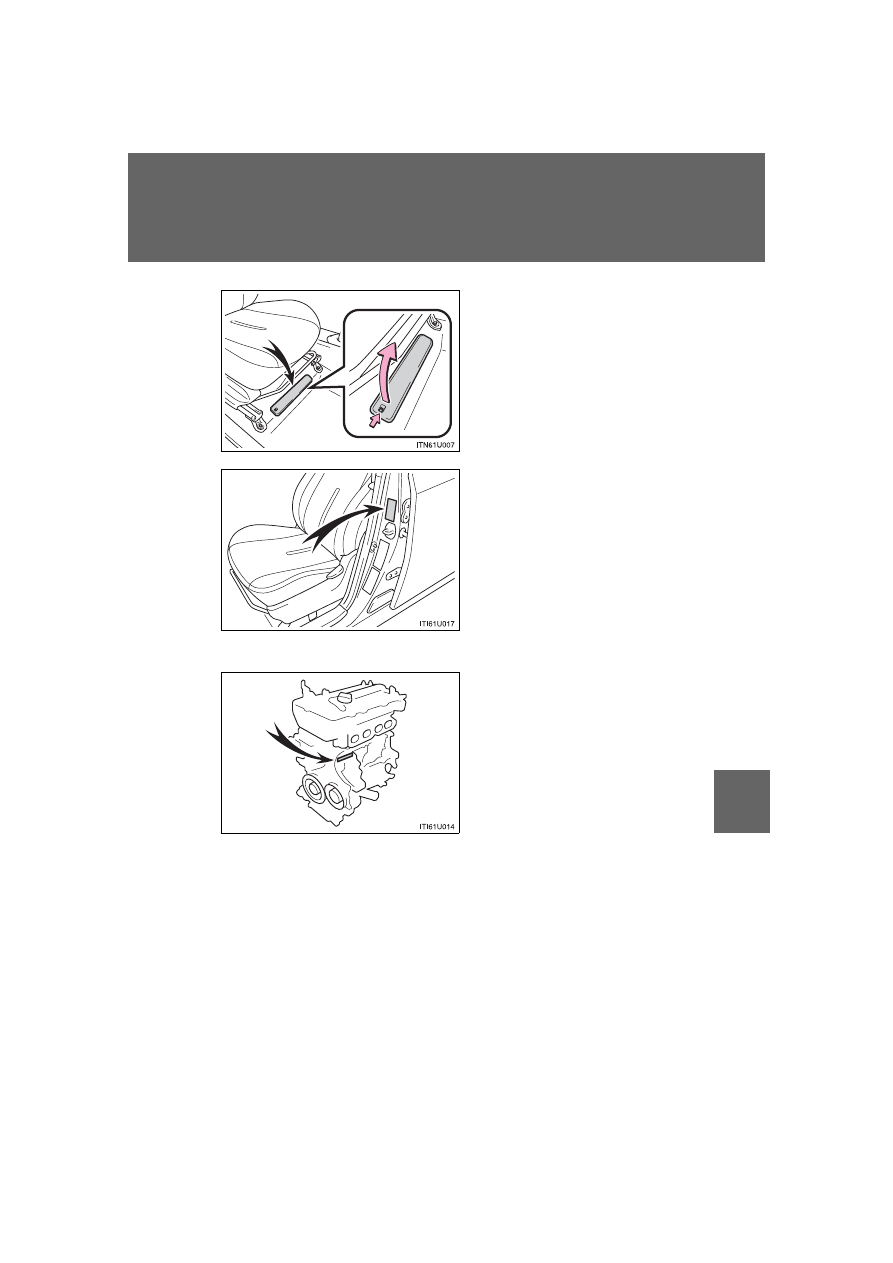

This number is stamped under
the front passenger seat.

This number is also on the Certi-
fication Label on the driver’s side
center pillar.

■

Engine number

The engine number is stamped
on the engine block as shown.

352

6-1. Specifications

Scion_xD_OM_OM52E36U_(U)

Engine

Fuel

Model

2ZR-FE engine

Type

4 cylinder in line,
4 cycle, gasoline

Bore and stroke

3.17

 3.48 in.

(80.5

 88.3 mm)

Displacement

109.7 cu.in. (1798 cm

3

)

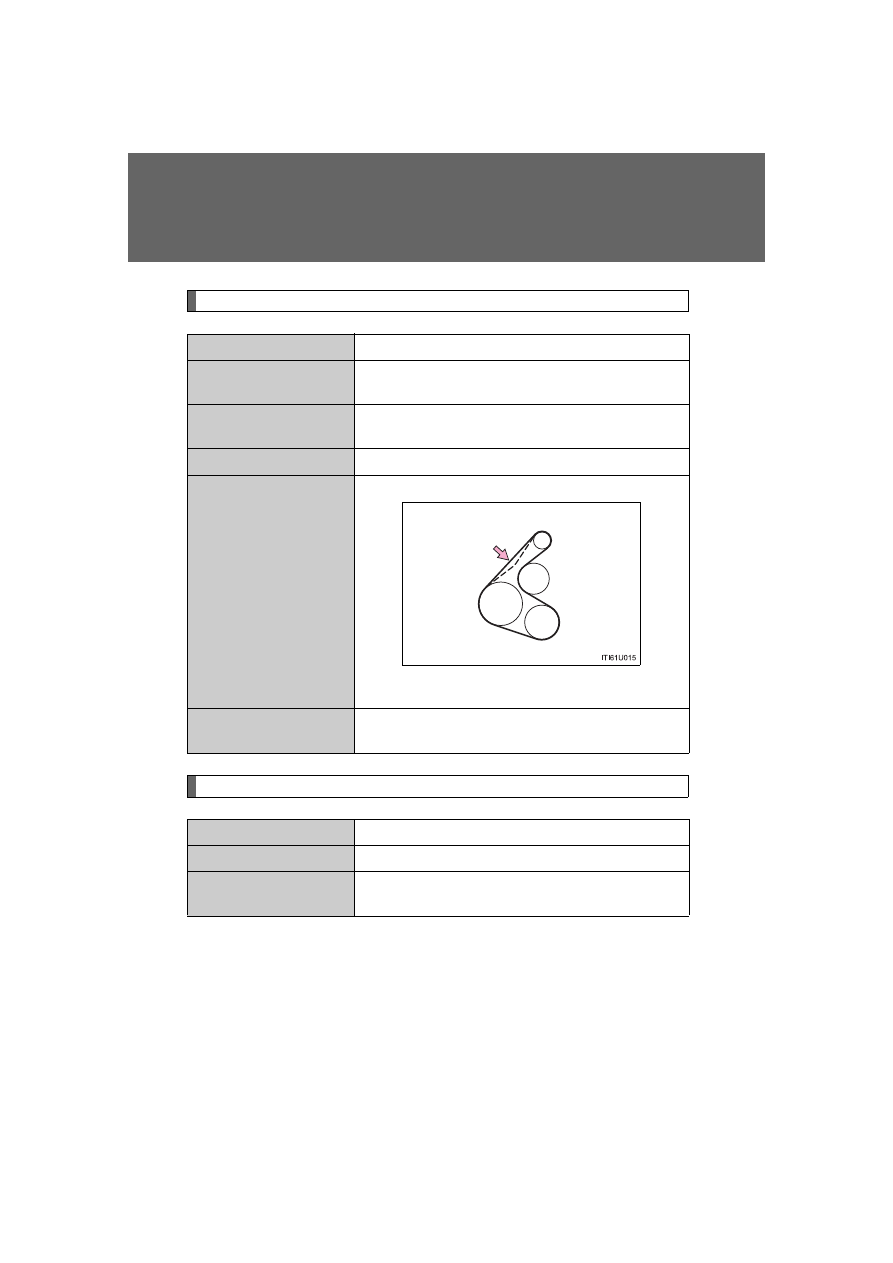

Drive belt tension

0.30

 0.39 in. (7.6  10.0 mm)

*

*

: Drive belt deflection with 22 lbf (98 N, 10 kgf) thumb

force (used belt)

Valve clearance
(engine cold)

Automatic adjustment

Fuel type

Unleaded gasoline only

Octane rating

87 (Research Octane Number 91) or higher

Fuel tank capacity
(Reference)

11.1 gal. (42 L, 9.2 Imp. gal.)

Generator

Water pump

Air

conditioning

compressor

Crankshaft

353

6-1. Specifications

6

Veh

icle speci

fic

a

tions

Scion_xD_OM_OM52E36U_(U)

Lubrication system

■

Engine oil selection

“Toyota Genuine Motor Oil” is used in your Scion vehicle. Use Scion
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the fol-
lowing grade and viscosity.

Oil grade: ILSAC GF-5 multigrade engine oil

Recommended viscosity: SAE 0W-20

SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.

If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.

Oil viscosity (0W-20 is explained here as an example):

● The 0W in 0W-20 indicates the characteristic of the oil which allows

cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.

● The 20 in 0W-20 indicates the viscosity characteristic of the oil when

the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.

Oil capacity
(Drain and refill —
reference)

With filter
Without filter

4.4 qt. (4.2 L, 3.7 Imp. qt.)
4.1 qt. (3.9 L, 3.4 Imp. qt.)

Outside temperature

354

6-1. Specifications

Scion_xD_OM_OM52E36U_(U)

How to read oil container label:

The International Lubricant Specification Advisory Committee
(ILSAC) Certification Mark is added to some oil containers to help
you select the oil you should use.

355

6-1. Specifications

6

Veh

icle speci

fic

a

tions

Scion_xD_OM_OM52E36U_(U)

Cooling system

Ignition system

Capacity (reference)

Vehicles with an automatic transmission:

5.2 qt. (4.9 L, 4.3 Imp. qt.)

Vehicles with a manual transmission:

5.3 qt. (5.0 L, 4.4 Imp. qt.)

Coolant type

Use either of the following:

• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based non-

silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy

Do not use plain water alone.

Spark plug

Make

Gap

DENSO SC20HR11

0.043 in. (1.1 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust spark plug gap.

356

6-1. Specifications

Scion_xD_OM_OM52E36U_(U)

Electrical system

Automatic transaxle

Battery

Open voltage

*

 at

68

F (20C):

12.6

 12.8 V Fully charged

12.2

 12.4 V Half charged

11.8

 12.0 V Discharged

(

*

: Voltage checked 20 minutes after the

engine and all the lights turned off)

Charging rates

5 A max.

Fluid capacity

6.9 qt. (6.5 L, 5.7 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Transmission fluid type

Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of the transmission accompanied by
vibration and, ultimately, damage to the vehicle’s transmission.

357

6-1. Specifications

6

Veh

icle speci

fic

a

tions

Scion_xD_OM_OM52E36U_(U)

Manual transaxle

Clutch

Gear oil capacity (reference)

2.0 qt. (1.9 L, 1.7 Imp. qt.)

Gear oil type

Use either of the following:

• “TOYOTA Genuine Manual Transmission

Gear Oil LV”

• Other gear oil that meets API GL-4 and

SAE 75W specifications

NOTICE

■

Manual transmission gear oil

Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feelings and/or fuel effi-
ciency may be different or affected. Scion recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal performance.

Pedal free play

0.2

 0.6 in. (5  15 mm)

Fluid type

SAE J1703 or FMVSS No.116 DOT 3
