Scion xD. Service Manual - part 18

277

4-3. Do-it-yourself maintenance

4

Mai

n

tenan

ce and care

Scion_xD_OM_OM52E36U_(U)

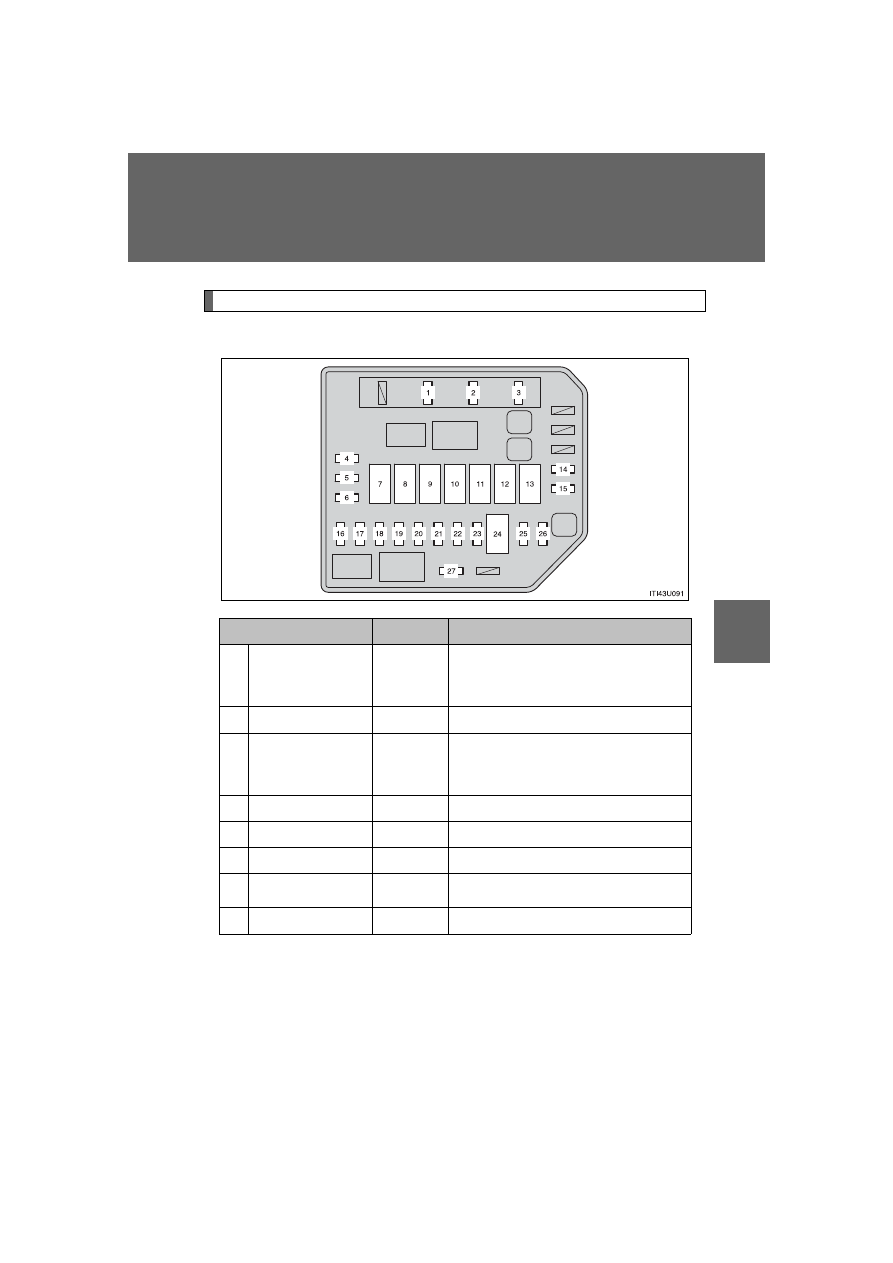

Fuse layout and amperage ratings

■

Engine compartment

Fuse

Ampere

Circuit

1

AM2

15 A

Starting system, multi-port fuel
injection system/sequential multi-
port fuel injection system

2

HORN

10 A

Horn

3

EFI

20 A

Multi-port fuel injection system/
sequential multi-port fuel injection
system

4

SPARE

30 A

Spare fuse

5

SPARE

15 A

Spare fuse

6

SPARE

10 A

Spare fuse

7

HTR SUB2

40 A

Air conditioning system

8

EPS

50 A

Electric power steering

278

4-3. Do-it-yourself maintenance

Scion_xD_OM_OM52E36U_(U)

Fuse

Ampere

Circuit

9

ABS1/VSC1

50 A

ABS, VSC

10

HTR

40 A

Air conditioning system

11

RDI

30 A

Electric cooling fan

12

HTR SUB1

30 A

Air conditioning system

13

H-LP CLN/PWR
HTR

30 A

Air conditioning system

14

FR DEF

20 A

No circuit

15

ABS2/VSC2

30 A

ABS, VSC

16

H-LP MAIN

30 A

No circuit

17

ST

30 A

Starting system

18

S-LOCK

20 A

No circuit

19

DOME

15 A

Interior light, personal lights, lug-
gage compartment light

20

ECU-B

7.5 A

SRS airbag system, power win-
dows, gauges and meters, air con-
ditioning system

21

ALT-S

7.5 A

Charging system

22

ETCS

10 A

Multi-port fuel injection system/
sequential multi-port fuel injection
system

279

4-3. Do-it-yourself maintenance

4

Mai

n

tenan

ce and care

Scion_xD_OM_OM52E36U_(U)

Fuse

Ampere

Circuit

23

HAZ

10 A

Turn signal lights, emergency
flashers

24

AMT

50 A

No circuit

25

H-LP RH/H-LP
LO RH

10 A

Right-hand headlight

26

H-LP LH/H-LP
LO LH

10 A

Left-hand headlight

27

EFI2

10 A

Multi-port fuel injection system/
sequential multi-port fuel injection
system

280

4-3. Do-it-yourself maintenance

Scion_xD_OM_OM52E36U_(U)

■

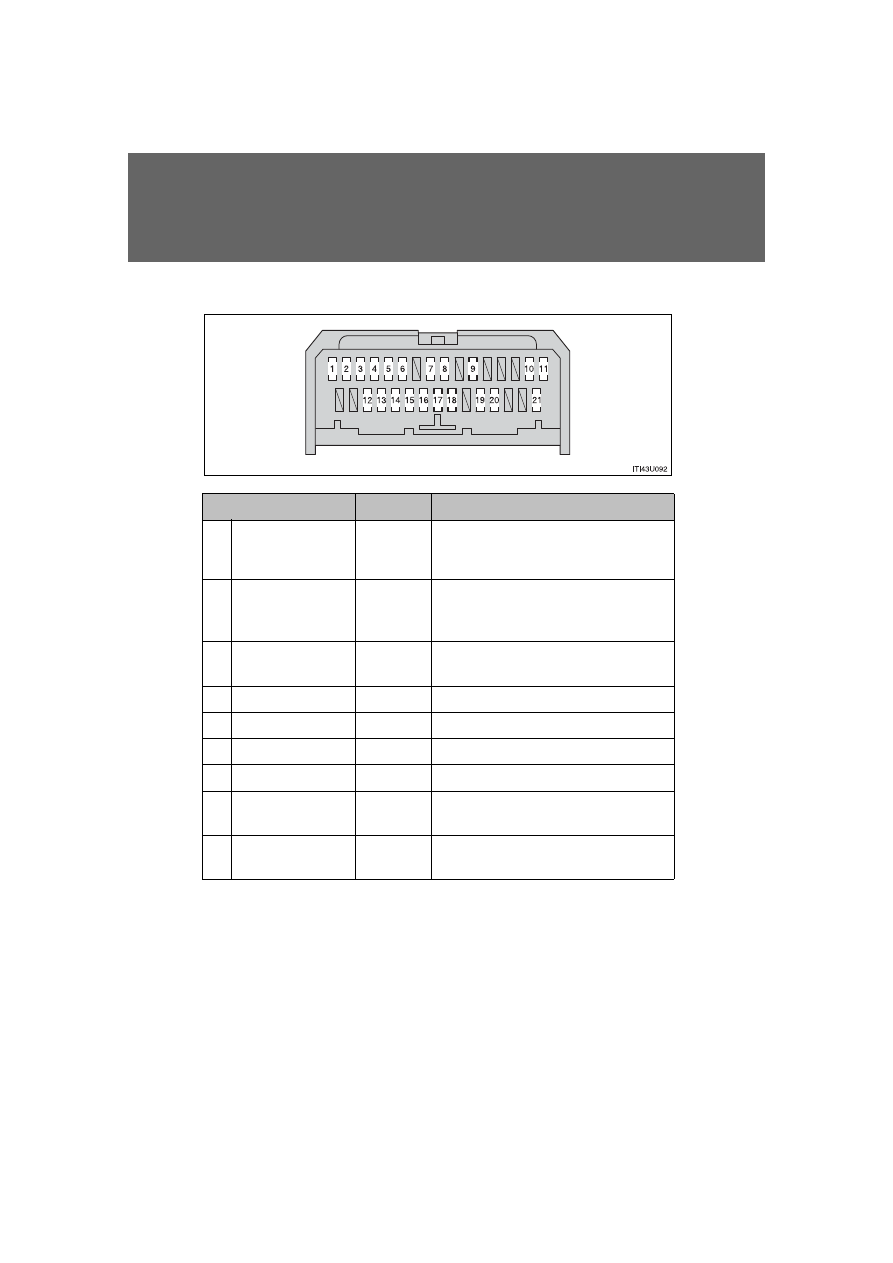

Under the driver’s side instrument panel

Fuse name

Ampere

Circuit

1

TAIL

10 A

Tail lights, parking lights,
license plate lights

2

PANEL1

7.5 A

Switch illuminations, instrument
cluster lights, steering switches,
gauges and meters

3

A/C

7.5 A

Air conditioning system, rear win-
dow defogger

4

D DOOR

20 A

Power windows

5

RL DOOR

20 A

Power windows (rear left)

6

RR DOOR

20 A

Power windows (rear right)

7

CIG

15 A

Power outlet

8

ACC 7.5

A

Outside rear view mirrors,
clock

9

ID/UP / MIR
HTR

*

1

10 A

Outside rear view mirror defoggers

281

4-3. Do-it-yourself maintenance

4

Mai

n

tenan

ce and care

Scion_xD_OM_OM52E36U_(U)

*

1

: Vehicles sold in Canada

Fuse name

Ampere

Circuit

10

IGN 7.5

A

Multi-port fuel injection system/
sequential multi-port fuel injection
system

11

MET

7.5 A

Gauges and meters

12

WIP

20 A

Windshield wipers

13

RR WIP

15 A

Rear window wiper

14

WSH

15 A

Windshield washers, rear window
washer

15

ECU-IG

10 A

ABS, electric cooling fan, EPS

16

GAUGE

10 A

Charging system, back-up lights,
air conditioning system, gauges
and meters

17

OBD2

7.5 A

On-board diagnosis system

18

STOP

10 A

Stop lights, high mounted stop-
light, multi-port fuel injection sys-
tem/sequential multi-port fuel
injection system, ABS, VSC, shift
lock system

19

D/L

25 A

Power door lock system

20

FR FOG

15 A

No circuit

21

AM1

25 A

“ACC”, “CIG” fuses

282

4-3. Do-it-yourself maintenance

Scion_xD_OM_OM52E36U_(U)

■

Driver’s side instrument panel

Fuse

Ampere

Circuit

1

ACC2

7.5 A

No circuit

2

DEF

30 A

Rear window defogger

3

PWR

30 A

Power windows

283

4-3. Do-it-yourself maintenance

4

Mai

n

tenan

ce and care

Scion_xD_OM_OM52E36U_(U)

■

After a fuse is replaced

●

If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (

P. 284)

●

If the replaced fuse blows again, have the vehicle inspected by your
Scion dealer.

■

If there is an overload in the circuits

The fuses are designed to blow, protecting the wiring harness from damage.

CAUTION

■

To prevent system breakdowns and vehicle fire

Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.

●

Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.

●

Always use a genuine Scion fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.

●

Do not modify the fuse or the fuse box.

NOTICE

■

Before replacing fuses

Have the cause of electrical overload determined and repaired by your Scion
dealer, as soon as possible.

284

4-3. Do-it-yourself maintenance

Scion_xD_OM_OM52E36U_(U)

Light bulbs

You may replace the following bulbs yourself. The difficulty level of

replacement varies depending on the bulb. If necessary bulb

replacement seems difficult to perform, contact your Scion dealer.

For more information about replacing other light bulbs, contact your

Scion dealer.

■

Preparing for light bulb replacement

Check the wattage of the light bulb to be replaced. (

P. 360)

■

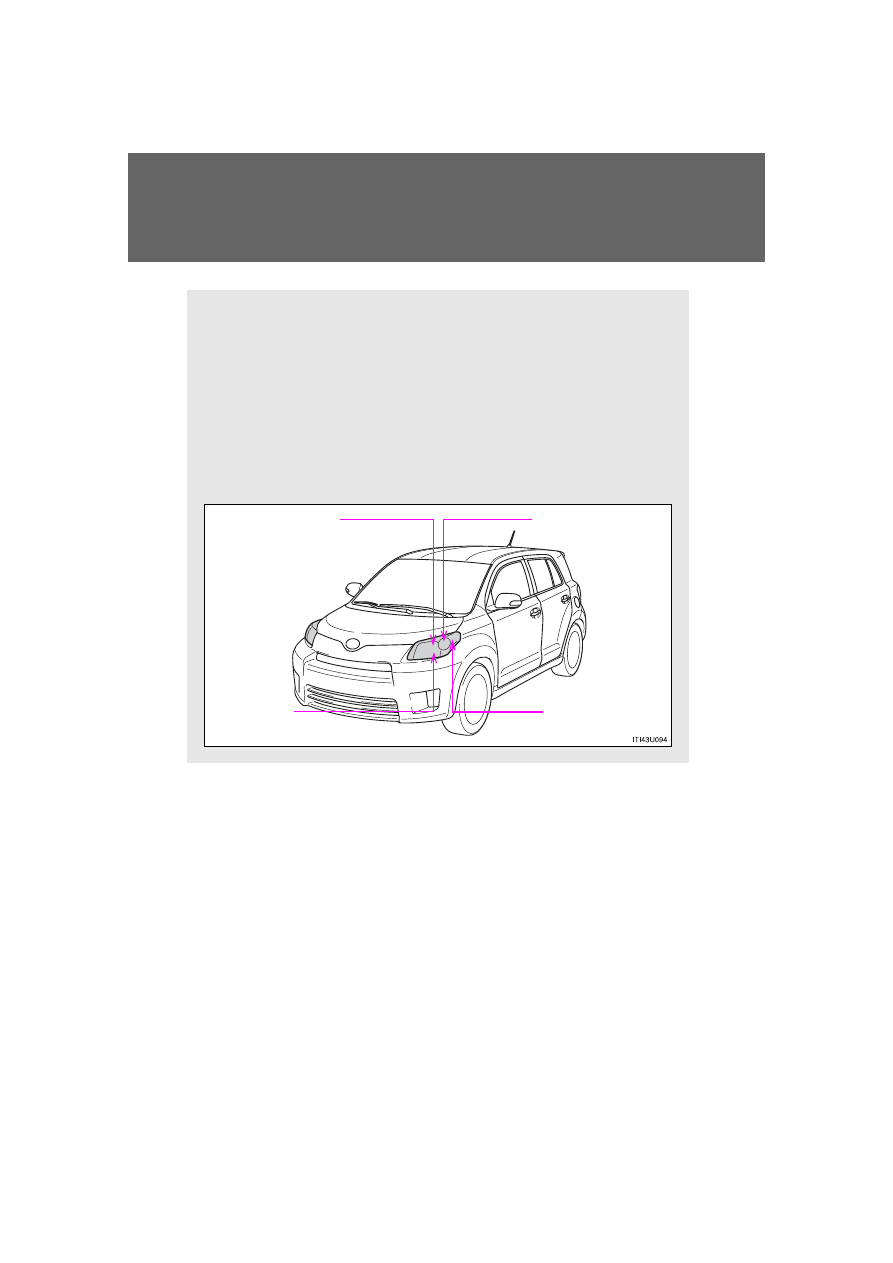

Front bulb locations

Front turn signal light

Front side

marker light

Daytime running light

and headlight

Parking light

285

4-3. Do-it-yourself maintenance

4

Mai

n

tenan

ce and care

Scion_xD_OM_OM52E36U_(U)

■

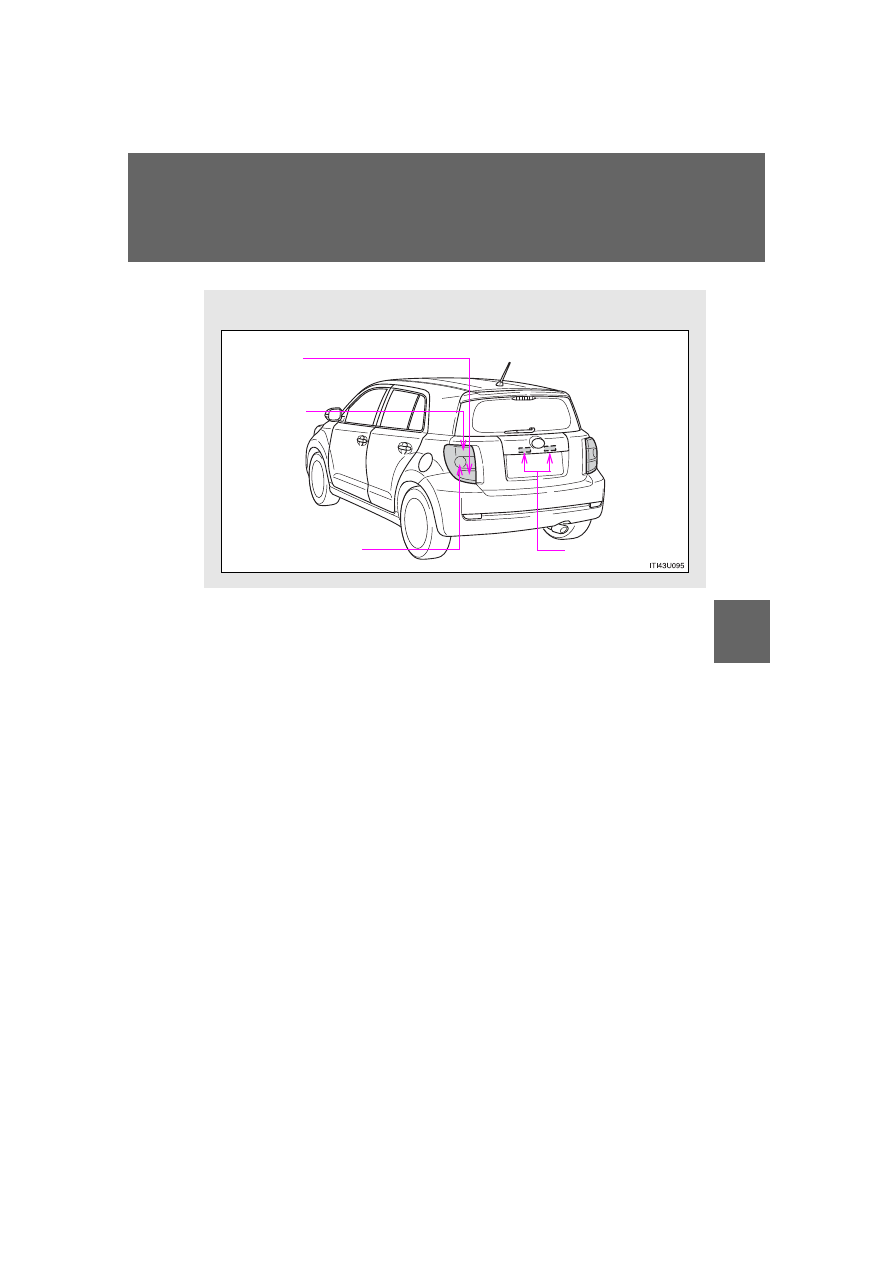

Rear bulb locations

Back-up light

License plate lights

Stop/tail and

rear side

marker light

Rear turn signal light

286

4-3. Do-it-yourself maintenance

Scion_xD_OM_OM52E36U_(U)

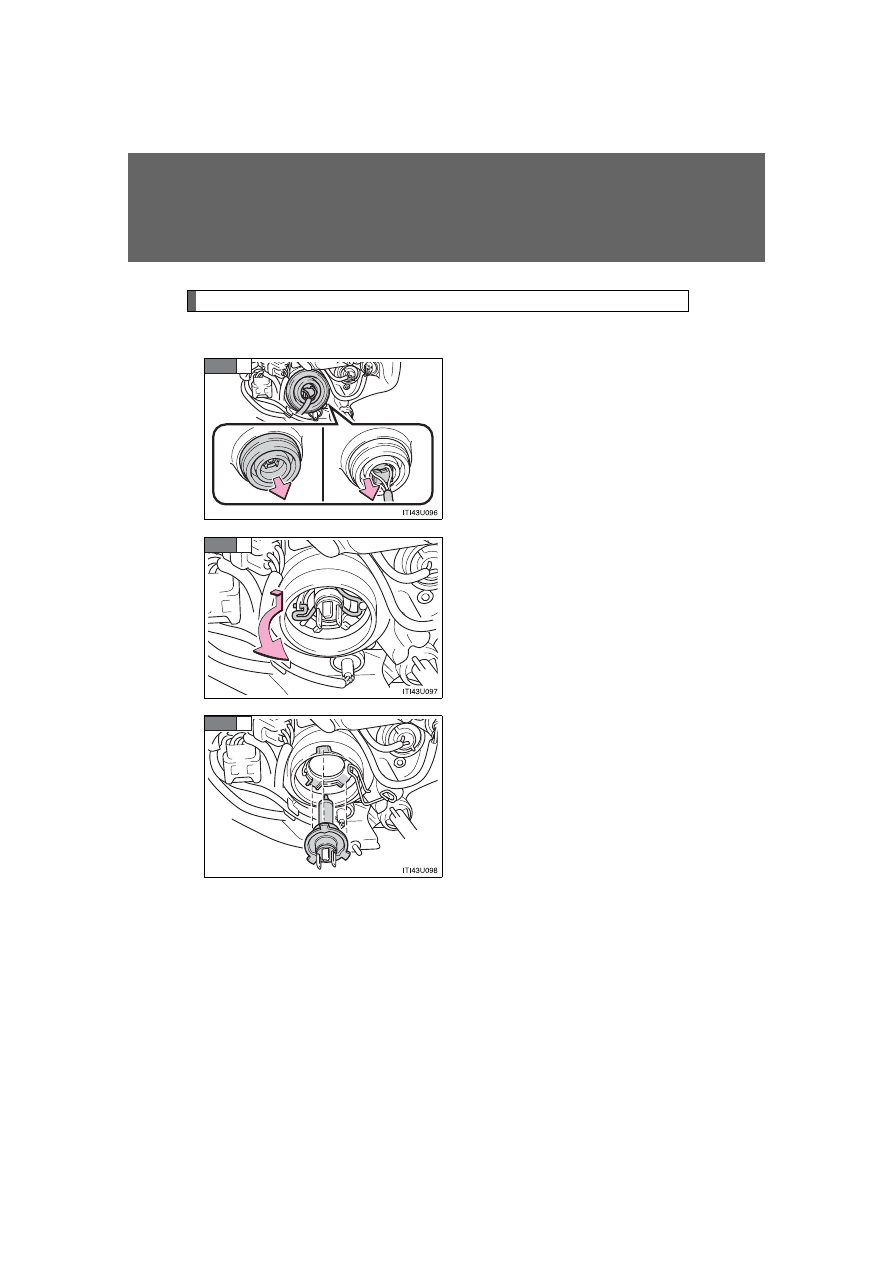

Replacing light bulbs

■

Headlights and daytime running lights (for Canada)

Unplug the connector and
remove the rubber cover.

Release the bulb retaining
spring.

Remove the bulb.

To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.

STEP

1

STEP

2

STEP

3

287

4-3. Do-it-yourself maintenance

4

Mai

n

tenan

ce and care

Scion_xD_OM_OM52E36U_(U)

■

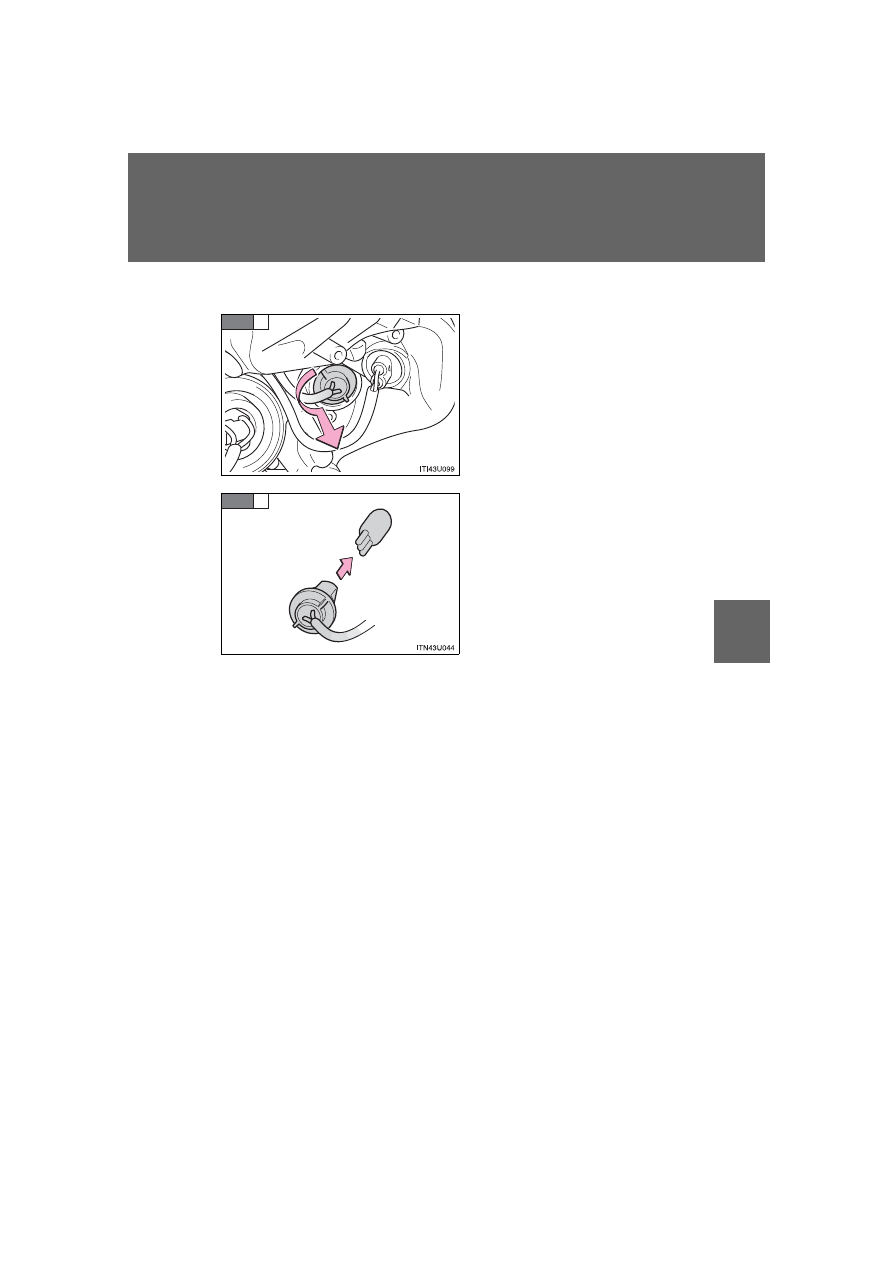

Front turn signal lights

Turn the bulb base counterclock-
wise.

Remove the light bulb.

STEP

1

STEP

2

288

4-3. Do-it-yourself maintenance

Scion_xD_OM_OM52E36U_(U)

■

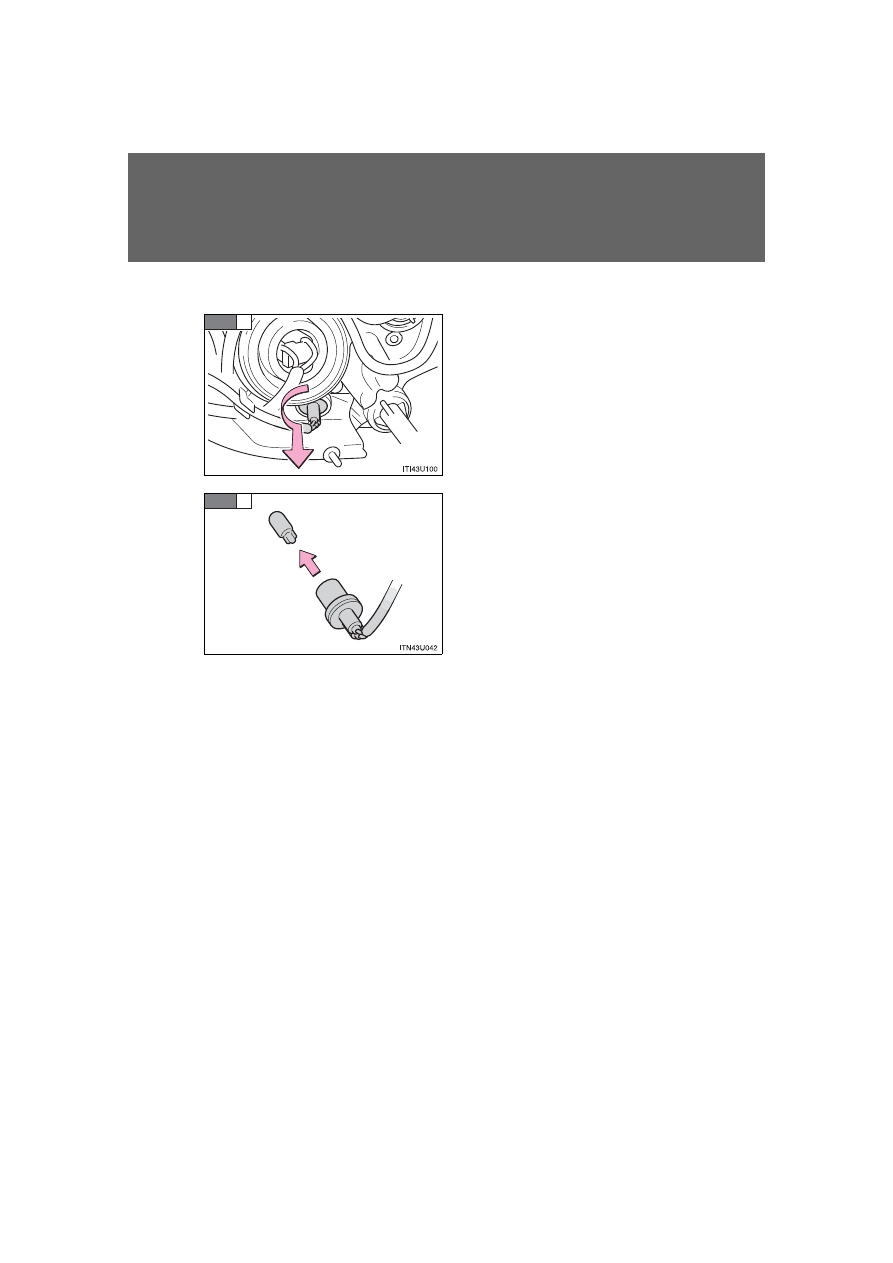

Parking lights

Turn the bulb base counterclock-
wise.

Remove the light bulb.

STEP

1

STEP

2

289

4-3. Do-it-yourself maintenance

4

Mai

n

tenan

ce and care

Scion_xD_OM_OM52E36U_(U)

■

Front side marker lights

Turn the bulb base counterclock-
wise.

Remove the light bulb.

STEP

1

STEP

2

290

4-3. Do-it-yourself maintenance

Scion_xD_OM_OM52E36U_(U)

■

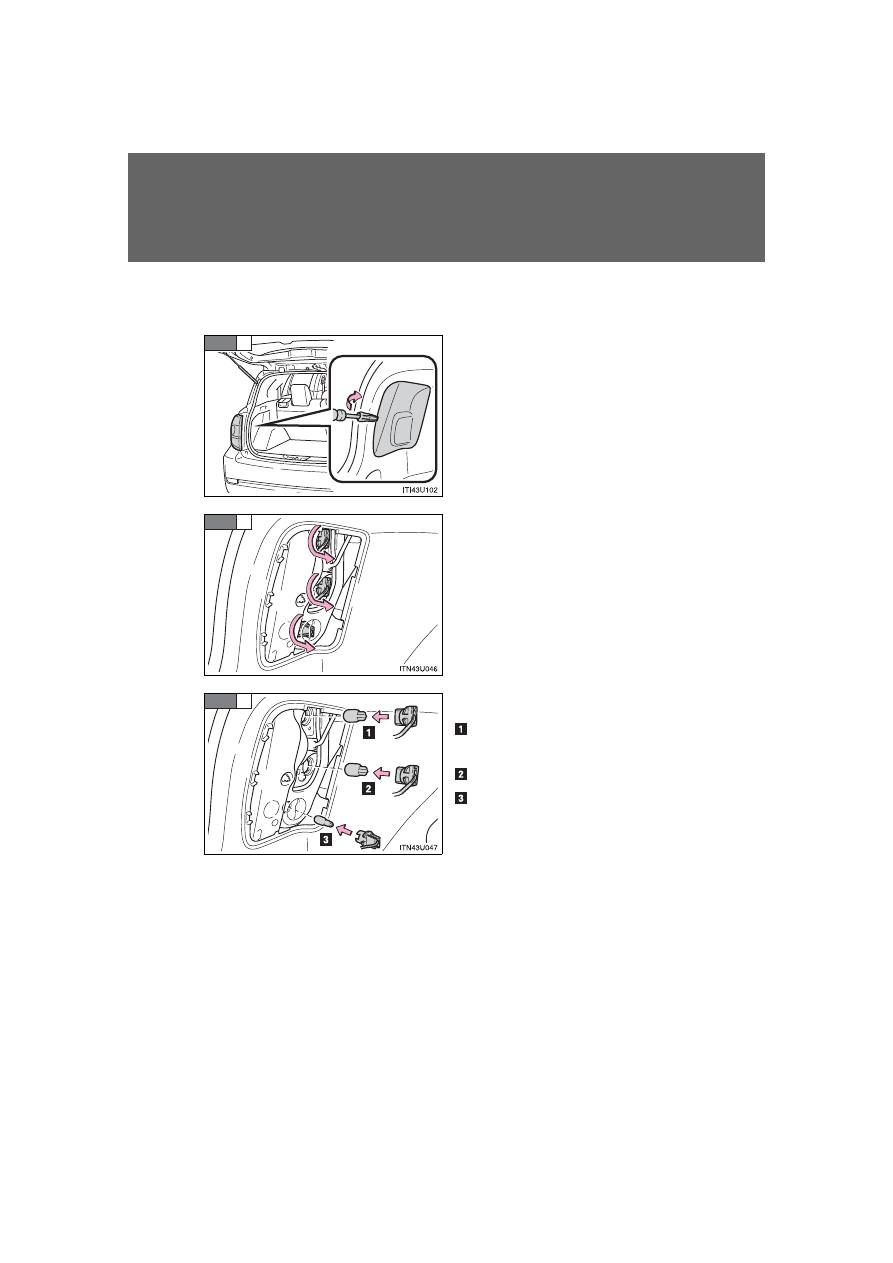

Stop/tail and rear side marker lights, rear turn signal lights
and back-up lights

Open the back door and remove
the cover.

To prevent damaging the vehicle,
wrap the flathead screwdriver
with a rag.

Turn the bulb bases counter-
clockwise.

Remove the light bulb.

Stop/tail and rear side marker
light

Rear turn signal light

Back-up light

STEP

1

STEP

2

STEP

3

291

4-3. Do-it-yourself maintenance

4

Mai

n

tenan

ce and care

Scion_xD_OM_OM52E36U_(U)

■

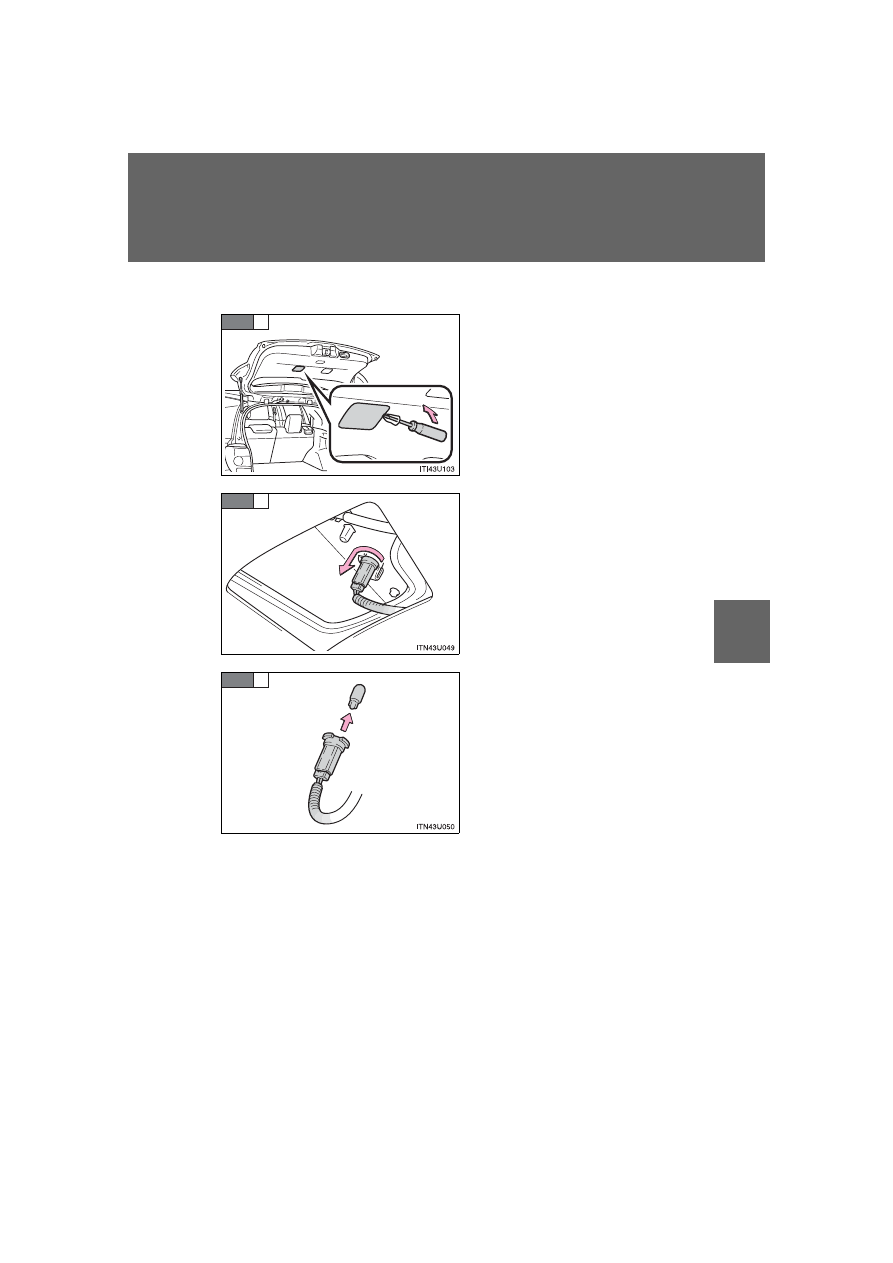

License plate lights

Open the back door and remove
the cover.

To prevent damaging the vehicle,
wrap the flathead screwdriver
with a rag.

Turn the bulb bases counter-
clockwise.

Remove the light bulb.

STEP

1

STEP

2

STEP

3

292

4-3. Do-it-yourself maintenance

Scion_xD_OM_OM52E36U_(U)

■

LED light bulbs

The side turn signal lights and high mounted stoplight consist of a number of
LEDs. If any of the LEDs burn out, take your vehicle to your Scion dealer to
have the light replaced.

■

Condensation build-up on the inside of the lens

Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction. Contact your Scion dealer for more information in
the following situations:

●

Large drops of water have built up on the inside of the lens.

●

Water has built up inside the headlight.

CAUTION

■

Replacing light bulbs

●

Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.

●

Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.

●

Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.

●

Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.

■

To prevent damage or fire

Make sure bulbs are fully seated and locked.
