Scion xD. Service Manual - part 14

212

3-5. Other interior features

Scion_xD_OM_OM52E36U_(U)

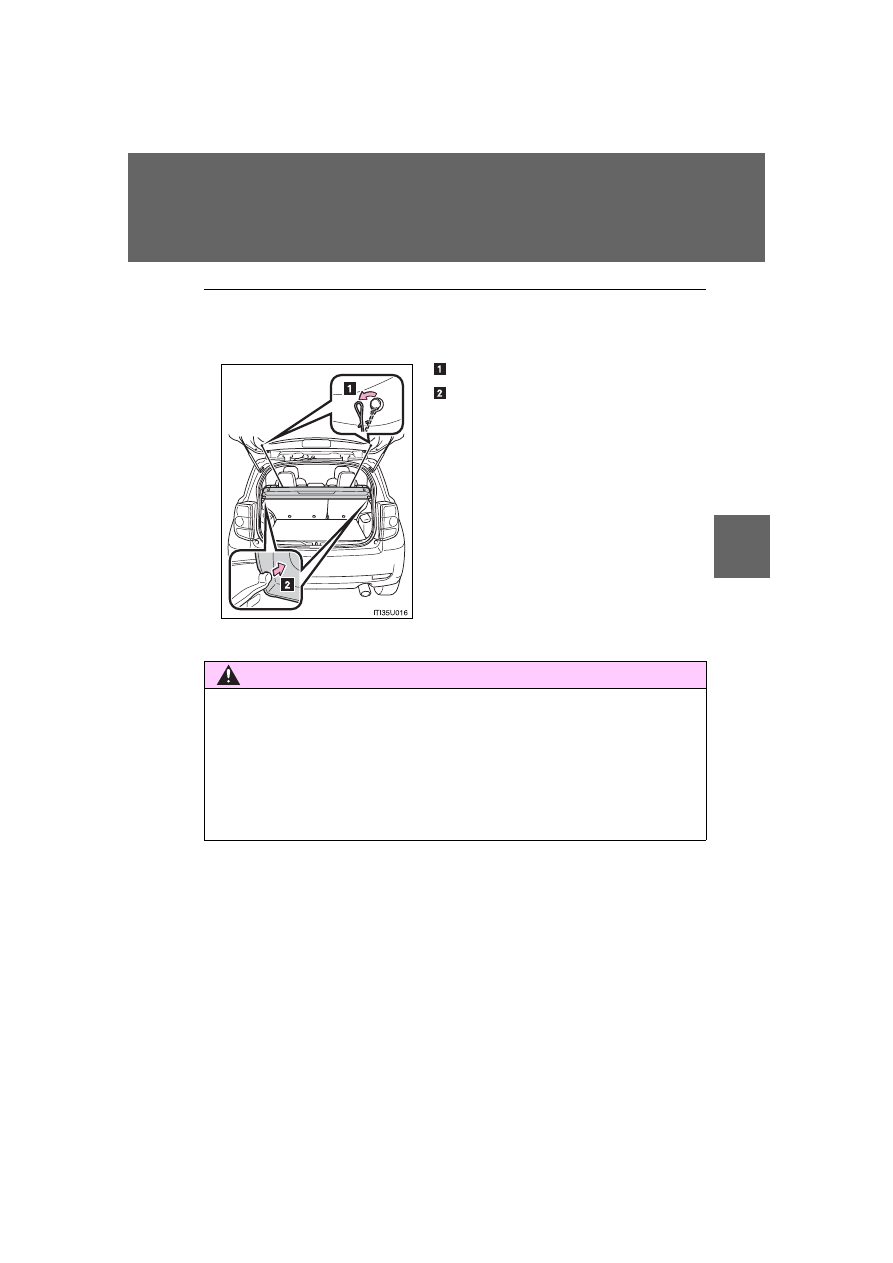

Luggage compartment features

■

Cargo hooks

The cargo hooks are provided
for securing loose items.

■

Auxiliary boxes

Lift the luggage mat up to use
the boxes.

213

3-5. Other interior features

3

Interior features

Scion_xD_OM_OM52E36U_(U)

■

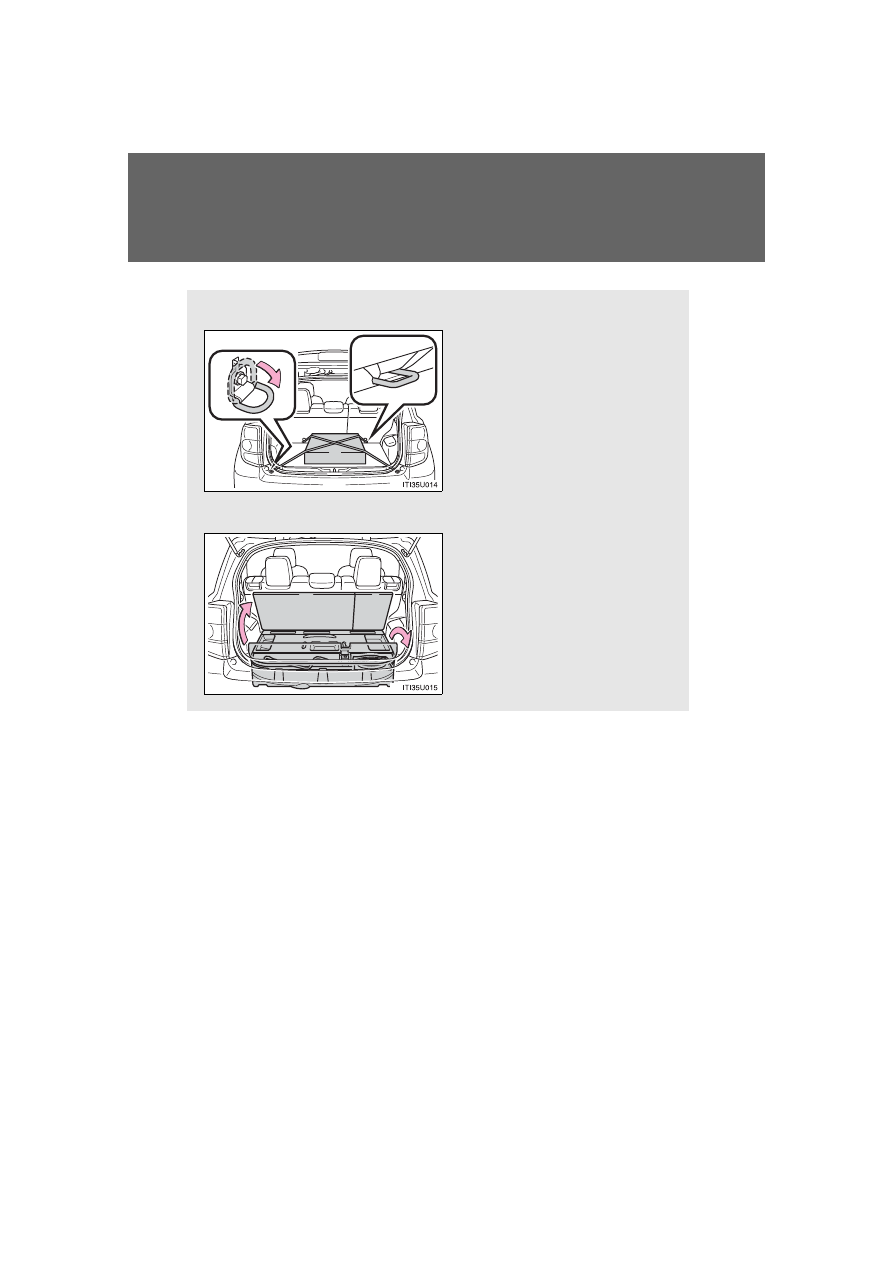

Removing the luggage cover (if equipped)

The luggage cover can be removed by following the procedure below.

CAUTION

■

When the cargo hooks are not in use

To avoid injury, always return the cargo hooks to their stowed positions.

■

While driving

Do not place anything on the luggage cover. Such items may be thrown
about and possibly injure people in the vehicle during sudden braking or an
accident.

Unhook the cords.

Remove the cover out of the retainers.

Maintenance and care

4

215

Scion_xD_OM_OM52E36U_(U)

4-1. Maintenance and care

Cleaning and protecting

the vehicle exterior.........  216

Cleaning and protecting

the vehicle interior..........  219

4-2. Maintenance

Maintenance

requirements ..................  222

General maintenance.......  225

Emission inspection and

maintenance (I/M)
programs........................  229

4-3. Do-it-yourself maintenance

Do-it-yourself service

precautions ....................  230

Hood ................................  233

Positioning a floor jack .....  235

Engine compartment........  237

Tires .................................  252

Tire inflation pressure ......  261

Wheels .............................  265

Air conditioning filter

(for Puerto Rico) ............  268

Wireless remote control

battery ............................  271

Checking and replacing

fuses ..............................  273

Light bulbs........................  284

216

Scion_xD_OM_OM52E36U_(U)

4-1. Maintenance and care

Cleaning and protecting the vehicle exterior

■

Automatic car washes

●

Fold the mirrors and remove the antenna before washing the vehicle.
Start washing from the front of the vehicle. Make sure to re-install the
antenna and extend the mirrors before driving.

●

Brushes used in automatic car washes may scratch the vehicle surface
and harm your vehicle’s paint.

■

High pressure car washes

●

Do not allow the nozzles of the car wash to come within close proximity
of the windows.

●

Before using the car wash, check that the fuel filler door on your vehicle
is closed properly.

■

Bumpers

Do not scrub with abrasive cleaners.

Perform the following to protect the vehicle and maintain it in prime
condition.

● Working from top to bottom, liberally apply water to the vehicle

body, wheel wells and underside of the vehicle to remove any
dirt and dust.

● Wash the vehicle body using a sponge or soft cloth, such as a

chamois.

● For hard-to-remove marks, use car wash soap and rinse thor-

oughly with water.

● Wipe away any water.
● Wax the vehicle when the waterproof coating deteriorates.

If water does not bead on a clean surface, apply wax when the vehi-
cle body is cool.

217

4-1. Maintenance and care

4

Mai

n

tenan

ce and care

Scion_xD_OM_OM52E36U_(U)

CAUTION

■

When washing the vehicle

Do not apply water to the inside of the engine compartment. Doing so may
cause the electrical components etc. to catch fire.

■

Precautions regarding the exhaust pipe

Exhaust gasses cause the exhaust pipe to become quite hot.

When washing the vehicle, be careful not to touch the pipe until it has cooled
sufficiently, as touching a hot exhaust pipe can cause burns.

218

4-1. Maintenance and care

Scion_xD_OM_OM52E36U_(U)

NOTICE

■

To prevent paint deterioration and corrosion on the body and compo-
nents (wheels etc.)

●

Wash the vehicle immediately in the following cases:

• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the

paint surface

• After driving in an area contaminated with soot, oily smoke, mine dust,

iron powder or chemical substances

• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface

●

If the paint is chipped or scratched, have it repaired immediately.

●

To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing the wheels.

■

Cleaning the exterior lights

●

Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.

●

Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.

■

Antenna installation and removal precautions

●

Before driving, ensure that the antenna is installed.

●

When the antenna is removed, such as before entering an automatic car
wash, make sure to store it in a suitable place so as not to lose it. Also,
before driving, make sure to reinstall the antenna in its original position.

219

4-1. Maintenance and care

4

Mai

n

tenan

ce and care

Scion_xD_OM_OM52E36U_(U)

Cleaning and protecting the vehicle interior

The following procedures will help protect your vehicle’s interior and

keep it in top condition:

■

Protecting the vehicle interior

Remove dirt and dust using a vacuum cleaner. Wipe dirty sur-
faces with a cloth dampened with lukewarm water.

220

4-1. Maintenance and care

Scion_xD_OM_OM52E36U_(U)

■

Shampooing the carpets

There are several commercial foaming-type cleaners available. Use a
sponge or brush to apply the foam. Rub in overlapping circles. Do not use
water. Wipe dirty surfaces and let them dry. Excellent results are obtained by
keeping the carpet as dry as possible.

■

Seat belts

Clean with mild soap and lukewarm water using a cloth or sponge. Also
check the belts periodically for excessive wear, fraying or cuts.

CAUTION

■

Water in the vehicle

●

Do not splash or spill liquid in the vehicle.
Doing so may cause electrical components etc. to malfunction or catch
fire.

●

Do not get any of the SRS components or wiring in the vehicle interior wet.
(

P. 76)

An electrical malfunction may cause the airbags to deploy or not function
properly, resulting in death or serious injury.

■

Cleaning the interior (especially instrument panel)

Do not use polish wax or polish cleaner. The instrument panel may reflect off
the windshield, obstructing the driver’s view and leading to an accident,
resulting in death or serious injury.

221

4-1. Maintenance and care

4

Mai

n

tenan

ce and care

Scion_xD_OM_OM52E36U_(U)

NOTICE

■

Cleaning detergents

●

Do not use the following types of detergent, as they may discolor the vehi-
cle interior or cause streaks or damage to painted surfaces:

• Non-seat portions: Organic substances such as benzene or gasoline,

alkaline or acidic solutions, dye, and bleach

• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alco-

hol

●

Do not use polish wax or polish cleaner. The instrument panel’s or other
interior part’s painted surface may be damaged.

■

Water on the floor

Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes
into contact with electrical components such as the audio system above or
under the floor of the vehicle. Water may also cause the body to rust.

■

Cleaning the inside of the rear window

●

Do not use glass cleaner to clean the rear window, as this may cause
damage to the rear window defogger heater wires. Use a cloth dampened
with lukewarm water to gently wipe the window clean. Wipe the window in
strokes running parallel to the heater wires.

●

Be careful not to scratch or damage the heater wires.

222

Scion_xD_OM_OM52E36U_(U)

4-2. Maintenance

Maintenance requirements

■

Repair and replacement

It is recommended that genuine Scion parts be used for repairs to ensure
performance of each system. If non-Scion parts are used in replacement or if
a repair shop other than a Scion dealer performs repairs, confirm the war-
ranty coverage.

To ensure safe and economical driving, day-to-day care and regular

maintenance is essential. It is the owner’s responsibility to perform

regular checks. Scion recommends performing the following mainte-

nance:

■

General maintenance

General maintenance should be performed on a daily basis.
This can be done by yourself or by a Scion dealer.

■

Scheduled maintenance

Scheduled maintenance should be performed at specified inter-
vals according to the maintenance schedule.

For details about maintenance items and schedules, refer to the
“Scheduled Maintenance Guide” or “Owner’s Manual Supplement”.

■

Do-it-yourself maintenance

You can perform some maintenance procedures by yourself.
Please be aware that do-it-yourself maintenance may affect war-
ranty coverage.

The use of Scion Repair Manuals is recommended.

For details about warranty coverage, see the separate “Owner’s War-
ranty Information Booklet” or “Owner’s Manual Supplement”.

223

4-2. Maintenance

4

Mai

n

tenan

ce and care

Scion_xD_OM_OM52E36U_(U)

■

Reset the maintenance data (U.S.A. only)

After the required maintenance is performed according to the maintenance
schedule, please reset the maintenance data.
To reset the data, follow the procedures described below:

Switch the display to the odometer. (

P. 141)

Turn the engine switch to the “LOCK” position.

While pressing the “MODE” button (

P. 146), turn the engine

switch to the “ON” position (but do not start the engine because oth-
erwise the reset mode will be canceled). Continue to press and hold
the button until the trip meter displays “000000”.

■

Allow inspection and repairs to be performed by a Scion dealer

●

Scion technicians are well-trained specialists and are kept up to date with
the latest service information. They are well informed about the opera-
tions of all systems on your vehicle.

●

Keep a copy of the repair order. It proves that the maintenance that has
been performed is under warranty coverage. If any problem should arise
while your vehicle is under warranty, your Scion dealer will promptly take
care of it.

STEP

1

STEP

2

STEP

3

224

4-2. Maintenance

Scion_xD_OM_OM52E36U_(U)

CAUTION

■

If your vehicle is not properly maintained

Improper maintenance could result in serious damage to the vehicle and
possible serious injury or death.

■

Handling of the battery

●

Engine exhaust, some of its constituents, and a wide variety of automobile
components contain or emit chemicals known to the State of California to
cause cancer and birth defects and other reproductive harm. Work in a
well ventilated area.

●

Oils, fuels and fluids contained in vehicles as well as waste produced by
component wear contain or emit chemicals known to the State of
California to cause cancer and birth defects or other reproductive harm.
Avoid exposure and wash any affected area immediately.

●

Battery posts, terminals and related accessories contain lead and lead
compounds which are known to cause brain damage. Wash your hands
after handling. (

P. 248)

225

4-2. Maintenance

4

Mai

n

tenan

ce and care

Scion_xD_OM_OM52E36U_(U)

General maintenance

Engine compartment

Items

Check points

Battery

Check the connections.

(

P. 248)

Brake fluid

Is the brake fluid at the correct
level? (

P. 245)

Engine coolant

Is the engine coolant at the cor-
rect level?

(

P. 243)

Engine oil

Is the engine oil at the correct
level?

(

P. 238)

Exhaust system

There should not be any fumes or
strange sounds.

Radiator/condenser

The radiator and condenser
should be free from foreign
objects.

(

P. 245)

Washer fluid

Is there sufficient washer fluid?

(

P. 250)

Listed below are the general maintenance items that should be per-

formed at the intervals specified in the “Owner’s Warranty Informa-

tion Booklet” or “Owner’s Manual Supplement/Scheduled

Maintenance Guide”. It is recommended that any problem you notice

should be brought to the attention of your Scion dealer or qualified

service shop for advice.

226

4-2. Maintenance

Scion_xD_OM_OM52E36U_(U)

Vehicle interior

Items

Check points

Accelerator pedal

• The accelerator pedal should

move smoothly (without uneven
pedal effort or catching).

Automatic transmission “Park”
mechanism

• When parked on a slope and the

shift lever is in P, is the vehicle
securely stopped?

Brake pedal

• Does the brake pedal move

smoothly?

• Does the brake pedal have appro-

priate clearance from the floor?

• Does the brake pedal have the

correct amount of free play?

Clutch pedal

• Does the clutch pedal move

smoothly?

• Does the clutch pedal have

appropriate clearance from the
floor?

• Does the clutch pedal have the

correct amount of free play?

Brakes

• The vehicle should not pull to one

side when the brakes are applied.

• The brakes should work effec-

tively.

• The brake pedal should not feel

spongy.

• The brake pedal should not get

too close to the floor when the
brakes are applied.

Head restraints

• Do the head restraints move

smoothly and lock securely?

227

4-2. Maintenance

4

Mai

n

tenan

ce and care

Scion_xD_OM_OM52E36U_(U)

Indicators/buzzers

• Do the indicators and buzzers

function properly?

Lights

• Do all the lights come on?

Parking brake

• Does the parking brake lever or

pedal move smoothly?

• When parked on a slope and the

parking brake is on, is the vehicle
securely stopped?

Seat belts

• Do the seat belts operate

smoothly?

• The seat belts should not be dam-

aged.

Seats

• Do the seat controls operate

properly?

Steering wheel

• Does the steering wheel rotate

smoothly?

• Does the steering wheel have the

correct amount of free play?

• There should not be any strange

sounds coming from the steering
wheel.

Items

Check points

228

4-2. Maintenance

Scion_xD_OM_OM52E36U_(U)

Vehicle exterior

Items

Check points

Doors

• Do the doors operate smoothly?

Engine hood

• Does the engine hood lock sys-

tem work properly?

Fluid leaks

• There should not be any signs of

fluid leakage after the vehicle has
been parked.

Tires

• Is the tire inflation pressure cor-

rect?

• The tires should not be dam-

aged or excessively worn.

• Have the tires been rotated

according to the maintenance
schedule?

• The wheel nuts should not be

loose.

Windshield wipers/rear window
wiper

• The wiper blades should not

show any signs of cracking,
splitting, wear, contamination or
deformation.

• The wiper blades should clear

the windshield/rear window
without streaking or skipping.

CAUTION

■

If the engine is running

Turn the engine off and ensure that there is adequate ventilation before per-
forming maintenance checks.
