2-2. Instrument cluster

2

When

 d

riving

Scion_xD_OM_OM52E36U_(U)

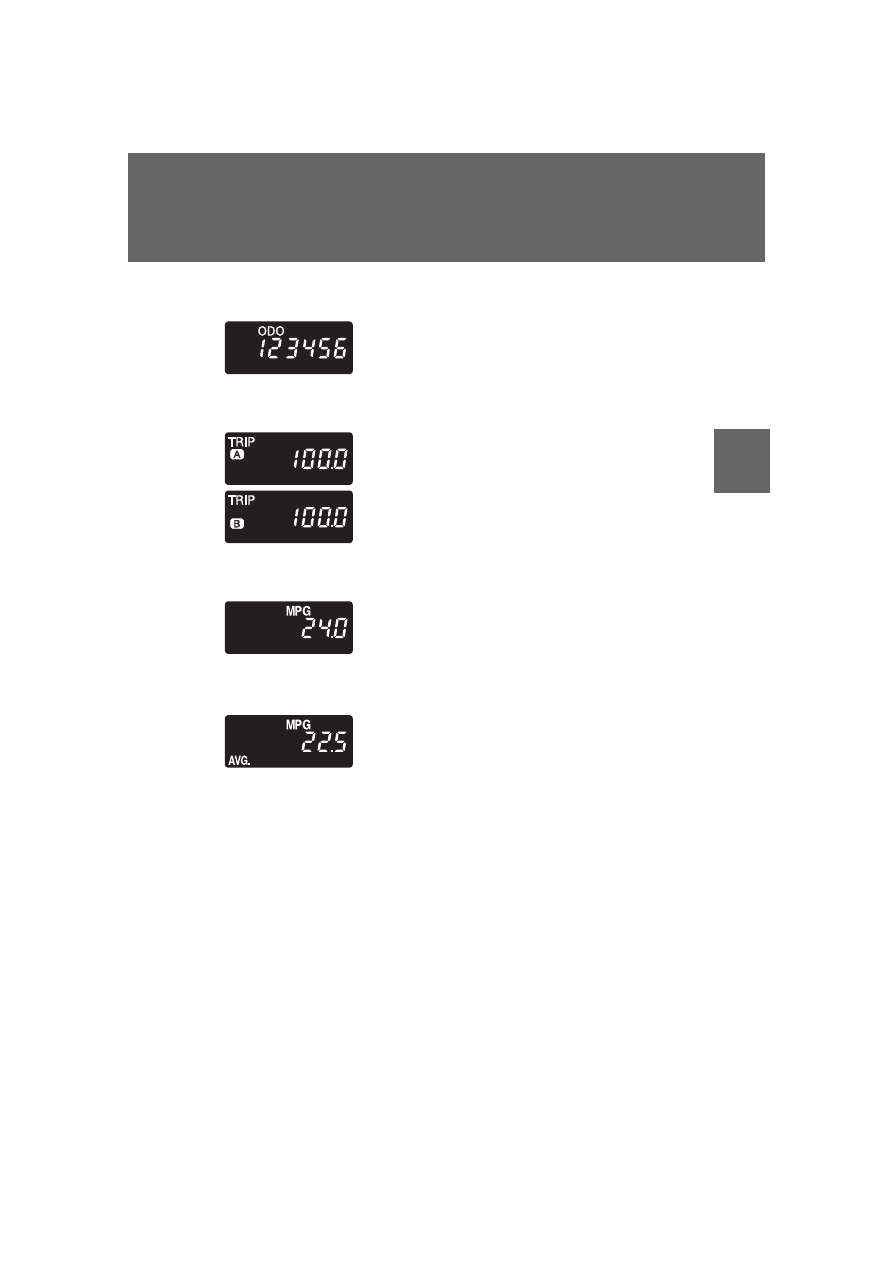

● Odometer

● Trip meters A and B

● Instantaneous fuel consumption

● Average fuel consumption

Displays the total distance the vehicle has been
driven.

Displays the distance the vehicle has been driven
since the meter was last reset. Trip meters A and
B can be used to record and display different dis-
tances independently.

Press and hold the button to reset.

Displays the instantaneous fuel consumption.

Displays the average fuel consumption since the
vehicle was last refueled.

Use the displayed average fuel consumption as a
reference.

148

2-2. Instrument cluster

Scion_xD_OM_OM52E36U_(U)

● Average vehicle speed

● Driving range

● Outside temperature display (if equipped)

Displays the average vehicle speed since the
engine was started.

Displays the estimated maximum distance that
can be driven with the quantity of fuel remaining.

• This distance is computed based on your aver-

age fuel consumption. As a result, the actual dis-
tance that can be driven may differ from that
displayed.

• When only a small amount of fuel is added to the

tank, the display may not be updated.

Displays the outside temperature.

The temperature range that can be displayed is
from -40°F (-40°C) to 122°F (50°C).

When the outside air temperature falls below 37°F
(3°C) while driving, the temperature display flashes
to indicate that the outside air temperature is
becoming low.

149

2-2. Instrument cluster

2

When

 d

riving

Scion_xD_OM_OM52E36U_(U)

■

When disconnecting and reconnecting battery terminals

The following information data will be reset:

●

Instantaneous fuel consumption

●

Average fuel consumption

●

Average vehicle speed

●

Driving range

■

Outside temperature display (if equipped)

●

In the following situations, the correct outside temperature may not be
displayed, or the display may take longer than normal to change.

• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/

exit of a garage, tunnel, etc.)

●

When “--” is displayed, the system may be malfunctioning.
Have the vehicle inspected by your Scion dealer.

NOTICE

■

The multi-information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

150

Scion_xD_OM_OM52E36U_(U)

2-3. Operating the lights and Windshield wipers

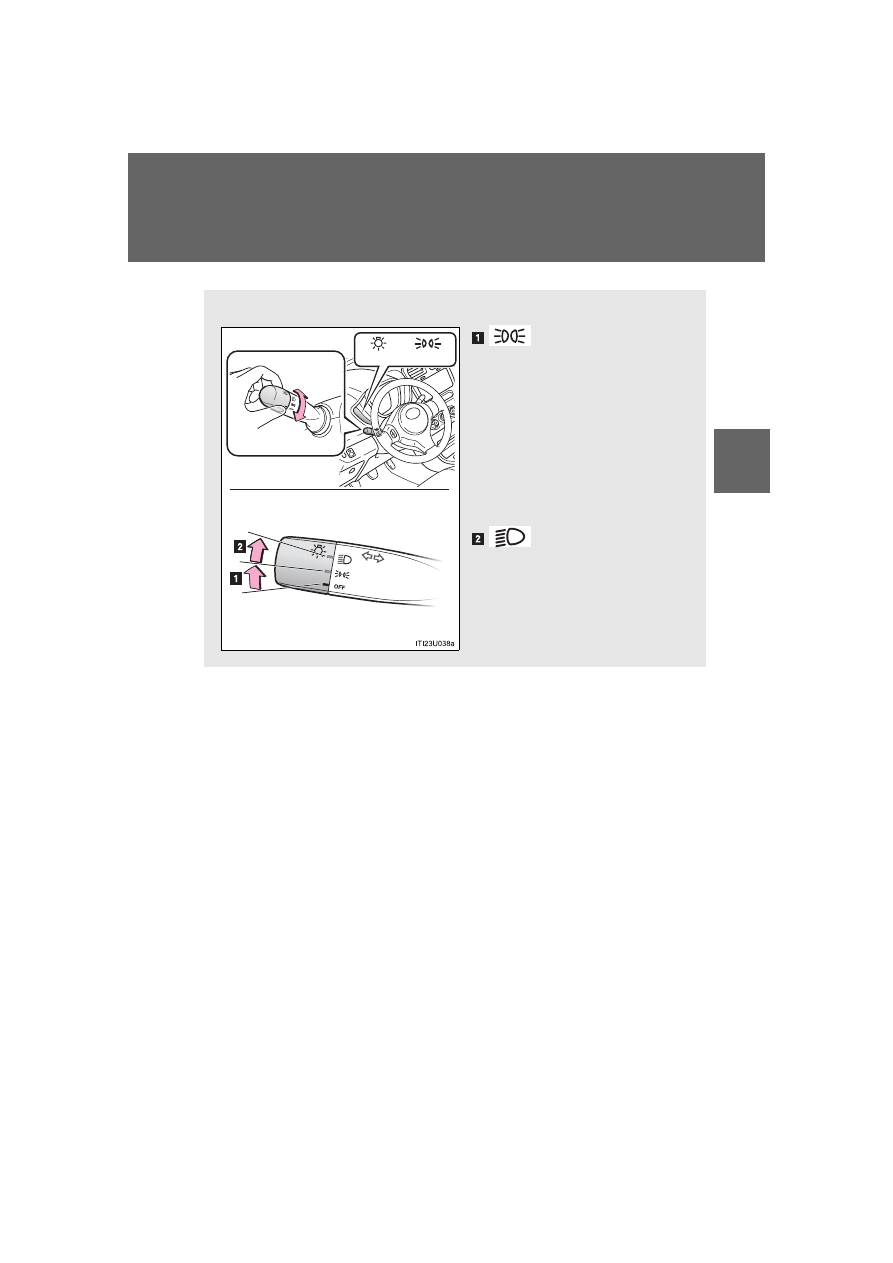

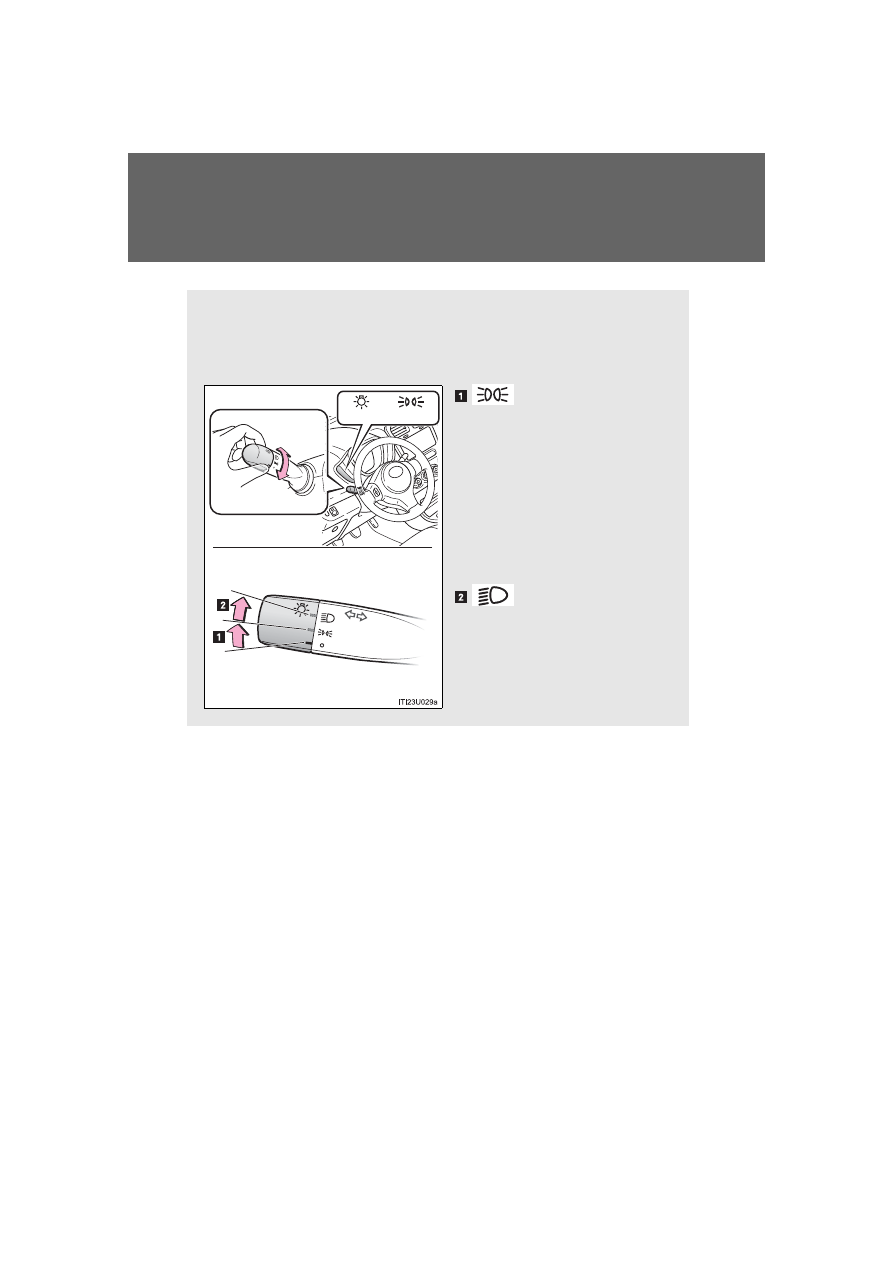

Headlight switch

The headlights can be operated manually.

Turning the end of the lever turns on the lights as follows:

Type A

The side marker,
parking, tail, license
plate and instrument
panel lights turn on.

Vehicles with day-
time running light
system:
The daytime running
light turn on.

The headlights and
all lights listed above
turn on.

U.S.A.

Canada

151

2-3. Operating the lights and Windshield wipers

2

When

 d

riving

Scion_xD_OM_OM52E36U_(U)

Type B

The side marker,
parking, tail, license
plate and instrument
panel lights turn on.

Vehicles with day-
time running light
system:
The daytime running
light turn on.

The headlights and
all lights listed above
turn on.

U.S.A.

Canada

152

2-3. Operating the lights and Windshield wipers

Scion_xD_OM_OM52E36U_(U)

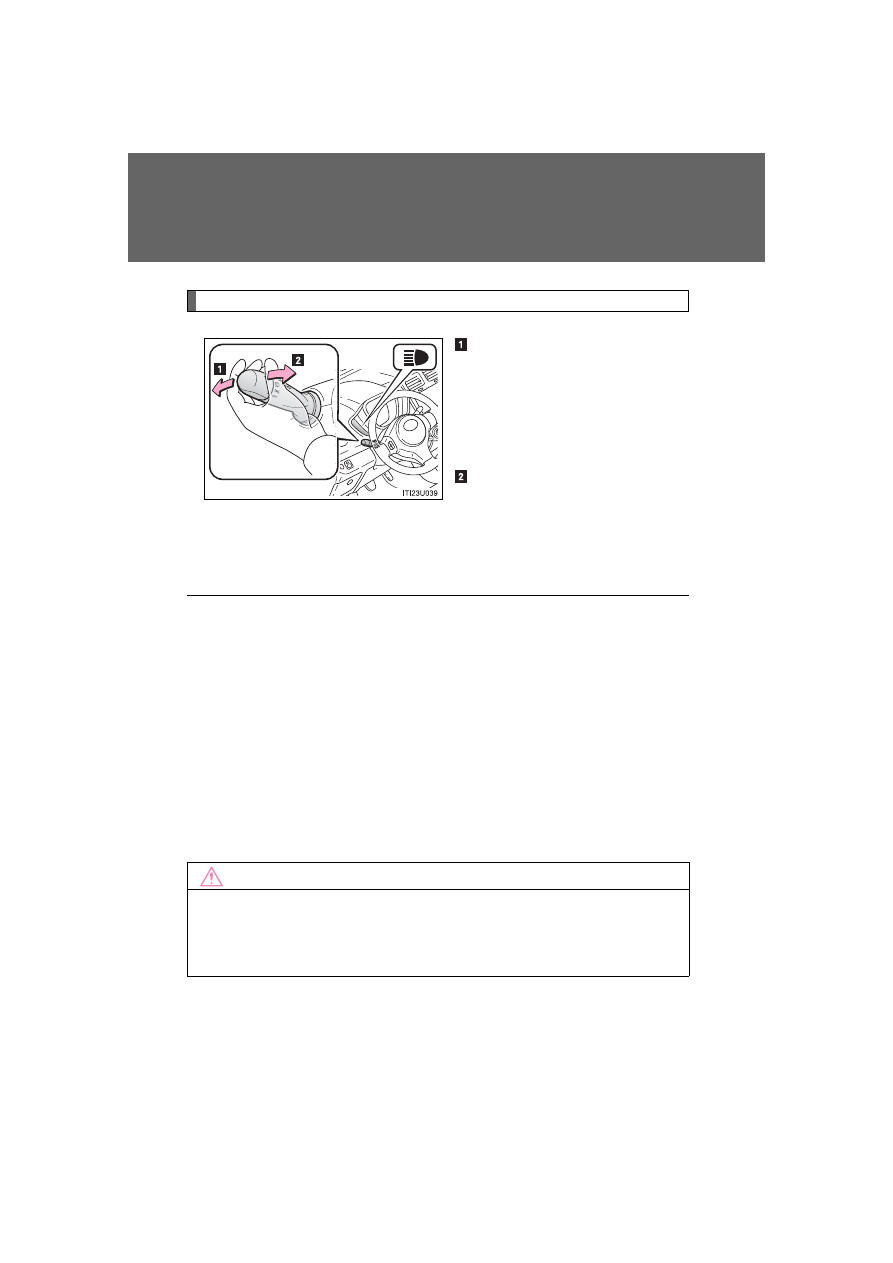

Turning on the high beam headlights

With the headlights on, push
the lever away from you to
turn on the high beams.

Pull the lever toward you to the
center position to turn the high
beams off.

Pull the lever toward you and
release it to flash the high
beams once.

You can flash the high beams
with the headlights on or off.

■

Daytime running light system (if equipped)

●

To make your vehicle more visible to other drivers, the headlights turn on
automatically (at a reduced intensity) whenever the engine is started and
the parking brake is released. Daytime running lights are not designed for
use at night.

●

Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help
improve fuel economy.

■

Light reminder buzzer

A buzzer sounds when the driver’s door is opened with the key removed
from the engine switch while the lights are turned on.

NOTICE

■

To prevent battery discharge

Do not leave the lights on longer than necessary when the engine is not run-
ning.

153

2-3. Operating the lights and Windshield wipers

2

When

 d

riving

Scion_xD_OM_OM52E36U_(U)

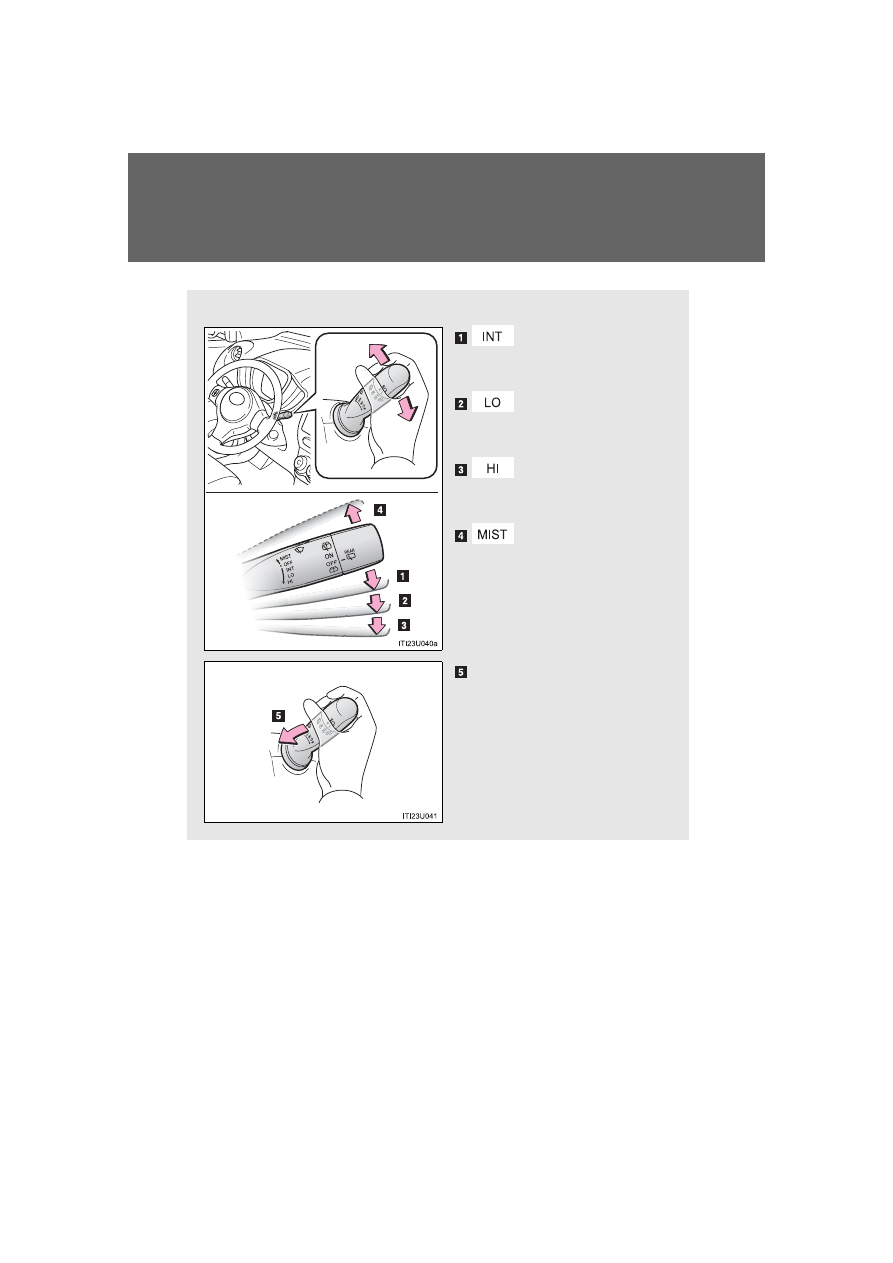

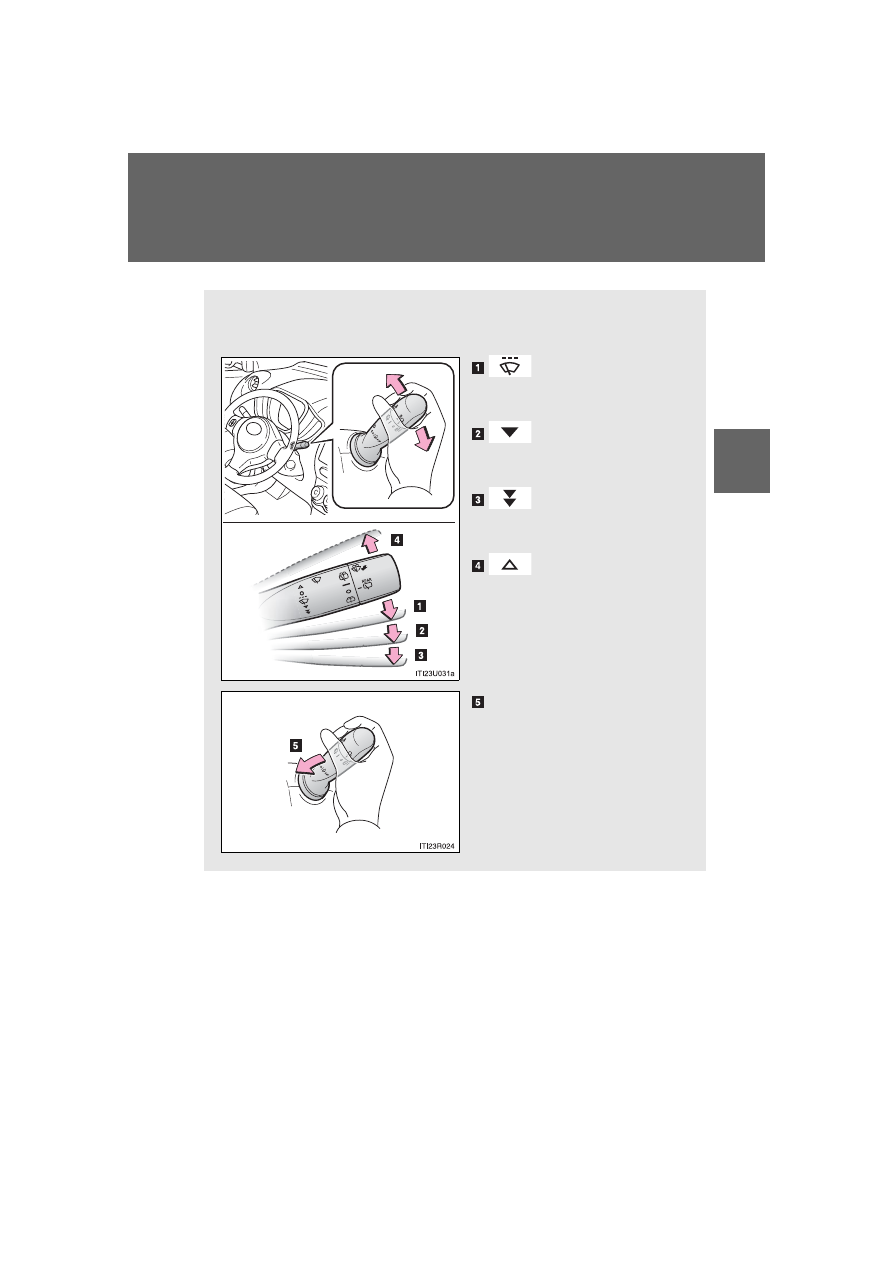

Windshield wipers and washer

The wiper operation is selected by moving the lever as follows.

Type A

Intermittent wind-
shield wiper opera-
tion

Low speed wind-
shield wiper opera-
tion

High speed wind-
shield wiper opera-
tion

Temporary operation

Washer/wiper dual opera-
tion

The wipers will automatically
operate a couple of times after
the washer squirts.

154

2-3. Operating the lights and Windshield wipers

Scion_xD_OM_OM52E36U_(U)

Type B

Intermittent wind-
shield wiper opera-
tion

Low speed wind-
shield wiper opera-
tion

High speed wind-
shield wiper opera-
tion

Temporary operation

Washer/wiper dual opera-
tion

The wipers will automatically
operate a couple of times after
the washer squirts.

155

2-3. Operating the lights and Windshield wipers

2

When

 d

riving

Scion_xD_OM_OM52E36U_(U)

■

The windshield wipers and washer can be operated when

The engine switch is in the “ON” position.

■

If no windshield washer fluid sprays

Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.

NOTICE

■

When the windshield is dry

Do not use the wipers, as they may damage the windshield.

■

When the washer fluid tank is empty

Do not operate the switch continually as the washer fluid pump may over-
heat.

■

When a nozzle becomes blocked

In this case, contact your Scion dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

156

2-3. Operating the lights and Windshield wipers

Scion_xD_OM_OM52E36U_(U)

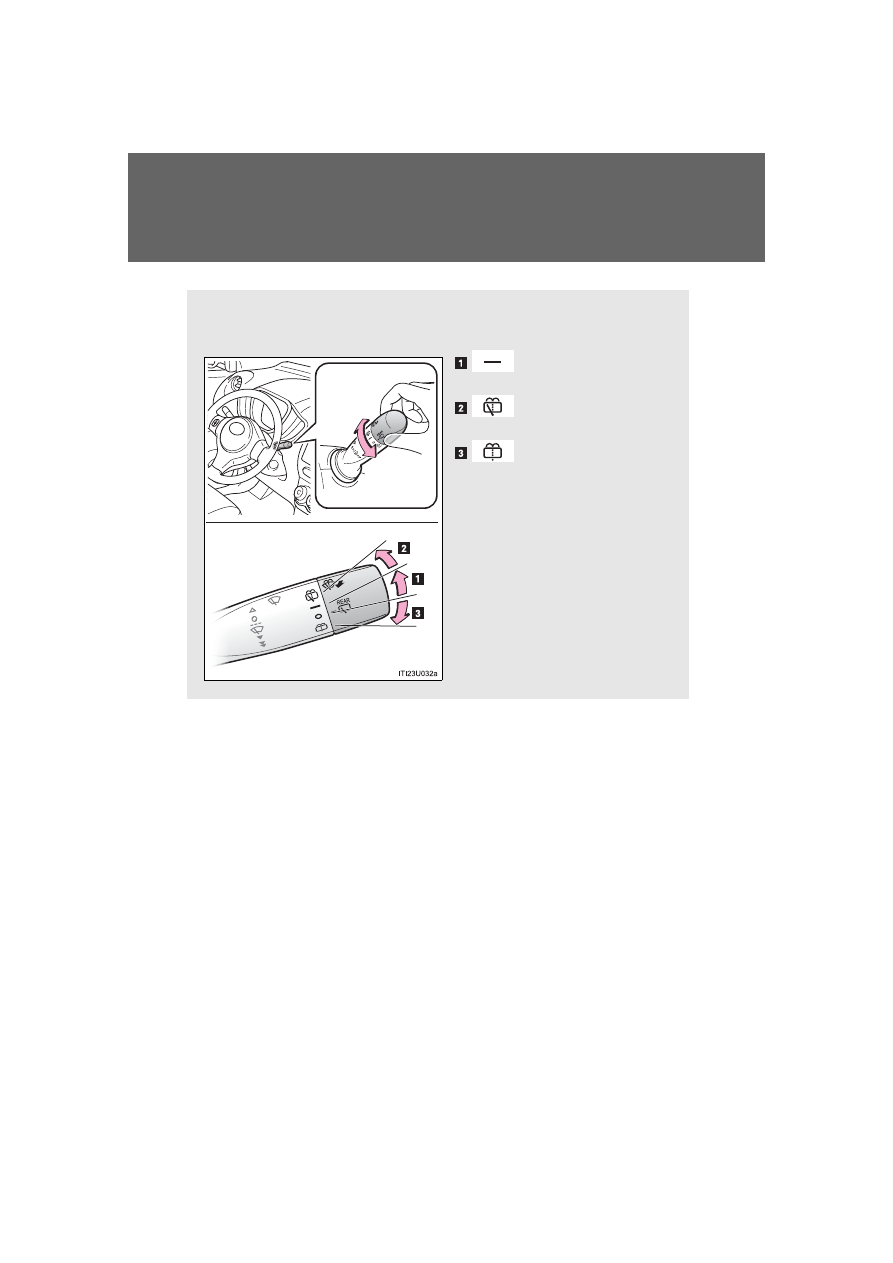

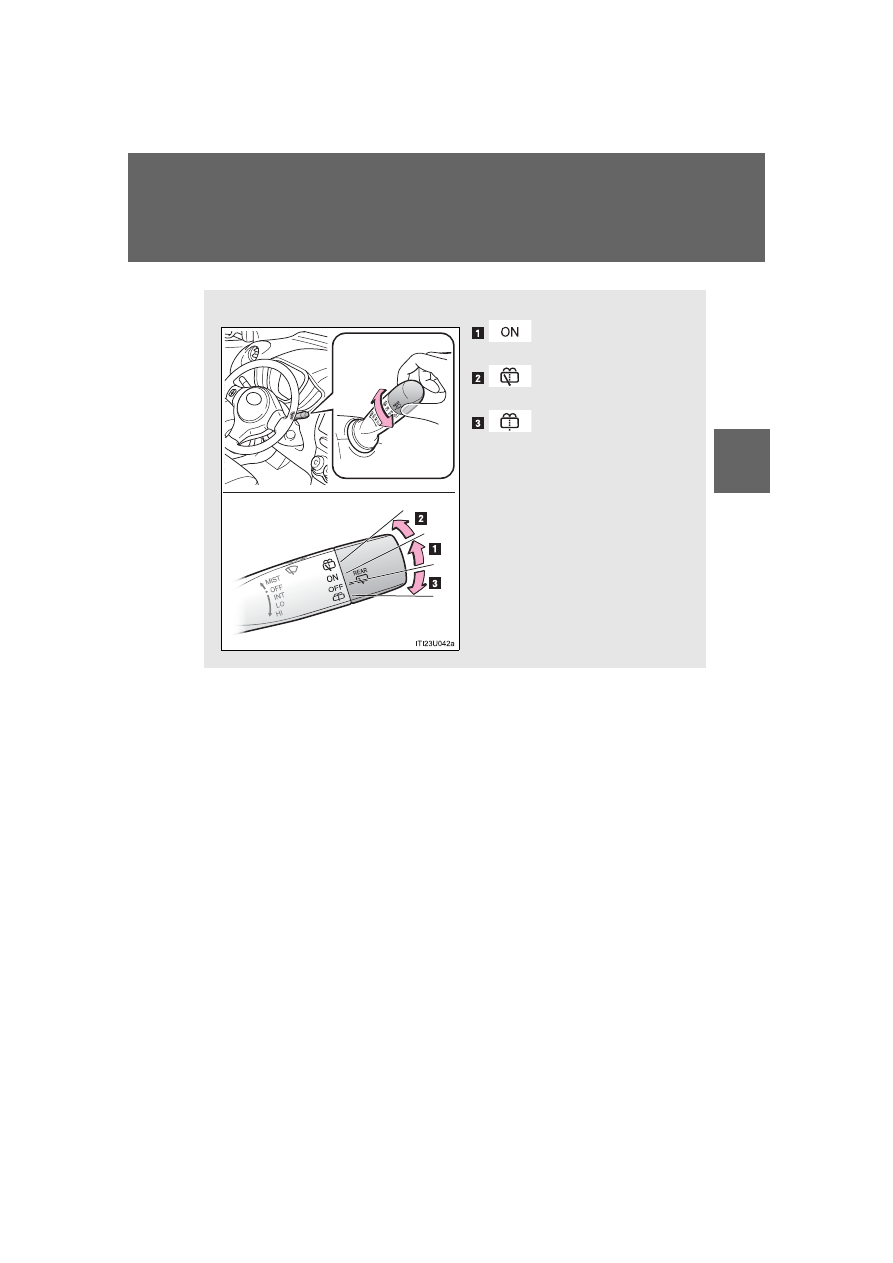

Rear window wiper and washer

The wiper operation is selected by moving the lever as follows:

Type A

Normal window wiper
operation

Washer/wiper dual
operation

Washer operation

157

2-3. Operating the lights and Windshield wipers

2

When

 d

riving

Scion_xD_OM_OM52E36U_(U)

Type B

Normal window wiper
operation

Washer/wiper dual
operation

Washer operation

158

2-3. Operating the lights and Windshield wipers

Scion_xD_OM_OM52E36U_(U)

■

The rear window wiper and washer can be operated when

The engine switch is in the “ON” position

■

If no washer fluid sprays

Check that the washer nozzle is not blocked if there is washer fluid in the
washer fluid reservoir.

NOTICE

■

When the rear window is dry

Do not use the wiper, as it may damage the rear window.

■

When the washer fluid tank is empty

Do not operate the switch continually as the washer fluid pump may over-
heat.

159

2

When

 d

riving

Scion_xD_OM_OM52E36U_(U)

2-4. Using other driving systems

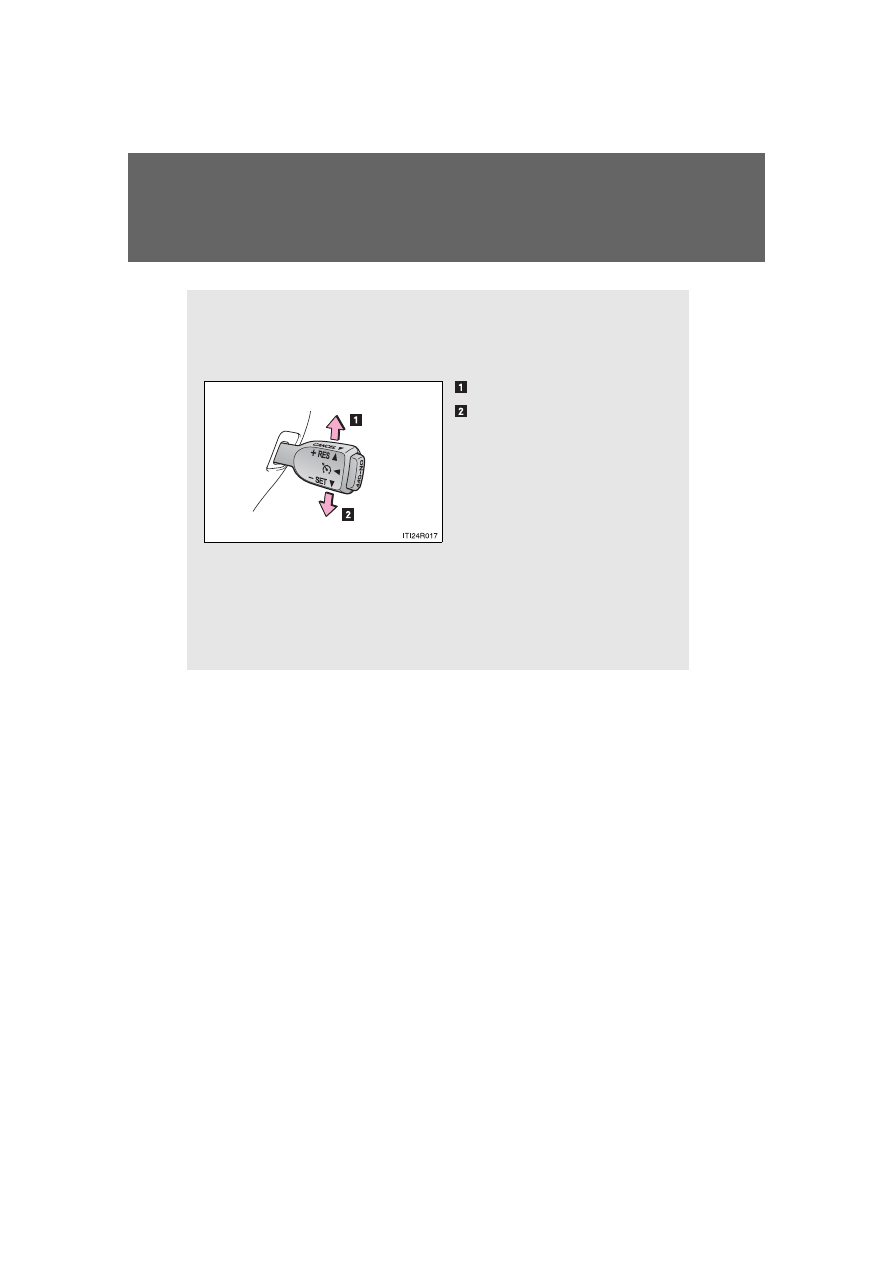

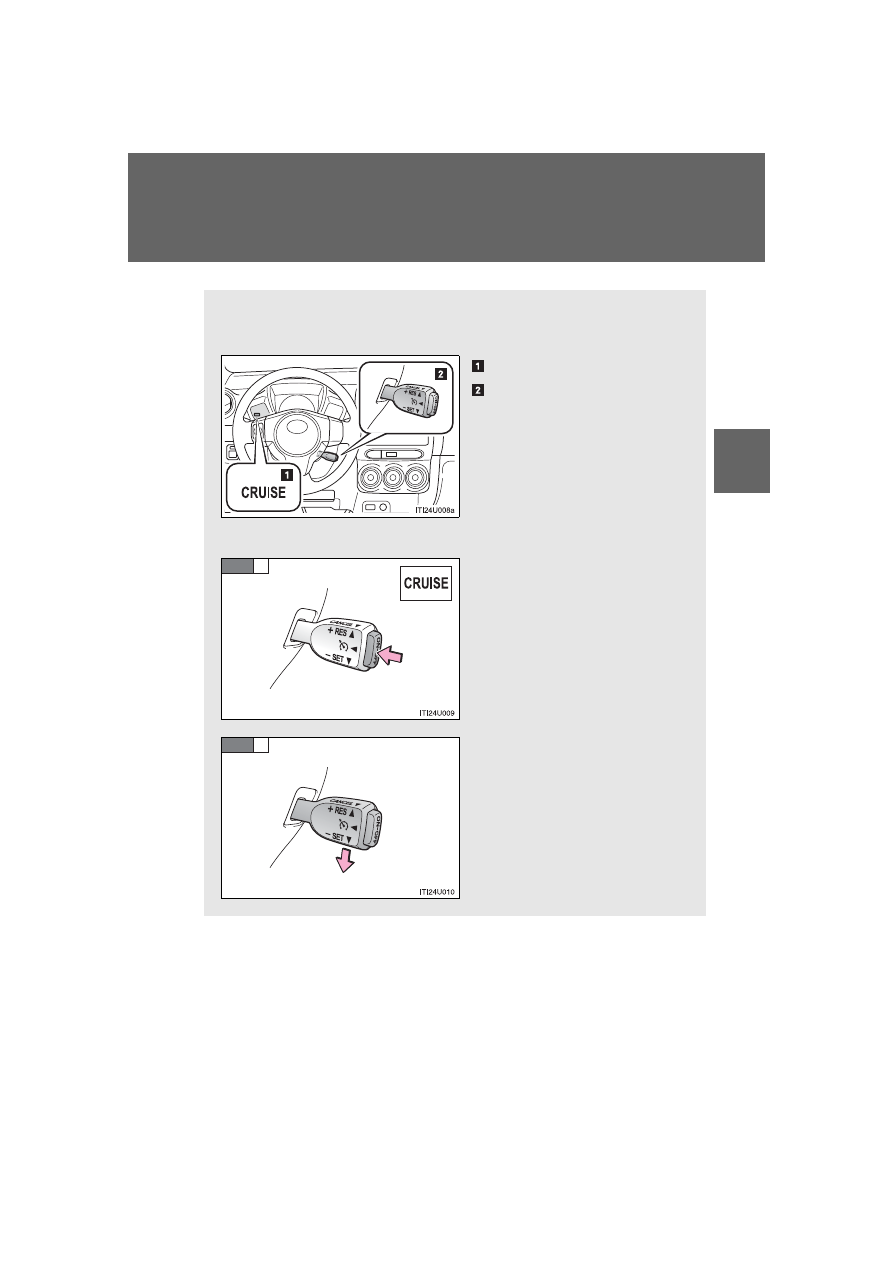

Cruise control

Use the cruise control to maintain a set speed without depressing

the accelerator pedal.

Indicator

Cruise control switch

■

Setting the vehicle speed

Press the “ON-OFF” button to
activate the cruise control.

Press the button again to
deactivate the cruise control.

Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to set
the speed.

The vehicle speed at the
moment the lever is released
becomes the set speed.

STEP

1

STEP

2

160

2-4. Using other driving systems

Scion_xD_OM_OM52E36U_(U)

■

Adjusting the set speed

To change the set speed, operate the lever until the desired set
speed is obtained.

Increases the speed

Decreases the speed

Fine adjustment: Momentarily
move the lever in the desired
direction.

Large adjustment: Hold the
lever in the desired direction.

The set speed will be increased or decreased as follows:

Fine adjustment: By approximately 1 mph (1.6 km/h) each time the
lever is operated.

Large adjustment: The set speed can be increased or decreased con-
tinually until the lever is released.

161

2-4. Using other driving systems

2

When

 d

riving

Scion_xD_OM_OM52E36U_(U)

■

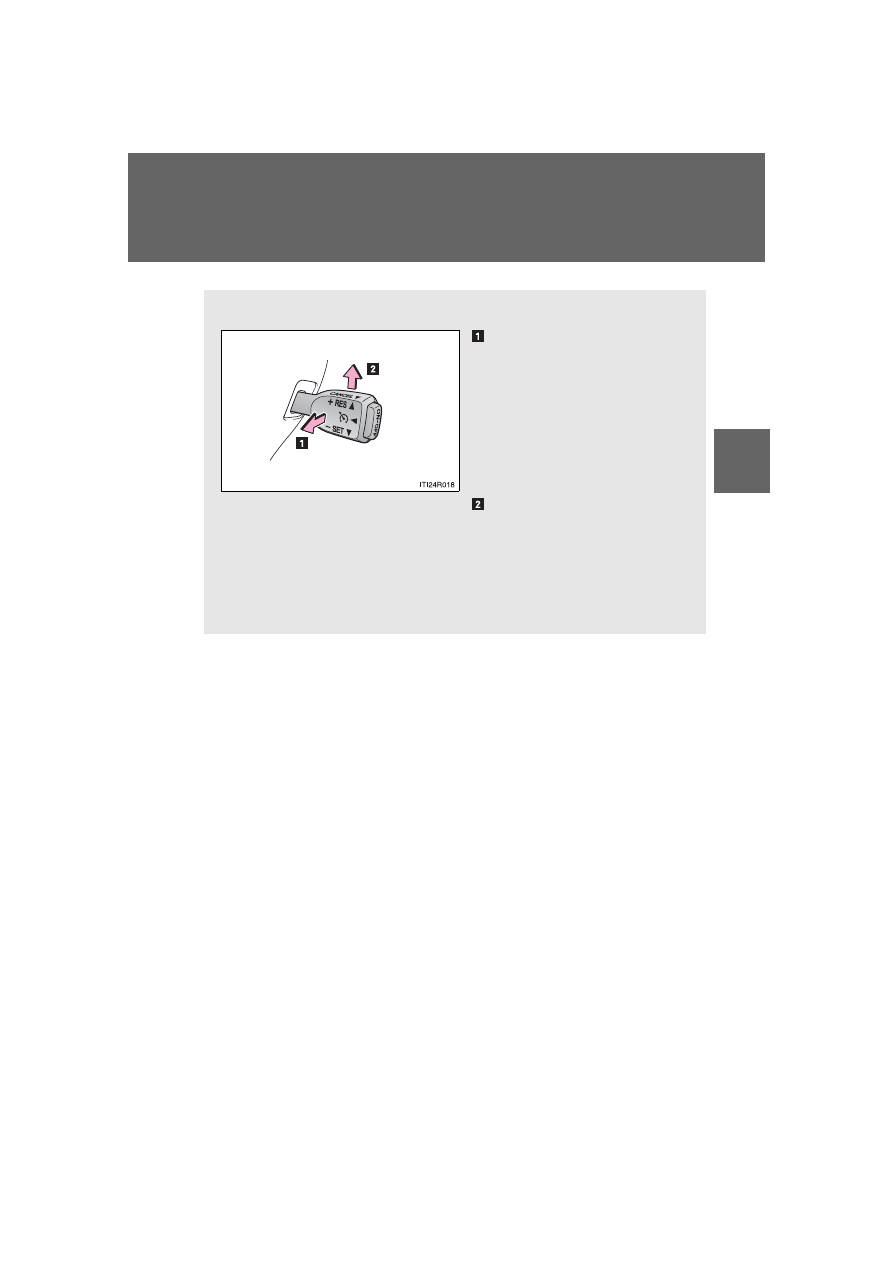

Canceling and resuming the constant speed control

Pulling the lever toward you
cancels the constant speed
control.

The speed setting is also can-
celed when the brakes are
applied or the clutch pedal
(manual transmission only) is
depressed.

Pushing the lever up
resumes the constant
speed control.

Resuming is available when the
vehicle speed is more than
approximately 25 mph (40 km/h).

162

2-4. Using other driving systems

Scion_xD_OM_OM52E36U_(U)

■

Cruise control can be set when

●

On vehicles with an automatic transmission, the shift lever is in the D or
range 3 has been selected.

●

Vehicle speed is above approximately 25 mph (40 km/h).

■

Accelerating

The vehicle can be accelerated normally. After acceleration, the set speed
resumes.

■

Automatic cruise control cancelation

Cruise control will stop maintaining the vehicle speed in any of the following
situations.

●

Actual vehicle speed falls more than approximately 10 mph (16 km/h)
below the preset vehicle speed.
At this time, the memorized set speed is not retained.

●

Actual vehicle speed is below approximately 25 mph (40 km/h).

●

VSC is activated.

■

If the “CRUISE” indicator light flashes

Press the “ON-OFF” button once to deactivate the system, and then press
the button again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels
immediately after being activated, there may be a malfunction in the cruise
control system. Have the vehicle inspected by your Scion dealer.
