1-3. Adjustable components (seats, mirrors, steering wheel)

Scion_xB_OM_OM12F03U_(U)

■

Child seat belt usage

The seat belts of your vehicle were principally designed for persons of adult
size.

●

Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. (

P. 87)

●

When the child becomes large enough to properly wear the vehicle’s
seat belt, follow the instructions on P. 47 regarding seat belt usage.

■

Replacing the belt after the pretensioner has been activated

If the vehicle is involved in multiple collisions, the pretensioner will activate
for the first collision, but will not activate for the second or subsequent colli-
sions.

■

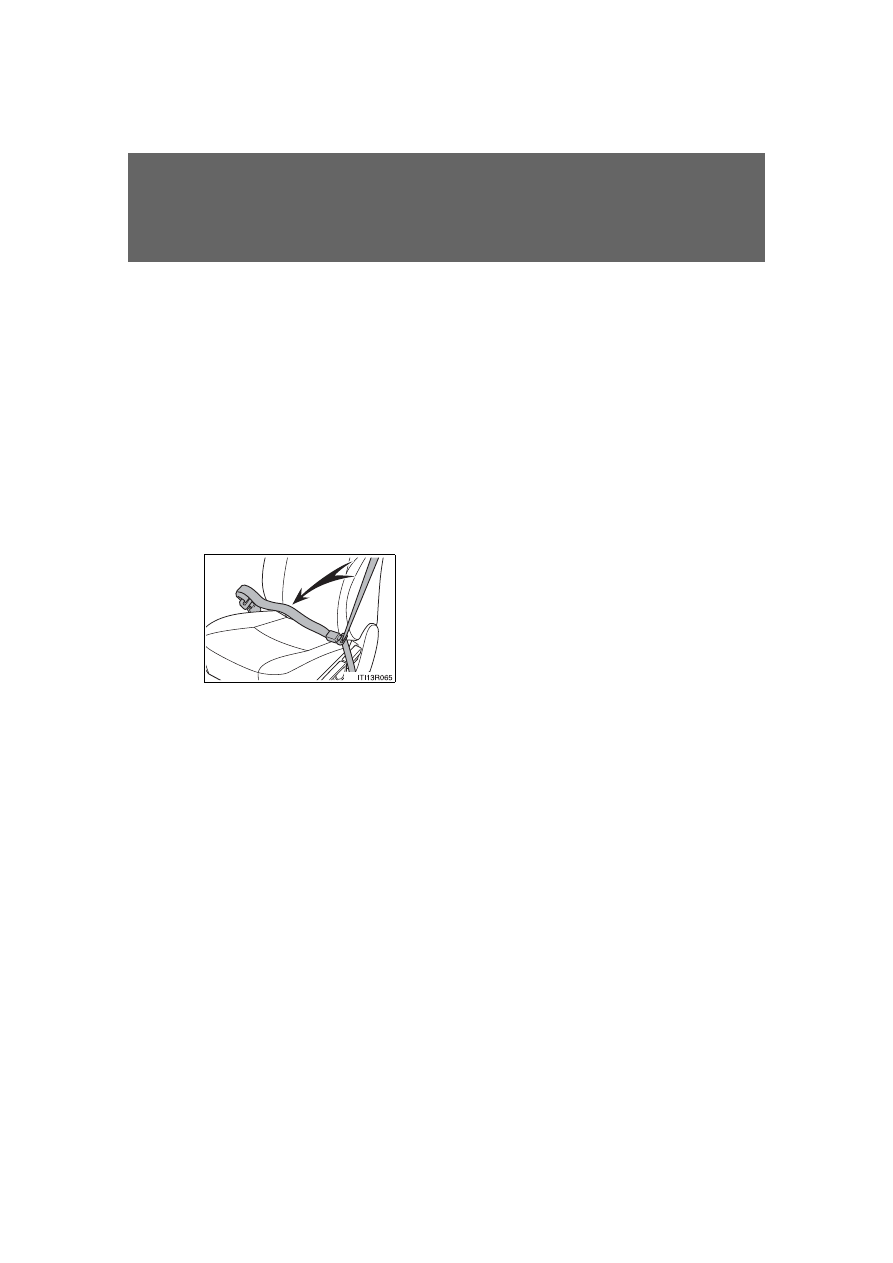

Seat belt extender

If your seat belts cannot be fastened
securely because they are not long
enough, a personalized seat belt
extender is available from your Scion
dealer free of charge.

51

1-3. Adjustable components (seats, mirrors, steering wheel)

1

Be
fo

re driving

Scion_xB_OM_OM12F03U_(U)

CAUTION

Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.

■

Wearing a seat belt

●

Ensure that all passengers wear a seat belt.

●

Always wear a seat belt properly.

●

Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.

●

Scion recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.

●

To achieve a proper seating position, do not recline the seat more than
necessary. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.

●

Do not wear the shoulder belt under your arm.

●

Always wear your seat belt low and snug across your hips.

■

When children are in the vehicle

Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.

■

Seat belt pretensioners

●

Do not place anything, such as a cushion, on the front passenger’s seat.
Doing so will disperse the passenger’s weight, which prevents the sensor
from detecting the passenger’s weight properly. As a result, the seat belt
pretensioner for the front passenger’s seat may not activate in the event of
a collision.

●

If the pretensioner has activated, the SRS warning light will come on. In
that case, the seat belt cannot be used again and must be replaced at
your Scion dealer.

52

1-3. Adjustable components (seats, mirrors, steering wheel)

Scion_xB_OM_OM12F03U_(U)

CAUTION

■

Adjustable shoulder anchor

Always make sure the shoulder belt is positioned across the center of your
shoulder. The belt should be kept away from your neck, but not falling off
your shoulder. Failure to do so could reduce the amount of protection in an
accident and cause death or serious injuries in the event of a sudden stop,
sudden swerve or accident. (

P. 48)

■

Seat belt damage and wear

●

Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.

●

Inspect the seat belt system periodically. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belts cannot protect an occupant from death or serious injury.

●

Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Scion
dealer.

●

Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there’s no obvious damage.

●

Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by your Scion dealer.
Inappropriate handling of the pretensioner may prevent it from operating
properly, resulting in death or serious injury.

53

1-3. Adjustable components (seats, mirrors, steering wheel)

1

Be
fo

re driving

Scion_xB_OM_OM12F03U_(U)

CAUTION

■

Using a seat belt extender

●

Do not wear the seat belt extender if you can fasten the seat belt without
the extender.

●

Do not use the seat belt extender when installing a child restraint system
because the belt will not securely hold the child restraint system, increas-
ing the risk of death or serious injury in the event of an accident.

●

The personalized extender may not be safe on another vehicle, when
used by another person, or at a different seating position other than the
one originally intended.

NOTICE

■

When using a seat belt extender

When releasing the seat belt, press on the buckle release button on the
extender, not on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.

54

1-3. Adjustable components (seats, mirrors, steering wheel)

Scion_xB_OM_OM12F03U_(U)

Steering wheel

CAUTION

■

Caution while driving

Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.

■

After adjusting the steering wheel

Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident and resulting in death or serious injury.

The steering wheel can be adjusted to a comfortable position.

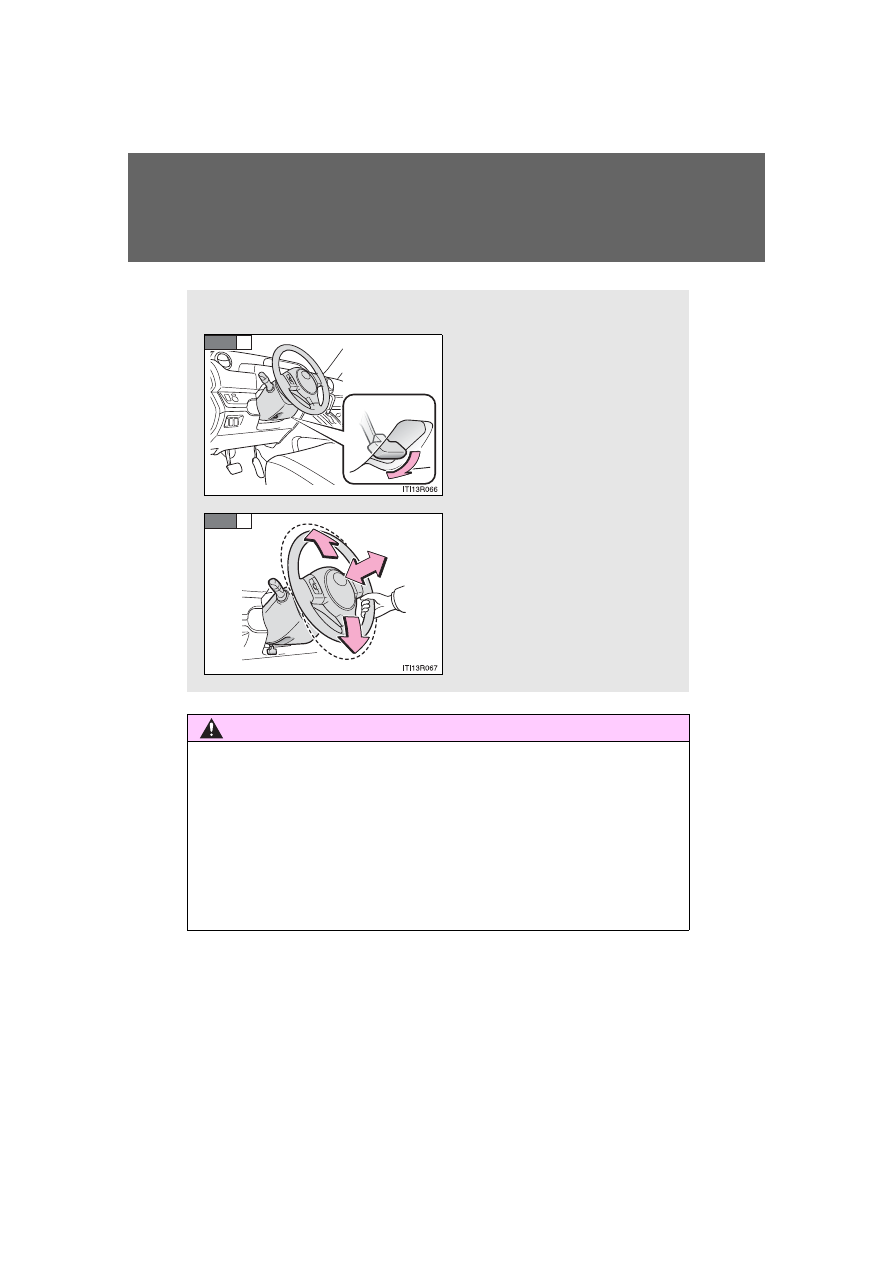

Hold the steering wheel and
push the lever down.

Adjust to the ideal position by
moving the steering wheel
horizontally and vertically.

After adjustment, pull the lever
up to secure the steering
wheel.

STEP

1

STEP

2

55

1

1-3. Adjustable components (seats, mirrors, steering wheel)

Be
fo

re driving

Scion_xB_OM_OM12F03U_(U)

Anti-glare inside rear view mirror

Adjusting the height of rear view mirror

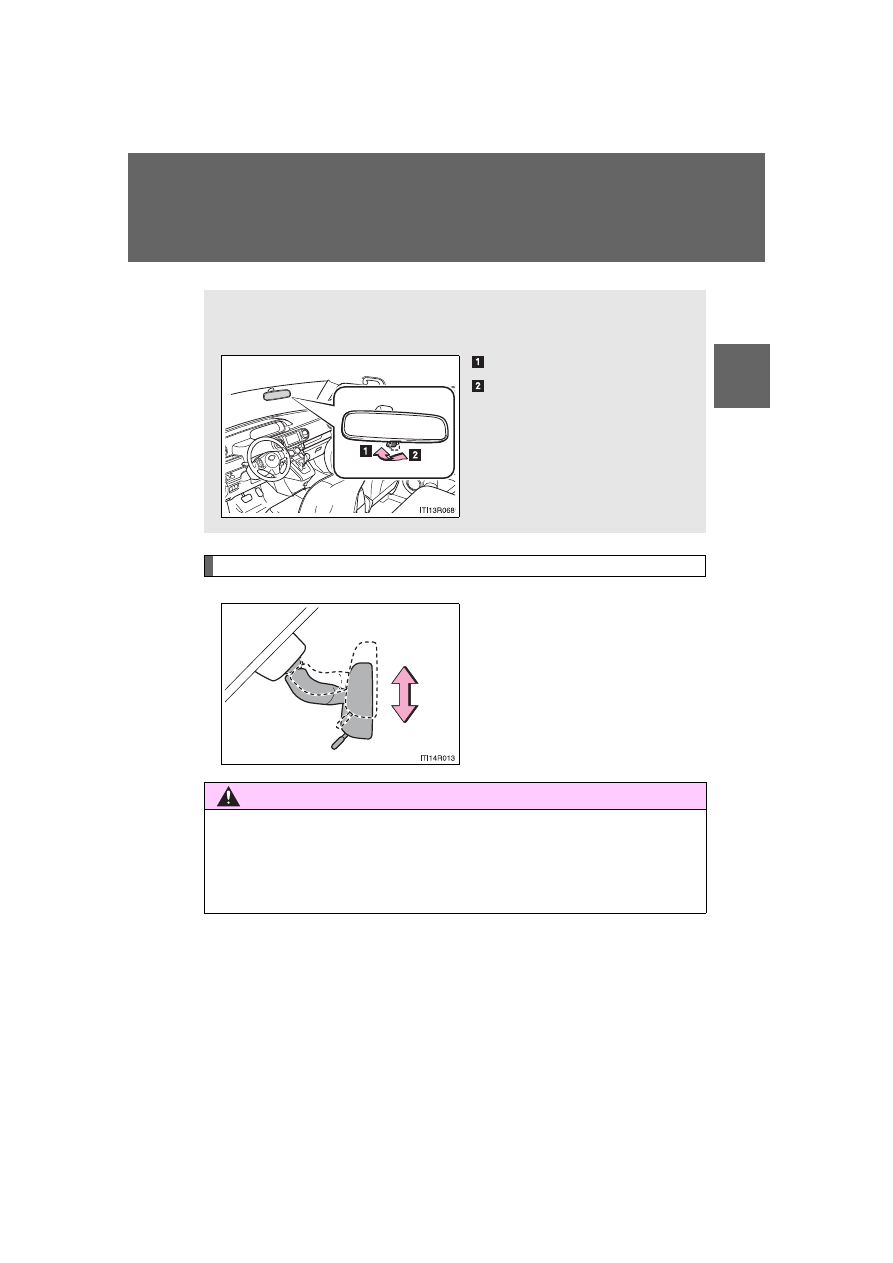

Adjust the height of the rear view
mirror by moving it up and down.

Glare from the headlights of vehicles behind can be reduced by

using the following functions:

Normal position

Anti-glare position

CAUTION

■

Caution while driving

Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.

56

1-3. Adjustable components (seats, mirrors, steering wheel)

Scion_xB_OM_OM12F03U_(U)

Outside rear view mirrors

Folding the mirrors

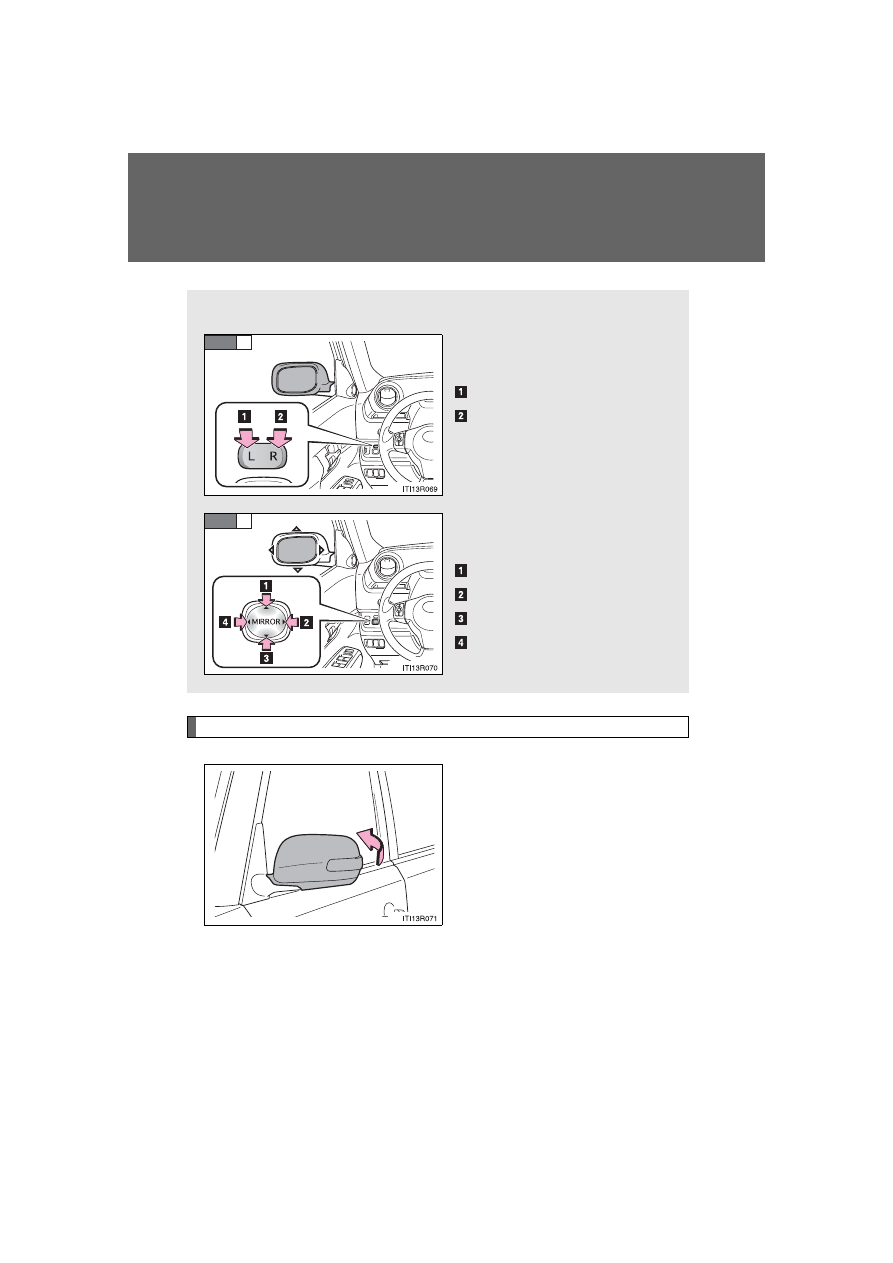

Push the mirror back in the direc-
tion of the vehicle’s rear.

Mirror angle can be adjusted using the switch.

To select a mirror to adjust,
press the switch.

Left

Right

To adjust the mirror, press the
switch.

Up

Right

Down

Left

STEP

1

STEP

2

57

1-3. Adjustable components (seats, mirrors, steering wheel)

1

Be
fo

re driving

Scion_xB_OM_OM12F03U_(U)

■

Mirror angle can be adjusted when

The engine switch is in the “ACC” or “ON” position.

■

When the mirrors are fogged up (vehicles with outside rear view mirror
defoggers)

Turn on the mirror defoggers to defog the mirrors. (

P. 178)

CAUTION

■

When driving the vehicle

Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.

●

Do not adjust the mirrors while driving.

●

Do not drive with the mirrors folded.

●

Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.

■

When a mirror is moving

To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.

■

When the mirror defoggers are operating (vehicles with outside rear
view mirror defoggers)

Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.

58

Scion_xB_OM_OM12F03U_(U)

1-4. Opening and closing the windows

Power windows

Window lock switch

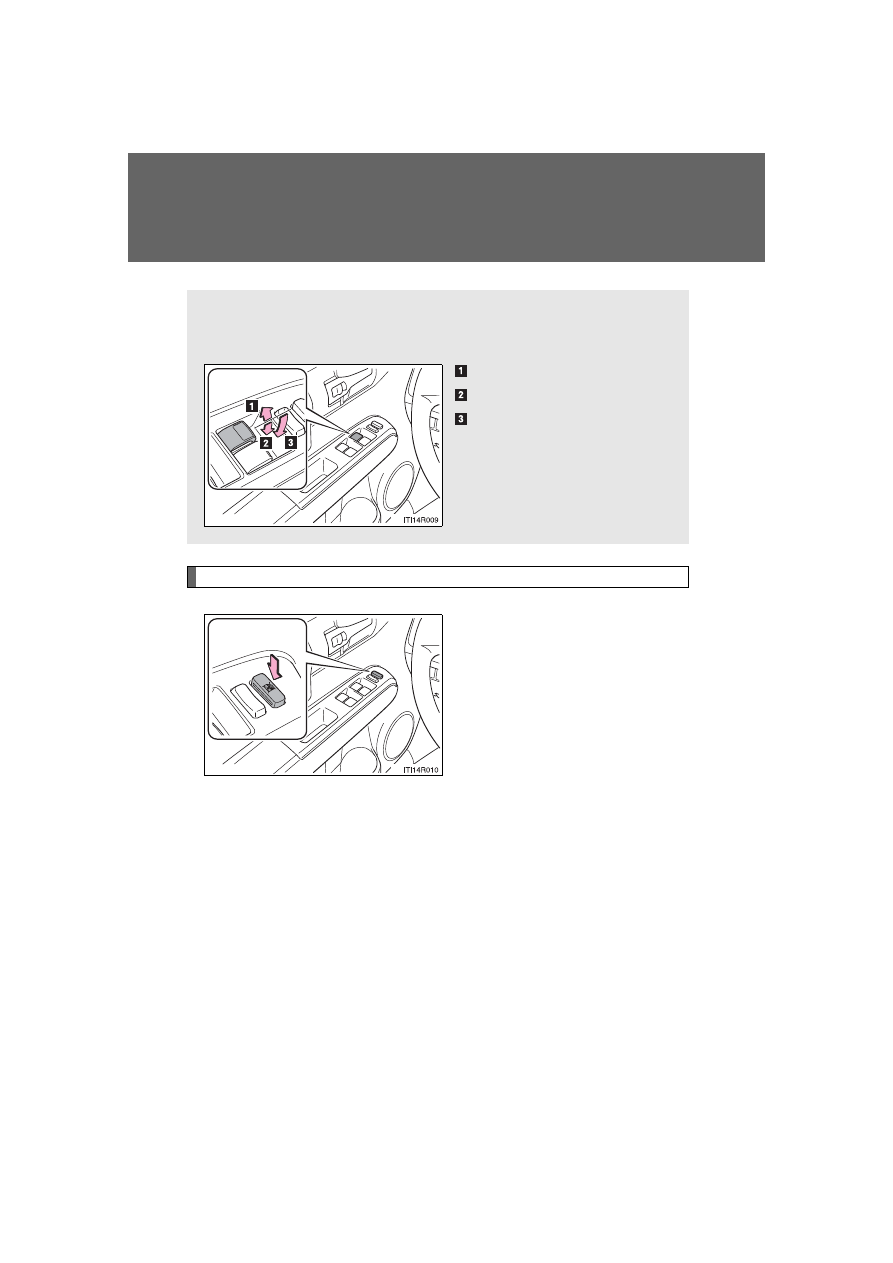

Press the switch down to lock
the passenger window switches.

Use this switch to prevent chil-
dren from accidentally opening or
closing a passenger window.

The power windows can be opened and closed using the switches.

Operating the switch moves the windows as follows:

Closing

Opening

One-touch opening (driver’s
window only)

*

*

: To stop the window partway,

operate the switch in the oppo-
site direction.

59

1-4. Opening and closing the windows

1

Be
fo

re driving

Scion_xB_OM_OM12F03U_(U)

■

The power windows can be operated when

The engine switch is in the “ON” position.

■

Operating the power windows after turning the engine off

The power windows can be operated for approximately 45 seconds even
after the engine switch is turned to the “ACC” or “LOCK” position. They can-
not, however, be operated once either front door is opened.

CAUTION

■

Closing the windows

Observe the following precautions.
Failure to do so may result in death or serious injury.

●

The driver is responsible for all the power window operations, including the
operation for the passengers. In order to prevent accidental operation,
especially by a child, do not let a child operate the power windows. It is
possible for children and other passengers to have body parts caught in
the power window. Also, when riding with a child, it is recommended to use
the window lock switch. (

P. 58)

●

Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.

●

When exiting the vehicle, turn the engine switch off, carry the key and exit
the vehicle along with the child. There may be accidental operation, due to
mischief, etc., that may possibly lead to an accident.

60

Scion_xB_OM_OM12F03U_(U)

1-5. Refueling

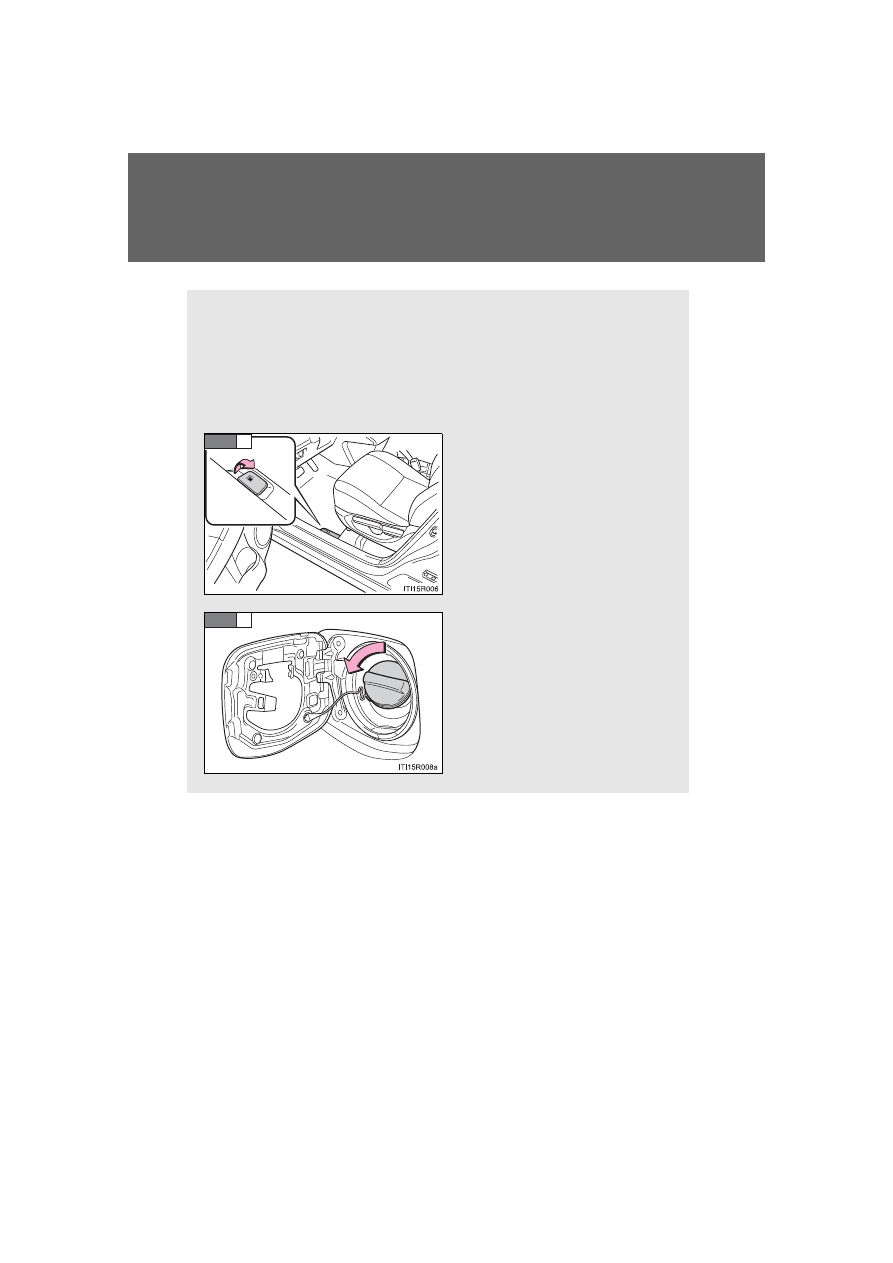

Opening the fuel tank cap

Perform the following steps to open the fuel tank cap:

■

Before refueling the vehicle

Turn the engine switch off and ensure that all the doors and win-
dows are closed.

■

Opening the fuel tank cap

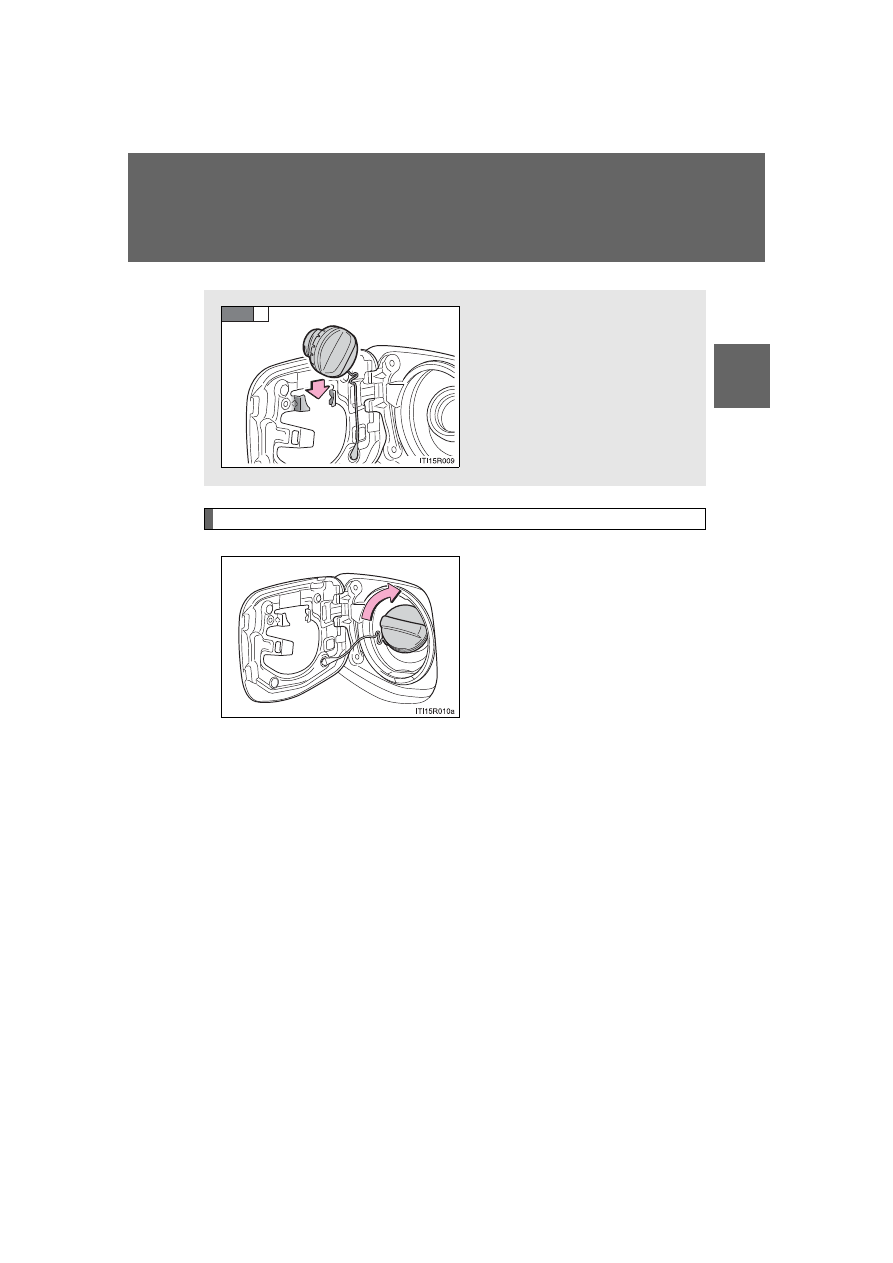

Pull up the opener to open the
fuel filler door.

Turn the fuel tank cap slowly
to open.

STEP

1

STEP

2

61

1-5. Refueling

1

Be
fo

re driving

Scion_xB_OM_OM12F03U_(U)

Closing the fuel tank cap

After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.

Hang the fuel tank cap on the
back of the fuel filler door.

STEP

3

62

1-5. Refueling

Scion_xB_OM_OM12F03U_(U)

CAUTION

■

When refueling the vehicle

Observe the following precautions while refueling the vehicle.
Failure to do so may result in death or serious injury.

●

After exiting the vehicle and before opening the fuel door, touch an
unpainted metal surface to discharge any static electricity. It is important to
discharge static electricity before refueling because sparks resulting from
static electricity can cause fuel vapors to ignite while refueling.

●

Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap.
In hot weather, pressurized fuel may spray out the filler neck and cause
injury.

●

Do not allow anyone that has not discharged static electricity from their
body to come close to an open fuel tank.

●

Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.

●

Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.

●

Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.

63

1-5. Refueling

1

Be
fo

re driving

Scion_xB_OM_OM12F03U_(U)

CAUTION

■

When refueling

Securely insert the fuel nozzle into the fuel filler neck. If fuel is added with
the nozzle slightly lifted away from the fuel filler neck, the automatic shut off
function may not operate, resulting in fuel overflowing from the tank.

■

When replacing the fuel cap

Do not use anything but a genuine Scion fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.

NOTICE

■

Refueling

Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control
system to operate abnormally or damaging fuel system components or the
vehicle’s painted surface.

64

Scion_xB_OM_OM12F03U_(U)

1-6. Theft deterrent system

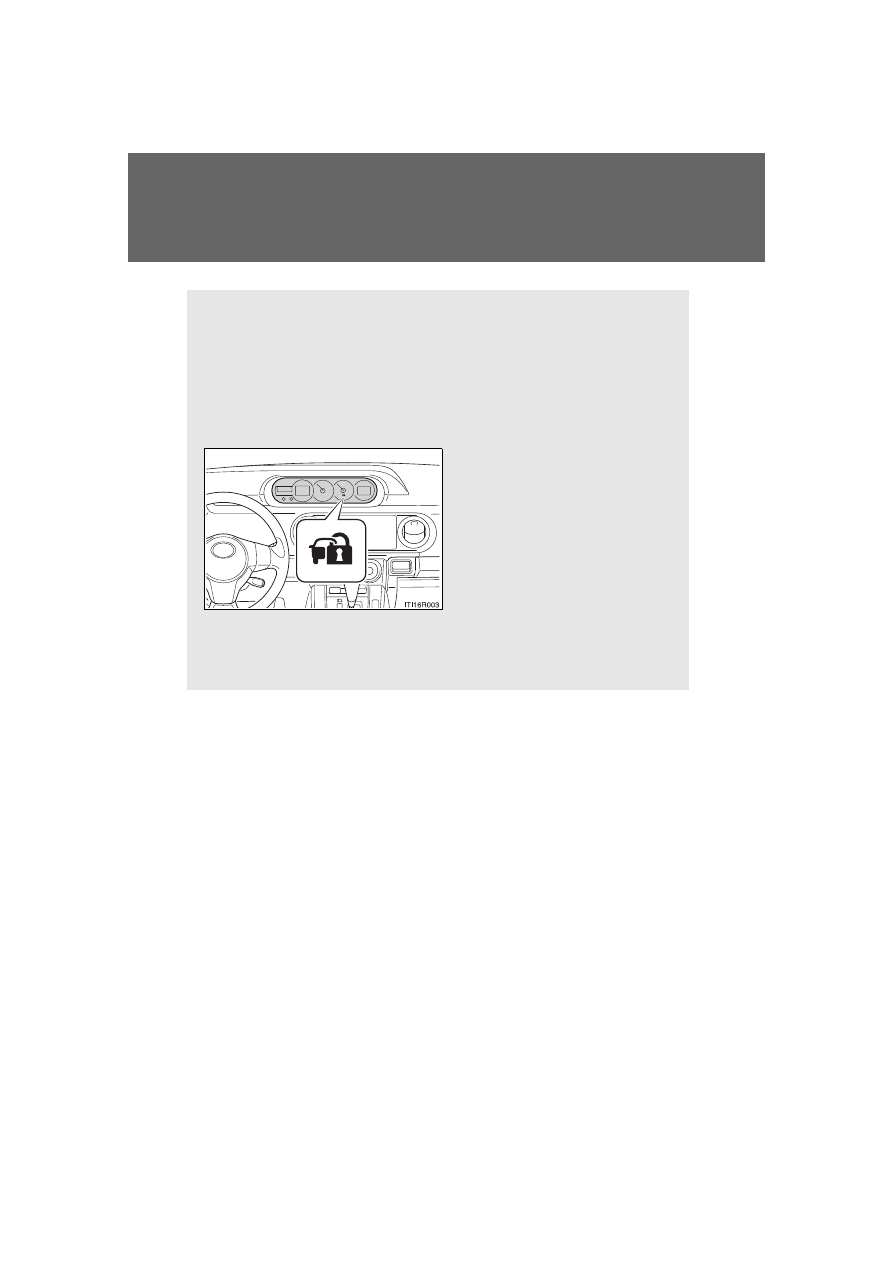

Engine immobilizer system





: If equipped

The vehicle’s keys have built-in transponder chips that prevent the

engine from starting if a key has not been previously registered in

the vehicle’s on-board computer.

Never leave the keys inside the vehicle when you leave the vehicle.

This system is designed to help prevent vehicle theft but does not
guarantee absolute security against all vehicle thefts.

The indicator light flashes after
the key has been removed
from the engine switch to indi-
cate that the system is operat-
ing.
The indicator light stops flash-
ing after the registered key
has been inserted into the
engine switch to indicate that
the system has been can-
celed.

65

1-6. Theft deterrent system

1

Be
fo

re driving

Scion_xB_OM_OM12F03U_(U)

■

System maintenance

The vehicle has a maintenance-free type engine immobilizer system.

■

Conditions that may cause the system to malfunction

●

If the grip portion of the key is in contact with a metallic object

●

If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle

■

Certifications for the engine immobilizer system (for vehicles sold in
Canada)

This device complies with Industry Canada licence-exempt RSS stan-
dard(s). Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any interfer-
ence, including interference that may cause undesired operation of the
device.

CAUTION

■

Certifications for the immobilizer system

Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

NOTICE

■

To ensure the system operates correctly

Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
