5-1. Essential information

tC_OM_OM21056U_(U)

Enter the vehicle being towed and start the engine.

If the engine does not start, turn the engine switch to the “ON” posi-
tion (vehicles without a smart key system) or the “ENGINE START
STOP” switch to IGNITION ON mode (vehicles with a smart key sys-
tem).

Shift the shift lever to N and release the parking brake.

For vehicles with an automatic transmission, when the shift lever
cannot be shifted:

P. 411

■

While towing

If the engine is not running, the power assist for the brakes and steering will
not function, making steering and braking more difficult.

■

Wheel nut wrench

Wheel nut wrench is installed in the luggage compartment. (

P. 394)

STEP

6

STEP

7

372

5-1. Essential information

tC_OM_OM21056U_(U)

CAUTION

Observe the following precautions.
Failure to do so may result in death or serious injury.

■

When towing the vehicle

■

While towing

●

When towing using cables or chains, avoid sudden starts, etc. which place
excessive stress on the towing eyelets, cables or chains. The towing eye-
lets, cables or chains may become damaged, broken debris may hit peo-
ple, and cause serious damage.

●

Do not turn the engine switch to the “LOCK” position (vehicles without a
smart key system) or the “ENGINE START STOP” switch off (vehicles with
a smart key system).
There is a possibility that the steering wheel is locked and cannot be oper-
ated.

■

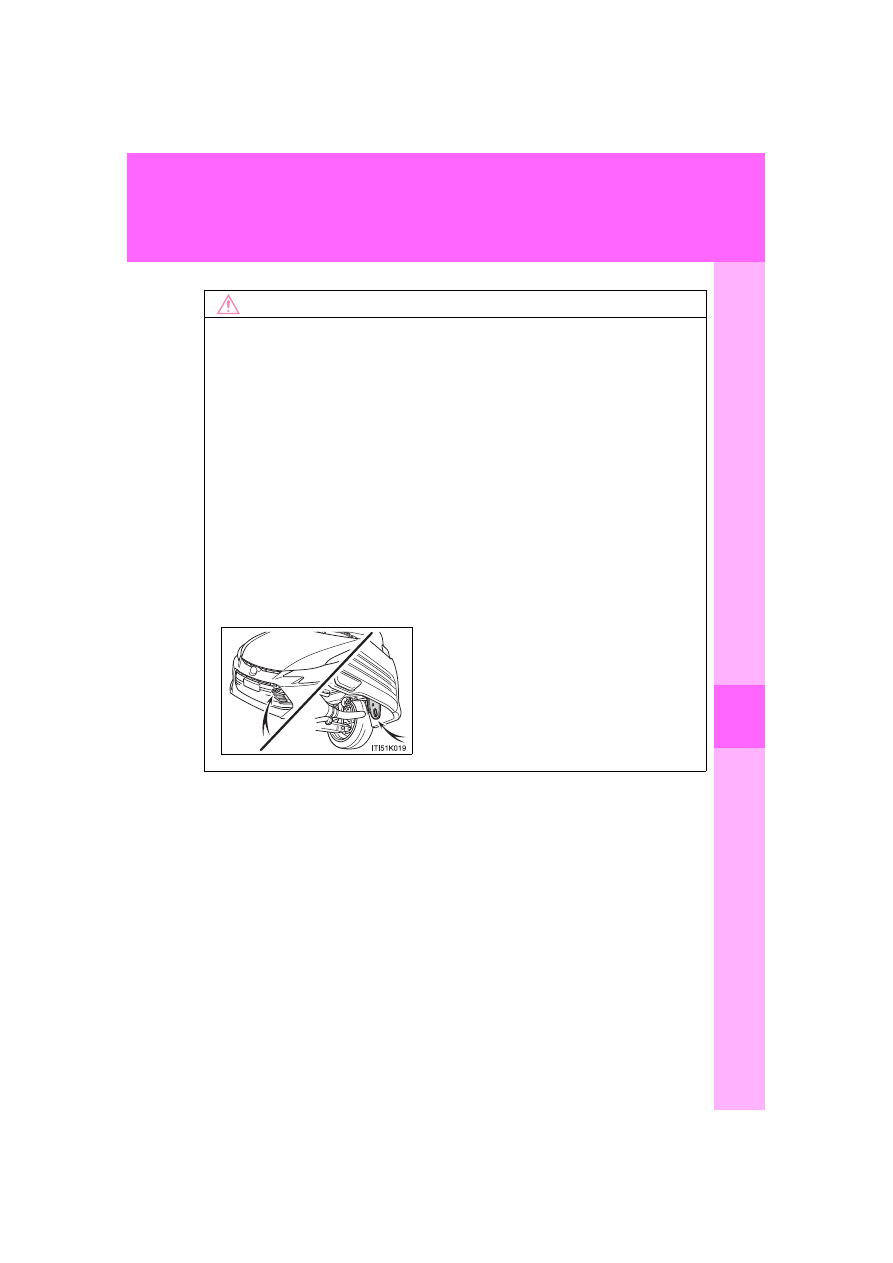

Installing towing eyelet to the vehicle

Make sure that towing eyelet is installed securely.
If not securely installed, towing eyelet may come loose during towing.

Be sure to transport the vehicle with the
front wheels raised or with all four wheels
raised off the ground. If the vehicle is
towed with the front wheels contacting the
ground, the drivetrain and related parts
may be damaged.

5

W
hen

 troub

le
arises

373

5-1. Essential information

tC_OM_OM21056U_(U)

NOTICE

■

To prevent causing serious damage to the transmission when towing
using a wheel-lift type truck (vehicles with an automatic transmission)

Never tow this vehicle from the rear with the front wheels on the ground.

■

To prevent damage to the vehicle when towing using a wheel-lift type
truck (vehicles with a manual transmission)

When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.

■

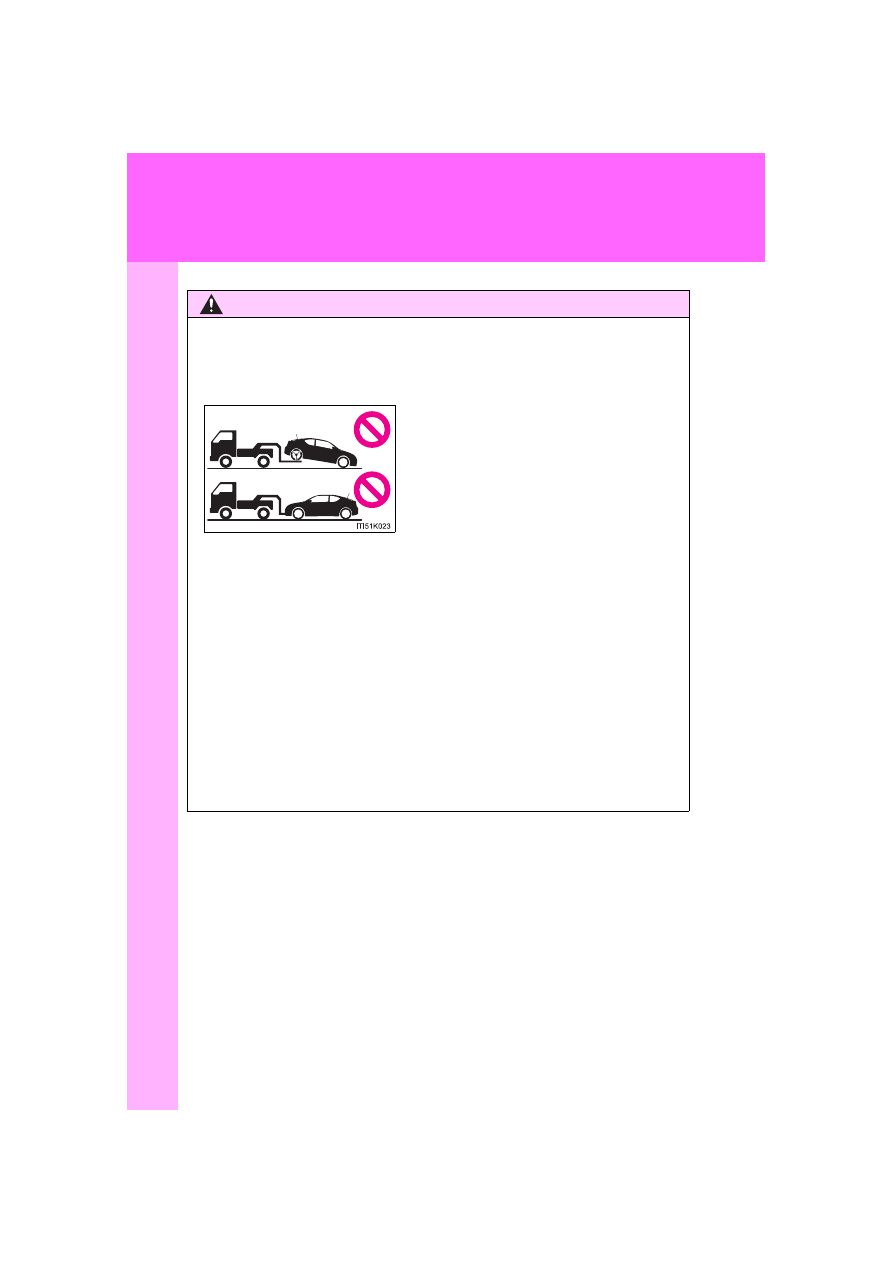

To prevent damage to the vehicle when towing with a sling-type truck

Do not tow with a sling-type truck, either from the front or rear.

■

To prevent damage to the vehicle during emergency towing

Do not secure cables or chains to the suspension components.

■

When transporting the vehicle

To help enhance safety, install the towing
eyelet into the front left hole.

374

5-1. Essential information

tC_OM_OM21056U_(U)

If you think something is wrong

If you notice any of the following symptoms, your vehicle probably

needs adjustment or repair. Contact your Scion dealer as soon as

possible.

■

Visible symptoms
● Fluid leaks under the vehicle

(Water dripping from the air conditioning after use is normal.)

● Flat-looking tires or uneven tire wear
● High engine coolant temperature warning light flashes or

comes on

● Low engine coolant temperature indicator comes on or does

not come on continuously

■

Audible symptoms
● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the engine

■

Operational symptoms
● Engine missing, stumbling or running roughly
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, spongy feeling, pedal almost

touches the floor

5

W
hen

 troub

le
arises

375

5-1. Essential information

tC_OM_OM21056U_(U)

Fuel pump shut off system

Follow the procedure below to restart the engine after the system is
activated.

Vehicles without a smart key system

Turn the engine switch to the “ACC” or “LOCK” position.

Restart the engine.

Vehicles with a smart key system

Turn the “ENGINE START STOP” switch to ACCESSORY
mode or turn it off.

Restart the engine.

NOTICE

■

Before starting the engine

Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.

To minimize the risk of fuel leakage when the engine stalls or when

an airbag inflates upon collision, the fuel pump shut off system

stops the supply of fuel to the engine.

STEP

1

STEP

2

STEP

1

STEP

2

376

tC_OM_OM21056U_(U)

5-2. Steps to take in an emergency

If a warning light turns on or a warning buzzer sounds...

Stop the vehicle immediately. Continuing to drive the vehicle
may be dangerous.

The following warning indicates a possible problem in the brake sys-
tem. Immediately stop the vehicle in a safe place and contact your
Scion dealer.

*

: Parking brake engaged warning buzzer:

A buzzer will sound if the vehicle is driven at a speed of approximately 3 mph
(5 km/h) or more.

Warning light

Warning light/Details

(U.S.A.)

(Canada)

Brake system warning light (warning buzzer)

*

• Low brake fluid
• Malfunction in the brake system
This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is fully
released, the system is operating normally.

Calmly perform the following actions if any of the warning lights

comes on or flashes. If a light comes on or flashes, but then goes

off, this does not necessarily indicate a malfunction in the system.

However, if this continues to occur, have the vehicle inspected by

your Scion dealer.

5

W
hen

 troub

le
arises

377

5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

Stop the vehicle immediately.

The following warning indicates the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Scion dealer.

Warning light

Warning light/Details

Charging system warning light

Indicates a malfunction in the vehicle’s charging system.

Low engine oil pressure warning light

Indicates that the engine oil pressure is too low.

378

5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

Have the vehicle inspected by your Scion dealer immediately.

Failure to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Scion dealer immediately.

Warning light

Warning light/Details

(U.S.A.)

(Canada)

Malfunction indicator lamp

Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transmission control system (if

equipped).

SRS warning light

Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system.

(U.S.A.)

(Canada)

ABS warning light

Indicates a malfunction in:
• The ABS; or
• The brake assist system.

Slip indicator light

Indicates a malfunction in:
• Vehicle stability control; or
• Traction control.

5

W
hen

 troub

le
arises

379

5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

Electric power steering system warning light (warning
buzzer)

Indicates a malfunction in the EPS (Electric Power Steer-
ing) system.

(Flashes)

Cruise control indicator light

Indicates a malfunction in the cruise control system.

Automatic transmission fluid temperature warning light
(vehicles with an automatic transmission)

Indicates that the automatic transmission fluid temperature
is too high.

Warning light

Warning light/Details

380

5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

Follow the correction procedures.

After taking the specified steps to correct the suspected problem,
check that the warning light goes off.

Warning light

Warning light/Details

Correction procedure

Open door warning light
(warning buzzer)

*

1

Indicates that a door is not
fully closed.

Check that all the doors are
closed.

Low fuel level warning
light

Indicates remaining fuel is
approximately 2.2 gal.
(8.2 L, 1.8 Imp.gal.) or
less.

Refuel the vehicle.

Seat belt reminder light
(warning buzzer)

*

2

Warns the driver and/or
front passenger to fasten
their seat belts.

Fasten the seat belt.

If the front passenger’s
seat is occupied, the front
passenger’s seat belt also
needs to be fastened to
make the warning light
(warning buzzer) off.

High engine coolant tem-
perature warning light

Indicates that the engine is
almost overheating.

P. 421

(Canada)

Low windshield washer
fluid warning light

Indicates low level of
washer fluid.

Fill the tank.

5

W
hen

 troub

le
arises

381

5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

(U.S.A.)

Maintenance required
reminder light

Indicates that mainte-
nance is required accord-
ing to the driven distance
on the maintenance
schedule.

*

3

Illuminates for about 3
seconds and then flashes
for about 15 seconds
approximately 4500 miles
(7200 km) after the
reminder light has been
reset.

If necessary, perform main-
tenance.

Comes on and remains on
if the distance driven
exceeds 5000 miles (8000
km) after the reminder light
has been reset.
(The indicator will not work
properly unless the
reminder light has been
reset.)

Perform the necessary
maintenance.
Please reset the reminder
light after the maintenance
is performed.
(

P. 282)

Warning light

Warning light/Details

Correction procedure

382

5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

*

1

: Open door warning buzzer:

A buzzer will sound if the vehicle reaches a speed of 3 mph (5 km/h) or
more with any door open.

(U.S.A.)

Tire pressure warning
light

When the light comes on:
Low tire inflation pressure
such as
• Natural causes (

P. 388)

• Flat tire (

P. 394)

Adjust the tire inflation
pressure to the specified
level.

The light will turn off
after a few minutes. In
case the light does not
turn off even if the tire
inflation pressure is
adjusted, have the sys-
tem checked by your
Scion dealer.

When the light comes on
after blinking for 1 minute:
Malfunction in the tire
pressure warning system.
(

P. 390)

Have the system checked
by your Scion dealer.

Warning light

Warning light/Details

Correction procedure

5

W
hen

 troub

le
arises

383

5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

*

2

: Driver’s seat belt buzzer:

The driver’s seat belt buzzer sounds to alert the driver that his or her seat
belt is not fastened. Once the engine switch is turned to the “ON” or
“START” position (vehicles without a smart key system), or the “ENGINE
START STOP” switch is turned to IGNITION ON mode (vehicles with a
smart key system), the buzzer sounds for 6 seconds. If the vehicle reaches
a speed of 12 mph (20 km/h), the buzzer sounds intermittently for 10 sec-
onds. Then, if the seat belt is still unfastened, the buzzer will sound in a dif-
ferent tone for 20 more seconds.

Front passenger’s seat belt buzzer:

The front passenger’s seat belt buzzer sounds to alert the front passenger
that his or her seat belt is not fastened. The buzzer sounds intermittently for
10 seconds after the vehicle reaches a speed of 12 mph (20 km/h). Then, if
the seat belt is still unfastened, the buzzer will sound in a different tone for
20 more seconds.

*

3

: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual

Supplement” for the maintenance interval applicable to your vehicle.

384

5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

Follow the correction procedures. (Vehicles with a smart key
system)

After taking the specified steps to correct the suspected problem,
check that the warning light goes off.

Interior

buzzer

Exterior

buzzer

Warning

light

Warning light/Details

Correction

procedure

Once



(Remains

on for 8

seconds.)

Smart key system warning
light

Indicates that the electronic
key is not present when
attempting to start the
engine.

Confirm the
location of the
electronic
key.

5

W
hen

 troub

le
arises

385

5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

Once

3 times

Smart key system warning
light

Indicates that a door other
than the driver’s door has
been opened and closed with
the “ENGINE START STOP”
switch in any mode other
than off and the electronic
key has been taken out of
the detection area.

Confirm the
location of the
electronic
key.

Smart key system warning
light

Vehicles with an automatic
transmission only: Indicates
that the driver’s door has
been opened and closed with
the shift lever in P, the
“ENGINE START STOP”
switch in any mode other
than off and the electronic
key has been taken out of
the detection area.

• Turn the

“ENGINE
START
STOP” switch
off.

• Confirm the

location of the
electronic
key.

Interior

buzzer

Exterior

buzzer

Warning

light

Warning light/Details

Correction

procedure

386

5-2. Steps to take in an emergency

tC_OM_OM21056U_(U)

Interior

buzzer

Exterior

buzzer

Warning

light

Warning light/Details

Correction

procedure

Once

Contin-
uous

Smart key system warning
light

Vehicles with an automatic
transmission only: Indicates
that an attempt has been
made to lock a door using
the entry function with the
shift lever in P, the “ENGINE
START STOP” switch in any
mode other than off, all doors
closed and after the elec-
tronic key has been taken out
of the detection area.

• Turn the

“ENGINE
START
STOP” switch
off.

• Confirm the

location of the
electronic
key.

Contin-
uous

Smart key system warning
light

Vehicles with an automatic
transmission only: Indicates
that the driver’s door has
been opened and closed with
the shift lever not in P, the
“ENGINE START STOP”
switch in any mode other
than off and after the elec-
tronic key has been taken out
of the detection area.

• Shift the shift

lever to P.

• Confirm the

location of the
electronic
key.
