5-1. Before driving

NOTICE

■

When involved in a minor accident

Damage to the traction battery or battery peripheral components could
cause malfunctions. Even if it is a minor accident, have the vehicle
inspected by your Scion dealer.

159

5-1. Before driving

5

Dr
ivi
n

g

Cargo and luggage

Cargo capacity depends on the total weight of the occupants.

(Cargo capacity) = (Total load capacity) — (Total weight of occupants)

Steps for Determining Correct Load Limit —

(1) Locate the statement “The combined weight of occupants and

cargo should never exceed XXX kg or XXX lbs.” on your vehicle’s
placard.

(2) Determine the combined weight of the driver and passengers that

will be riding in your vehicle.

(3) Subtract the combined weight of the driver and passengers from

XXX kg or XXX lbs.

(4) The resulting figure equals the available amount of cargo and lug-

gage load capacity.

For example, if the “XXX” amount equals 1400 lbs. and there will be
five 150 lb passengers in your vehicle, the amount of available
cargo and luggage load capacity is 650 lbs. (1400

 750 (5150) =

650 lbs.)

(5) Determine the combined weight of luggage and cargo being loaded

on the vehicle. That weight may not safely exceed the available
cargo and luggage load capacity calculated in Step 4.

(6) If your vehicle will be towing a trailer, load from your trailer will be

transferred to your vehicle. Consult this manual to determine how
this reduces the available cargo and luggage load capacity of your
vehicle. (

P. 162)

Scion does not recommend towing a trailer with your vehicle. Your
vehicle is not designed for trailer towing.

Take notice of the following information about storage precau-
tions, cargo capacity and load:

Capacity and distribution

160

5-1. Before driving

Cargo capacity

Total load capacity (vehicle
capacity weight) (

P. 396)

When 2 people with the combined weight of A lb. (kg) are riding in
your vehicle, which has a total load capacity (vehicle capacity weight)
of B lb. (kg), the available amount of cargo and luggage load capacity
will be C lb. (kg) as follows:

B

*

2

 lb. (kg)

 A

*

1

 lb. (kg) = C

*

3

 lb. (kg)

*

1

: A = Weight of people

*

2

: B = Total load capacity

*

3

: C = Available cargo and luggage load

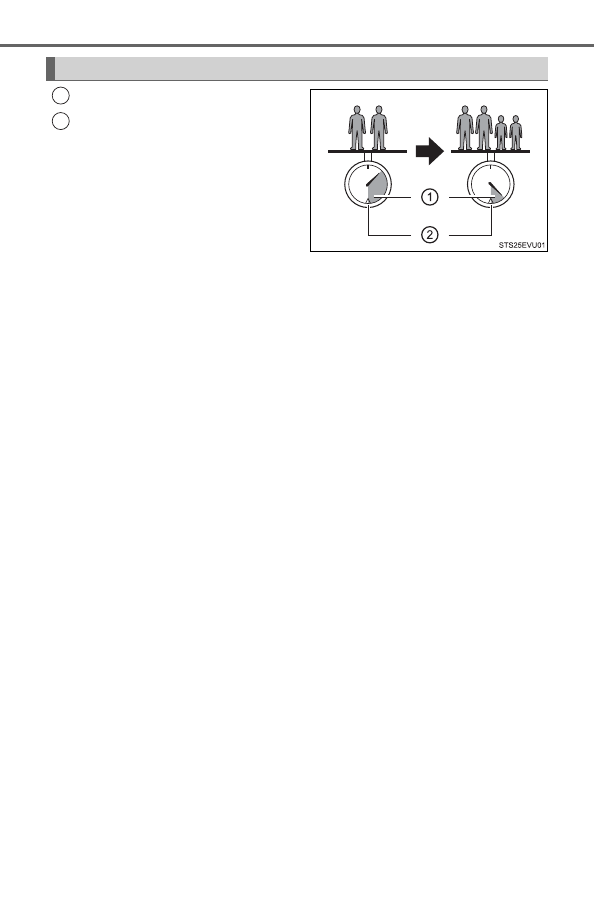

In this condition, if 2 more passengers with the combined weight of D
lb. (kg) get on, the available cargo and luggage load will be reduced E
lb. (kg) as follows:

C lb. (kg)

 D

*

4

 lb. (kg) = E

*

5

 lb. (kg)

*

4

: D = Additional weight of people

*

5

: E = Available cargo and luggage load

As shown in the example above, if the number of occupants
increases, the cargo and luggage load will be reduced by an amount
that equals the increased weight due to the additional occupants. In
other words, if an increase in the number of occupants causes an
excess of the total load capacity (combined weight of occupants plus
cargo and luggage load), you must reduce the cargo and luggage on
your vehicle.

Calculation formula for your vehicle

1
2

161

5-1. Before driving

5

Dr
ivi
n

g

CAUTION

■

Things that must not be carried in the luggage compartment

The following things may cause a fire if loaded in the luggage compart-
ment:

●

Receptacles containing gasoline

●

Aerosol cans

■

Storage precautions

Observe the following precautions.
Failure to do so may prevent the pedals from being depressed properly,
may block the driver’s vision, or may result in items hitting the driver or
passengers, possibly causing an accident.

●

Stow cargo and luggage in the luggage compartment whenever possi-
ble.

●

Do not stack cargo and luggage in the luggage compartment higher
than the seatbacks.
Such items may be thrown about and possibly injure people in the
vehicle in the event of sudden braking or in an accident.

●

Do not place cargo or luggage in or on the following locations.

• At the feet of the driver
• On the front passenger or rear seats (when stacking items)
• On the instrument panel
• On the dashboard

●

Secure all items in the occupant compartment, as they may shift and
injure someone during sudden braking, sudden swerving or an acci-
dent.

●

When you fold down the rear seats, long items should not be place
directly behind the front seats.

●

Never allow anyone to ride in the luggage compartment. It is not
designed for passengers. They should ride in their seats with their seat
belts properly fastened.

■

Capacity and distribution

●

Do not exceed the maximum axle weight rating or the total vehicle
weight rating.

●

Even if the total load of occupant’s weight and the cargo load is less
than the total load capacity, do not apply the load unevenly. Improper
loading may cause deterioration of steering or braking control which
may cause death or serious injury.

162

5-1. Before driving

Vehicle load limits

◆

Total load capacity (vehicle capacity weight):

P. 396

Total load capacity means the combined weight of occupants, cargo
and luggage.

◆

Seating capacity: 4 occupants (Front 2, Rear 2)

Seating capacity means the maximum number of occupants whose
estimated average weight is 150 lb. (68 kg) per person.

◆

Towing capacity

Scion does not recommend towing a trailer with your vehicle.

◆

Cargo capacity

Cargo capacity may increase or decrease depending on the weight
and the number of occupants.

■

Total load capacity and seating capacity

These details are also described on the tire and loading information label.
(

P. 292)

Vehicle load limits include total load capacity, seating capacity,
towing capacity and cargo capacity.

CAUTION

■

Overloading the vehicle

Do not overload the vehicle.
It may not only cause damage to the tires, but also degrade steering
and braking ability, resulting in an accident.

163

5-1. Before driving

5

Dr
ivi
n

g

Trailer towing

Scion does not recommend towing a trailer with your vehicle.
Scion also does not recommend the installation of a tow hitch or
the use of a tow hitch carrier for a wheelchair, scooter, bicycle,
etc. Your vehicle is not designed for trailer towing or for the use
of tow hitch mounted carriers.

164

5-1. Before driving

Dinghy towing

Your vehicle is not designed to be dinghy towed (with 4 wheels
on the ground) behind a motor home.

NOTICE

■

To avoid serious damage to your vehicle

Do not tow your vehicle with the four wheels on the ground.

165

5-2. Driving procedures

5

Dr
ivi
n

g

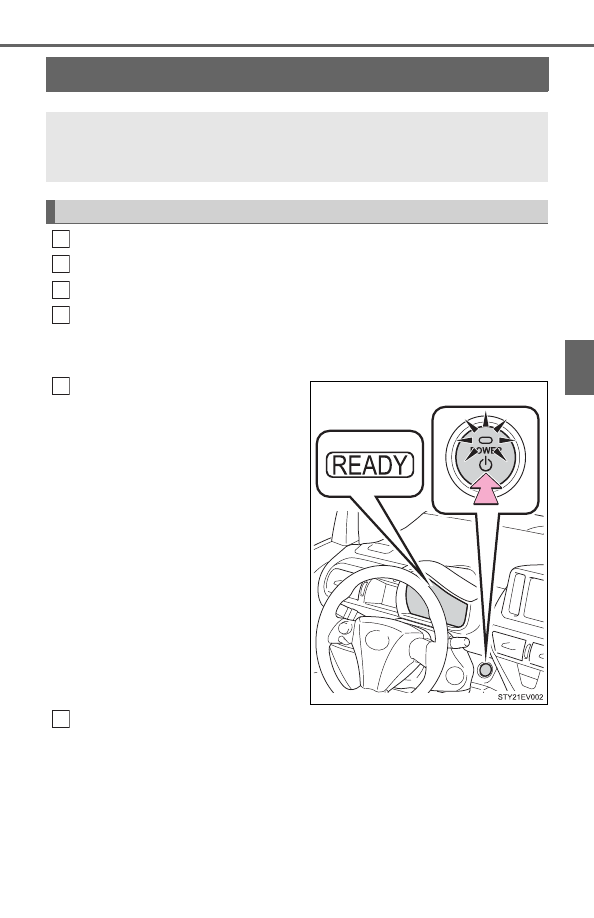

Power (ignition) switch

Check that the charging cable is disconnected. (

P. 188)

Check that the parking brake is set.

Check that the shift lever is set in P.

Firmly depress the brake pedal.

The power switch indicator will turn green. If the indicator does not turn
green, the EV system cannot be started.

Press the power switch.

The vehicle can move when the
“READY” indicator is on.

Continue depressing the brake
pedal until the EV system is com-
pletely started.

The EV system can be started from
any power switch mode.

Check that the “READY” indicator is on.

The vehicle will not move when the “READY” indicator is off.

Performing the following operations when carrying the elec-
tronic key on your person starts the EV system or changes
power switch modes.

Starting the EV system

1
2
3
4

5

6

166

5-2. Driving procedures

Depress the brake pedal until the vehicle comes to a complete
stop.

Set the parking brake. (

P. 174)

Shift the shift lever to P.

Press the power switch.

Slowly release the brake pedal and check that the indicator on the
power switch is off.

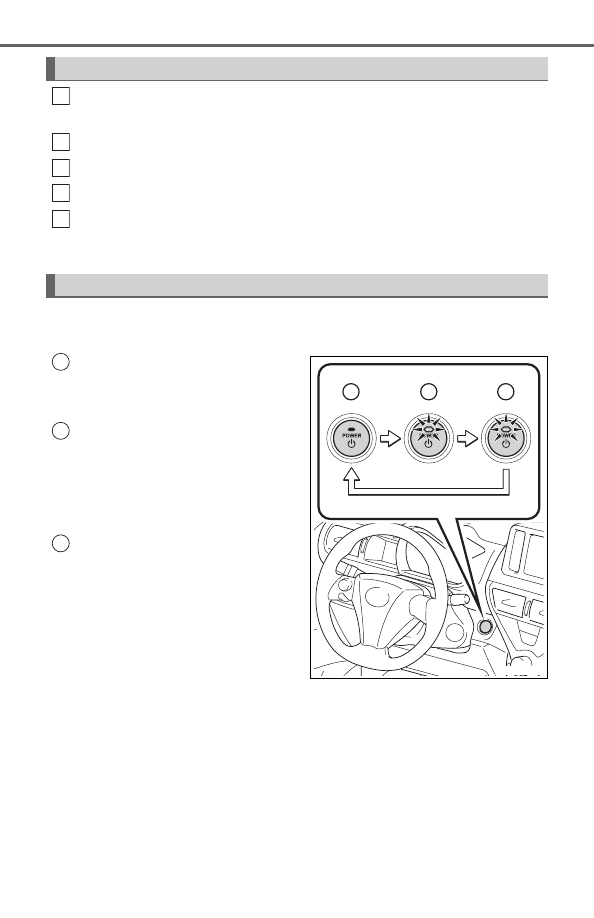

Modes can be changed by pressing the power switch with brake pedal
released. (The mode changes each time the switch is pressed.)

Off*

The emergency flashers can be
used.

ACCESSORY mode

Some electrical components such
as the audio system can be used.

The power switch indicator turns
amber.

ON mode

All electrical components can be
used.

The power switch indicator turns
amber.

*

: The power switch will be turned to

ACCESSORY mode, not turned off
unless the shift lever is in P.

Stopping the EV system

Changing power switch modes

1

2
3
4
5

1

2

3

STY21EV003

1

2

3

167

5-2. Driving procedures

5

Dr
ivi
n

g

If the EV system is stopped with the shift lever in a position other than
P, the power switch will not be turned off but instead be turned to
ACCESSORY mode. Perform the following procedure to turn the
switch off:

Check that the parking brake is set.

Shift the shift lever to P.

Check that the power switch indicator is illuminated amber and then
press the power switch once.

Check that the power switch indicator goes out.

■

Auto power off function

If the vehicle is left in ACCESSORY mode for more than 20 minutes or ON
mode (the EV system is not operation) for more than an hour with the shift
lever in P, the power switch will automatically turn off. Furthermore, when the
mode is turned to ON mode while charging, the power switch will automati-
cally turn off after approximately 2 minutes have elapsed.
However, this function cannot entirely prevent 12-volt battery from discharge.
Do not leave the vehicle with the power switch in ACCESSORY or ON mode
for long periods of time when the EV system is not operating.

■

Sounds and vibrations specific to an electric vehicle
P. 77

■

Electronic key battery depletion
P. 128

■

When the ambient temperature is low, such as during winter driving con-
ditions

●

When the temperature of the battery for driving power is low, a warning
message is displayed on the multi-information display and the output of the
electric motor will be restricted. (

P. 348)

●

The “READY” indicator may flash for a long time when the EV system is
starting. Driving will become possible once the “READY” indicator has illumi-
nated. Wait until the “READY” indicator has illuminated.

■

Conditions affecting operation
P. 125

■

Notes for the entry function
P. 126

When stopping the EV system with the shift lever in a position
other than P

1
2
3

4

168

5-2. Driving procedures

■

If the EV system does not start

●

The charging cable may be attached to the vehicle. (

P. 188)

●

The immobilizer system may not have been deactivated. (

P. 66)

Contact your Scion dealer.

●

Check that the shift lever is securely set in P. The EV system may not start if
the shift lever is displaced out of P. “SHIFT TO P POSITION WHEN
STARTING” will be displayed on the multi-information display.

●

The steering lock may not have been deactivated.

■

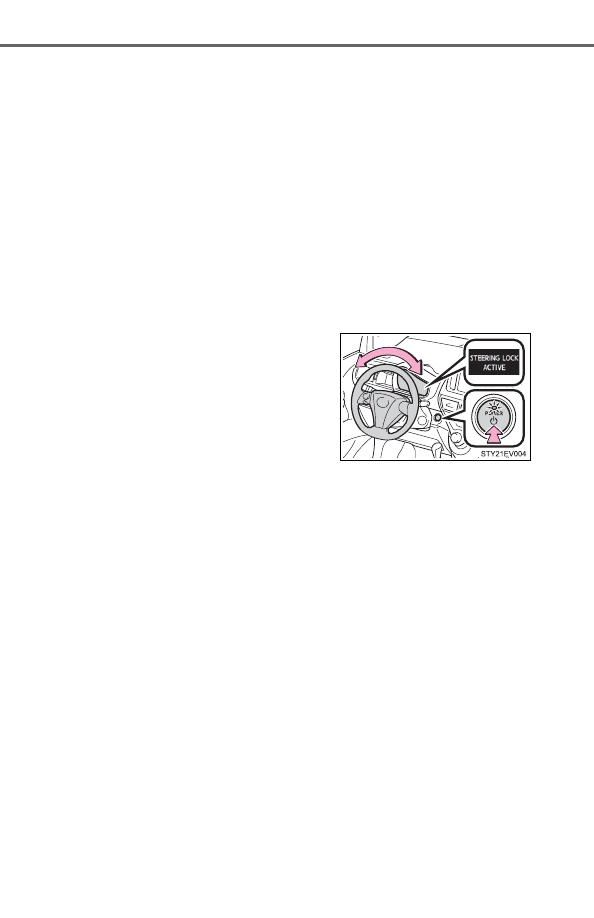

Steering lock

After turning the power switch off and opening and closing the doors, the
steering wheel will be locked due to the steering lock function. Operating the
power switch again automatically cancels the steering lock.

■

When the steering lock cannot be released

■

Steering lock motor overheating prevention

To prevent the steering lock motor from overheating, the motor may be sus-
pended if the EV system is turned on and off repeatedly in a short period of
time. In this case, refrain from operating the EV system. After about 10 sec-
onds, the steering lock motor will resume functioning.

■

When the power switch indicator flashes in amber

The system may be malfunctioning. Have the vehicle inspected by your Scion
dealer immediately.

■

If the “READY” indicator does not come on

If the “READY” indicator does not come on when you press the power switch
with the shift lever in P and the brake pedal depressed, contact your Scion
dealer immediately.

■

If the EV system is malfunctioning
P. 345

■

If the electronic key battery is depleted
P. 299

“STEERING LOCK ACTIVE” will be dis-
played on the multi-information display
and the green indicator on the power
switch will flash.

Check that the shift lever is set in P. Press
the power switch while turning the steer-
ing wheel left and right.

169

5-2. Driving procedures

5

Dr
ivi
n

g

■

Operation of the power switch

●

When operating the power switch, one short, firm press is enough. If the
switch is pressed improperly, the EV system may not start or the power
switch mode may not change. It is not necessary to press and hold the
switch.

●

If attempting to restart the EV system immediately after turning the power
switch off, the EV system may not start in some cases. After turning the
power switch off, please wait a few seconds before restarting the EV sys-
tem.

■

If the smart key system has been deactivated in a customized setting
P. 384

CAUTION

■

When starting the EV system

Always start the EV system while sitting in the driver’s seat. Do not depress
the accelerator pedal while starting the EV system under any circum-
stances.
Doing so may cause an accident resulting in death or serious injury.

■

Caution while driving

If EV system failure occurs while the vehicle is moving, do not lock or open
the doors until the vehicle reaches a safe and complete stop. Activation of
the steering lock in this circumstance may lead to an accident, resulting in
death or serious injury.

■

Stopping the EV system in an emergency

If you want to stop the EV system in an emergency while driving the vehicle,
press and hold the power switch for more than 2 seconds, or press it briefly
3 times or more in succession. (

P. 329)

However, do not touch the power switch while driving except in an emer-
gency. Turning the EV system off while driving will not cause loss of steering
or braking control, but the power assist to these systems will be lost. This
will make it more difficult to steer and brake, so you should pull over and
stop the vehicle as soon as it is safe to do so.

170

5-2. Driving procedures

NOTICE

■

To prevent 12-volt battery discharge

●

Do not leave the power switch in ACCESSORY or ON mode for long peri-
ods of time without the EV system on.

●

If the indicator on the power switch is illuminated, the power switch is not
off. When exiting the vehicle, always check that the power switch is off.

●

Do not stop the EV system when the shift lever is in a position other than
P. If the EV system is stopped in another shift lever position, the power
switch will not be turned off but instead be turned to ACCESSORY mode.
If the vehicle is left in ACCESSORY mode, 12-volt battery discharge may
occur.

■

When starting the EV system

●

Do not depress the accelerator pedal.

●

If the EV system becomes difficult to start, have your vehicle checked by
your Scion dealer immediately.

■

Symptoms indicating a malfunction with the power switch

If the power switch seems to be operating somewhat differently than usual,
such as the switch sticking slightly, there may be a malfunction. Contact
your Scion dealer immediately.

171

5-2. Driving procedures

5

Dr
ivi
n

g

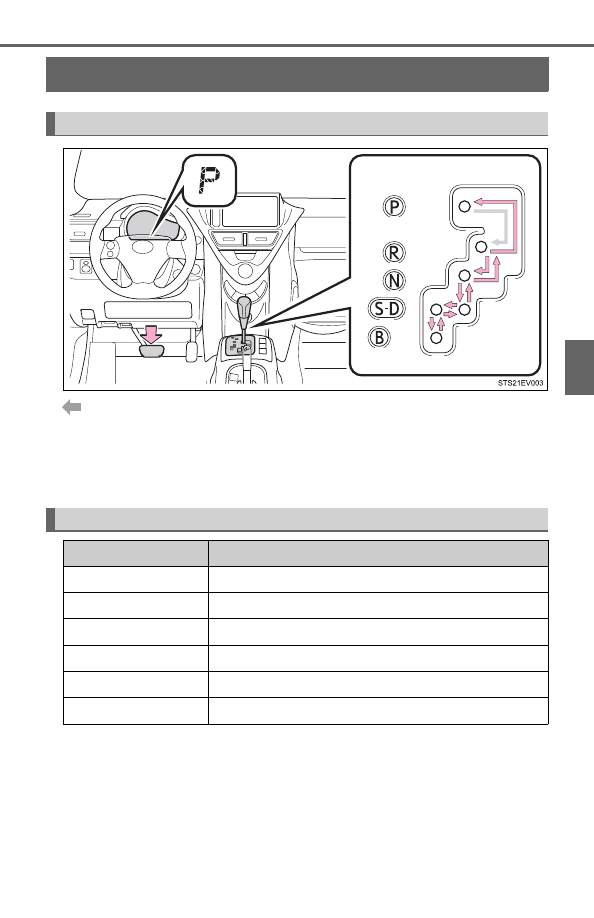

Transmission

While the power switch is in ON mode, move the shift lever with

the brake pedal depressed.

When shifting the shift lever between P and D, make sure that the vehi-
cle is completely stopped.

*

: For good power economy and noise reduction, set the shift lever in the D

position should usually be used.

Shifting the shift lever

Shift position purpose

Shift position

Objective or function

P

Parking the vehicle/starting the EV system

R

Reversing

N

Neutral

D

Normal driving

*

S

Regenerative braking

B

Maximum regenerative braking

172

5-2. Driving procedures

■

Using regenerative brake

●

When high speed driving, the feeling of deceleration with regenerative brak-
ing is smaller than the deceleration feeling obtained on conventional vehi-
cles.

●

When strong regenerative braking is required, shift the shift lever to S or B.
Continuously running in S or B can lead to poor power consumption. Drive
normally in D.

●

If “REGENERATIVE BRAKING LIMITED” appears on the multi-information
display, firmly depress the brake pedal to decelerate the vehicle. (

P. 347)

■

If the shift lever cannot be shifted from P
P. 383

CAUTION

■

When driving on slippery road surfaces

Avoid sudden acceleration or sudden shifting operations. Take care that
sudden changes to the regenerative brake power can lead to the vehicle
skidding to side or spinning.

173

5-2. Driving procedures

5

Dr
ivi
n

g

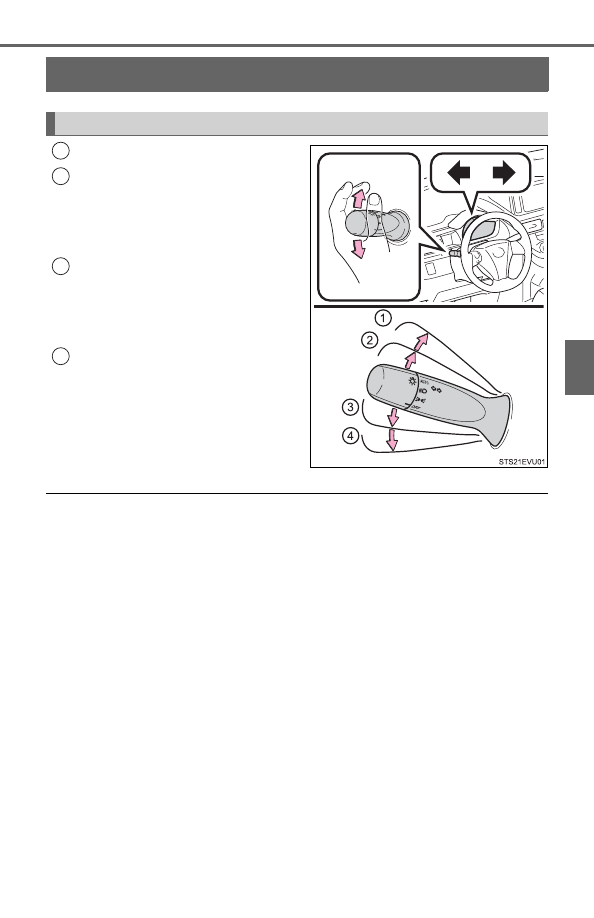

Turn signal lever

Right turn

Lane change to the right (push
and hold the lever partway)

The right hand signals will flash
until you release the lever.

Lane change to the left (push
and hold the lever partway)

The left hand signals will flash until
you release the lever.

Left turn

■

Turn signals can be operated when

The power switch is in ON mode.

■

If the indicator flashes faster than usual

Check that a light bulb in the front or rear turn signal lights has not burned
out.

Operating instructions

1
2

3

4
