Essential Safety

The following illustrations are examples of side collisions that may not
be detected as severe enough to deploy the SRS air bag equipment.

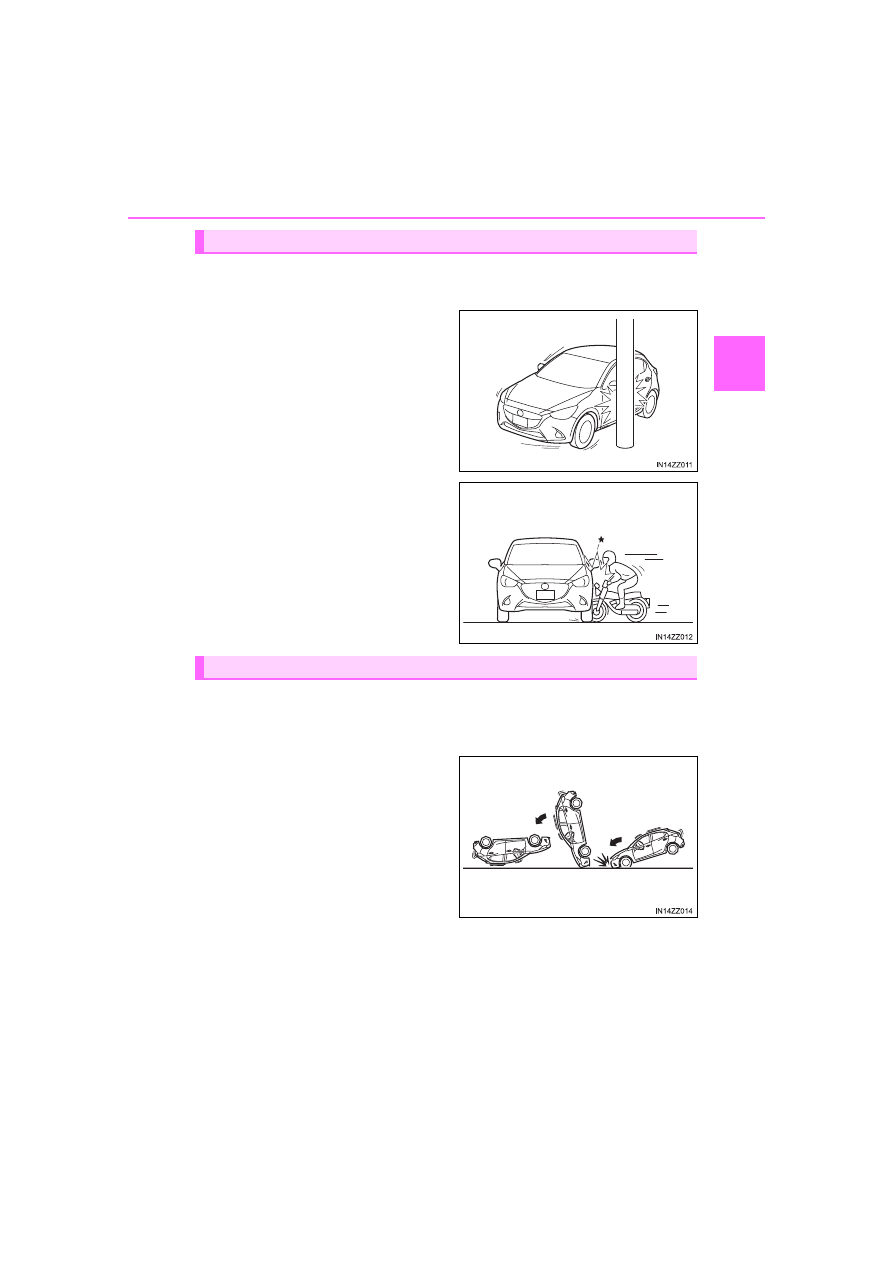

Side impacts involving trees or
poles

Side impacts with two-wheeled
vehicles

The following illustration is an example of an accident that may not be
detected as a roll-over accident. Therefore, the front seat belt preten-
sioners and curtain air bags may not deploy.

Pitch end over end

Limitations to side collision detection

Limitations to roll-over detection

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

Front Passenger Occupant Classification

System

Your vehicle is equipped with a front passenger occupant classifica-
tion sensor as a part of the supplemental restraint system. This sen-
sor is equipped in the front passenger’s seat cushion. This sensor
measures the electrostatic capacity of the front passenger’s seat. The
SAS unit is designed to prevent the front passenger front and side air
bags and seat belt pretensioner system from deploying if the front
passenger air bag deactivation indicator light turns on.

To reduce the chance of injuries caused by deployment of the front
passenger air bag, the system deactivates the front passenger front
and side air bags and also the seat belt pretensioner system when the
front passenger air bag deactivation indicator light turns on. Refer to
the following table for the front passenger air bag deactivation indica-
tor light illumination conditions.

This system shuts off the front passenger front and side air bags and
seat belt pretensioner system, so make sure the front passenger air
bag deactivation indicator light turns on according to the following
table.

The air bag/front seat belt pretensioner system warning light flashes
and the front passenger air bag deactivation indicator light illuminates
if the sensors have a possible malfunction. If this happens, the front
passenger front and side air bags and seat belt pretensioner system
will not deploy.

First, please read “Supplemental Restraint System (SRS) Pre-
cautions” (

P. 62) carefully.

Front Passenger Occupant Classification Sensor

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

Essential Safety

■

Front passenger air bag deactivation indicator light

This indicator light turns on to
remind you that the front pas-
senger front and side air bags
and seat belt pretensioner will
not deploy during a collision.

If the front passenger occupant classification sensor is normal, the
indicator light turns on when the ignition is switched ON. The light
turns off after a few seconds. Then, the indicator light turns on or is
off under the following conditions:

■

Front passenger air bag deactivation indicator light on/off con-
dition chart

: The occupant classification sensor may not detect a child seated on the

seat, in a child-restraint system, or a junior seat depending on the child’s
physical size and seated posture.

: If a smaller adult sits on the front passenger seat, the sensors might detect

the person as being a child depending on the person’s physique.

The curtain air bag is ready for inflating regardless of what the front
passenger air bag deactivation indicator light on/off condition chart
indicates.

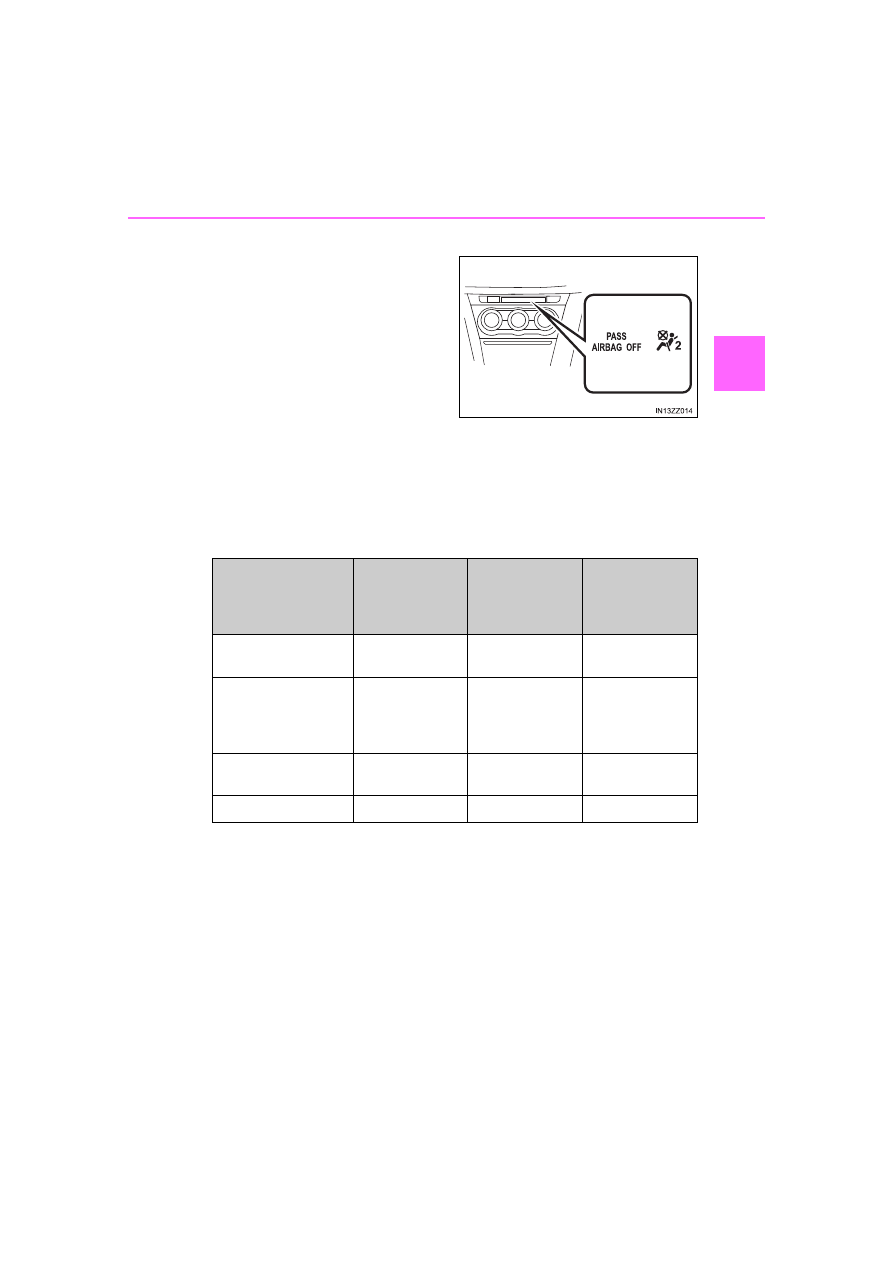

Condition detected

by the front passen-
ger occupant classi-

fication system

Front passen-

ger air bag

deactivation

indicator light

Front passen-

ger front and
side air bags

Front passen-

ger seat belt
pretensioner

system

Empty (Not occu-
pied)

Deactivated

A child less than 1
year old is seated in
a child-restraint sys-
tem

Deactivated

Child

On or off

Deactivated or

ready

Deactivated or

ready

Adult

Off

Ready

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

If the front passenger air bag deactivation indicator light does not
turn on when the ignition is switched ON and does not turn on as
indicated in the front passenger air bag deactivation indicator light
on/off condition chart, do not allow an occupant to sit in the front
passenger seat and consult your Scion dealer as soon as possible.
The system may not work properly in an accident.

●

The system requires about 10 seconds to alternate between turning the
front passenger front and side air bags and seat belt pretensioner system on
or off.

●

The front passenger air bag deactivation indicator light may turn on repeat-
edly if luggage or other items are put on the front passenger seat, or if the
temperature of the vehicle’s interior changes suddenly.

●

The front passenger air bag deactivation indicator light may turn on for 10
seconds if the electrostatic capacity on the front passenger seat changes.

●

The air bag/front seat belt pretensioner system warning light might turn on if
the front passenger seat receives a severe impact.

●

If the front passenger air bag deactivation indicator light does not turn on
after installing a child-restraint system on the front passenger seat, first, re-
install your child-restraint system according to the procedure in this owner’s
manual. Then, if the front passenger air bag deactivation indicator light still
does not turn on, install the child-restraint system on the rear seat and con-
sult your Scion dealer as soon as possible.

●

If the front passenger air bag deactivation indicator light turns on when an
occupant is seated directly in the front passenger seat, have the passenger
re-adjust their posture by sitting with their feet on the floor, and then re-fas-
tening the seat belt. If the front passenger air bag deactivation indicator light
remains turned on, move the passenger to the rear seat. If sitting in the rear
seat is not possible, slide the front passenger seat as far back as possible.
Consult your Scion dealer as soon as possible.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

Essential Safety

WARNING

■

Do not allow an occupant in the front passenger’s seat to sit with a
posture which makes it difficult for the front passenger occupant clas-
sification sensor to detect the occupant correctly
Sitting in the front passenger’s seat with a posture which makes it difficult
for the front passenger occupant classification sensor to detect the occu-
pant correctly is dangerous. If the front passenger occupant classification
sensor cannot detect the occupant sitting on the front passenger’s seat cor-
rectly, the front passenger front and side air bags and pretensioner system
may not operate (deploy) or they may operate (deploy) accidentally. The
front passenger will not have the supplementary protection of the air bags or
the accidental operation (deployment) of the air bags could result in serious
injury or death. Under the following conditions, the front passenger occu-
pant classification sensor cannot detect a passenger sitting on the front
passenger’s seat correctly and the deployment/non-deployment of the air
bags cannot be controlled as indicated in the front passenger air bag deac-
tivation indicator light on/off condition chart. For example:

●

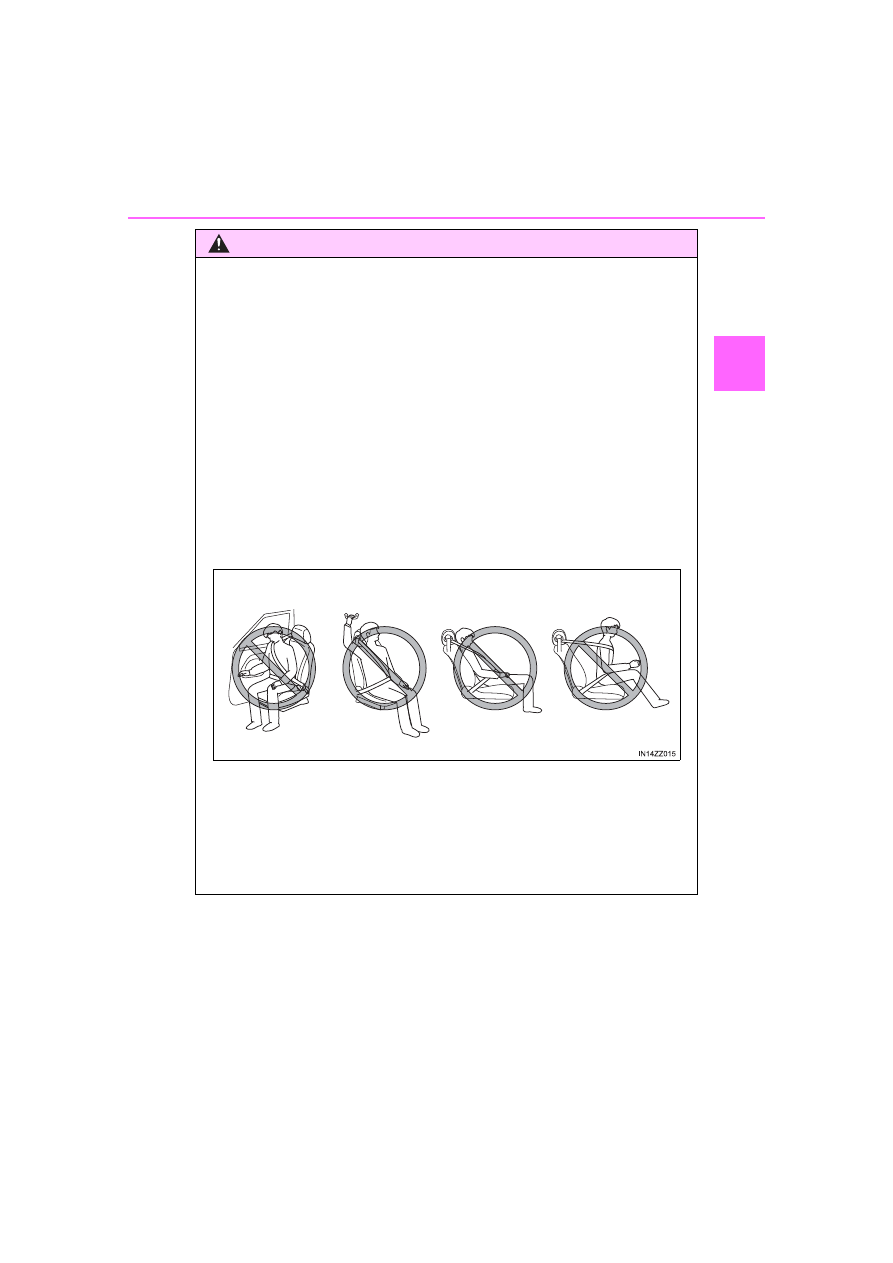

A front passenger is seated as shown in the following figure:

●

A rear passenger pushes up on the front passenger seat with their feet.

●

Luggage or other items placed under the front passenger seat or between
the front passenger seat and driver seat that push up the front passenger
seat bottom.

●

An object, such as a seat cushion, is put on the front passenger’s seat or
between the passenger’s back and the seatback.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

WARNING

■

Do not allow an occupant in the front passenger’s seat to sit with a
posture which makes it difficult for the front passenger occupant clas-
sification sensor to detect the occupant correctly

●

A seat cover is put on the front passenger’s seat.

●

Luggage or other items are placed on the seat with the child in the child-
restraint system.

●

A rear passenger or luggage push or pull down on the front passenger
seatback.

●

Luggage or other items are placed on the seatback or hung on the head
restraint.

●

The seat is washed.

●

Liquids are spilled on the seat.

●

The front passenger seat is moved backward, pushing into luggage or
other items placed behind it.

●

The front passenger seatback contacts the rear seat.

●

Luggage or other items are placed between the front passenger seat and
driver seat.

●

An electric device is put on the front passenger’s seat.

●

An additional electrical device, such as a seat warmer is installed to the
surface of the front passenger seat.

The front passenger front and side air bags and seat belt pretensioner sys-
tems will deactivate if the front passenger air bag deactivation indicator light
turns on.

NOTICE

●

To assure proper deployment of the front air bag and to prevent damage to
the sensor in the front seat cushion:

• Do not place sharp objects on the front seat cushion or leave heavy lug-

gage on them.

• Do not spill any liquids on the front seats or under the front seats.

●

To allow the sensors to function properly, always perform the following:

• Adjust the front seats as far back as possible and always sit upright

against the seatbacks with seat belts worn properly.

• If you place your child on the front passenger seat, secure the child-

restraint system properly and slide the front passenger seat as far back
as possible (

P. 50).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

Essential Safety

Constant Monitoring

The following components of the air bag systems are monitored by a
diagnostic system:
● Crash sensors, and diagnostic module (SAS unit)
● Front air bag sensors
● Air bag modules
● Side crash sensors
● Air bag/Front seat belt pretensioner system warning light
● Front seat belt pretensioners
● Related wiring
● Front passenger air bag deactivation indicator light
● Front passenger occupant classification sensor
● Front passenger occupant classification module
The diagnostic module continuously monitors the system’s readiness.
This begins when the ignition is switched ON and continues while the
vehicle is being driven.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

Before Driving

2-1. Keys

Keys .................................... 86

Keyless Entry System ......... 88

2-2. Door and Locks

Door Locks .......................... 94

Trunk Lid ........................... 103

2-3. Fuel and Emission

Fuel and Engine Exhaust

Precautions ..................... 107

Fuel-Filler Lid and Cap...... 110

2-4. Steering Wheel

Steering Wheel ................. 112

2-5. Mirrors

Mirrors ............................... 113

2-6. Windows

Power Windows ................ 116

2-7. Security System

Modification and

Add-On Equipment ......... 120

Immobilizer System........... 121

Theft Deterrent System ..... 123

2-8. Driving Tips

Break-In Period ................. 126

Saving Fuel and

Protection of the
Environment.................... 127

Hazardous Driving ............ 128

Floor Mat........................... 129

Rocking the Vehicle .......... 130

Winter Driving ................... 131

Driving In Flooded

Area ................................ 134

Overloading....................... 135

Driving on Uneven

Road ............................... 136

2-9. Towing

Trailer Towing ................... 137

Recreational Towing ......... 138

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

Keys

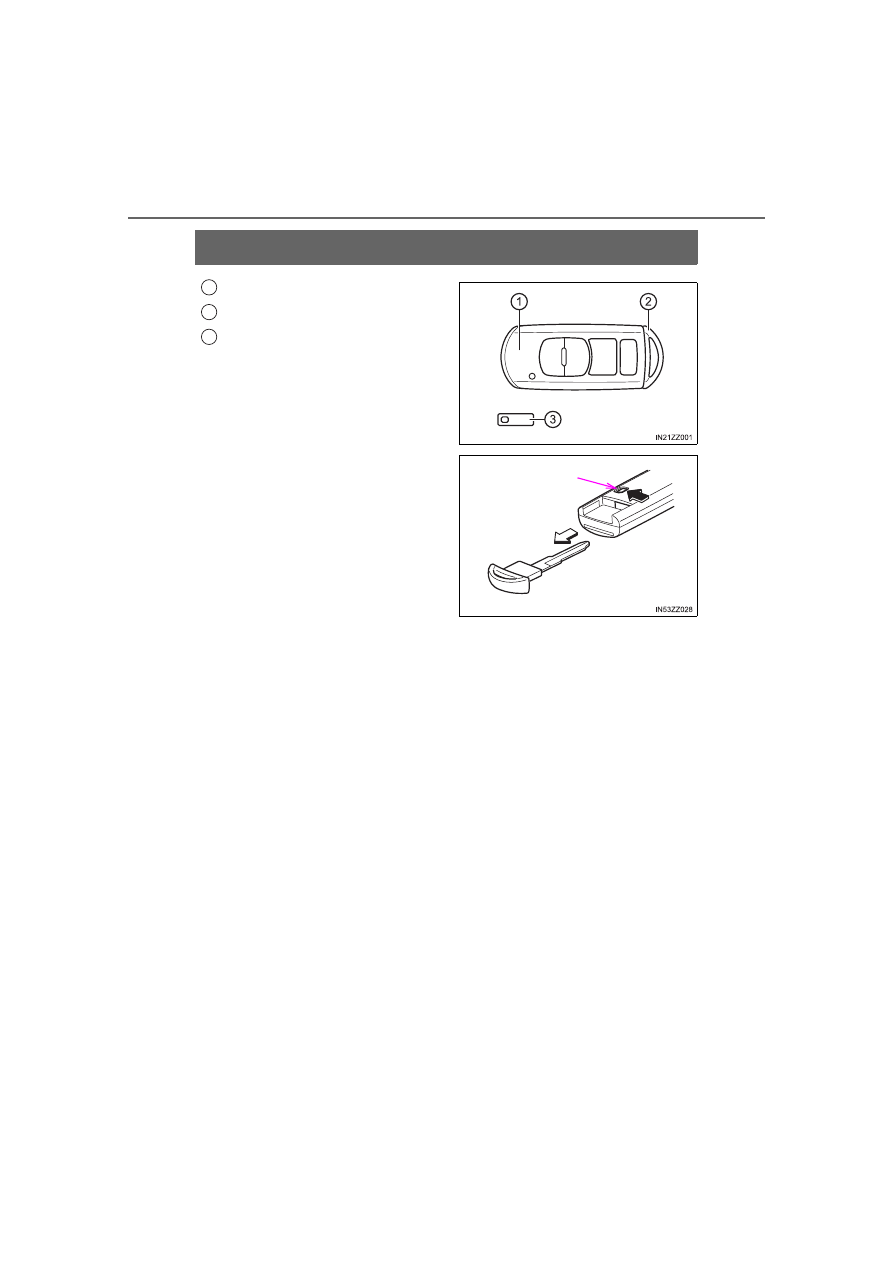

Smart key

Auxiliary key

Key code number plate

To use the auxiliary key, press the
knob and pull out the key (smart
key).

A code number is stamped on the plate attached to the key set;
detach this plate and store it in a safe place (not in the vehicle) for use
if you need to make a replacement key (auxiliary key).

Also write down the code number and keep it in a separate safe and
convenient place, but not in the vehicle.

If your key (auxiliary key) is lost, consult your Scion Dealer and have
your code number ready.

1
2
3

Knob

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

2-1. Keys

Before Drivin

●

The driver must carry the key to ensure the system functions properly.

●

Always keep a spare key in case one is lost. If a key is lost, consult your
Scion dealer as soon as possible.

WARNING

■

Do not leave the key in your vehicle with children and keep them in a
place where your children will not find or play with them
Leaving children in a vehicle with the key is dangerous. This could result in
someone being badly injured or even killed. Children may find these keys to
be an interesting toy to play with and could cause the power windows or
other controls to operate, or even make the vehicle move.

NOTICE

●

Because the key (smart key) uses low-intensity radio waves, it may not
function correctly under the following conditions:

• The key is carried with communication devices such as cellular phones.
• The key contacts or is covered by a metal object.
• The key is near electronic devices such as personal computers.
• Non-Scion genuine electronic equipment is installed in the vehicle.
• There is equipment which discharges radio waves near the vehicle.

●

The key (smart key) may consume battery power excessively if it receives
high-intensity radio waves. Do not place the key near electronic devices
such as televisions or personal computers.

●

To avoid damage to the key (smart key), DO NOT:

• Drop the key.
• Get the key wet.
• Disassemble the key.
• Expose the key to high temperatures on places such as the dashboard

or hood, under direct sunlight.

• Expose the key to any kind of magnetic field.
• Place heavy objects on the key.
• Put the key in an ultrasonic cleaner.
• Put any magnetized objects close to the key.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

Keyless Entry System

It can also help you signal for attention.

Operating the theft deterrent system is also possible on theft deterrent
system-equipped vehicles.

Press the buttons slowly and carefully.

System malfunctions or warnings are indicated by the following warn-
ing lights or beeps.
● KEY Warning Light (Red)

Refer to Warning/Indicator Lights on P. 156.

● Ignition Not Switched Off (STOP) Warning Beep

Refer to Ignition Not Switched Off (STOP) Warning Beep on P. 524.

● Key Removed from Vehicle Warning Beep

Refer to Key Removed from Vehicle Warning Beep on P. 524.

If you have a problem with the key, consult your Scion dealer.

If your key is lost or stolen, consult your Scion dealer as soon as pos-
sible for a replacement and to make the lost or stolen key inoperative.

This system uses the key buttons to remotely lock and unlock
the doors and opens the trunk lid.

The system can start the engine without having to take the key
out of your purse or pocket.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

2-1. Keys

Before Drivin

●

The keyless entry system operation may vary due to local conditions.

●

The keyless entry system is fully operational (door/trunk lid lock/unlock)
when the ignition is switched off. The system does not operate if the ignition
is switched to any position other than off.

●

If the key does not operate when pressing a button or the operational range
becomes too small, the battery may be dead. To install a new battery, refer
to Key Battery Replacement (

P. 443).

●

Additional keys can be obtained at your Scion dealer. Up to 6 keys can be
used with the keyless functions per vehicle. Bring all keys to your Scion
dealer when additional keys are required.

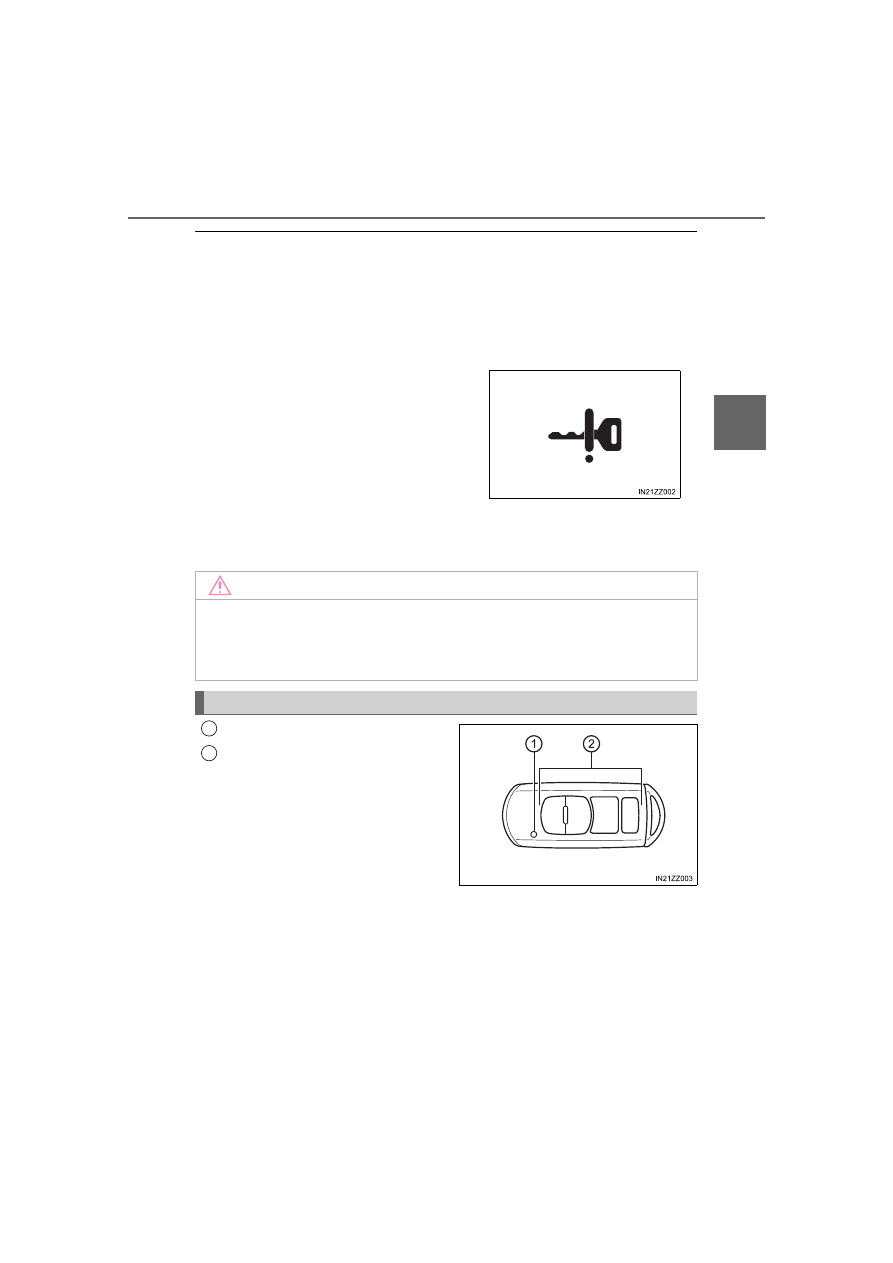

Operation indicator light

Operation buttons

The operation indicator light
flashes when the buttons are
pressed.

●

Battery life is about one year. Replace
the battery with a new one if the KEY
indicator light (green) flashes in the com-
bination meter. Replacing the battery
about once a year is recommended
because the KEY warning light/indicator
light may not illuminate or flash depend-
ing on the rate of battery depletion.

NOTICE

Radio equipment like this is governed by laws in the United States.

Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

Smart Key

1
2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

■

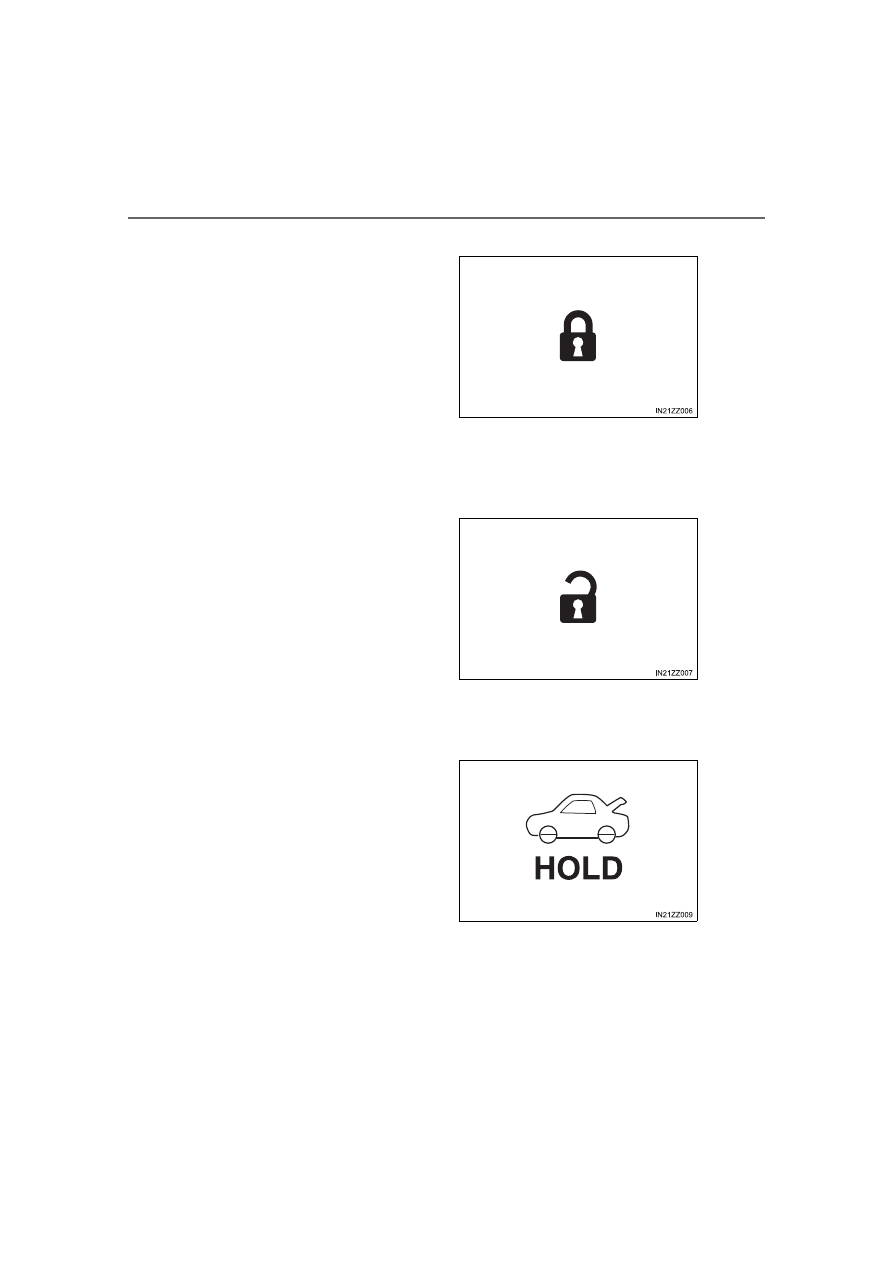

Lock button

To lock the doors and the trunk
lid, press the lock button and
the hazard warning lights will
flash once.

To confirm that all doors and the trunk lid have been locked, press
the lock button again within 5 seconds. If they are closed and
locked, the horn will sound.

■

Unlock button

To unlock the driver’s door,
press the unlock button and the
hazard warning lights will flash
twice.

To unlock all doors and the trunk lid, press the unlock button again
within 3 seconds and two more beep sounds will be heard.

■

Trunk button

To open the trunk lid, press and
hold the trunk button until the
trunk lid opens.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

2-1. Keys

Before Drivin

■

Panic button

If you witness from a distance
someone attempting to break
into or damage your vehicle,
press and hold the panic button
to activate the vehicle’s alarm.

● Turning on the alarm

Pressing the panic button for 1 second or more will trigger the
alarm for about 2 minutes and 30 seconds, and the following will
occur:

• The horn sounds intermittently.
• The hazard warning lights flash.

● Turning off the alarm

The alarm stops by pressing any button on the key.

■

Smart Key

●

The headlights turn on/off by operating the smart key. Refer to Leaving
Home Light System on P. 177.

●

With theft deterrent system:
The hazard warning lights flash when the theft deterrent system is armed or
turned off.
Refer to Theft Deterrent System on P. 123.

■

Lock button

●

The doors and the trunk lid can be locked by pressing the lock button while
any other door or the trunk lid is open. The hazard warning lights will not
flash.

When the lock button is pressed while any door is open and then the door
is closed, all the doors and the trunk lid are locked.

●

Confirm that all doors and the trunk lid are locked visually or audibly by use
of the double click.

●

Make sure all doors and the trunk lid are locked after pressing the button.

●

With theft deterrent system:
When the doors are locked by pressing the lock button on the key while the
theft deterrent system is armed, the hazard warning lights will flash once to
indicate that the system is armed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)
