278

4-3. Do-it-yourself maintenance

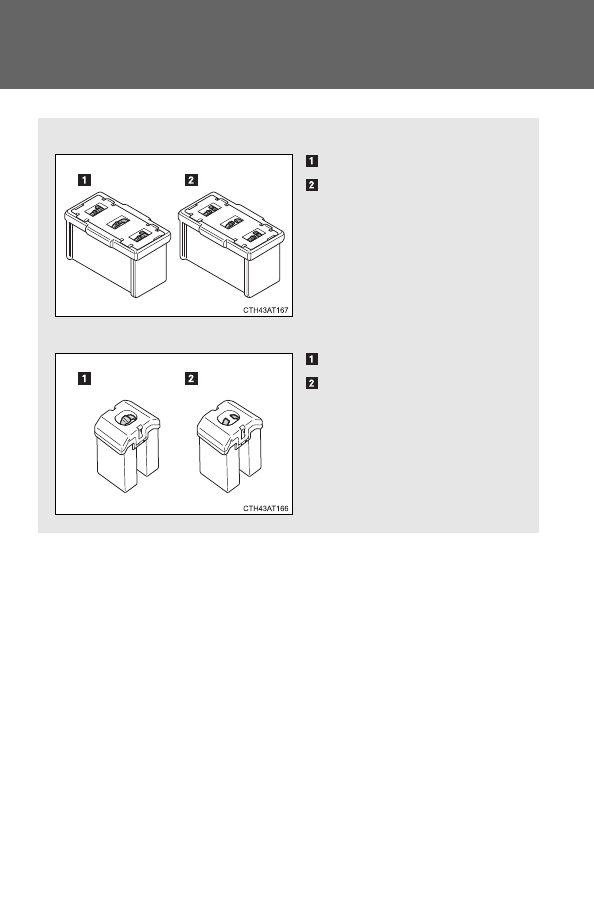

Type C

Normal fuse

Blown fuse

Contact your Scion dealer.

Type D

Normal fuse

Blown fuse

Contact your Scion dealer.

279

4-3. Do-it-yourself maintenance

4

Mainten

ance an

d ca

re

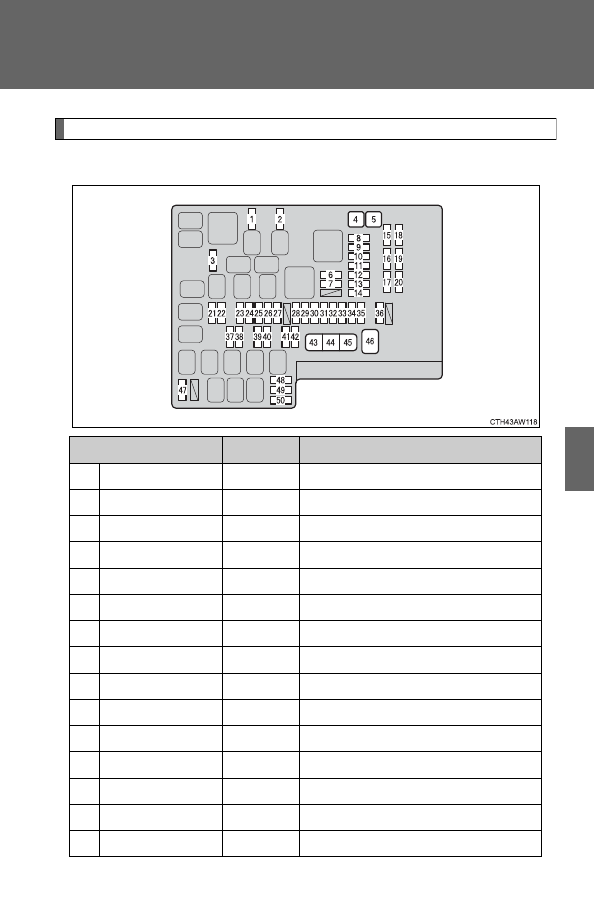

Fuse layout and amperage ratings

■

Engine compartment

Fuse

Ampere

Circuit

1

MIR HTR

7.5 A

Outside rear view mirror defoggers

2

RDI

25 A

Electric cooling fan

3

(PUSH-AT)

7.5 A

Engine control unit

4

ABS NO. 1

40 A

ABS

5

HEATER

50 A

Air conditioning system

6

WASHER

10 A

Windshield washer

7

WIPER

30 A

Windshield wipers

8

RR DEF

30 A

Rear window defogger

9

(RR FOG)

10 A



10

D FR DOOR

25 A

Power window (driver’s side)

11

(CDS)

25 A

Electric cooling fan

12

D-OP

25 A



13

ABS NO. 2

25 A

ABS

14

D FL DOOR

25 A

Power window (passenger’s side)

15

SPARE

See note.

Spare fuse

280

4-3. Do-it-yourself maintenance

16

SPARE

See note.

Spare fuse

17

SPARE

See note.

Spare fuse

18

SPARE

See note.

Spare fuse

19

SPARE

See note.

Spare fuse

20

SPARE

See note.

Spare fuse

21

ST

7.5 A

Starting system

22

ALT-S

7.5 A

Charging system

23

(STR LOCK)

7.5 A



24

D/L

20 A

Power door lock

25

ETCS

15 A

Engine control unit

26

(AT+B)

7.5 A

Transmission

27

(AM2 NO. 2)

7.5 A



28

EFI (CTRL)

15 A

Engine control unit

29

EFI (HTR)

15 A

Multiport fuel injection system/
sequential multiport fuel injection
system

30

EFI (IGN)

15 A

Starting system

31

EFI (+B)

7.5 A

Engine control unit

32

HAZ

15 A

Turn signal lights, emergency
flashers

33

MPX-B

7.5 A

Gauge and meters

34

F/PMP

20 A

Multiport fuel injection system/
sequential multiport fuel injection
system

35

IG2 MAIN

30 A

SRS airbag system, engine control
unit

36

DCC

30 A

Interior light, wireless remote con-
trol, main body ECU

Fuse

Ampere

Circuit

281

4-3. Do-it-yourself maintenance

4

Mainten

ance an

d ca

re

Note

One of each of the following spare fuses are provided: 7.5 A, 10 A, 15
A, 20 A, 25 A, 30 A.

37

HORN NO. 2

7.5 A

Horn

38

HORN NO. 1

7.5 A

Horn

39

H-LP LH LO

15 A

Left-hand headlight (low beam)

40

H-LP RH LO

15 A

Right-hand headlight (low beam)

41

H-LP LH HI

10 A

Left-hand headlight (high beam)

42

H-LP RH HI

10 A

Right-hand headlight (high beam)

43

INJ

30 A

Multiport fuel injection system/
sequential multiport fuel injection
system

44

H-LP WASHER

30 A



45

AM2 NO. 1

40 A

Starting system, engine control unit

46

EPS

80 A

Electric power steering

47

A/B MAIN

15 A

SRS airbag system

48

ECU-B

7.5 A

Wireless remote control, main body
ECU

49

DOME

20 A

Interior light

50

IG2

7.5 A

Engine control unit

Fuse

Ampere

Circuit

282

4-3. Do-it-yourself maintenance

■

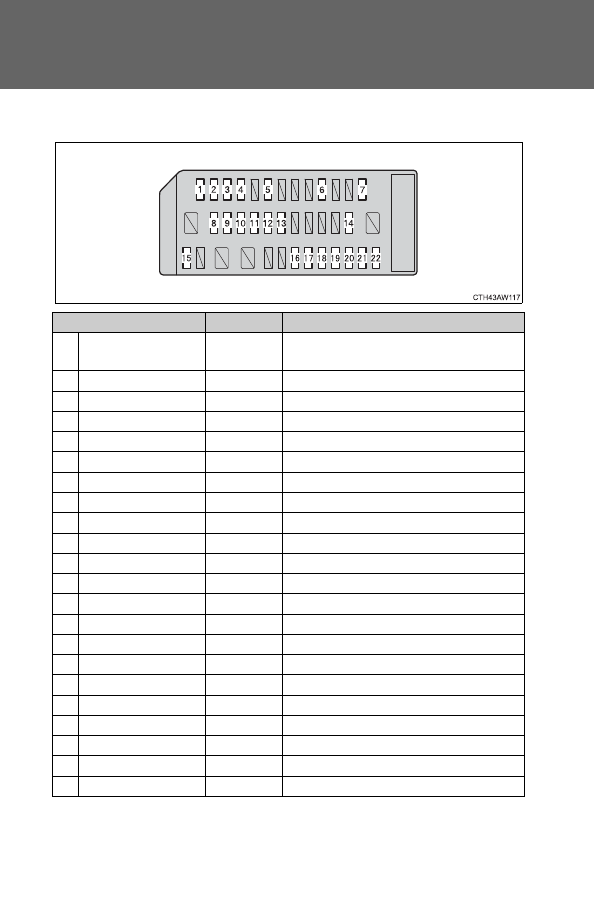

Instrument panel

Fuse

Ampere

Circuit

1

ECU ACC

10 A

Main body ECU, outside rear view
mirrors

2

P/POINT No.2

15 A

Power outlet

3

PANEL

10 A

Illumination

4

TAIL

10 A

Tail lights

5

DRL

10 A

Daytime running light system

6

STOP

7.5 A

Stop lights

7

OBD

7.5 A

On-board diagnosis system

8

HEATER-S

7.5 A

Air conditioning system

9

HEATER

10 A

Air conditioning system

10

FR FOG LH

10 A



11

FR FOG RH

10 A



12

BK/UP LP

7.5 A

Back-up lights

13

ECU IG1

10 A

ABS, electric power steering

14

AM1

7.5 A

Starting system

15

AMP

15 A

Audio system

16

AT UNIT

15 A

Transmission

17

GAUGE

7.5 A

Gauge and meters

18

ECU IG2

10 A

Engine control unit

19

SEAT HTR LH

10 A



20

SEAT HTR RH

10 A



21

RADIO

7.5 A

Audio system

22

P/POINT No.1

15 A

Power outlet

283

4-3. Do-it-yourself maintenance

4

Mainten

ance an

d ca

re

■

After a fuse is replaced

●

If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (

P. 284)

●

If the replaced fuse blows again, have the vehicle inspected by your
Scion dealer.

■

If there is an overload in the circuits

The fuses are designed to blow, protecting the wiring harness from damage.

CAUTION

■

To prevent system breakdowns and vehicle fire

Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.

●

Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.

●

Always use a genuine Scion fuse or equivalent.

●

Do not modify the fuse or the fuse box.

NOTICE

■

Before replacing fuses

Have the cause of electrical overload determined and repaired by your Scion
dealer.

284

4-3. Do-it-yourself maintenance

Light bulbs

You may replace the following bulbs by yourself. The difficulty level

of replacement varies depending on the bulb. If necessary bulb

replacement seems difficult to perform, contact your Scion dealer.

■

Preparing a replacement light bulb

Check the wattage of the light bulb being replaced. (

P. 355)

■

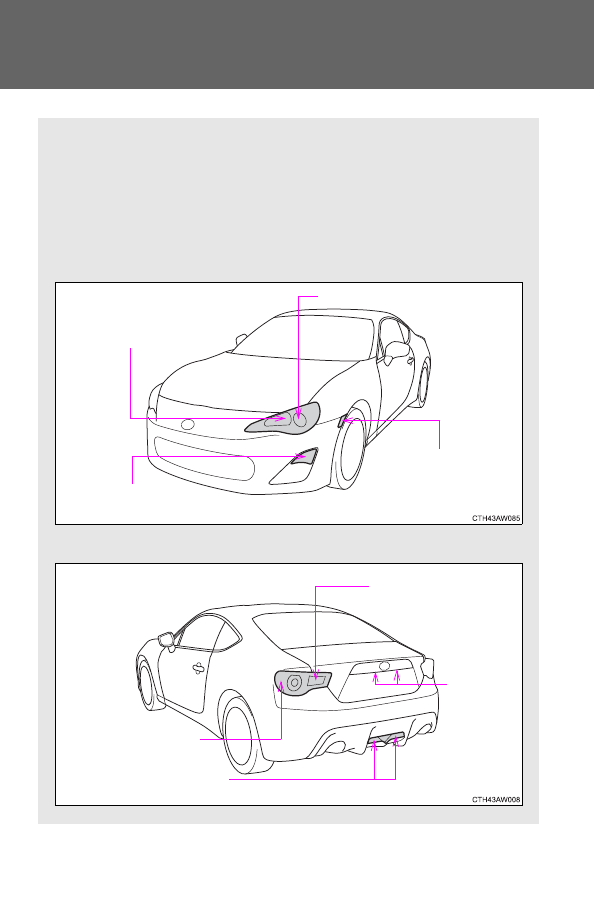

Front bulb locations

■

Rear bulb locations

Headlights (high beam) and

daytime running lights

Headlights (low beam)

Front side marker lights

Front turn signal and

parking lights

Rear turn signal lights

Rear side marker lights

Back-up lights

License

plate

lights

285

4-3. Do-it-yourself maintenance

4

Mainten

ance an

d ca

re

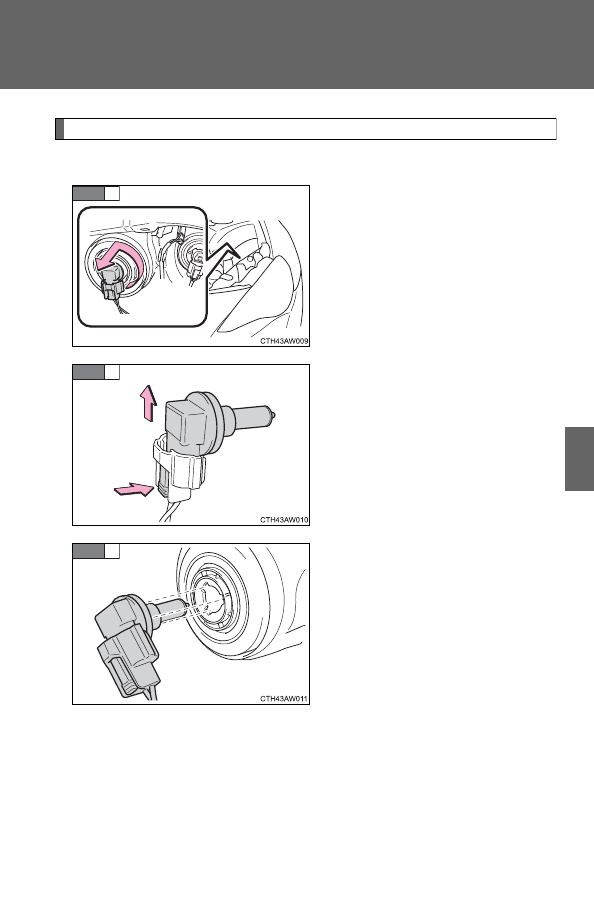

Replacing light bulbs

■

Headlight low beams

Turn the bulb base counterclock-
wise.

Unplug the connector while
depressing the lock release.

Replace the light bulb, and install
the bulb base.

Align the 3 tabs on the light bulb
with the mounting, and insert.

STEP

1

STEP

2

STEP

3

286

4-3. Do-it-yourself maintenance

Turn and secure the bulb base.

Shake the bulb base gently to
check that it is not loose, turn the
headlight low beams on once and
visually confirm that no light is
leaking through the mounting.

■

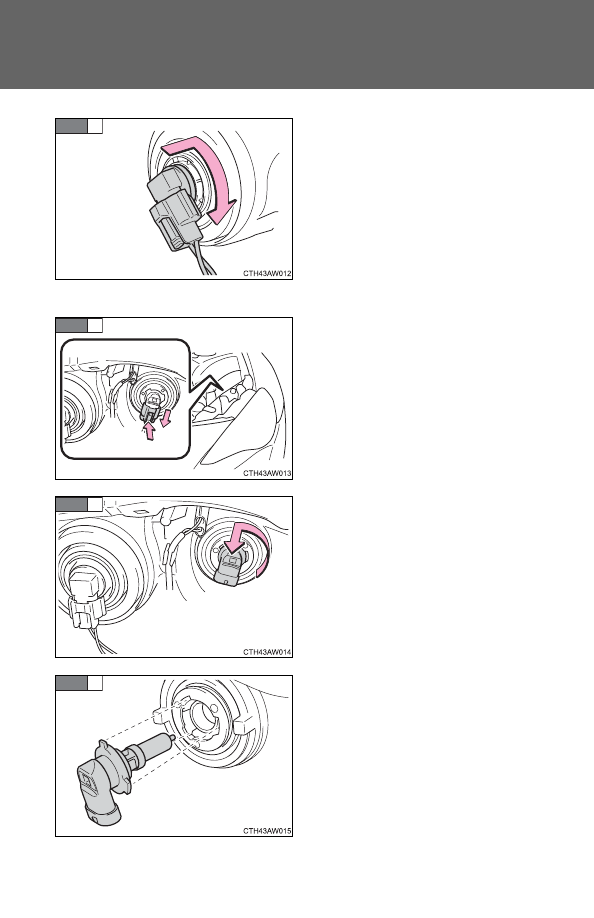

Headlight high beams and daytime running lights

Unplug the connector while
depressing the lock release.

Turn the bulb base counterclock-
wise.

Install a new bulb.

Align the 3 tabs on the light bulb
with the mounting, and insert.

STEP

4

STEP

1

STEP

2

STEP

3

287

4-3. Do-it-yourself maintenance

4

Mainten

ance an

d ca

re

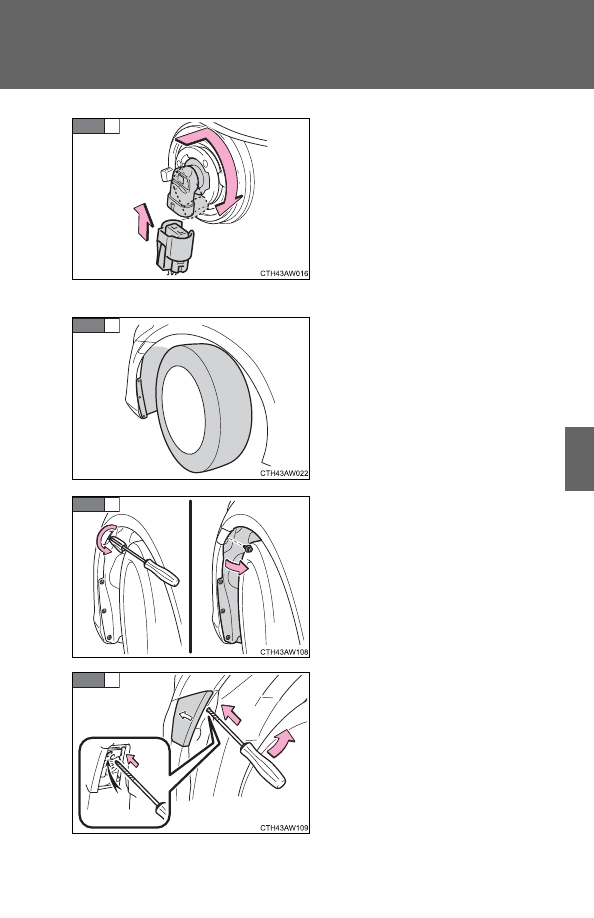

Turn and secure the bulb. Install
the connector.

Shake the bulb base gently to
check that it is not loose, turn the
headlight high beams on once
and visually confirm that no light
is leaking through the mounting.

■

Front side marker lights

Turn the steering wheel in the
opposite direction of the light to
be replaced.

Turn the steering wheel to a point
that allows your hand to easily fit
between the tire and fender liner.

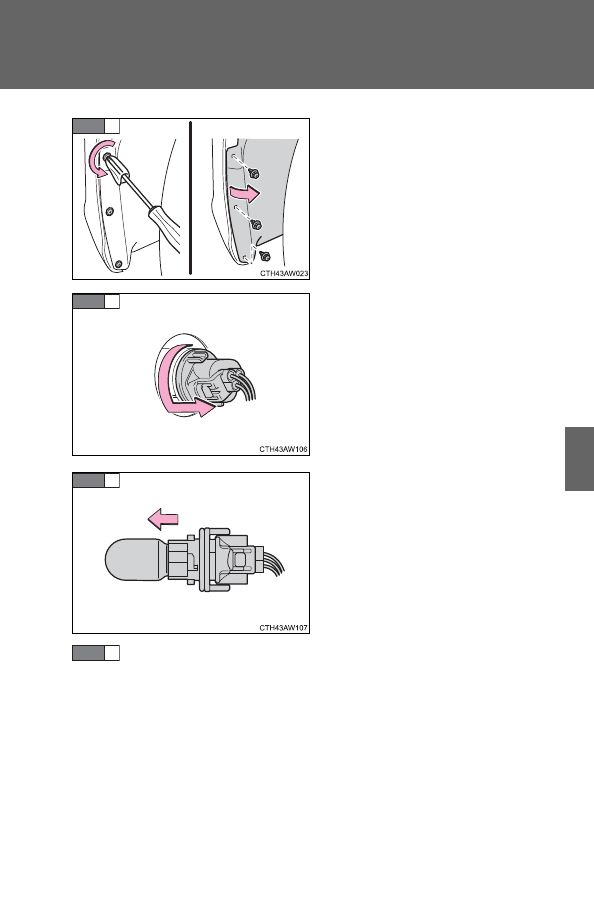

Remove the clips and partly
remove the fender liner.

To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.

Release the light's claw.

Insert the screwdriver into the
hole. While firmly pushing the
screwdriver forward, move it
towards the inside of the vehicle.

To prevent damage to the vehicle,
wrap the tip of the screwdriver
with a tape.

STEP

4

STEP

1

STEP

2

STEP

3

288

4-3. Do-it-yourself maintenance

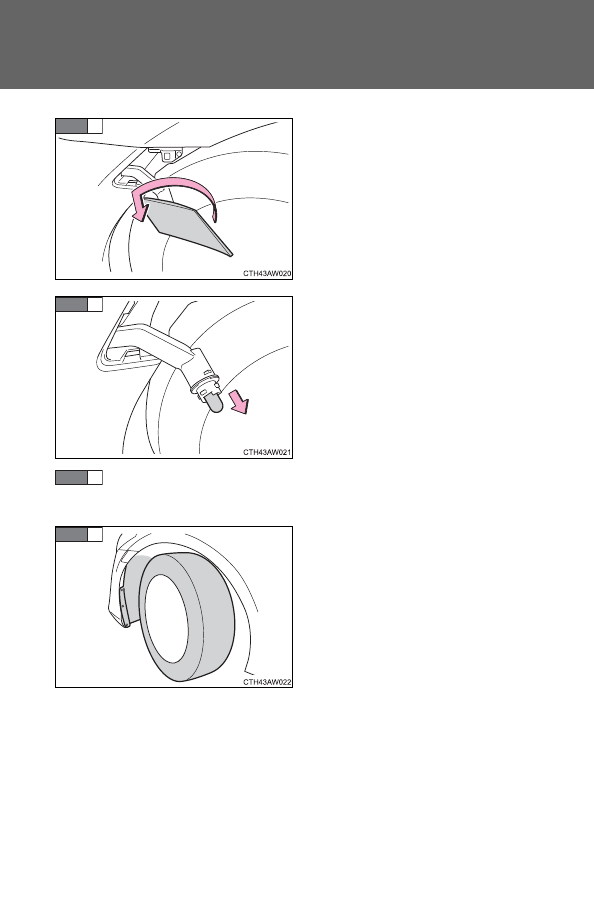

Pull out the lamp and turn the
lens counterclockwise.

Remove the light bulb.

When installing, reverse the steps listed.

■

Front turn signal/parking lights

Turn the steering wheel in the
opposite direction of the light to
be replaced.

Turn the steering wheel to a point
that allows your hand to easily fit
between the tire and fender liner.

STEP

4

STEP

5

STEP

6

STEP

1

289

4-3. Do-it-yourself maintenance

4

Mainten

ance an

d ca

re

Remove the clips and partly
remove the fender liner.

To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.

Turn the bulb base counterclock-
wise.

Remove the light bulb.

When installing, reverse the steps listed.

STEP

2

STEP

3

STEP

4

STEP

5

290

4-3. Do-it-yourself maintenance

■

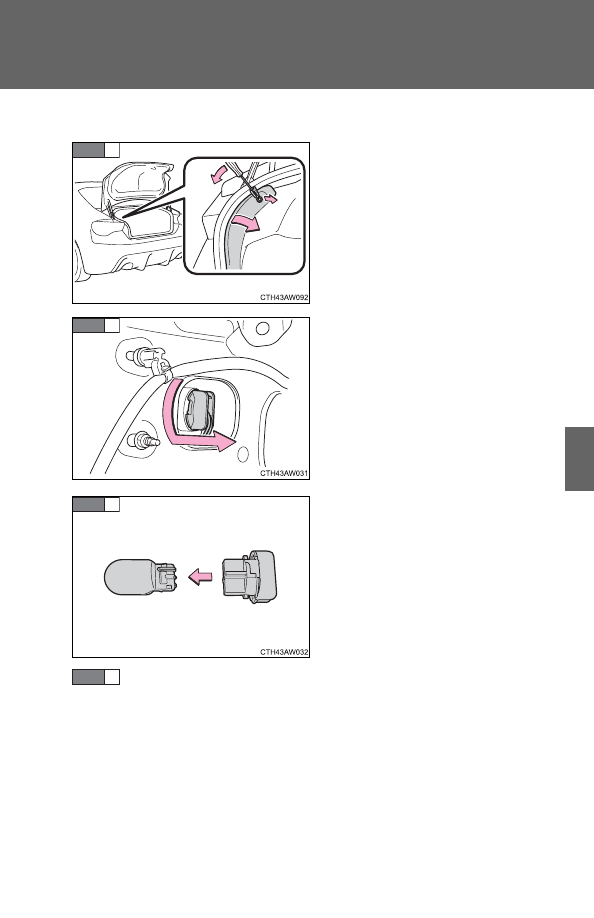

Rear side marker lights

Remove a clip and partly remove
the cover.

To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.

Turn the bulb base counterclock-
wise.

Remove the light bulb.

When installing, reverse the steps listed.

STEP

1

STEP

2

STEP

3

STEP

4

291

4-3. Do-it-yourself maintenance

4

Mainten

ance an

d ca

re

■

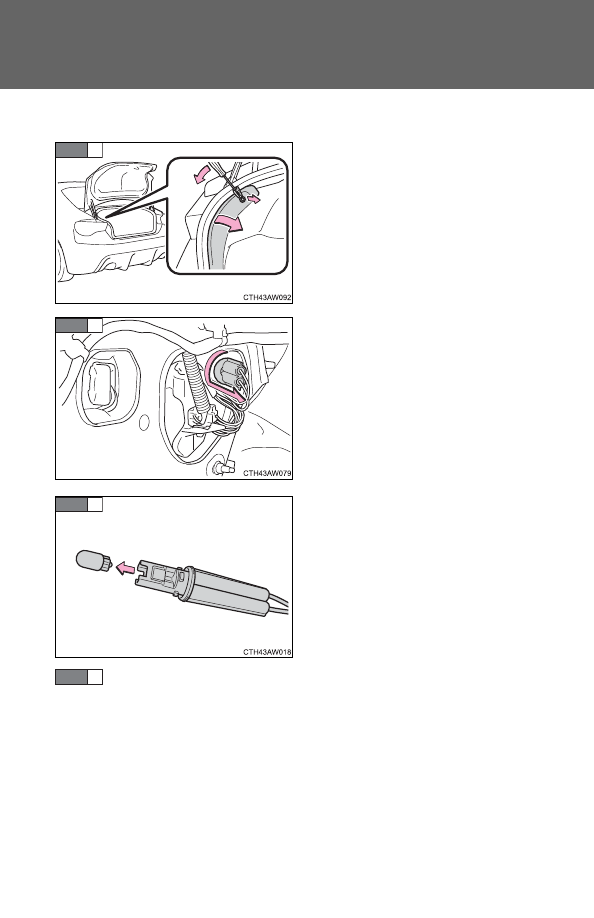

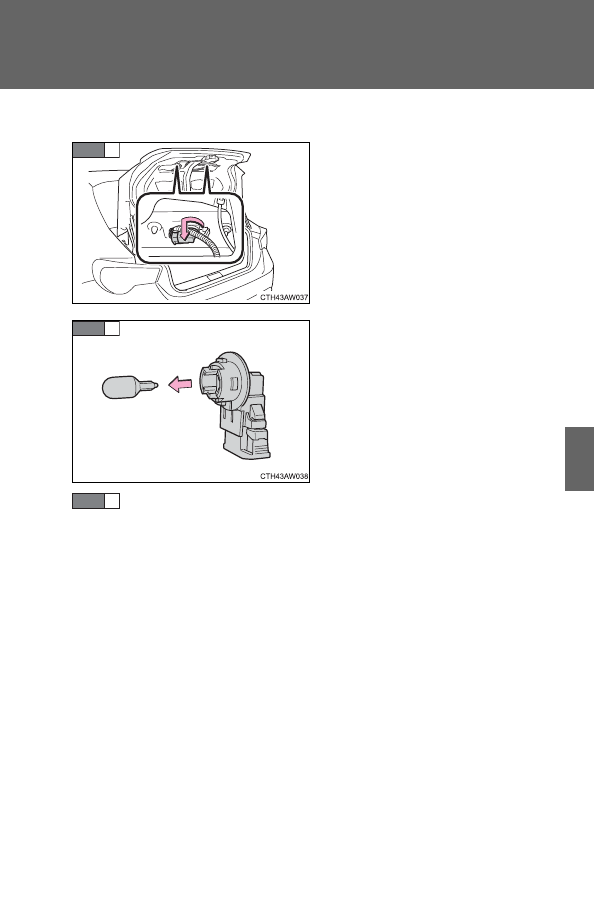

Rear turn signal lights

Remove a clip and partly remove
the cover.

To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.

Turn the bulb base counterclock-
wise.

Remove the light bulb.

When installing, reverse the steps listed.

STEP

1

STEP

2

STEP

3

STEP

4

292

4-3. Do-it-yourself maintenance

■

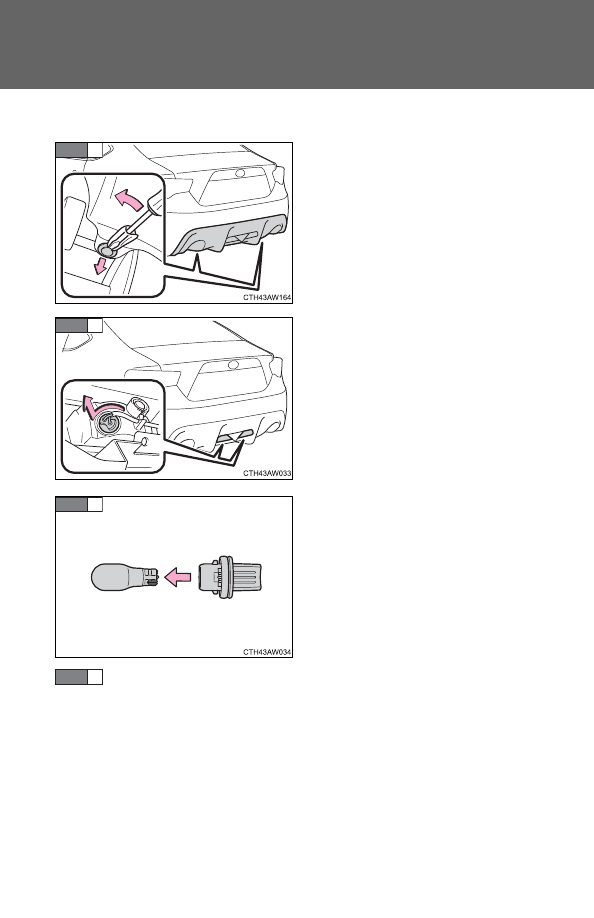

Back-up lights

Remove the clips.

To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.

Turn the bulb base counterclock-
wise.

Remove the light bulb.

When installing, reverse the steps listed.

STEP

1

STEP

2

STEP

3

STEP

4

293

4-3. Do-it-yourself maintenance

4

Mainten

ance an

d ca

re

■

License plate lights

Turn the bulb base counterclock-
wise.

Remove the light bulb.

When installing, reverse the steps listed.

■

Replacing the following bulbs

If any of the lights listed below has burnt out, have it replaced by
your Scion dealer.

● Stop/tail lights
● High mounted stoplight

STEP

1

STEP

2

STEP

3
