Power supply voltage: 12 Volts.

BATTERY

With negative earth.

STARTER MOTOR

With pinion and free wheel. En-

gagement through electromagnet op-
erated by the ignition key.

Power output:

All versions ......................... 0.8 kW

ALTERNATOR

Rectifier bridge and built-in elec-

tronic voltage regulator. Battery be-
gins recharging as soon as the engine
starts.

Maximum rated current output:

1.2
1.2

16V

....................................65A

All versions
with climate control ..................75A

WHEEL GEOMETRY

Front wheel toe-in measured from

rim to rim: 0±1 mm.

The figures refer to the car in full

running order.

Modifications or repairs

to the electrical system
carried out incorrectly and

without bearing the features of the
system in mind can cause mal-
functions with the risk of fire.

Version

Capacity 20 hr

Cold cranking

discharge rate

power (–18°C)

1.2 - 1.2

16V

40Ah

200A

4C144-167 ING  11-03-2008  12:02  Pagina 155

156

G

PERFORMANCE

Maximum speeds after running in, in km/h.

1.2

1.2

16V

1.2

16V

M

N

blue

1.2

16V

M

N

red

1

st

41

45

42

2

nd

73

82

77

3

rd

107

120

112

4

th

141

158

148

5

th

158

174

174

Reverse

42

46

43

4C144-167 ING  11-03-2008  12:02  Pagina 156

157

G

WEIGHTS

Weights (kg)

Kerb weight
(including fuel, spare, tools and accessories):

Payload (1) including the driver:

Maximum loads permitted (2)
– front axle:
– rear axle:
– total:

Maximum load on the roof (3):

Towable weight
– trailer with brakes:
– trailer without brakes:

Maximum load on the ball joint
(trailer with brakes):

1.2

16V

910

480

750
750

1390

50

900
400

70

1.2

860

470

750
750

1330

50

900
400

70

(1) If special equipment is fitted (sunroof, air conditioner, tow hitch etc.) the unladen weight increases, thus reducing the payload as specified in the max-

imum loads allowed.

(2) Loads not to be exceeded: the driver must arrange the goods in the boot and/or load surface so that they comply with these limits.

(3) Including the weight of the roof rack.

4C144-167 ING  11-03-2008  12:02  Pagina 157

158

G

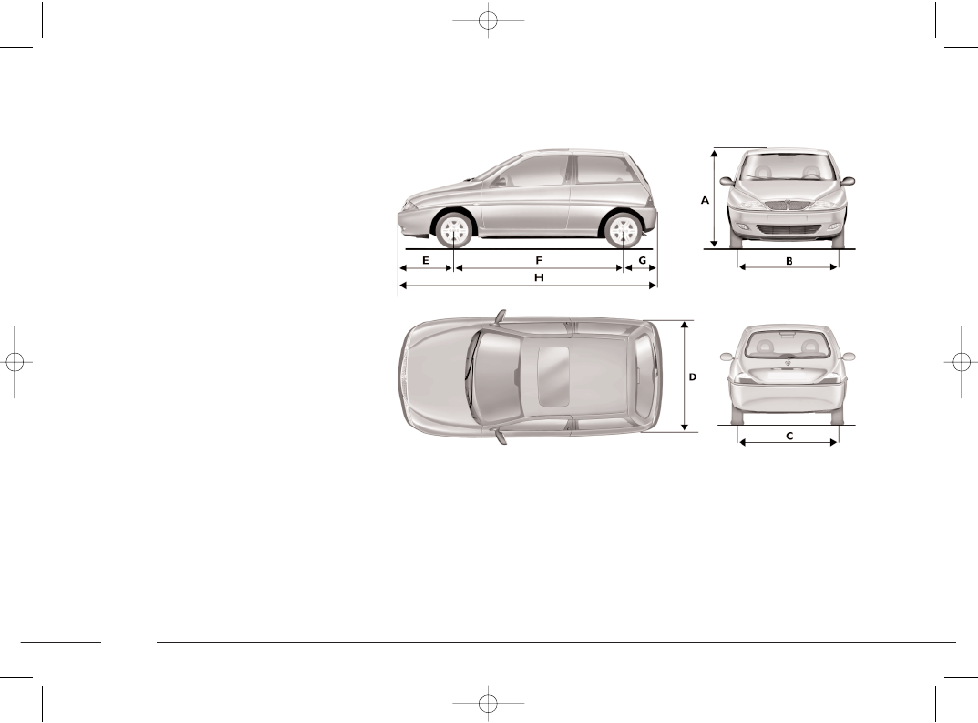

DIMENSIONS

P4C00387

fig. 5

Boot volume (VDA standard)

With seats in normal
position: ............................ 215 dm

3

With seats folded down and load
flush with the roof: ............ 910 dm

3

The height and the tracks refer to

the car when empty.

4C144-167 ING  11-03-2008  12:02  Pagina 158

159

G

Versions

1.2 1.2

LS

1.2

16V

1.2

16V

M

N

blue

LS

LX

1.2

16V

M

N

rosso

A

1435

1435

1435

1435

1435

B

1395

1405*

1405*

1385**

1399

C

1380

1390*

1390*

1370**

1381

D

1690

1690

1690

1690

1690

E

795

795

795

795

795

F

2380

2380

2380

2380

2380

G

548

548

548

548

548

H

3741

3741

3741

3741

3741

Dimensions in mm.

*

with tyre 165/65 R14

** with tyre 185/60 R14

4C144-167 ING  11-03-2008  12:02  Pagina 159

160

G

CAPACITIES

Fuel tank:
including a reserve of:

Engine cooling system:

Engine sump:
Engine sump and filter:
Engine sump, filter and pipes (factory filling):

Transaxle:

Steering box:

Hydraulic power steering:

CV joint cavities and boots
(each):

Front and rear hydraulic brake circuits:

Hydraulic brake circuits with ABS
wheel anti-lock system:

Windscreen and rear window
liquid reservoir:

Climate control system

(*) For temperatures lower than –20°C, we recommend using SELENIA PERFORMER SAE 5W-30.

1.2

litres

kg

45

–

5-8

–

4.5

–

2.5

2.2

2.8

2.5

3.1

2.75

1.7

1.5

–

0.13

0.7

0.65

–

0.1

0.4

–

0.5

–

2.2

–

–

0.65±0.025

Fuel required
Recommended products

Premium unleaded petrol octane
no. not less than 95 (R.O.N.)

50-50 mixture of distilled
water and PARAFLU

11

fluid

SELENIA 20K (*)

TUTELA CAR ZC 75 SYNTH

K 854

TUTELA GI/A

TUTELA MRM 2

TUTELA TOP 4

TUTELA TOP 4

Mixture of water and DP1 liquid

R134a

rs

4C144-167 ING  11-03-2008  12:02  Pagina 160

161

G

Fuel tank:
including a reserve of:

Engine cooling system:

Engine sump:
Engine sump and filter:
Engine sump, filter and pipes (factory filling):

Transaxle:

Steering box:

Hydraulic power steering:

CV joint cavities and boots
(each):

Front and rear hydraulic brake circuits:

Hydraulic brake circuits with ABS
wheel anti-lock system:

Windscreen and rear window
liquid reservoir:

Climate control system:

(*) For temperatures lower than –20°C, we recommend using SELENIA PERFORMER SAE 5W-30.

1.2

16V

litres kg

45

–

5-8

–

4.5

–

2.5

2.2

2.8

2.5

3.1

2.75

1.7

1.5

–

0.13

0.7

0.65

–

0.1

0.4

–

0.5

–

2.2

–

–

0.65±0.025

Fuel required
Recommended products

Premium unleaded petrol octane
no. not less than 95 (R.O.N.)

50-50 mixture of distilled
water and PARAFLU

11

fluid

SELENIA 20K (*)

TUTELA CAR ZC 75 SYNTH

K 854

TUTELA GI/A

TUTELA MRM 2

TUTELA TOP 4

TUTELA TOP 4

Mixture of water and DP1 liquid

R134a

4C144-167 ING  11-03-2008  12:02  Pagina 161

162

G

NOTES ON FLUID USE

Oils

Never top up with oils having dif-

ferent specifications from those al-
ready being used.

Coolant

A 50 - 50 mixture of PARAFLU

11

and distilled water gives freeze pro-
tection to –35° C.

Windscreen/rear window
washer liquid

Use a mixture of water and DP1, in

the following proportions:

30% DP1 and 70% water in sum-

mer.

50% DP1 e 50% and 50% water in

winter.

Use undiluted DP1 for temperatures

below –20°C.

4C144-167 ING  11-03-2008  12:02  Pagina 162

163

G

TYRE PRESSURE

COLD TYRE PRESSURES (bar)

(*) with 5.00 B x 14’’ H - 31.5 rims.

Tyre

Average load

Fully laden

Spare wheel

Front

Rear Front Rear

1.2

16V

M

N

blue

-

165/65 R14 78T

1.2 LS 1.2

16V

LS

185/60 R14 82H

2.0

1.9

2.2

2.2

2.8

185/60 R14 82T

1.2

16V

LX

185/60 R14 82H

2.0

1.9

2.2

2.2

2.8

185/60 R14 82T

1.2

16V

M

N

red

195/50 R15 82H

2.4

2.2

2.4

2.2

2.8

185/60 R14 82H

2.0

1.9

2.2

2.2

2.8

Snow tyre
– for all versions

165/65 R14 78Q (M+S)

2.2

2.2

2.2

2.2

2.8

except 1.2

16V

M

N

red

185/60 R14 82Q (M+S)

2.0

1.9

2.2

2.2

2.8

Snow tyre

165/65 R14 78Q (M+S) (*)

2.2

2.2

2.2

2.2

2.8

– for 1.2

16V

M

N

red

185/60 R14 82Q (M+S) (*)

2.0

1.9

2.2

2.2

2.8

version

195/50 R15 82H

2.4

2.2

2.4

2.2

2.8

4C144-167 ING  11-03-2008  12:02  Pagina 163

164

G

FLUIDS AND LUBRICANTS

RECOMMENDED PRODUCTS AND THEIR CHARACTERISTICS

Use

(*) For temperatures lower than –20°C use SELENIA PERFORMER SAE 5W-30

Specifications of fluids and lubricants

to use for best car operation

SAE 10W-40 synthetic-based multigrade oil exceeding
ACEA A3-96, CCMC G5 and API SJ specifications

SAE 5W-30 synthetic-based multigrade oil exceeding
ACEA A1 and API SJ specifications

Recommended

fluids and lubricants

SELENIA 20K

SELENIA
PERFORMER

Applications

40

°

30

°

20

°

10

°

0

°

-10

°

-20

°

-30

°

°C

SAE10W

-40

SAE5W

-30

Petrol engine
lubricants (*)

P4C00358

4C144-167 ING  11-03-2008  12:02  Pagina 164

165

G

Use

Drive lubricants
and grease

Steering box
lubricant

Brake products

Radiator
antifreeze

Windscreen
washer liquid

Applications

Manual gearbox
and differentials

CV Joints

Hydraulic
power steering

Rack steering box

Brake circuit
component
lubrication

Hydraulic brake
and clutch controls

50-50 mix
down to –35°C

To be used neat

Recommended

fluids and lubricants

TUTELA CAR
ZC 75 SYNTH

TUTELA MRM 2

TUTELA GI/A

K 854

SP 349

TUTELA TOP 4

PARAFLU

11

DP1

Specifications of fluids and lubricants

to use for best car operation

SAE 75W80 EP oil exceeding API GL5 and
MIL - L - 2105 D LEV specifications

Molybdenum disulphide, lithium-soap based grease,
water-resistant NLGI consistency no. 2

ATF DEXRON II D LEV, SAE 10W oil

Lithium-soap base grease, containing molybdenum
sulphide NLGI consistency no. 000

Special grease compatible with brake fluid

Synthetic fluid: NTHSA n° 116 DOT 4 ISO 4925,
SAE J-1703, CUNA NC 956 - 01

Protective compound with ethylene glycol base
antifreeze: CUNA NC 956 - 16

Alcohol and surfactants mixture: CUNA NC 956 - 11

4C144-167 ING  11-03-2008  12:02  Pagina 165

166

G

FUEL
CONSUMPTION -
CO

2

EMISSIONS

The fuel consumption values, in

litres x 100 km, indicated in the fol-
lowing tables, have been determined
according to homologation tests pre-
scribed in the European Directive
specifications. The following proce-
dures are used to define the con-
sumption values:

Consumption values are defined by

means of the following procedures:

– an urban cycle consisting of a

cold start and a simulated drive in
city streets;

– an extra-urban cycle consisting

in frequent accelerations, in all gears,
simulating normal conditions of use.
Speed ranges from 0 to 120 km/h;

– the combined consumption is

calculated as approximately 37% of
the urban cycle and approximately
63% of the extra-urban cycle.

IMPORTANT Road and traffic

conditions, weather, general con-
ditions of the car, driving style, fit-
tings and accessories, use of the
climate control system, load, roof
racks and other situations penal-
ising aerodynamic penetration and
effecting rolling resistance will in-
fluence fuel consumption rates
which can be different from the
values shown in the table (see
“Cheap running that respects the
environment” in “Driving your
car” chapter).

Consumption may be greater during

the first 2000 km due to running in.

Consumption according

1.2

1.2

16V

1.2

16V

M

N

blue

to Directive 1999/100/EC

1.2

16V

M

N

red

Urban

7.3

7.5

8.3

Extra-urban

4.8

5.0

5.5

Combined

5.7

6.0

6.5

4C144-167 ING  11-03-2008  12:02  Pagina 166

167

G

CO

2

EMISSION AT EXHAUST (DIRECTIVE 1999/100/EC)

The maximum CO

2

emissions shown in the following table are expressed in

g/km.

1.2

1.2

16V

1.2

16V

M

N

blue

1.2

16V

M

N

red

Urban

171

176

195

Extra-urban

115

121

132

Combined

136

141

155

4C144-167 ING  11-03-2008  12:02  Pagina 167

ACCESSORY INSTALLATION

G

enuine Lancia accessories have been designed

with the Lancia Y specifically in mind and have
been selected and tested on the car. They are easy
to use, reliable and practical: qualities that lead
to enhanced comfort and safety under all driving
conditions.

For child safety, the child seats in the Lineac-

cessori Lancia line meet the strictest current Eu-
ropean standards.

You can find the Lancia accessories described in

a catalogue available from Lancia Dealerships.
Just ask the staff to give you all the details.

The following pages show diagrams and give in-

structions for correctly fitting a number of acces-
sories. Installation must always be entrusted to the
experts. Lancia has specially trained its Dealer-
ship staff for work on the Lancia Y.

SOUND SYSTEM/RADIO NAVIGATION
SYSTEM ......................................................... 169
TOW HITCH  .................................................. 172
RF REMOTE CONTROL:
MINISTERIAL HOMOLOGATION .................. 175

168

G

4C168-176 ING  11-03-2008  12:03  Pagina 168

169

G

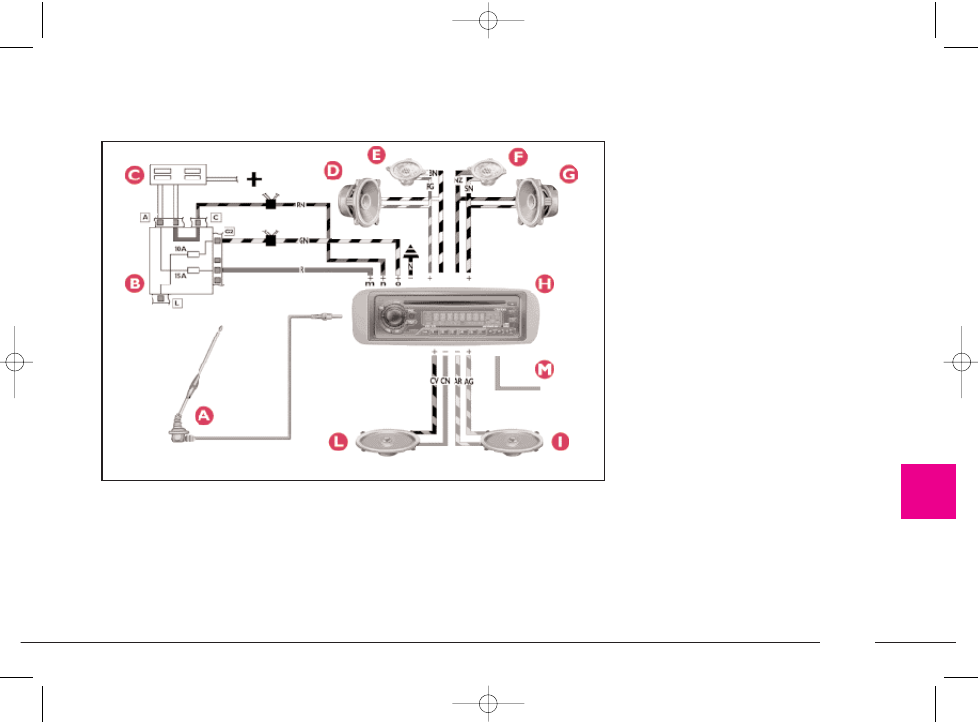

SOUND SYSTEM/RADIO NAVIGATION SYSTEM

SET-UP SYSTEM WIRING
DIAGRAM AND ADDITIONAL
BRANCHES (SOUND SYSTEM)
(fig. 1)

A - Radio aerial;

B - Terminal box;

C - High-amp fuse box;

D - Front left speaker;

E - Left tweeter;

F - Right tweeter;

G - Front right speaker;

H - Radio;

I - Rear right speaker;

L - Rear left speaker;

M - CD CHANGER (where fitted)

wire with respectiving connector,
where you can install a compatible
CD CHANGER if required;

m - +30;

n - Code positive;

o - Radio lights positive.

List of cable colour codes

N=Black - R=Red - AG=Blue/Yellow - AR=Blue/Red - CV=Orange/Green

CN =Orange/Black - BN=White-Black - GN=Yellow-Black - NZ=Black-Purple

RG=Red-Yellow - RN=Red-Black - SN=Red-Black

fig. 1

P4C00388

4C168-176 ING  11-03-2008  12:03  Pagina 169

170

G

List of cable colour codes

G=Yellow - N=Black - R=Red - AG=Blue/Yellow - AR=Blue/Red - BR =White/Red -

CV=Orange/Green - CN =Orange/Black - BN=White-Black - GN=Yellow-Black -

NZ=Black-Purple RG=Red-Yellow - RN=Red-Black - SN=Red-Black

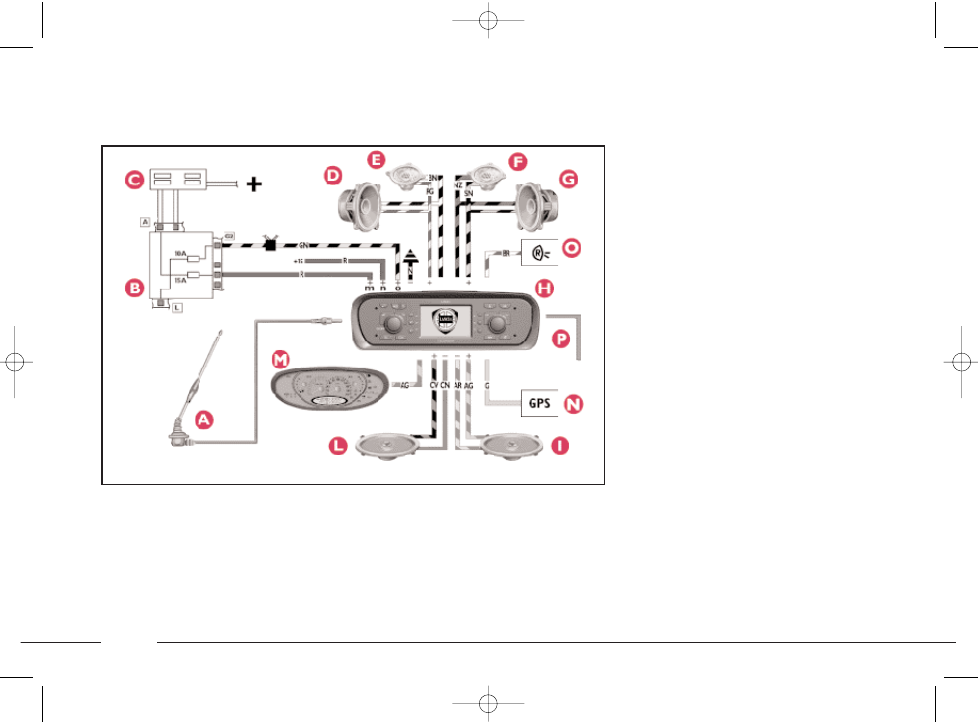

SET-UP SYSTEM WIRING
DIAGRAM AND ADDITIONAL
BRANCHES (RADIO
NAVIGATION SYSTEM) (fig. 2)

A - Radio aerial;
B - Terminal box;
C - High-amp fuse box;
D - Front left speaker;
E - Left tweeter;
F - Right tweeter;
G - Front right speaker;
H - Radio-navigator;
I - Rear right speaker;
L - Rear left speaker;
M - Vehicle speed signal;
N - GPS aerial;
O - Reversing signal;
P - CD CHANGER wire with re-

spectiving connector, where you can
install a compatible CD CHANGER if
required;

m - +30;
n - +15;
o - Radio lights positive.

fig. 2

P4C00423

4C168-176 ING  11-03-2008  12:03  Pagina 170
