Lancia FLAVIA. Service Manual - part 11





ENGINE OIL
TIREFIT STORAGE
4. Power Button
OVERHEATING
The TIREFIT kit is located
in
the
5. Mode Select Knob
During sustained high-speed driving
trunk.
6. Sealant Hose (Clear)
or trailer tow up long grades on a hot
7. Air Pump Hose (Black)
day, the engine oil temperature may
become too hot. If this happens, the
8. Power Plug
“HOTOIL” message flashes in the
Using The Mode Select Knob And
odometer and the vehicle speed will
Hoses
be reduced to 85 km/h until the en-
gine oil temperature is reduced.
Your TIREFIT kit is equipped with
the following symbols to indicate the
NOTE: The vehicle speed is re-
TIREFIT Location
air or sealant mode.
duced to a maximum of 85 km/h.
TIREFIT KIT
You may of course, reduce your
Selecting Air Mode
vehicle speed further if needed.
COMPONENTS AND
Turn the Mode Select Knob
OPERATION
(5) to this position for air
TIREFIT KIT
pump operation only. Use
Small punctures up to 6 mm in the tire
the Black Air Pump Hose (7)
tread can be sealed with TIREFIT.
when selecting this mode.
Foreign objects (e.g., screws or nails)
Selecting Sealant Mode
should not be removed from the tire.
TIREFIT can be used in outside tem-
Turn the Mode Se-
peratures down to approximately
lect Knob (5) to this
-20°C.
position to inject
the TIREFIT Seal-
This kit will provide a temporary tire
ant and to inflate
1.
Sealant Bottle
seal, allowing you to drive your ve-
the tire. Use the
hicle up to 160 km with a maximum
2.
Deflation Button
Sealant Hose (clear
speed of 88 km/h.
hose) (6) when selecting this mode.
3.
Pressure Gauge
173
Using The Power Button
When the TIREFIT sealant is in a
WARNING!
liquid form, clean water, and a
Push and release the Power
• Do not attempt to seal a tire on
damp cloth will remove the mate-
Button (4) once to turn On
the side of the vehicle close to
rial from the vehicle or tire and
the TIREFIT kit. Push and
traffic. Pull far enough off the
wheel components. Once the seal-
release the Power Button (4)
road to avoid the danger of being
ant dries, it can easily be peeled off
again to turn Off the TIREFIT kit.
hit when using the TIREFIT kit.
and properly discarded.
• Do not use TIREFIT or drive the
Using The Deflation Button
For optimum performance, make
vehicle under the following cir-
Press the Deflation But-
sure the valve stem on the wheel is
cumstances:
ton (2) to reduce the air pres-
free of debris before connecting the
- If the puncture in the tire tread
sure in the tire if it becomes
TIREFIT kit.
is approximately
6
mm or
over-inflated.
larger.
You can use the TIREFIT air pump to
- If the tire has any sidewall
inflate bicycle tires. The kit also
TIREFIT USAGE
damage.
comes with two needles, located in
PRECAUTIONS
the Accessory Storage Compartment
- If the tire has any damage from
Replace the TIREFIT Sealant Bottle
(on the bottom of the air pump) for
driving with extremely low tire
(1) and Sealant Hose (6) prior to the
inflating sport balls, rafts, or similar
pressure.
inflatable items. However, use only
- If the tire has any damage from
expiration date
(printed on the
the Air Pump Hose (7) and make sure
driving on a flat tire.
bottle label) to assure optimum op-
the Mode Select Knob (5) is in the Air
- If the wheel has any damage.
eration of the system. Refer to
Mode when inflating such items to
- If you are unsure of the condi-
“Sealing a Tire with TIREFIT” sec-
avoid injecting sealant into them.
tion of the tire or the wheel.
tion (F) “Sealant Bottle and Hose
The TIREFIT Sealant is only in-
• Keep TIREFIT away from open
Replacement”.
tended to seal punctures less than 6
flame or heat source.
• The Sealant Bottle (1) and Sealant
mm diameter in the tread of your
• A loose TIREFIT kit thrown for-
Hose (6) are a one tire application
vehicle.
ward in a collision or hard stop
use. After each use, always replace
could endanger the occupants of
Do not lift or carry the TIREFIT kit
these components immediately at
by the hoses.
an authorized dealer.
(Continued)
174
2. The pump will start to inject air
WARNING! (Continued)
WARNING! (Continued)
into the tire immediately after the
the vehicle. Always stow the
plenty of water. Do not induce
Sealant Bottle (1) is empty. Continue
TIREFIT kit in the place pro-
vomiting! Consult a physician
to operate the pump and inflate the
vided. Failure to follow these
immediately.
tire to the pressure indicated on the
warnings can result in injuries
• Use the gloves provided in the
tire pressure label on the driver-side
that are serious or fatal to you,
Accessory Storage Compartment
latch pillar (recommended pressure).
your passengers, and others
(located on the bottom of the air
Check the tire pressure by looking at
around you.
pump) when operating the TIRE-
the Pressure Gauge (3).
• Take care not to allow the con-
FIT kit.
tents of TIREFIT to come in con-
If the tire does not inflate to at least
tact with hair, eyes, or clothing.
SEALING A TIRE WITH
1.8 Bar pressure within 15 minutes:
TIREFIT is harmful if inhaled,
TIREFIT
• The tire is too badly damaged. Do
swallowed, or absorbed through
If the sealant
(white fluid) does
not attempt to drive the vehicle fur-
the skin: It causes skin, eye, and
flow through the Sealant Hose (6):
ther. Call for assistance.
respiratory irritation. Flush im-
mediately with plenty of water if
1. Continue to operate the pump until
NOTE: If the tire becomes over-
there is any contact with eyes or
sealant is no longer flowing through
inflated, press the Deflation But-
skin. Change clothing as soon as
hose (typically takes 30 - 70 seconds).
ton to reduce the tire pressure to
possible, if there is any contact
As the sealant flows through the Sealant
the recommended inflation pres-
with clothing.
Hose (6), the Pressure Gauge (3) can
sure before continuing.
• TIREFIT Sealant solution con-
read as high as 5 Bar. The Pressure
If the tire inflates to the recom-
tains latex. In case of allergic re-
Gauge (3) will decrease quickly from
mended pressure or is at least 1.8
action or rash, consult a physi-
approximately 70 psi (5 Bar) to the
Bar pressure within 15 minutes:
cian immediately. Keep TIREFIT
actual tire pressure when the Sealant
1. Press the Power Button (4) to turn
out of reach of children. If swal-
Bottle (1) is empty.
off the TIREFIT kit.
lowed, rinse mouth immediately
with plenty of water and drink
(Continued)
175
2. Remove the Speed Limit sticker
(A) Whenever You Stop To Use
(B) Setting Up To Use TIREFIT:
from the top of the Sealant Bottle (1)
TIREFIT:
1. Turn the Mode Select Knob (5) to
and place the sticker on the instrument
1. Pull over to a safe location and turn
the Sealant Mode position.
panel.
on the vehicle’s Hazard Warning flash-
2. Uncoil the Sealant Hose (6) and
3. Immediately disconnect the Seal-
ers.
then remove the cap from the fitting
ant Hose (6) from the valve stem,
2. Verify that the valve stem (on the
at the end of the hose.
reinstall the cap on the fitting at the
wheel with the deflated tire) is in a
end of the hose, and place the TIRE-
3. Place the TIREFIT kit flat on the
position that is near to the ground. This
FIT kit in the vehicle storage location.
ground next to the deflated tire.
will allow the TIREFIT Hoses (6) and
Quickly proceed to (D) “Drive Ve-
(7) to reach the valve stem and keep the
4. Remove the cap from the valve
hicle”.
TIREFIT kit flat on the ground. This
stem and then screw the fitting at the
will provide the best positioning of the
end of the Sealant Hose (6) onto the
CAUTION!
kit when injecting the sealant into the
valve stem.
• The metal end fitting from Power
deflated tire and running the air pump.
Plug (8) may get hot after use, so
5. Uncoil the Power Plug (8) and in-
Move the vehicle as necessary to place
it should be handled carefully.
sert the plug into the vehicle’s 12 Volt
the valve stem in this position before
• Failure to reinstall the cap on the
power outlet.
proceeding.
fitting at the end of the Sealant
NOTE: Do not remove foreign ob-
Hose (6) can result in sealant
3. Place the transmission in PARK
jects (e.g., screws or nails) from the
contacting your skin, clothing,
(auto transmission) or in Gear
tire.
and the vehicle’s interior. It can
(manual transmission) and turn Off
also result in sealant contacting
the ignition.
(C) Injecting TIREFIT Sealant
internal TIREFIT kit components
Into The Deflated Tire:
4. Set the parking brake.
which may cause permanent
• Always start the engine before
damage to the kit.
turning ON the TIREFIT kit.
176
NOTE: Manual transmission ve-
2. Connect the Power Plug (8) to a
2. The pump will start to inject air
hicles must have the parking brake
different 12 Volt power outlet in your
into the tire immediately after the
engaged and the shift lever in NEU-
vehicle or another vehicle, if avail-
Sealant Bottle (1) is empty. Continue
TRAL.
able. Make sure the engine is running
to operate the pump and inflate the
before turning ON the TIREFIT kit.
tire to the pressure indicated on the
After pressing the Power Button (4),
tire pressure label on the driver-side
the sealant (white fluid) will flow
3. The Sealant Bottle (1) may be empty
latch pillar (recommended pressure).
from the Sealant Bottle (1) through
due to previous use. Call for assistance.
Check the tire pressure by looking at
the Sealant Hose (6) and into the
NOTE: If the Mode Select
the Pressure Gauge (3).
tire.
Knob (5) is on Air Mode and the
If the tire does not inflate to at least
NOTE: Sealant may leak out
pump is operating, air will dis-
26 psi (1.8 Bar) pressure within
through the puncture in the tire.
pense from the Air Pump Hose (7)
15 minutes:
only, not the Sealant Hose (6).
If the sealant (white fluid) does not
• The tire is too badly damaged. Do
flow within 0 - 10 seconds through
If the sealant
(white fluid) does
not attempt to drive the vehicle fur-
the Sealant Hose (6):
flow through the Sealant Hose (6):
ther. Call for assistance.
1. Press the Power Button (4) to turn
1. Continue to operate the pump until
NOTE: If the tire becomes over-
Off the TIREFIT kit. Disconnect the
sealant is no longer flowing through
inflated, press the Deflation But-
Sealant Hose (6) from the valve stem.
hose (typically takes 30 - 70 seconds).
ton to reduce the tire pressure to
Make sure the valve stem is free of
As the sealant flows through the Sealant
the recommended inflation pres-
debris. Reconnect the Sealant
Hose (6), the Pressure Gauge (3) can
sure before continuing.
Hose (6) to the valve stem. Check that
read as high as 70 psi (5 Bar). The
the Mode Select Knob (5) is in the
Pressure Gauge
(3) will decrease
Sealant Mode position and not Air
quickly from approximately
70
psi
(5 Bar) to the actual tire pressure when
Mode. Press the Power Button (4) to
the Sealant Bottle (1) is empty.
turn On the TIREFIT kit.
177
If the tire inflates to the recom-
1. Turn the Mode Select Knob (5) to
CAUTION! (Continued)
mended pressure or is at least 26 psi
the Air Mode position.
internal TIREFIT kit components
(1.8 Bar) pressure within 15 min-
which may cause permanent
2. Uncoil the power plug and insert
utes:
damage to the kit.
the plug into the vehicle's
12 Volt
1. Press the Power Button (4) to turn
power outlet.
off the TIREFIT kit.
(D) Drive Vehicle:
3. Uncoil the Air Pump Hose
(7)
Immediately after injecting sealant
2. Remove the Speed Limit sticker
(black in color) and screw the fitting
from the top of the Sealant Bottle (1)
and inflating the tire, drive the vehicle
at the end of hose (7) onto the valve
and place the sticker on the instru-
8 km or 10 minutes to ensure distri-
stem.
ment panel.
bution of the TIREFIT Sealant within
4. Check the pressure in the tire by
the tire. Do not exceed 88 km/h.
3. Immediately disconnect the Sealant
reading the Pressure Gauge (3).
Hose (6) from the valve stem, reinstall
WARNING!
If tire pressure is less than 1.3 Bar,
the cap on the fitting at the end of the
TIREFIT is not a permanent flat
the tire is too badly damaged. Do not
hose, and place the TIREFIT kit in the
tire repair. Have the tire inspected
attempt to drive the vehicle further.
vehicle storage location. Quickly pro-
and repaired or replaced after using
Call for assistance.
ceed to (D) “Drive Vehicle”.
TIREFIT. Do not exceed 88 km/h
If the tire pressure is 1.3 Bar or
until the tire is repaired or replaced.
CAUTION!
higher:
Failure to follow this warning can
• The metal end fitting from Power
result in injuries that are serious or
1. Press the Power Button (4) to turn
Plug (8) may get hot after use, so
fatal to you, your passengers, and
on TIREFIT and inflate the tire to the
it should be handled carefully.
others around you.
pressure indicated on the tire and
• Failure to reinstall the cap on the
loading information label on the
fitting at the end of the Sealant
(E) After Driving:
driver-side door opening.
Hose (6) can result in sealant
Pull over to a safe location. Refer to
contacting your skin, clothing,
“Whenever You Stop to Use TIRE-
and the vehicle’s interior. It can
FIT” before continuing.
also result in sealant contacting
(Continued)
178
NOTE: If the tire becomes over-
(F) Sealant Bottle And Hose
JUMP-STARTING
inflated, press the Deflation But-
Replacement:
If your vehicle has a discharged bat-
ton to reduce the tire pressure to
1. Uncoil the Sealant Hose (6) (clear
tery it can be jump-started using a set
the recommended inflation pres-
in color).
of jumper cables and a battery in an-
sure before continuing.
2. Locate the round Sealant Bottle
other vehicle or by using a portable
2. Disconnect the TIREFIT kit from
release button in the recessed area
battery booster pack. Jump-starting
the valve stem, reinstall the cap on the
under the sealant bottle.
can be dangerous if done improperly
valve stem and unplug from 12 Volt
so please follow the procedures in this
3. Press the Sealant Bottle release
outlet.
section carefully.
button. The Sealant Bottle (1) will
3. Place the TIREFIT kit in its proper
pop up. Remove the bottle and dis-
NOTE: When using a portable
storage area in the vehicle.
pose of it accordingly.
battery booster pack follow the
4. Clean any remaining sealant from
manufacturer's operating instruc-
4. Have the tire inspected and re-
the TIREFIT housing.
tions and precautions.
paired or replaced at the earliest op-
portunity at an authorized dealer or
5. Position the new Sealant Bottle (1)
CAUTION!
tire service center.
in the housing so that the Sealant
Do not use a portable battery
Hose (6) aligns with the hose slot in
5. Replace the Sealant Bottle (1) and
booster pack or any other booster
the front of the housing. Press the
Sealant Hose (6) assembly at your
source with a system voltage
bottle into the housing. An audible
authorized dealer as soon as possible.
click will be heard indicating the
greater than 12 Volts or damage to
Refer to “(F) Sealant Bottle and Hose
bottle is locked into place.
the battery, starter motor, alterna-
Replacement.”
tor or electrical system may occur.
6. Verify that the cap is installed on
NOTE: When having the tire ser-
the fitting at the end of the Sealant
viced, advise the authorized dealer
Hose (6) and return the hose to its
WARNING!
or service center that the tire has
storage area (located on the bottom of
Do not attempt jump-starting if the
been sealed using the TIREFIT
the air pump).
battery is frozen. It could rupture or
service kit.
explode and cause personal injury.
7. Return the TIREFIT kit to its stor-
age location in the vehicle.
179
PREPARATIONS FOR
3. Remove the protective cover over
WARNING!
the remote positive (+) battery post.
JUMP-START
• Take care to avoid the radiator
To remove the cover, press the locking
cooling fan whenever the hood is
The battery in your vehicle is located
tab and pull upward on the cover.
raised. It can start anytime the
between the left front headlight as-
ignition switch is ON. You can be
sembly and the left front wheel splash
injured by moving fan blades.
shield. To allow jump-starting there
• Remove any metal jewelry such
are remote battery posts located on
as watch bands or bracelets that
the left side of the engine compart-
might make an inadvertent elec-
ment.
trical contact. You could be seri-
ously injured.
• Batteries contain sulfuric acid
Locking Tab
that can burn your skin or eyes
and generate hydrogen gas which
4. If using another vehicle to jump-
is flammable and explosive. Keep
start the battery, park the vehicle
open flames or sparks away from
within the jumper cables reach, set
the battery.
the parking brake and make sure the
ignition is OFF.
Remote Battery Posts
1. Set the parking brake, shift the
1 — Remote Positive (+) Post
automatic transmission into PARK
WARNING!
(covered with protective cap)
and turn the ignition to LOCK.
Do not allow vehicles to touch each
2 — Remote Negative (-) Post
other as this could establish a
2. Turn off the heater, radio, and all
ground connection and personal in-
unnecessary electrical accessories.
jury could result.
180
JUMP-STARTING
4. Connect the opposite end of the
7. Disconnect the negative end (-) of
negative (-) jumper cable to the re-
the jumper cable from the negative (-)
PROCEDURE
mote negative (-) post of the vehicle
post of the booster battery.
with the discharged battery.
WARNING!
8. Disconnect the opposite end of the
Failure to follow this procedure
positive
(+) jumper cable from the
WARNING!
could result in personal injury or
positive (+) post of the booster bat-
Do not connect the cable to the
property damage due to battery ex-
tery.
negative post (-) of the discharged
plosion.
battery. The resulting electrical
9. Disconnect the positive (+) end of
spark could cause the battery to
the jumper cable from the remote
CAUTION!
explode and could result in per-
positive (+) post of the discharged ve-
Failure to follow these procedures
sonal injury.
hicle.
could result in damage to the
10. Reinstall the protective cover
charging system of the booster ve-
5. Start the engine in the vehicle that
over the remote positive (+) battery
hicle or the discharged vehicle.
has the booster battery, let the engine
post of the discharged vehicle.
idle a few minutes, and then start the
1. Connect the positive (+) end of the
engine in the vehicle with the dis-
If frequent jump-starting is required
jumper cable to the remote posi-
charged battery.
to start your vehicle, you should have
tive (+) post of the discharged vehicle.
the battery and charging system in-
Once the engine is started, remove the
2. Connect the opposite end of the
spected at your authorized dealer.
jumper cables in the reverse sequence:
positive (+) jumper cable to the posi-
6. Disconnect the negative (-) jumper
tive (+) post of the booster battery.
cable from the remote negative (-)
3. Connect the negative end (-) of the
post of the vehicle with the discharged
jumper cable to the negative (-) post
battery.
of the booster battery.
181
Then shift back and forth between
NOTE: Press the "ESC Off" switch,
CAUTION!
DRIVE and REVERSE, while gently
to place the Electronic Stability
Accessories that can be plugged into
pressing the accelerator. Use the least
Control (ESC) system in "Partial Off"
the vehicle power outlets draw power
amount of accelerator pedal pressure
mode, before rocking the vehicle.
from the vehicle’s battery, even when
that will maintain the rocking motion,
Refer to “Electronic Brake Control”
not in use (i.e., cellular phones, etc.).
without spinning the wheels, or racing
in “Starting And Operating” for fur-
Eventually, if plugged in long
the engine.
ther information. Once the vehicle
enough, the vehicle’s battery will dis-
has been freed, press the "ESC Off"
charge sufficiently to degrade battery
CAUTION!
switch again to restore "ESC On"
life and/or prevent the engine from
Racing the engine or spinning the
mode.
starting.
wheels may lead to transmission
overheating and failure. Allow the
CAUTION!
FREEING A STUCK
engine to idle with the transmission
• When “rocking” a stuck vehicle
VEHICLE
in NEUTRAL for at least one min-
by shifting between DRIVE and
ute after every five rocking-motion
REVERSE, do not spin the
If your vehicle becomes stuck in mud,
cycles. This will minimize over-
wheels faster than 24 km/h, or
sand, or snow, it can often be moved
heating and reduce the risk of
drivetrain damage may result.
using a rocking motion. Turn the
transmission failure during pro-
• Revving the engine or spinning
steering wheel right and left to clear
longed efforts to free a stuck ve-
the wheels too fast may lead to
the area around the front wheels.
hicle.
transmission overheating and
failure. It can also damage the
tires. Do not spin the wheels
above 48 km/h while in gear (no
transmission shifting occurring).
182
SHIFT LEVER
6. Insert a screwdriver or similar tool
WARNING!
into the access hole (at the front of the
Fast spinning tires can be danger-
OVERRIDE
cupholder) and push and hold the
ous. Forces generated by excessive
If a malfunction occurs and the shift
override release lever forward.
wheel speeds may cause damage, or
lever cannot be moved out of the
even failure, of the axle and tires. A
PARK position, you can use the fol-
tire could explode and injure some-
lowing procedure to temporarily
one. Do not spin your vehicle's
move the shift lever:
wheels faster than 48 km/h or for
longer than 30 seconds continu-
1. Turn the engine OFF.
ously without stopping when you
2. Firmly apply the parking brake.
are stuck and do not let anyone
near a spinning wheel, no matter
3. Remove the rubber cupholder
Shift Lever Override
what the speed.
liner. Squeeze one side of the liner's
center to expose its edge and facilitate
7. Move the shift lever into the NEU-
removal.
TRAL position.
4. Turn the ignition to the ACC or
8. The vehicle may then be started in
ON/RUN position, but do not start the
NEUTRAL.
engine.
9. Reinstall the cupholder liner.
5. Press and maintain firm pressure
on the brake pedal.
183
TOWING A DISABLED VEHICLE
This section describes the procedures for towing a disabled vehicle using a commercial wrecker service.
Towing Condition
Wheels OFF the Ground
Automatic Transmissions
Flat Tow
NONE
If transmission is operable:
Wheel Lift Or Dolly Tow
Rear
• Transmission in NEUTRAL
• 40 km/h max speed
• 24 km max distance
Front
OK
Flatbed
ALL
BEST METHOD
Proper towing or lifting equipment is
If you must use the accessories (wipers,
CAUTION!
required to prevent damage to your
defrosters, etc.) while being towed, the
• Do not use sling type equipment
vehicle. Use only tow bars and other
ignition must be in the ON/RUN posi-
when towing. Damage to the fas-
equipment designed for this purpose,
tion, not the ACC position.
cia will occur.
following equipment manufacturer’s
If the vehicle's battery is discharged,
• When securing the vehicle to a
instructions. Use of safety chains is
see "Shift Lever Override" in "What
flatbed truck, do not attach to
mandatory. Attach a tow bar or other
To Do In Emergencies" for instruc-
front or rear suspension compo-
towing device to main structural
tions on shifting the automatic trans-
nents. Damage to your vehicle
members of the vehicle, not to bum-
mission out of PARK for towing.
may result from improper towing.
pers or associated brackets. State and
• Do not push or tow this vehicle
local laws regarding vehicles under
with another vehicle as damage to
tow must be observed.
the bumper fascia and transmis-
sion may result.
184
AUTOMATIC
If the transmission is not operable,
is the preferred towing method. How-
or the vehicle must be towed faster
ever, if a flatbed towing vehicle is not
TRANSMISSION
than
40
km/h or farther than
available, wheel lift towing equipment
The manufacturer recommends tow-
24 km, it must be towed with the
may be used. Rear towing (with the
ing your vehicle with all four wheels
front wheels OFF the ground (us-
front wheels on the ground) is not
OFF the ground using a flatbed.
ing a flatbed truck, towing dolly, or
allowed, as transmission damage will
If flatbed equipment is not available,
wheel lift equipment with the front
occur. If rear towing is the only alter-
and the transmission is operable, the
wheels raised).
native, the front wheels must be placed
vehicle may be flat towed (with all
on a towing dolly. Proper towing
four wheels on the ground) under the
CAUTION!
equipment is necessary to prevent
following conditions:
Towing faster than 40 km/h or far-
damage to the vehicle.
ther than 24 km with front wheels
• The transmission must be in NEU-
on the ground can cause severe
CAUTION!
TRAL.
transmission damage. Such dam-
Failure to follow these towing
• The towing distance must not ex-
age is not covered by the New Ve-
methods can cause severe transmis-
ceed 24 km.
hicle Limited Warranty.
sion damage. Such damage is not
covered by the New Vehicle Lim-
• The towing speed must not exceed
WITHOUT THE IGNITION
ited Warranty.
40 km/h.
KEY
Special care must be taken when the
vehicle is towed with the ignition in the
LOCK/OFF position. Flatbed towing
185
7
MAINTAINING YOUR VEHICLE
ENGINE COMPARTMENT — 2.4L
189
ONBOARD DIAGNOSTIC SYSTEM — OBD II
.190
REPLACEMENT PARTS
190
MAINTENANCE PROCEDURES
190
ENGINE OIL
191
ENGINE OIL FILTER
192
ENGINE AIR CLEANER FILTER
192
MAINTENANCE-FREE BATTERY
193
AIR CONDITIONER MAINTENANCE
194
A/C AIR FILTER
194
BODY LUBRICATION
195
WINDSHIELD WIPER BLADES
196
ADDING WASHER FLUID
196
EXHAUST SYSTEM
196
COOLING SYSTEM
198
BRAKE SYSTEM
201
AUTOMATIC TRANSMISSION
202
APPEARANCE CARE AND PROTECTION
FROM CORROSION
204
CLEANING CENTER CONSOLE
CUPHOLDERS
206
187
• CONVERTIBLE TOP CARE
206
• WEATHER STRIP CARE - SOFT AND
HARD TOP
208
FUSES
208
• INTEGRATED POWER MODULE
208
VEHICLE STORAGE
212
REPLACEMENT BULBS
212
BULB REPLACEMENT
213
• HEADLAMP
213
• FRONT TURN SIGNAL
214
• FRONT FOG LAMP
214
• REAR TURN SIGNAL LAMPS
214
• BACKUP LAMP
215
• LICENSE PLATE LAMP
215
FLUID CAPACITIES
216
FLUIDS, LUBRICANTS AND GENUINE PARTS . .216
• ENGINE
216
• CHASSIS
217
188

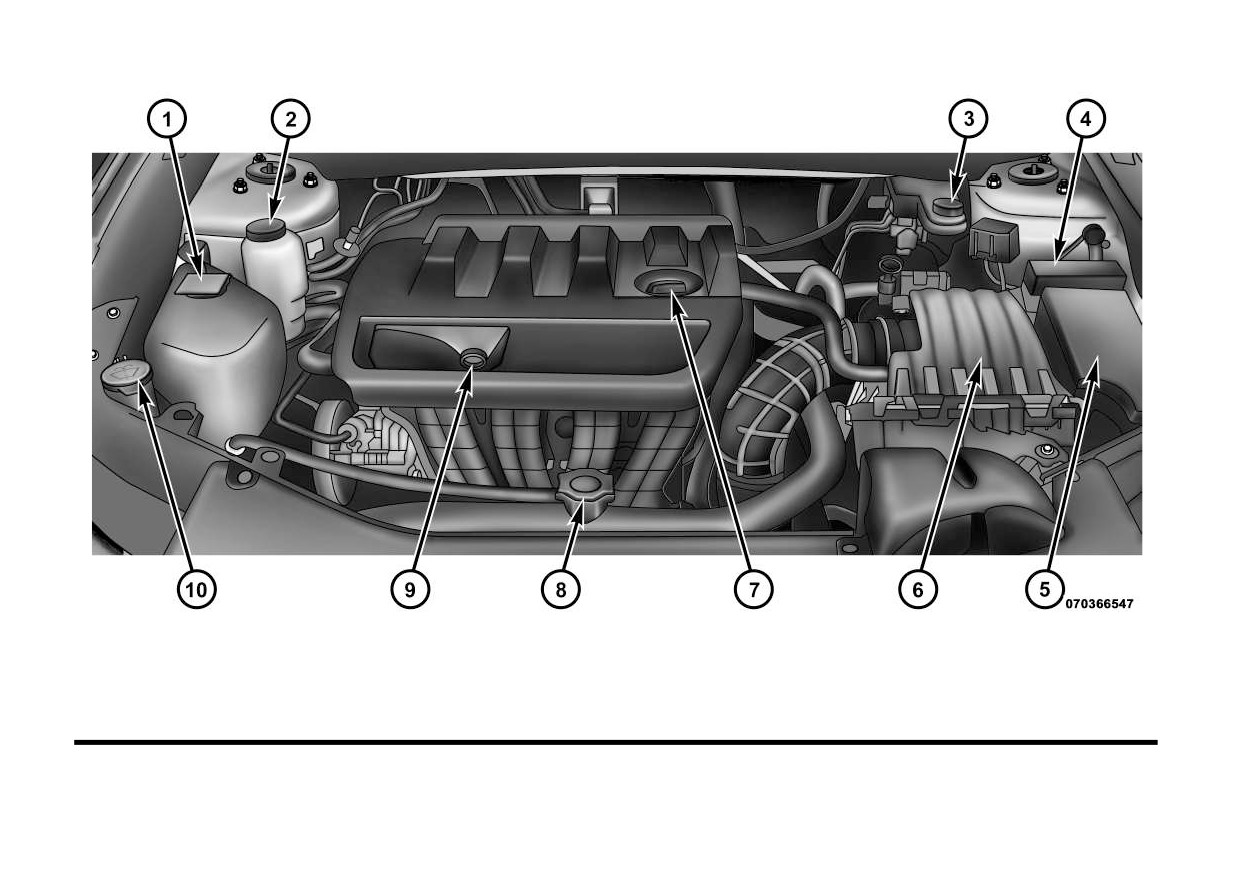

ENGINE COMPARTMENT — 2.4L
1 — Engine Coolant Reservoir
6 — Air Cleaner Filter
2 — Power Steering Fluid Reservoir
7 — Engine Oil Fill
3 — Brake Fluid Reservoir
8 — Coolant Pressure Cap
4 — Power Distribution Center (Fuses)
9 — Engine Oil Dipstick
5 — Integrated Power Module (Fuses)
10 — Washer Fluid Reservoir
189















Content      ..     9      10      11      12     ..
