Lancia FLAVIA. Service Manual - part 7

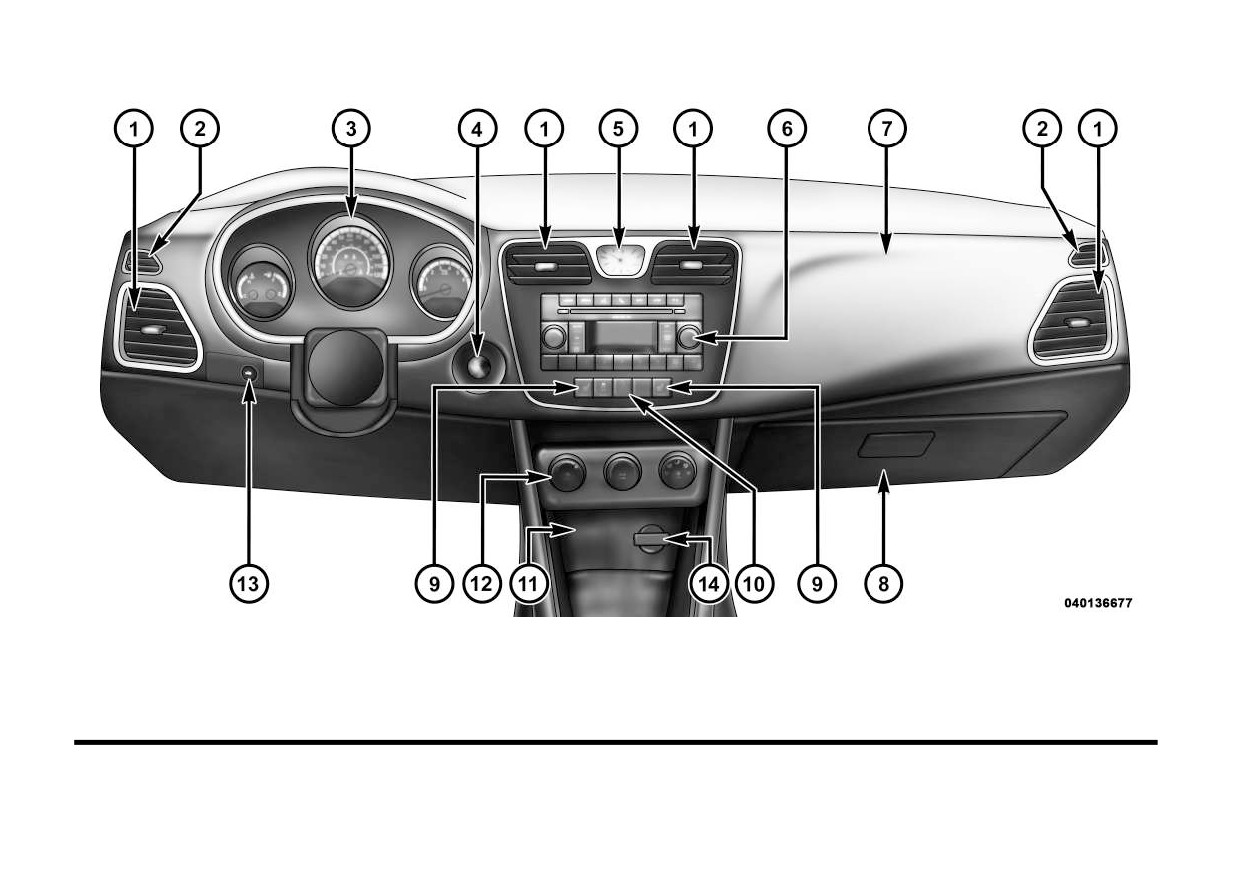

INSTRUMENT PANEL FEATURES

1 — Air Outlet

6 — Radio

11 — Storage Compartment

2 — Side Window Demister Outlet

7 — Passenger Airbag

12 — Climate Control

3 — Instrument Cluster

8 — Glove Compartment

13 — Trunk Release Button

4 — Ignition Switch

9 — Heated Seat Switch

14 — Power Outlet

5 — Analog Clock

10 — Hazard Switch

109

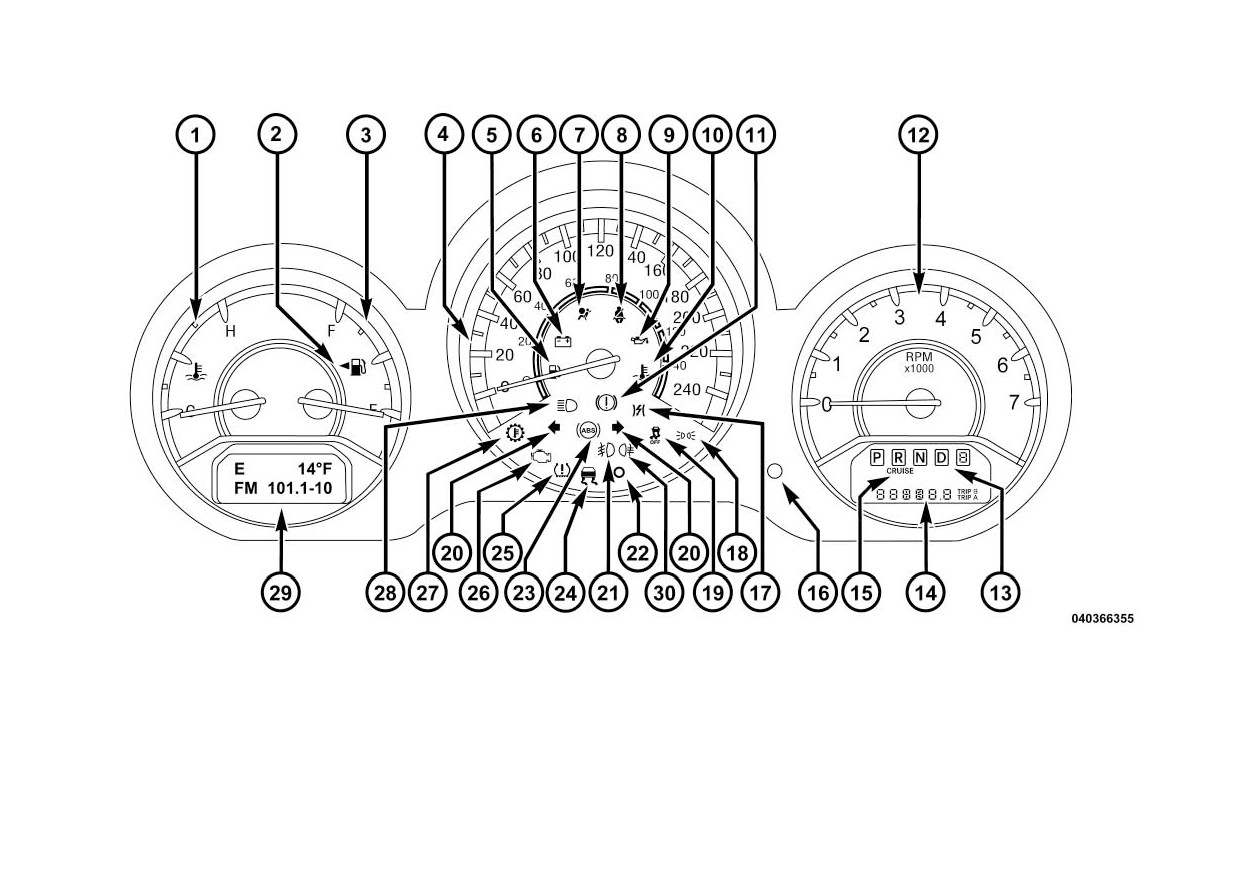

INSTRUMENT CLUSTER

110

INSTRUMENT CLUSTER

system and turning off the A/C re-

NOTE: This light will remain on

moves this heat. You can also turn the

until a minimum of approximately

DESCRIPTIONS

Temperature control to maximum

11 Liters of fuel is added.

1. Temperature Gauge

heat, the Mode control to Floor and

6. Charging System Light

the Fan control to High. This allows

The temperature gauge shows engine

the heater core to act as a supplement

This light shows the status of

coolant temperature. Any reading be-

to the radiator and aids in removing

the electrical charging system.

low the H (red) mark of the gauge

heat from the engine cooling system.

The light should come on briefly when

shows that the engine cooling system

the ignition is first turned on and re-

is operating properly. The gauge

2. Fuel Door Reminder

main on briefly as a bulb check. If the

pointer may show a higher than nor-

This is a reminder that the

light stays on or comes on while driv-

mal temperature when driving in hot

Fuel Filler Door is located

ing, turn off some of the vehicle's elec-

weather, up mountain grades, in

on the left side of the vehicle.

trical devices, such as the Front Fog

heavy stop and go traffic, or when

Lights or Rear Window Defroster. If

towing a trailer.

3. Fuel Gauge

the Charging System Light remains

If the pointer rises to the H

(red)

When the ignition switch is in the

on, it means that the vehicle is expe-

mark, the instrument cluster will

ON/RUN position, the pointer will

riencing a problem with the charging

sound a chime. Pull over and stop the

show the level of fuel remaining in the

system. Obtain SERVICE IMMEDI-

vehicle. Idle the vehicle with the air

fuel tank.

ATELY. See your local authorized

conditioner turned off until the

dealer.

4. Speedometer

pointer drops back into the normal

If jump starting is required, refer to

range. If the pointer remains on the H

Indicates the vehicle speed in miles

“Jump Starting Procedures” in “What

(red) mark, turn the engine off imme-

per hour (MPH) and kilometers per

To Do In Emergencies”.

diately and call for service.

hour (km/h).

There are steps that you can take to

5. Low Fuel Light

slow down an impending overheat

When the fuel level drops to

condition. If your air conditioning is

approximately 7.6 Liters, the

on, turn it off. The air conditioning

fuel symbol will light and a single

system adds heat to the engine cooling

chime will sound.

111

7. Air Bag Warning Light

9. Oil Pressure Warning Light

Further overheating will cause a con-

tinuous chime sound for 4 minutes or

This light will turn on for

This light indicates low engine

until the engine is allowed to cool.

four to eight seconds as a

oil pressure. The light will

bulb check when the igni-

come on and remain on when the

If the light turns on while driving, safely

tion switch is first turned to

ignition switch is turned from the

pull over and stop the vehicle. If the A/C

ON/RUN. If the light is either not on

OFF to the ON/RUN position, and the

system is on, turn it off. Also, shift the

during starting, stays on, or turns on

light will turn off after the engine is

transmission into NEUTRAL and idle

while driving, have the system in-

started. If the bulb does not come on

the vehicle. If the temperature reading

spected at an authorized dealer as

during starting, have the system

does not return to normal, turn the

soon as possible. Refer to “Occupant

checked by an authorized dealer.

engine off immediately and call for ser-

Restraints” in “Things To Know Be-

vice. Refer to “If Your Engine Over-

If the light comes on and remains on

fore Starting Your Vehicle” for further

heats” in “What To Do In Emergencies”

while driving, stop the vehicle and

information.

for further information.

shut off the engine. DO NOT OPER-

8. Seat Belt Reminder Light

ATE THE VEHICLE UNTIL THE

11. Brake Warning Light

CAUSE IS CORRECTED.

When the ignition switch is

This light monitors various

first turned to ON/RUN, this

The light does not show the quantity

brake functions, including

light will turn on for four to

of oil in the engine. This can be deter-

brake fluid level and parking brake ap-

eight seconds as a bulb check. During

mined using the procedure shown in

plication. If the brake light turns on it

the bulb check, if the driver's seat belt

“Maintaining Your Vehicle”.

may indicate that the parking brake is

is unbuckled, a chime will sound.

applied, that the brake fluid level is low,

10. Engine Temperature Warning

After the bulb check or when driving,

or that there is a problem with the anti-

Light

if the driver seat belt remains unbuck-

lock brake system.

This light warns of an over-

led, the Seat Belt Warning Light will

The dual brake system provides a re-

heated engine condition. As

flash or remain on continuously. Refer

serve braking capacity in the event of

engine coolant temperature rise and

to “Occupant Restraints” in “Things

a failure to a portion of the hydraulic

the gauge approaches H, the light will

To Know Before Starting Your Ve-

system. Failure of either half of the

illuminate and a single chime will

hicle” for further information.

dual brake system is indicated by the

sound after reaching a set threshold.

Brake Warning Light which will turn

112

15. Cruise Indicator

17. Electronic Throttle Control

18. Park/Headlight ON Indicator

(ETC) Indicator Light

This indicator shows that

This indicator will illumi-

the Electronic Speed Con-

This light informs you of a

nate when the park lights or

trol System is ON.

problem with the Electronic

headlights are turned on.

Throttle Control (ETC) sys-

16. Odometer/Trip Odometer Reset

tem. If a problem is detected,

19. Electronic Stability Control

Button

the light will come on while the engine is

(ESC) OFF Indicator Light

Trip Odometer

running. If the light remains lit with the

This light indicates the

engine running, your vehicle will usu-

Press and release this button to change

Electronic Stability Control

ally be drivable and not need towing,

the display from odometer to “Trip A.”

system

(ESC) has been

however see your authorized dealer for

Press and release it a second time to

turned off by the driver.

service as soon as possible.

change the display to “Trip B.” Press

20. Turn Signal Indicators

If the light is flashing when the engine

and release it a third time to change the

is running you may experience power

display back to the odometer.

The arrows will flash in uni-

loss, an elevated/rough idle, and in-

son with the exterior turn

To reset the trip odometer, first display

creased brake pedal effort, and your

signal, when using the turn

the trip mileage that you want to reset,

vehicle may require towing. Immedi-

signal lever. A chime will

“Trip A” or “Trip B.” Then push and

ate service is required.

sound if the vehicle is driven more than

hold the button (approximately 2 sec-

The light will come on when the igni-

1.6 km with either turn signal on.

onds) until the display resets to 0 miles

tion switch is first turned on and re-

(km). The odometer must be in Trip

NOTE: If either indicator flashes

main on approximately 15 seconds as

Mode to reset the trip odometer.

at a rapid rate, check for a defec-

a bulb check. This is normal. If the

tive outside light bulb.

light does not come on during start-

21. Front Fog Light Indicator

ing, have the system checked by an

authorized dealer.

This indicator will illuminate

when the front fog lights are on.

115

22. Vehicle Security Light

If the ABS light is on, the brake sys-

several ignition cycles, and the vehicle

tem should be serviced as soon as

has been driven several miles (kilo-

This light will flash rapidly

possible to restore the benefit of Anti-

meters) at speeds greater than

for approximately 16 sec-

Lock Brakes.

48 km/h, see your authorized dealer

onds when the alarm sys-

as soon as possible to have the prob-

tem is arming. The light will

The ABS warning light should be

lem diagnosed and corrected.

begin to flash slowly indicating that

checked frequently to assure that it is

the system is armed. The light will

operating properly. Turn the ignition

NOTE:

stop flashing when the vehicle is

key to the on position, but do not start

•

The “ESC Off Indicator Light”

disarmed.

the vehicle. The light should come on.

and the “ESC Malfunction Indi-

If the light does not come on, have the

23. Anti-Lock Brake (ABS) Light

cator Light” come on momen-

system inspected by an authorized

tarily each time the ignition

This light monitors the

dealer.

switch is turned to ON/RUN.

ABS. This light will come on

24. Electronic Stability Control

when the ignition key is

•

Each time the ignition is turned

(ESC) Malfunction Indicator Light

turned to the ON/RUN po-

to ON/RUN, the ESC system will

sition and may stay on for approxi-

The “ESC Malfunction In-

be ON, even if it was turned off

mately three seconds.

dicator Light” in the instru-

previously.

ment cluster will come on

If the ABS light remains on or comes

•

The ESC system will make buzz-

when the ignition switch is

on during driving, it indicates that the

ing or clicking sounds when it is

turned to the ON/RUN position. It

Anti-Lock portion of the brake sys-

active. This is normal; the

should go out with the engine run-

tem is not functioning and that service

sounds will stop when ESC be-

ning. If the “ESC Malfunction Indica-

is required, however, the conventional

comes inactive following the

tor Light” comes on continuously

brake system will continue to operate

maneuver that caused the ESC

with the engine running, a malfunc-

normally provided that the BRAKE

activation.

tion has been detected in the ESC

warning light is not on.

system. If this light remains on after

116

25. Tire Pressure Monitoring Tell-

Under-inflation also reduces fuel effi-

may occur for a variety of reasons,

tale Light

ciency and tire tread life, and may

including the installation of replace-

affect the vehicle’s handling and stop-

ment or alternate tires or wheels on

Each tire, including the

ping ability.

the vehicle that prevent the TPMS

spare (if provided), should

from functioning properly. Always

be checked monthly when

Please note that the TPMS is not a

check the TPMS malfunction telltale

cold and inflated to the in-

substitute for proper tire mainte-

after replacing one or more tires or

flation pressure recommended by the

nance, and it is the driver’s responsi-

wheels on your vehicle, to ensure that

vehicle manufacturer on the vehicle

bility to maintain correct tire pres-

the replacement or alternate tires and

placard or tire inflation pressure la-

sure, even if under-inflation has not

wheels allow the TPMS to continue to

bel.

(If your vehicle has tires of a

reached the level to trigger illumina-

function properly.

different size than the size indicated

tion of the TPMS low tire pressure

on the vehicle placard or tire inflation

telltale.

CAUTION!

pressure label, you should determine

Your vehicle has also been equipped

The TPMS has been optimized for

the proper tire inflation pressure for

with a TPMS malfunction indicator to

the original equipment tires and

those tires.)

indicate when the system is not oper-

wheels. TPMS pressures and warn-

As an added safety feature, your ve-

ating properly. The TPMS malfunc-

ing have been established for the

hicle has been equipped with a Tire

tion indicator is combined with the

tire size equipped on your vehicle.

Pressure Monitoring System (TPMS)

low tire pressure telltale. When the

Undesirable system operation or

that illuminates a low tire pressure

system detects a malfunction, the tell-

sensor damage may result when us-

telltale when one or more of your tires

tale will flash for approximately one

ing replacement equipment that is

is significantly under-inflated. Ac-

minute and then remain continuously

not of the same size, type, and/or

cordingly, when the low tire pressure

illuminated. This sequence will con-

style. Aftermarket wheels can cause

telltale illuminates, you should stop

tinue upon subsequent vehicle start-

sensor damage. Do not use tire seal-

and check your tires as soon as pos-

ups as long as the malfunction exists.

ant from a can or balance beads if

sible, and inflate them to the proper

When the malfunction indicator is il-

your vehicle is equipped with a

pressure. Driving on a significantly

luminated, the system may not be

TPMS, as damage to the sensors

under-inflated tire causes the tire to

able to detect or signal low tire pres-

may result.

overheat and can lead to tire failure.

sure as intended. TPMS malfunctions

117

26. Malfunction Indicator Light

27. Transmission Temperature

CAUTION!

(MIL)

Warning Light

Prolonged driving with the MIL on

The Malfunction Indicator

could cause damage to the engine

This light indicates that the

Light (MIL) is part of an on-

control system. It also could affect

transmission fluid tempera-

board diagnostic system

fuel economy and drivability. If the

ture is running hot. This

called OBD that monitors emissions,

MIL is flashing, severe catalytic

may occur with severe us-

engine, and automatic transmission

converter damage and power loss

age, such as trailer towing. If this light

control systems. The light will illumi-

turns on, safely pull over and stop the

will soon occur. Immediate service

nate when the key is in the ON/RUN

vehicle. Then, shift the transmission

is required.

position before engine start. If the

into NEUTRAL and run the engine at

bulb does not come on when turning

idle or faster until the light turns off.

WARNING!

the key from LOCK to ON/RUN, have

A malfunctioning catalytic con-

the condition checked promptly.

CAUTION!

verter, as referenced above, can

Certain conditions, such as a loose or

Continuous driving with the Trans-

reach higher temperatures than in

missing gas cap, poor fuel quality,

mission Temperature Warning Light

normal operating conditions. This

etc., may illuminate the light after

illuminated will eventually cause se-

can cause a fire if you drive slowly

engine start. The vehicle should be

vere transmission damage or trans-

or park over flammable substances

serviced if the light stays on through

mission failure.

such as dry plants, wood, card-

several of your typical driving cycles.

board, etc. This could result in

In most situations, the vehicle will

death or serious injury to the driver,

WARNING!

drive normally and will not require

occupants or others.

If the Transmission Temperature

towing.

Warning Light is illuminated and

you continue operating the vehicle,

in some circumstances you could

cause the fluid to boil over, come in

contact with hot engine or exhaust

components and cause a fire.

118

28. High Beam Indicator

ELECTRONIC VEHICLE

•

Distance To Empty (DTE)

This light indicates that the

INFORMATION CENTER

•

Tire Pressure Monitor System

headlights are on high beam.

(EVIC)

(TPMS)

Pull the turn signal lever toward the

The Electronic Vehicle Information

•

Elapsed Time

steering wheel to switch the head-

Center

(EVIC) features a driver-

lights to low beam.

•

Display Units

interactive display that is located in

29. Electronic Vehicle Information

•

System Warnings (Door Ajar, etc.)

the instrument cluster.

Center (EVIC) Display

•

Personal Settings (Customer-

This display shows the EVIC messages

Programmable Features)

when the appropriate conditions exist.

•

Outside Temperature Display

Refer to

“Electronic Vehicle Infor-

(°F or °C)

mation Center

(EVIC)” for further

information.

•

Audio Mode Displays - 12 preset

Radio Stations or CD Title and

30. Rear Fog Light Indicator

Track number when playing

This indicator will illuminate

Electronic Vehicle Information

when the rear fog lights are on.

Center (EVIC)

The EVIC consists of the following:

• Compass Heading Display (N, S, E,

W, NE, NW, SE, SW)

• Average Fuel Economy

119

The system allows the driver to select

DOWN Button

ELECTRONIC VEHICLE

information by pressing the following

INFORMATION CENTER

Press and release the

buttons mounted on the steering

DOWN button to advance

(EVIC) DISPLAYS

wheel:

the display through the

When the appropriate conditions

various Trip Functions or

exist, the EVIC displays the following

Personal Settings.

messages:

COMPASS Button

•

Turn Signal On (with a continuous

Press and release the COM-

warning chime after one mile traveled)

PASS button to display the

•

Left Front Turn Signal Lamp Out

compass heading, the out-

(with a single chime)

side temperature, and Audio

EVIC Steering Wheel Buttons

Info (when the radio is on) screen when

•

Left Rear Turn Signal Lamp Out

MENU Button

the current screen is not the compass,

(with a single chime)

outside temp, audio info screen.

Press and release the

•

Right Front Turn Signal Lamp Out

MENU button to advance

SELECT Button

(with a single chime)

the display to each of the

Press and release the SE-

•

Right Rear Turn Signal Lamp Out

EVIC Main Menu features.

LECT Button to accept a

(with a single chime)

Upon reaching the last item in the

selection. The SELECT But-

Main Menu the EVIC will advance to

•

RKE (Remote Keyless Entry)

ton also resets various Trip

the first item in the Main Menu with

Battery Low (with a single chime)

Functions.

the next MENU button press and re-

•

Personal Settings Not Avail -

lease. Press and release the MENU

Vehicle Not in Park

button to return to the Main Menu

from a sub-menu.

•

Personal Settings Not Avail -

Vehicle in Motion

120

EVIC MAIN MENU

NOTE: For features in the EVIC

Compass Display

that can be reset

(Average Fuel

To step to each main menu feature

COMPASS Button

Economy and Elapsed Time), the

press and release the MENU button

EVIC prompts a reset with a SE-

The compass heading indi-

once for each step. A step from the last

LECT button graphic and the word

cates the direction the ve-

item in the list will cause the first item

RESET next to it.

hicle is facing. Press and re-

in the feature list to be displayed. The

lease the compass button to

following features are in the Main

When the SELECT button is pressed,

display one of eight compass head-

menu:

the selected feature will reset and RE-

ings, the outside temperature, and au-

SET ALL will display next to the SE-

•

Compass, Outside Temperature,

dio information (if the radio is on) if

LECT button graphic. Pressing SE-

Audio Information (if radio is on)

the EVIC display is not already dis-

LECT a second time will reset both

display

playing this screen.

Average Fuel Economy and Elapsed

•

Average Fuel Economy

Time. After three seconds without

NOTE: The system will display

pressing SELECT, RESET ALL will

the last known outside tempera-

•

Distance to Empty

return to RESET and only the se-

ture when starting the vehicle and

•

Tire Pressure Status display

lected feature will have been reset.

may need to be driven several min-

utes before the updated tempera-

•

Elapsed Time

ture is displayed. Engine tempera-

•

EVIC Units Selection

ture can also affect the displayed

temperature; therefore, tempera-

•

System Status

ture readings are not updated

•

Personal Settings

when the vehicle is not moving.

122

Content      ..     5      6      7      8     ..
