KNOWING YOUR CAR

Should two or more tyres be flat, the display will show the
indications corresponding to each tyre in sequence. Re-
store the correct inflation pressure values as soon as pos-
sible (see paragraph “Cold inflation pressures” in chap-
ter “6”).

Tyre pressure unsuitable for speed

When the key is turned to MAR, the warning light (for
versions/markets, where provided) switches on, but it
should switch off after a few seconds.
Should it be necessary to travel at a speed higher than 160
km/h, inflate the tyres more than the pressure value spec-
ified in paragraph “Inflation pressures” in chapter “6”.
If the TPMS (for versions/markets where provided) de-
tects that the pressure of one or more tyres is unsuitable
for the current speed, the warning light or symbol will
switch on (together with the message on the display) (see
“Tyre pressure low” paragraph in this chapter) and it will
stay on until the car slows down to a speed below the pre-
set threshold (see “TPMS” paragraph in this chapter).

IMPORTANT In this case, slow down immediately because
tyre overheating could damage tyre performance and
durability beyond repair, and may even make the tyre ex-
plode.

Particularly strong radio-frequency inter-
ference may cause the TPMS to function in-
correctly. The driver is notified of this con-

dition through a message (for versions/markets,
where provided).
The message will disappear automatically as soon
as the interference ceases to disturb the system.

Exterior lights failure (amber)

This warning light (or symbol on the display)

switches on when a fault is detected in any of

the following lights:

❍ side lights;
❍ brake lights (for versions/markets where provided);
❍ rear fog lights;
❍ direction indicators;
❍ number plate lights;
❍ daytime running lights.
The failure relating to these lights could be: one or more
blown bulbs, a blown protection fuse or a break in the elec-
trical connection.
The display shows the dedicated message.

W

001-154 Delta GB 1ed  03/03/14  10.00  Pagina 24

KNOWING YOUR CAR

25

1

Rear fog lights (amber)

The warning light comes on when the rear fog

lights are turned on.

4

Front fog lights (green)

The warning light comes on when the fog lights

are turned on.

5

Direction indicators
(green - intermittent)

The warning lights switch on when the direc-
tion indicator control stalk is moved down-
wards, upwards or when the hazard warning
light button is pressed.

F

D

Daytime running lights/dipped beam

headlights (green)

This warning light switches on when the daytime

running lights or dipped beam headlights are ac-

tivated.

Follow me home

This warning light switches on when this device is acti-
vated (see “Follow Me Home” in this chapter).
The display will show the dedicated message.

Main beam headlights (blue)

The warning light switches on when the main

beam headlights are turned on.

1

Cruise Control (green)

(for versions/markets, where provided)

When the key is turned to MAR, the warning

light switches on but it should switch off after a

few seconds. The warning light is lit up on the display by
rotating the Cruise Control ring nut to ON.
The display will show the dedicated message.

Ü

3

001-154 Delta GB 1ed  03/03/14  10.00  Pagina 25

26

KNOWING YOUR CAR

DISPLAY

The car may be provided with a multifunction/reconfig-
urable multifunction display that shows useful informa-
tion, according to the previous settings, when driving.

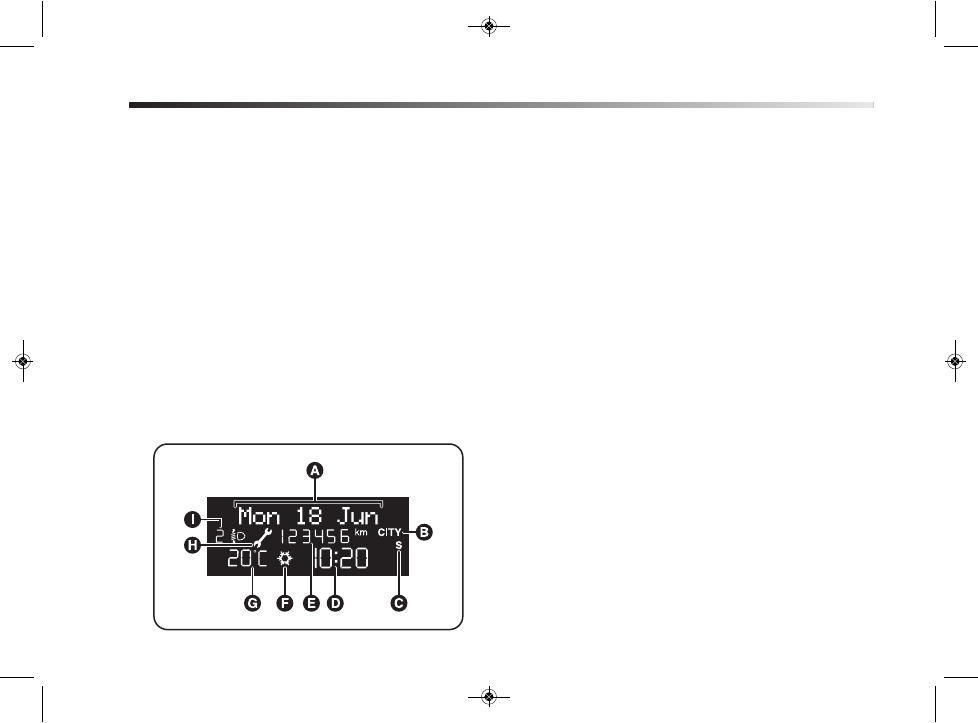

MULTIFUNCTION DISPLAY “STANDARD”
SCREEN fig. 6

The standard screen shows the following information:
A. Date
B. Possible Dualdrive electric power steering engagement
C. Sport driving mode indication

(for versions/markets where provided)

D. Time
E. Milometer (display of distance travelled in kilome-

tres/miles)

F. Possible ice on the road indication
G. Outside temperature
H. Scheduled servicing interval
I. Headlight alignment position (only with dipped beam

headlights on).

fig. 6

L0E1000g

001-154 Delta GB 1ed  03/03/14  10.00  Pagina 26

KNOWING YOUR CAR

27

1

E. Car status indications (e.g. doors open, possible ice on

road, etc.)/Gear Shift Indicator (for versions/markets,
where provided)

F. Headlight alignment position (only with dipped head-

lights on)

G. Outside temperature

On some versions, when the “Engine info” menu item is
selected, the display shows the turbine pressure when the
ignition is turned to the MAR position, fig. 8.

fig. 8

L0E0004m

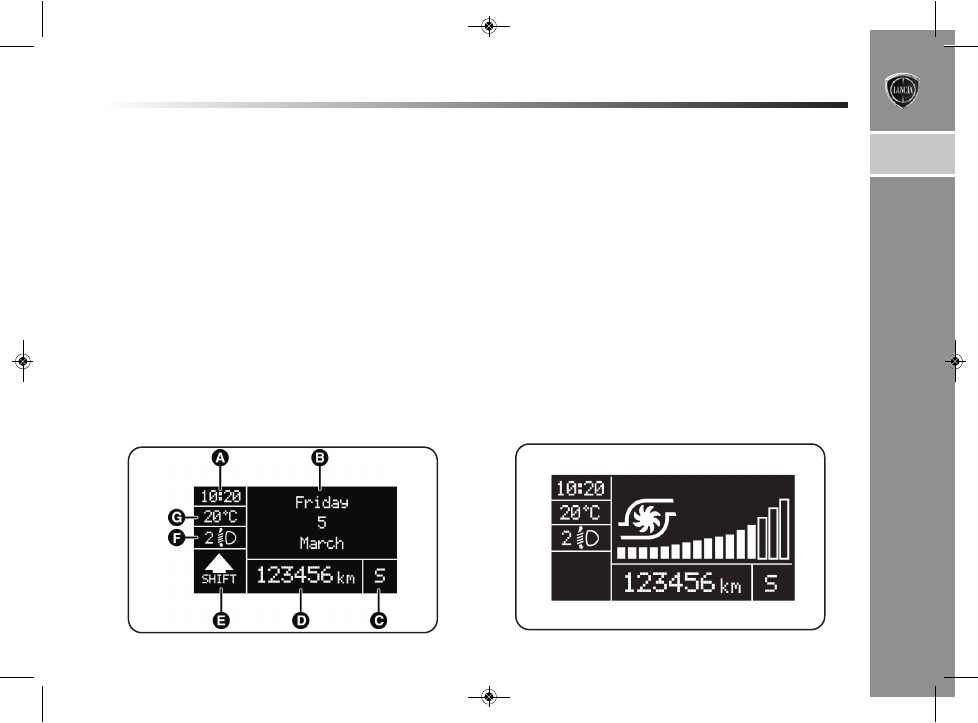

fig. 7

L0E1033g

RECONFIGURABLE MULTIFUNCTION
“STANDARD” DISPLAY fig. 7

The standard screen shows the following information:
A. Time
B. Date
C. Sport driving mode indication (for versions/markets

where provided)

D. Milometer (display of distance travelled in kilome-

tres/miles)

001-154 Delta GB 1ed  03/03/14  10.00  Pagina 27

28

KNOWING YOUR CAR

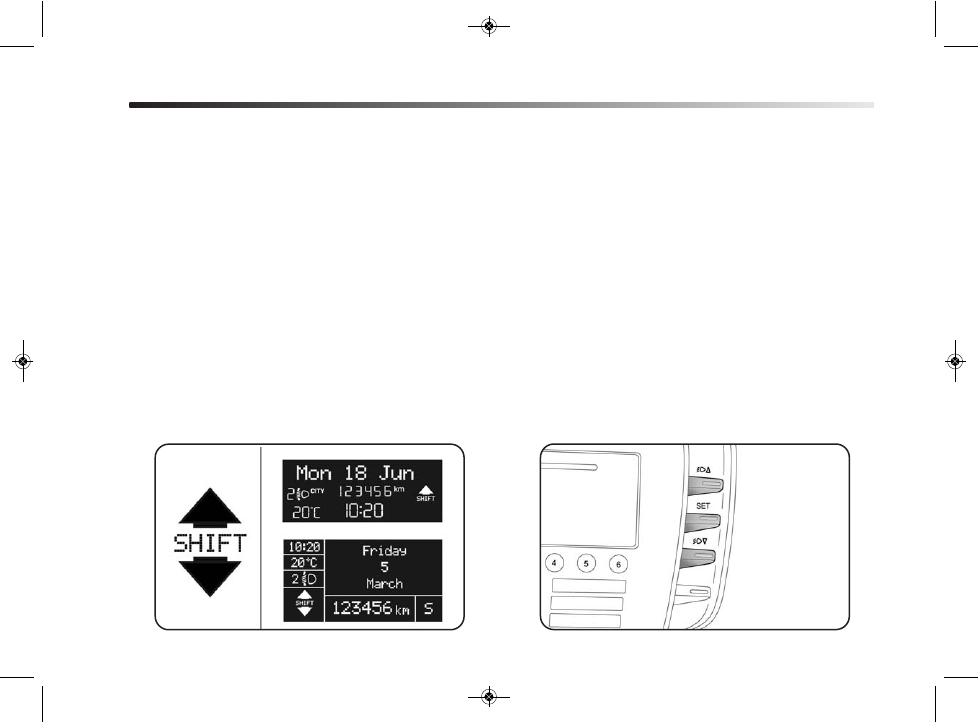

GEAR SHIFT INDICATOR

The GSI system (Gear Shift Indicator) suggests to shift
gear by showing an indication on the control panel (see
fig. 9).
Through the GSI, the driver is notified that the gear change
will allow a reduction in fuel consumption.

When the SHIFT UP icon (N SHIFT) is shown on the dis-
play, the GSI is advising the driver to select a higher gear,
while the SHIFT DOWN (O SHIFT) icon suggests that
a lower gear should be engaged.

NB The indication on the instrument panel remains on un-
til the driver changes gear or until the driving conditions
return to a situation where a gear change is not required,
to reduce consumption.

fig. 9

L0E1025g

fig. 10

L0E0005m

CONTROL BUTTONS fig. 10

Õ

: To scroll upwards through the displayed menu and the

related options or to increase the displayed value.

SET: press to access the menu and/or go to the next screen
or confirm your choice. Hold down to go back to the stan-
dard screen.

Ô

: to scroll downwards through the displayed menu and

the related options or to decrease the displayed value.

001-154 Delta GB 1ed  03/03/14  10.00  Pagina 28

KNOWING YOUR CAR

29

1

IMPORTANT Buttons

Õ

and

Ô

activate different func-

tions according to the following situations:
– within the menu, they allow you to scroll up and down
through the options;
– during setting operations they increase or decrease the
values.

IMPORTANT When one of the front doors is opened, the
display will switch on and show the clock and km or miles
covered for a few seconds.

SETUP MENU

The menu comprises a series of items which can be select-
ed using the

Õ

and

Ô

buttons to access the different selec-

tion and setting operations (set up) described in the follow-
ing paragraphs. Some options have a submenu. The Setup
Menu can be activated by briefly pressing the SET button.
The menu includes the following items:
– MENU
– LIGHTING
– SPEED BEEP
– LIGHT SENSOR

(for versions/markets, where provided)

– CORNERING LIGHTS

(for versions/markets, where provided)

– TRIP B ACTIVATION/DATA
– SET TIME
– SET DATE
– FIRST PAGE (for versions/markets, where provided)
– SEE RADIO
– AUTOCLOSE
– UNITS OF MEASURE
– LANGUAGE
– WARNING VOLUME
– BUTTONS VOLUME
– SEAT BELT BEEP/BUZZ.
– SERVICE
– AIRBAG/PASSENGER BAG
– DAYTIME RUNNING LIGHTS
– EXIT MENU

001-154 Delta GB 1ed  03/03/14  10.00  Pagina 29

30

KNOWING YOUR CAR

Selection of an option from main menu
without submenu:

– press the SET button briefly to select the main menu set-
ting you wish to change;
– press

Õ

or

Ô

(with single presses) to select the new set-

ting;
– press the SET button briefly to store the new setting and
go back to the main menu option selected previously.

Selecting an option from the main menu with a
submenu:

– briefly press the SET button to display the first submenu
option;
– press

Õ

or

Ô

(with single presses) to scroll through all

the submenu options;
– briefly press the SET button to select the displayed sub-
menu option and to open the relevant settings menu;
– press

Õ

or

Ô

to select the new setting for this submenu

option;
– press the SET button briefly to store the new setting and
go back to the previous submenu option.

MENU ITEMS

Lighting (Passenger compartment light adjustment)

This function is used to set the brightness of the instru-
ment panel, sound system controls and automatic climate
control system controls (for versions/markets where pro-
vided) to 8 levels.
Proceed as follows to adjust the brightness:
– press the SET button briefly to make the display flash
the previously set level;
– press button

Õ

or

Ô

to adjust the brightness level;

– briefly press the SET button to go back to the menu
screen or hold the button down to go back to the standard
screen without saving.

Speed warning (Speed limit)

This function allows the car speed limit to be set (km/h
or mph) and the driver will be notified when it is exceed-
ed (see “Warning lights on panel” section in chapter 1).
To set the desired speed limit, proceed as follows:
– press the SET button briefly, the display will show the
dedicated message;
– press the

Õ

or

Ô

button to select speed limit activation

(On) or deactivation (Off);
– when the function is activated (On), press the

Õ

or

Ô

button to select the desired speed limit and press SET to
confirm the choice.

001-154 Delta GB 1ed  03/03/14  10.00  Pagina 30

KNOWING YOUR CAR

31

1

IMPORTANT Setting is possible between 30 and 200
km/h, or 20 and 125 mph, according to the previously set
unit. See the “Measurement unit adjustment (Measure-
ment unit)” paragraph described below. The setting will
increase/decrease by five units each time

Õ

/

Ô

is pressed.

Hold down button

Õ

/

Ô

to increase/decrease the setting

rapidly. Complete the adjustment with single presses of
the button when you approach the desired value.
– briefly press the SET button to go back to the menu
screen or hold the button down to go back to the standard
screen without saving.

To cancel the setting, proceed as follows:
– press the SET button briefly to make the display flash
(On);
– press the

Ô

button to make the display flash (Off);

– press the SET button briefly to return to the menu screen
or press the button for longer to return to the standard
screen without memorising.

Headlight sensor (automatic/dusk sensor
headlights sensitivity adjustment)
(for versions/markets, where provided)

This function is used to adjust the dusk sensor sensitivi-
ty to three levels (level 1 = minimum, level 2 = medium,
level 3 = maximum); the higher the sensitivity, the lower
the amount of external light needed to switch the head-
lights on.
Proceed as follows to set:
– press the SET button briefly to make the display flash
the previously set level;
– press

Õ

or

Ô

to make your choice;

– briefly press SET to go back to the menu screen or hold
the button down to go back to the standard screen with-
out saving.

001-154 Delta GB 1ed  03/03/14  10.00  Pagina 31

32

KNOWING YOUR CAR

Cornering lights (activation/deactivation of
cornering lights - fog lights with cornering
function) (for versions/markets where provided)

This function activates/deactivates the cornering lights.
To activate/deactivate (ON/OFF) the lights, proceed as
follows:
– press the SET button briefly, the display will show “On”
or “Off” flashing depending on the previous setting;
– press

Õ

or

Ô

to make your choice;

– briefly press the SET button to go back to the menu
screen or hold the button down to go back to the standard
screen without saving.

Trip B data/activation (Trip B enablement)

This function can be used to activate (On) or deactivate
(Off) the Trip B display (partial trip).
For further information see “Trip computer”.
Proceed as follows to switch the function on/off:
– press the SET button briefly to make the display flash
On or Off depending on the previous setting;
– press

Õ

or

Ô

to make your choice;

– briefly press SET to go back to the menu screen or hold
the button down to go back to the standard screen with-
out saving.

Time adjustment (Clock adjustment)

This function enables the clock to be set through two sub-
menus: “Time” and “Format”.
To carry out the adjustment, proceed as follows:
– briefly press the SET button and two submenus “Time”
and “Format” are displayed;
– press the

Õ

or

Ô

button to move between the two sub-

menus;
– once you have selected a sub-menu, press SET briefly;
– when you select “Time”, briefly pressing SET makes the
hours flash on the display;
– press

Õ

or

Ô

to adjust the value;

– briefly press the SET button and the minutes will flash
on the display;
– press

Õ

or

Ô

to adjust the value.

001-154 Delta GB 1ed  03/03/14  10.00  Pagina 32

KNOWING YOUR CAR

33

1

IMPORTANT The setting increases or decreases by one
unit each time button

Õ

or

Ô

is pressed. Hold down the

button to increase/decrease the setting rapidly and auto-
matically. Complete the adjustment with single presses
of the button when you approach the desired value.
– when you select “Format”, pressing SET briefly makes
the display mode flash on the display;
– press button

Õ

or

Ô

to select “24h” or “12h”.

When you have made the required settings, briefly press
the SET button to go back to the submenu screen or hold
the button down to go back to the main menu screen with-
out storing the new settings.
– press the SET button again for a long time to return to
the standard screen or to the main menu according to
where you are in the menu.

Set date (Setting the date)

This function may be used to update the date (year –
month – day).
Proceed as follows to update:
– briefly press SET: the “year” flashes on the display;
– press

Õ

or

Ô

to adjust the value;

– briefly press SET: the “month” flashes on the display;
– press

Õ

or

Ô

to adjust the value;

– briefly press SET: the “day” flashes on the display;
– press

Õ

or

Ô

to adjust the value.

IMPORTANT The setting increases or decreases by one
unit each time button

Õ

or

Ô

is pressed. Hold down the

button to increase/decrease the setting rapidly and auto-
matically. Complete the adjustment with single presses
of the button when you approach the desired value.
Briefly press SET to go back to the menu screen or hold
the button down to go back to the standard screen with-
out saving.

001-154 Delta GB 1ed  03/03/14  10.00  Pagina 33

34

KNOWING YOUR CAR

Initial page
(display of information on the main screen)
(for versions/markets, where provided)

This function allows you to choose the information you
would like to see on the main screen.  You can choose to
display the date or the turbocharger supercharging pres-
sure.
To make your choice, proceed as follows:
– briefly press SET: “Initial page” will appear on the dis-
play;
– press the SET button again briefly to display the “date”
and “engine info” options;
– press

Õ

or

Ô

to select the information you wish to see

on the main page of the display;
– briefly press the SET button to go back to the menu
screen or hold the button down to go back to the standard
screen without saving.
When the key is turned to MAR and the initial check stage
is over, the display will show the information selected via
the “First page” menu function.

See radio (audio information display)

With this function the display shows information about
the sound system.
– Radio: selected station frequency or RDS message, au-
tomatic tuning activation or AutoSTore;
– Audio CD, MP3 CD: track number;
– CD Changer: CD number and track number;
To show the radio information on the display (On) or clear
it (Off), proceed as follows:
– briefly press the SET button: the display flashes On or
Off depending on the previous setting;
– press

Õ

or

Ô

to make your choice;

– briefly press the SET button to go back to the menu
screen or hold the button down to go back to the standard
screen without saving.

Autoclose (Automatic central locking with
car running)

When activated (On), this function locks the doors auto-
matically when the vehicle speed exceeds 20 km/h.
Proceed as follows to activate or deactivate this function:
– press the SET button briefly to display a submenu;
– press the SET button briefly to make the display flash

001-154 Delta GB 1ed  03/03/14  10.00  Pagina 34

KNOWING YOUR CAR

35

1

On or Off depending on the previous setting;
– press

Õ

or

Ô

to make your choice;

– press the SET button briefly to return to the submenu
screen or hold the button down to return to the main menu
screen without saving;
– hold down the SET button again to return to the stan-
dard screen or to the main menu according to where you
are in the menu.

Unit of measurement
(Setting the unit of measurement)

With this function is possible to set the unit of measure-
ment in three submenus: “Distance”, “Consumption” and
“Temperature”. To set the required unit proceed as fol-
lows:
– briefly press SET to display the three sub-menus;
– press the

Õ

or

Ô

button to move between the three sub-

menus;
– once the submenu to be modified has been selected,
briefly press the SET button;
– if the submenu “Distance” is entered: by briefly press-
ing SET the display shows “km” or “mi” depending on
the previous setting;
– press

Õ

or

Ô

to make your choice;

– when you select “Consumption”, pressing SET button
makes km/l, l/100km or mpg appear on the display de-
pending on the previous setting;

If the set distance unit is “km”, the fuel consumption unit
will be displayed in km/l or l/100 km.
If the set distance unit is “mi” the fuel consumption unit will
be displayed in “mpg”.
– press

Õ

or

Ô

to make your choice;

– when you select “Temperature”, pressing SET makes °C
or °F appear on the display depending on the previous set-
ting;
– press

Õ

or

Ô

to make your choice;

When you have made the required settings, briefly press
the SET button to go back to the submenu screen or hold
the button down to go back to the main menu screen with-
out storing the new settings.
– press the SET button again for a long time to return to
the standard screen or to the main menu according to
where you are in the menu.

001-154 Delta GB 1ed  03/03/14  10.00  Pagina 35

36

KNOWING YOUR CAR

Language (Language selection)

Display messages can be shown in different languages: Ital-
ian, German, English, Spanish, French, Portuguese and
Dutch.
To set the desired language, proceed as follows:
– briefly press the button SET: the previously set language
starts flashing on the display;
– press

Õ

or

Ô

to make your choice;

– briefly press the SET button to go back to the menu
screen or hold the button down to go back to the standard
screen without saving.

Warnings volume (Adjusting the failure/warning
acoustic signal volume)

With this function the volume of the acoustic signal which
accompanies the display of failure/warning can be ad-
justed according to 8 levels.
To set the desired volume, proceed as follows:
– press the SET button briefly, making the display flash
the previously set volume level;
– press

Õ

or

Ô

to adjust the value;

– briefly press SET to go back to the menu screen or hold
the button down to go back to the standard screen with-
out saving.

Button volume (Adjusting the button volume)

This function enables you to adjust the volume of the
acoustic signal (8 settings) accompanying the activation
of buttons SET,

Õ

and

Ô

.

To set the desired volume, proceed as follows:
– press the SET button briefly, making the display flash
the previously set volume level;
– press

Õ

or

Ô

to adjust the value;

– briefly press the SET button to go back to the menu
screen or hold the button down to go back to the standard
screen without saving.

Belt reminder
(Buzzer/reactivation for SBR indication)

This function is only displayed after a Lancia Dealership
has deactivated the SBR (see SBR paragraph, chapter
“2”).

Service (Scheduled servicing)

This function allows you to display the information about
km/mileage intervals or, for versions/markets, where
provided, time intervals for car servicing.

001-154 Delta GB 1ed  03/03/14  10.00  Pagina 36

KNOWING YOUR CAR

37

1

To consult this information, proceed as follows:
– briefly press the SET button: the display shows when
servicing is due in km/mi or days (where provided) or
mi or days (where provided) according to the previous set-
ting (see paragraph “Units of measurement”);
– briefly press SET to go back to the menu screen or hold
the button down to go back to the standard screen.

IMPORTANT The “Scheduled Servicing Plan” includes
car maintenance at fixed intervals, refer to the “Mainte-
nance and care” chapter. This is displayed automatical-
ly, with ignition key at MAR-ON, 2000 km (or equivalent
value in miles) before servicing or, where provided, 30
days before servicing. It is also displayed each time the
key is turned to MAR-ON or, for versions/markets, where
provided, every 200 km (or equivalent value in miles).
Below this threshold servicing indications are more fre-
quent. The display will be in km or mi depending on the
settings of the unit of measurement. When the next sched-
uled service is approaching, the word “Service” will ap-
pear on the display, followed by the number of kilome-
tres/miles or days (where provided) left, when the key is
turned to MAR-ON. Contact a Lancia Dealership where
the operations of the "Scheduled Servicing Plan" will be
performed and the message will be reset.
When the service interval is reached and for about
1000 km/600 mi or 30 days, a “Service interval elapsed”
message is displayed.

Airbag/Passenger airbag

This function is used to activate/deactivate the front pas-
senger’s airbag.
Proceed as follows:
– press SET and, after the message Bag pass: Off (to de-
activate) or Bag pass: On (to activate) is displayed by
pressing buttons

Õ

and

Ô

, press SET again;

–the confirmation request message will be displayed;
– press

Õ

or

Ô

to select Yes (to confirm activation/deac-

tivation) or No (to abort);
– press the SET button briefly, a message confirming the
selection will be displayed and you will return to the menu
screen or, pressing the button for longer, you will return
to the standard screen without memorising.

001-154 Delta GB 1ed  03/03/14  10.00  Pagina 37

38

KNOWING YOUR CAR

Daytime lights (D.R.L. - Daytime Running Lights)

With this function is possible to turn the daytime run-
ning lights on and off.
Proceed as follows to activate or deactivate this function:
– press the SET button briefly to display a submenu;

– press the SET button briefly to make the display flash
On or Off depending on the previous setting;
– press

Õ

or

Ô

to make your choice;

– press the SET button briefly to return to the submenu
screen or hold the button down to return to the main menu
screen without saving;
– hold down the SET button again to return to the stan-
dard screen or to the main menu according to where you
are in the menu.

Menu exit

This is the last function that closes the cycle of settings
listed in the menu screen. Pressing the SET button briefly
will return the display to the standard screen without stor-
ing. Press

Ô

to return to the first menu option (Speed

Beep).

DISPLAY READINGS

IMPORTANT Failure indications displayed are divided
into two categories: very serious and less serious failures.
Very serious faults prompt a prolonged cycle of signals.
Less serious faults prompt a shorter cycle of signals.
The displaying cycle of both failure categories can be
stopped by pressing the button SET. The warning light (or
symbol) will stay on until the fault is eliminated.

Luggage compartment not properly shut
(red)

This symbol (for versions/markets where provid-

ed) switches on in the display when the luggage compart-
ment is not properly shut. The display shows the dedicat-
ed message.

R

Bonnet not properly shut (red)

This symbol (for versions/markets where pro-

vided) switches on in the display when the bon-

net is not properly shut. The display will show the

dedicated message.

S

001-154 Delta GB 1ed  03/03/14  10.00  Pagina 38

KNOWING YOUR CAR

39

1

Possible presence of ice on the road

The outside temperature indicator starts flash-

ing when the outside temperature reaches or

falls below 3°C and the

❄

symbol lights up on

the display to warn the driver of the possible presence of
ice on the road.
The display will show the dedicated message.

Adaptive lights not available

The display shows the dedicated message when

the adaptive lights system is not available.

Contact a Lancia Dealership.

Exterior lights failure (amber)

The symbol switches on in the display when a

fault is detected in the brake lights.

The display shows the dedicated message.

W

❄

Driving advisor on

The display shows a dedicated message when

the driving advisor function is switched on.

e

f

Steering corrector not available

(DST - Dynamic Steering Torque)

The display  shows a dedicated message

when the steering corrector is faulty. Contact a

Lancia Dealership.

è

Service due

The display shows a specific message to indi-

cate the scheduled servicing deadline.

Speed limit exceeded

The display shows a dedicated message when the preset
speed limit is exceeded (for Arab countries the speed lim-
it is set at 120 km/h). The icon shown on the display rep-
resents the set speed limit.

õ

001-154 Delta GB 1ed  03/03/14  10.00  Pagina 39
