Rover 45. Service Manual - part 3





Windows
Windows
POWER-OPERATED WINDOW CONTROLS
OPERATING THE WINDOWS
The electric windows can only be operated when the starter switch
is at position ‘II’ and for up to 30 seconds after the starter switch is
turned off (provided a door is not opened in the meantime).
Driver's window
To open the driver's window, press the switch down and release -
the window will continue opening until either it is fully open or
until motion is stopped by pulling the switch up.
To close the driver's window, pull the switch up - the window will
1
3
stop moving as soon as the switch is released.
Passenger windows
2
4
All of the passenger windows can be operated from the central
control panel. Push the appropriate switch down to open and pull
up to close - the window will stop moving as soon as the switch is
HB0270
released.
1. Isolation switch.
In addition, the rear windows can also be controlled by the
2. Left hand rear window.
individual switches mounted on each rear door.
3. Right hand front window.
4. Right hand rear window.
NOTE: The rear windows will only operate if the isolation switch is not
activated.
34
Windows
Isolation switch*
The isolation switch (marked ‘ON’) controls power to the front
1
passenger and rear window switches.
When carrying children isolate the rear windows by pressing the
isolation switch down to the OFF position. This will prevent any
possibility of injury through unintentional operation of the
windows.
Accidental closing of a power-operated window on fingers, hands
or on any other vulnerable parts of the body can result in serious
injury. Always heed the following precautions:
ISOLATE the rear window switches when carrying children
ENSURE children are kept clear when raising or lowering a
window.
DO NOT leave children alone in the car.
ENSURE that all adult passengers are familiar with the controls
and the potential dangers of power operated windows.
35
Sunroof
Sunroof
SUNROOF OPERATION*
Opening and closing
Pull the switch to the rear to open, push forward to close.
Movement of the roof will stop as soon as the switch is released.
Pull the switch to the rear - the roof will open until it reaches a
pre-set aperture, calculated to minimise air turbulence within the
car.
Push the switch forwards to close the roof.
NOTE: The sunroof visor slides open automatically when the sunroof is
opened, but must be closed manually. Rear edge tilt ventilation will be
increased by opening the visor.
Accidental closing of a sunroof on fingers, hands or any vulnerable
part of the body, can result in serious injury. Always heed the
following precautions:
HB0271
ENSURE passengers are kept clear when closing the roof.
The sunroof can be operated when the starter switch is turned to
DO NOT leave children alone in the car.
position ‘II’ and for up to 30 seconds after the starter switch is
ENSURE that all adult passengers are familiar with the controls
turned off, unless a door is opened in the meantime.
and the potential dangers of operating the sunroof.
DO NOT open or close the sunroof in sub-zero temperatures,
DO NOT allow passengers to extend any part of their bodies
or when the roof is covered with snow or ice - damage to the
through the sunroof aperture while the car is moving - injury from
motor or roof panel could occur.
flying debris, branches of trees or other obstructions could occur.
36
Sunroof
Tilting the rear edge
1
To raise the rear edge of the roof; with the sunroof closed, press
the button (arrowed in illustration). To return the tilted roof to the
closed position, pull the OPEN/CLOSE switch forward.
37
Heating & Ventilation
Heating & Ventilation
VENTILATION
Centre face level vents
H3199
HB0513
Air will flow from the centre vents when face level, or foot and
The heating and ventilation system provides fresh or heated air to
face level air distribution is selected. With the air flow lever set at
the interior of the car from the air intake grille in front of the
the lower position (white arrow showing), air temperature will
windscreen.
vary according to the position of the air temperature control.
NOTE: Always keep the air intake grille clear of obstructions such as
With the air flow lever moved to the upper position (blue arrow
leaves, snow or ice.
showing), a small quantity of unheated air is drawn from outside
Air outlets are provided to the windscreen, face and feet - the
the car and blended with air from the heater unit, independent of
location of those vents is shown in the illustration above.
the air distribution setting. Dependent on the position of the
temperature control, this will result in a slight reduction in air
temperature, enabling slightly cooler air to be directed towards the
face.
38
Heating & Ventilation
Side face level vents
Pollen filter*
A pollen filter, located behind the glovebox, will help to keep the
1
car interior free from pollen and dust. To remain fully effective the
filter should be replaced at least every 12 months or 20,000 km,
preferably at the time of a main service.
HB0219
Rotate the thumbwheel up to open, or down to close the vents.
Direct the air flow by moving the control in the centre of the
louvres, either up or down, or from side to side.
Upper vent
The upper vent is operational only when face level, or foot and
face level vents have been selected using the air distribution
control. Rotate the thumb wheel forwards to open, or rearwards
to close the vent.
39
Heating & Ventilation
HEATING
2.
Air temperature control
BLUE: Unheated air
RED: Heated air
3
2
1
3.
Blower switch
Turn the switch clockwise to increase the blower speed.
NOTE: With the blower switched off, the volume of air entering the
vehicle is dependent on driving speed alone.
4.
Recirculated air supply button
With this button pressed, the heater recirculates
the air already inside the car, preventing the entry
of traffic fumes.
NOTE: Leaving the system in recirculation mode can cause the
windscreen to mist. If this happens, switch off recirculation
HB0606
5
6
4
immediately.
5.
Air conditioning switch*
1.
Air distribution control
Press to operate. The indicator light in the switch illuminates
Face level vents only.
when the air conditioning is switched on.
Foot and face level vents.
NOTE: The air conditioning will not operate if the blower switch is
turned to ‘0’.
Foot level vents.
Foot level, windscreen and side window vents.
Windscreen and side window vents.
NOTE: Air flow from foot and screen vents can be varied by positioning
the control between the distribution settings.
40
Heating & Ventilation
6. Heated front seats*
USING YOUR HEATER
With the starter switch turned to position ‘II’, press the
Fresh air enters the heater through the air intake grille in front of
1
appropriate switch to heat either, or both the front seats
the windscreen and is extracted through vents at the rear of the car.
(indicator light in the switch illuminates). The seat heaters are
The air intake grille must always be kept clear of obstructions,
thermostatically controlled and operate to achieve and then
including leaves, snow and ice.
maintain a pre-determined temperature.
The heating system uses heat from the engine to warm the air
The seat heaters will not switch off automatically, they must
inside the car. For this reason, the heater unit will not operate
be deselected by pressing the switch a second time, otherwise
unless the engine is running, and full heating is not available until
they will operate whenever the starter switch is in
the engine has reached its normal operating temperature.
position ‘II’.
The following examples, show some basic heating and ventilation
The seat heaters consume considerable power from the battery.
settings. Further adjustment of the controls, will result in a wider
For this reason, they should only be operated with the engine
range of options, enabling you to obtain the most suitable output
running.
from the heater at all times.
Remember; with the blower switched off, the volume of air
entering the car is dependent on driving speed alone.
Heating
HB0607
Set the controls as shown. Increase the blower speed as required
and adjust the centre face level vents to emit heated air only.
41
Heating & Ventilation
Maximum ventilation
AIR CONDITIONING*
The air conditioner provides additional cooling and also reduces
moisture from the air.
Using the air conditioning
The air conditioning can only be used when the engine is running.
It is also important to keep the windows and sunroof closed.
NOTE: The air conditioner will only operate when the blower is switched
HB0608
on. It will not operate with the blower switched off, nor when the
temperature is near freezing point.
Set the controls as shown. Open all the face level vents and adjust
Operation of the air conditioning system places an extra load on
the centre vents to deliver fresh, unheated air. When the car
the engine. In very hot conditions, or when the engine is required
interior reaches a satisfactory temperature, adjust the blower speed
to work unusually hard (climbing long hills or driving in congested
to the most comfortable setting.
traffic, for example), this could result in high engine temperatures.
Defrost windscreen
If the pointer nears the RED zone of the temperature gauge,
switch off the air conditioning until the engine temperature
returns to normal.
To help cool the engine, the air conditioning fans may continue
to operate for up to five minutes after the starter switch is turned
off. During this period, if the air conditioning and blower switches
are left on, the switch indicator light will remain illuminated.
In conditions of high humidity, slight screen misting may be
HB0609
experienced when the air conditioning system is switched on. This
Set the controls as shown. To obtain maximum heated air flow
is a natural occurrence on most automotive air conditioning
from windscreen and side window vents, keep the face level vents
systems. It is not a fault; misting will clear after a few seconds once
closed.
the air conditioning system is operating.
42
Heating & Ventilation
Maintaining the air conditioning
Rapid cooling
The air conditioning system is sealed and major maintenance
1
should only be carried out by a qualified technician. To maintain
the system in peak condition however, owners should ensure that
the system is operated for a short period every week (even during
the cold winter months); with the engine at its normal operating
temperature, run the air conditioning for at least ten minutes while
driving at a steady speed.
HB0611
Surplus water, produced by the dehumidifying process, is expelled
from the system via drain tubes beneath the car. This may result in
Start the engine and switch on the air conditioning.
a small pool of water forming on the road when the car is
Set the blower to maximum speed and switch on air recirculation
stationary and is not a cause for concern.
(this will prevent warm air being drawn into the car from outside).
Cooling
Once the interior is cool, switch off air recirculation and then reset
the blower as required.
HB0610
After starting the engine, press the air conditioning switch to
operate the air conditioner. Set the blower speed, air distribution
and temperature controls to suit your requirements.
43
Heating & Ventilation
Reducing humidity
HB0612
Air conditioning reduces moisture from the air and can be used to
demist windows quickly in damp weather. Used in conjunction
with the heater, it also makes the interior of the car warm and dry.
This setting is ideal for most driving conditions, when the outside
temperature is above freezing point. After switching on the air
conditioner, initially set the controls as shown and progressively
adjust the temperature control and blower speed, to suit your
requirements.
NOTE: If the car interior is particularly hot when you start the engine, it
will take time for the air conditioner to become fully effective. Before
switching on the air conditioning, it is best to ventilate the car for a short
while by operating the blower at a fast speed, with windows and sunroof
open. Remember to close the windows and sunroof before you operate the
air conditioner.
44
Interior Equipment
Interior Equipment
INTERIOR LIGHT
Luggage Compartment Light
Illuminates automatically when the luggage compartment is
1
opened.
Glovebox Light*
Operates automatically when the exterior lights are switched on
and the glovebox lid is opened.
1
2
3
HB0279
Switch positions:
1. Light permanently off
2. Light illuminates automatically when a door is opened
3. Light illuminates continuously
With the switch in the centre position, the interior light
illuminates automatically when the doors are unlocked, and
remains illuminated for 15 seconds after all the doors are closed, or
until the starter switch is turned on.
45
Interior Equipment
SUN VISOR
CLOCK
HB0596
The digital clock display illuminates when the starter switch is
turned on and dims for night viewing when the sidelights are
switched on.
Press the hour (‘H’) and minute (‘M’) buttons to set the time. If
both buttons are pressed together, the display will change between
24 hour and 12 hour displays.
To shield your eyes from the sun, pull the visor down from the
On some models, the clock also displays information about the
roof; the visor can be used to shield the upper part of the
operation of the audio unit fitted to your car.
windscreen, or the side window as required.
NOTE: If the battery is disconnected, the clock will need to be reset.
NOTE: The passenger's sun visor is fitted with a vanity mirror on the
underside.
46
Interior Equipment
CUP HOLDER & PEN CLIP*
DRIVER'S PERSONAL STORAGE
1
HB0597
Lift the front edge of the lid to open. Stowage space is provided
for a pen and two cup rests for use when the car is stationary. The
cup rests can be removed from the centre armrest, to access a
stowage box.
Pull down to open (for instructions showing removal and
replacement of the storage container, see ‘MAIN FUSE BOX’,
The cup holder should not be used when the car is in motion.
page 169).
47
Interior Equipment

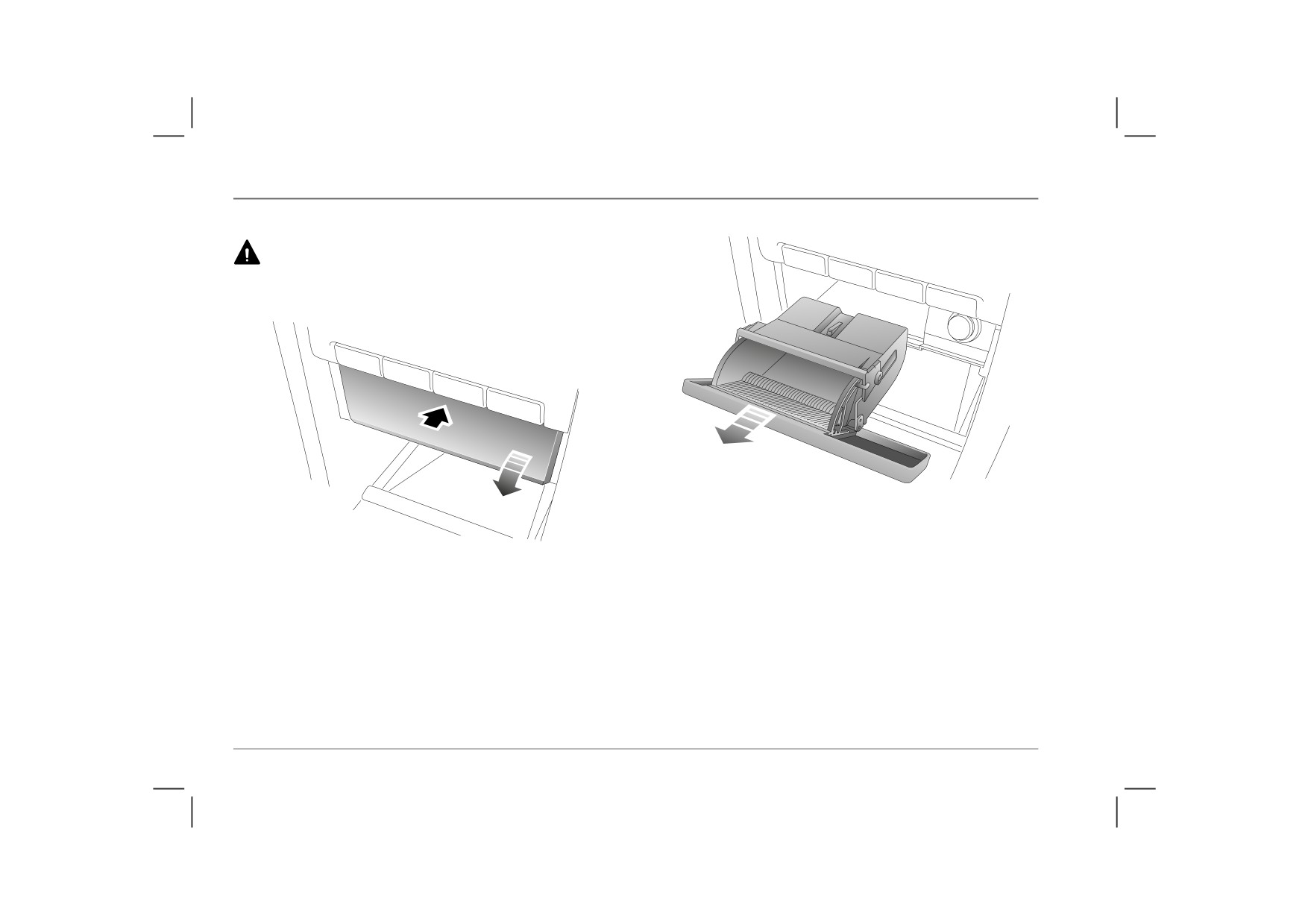

ASHTRAYS
Ashtrays are fire hazards - DO NOT use for waste paper or
other combustible materials.
Front ashtray
HB0505
To remove for emptying, open the cover and pull out the entire
HB0506
ashtray unit.
Push the top of the cover to open (solid arrow).
48
Interior Equipment

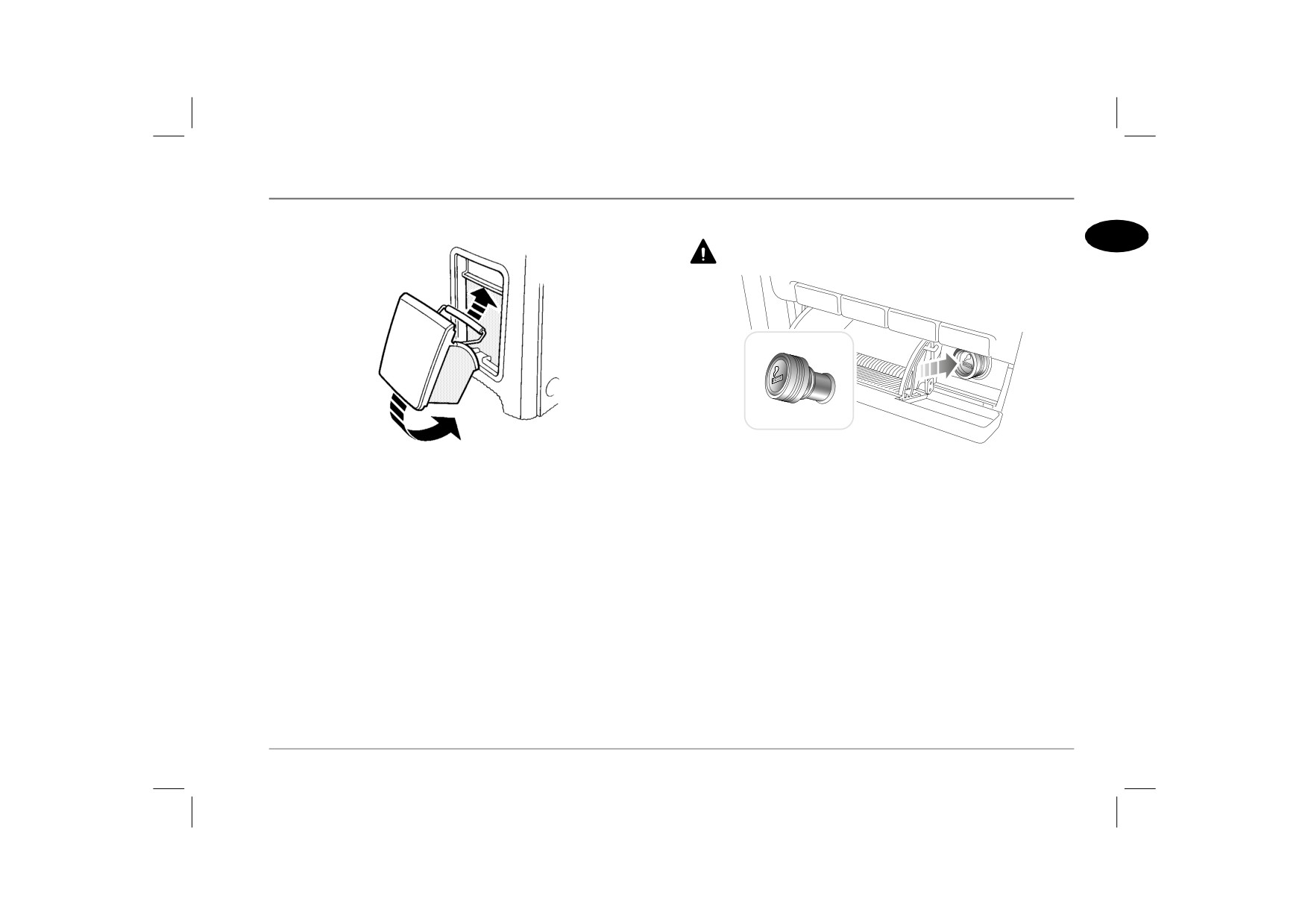

Rear ashtray
CIGAR LIGHTER*
1
ONLY hold the cigar lighter by the handle.
HB0152
HB0504
Pull out to open. To remove for emptying, open the ashtray fully
Push the top of the ashtray cover to open (see ‘ASHTRAYS’,
and then lift the base up and outwards.
page 48). With the starter switch turned to position ‘I’ or ‘II’, push
the lighter in to heat up. When ready, the lighter will partially eject
Replace as shown in inset, ensuring that the retaining spring is
and can then be withdrawn for use. DO NOT hold the lighter in
inserted first before the base of the ashtray is eased into the
while it is heating - this could cause it to overheat.
aperture.
NOTE: DO NOT plug accessories into the cigar lighter socket (an
auxiliary power socket is available as an accessory - consult your dealer).
49















Content      ..     1      2      3      4      ..
