Holden Engine Troubleshooter. Reference Manual - part 2

PAGE 15

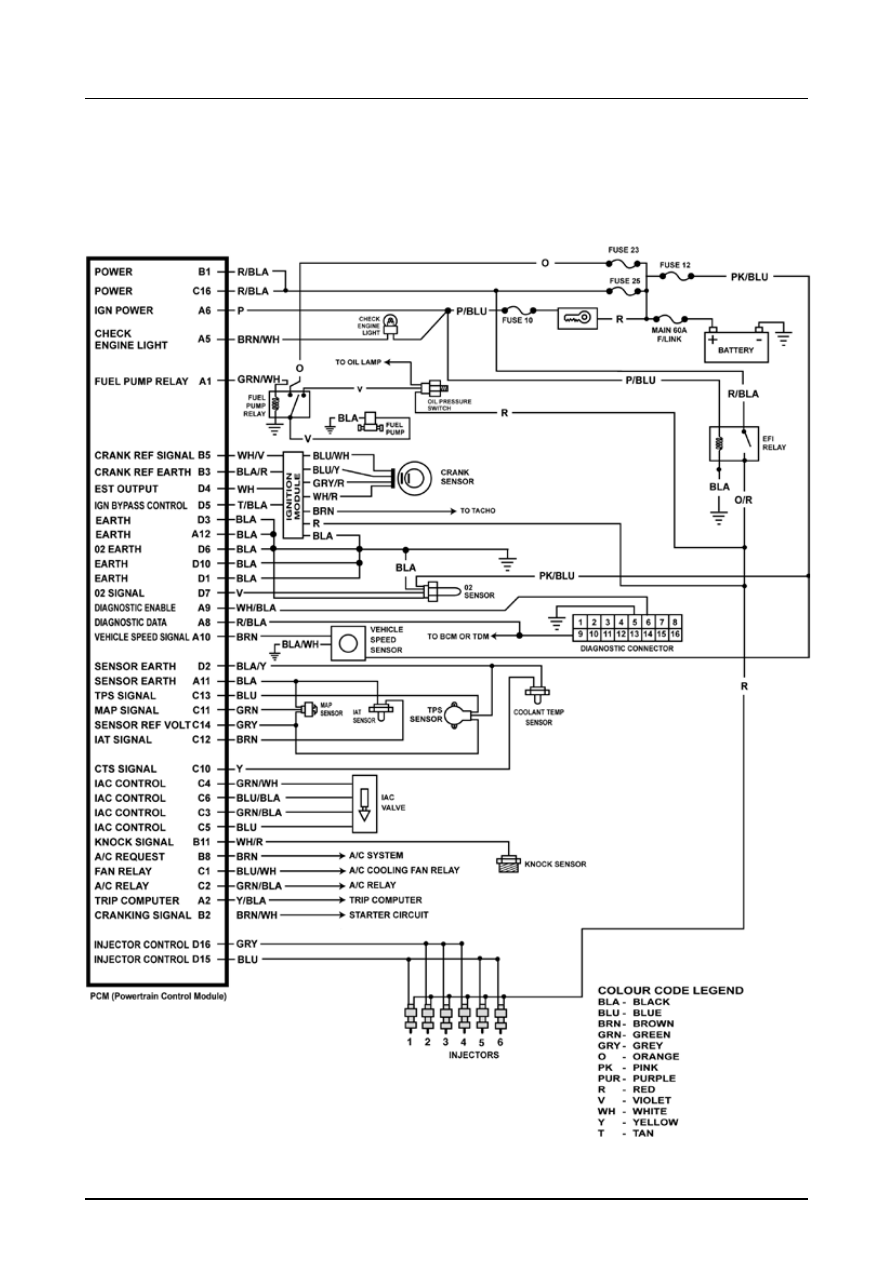

H004  VN Model (from Oct 1989) & VP Model V8


Wiring Diagram

PAGE 16

H004  VN Model (from Oct 1989) & VP Model V8 Connectors

PAGE 17

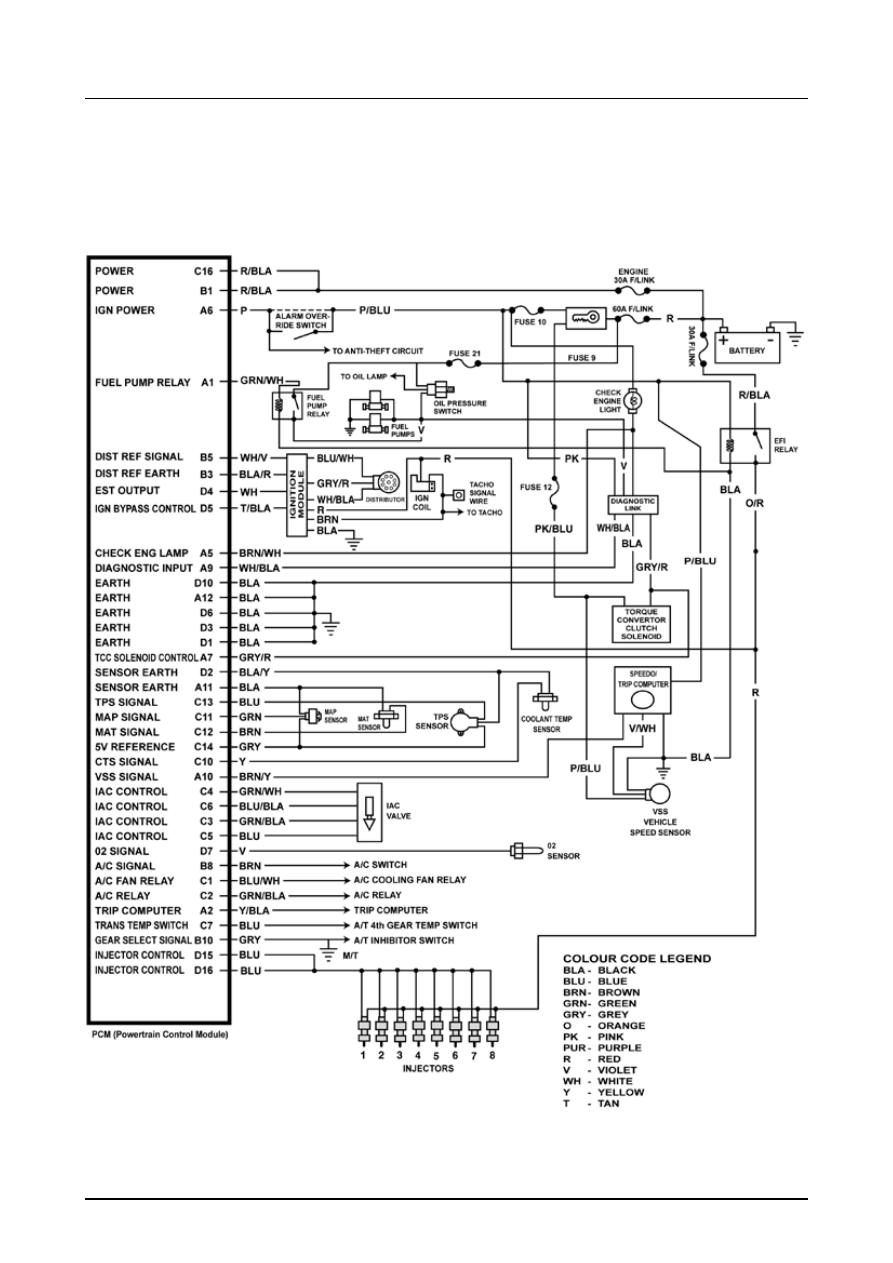

H005  VR Manual Model V6 Wiring Diagram

PAGE 18

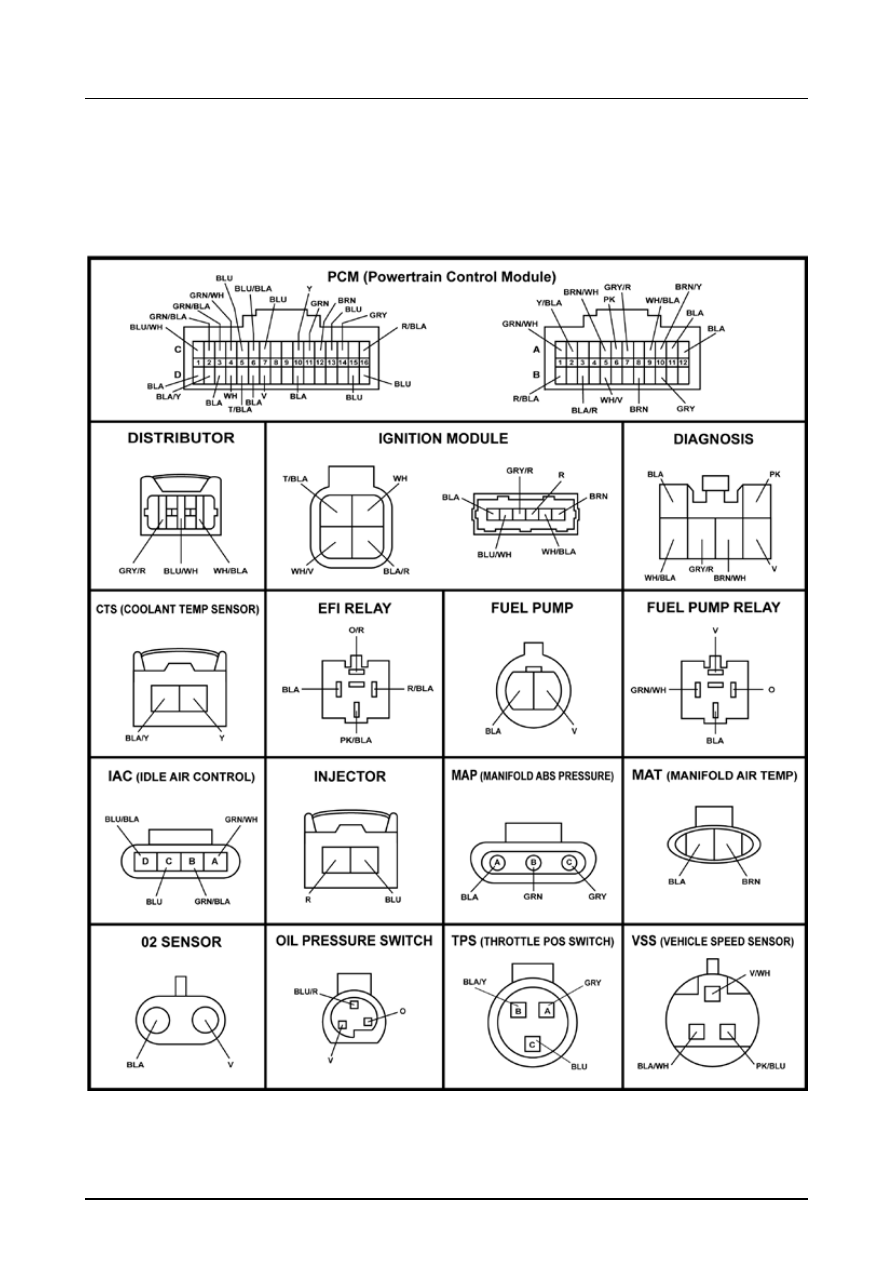

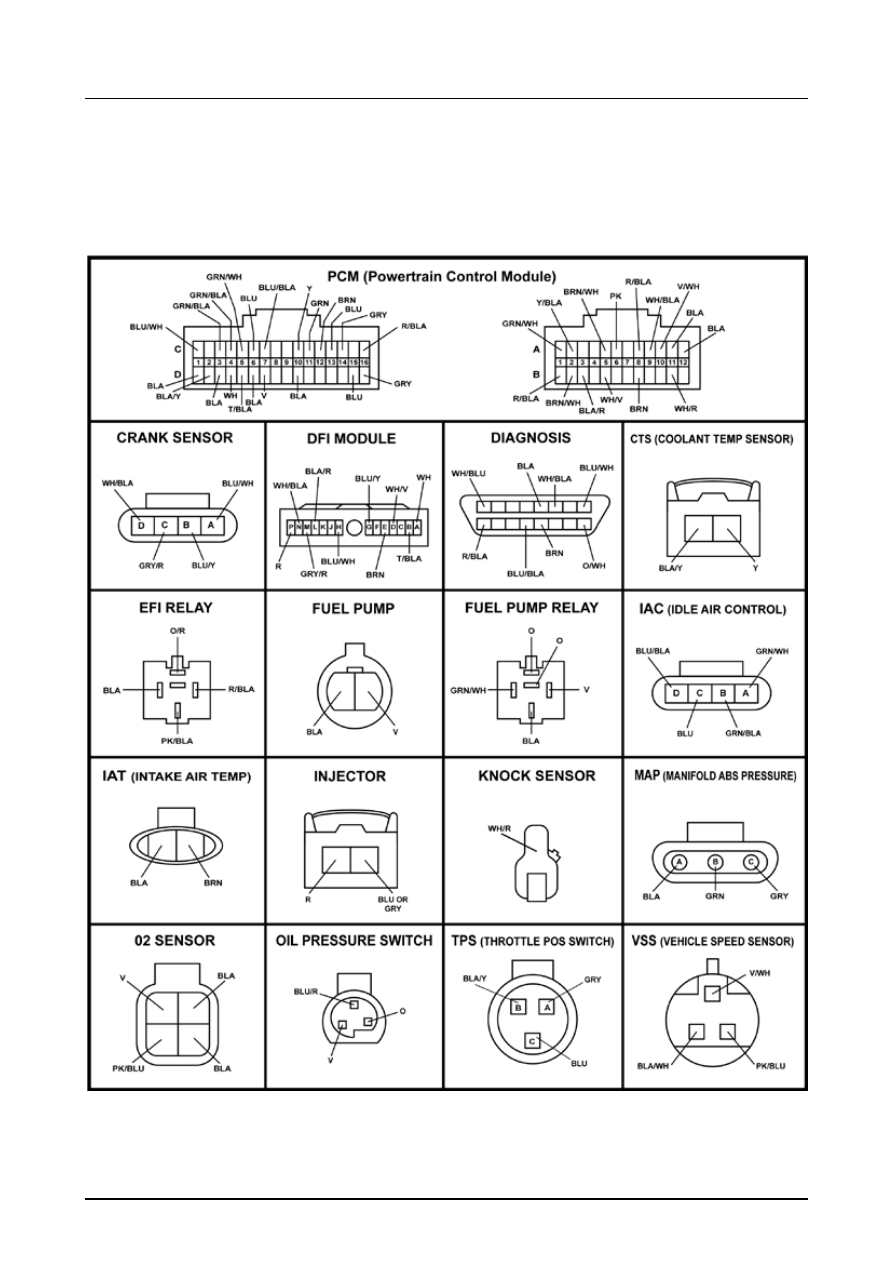

H005  VR Manual Model V6 Connectors

PAGE 19

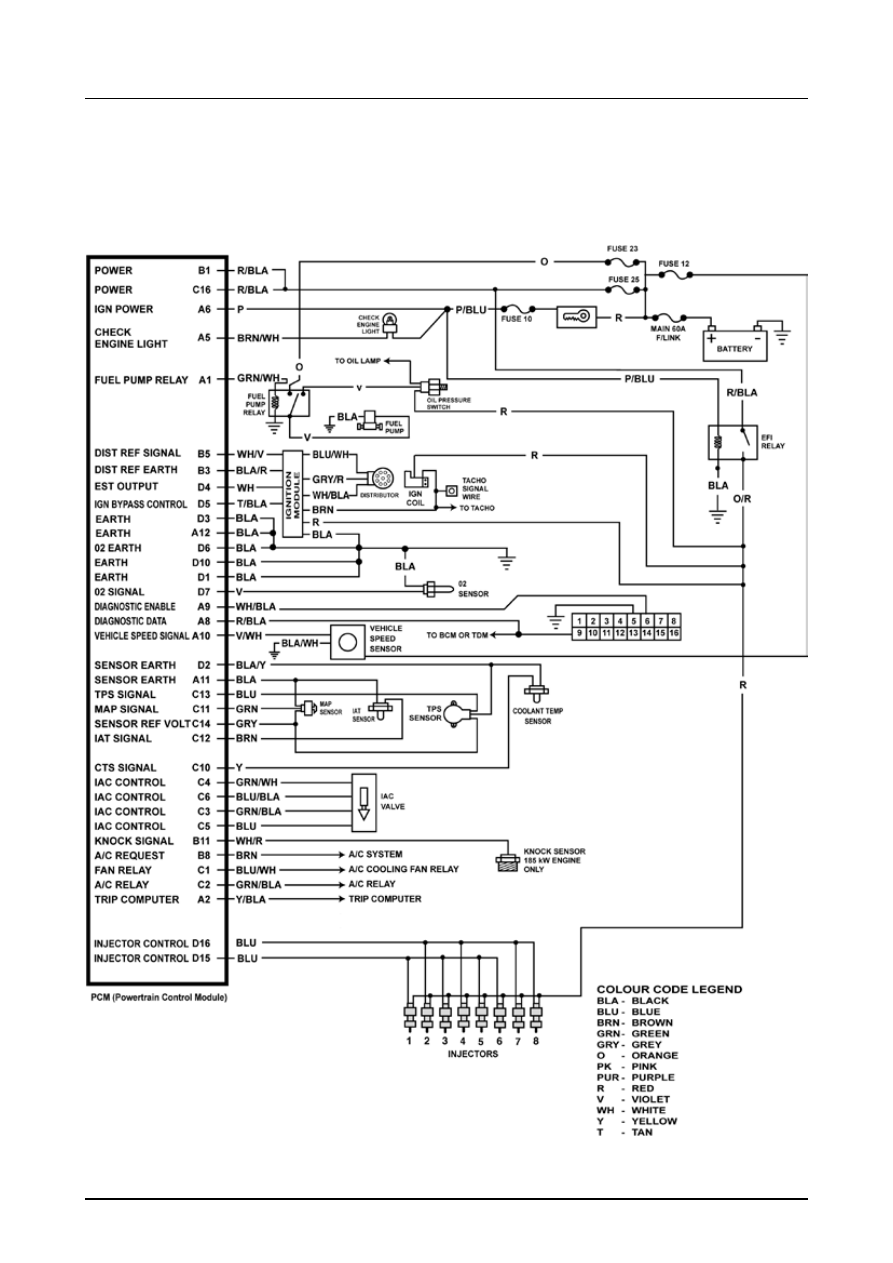

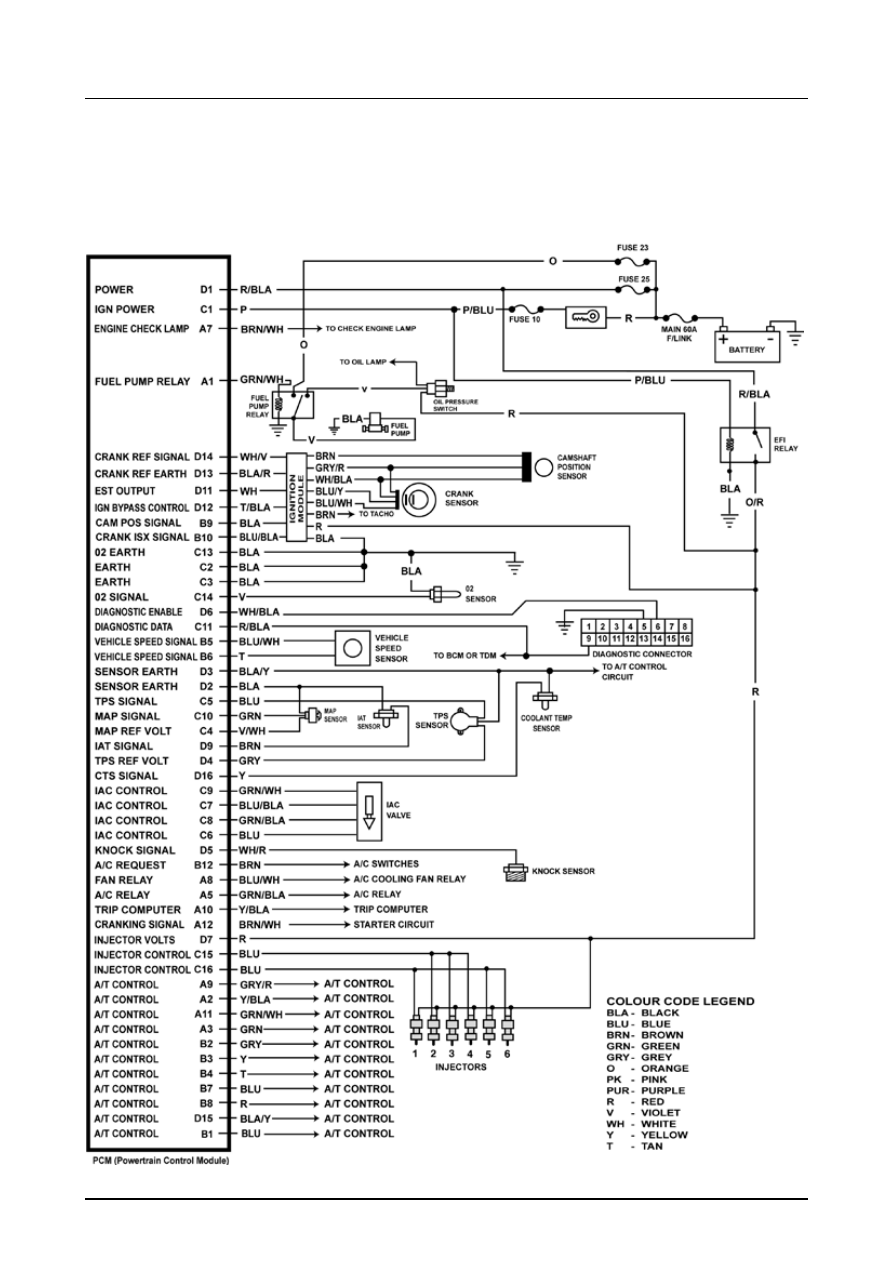

H006  VR Automatic Model V6 Wiring Diagram

PAGE 20

H006  VR Automatic Model V6 Connectors

PAGE 21

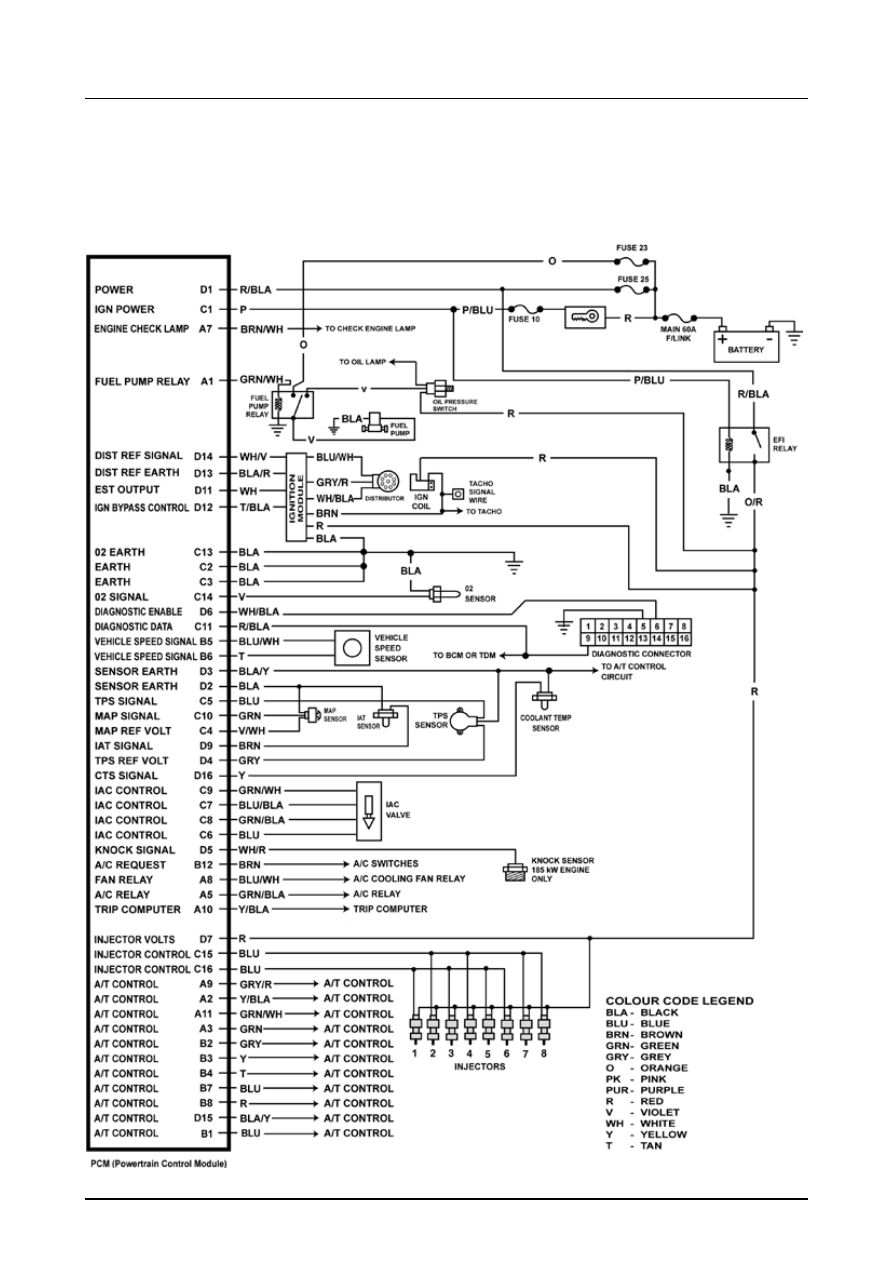

H007  VR & VS Manual Model V8 Wiring Diagram

PAGE 22

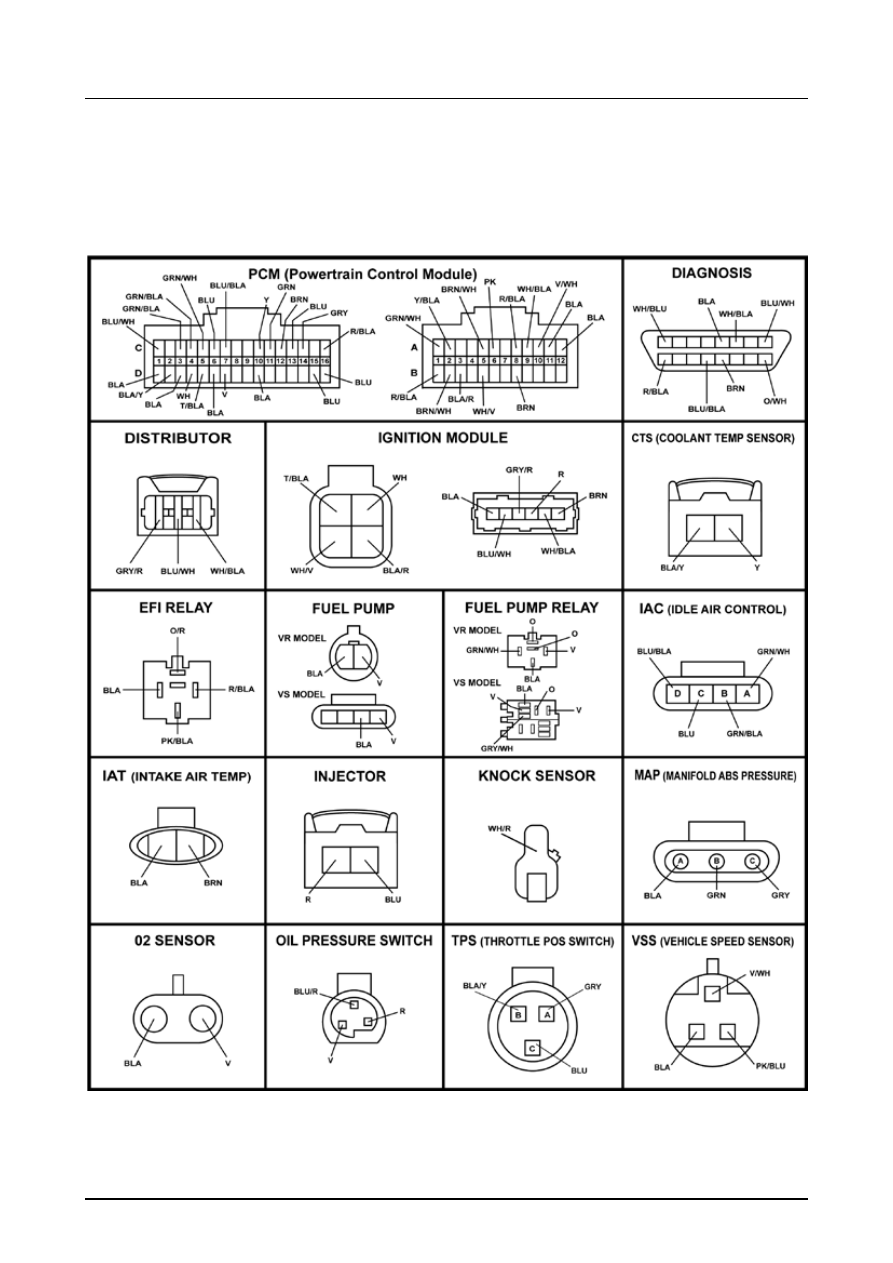

H007  VR & VS Manual Model V8 Connectors

PAGE 23

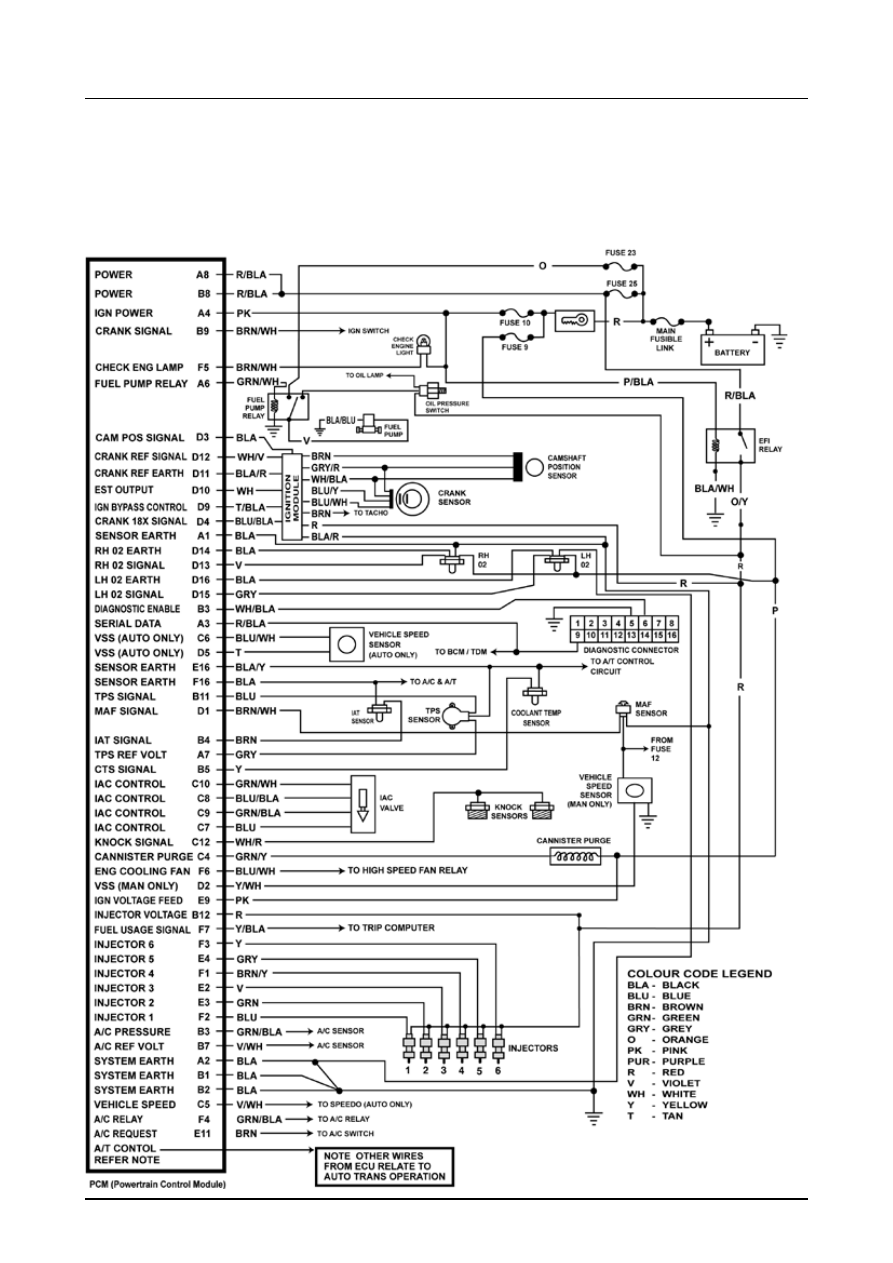

H008  VR & VS Automatic Model V8 Wiring Diagram

PAGE 24

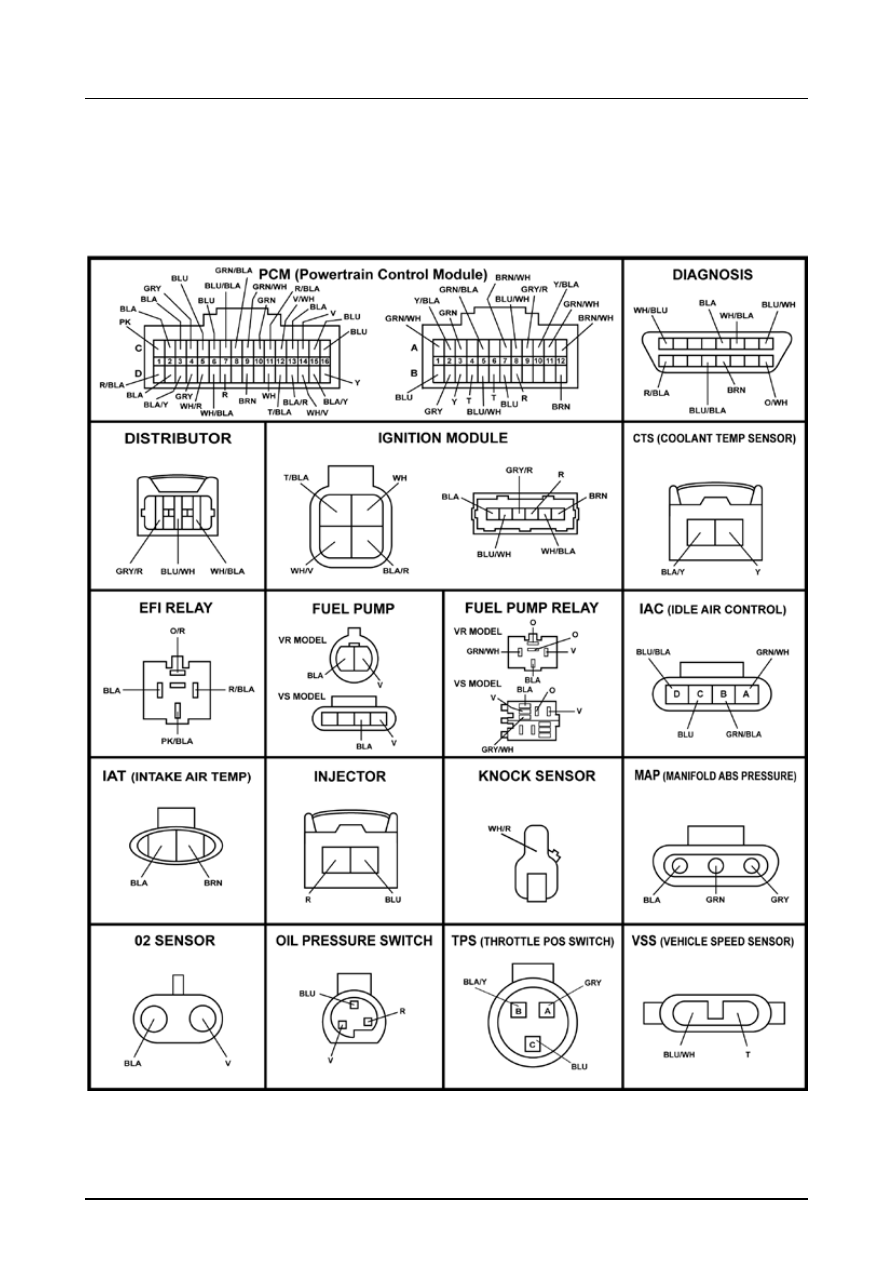

H008  VR & VS Automatic Model V8 Connectors

PAGE 25

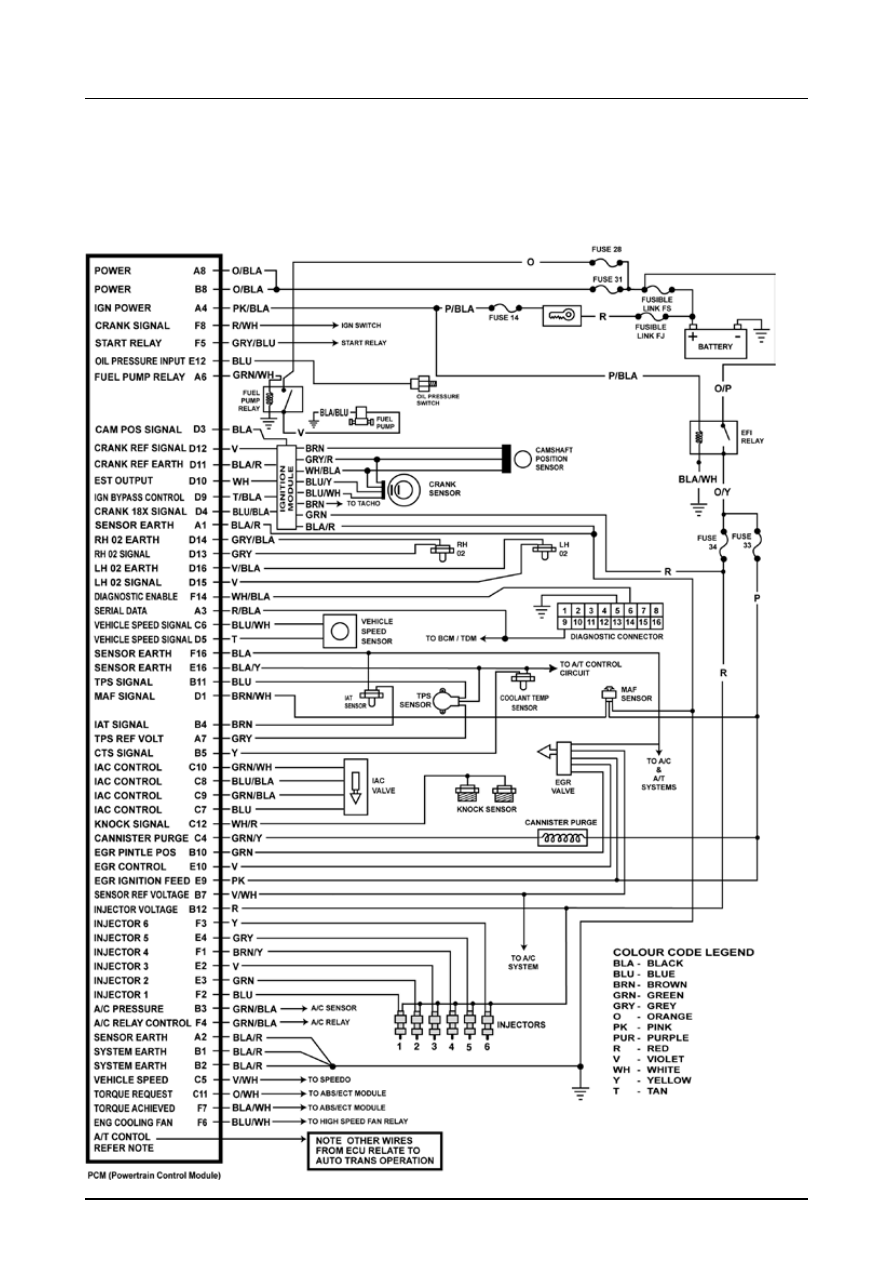

H009  VS Model V6 Wiring Diagram

PAGE 26

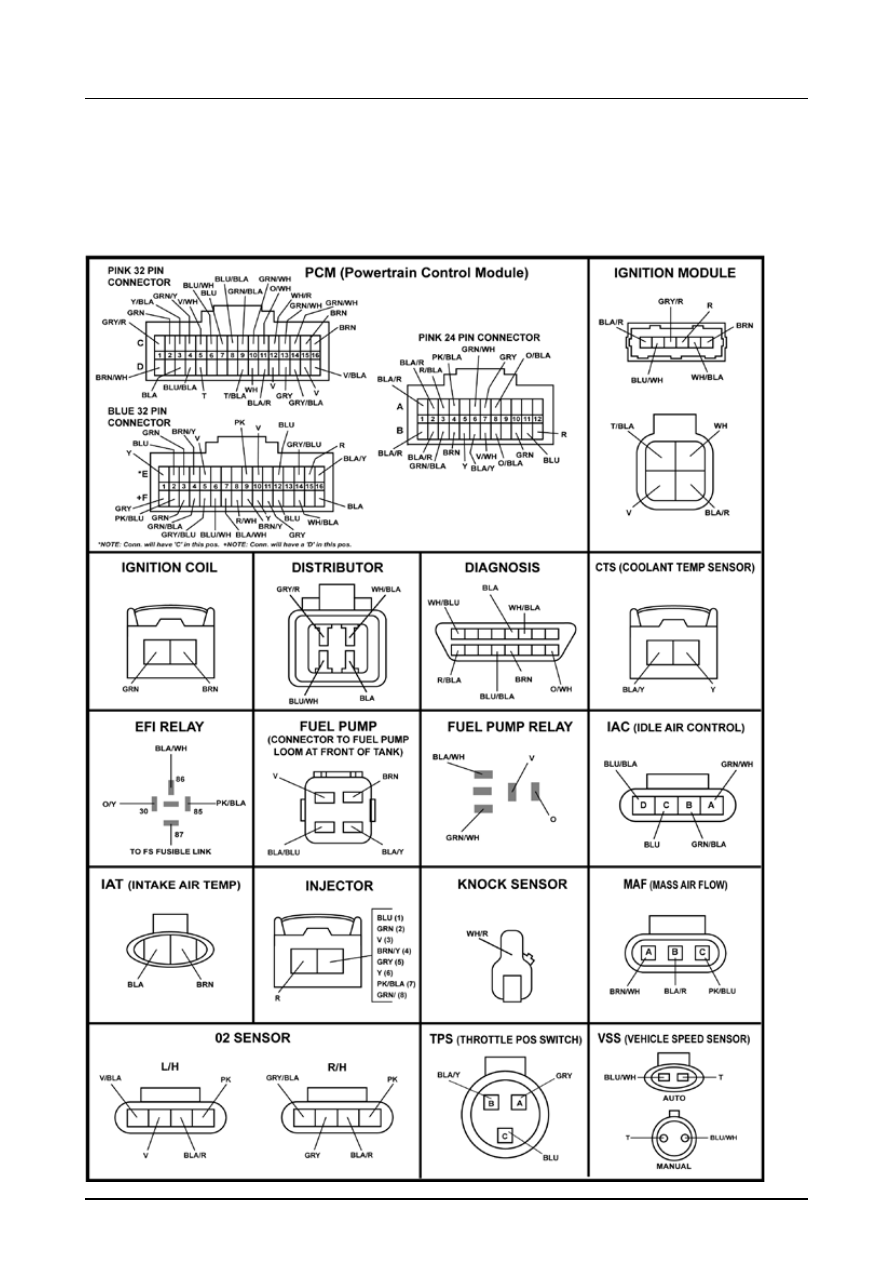

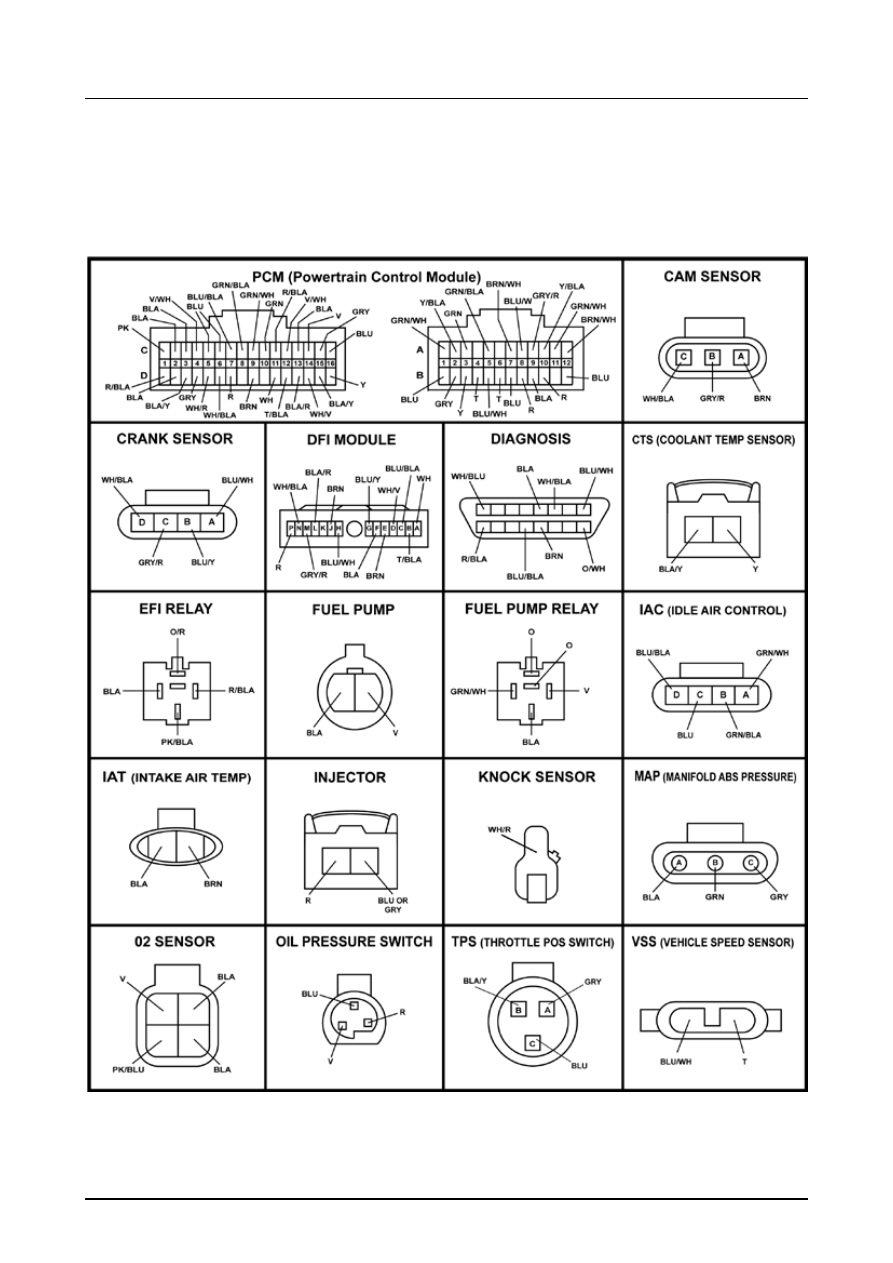

H009  VS Model V6 Connectors

PAGE 27

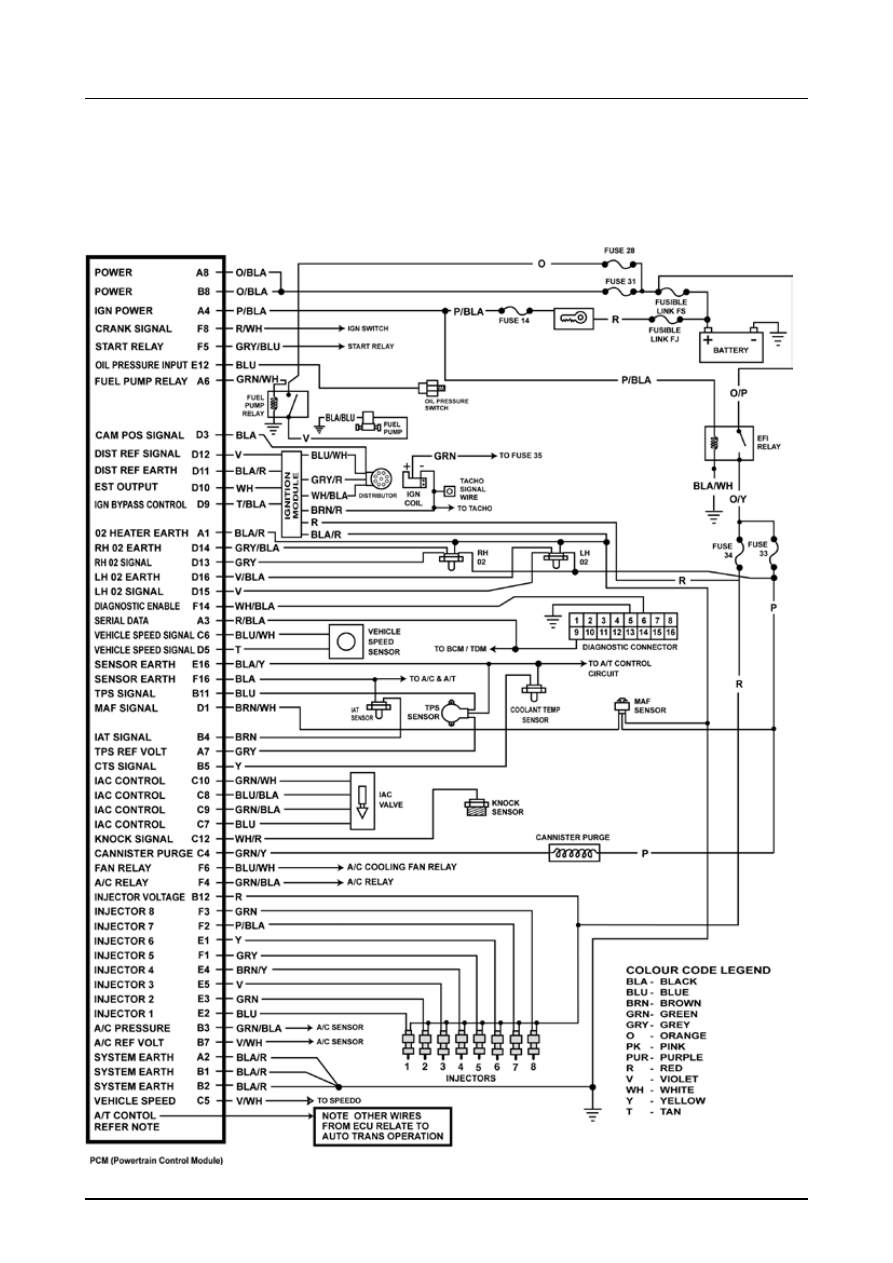

H010  VT Model V6 Wiring Diagram

PAGE 28

H010  VT Model V6 Connectors

PAGE 29

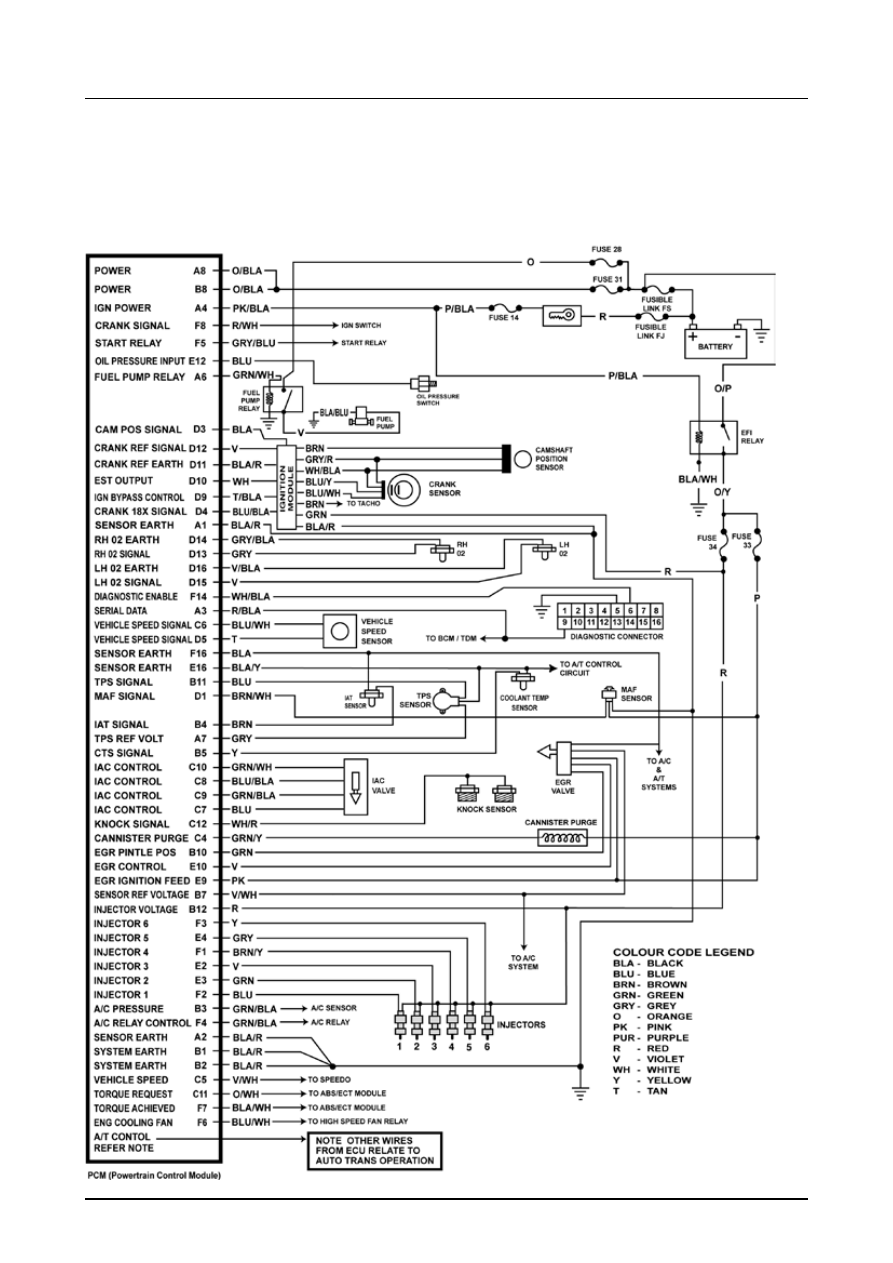

H011  VT Model 5.0 Litre V8 Wiring Diagram

PAGE 30

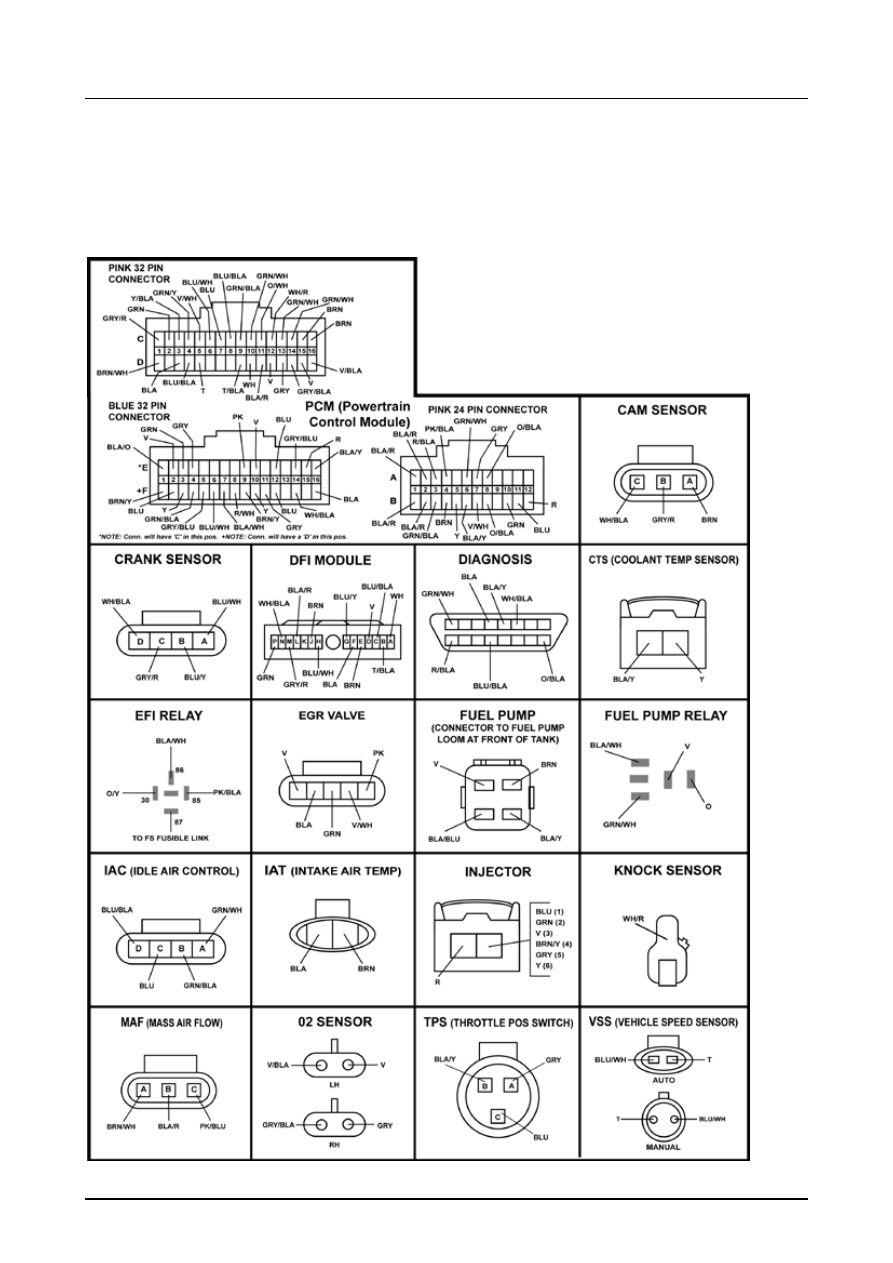

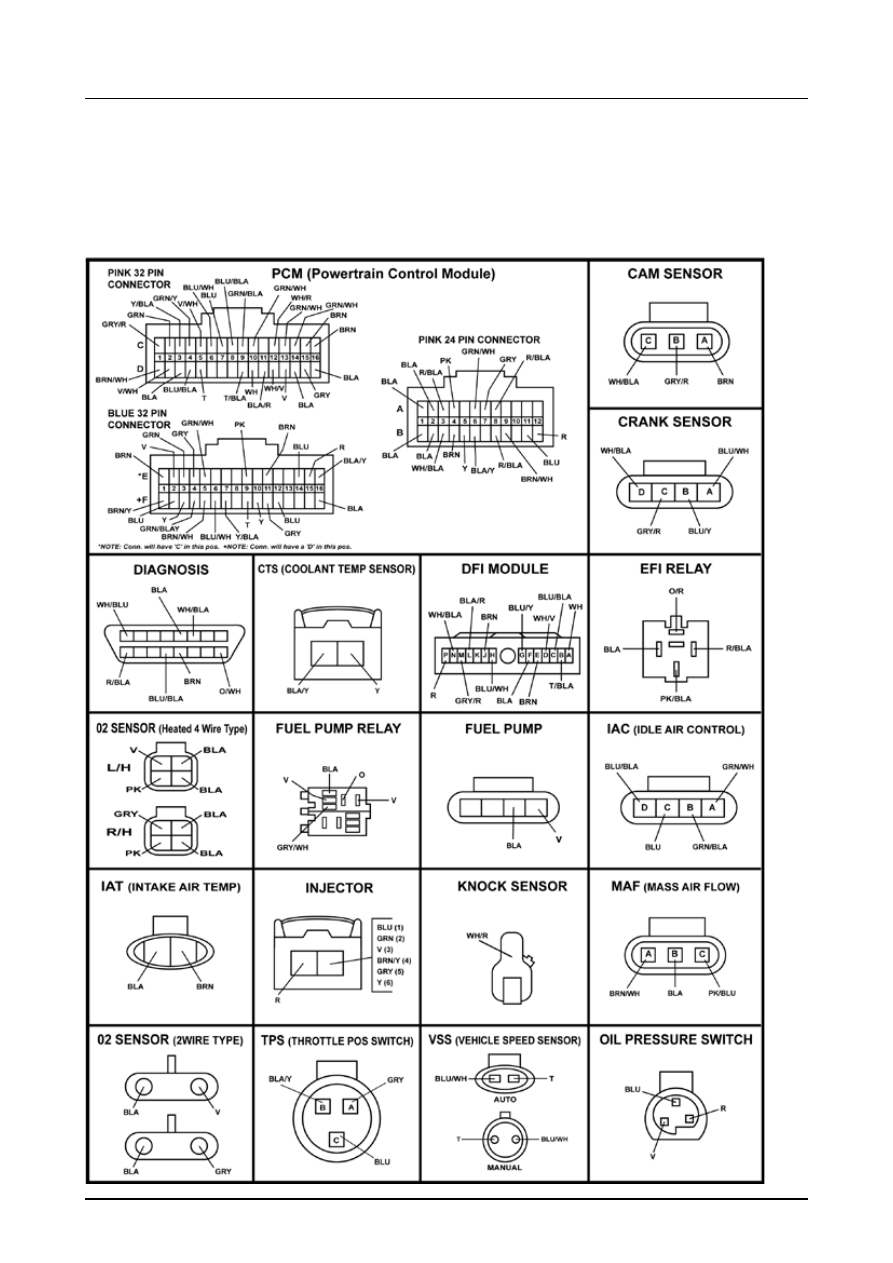

H011  VT Model 5.0 Litre V8 Connectors
