Vauxhall Vivaro (2016 year). Manual

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

Fog light

Tachograph

Information displays

> illuminates green.

& illuminates when there is a fault

3 95.

Driver Information Centre

Illuminated when the front fog lights

are on 3 99.

Door open

Rear fog light

y illuminates red.

ø illuminates yellow.

Illuminates when a door is not fully

closed.

Illuminated when the rear fog light is

on 3 99.

A corresponding message also

appears in the Driver Information

Centre (DIC) 3 90.

Cruise control

m, U illuminates green or yellow.

m illuminates green when a certain

speed is stored.

Depending on vehicle configuration,

U illuminates green when the system

the following items appear in the

is on.

display:

● outside temperature 3 77

Speed limiter

● clock 3 77

U illuminates yellow.

● odometer 3 80

U illuminates yellow when the

● trip odometer 3 80

system is on.

● service display 3 81

Cruise control and speed limiter

3 133.

● vehicle messages 3 91

● trip computer 3 93

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

Info-display

message may disappear

Vehicle messages

automatically and F remains

illuminated. The fault will then be

Messages are displayed in the Driver

stored in the on board system.

Information Centre (DIC) and may be

accompanied by illumination of

Warning messages

control indicator F or C in the

instrument cluster.

Warning messages regarding, e.g.

engine, battery or brake system

Information messages

failure, are displayed together with

control indicator C and may be

Information messages regarding, e.g.

accompanied by a warning chime.

engine starting conditions, stop-start

Stop engine immediately and seek

system, parking brake application,

the assistance of a workshop.

central locking, steering wheel lock

etc. provide the current status of

Warning messages, e.g. "BATTERY

The central display in the

certain vehicle functions and

CHARGING FAULT" disappear from

Infotainment system displays the time

instructions for use.

the display automatically when the

and Infotainment system information.

cause of the fault has been remedied.

For further information, refer to the

Fault messages

Infotainment system manual.

Fuel economy messages

Fault messages regarding, e.g. fuel

filter, airbags, exhaust emissions etc.

Fuel economy messages provide tips

are displayed together with control

to improve fuel efficiency. Journeys

indicator F. Drive with caution and

can be saved in the system memory,

seek the assistance of a workshop as

enabling you to compare

soon as possible.

performances.

To remove fault messages, e.g.

Refer to Infotainment system manual

"CHECK INJECTION", from the

for further information.

display, press button on end of wiper

Fuel economy rating 3 93.

lever. After a few seconds the

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

● If the vehicle battery is not

Warning chimes

Engine oil level

charging 3 86.

Only one warning chime will sound at

If the minimum engine oil level is

● If engine lubrication is interrupted

a time.

reached, a message is displayed in

3 88.

the Driver Information Centre (DIC)

A corresponding message may also

● If AdBlue needs to be refilled or a

3 90 for 30 seconds after the engine

appear in the Driver Information

fault is present 3 123.

is started.

Centre (DIC) when a warning chime

is sounded.

● If the electronic key is outside of

Check oil level 3 147.

the detection range.

When starting the engine or whilst

Electronic key system 3 22,

driving:

Power button 3 116.

●

If seat belt is not fastened 3 49.

When the vehicle is parked and/or

●

During operation of the turn and

the driver's door is opened:

lane-change signals 3 99.

●

During illumination of certain

● If the key has been left in the

control indicators.

ignition.

●

If the parking assist detects an

● If the electronic key has been left

object 3 136.

in the card reader.

●

If the vehicle speed briefly

Electronic key system 3 22,

exceeds a set limit 3 133,

Power button 3 116.

3 136.

● If the vehicle is in an Autostop.

●

If a door or the bonnet is not

Stop-start system 3 119.

properly closed when vehicle

● If the exterior lights are on.

exceeds a certain speed.

●

If there is a fault in the brake

system 3 86.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

● trip odometer

The measurement can be restarted at

Trip computer

any time.

● average speed

The trip computer provides

● distance before service 3 81

Instantaneous consumption

information on driving data, which is

● clock 3 77, outside temperature

continually recorded and evaluated

The value is displayed after reaching

3 77

electronically.

a speed of 20 mph.

● cruise control and speed limiter

stored speed 3 133

Range

● fuel economy rating

The value is displayed after driving a

● Adblue percentage remaining

distance of 0.25 miles.

3 123

The range is calculated from the

● fault and information messages

current contents of the fuel tank and

the average consumption since the

Fuel used

last reset.

The range will not display if control

Displays the amount of fuel

indicator Y is illuminated in the

consumed since the last reset.

instrument cluster 3 89.

The measurement can be restarted at

any time by pressing and holding the

Trip odometer

Depending on vehicle, the following

button.

functions can be selected by pressing

Displays the distance driven since the

button repeatedly on end of wiper

Average consumption

last reset.

lever:

The value is displayed after driving a

The measurement can be restarted at

● odometer 3 80

any time.

distance of 0.25 miles.

● fuel used

Average consumption is displayed,

Trip odometer 3 80.

● average consumption

taking into consideration the distance

travelled and the fuel used since the

● instantaneous consumption

last reset.

● range

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

Average speed

Fuel economy rating (ecoScoring)

Unit of measurement

The value is displayed after driving a

If equipped, a rating of 0 to 100 is

To change the unit of measurement

distance of 0.25 miles.

shown in the Info-Display to help

for the duration of a journey:

evaluate fuel efficiency, based on

The average speed since the last

your driving style.

Vehicles with power button:

reset is displayed.

With ignition off, simultaneously press

Higher ratings indicate better fuel

The measurement can be restarted at

and hold button on end of wiper lever

economy.

any time.

and press the power button 3 116;

Tips to improve fuel economy are also

Interruptions in the journey with the

the central display flashes for approx.

given in the Info-Display. Journeys

ignition off are not included in the

10 seconds until the new unit is

can be saved in the system memory,

calculations.

displayed. Release button on end of

enabling you to compare

wiper lever when the display stops

Reset trip computer information

performances. Refer to Infotainment

flashing.

system manual for further

To reset the trip computer, select one

information.

Vehicles without power button:

of its functions then press and hold

Vehicle messages 3 91.

With ignition off, simultaneously press

the button on the end of the wiper

and hold button on end of wiper lever

lever.

Journey record

and switch on the ignition; the central

The following trip computer

display flashes for approx.

information will be reset:

When the engine is switched off, a

10 seconds until the new unit is

record of the last journey is shown in

● fuel used

displayed. Release button on end of

the Info-Display.

wiper lever when the display stops

● average consumption

The following information is

flashing.

● trip odometer

displayed:

When the engine is switched off, the

● average speed

● average fuel consumption

trip computer automatically returns to

The trip computer will reset

● total fuel consumption

the original unit of measurement.

automatically when the maximum

● trip odometer

value of any of the parameters is

exceeded.

● fuel saved in miles

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

Interruption of power supply

Control indicator & 3 90 illuminates in

Tachograph

the instrument cluster in the event of

If the power supply has been

a fault. Seek the assistance of a

interrupted or if the vehicle battery

workshop.

voltage has dropped too low, the

values stored in the trip computer will

be lost.

The tachograph is operated as

described in the operating

instructions supplied. Observe

regulations regarding use.

Notice

When a tachograph is fitted, the total

distance travelled may be shown

only on the tachograph and not in the

odometer within the instrument

display.

Odometer 3 80.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Lighting

Exit lighting

102

Lighting

Exterior lighting

Battery discharge protection

102

Light switch

Exterior lighting

Light switch

Automatic light control

High beam

Headlight flash

Headlight range adjustment

Headlights when driving

abroad

Daytime running lights

Adaptive forward lighting

Hazard warning flashers

Turn and lane-change signals ... 99

Front fog lights

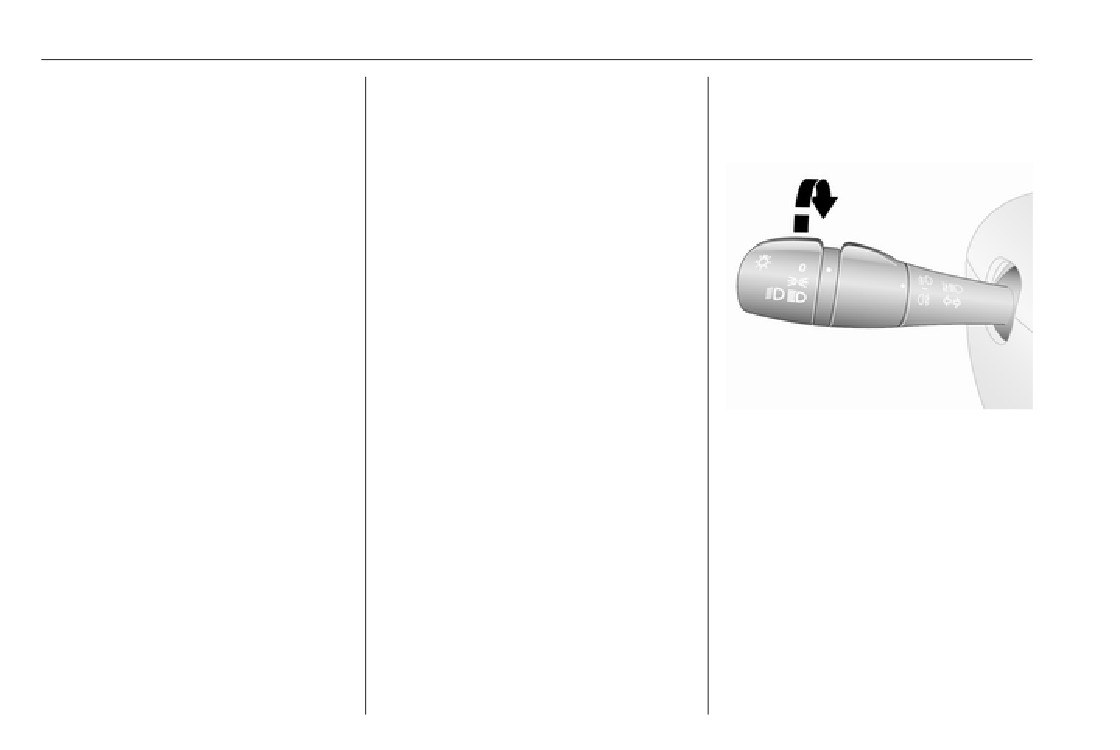

Turn outer switch:

Rear fog lights

: off

Reversing lights

: sidelights

Misted light covers

9P : headlights

Interior lighting

100

Instrument panel illumination

High beam control indicator P 3 89.

control

100

Low beam control indicator 9 3 89.

Interior lights

100

Load compartment lighting

101

Glove box lighting

101

Lighting features

101

Entry lighting

101

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Lighting

Daytime running lights 3 98.

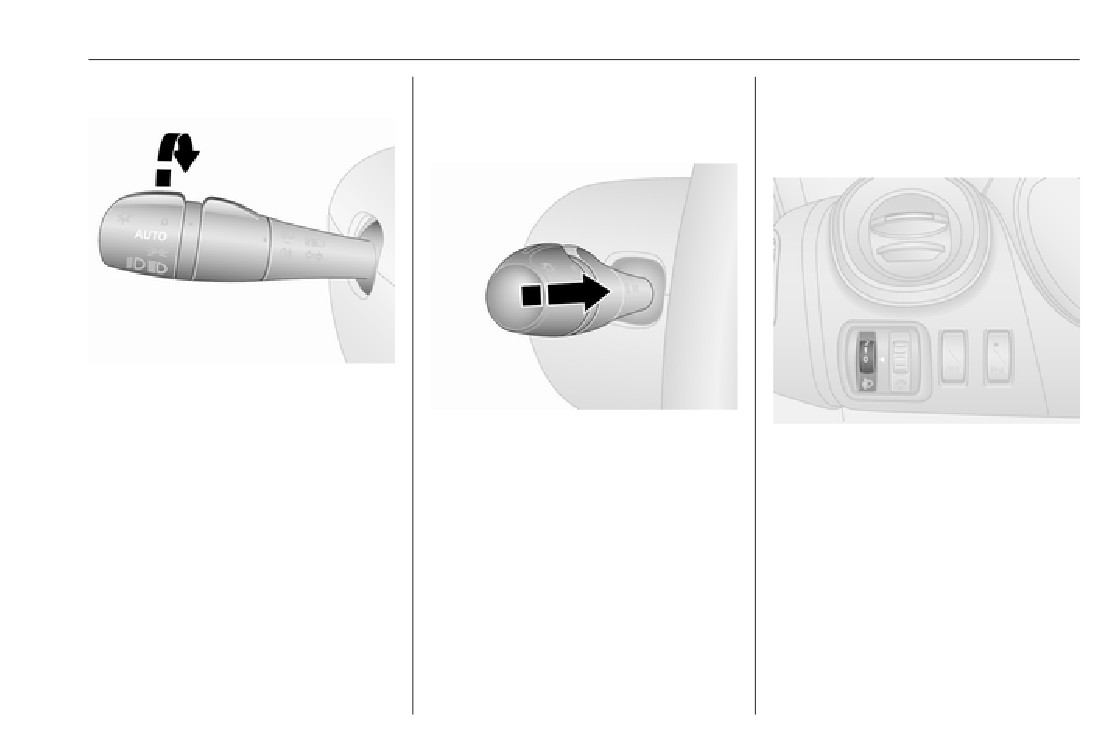

Automatic light control

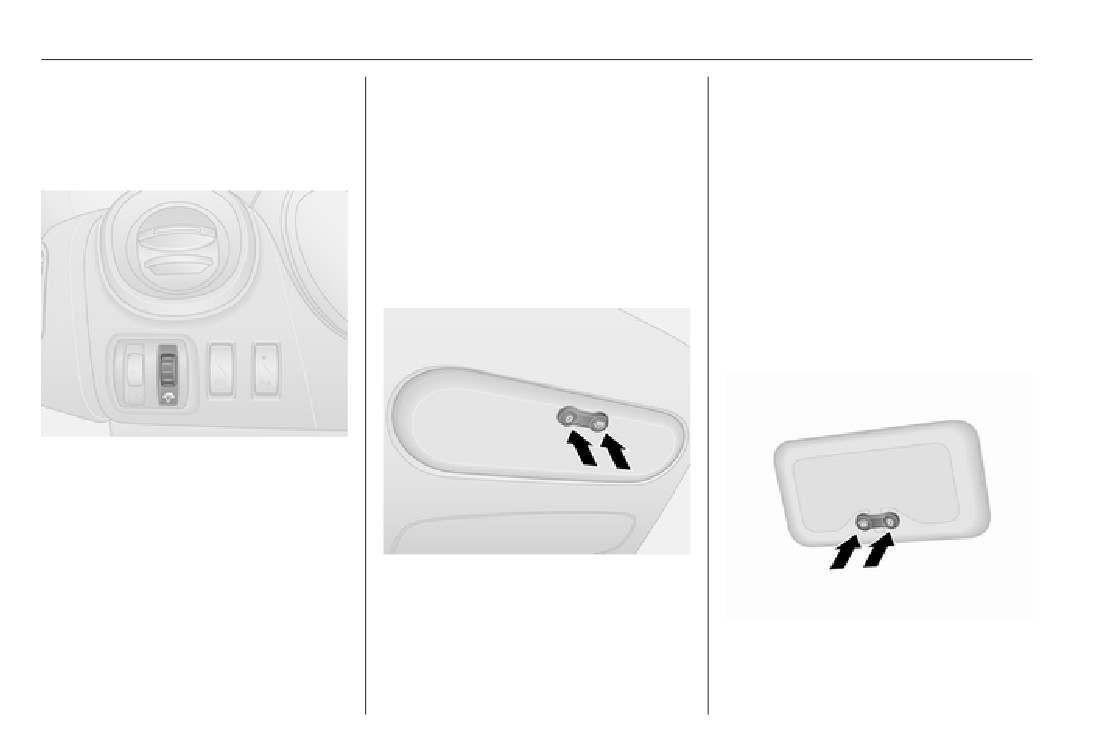

Headlight range adjustment

Manual headlight range

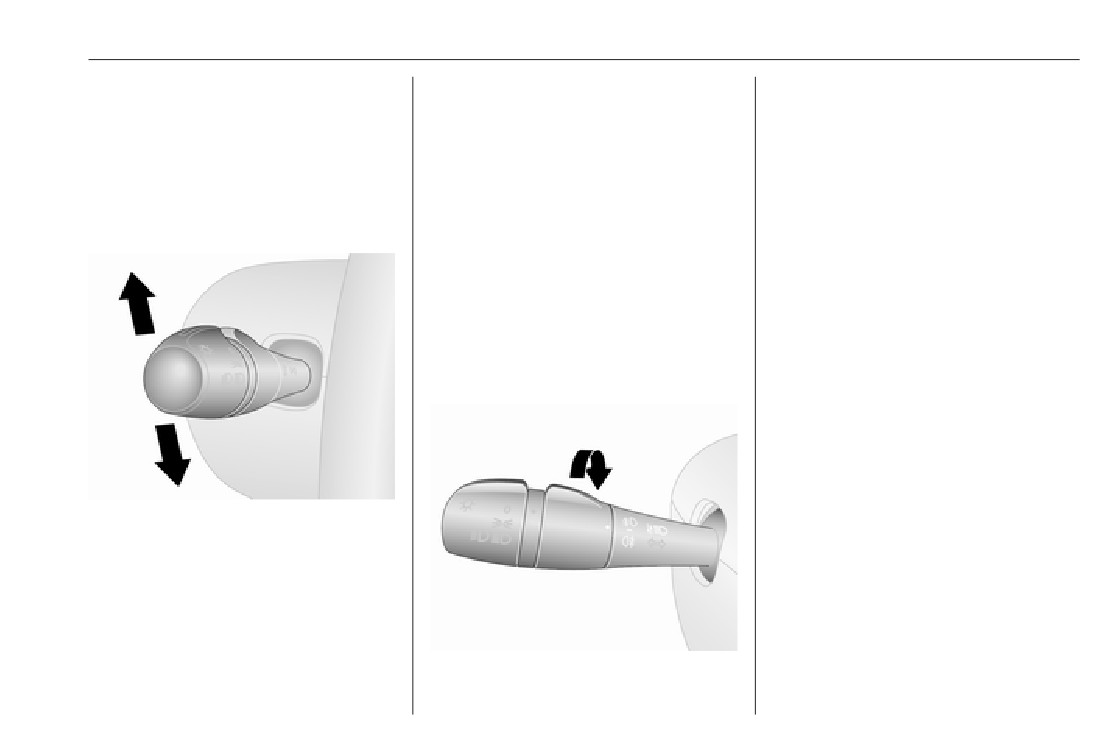

High beam

adjustment

AUTO : automatic light control

When the automatic light control

To switch from low to high beam,

function is activated and the engine is

Adapt headlight range to the vehicle

push lever.

running, the system switches

load to prevent dazzling of oncoming

between daytime running lights and

To switch back to low beam, push

traffic.

headlights depending on the external

lever again or pull.

Turn thumb wheel ? to required

lighting conditions.

position:

For reasons of safety, it is advisable

Headlight flash

0 : No load

to have the automatic light control

To activate the headlight flash, pull

4 : Loaded up to permissible

function activated.

lever.

maximum weight

Automatic headlight activation

During poor lighting conditions the

headlights are switched on.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Lighting

Using a screwdriver, turn the screw

Headlights when driving

Adaptive forward lighting

by a ¹/₄ turn towards the ] symbol to

abroad

lower the beams or towards the <

Cornering light

The asymmetrical headlight beam

symbol to raise the beams.

extends visibility at the edge of the

With the low beam switched on,

Ensure the headlight beams are

depending on the steering angle,

road at the passenger side.

returned to their original positions

vehicle speed and gear selected

However, when driving in countries

when required.

when cornering, the front fog light will

where traffic drives on the opposite

also switch on, to illuminate the

side of the road, adjust the headlights

corner of the road on the respective

to prevent dazzling of oncoming

Daytime running lights

side.

traffic.

Daytime running lights increase

visibility of the vehicle during daylight.

Adjustment

They are switched on automatically

Hazard warning flashers

when the ignition is switched on.

If required, the daytime running lights

can be deactivated via the

Infotainment system. For further

information, refer to Infotainment

system manual.

Automatic light control 3 97.

Open the bonnet 3 146 and identify

Operated with the ¨ button.

the marking (shown in the illustration)

beside each of the headlights.

For each headlight:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Lighting

In the event of hard braking, the

signal is deactivated. This will not

Front fog lights will only operate when

hazard warning flashers may turn on

happen when making a minor

the ignition and headlights are

automatically. Switch off by pressing

steering manoeuvre such as lane

switched on.

the ¨ button.

changing.

For three flashes, e.g. when changing

Rear fog lights

Turn and lane-change

lanes, move lever part way to first

Turn inner switch to position ø.

stop and then release.

signals

Rear fog light comes on together with

If the lever is moved past the first stop,

front fog lights and will only operate

the turn signal is switched on

when the ignition and headlights are

constantly. Switch the turn signal off

switched on.

manually by moving the lever to its

original position.

Reversing lights

Front fog lights

The reversing lights come on when

the ignition is on and reverse gear is

selected.

Misted light covers

The inside of the light covers may mist

lever up

: right turn signal

up briefly in poor, wet and cold

lever down : left turn signal

weather conditions, in heavy rain or

after washing. The mist disappears

Turn and lane-change signals are

quickly by itself; to help, switch on the

operational when engine is running

headlights.

and during an Autostop.

When the steering wheel is turned

back, the lever automatically returns

Turn inner switch to position >.

to its original position and the turn

-------------------------------------------------------------------------------------------------------------------------------------------------------------

100

Lighting

With the rocker switch in its central

Interior lighting

Interior lights

position, the light functions as a

Courtesy lights

courtesy light and illuminates when

Instrument panel

the front doors are opened.

illumination control

During entry and exit of the vehicle,

When the front doors are closed, the

depending on switch position the front

courtesy light extinguishes after a

and rear courtesy lights automatically

delay.

switch on, together with the foot well

lights, then switch off after a delay.

Rear courtesy lights

Front courtesy lights

The upper load compartment lights

can be set to illuminate when the side

or rear doors are opened, or switched

on constantly.

Brightness of the following lights can

be adjusted when the exterior lights

are on:

● instrument panel illumination

● info-display

Operate rocker switch:

● illuminated switches and

operation elements.

press 7

: off

centre posi-

: automatic switching

Turn thumb wheel b until the desired

tion

on and off

brightness is obtained.

press d

: on

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Lighting

101

Operate rocker switch:

Depending on vehicle, adjustable

Lighting features

LED spotlights, also including rocker

press 7

: off

switch, may be present.

centre posi-

: automatic switching

Entry lighting

tion

on and off

Bench seat lights

press d

: on

Welcome lighting

Depending on vehicle, bench seat

With the rocker switch in its central

light illuminates when the sliding side

Vehicle lights are switched on for a

position, the light functions as a

door is opened.

short time to facilitate locating the

courtesy light and illuminates when

vehicle when it is dark.

the side or rear doors are opened.

Load compartment lighting

Remote control operation

When the doors are closed, the

The lower load compartment lights

Lights switch on when unlocking the

courtesy light extinguishes after a

come on when the load compartment

vehicle with the remote control.

delay.

is opened.

Electronic key system operation

LED spotlights

Glove box lighting

The glovebox light comes on when

the glovebox is opened.

Press t. Press again to switch off.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

102

Lighting

The lighting is turned off immediately

Exit lighting

by switching on the ignition or turning

the light switch.

Battery discharge protection

To prevent discharge of the vehicle

battery when the ignition is switched

off, some interior lights may be

switched off automatically after some

time.

If equipped, headlights come on for

approx. 30 seconds after the vehicle

is parked and the system is activated.

Activating

1. Switch off ignition.

2. Remove ignition key.

3. Open driver's door.

4. Pull turn signal lever towards

steering wheel.

This action can be repeated up to four

times to a maximum period of

2 minutes.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Climate control

103

Heating will not be fully effective until

Climate control

Climate control systems

the engine has reached normal

operating temperature.

Heating and ventilation

system

Fan speed

Climate control systems

103

Heating and ventilation system 103

Adjust the air flow by switching the fan

Air conditioning system

104

to the desired speed.

Electronic climate control

system

105

Air distribution

Rear heating system

107

M : to head area

Rear air conditioning system ... 107

L : to head area and foot well

Auxiliary heater

108

K : to foot well

Air vents

112

J : to windscreen, front door

Adjustable air vents

112

windows and foot well

Fixed air vents

112

V : to windscreen and front door

Glovebox cooler

112

windows

Maintenance

113

Intermediate settings are possible.

Air intake

113

Controls for:

Pollen filter

113

● temperature

Demisting and defrosting the

Air conditioning regular

windows

operation

113

● fan speed

Service

113

● air distribution

● Set temperature control to

warmest level.

Heated rear window Ü 3 41.

● Set fan speed to highest level.

Temperature

● Set air distribution control to V.

red

: warm

● Switch on heated rear window Ü.

blue : cold

-------------------------------------------------------------------------------------------------------------------------------------------------------------

104

Climate control

● Open side air vents as required

Cooling (A/C)

Press

again to deactivate air

and direct them towards door

recirculation mode.

Press A/C to switch on cooling.

windows.

Activation is indicated by illumination

● For simultaneous warming of the

9 Warning

of the LED in the button. Cooling is

foot well, set air distribution

only functional when the engine is

control to J.

The exchange of fresh air is

running and climate control fan is

reduced in air recirculation mode.

Heated rear window 3 41.

switched on.

In operation without cooling, the

Press A/C again to switch off cooling.

air humidity increases, so the

Air conditioning system

The air conditioning system cools and

windows may mist up from inside.

dehumidifies (dries) the air when

The quality of the passenger

outside temperature is above a

compartment air deteriorates,

specific level. Therefore

which may cause the vehicle

condensation may form and drip from

occupants to feel drowsy.

under the vehicle.

In warm and very humid ambient air

If no cooling or drying is required,

conditions, the windscreen might mist

switch off the cooling system for fuel

up from outside when cold air is

saving reasons. Activated cooling

directed towards it. If windscreen

may inhibit an Autostop.

mists up from outside, activate

Stop-start system 3 119.

windscreen wiper and avoid the use

Notice

of air distribution settings J and V.

Air conditioning performance is

Maximum cooling

In addition to the heating and

reduced when ECO mode has been

ventilation system, the air

activated 3 114.

Briefly open the windows so that hot

conditioning system has controls for:

air can disperse quickly.

Air recirculation system

A/C : cooling

● Cooling A/C on.

: air recirculation

Press

to activate air recirculation

● Air recirculation system

on.

mode. Activation is indicated by

Heated seats 3 46.

illumination of the LED in the button.

● Set air distribution control to M.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Climate control

105

● Set temperature control to

The preselected temperature is

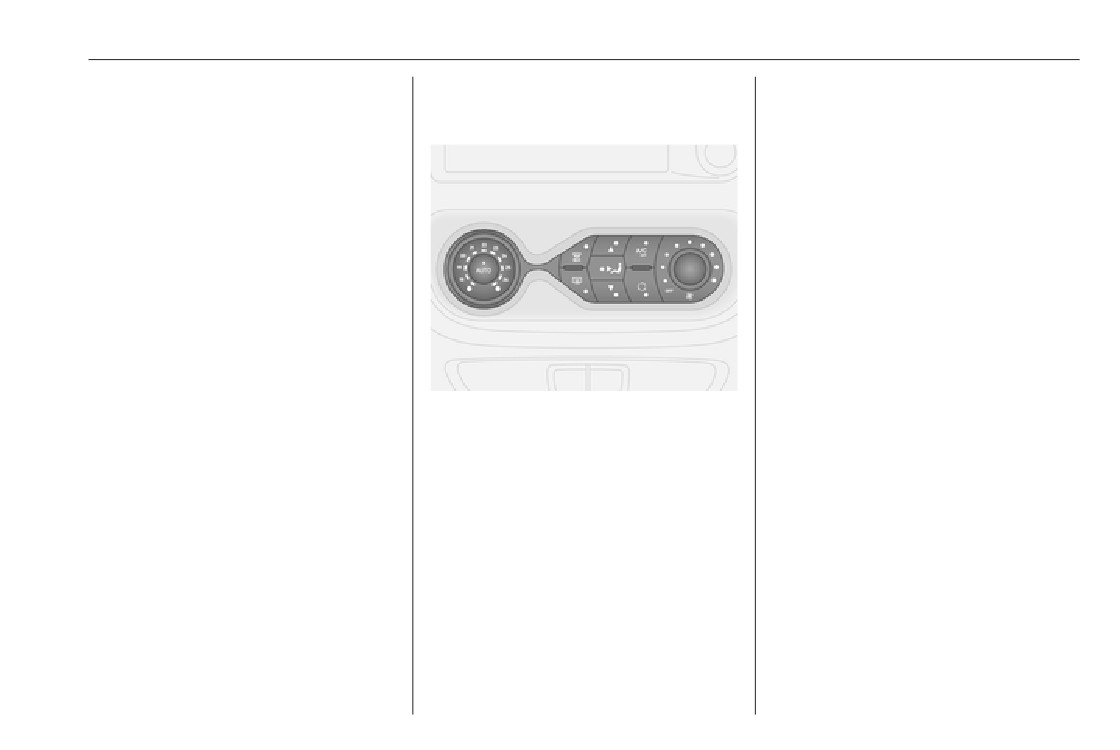

Electronic climate control

coldest level.

automatically regulated. In Automatic

system

mode, the fan speed and air

● Set fan speed to highest level.

distribution automatically regulate the

● Open all air vents.

air flow.

Demisting and defrosting the

The system can be manually adapted

windows

via the use of air distribution and air

flow controls.

●

Set temperature control to

Electronic climate control system is

warmest level.

only fully operational when the engine

●

Set fan speed to highest level.

is running.

●

Set air distribution control to V.

Automatic mode AUTO

●

Switch cooling A/C on.

Basic setting for maximum comfort:

●

Switch on heated rear window Ü.

● Switch on the fan.

●

Open side air vents as required

Controls for:

and direct them towards door

● Press AUTO; fan speed, air

● air distribution

windows.

distribution, cooling and air

● temperature

recirculation are regulated

●

For simultaneous warming of the

● fan speed

automatically.

foot well, set air distribution

control to J.

AUTO

: automatic mode

● Set the desired temperature.

: demisting and defrosting

Heated rear window 3 41.

● Open all air vents.

: heated rear window

To switch off the electronic climate

A/C OFF : switch off air conditioning

control system, switch off the fan.

: manual air recirculation

Temperature preselection

Heated rear window Ü 3 41, Heated

seats 3 46.

Temperatures can be set to the

desired value.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

106

Climate control

If the minimum temperature is set, the

Manual settings

Cooling A/C

climate control system runs at

Manually changing any of the

The air conditioning system cools and

maximum cooling.

following settings will deactivate

dehumidifies (dries) the air when

If the maximum temperature is set,

Automatic mode:

outside temperature is above a

the climate control system runs at

specific level. Therefore

maximum heating.

Fan speed Z

condensation may form and drip from

under the vehicle.

Demisting and defrosting the

Adjust the air flow manually by

windows

switching the fan to the desired

Notice

speed.

Air conditioning performance is

● Press Ê; LED illuminates in the

If the fan is switched off, the air

reduced when ECO mode has been

button when activated.

conditioning is also deactivated.

activated 3 114.

● Temperature, air distribution and

If no cooling or drying is required

cooling are regulated

Air distribution M

press A/C OFF to switch the cooling

automatically and the fan runs at

Press appropriate button for desired

system off, thus saving fuel. LED

high speed.

adjustment. LED illuminates in the

illuminates in the button.

● Switch on heated rear window Ü

button when activated.

To return to Automatic mode: Press

3 41.

R : to windscreen and front door

AUTO button.

To return to Automatic mode: press

windows

Ê or AUTO.

Air recirculation mode u

M : to head area

Notice

S : to foot well

Activate or deactivate manual air

If Ê is pressed while the engine is

recirculation mode with u. LED

Combinations of settings are possible

running, an Autostop will be inhibited

illuminates in the button when

by pressing two buttons until both

until Ê is pressed again.

activated.

LEDs are illuminated.

If Ê is pressed while the engine is in

To return to Automatic mode: Press

an Autostop, the engine will restart

AUTO button.

automatically.

Stop-start system 3 119.

Vauxhall Vivaro (2016 year). Manual - part 6
