In brief

Vehicle unlocking

Unlocking with electronic key

In brief

Unlocking with remote control

Initial drive information

Press the button on any exterior door

handle when the electronic key is

Press c to unlock the driver's door.

within range of the detection zone

Press again to unlock entire vehicle.

(approx. one metre of the front doors

or load compartment) and pull the

Open the doors by pulling the

handle to open.

handles.

- or -

Press

G; only the load

compartment is unlocked.

Press electronic key button c to

unlock all doors and the load

Radio remote control 3 20, Central

compartment.

locking system 3 23, Load

compartment 3 32, Unlocking with

Electronic key system 3 22.

manual key 3 23.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

7

Seat adjustment

Backrests inclination

Seat height

Longitudinal adjustment

Pull lever, adjust inclination and

Lever pumping motion:

release lever. Allow the backrest to

up

: seat higher

Pull handle, slide seat, release

engage. Do not lean on backrest

down : seat lower

handle.

when adjusting.

Seat position 3 43, Seat adjustment

Try to move the seat back and forth to

Seat position 3 43, Seat adjustment

3 44.

ensure that the seat is locked in place.

3 44.

Seat position 3 43, Seat adjustment

3 44.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8

In brief

Head restraint adjustment

Seat belt

Mirror adjustment

Interior mirror

Press release button, adjust height,

Pull out the seat belt and fasten in belt

engage.

buckle. The seat belt must not be

twisted and must fit close against the

To reduce dazzle, adjust the lever on

Head restraints 3 42.

body. The backrest must not be tilted

the underside of the mirror housing.

back too far (maximum approx. 25°).

Interior mirror, Wide view mirror

To unfasten belt, press red button on

3 38, Automatic anti-dazzle interior

belt buckle.

mirror 3 39.

Seat position 3 43, Seat belts

3 49, Airbag system 3 53.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

9

Exterior mirrors

Electric adjustment

Steering wheel adjustment

Manual adjustment

Select the relevant exterior mirror and

Unlock the lever, adjust the steering

adjust it.

wheel, then engage the lever and

Swivel mirror in required direction.

Convex exterior mirrors 3 37,

ensure it is fully locked.

The lower mirrors are not adjustable.

Electric adjustment 3 37, Folding

Do not adjust the steering wheel

Exterior mirrors 3 37.

exterior mirrors 3 38, Heated

unless vehicle is stationary and the

exterior mirrors 3 38.

steering wheel lock has been

released.

Airbag system 3 53, Ignition

positions 3 116.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10

In brief

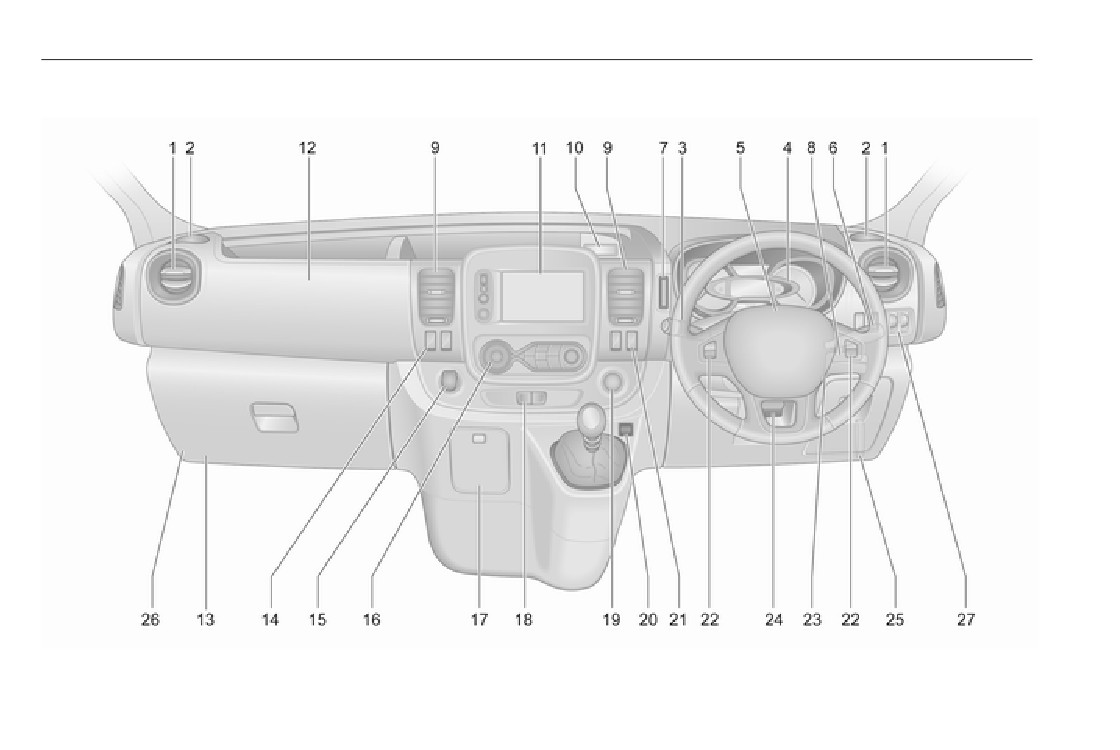

Instrument panel overview

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

12

In brief

Headlight range

Exterior lighting

adjustment

97

Instrument panel

illumination control

100

Auxiliary heater

108

Speed limiter

136

Vehicles with automatic light control:

AUTO : automatic light control:

Turn outer switch:

exterior lighting is switched

7

: off

on and off automatically

8

: sidelights

depending on external

9P : headlights

lighting conditions.

Lighting 3 96, Automatic light

control 3 97, Headlight warning

device 3 92, Adaptive forward

lighting 3 98.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

13

Front and rear fog lights

Headlight flash, high beam and

Turn and lane-change signals

low beam

Turn inner switch

lever up

: right turn signal

headlight flash : pull lever

lever down : left turn signal

> : front fog lights

ø : rear fog light

high beam

: push lever

Turn and lane-change signals

low beam

: push or pull lever

3 99.

Front fog lights 3 99, Rear fog light

3 99.

Automatic light control 3 97, High

beam 3 97, Headlight flash 3 97.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

14

In brief

Hazard warning flashers

Horn

Washer and wiper systems

Windscreen wiper

Operated with the ¨ button.

Press j.

Hazard warning flashers 3 98.

7

: off

AUTO or K : interval wiping or

automatic wiping with

rain sensor

1

: slow

2

: fast

Windscreen wiper 3 76, Wiper

blade replacement 3 153.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

15

Windscreen washer

Rear window wiper and washer

Climate control

system

Heated rear window

Pull lever.

Windscreen washer 3 76, Washer

Turn lever:

Heating is operated by pressing the

fluid 3 150.

7 : off

Ü button.

e : wiper

f : washer

Heated rear window 3 41.

Rear window wiper/washer 3 77,

Heated exterior mirrors

Washer fluid 3 150.

Pressing Ü also activates the heated

exterior mirrors.

Heated exterior mirrors 3 38.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

16

In brief

Demisting and defrosting the

Electronic climate control system

Transmission

windows

Manual transmission

Climate control system

● Press Ê. LED illuminates in the

button when activated.

● Temperature, air distribution and

Reverse: with the vehicle stationary,

● Air distribution to V.

wait 3 seconds after depressing

cooling are regulated

● Set temperature control to

automatically and the fan runs at

clutch pedal and then pull up the

warmest level.

high speed.

collar on the selector lever and

engage the gear.

● Set fan speed to highest level.

● Switch on heated rear window Ü

3 41.

If the gear does not engage, set the

● Cooling A/C on.

lever to neutral, release the clutch

● Heated rear window Ü on.

Electronic climate control system

pedal and depress again; then repeat

3 105.

Climate control system 3 103.

gear selection.

Manual transmission 3 128.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

17

Starting off

Starting the engine with key

Starting the engine with the power

button

Check before starting off

●

Tyre pressure and condition

3 164, 3 198.

●

Engine oil level and fluid levels

3 147.

●

All windows, mirrors, exterior

lighting and number plates are

free from dirt, snow and ice and

are operational.

●

Proper position of mirrors, seats

and seat belts 3 37, 3 43,

●

Turn key to position 1.

3 50.

Electronic key must be inside the

●

Move the steering wheel slightly

●

Brake function at low speed,

vehicle, either in the card reader or

to release the steering wheel

particularly if the brakes are wet.

the front passenger compartment.

lock.

● Move the steering wheel slightly

●

Operate clutch and brake pedal.

to release the steering wheel

●

Do not operate accelerator pedal.

lock.

●

Diesel engines: turn the key to

● Operate clutch and brake pedal.

position 2 for preheating and wait

● Do not operate accelerator pedal.

until control indicator !

extinguishes in the instrument

● Press START/STOP and

cluster.

release.

●

Turn key to position 3 and

● Engine starts after a short delay.

release.

Power button 3 116.

Starting the engine 3 118.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

18

In brief

Stop-start system

Parking

●

Close the windows.

●

Remove the ignition key from

9 Warning

the ignition switch. Turn the

steering wheel until the

●

Do not park the vehicle on an

steering wheel lock is felt to

easily ignitable surface. The

engage.

high temperature of the

exhaust system could ignite the

●

Lock the vehicle by pressing e on

surface.

the remote control 3 23.

●

Always apply parking brake

Activate the anti-theft alarm

without pressing release

system 3 35.

button. Apply as firmly as

●

The engine cooling fans may run

possible on a downhill slope or

after the engine has been

uphill slope. Depress brake

If the vehicle is at low speed or in

switched off 3 146.

pedal at the same time to

standstill and certain conditions are

reduce operating force.

fulfilled, activate an Autostop as

Caution

follows:

●

Switch off the engine.

● Depress the clutch pedal.

●

If the vehicle is on a level

After running at high engine

surface or uphill slope, engage

speeds or with high engine loads,

● Move the selector lever to

first gear. On an uphill slope,

operate the engine briefly at a low

neutral.

turn the front wheels away from

load or run in neutral for approx.

● Release the clutch pedal.

the kerb.

30 seconds before switching off, in

An Autostop is indicated when Ï

If the vehicle is on a downhill

order to protect the turbocharger.

illuminates in the instrument cluster

slope, engage reverse gear.

3 89.

Turn the front wheels towards

Keys, locks 3 19, Laying the vehicle

the kerb.

up for a long period of time 3 145.

To restart the engine, depress the

clutch pedal again.

Stop-start system 3 119.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------
