Vehicle care

141

2. Rotate bulb anticlockwise and

Front turn signal lights

remove from bulb holder.

3. Replace bulb.

4. Insert the bulb holder into the

reflector and rotate clockwise.

Tail lights

Tail lights, turn signal lights, brake

lights and reversing lights

2. Disconnect the electrical

connector from the bulb holder.

1. Rotate the bulb holder

3. Remove the bulb assembly

anticlockwise and remove.

anticlockwise and pull it straight

out.

4. Insert a new bulb assembly

straight into the lamp and rotate

clockwise.

5. Reconnect the electrical

connector.

1. Unscrew both screws.

2. Remove tail light assembly. Take

care that the cable duct remains in

position.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

142

Vehicle care

6. Insert bulb holder into the tail light

assembly and screw into place.

Connect wiring plug. Install tail

light assembly in body and tighten

screws. Close covers and

engage.

7. Switch on ignition, operate and

check all lights.

Side turn signal lights

To replace bulb, remove lamp

3. tail light / brake light 1

4. Rotate bulb holder anticlockwise.

housing:

turn signal light 2

tail light 3

reversing light (passenger side) /

rear fog light (driver's side) 4.

5. Remove bulb holder. Push bulb

1. Slide lamp to the front and remove

into socket slightly, rotate anti-

it out of the front wing with the rear

clockwise, remove and renew

end.

bulb.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

143

4. Insert bulb holder and turn

Number plate light

clockwise.

5. Insert front end into front wing,

slide forward and insert rear end.

Centre high-mounted brake

light

2. Turn bulb holder anticlockwise

and remove from housing.

1. Unscrew both screws.

2. Remove bulb housing

downwards, taking care not to pull

on the cable.

Rotate bulb holder anticlockwise

to disengage.

Have LEDs replaced by a workshop.

3. Remove bulb from bulb holder

and replace it.

4. Insert bulb holder into bulb

housing and turn clockwise.

5. Insert bulb housing and secure

using a screwdriver.

3. Pull bulb from bulb holder and

replace it.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

144

Vehicle care

Interior lights

Electrical system

Courtesy light, reading lights

Fuses

1. To remove, prise the opposite

Data on the replacement fuse must

side of the lamp switch using a

match the data on the defective fuse.

flat-blade screwdriver. (Be careful

There are two fuse boxes in the

not to make scratches.)

vehicle:

2. Remove the bulb.

● In the front left of the engine

3. Replace the bulb.

compartment.

4. Reinstall the lamp assembly.

● On the driver's side behind a

cover in the instrument panel.

Load compartment light

2. Remove bulb.

Before replacing a fuse, turn off the

3. Insert new bulb.

respective switch and the ignition.

4. Install lamp.

Instrument panel

illumination

Have bulbs replaced by a workshop.

1. Prise the lamp out with a

screwdriver.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

145

There are different kinds of fuses in

Fuse extractor

the vehicle. Some types of fuses in

A fuse extractor may be located in the

the vehicle may differ from the ones

fuse box in the engine compartment.

illustrated.

Place the fuse extractor on the

various types of fuse from the top, and

withdraw fuse.

Depending on the type of fuse, a

blown fuse can be recognized by its

melted wire. Do not replace the fuse

until the cause of the fault has been

remedied.

Some functions are protected by

several fuses.

Fuses may also be inserted without

existence of a function.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

146

Vehicle care

Engine compartment fuse

No. Circuit

box

1

Tailgate

2

-

3

Heated rear window

4

Heated exterior mirror

5

Sunroof

6

Transmission control module

7

Engine control module

8

-

9

ABS

The fuse box is in the front left of the

10

Body control module, voltage

engine compartment.

Disengage the cover, lift it upwards

11

Rear view camera

and remove.

12

-

13

-

14

Engine control module/Trans-

mission control module

15

Injection system/Starter

16

Fuel pump

17

Engine control module1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

147

No. Circuit

No. Circuit

After having changed defective fuses

close the fuse box cover and press

18

Engine control module2

34

High beam right

until it engages.

19

Injection system/Ignition

35

-

If the fuse box cover is not closed

correctly, malfunction may occur.

20

Air conditioning system

36

Rear wiper

21

Battery sensor

37

Cornering light left

Instrument panel fuse box

22

Electric steering column lock

38

Washer system

23

Cooling fan low

39

Cornering light right

24

-

40

-

25

Exterior mirror switch

41

-

26

Engine control module/Manual

42

Starter 2

transmission automated

43

Instrument panel

module

44

Manual transmission auto-

27

Fuel system

mated

28

Brake switch

45

Starter 1

The fuse box is located on the driver's

29

Seat occupancy recognition

46

ABS

side behind a cover in the instrument

30

Headlight range adjustment

panel.

47

Cooling fan high

To open the compartment, compress

31

Horn

48

Front wiper

the locking tabs, fold cover down and

32

Front fog light

remove.

49

Body control module/Retained

33

High beam left

power off

-------------------------------------------------------------------------------------------------------------------------------------------------------------

148

Vehicle care

No. Circuit

No. Circuit

1

Onstar

17

forward collision alert

2

Air conditioning system

18

Instrument panel

3

Instrument panel

19

Forward collision alert indication

4

Transmission control module

20

Headlight range adjustment

5

Infotainment

21

Power windows, front

6

Body control module

22

Power windows, rear

7

Rear parking assist

23

-

8

Data link connection

24

Manual transmission auto-

mated module

9

Electric steering column lock

25

Auxiliary power outlet

10

Sensing and Diagnostic module

26

Sunroof

11

DC transformer

27

-

12

-

28

Body control module 8

13

Electronic toll collection system

29

Body control module 7

14

Linear power module

30

Body control module 6

15

Central locking system/Ignition

system

31

Body control module 5

16

Ignition system

32

Body control module 4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

149

No. Circuit

Vehicles with spare wheel

Vehicle tools

33

Body control module 3

Tools

34

Body control module 2

Vehicles with tyre repair kit

35

Body control module 1

-

36

Ignition system

37

Steering wheel control LED

38

-

39

Logistic/DC transformer

40

Power window, driver

The jack and the vehicle tools are in

the load compartment.

41

Blower

42

Seat heating, front

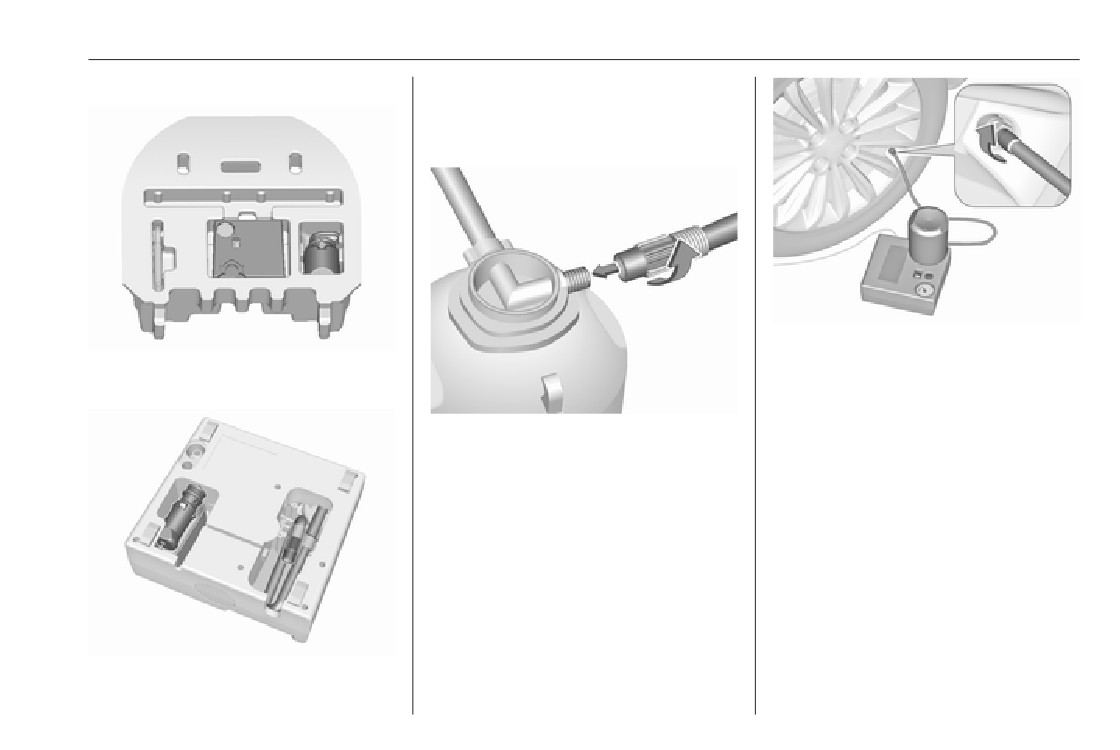

The vehicle tools are in the

43

Air conditioning module

compartment under the floor cover in

the load compartment, together with

44

Heated steering wheel

the tyre repair kit.

45

Body control module 2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

150

Vehicle care

Wheels and tyres

Tyre designations

Directional tyres

E.g. 195/55 R 16 95 H

Directional tyres must be mounted so

Tyre condition, wheel condition

195 : tyre width, mm

that they rotate in the correct

55

: cross-section ratio (tyre height

direction. The proper rotation

Drive over edges slowly and at right

direction is indicated by a symbol

to tyre width), %

angles if possible. Driving over sharp

(e.g. an arrow) on the sidewall.

R

: belt type: Radial

edges can cause tyre and wheel

RF : type: RunFlat

damage. Do not trap tyres on the kerb

16

: wheel diameter, inches

Tyre pressure

when parking.

91

: load index e.g. 91 is equivalent

Check the pressure of cold tyres at

Regularly check the wheels for

to 615 kg

least every 14 days and before any

damage. Seek the assistance of a

H

: speed code letter

long journey.

workshop in the event of damage or

unusual wear.

Speed code letter:

Do not forget the spare wheel.

We recommend not swapping the

Q : up to 100 mph

This also applies to vehicles with tyre

front wheels with the rear wheels and

S : up to 112 mph

pressure monitoring system.

T

: up to 118 mph

vice versa, as this can affect vehicle

Unscrew the valve cap.

H : up to 130 mph

stability. Always use less worn tyres

V : up to 150 mph

on the rear axle.

W : up to 168 mph

Winter tyres

Choose a tyre appropriate for the

maximum speed of your vehicle.

Winter tyres improve driving safety at

temperatures below 7 °C and should

The maximum speed is achievable at

therefore be fitted on all wheels.

kerb weight with driver (75 kg) plus

125 kg payload. Optional equipment

In accordance with country-specific

could reduce the maximum speed of

regulations, affix the speed sticker in

the vehicle.

the driver's field of view.

Performance 3 178.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

151

Vehicle care

Tyre pressure 3 182.

The driver is responsible for correct

Temperature dependency

adjustment of tyre pressure.

The tyre pressure information label

The tyre pressure depends on the

on the driver's door frame indicates

temperature of the tyre. During

the original equipment tyres and the

9 Warning

driving, tyre temperature and

correspondent tyre pressures.

pressure increase. Tyre pressure

If the pressure is too low, this can

The tyre pressure data refers to cold

values provided on the tyre

result in considerable tyre warm-

tyres. It applies to summer and winter

information label and tyre pressure

up and internal damage, leading to

tyres.

chart are valid for cold tyres, which

tread separation and even to tyre

The ECO tyre pressure serves to

means at 20 °C.

blow-out at high speeds.

achieve the smallest amount of fuel

The pressure increases by nearly

consumption possible.

1.5 psi for a 10 °C temperature

9 Warning

increase. This must be considered

Incorrect tyre pressures will impair

safety, vehicle handling, comfort and

when warm tyres are checked.

For specific tyres the

fuel economy and will increase tyre

The tyre pressure value displayed in

recommended tyre pressure as

wear.

the Driver Information Centre shows

shown in the tyre pressure table

Tyre pressures differ depending on

the real tyre pressure. A cooled down

may exceed the maximum tyre

various options.

tyre will show a decreased value,

pressure as indicated on the tyre.

which does not indicate an air leak.

For the correct tyre pressure value,

Never exceed the maximum tyre

follow the procedure below:

pressure as indicated on the tyre.

Tyre pressure monitoring

● Identify the engine identifier

If the tyre pressure must be reduced

code. Engine data 3 177.

system

or increased, switch off ignition. After

● Identify the respective tyre.

The tyre pressure monitoring system

adjusting tyre pressure switch on

checks the pressure of all four tyres

For the tyres approved for your

ignition and select the relevant setting

once a minute when vehicle speed

vehicle, refer to the EEC Certificate of

on the page Tyre Load in the Driver

exceeds a certain limit.

Conformity provided with your vehicle

Information Centre 3 73.

or other national registration

documents.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

152

Vehicle care

System status and pressure warnings

Caution

are displayed by a message with the

corresponding tyre flashing in the

Tyre pressure monitoring system

Driver Information Centre.

warns only about low tyre pressure

The system considers the tyre

condition and does not replace

temperature for the warnings.

regular tyre maintenance by the

driver.

Temperature dependency 3 150.

All wheels must be equipped with

pressure sensors and the tyres must

have the prescribed pressure.

Notice

Press MENU to select the Vehicle

In countries where the tyre pressure

Information MenuX

monitoring system is legally

required, the use of wheels without

pressure sensors will invalidate the

vehicle type approval.

The current tyre pressures can be

shown in the Vehicle Information

Menu in the Driver Information

A detected low tyre pressure

Centre.

condition is indicated by the control

The menu can be selected by

indicator w 3 71.

pressing the buttons on the turn

If w illuminates, stop as soon as

signal lever.

possible and inflate the tyres as

recommended 3 182.

Turn the adjuster wheel to select the

tyre pressure monitoring system.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

153

Vehicle care

If w flashes for 60-90 seconds then

The use of commercially-available

The Tyre Load menu only appears if

illuminates continuously, there is a

liquid tyre repair kits can impair the

the vehicle is in a standstill and the

fault in the system. Consult a

function of the system. Factory-

parking brake is applied. On vehicles

workshop.

approved repair kits can be used.

with automatic transmission the

selector lever has to be in P.

After inflating, some driving may be

Operating electronic devices or being

required to update the tyre pressure

close to facilities using similar wave

values in the Driver Information

frequencies could disrupt the tyre

Centre. During this time w may

pressure monitoring system.

illuminate.

Each time the tyres are replaced, tyre

If w illuminates at lower temperatures

pressure monitoring system sensors

and extinguishes after some driving,

must be dismounted and serviced.

this could be an indicator for

For the screwed sensor; replace

approaching a low tyre pressure

valve core and sealing ring. For the

condition. Check tyre pressure.

clipped sensor; replace complete

valve stem.

Vehicle messages 3 79.

If the tyre pressure must be reduced

Vehicle loading status

or increased, switch off ignition.

Adjust tyre pressure to load condition

Select:

Only mount wheels with pressure

according to the tyre information label

sensors, otherwise the tyre pressure

● Lo for comfort pressure up to

or tyre pressure chart 3 182, and

will not be displayed and w

3 people.

select the appropriate setting in the

illuminates continuously.

● Eco for Eco pressure up to

menu Tyre Load in the Driver

A temporary spare wheel is not

Information Centre, Vehicle

3 people.

equipped with pressure sensors. The

Information Menu 3 73. This setting is

● Hi for full loading.

tyre pressure monitoring system is

the reference for the tyre pressure

not operational for these tyres.

warnings.

Control indicator w illuminates. For

the further three tyres, the system

remains operational.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

155

matched to the left side rear

speedometer as well as the nominal

wheel, and the tyre pressure

tyre pressure and to make other

sensor matching process is no

vehicle modifications.

longer active.

After converting to a different tyre

13. Turn off the ignition.

size, have the label with tyre

pressures replaced.

14. Set all four tyres to the

recommended air pressure level

as indicated on the tyre

9 Warning

information label.

Use of unsuitable tyres or wheels

15. Ensure the tyre loading status is

may lead to accidents and will

set according to the selected

invalidate the vehicle type

pressure 3 73.

The legally permissible minimum

approval.

tread depth (1.6 mm) has been

Tread depth

reached when the tread has worn

Wheel covers

Check tread depth at regular

down as far as one of the tread wear

Wheel covers and tyres that are

intervals.

indicators (TWI). Their position is

factory approved for the respective

indicated by markings on the

Tyres should be replaced for safety

vehicle and comply with all of the

sidewall.

reasons at a tread depth of 2-3 mm

relevant wheel and tyre combination

(4 mm for winter tyres).

Tyres age, even if they are not used.

requirements must be used.

We recommend tyre replacement

For safety reasons it is recommended

If the wheel covers and tyres used are

every 6 years.

that the tread depth of the tyres on

not factory approved, the tyres must

one axle should not vary by more than

not have a rim protection ridge.

2 mm.

Changing tyre and wheel

Wheel covers must not impair brake

size

cooling.

If tyres of a different size than those

fitted at the factory are used, it may be

necessary to reprogramme the

-------------------------------------------------------------------------------------------------------------------------------------------------------------

156

Vehicle care

If you have a flat tyre:

9 Warning

9 Warning

Apply the parking brake and engage

first gear or reverse gear.

Use of unsuitable tyres or wheel

Damage may lead to tyre blowout.

covers could lead to sudden

pressure loss and thereby

Tyre chains are only permitted on

accidents.

tyres of size 165/65 R14.

Tyre chains are not permitted on tyres

Tyre chains

of size 185/55 R15 and 195/45 R16.

The use of tyre chains is not permitted

on the temporary spare wheel.

Tyre repair kit

Minor damage to the tyre tread can be

repaired with the tyre repair kit.

Do not remove foreign bodies from

The tyre repair kit is in the tool box

the tyres.

under the floor cover in the load

Tyre damage exceeding 4 mm or that

compartment.

is at the tyre's sidewall cannot be

repaired with the tyre repair kit.

Tyre chains are only permitted on the

9 Warning

front wheels.

Always use fine mesh chains that add

Do not drive faster than 50 mph.

no more than 10 mm to the tyre tread

Do not use for a lengthy period.

and the inboard sides (including chain

lock).

Steering and handling may be

affected.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

157

1. Open the floor cover.

3. Remove the electrical connection

cable and air hose from the

storage compartments on the

underside of the compressor.

6. Unscrew valve cap from defective

tyre.

2. Remove the compressor and the

sealant bottle.

7. Screw the filler hose to the tyre

valve.

4. Screw the compressor air hose to

8. The switch on the compressor

the connection on the sealant

must be set to J.

bottle.

9. Connect the compressor plug to

5. Fit the sealant bottle into the

the power outlet or cigarette

retainer on the compressor.

lighter socket.

Set the compressor near the tyre

To avoid discharging the battery,

in such a way that the sealant

we recommend running the

bottle is upright.

engine.

Content      ..     7      8      9      10     ..
