Vehicle care

175

2. Push bulb into socket slightly,

Right-hand side

rotate anticlockwise, remove and

renew bulb.

3. Insert bulb holder in reflector,

rotate clockwise to engage.

Tail lights

Left-hand side

2. First disengage cover by inserting

a screwdriver at the recess. Then

1. Remove the storage door and the

disengage cover at the front and

tyre repair kit.

upper side. Remove cover.

1. Disengage both covers at the

respective outer side by inserting

a screwdriver. Remove both

covers and unscrew screws.

Remove the panel.

2. Remove the cover.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

176

Vehicle care

4. Remove bulb holder. Remove

Centre high-mounted brake

and renew bulb.

light

5. Insert bulb holder into the tail light

assembly. Close covers and

engage.

6. Switch on ignition, operate and

check all lights.

Side turn signal lights

3. Tail/Stop light (1)

Turn signal light (2)

Back-up lamp (3)

If the centre high-mounted brake light

does not operate, have it checked by

a workshop.

If the lights do not operate, have them

checked by a workshop.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

177

3. Insert new bulb.

Number plate light

Interior lights

4. Install light.

Courtesy lights

1. To remove it, prise the opposite

side of the light switch using a flat-

blade screwdriver.

2. Remove the bulb.

3. Replace the bulb.

4. Reinstall the light assembly.

Load compartment light

1. Prise the light out with a

screwdriver.

2. Remove bulb housing

downwards, taking care not to pull

on the cable.

Rotate bulb holder anticlockwise

to disengage.

3. Remove bulb from holder and

renew bulb.

4. Insert bulb holder in bulb housing

and rotate clockwise.

1. Prise the light out with a

screwdriver.

5. Insert bulb housing and secure

using a screwdriver.

2. Remove bulb.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

178

Vehicle care

Fuse extractor

Electrical system

A fuse extractor may be located in the

Fuses

fuse box in the engine compartment.

Data on the replacement fuse must

Place the fuse extractor on the

match the data on the defective fuse.

various types of use from the top or

In a box above the positive terminal of

side, and withdraw fuse.

the battery are some main fuses. If

necessary have them changed by a

Engine compartment fuse

workshop.

box

Before replacing a fuse, turn off the

respective switch and the ignition.

A blown fuse can be recognised by its

melted wire. Do not replace the fuse

until the cause of the fault has been

remedied.

Some functions are protected by

several fuses.

Fuses may also be inserted without

existence of a function.

Notice

Not all fuse box descriptions in this

manual may apply to your vehicle.

The fuse box is in the engine

When inspecting the fuse box, refer

compartment.

Mini Fuses

to the fuse box label.

Disengage the cover, lift it upwards

and remove.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

179

No. Circuit

Sunroof

Engine control module

Air conditioning system

Exterior mirrors

Fuel pump

Front fog lamp

J-cases Fuses

Cooling fan

No. Circuit

Electrical brake control module

Intelligent battery sensor

Ignition coil/Engine control

Front wiper

module

Power module

Washer pump

Transmission control module

Power terminal of instrument

Headlamp actuator (right hand)

panel fuse box

Engine control sensors

Headlight levelling

Rear window wiper

Fuel heater

Ignition

Heated rear window

Ignition

Headlight actuator (left hand)

Cooling fan

Exhaust system

Heated exterior mirrors

Cooling fan

Left-hand high beam

Engine control module/Glow

Right-hand high beam

plug

Seat heating

Engine control module

Starter

Transmission control module

Horn

-------------------------------------------------------------------------------------------------------------------------------------------------------------

180

Vehicle care

Instrument panel fuse box

No. Circuit

Body control module

Interior fuse block is located on the

Ignition switch

underside of the driver's side

instrument panel.

Safety diagnosis module

To access the fuses, remove the

Data link connector

storage.

Climate control

To remove the storage, open and pull

it.

Tailgate

Parking assist

Lane departure warning/Interior

Mini Fuses

mirror

Adaptive forward lighting

Power window driver

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

181

No. Circuit

Load compartment fuse box

Rain sensor

Instrument panel cluster

Body control module/Regulated

Infotainment system/Chime

voltage control

Display/Infotainment system

Steering wheel

Onstar UHP/DAB

AC accessory power outlet/

Automatic transmission

S/B Fuses

Cigarette lighter/DC accessory

No.

Circuit

power outlet

Spare

Located in the left side of rear

Power windows front

compartment.

Spare

Power windows rear

To access the fuses, remove the

Spare

cover.

Logistic mode

Instrument panel cluster/Auxil-

Spare

iary heater/Clutch switch

Spare

Adaptive forward lighting/

Voltage converter/Headlamp

Spare

switch

Spare

-------------------------------------------------------------------------------------------------------------------------------------------------------------

182

Vehicle care

No. Circuit

Seat, lumbar support, driver

Interior mirror/Rear view

camera

Seat, lumbar support,

passenger

LPG system

Amplifier

S/B Fuses

Trailer socket

No. Circuit

All-wheel drive

Power seat driver

Spare

Power seat passenger

LPG system

Trailer control module

Spare

Voltage converter

Spare

Battery

Spare

Headlight washer

Trailer control module

Spare

Heated steering wheel

Spare

Trailer socket

Mini Fuses

Spare

Water in fuel sensor

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

183

Vehicles with spare wheel

Vehicle tools

Wheels and tyres

Tools

Tyre condition, wheel condition

Vehicles with tyre repair kit

Drive over edges slowly and at right

angles if possible. Driving over sharp

edges can cause tyre and wheel

damage. Do not trap tyres on the kerb

when parking.

Regularly check the wheels for

damage. Seek the assistance of a

workshop in the event of damage or

unusual wear.

The jack and the tools are in a storage

compartment in the load

Winter tyres

compartment above the spare wheel.

Winter tyres improve driving safety at

Wheel changing 3 193, spare wheel

temperatures below 7 °C and should

The tools and tyre repair kit are in the

3 195.

therefore be fitted on all wheels.

right side of the load compartment.

All tyre sizes are permitted as winter

3 190.

tyres 3 217.

In accordance with country-specific

regulations, affix the speed sticker in

the driver's field of view.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

184

Vehicle care

Directional tyres

The tyre pressure information label

Tyre designations

on the left or right door frame

E.g. 215/60 R 16 95 H

Fit directional tyres such that they roll

indicates the original equipment tyres

215 : tyre width, mm

in the direction of travel. The rolling

and the correspondent tyre

: cross-section ratio (tyre height

direction is indicated by a symbol

pressures.

to tyre width), percentage

(e.g. an arrow) on the sidewall.

The tyre pressure data refers to cold

: belt type: Radial

tyres. It applies to summer and winter

RF : type: RunFlat

Tyre pressure

tyres.

: wheel diameter, inches

Check the pressure of cold tyres at

Always inflate the spare tyre to the

: load index e.g. 95 is equivalent

least every 14 days and before any

pressure specified for full load.

to 690 kg

long journey. Do not forget the spare

: speed code letter

The ECO tyre pressure serves to

wheel. This also applies to vehicles

achieve the smallest amount of fuel

Speed code letter:

with tyre pressure monitoring system.

consumption possible.

Q : up to 100 mph

Unscrew the valve cap.

Incorrect tyre pressures will impair

S : up to 112 mph

safety, vehicle handling, comfort and

: up to 118 mph

fuel economy and will increase tyre

H : up to 130 mph

wear.

V : up to 150 mph

Tyre pressures differ depending on

W : up to 168 mph

various options. For the correct tyre

Choose a tyre appropriate for the

pressure value, follow the procedure

maximum speed of your vehicle.

below:

The maximum speed is achievable at

1. Identify the engine identifier code.

kerb weight with driver (75 kg) plus

Engine data 3 212.

125 kg payload. Optional equipment

2. Identify the respective tyre.

could reduce the maximum speed of

The tyre pressure tables show all

the vehicle.

possible tyre combinations 3 217.

Performance 3 213.

Tyre pressure 3 217.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

185

For the tyres approved for your

Temperature dependency

Caution

vehicle, refer to the EEC Certificate of

The tyre pressure depends on the

Conformity provided with your vehicle

temperature of the tyre. During

Tyre pressure monitoring system

or other national registration

driving, tyre temperature and

warns only about low tyre pressure

documents.

pressure increase. Tyre pressure

condition and does not replace

The driver is responsible for correct

values provided on the tyre

regular tyre maintenance by the

adjustment of tyre pressure.

information label and tyre pressure

driver.

chart are valid for cold tyres, which

9 Warning

means at 20 °C.

All wheels must be equipped with

pressure sensors and the tyres must

The pressure increases by nearly

If the pressure is too low, this can

have the prescribed pressure.

1.5 psi for a 10 °C temperature

result in considerable tyre warm-

increase. This must be considered

Notice

up and internal damage, leading to

when warm tyres are checked.

In countries where the tyre pressure

tread separation and even to tyre

blow-out at high speeds.

The tyre pressure value displayed in

monitoring system is legally

the Driver Information Centre shows

required, the use of wheels without

the real tyre pressure. A cooled down

pressure sensors will invalidate the

9 Warning

tyre will show a decreased value,

vehicle type approval.

which does not indicate an air leak.

The current tyre pressures can be

For specific tyres the

shown in the Vehicle Information

recommended tyre pressure as

Tyre pressure monitoring

Menu in the Driver Information

shown in the tyre pressure table

Centre.

may exceed the maximum tyre

system

pressure as indicated on the tyre.

The menu can be selected by the

The tyre pressure monitoring system

Never exceed the maximum tyre

buttons on the turn signal lever.

checks the pressure of all four tyres

pressure as indicated on the tyre.

once a minute when vehicle speed

exceeds a certain limit.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

186

Vehicle care

System status and pressure warnings

If w flashes for 60-90 seconds and

are displayed by a message with the

then illuminates continuously, there is

corresponding tyre flashing in the

a fault in the system. Consult a

Driver Information Centre.

workshop.

The system considers the tyre

After inflating, driving may be

temperature for the warnings.

required to update the tyre pressure

values in the Driver Information

Temperature dependency 3 184.

Centre. During this time w may

illuminate.

If w illuminates at lower temperatures

and extinguishes after some driving,

this could be an indicator for

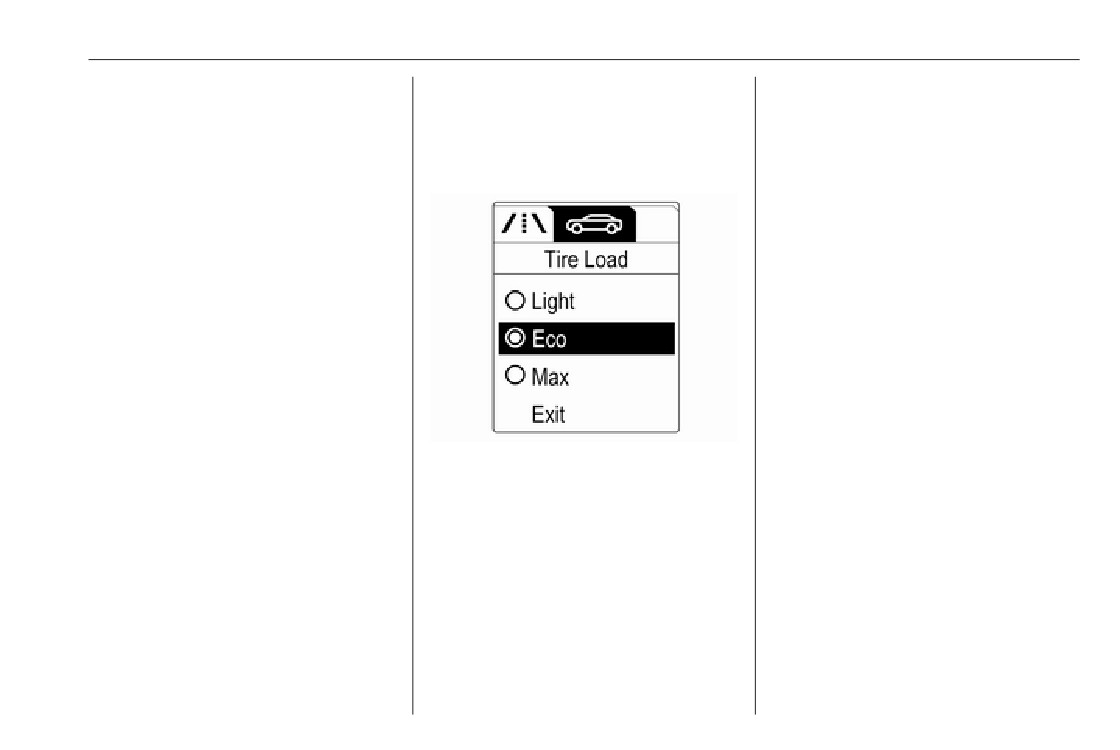

Press MENU to select the Vehicle

approaching a low tyre pressure

Information Menu

condition. Check tyre pressure.

Vehicle messages 3 93.

If the tyre pressure shall be reduced

or increased, switch off ignition.

Only mount wheels with pressure

sensors, otherwise the tyre pressure

A detected low tyre pressure

will not be displayed and w

condition is indicated by the control

illuminates continuously.

indicator w 3 86.

A temporary spare wheel is not

equipped with pressure sensors. The

If w illuminates, stop as soon as

tyre pressure monitoring system is

possible and inflate the tyres as

not operational for these wheels.

recommended 3 217.

Control indicator w illuminates. For

Turn the adjuster wheel to select the

the further three wheels the system

tyre pressure monitoring system.

remains operational.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

187

The use of commercially available

The Tyre Load menu only appears if

Tyre pressure sensor matching

liquid tyre repair kits can impair the

the vehicle is in a standstill and the

process

function of the system. Factory-

parking brake is applied. On vehicles

approved repair kits can be used.

with automatic transmission the

Each tyre pressure sensor has a

selector lever has to be in P.

unique identification code. The

Operating electronic devices or being

identification code must be matched

close to facilities using similar wave

to a new wheel position after rotating

frequencies could disrupt the tyre

the wheels or exchanging the

pressure monitoring system.

complete wheel set and if one or more

Each time the tyres are replaced, tyre

tyre pressure sensors were replaced.

pressure monitoring system sensors

The tyre pressure sensor matching

must be dismounted and serviced.

process should also be performed

For the screwed sensor, replace

after replacing a spare wheel with a

valve core and sealing ring. For

road wheel containing the tyre

clipped sensor, replace complete

pressure sensor.

valve stem.

The malfunction light w and the

warning message or code should go

Vehicle loading status

off at the next ignition cycle. The

Adjust tyre pressure to load condition

Select:

sensors are matched to the wheel

according to tyre information label or

positions, using a relearn tool, in the

● Light for comfort pressure up to

tyre pressure chart 3 217, and select

following order: left side front wheel,

3 people

the relevant setting in the menu Tyre

right side front wheel, right side rear

Load in the Driver Information Centre,

● Eco for Eco pressure up to

wheel and left side rear wheel. The

Vehicle Information Menu 3 88. This

3 people

turn signal light at the current active

setting is the reference for the tyre

● Max for full loading

position is illuminated until sensor is

pressure warnings.

matched.

Consult a workshop for service or

purchase a relearn tool. There are

two minutes to match the first wheel

position, and five minutes overall to

-------------------------------------------------------------------------------------------------------------------------------------------------------------

188

Vehicle care

match all four wheel positions. If it

9. Place the relearn tool against the

14. Set all four tyres to the

takes longer, the matching process

tyre sidewall, near the valve stem.

recommended air pressure level

stops and must be restarted.

Then press the button to activate

as indicated on the tyre pressure

the tyre pressure sensor. A horn

information label.

The tyre pressure sensor matching

chirp confirms that the sensor

process is:

15. Ensure the tyre loading status is

identification code has been

set according selected pressure

1. Apply the parking brake.

matched to this tyre and wheel

3 88.

2. Turn the ignition on.

position.

3. On vehicles with automatic

10. Proceed to the right side front

Tread depth

transmission: set the selector

wheel, and repeat the procedure

lever to P.

in Step 9.

Check tread depth at regular

intervals.

On vehicles with manual

11. Proceed to the right side rear

transmission: select neutral.

wheel, and repeat the procedure

Tyres should be replaced for safety

in Step 9.

reasons at a tread depth of 2-3 mm

4. Press MENU on the turn signal

(4 mm for winter tyres).

lever to select the Vehicle

12. Proceed to the left side rear

Information Menu in the Driver

wheel, and repeat the procedure

For safety reasons it is recommended

Information Centre.

in Step 9. The horn sounds twice

that the tread depth of the tyres on

to indicate the sensor

one axle should not vary by more than

5. Turn the adjuster wheel to scroll to

identification code has been

2 mm.

the tyre pressure menu.

matched to the driver side rear

6. Press SET/CLR to begin the

wheel, and the tyre pressure

sensor matching process. A

sensor matching process is no

message requesting acceptance

longer active.

of the process should display.

13. Turn off the ignition.

7. Press SET/CLR again to confirm

the selection. The horn sounds

twice to signal the receiver is in

relearn mode.

8. Start with the left side front wheel.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

189

Wheel covers must not impair brake

Changing tyre and wheel

cooling.

size

If tyres of a different size than those

9 Warning

fitted at the factory are used, it may be

necessary to reprogramme the

Use of unsuitable tyres or wheel

speedometer as well as the nominal

covers could lead to sudden

tyre pressure and make other vehicle

pressure loss and thereby

modifications.

accidents.

After converting to a different tyre

size, have the label with tyre

Vehicles with alloy wheels: When

pressures replaced.

mounting steel wheels with alloy

wheel nuts, e.g. when changing to

The legally permissible minimum

winter tyres, the wheel covers cannot

tread depth (1.6 mm) has been

9 Warning

be attached to the steel wheels.

reached when the tread has worn

Use of unsuitable tyres or wheels

down as far as one of the tread wear

may lead to accidents and will

indicators (TWI). Their position is

Tyre chains

invalidate the vehicle type

indicated by markings on the

approval.

sidewall.

If there is more wear at the front than

Wheel covers

the rear, swap round front wheels and

rear wheels. Ensure that the direction

Wheel covers and tyres that are

of rotation of the wheels is the same

factory-approved for the respective

as before.

vehicle and comply with all of the

Tyres age, even if they are not used.

relevant wheel and tyre combination

We recommend tyre replacement

requirements must be used.

every six years.

If the wheel covers and tyres used are

not factory-approved, the tyres must

not have a rim protection ridge.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

190

Vehicle care

Use tyre chains only on front wheels.

Tyre damage exceeding 4 mm or that

is at tyre's sidewall cannot be repaired

9 Warning

with the tyre repair kit.

Damage may lead to tyre blowout.

9 Warning

Tyre chains are permitted on tyres of

Do not drive faster than 50 mph.

size 215/65 R16, 215/60 R17 and

Do not use for a lengthy period.

215/55 R18.

Steering and handling may be

On tyres of size 215/65 R16 always

affected.

use fine mesh chains suitable for

sport utility vehicles that add no more

If you have a flat tyre:

than 9 mm to the tyre tread and the

1. Take the tyre repair kit from the

Apply the parking brake and engage

inboard sides (including chain lock).

compartment.

first gear, reverse gear or P.

On tyres of size 215/60 R17 and

2. Remove the compressor.

215/55 R18 only use special snow

chains which are permitted for

Vauxhall Mokka and tyres of these

sizes. For further information contact

a workshop.

The use of tyre chains is not permitted

on the temporary spare wheel.

Tyre repair kit

Minor damage to the tyre tread can be

repaired with the tyre repair kit.

Do not remove foreign bodies from

The tyre repair kit is located in the

the tyres.

right side of rear compartment.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

191

3. Remove the electrical connection

cable (1) and air hose (2) from the

stowage compartments on the

underside of the compressor.

6. Unscrew valve cap from defective

10. Set the rocker switch on the

tyre.

compressor to I. The tyre is filled

with sealant.

7. Screw the filler hose to the tyre

valve.

11. The compressor pressure gauge

4. Screw the compressor air hose to

briefly indicates up to 6 bar whilst

8. The switch on the compressor

the connection on the sealant

the sealant bottle is emptying

must be set to J.

bottle.

(approx. 30 seconds). Then the

9. Connect the compressor plug to

pressure starts to drop.

5. Fit the sealant bottle into the

the power outlet or cigarette

retainer on the compressor.

12. All of the sealant is pumped into

lighter socket.

the tyre. Then the tyre is inflated.

Set the compressor near the tyre

To avoid discharging the battery,

in such a way that the sealant

13. The prescribed tyre pressure

we recommend running the

bottle is upright.

should be obtained within

engine.

ten minutes. Tyre pressure

3 217. When the correct pressure

is obtained, switch off the

compressor.

Vauxhall Mokka (2016 year). Manual - part 11
