Vauxhall Mokka (2016 year). Manual - part 1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

6

In brief

Vehicle unlocking

Seat adjustment

In brief

Longitudinal adjustment

Initial drive information

Press c to unlock the doors and load

compartment. Open the doors by

pulling the handles. To open the

Pull handle, slide seat, release

tailgate, push the touchpad switch

handle. Try to move the seat back and

below the handle.

forth to ensure that the seat is locked

in place.

Radio remote control 3 20, Central

locking system 3 21, Load

Seat position 3 35, Seat adjustment

compartment 3 24.

3 36.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

7

Backrest inclination

Seat height

Seat inclination

Pull lever, adjust inclination and

Lever pumping motion

Press switch

release lever. Allow the seat to

up

: seat higher

top

: front end higher

engage audibly.

down : seat lower

bottom : front end lower

Seat position 3 35, Seat adjustment

Seat position 3 35, Seat adjustment

Seat position 3 35, Seat adjustment

3 36.

3 36.

3 36.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8

In brief

Head restraint adjustment

Seat belt

Mirror adjustment

Interior mirror

Pull the head restraint upwards.

Pull out the seat belt and engage in

Press the catch (1) to release and

belt buckle. The seat belt must not be

push the head restraint downwards.

twisted and must fit close against the

To adjust the mirror, move the mirror

body. The backrest must not be tilted

housing in the desired direction.

Head restraints 3 34.

back too far (maximum approx. 25°).

Manual anti-dazzle interior mirror

To release belt, press red button on

3 28, Automatic anti-dazzle interior

belt buckle.

mirror 3 29.

Seat position 3 35, Seat belts

3 39, Airbag system 3 42.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

9

Exterior mirrors

Steering wheel adjustment

Select the relevant exterior mirror and

Unlock the lever, adjust the steering

adjust it.

wheel, then engage the lever and

Convex exterior mirrors 3 27,

ensure it is fully locked.

Electric adjustment 3 27, Folding

Do not adjust the steering wheel

exterior mirrors 3 27, Heated

unless the vehicle is stationary and

exterior mirrors 3 28.

the steering wheel lock has been

released.

Airbag system 3 42, Ignition

positions 3 125.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10

In brief

Instrument panel overview

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

12

In brief

Exterior lighting

Headlight flash, high beam and

low beam

Automatic light control

AUTO : automatic light control:

Turn light switch:

exterior lighting is switched

headlight flash : pull lever

7

: lights off

on and off automatically

high beam

: push lever

8 : sidelights

m

: activation or deactivation of

low beam

: push or pull lever

9 : low beam

the automatic light control

8

: sidelights

Automatic light control 3 107, High

9

: low beam

beam 3 107, Headlight flash 3 108,

Adaptive forward lighting 3 109.

Fog lights

Press light switch:

> : front fog lights

r : rear fog light

Lighting 3 106.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

13

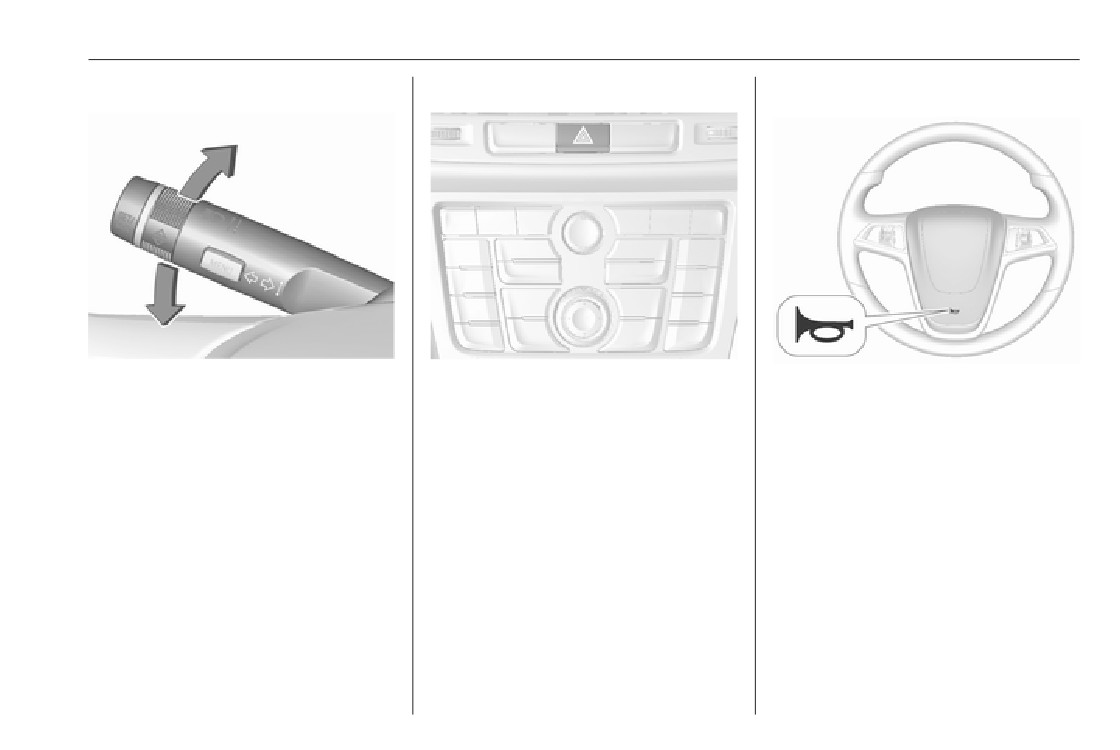

Turn and lane-change signals

Hazard warning flashers

Horn

lever up

: right turn signal

Operated by pressing ¨.

Press j.

lever down : left turn signal

Hazard warning flashers 3 111.

Turn and lane-change signals

3 112.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

14

In brief

Washer and wiper systems

Windscreen washer system

Rear window wiper

Windscreen wiper

Pull lever.

Press the rocker switch to activate the

Windscreen washer system 3 72,

rear window wiper:

HI

: fast

Washer fluid 3 167.

upper switch

: continuous

LO

: slow

operation

INT

: interval wiping or automatic

lower switch

: intermittent

wiping with rain sensor

operation

OFF : off

middle position

: off

For a single wipe when the

windscreen wiper is off, press the

lever down to position 1x.

Windscreen wiper 3 72, Wiper

blade replacement 3 170.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

15

Rear window washer

Climate control

Demisting and defrosting the

windows

Heated rear window, heated

exterior mirrors

Push lever.

Washer fluid is sprayed on the rear

Press V.

window and the wiper wipes a few

Set the temperature control to the

times.

The heating is operated by pressing

highest level.

Ü.

Rear window wiper/washer 3 74.

Heated rear window Ü on.

Heated rear window 3 31.

Climate control system 3 116.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

16

In brief

Transmission

Automatic transmission

Starting off

Manual transmission

Check before starting off

●

Tyre pressure and condition

3 184, 3 217.

●

Engine oil level and fluid levels

3 165.

●

All windows, mirrors, exterior

lighting and number plates are

free from dirt, snow and ice and

are operational.

●

Proper position of mirrors, seats,

and seat belts 3 27, 3 35,

P : park

3 40.

R : reverse

●

Brake function at low speed,

Reverse: with the vehicle stationary,

N : neutral

particularly if the brakes are wet.

depress clutch pedal, press the

D : drive

release button on the selector lever

Manual mode: Move selector lever to

and engage the gear.

M.

If the gear does not engage, set the

< : higher gear

lever to neutral, release the clutch

] : lower gear

pedal and depress again; then repeat

gear selection.

The selector lever can only be moved

Manual transmission 3 133.

out of P when the ignition is on and

the brake pedal is applied. To engage

P or R, press the release button.

Automatic transmission 3 130.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

17

Starting the engine

Stop-start system

Parking

9 Warning

●

Do not park the vehicle on an

easily ignitable surface. The

high temperature of the

exhaust system could ignite the

surface.

●

Always apply the parking

brake. Activate the parking

brake without pressing the

release button. Apply as firmly

as possible on a downhill slope

●

Turn key to position 1.

If the vehicle is at a low speed or at a

or uphill slope. Depress brake

standstill and certain conditions are

●

Move the steering wheel slightly

pedal at the same time to

fulfilled, activate an Autostop as

to release the steering wheel

reduce operating force.

follows:

lock.

●

Switch off the engine.

● Depress the clutch pedal.

●

Operate clutch and brake.

●

If the vehicle is on a level

● Shift the selector lever to N.

●

Automatic transmission in P or N.

surface or uphill slope, engage

● Release the clutch pedal.

first gear or set the selector

●

Do not operate accelerator pedal.

An Autostop is indicated by the

lever to position P before

●

Diesel engines: turn the key to

needle at the AUTOSTOP position in

removing the ignition key. On

position 2 for preheating and wait

the tachometer.

an uphill slope, turn the front

until control indicator !

wheels away from the kerb.

extinguishes.

To restart the engine, depress the

clutch pedal again.

If the vehicle is on a downhill

●

Turn key to position 3 and

slope, engage reverse gear or

release.

Stop-start system 3 126.

Starting the engine 3 125.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

20

Keys, doors and windows

Key with foldaway key section

Radio remote control

Fault

If the central locking system cannot

be operated with the radio remote

control, it may be due to the following:

● The range is exceeded.

● The battery voltage is too low.

● Frequent, repeated operation of

the radio remote control while not

in range, which will require re-

synchronisation.

● Overload of the central locking

system by operating at frequent

intervals, the power supply is

Press button to extend.

Used to operate:

interrupted for a short time.

To fold the key, first press the button.

● central locking system

● Interference from higher-power

● anti-theft alarm system

radio waves from other sources.

The radio remote control has a range

Unlocking 3 21.

of approx. 30 metres. It can be

restricted by external influences. The

Basic settings

hazard warning flashers confirm

Some settings can be changed in the

operation.

menu Settings in the Info-Display.

Handle with care, protect from

Vehicle personalisation 3 99.

moisture and high temperatures and

avoid unnecessary operation.

Radio remote control battery

replacement

Replace the battery as soon as the

range reduces.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Keys, doors and windows

21

Radio remote control

Colour-Info-Display, the

synchronisation

personalisation is permanently

activated.

After replacing the battery, unlock the

Vehicle personalisation 3 99.

door with the key in the driver's door

lock. The radio remote control is

synchronised when the ignition is

Central locking system

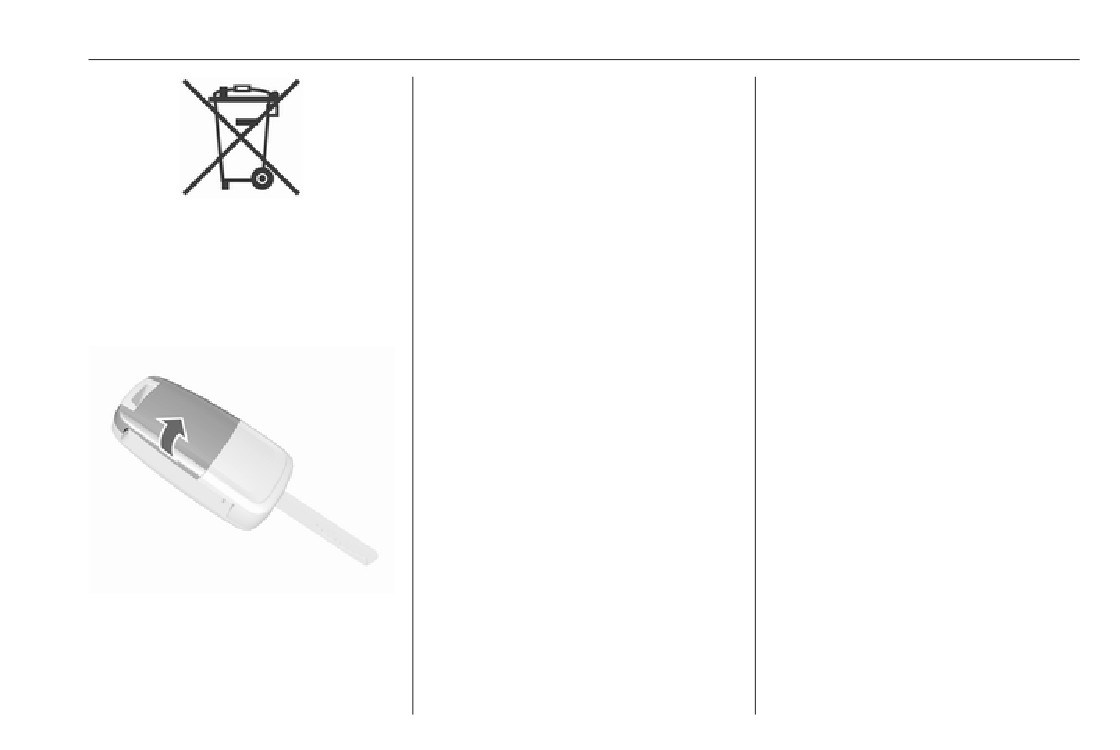

Batteries do not belong in household

switched on.

Unlocks and locks doors, load

waste. They must be disposed of at

compartment and fuel filler flap.

an appropriate recycling collection

point.

Memorised settings

A pull on an interior door handle

Whenever the key is removed from

unlocks the respective door. Pulling

Key with foldaway key section

the handle again opens the door.

the ignition switch, the following

settings are automatically memorised

Notice

by the key:

In the event of an accident in which

● lighting

airbags or belt pretensioners are

deployed, the vehicle is

● infotainment system

automatically unlocked.

● central locking system

Notice

The saved settings are automatically

A short time after unlocking with the

used the next time the memorised key

remote control the doors are locked

is inserted into the ignition switch and

automatically if no door has been

turned to position 1 3 125.

opened.

A precondition is that Personalization

by driver is activated in the personal

settings of the Graphic-Info-Display.

Extend the key and open the unit.

This must be set for each key used.

Replace the battery (battery type

On vehicles equipped with

CR 2032), paying attention to the

installation position. Close the unit

and synchronise.
