Vauxhall Insignia (2016 year). Manual - part 4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

56

Seats, restraints

Height adjustment

Unfasten

Adjust the height so that the belt lies

across the shoulder. It must not lie

1. Pull belt out slightly.

To release belt, press red button on

across the throat or upper arm.

belt buckle.

2. Shift the height adjuster upwards

Do not adjust while driving.

or press button to disengage and

Insignia VXR

push the height adjuster

Feed seat belt through belt mount on

downwards.

backrest after releasing.

Seat belts on the rear seats

The seat belt for the rear centre seat

can only be withdrawn from the

retractor if the backrest is in the rear

position.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

57

Seats, restraints

Using the seat belt while pregnant

necessary to have the steering

Airbag system

wheel, the instrument panel, parts of

the panelling, the door seals,

The airbag system consists of a

handles and the seats replaced.

number of individual systems

depending on the scope of

Do not make any modifications to

equipment.

the airbag system as this will

invalidate the vehicle type approval.

When triggered the airbags inflate

within milliseconds. They also deflate

When the airbags inflate, escaping

so quickly that it is often unnoticeable

hot gases may cause burns.

during the collision.

Control indicator v for airbag systems

3 104.

9 Warning

Child restraint systems on front

If handled improperly the airbag

passenger seat with airbag

9

Warning

systems can be triggered in an

systems

explosive manner.

Warning according to ECE R94.02:

The lap belt must be positioned as

low as possible across the pelvis

Notice

to prevent pressure on the

The airbag systems and belt

abdomen.

pretensioner control electronics are

located in the centre console area.

Do not put any magnetic objects in

this area.

Do not stick anything on the airbag

covers and do not cover them with

other materials.

Each airbag is triggered only once.

Have deployed airbags replaced by

a workshop. Furthermore, it might be

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

60

Seats, restraints

LV: NEKĀDĀ GADĪJUMĀ

The airbag label is located on both

The inflated airbags cushion the

neizmantojiet uz aizmuguri vērstu

sides of the front passenger sun visor.

impact, thereby reducing the risk of

bērnu sēdeklīti sēdvietā, kas tiek

injury to the upper body and head of

Airbag deactivation 3 62.

aizsargāta ar tās priekšā uzstādītu

the front seat occupants

AKTĪVU DROŠĪBAS SPILVENU, jo

considerably.

pretējā gadījumā BĒRNS var gūt

Front airbag system

SMAGAS TRAUMAS vai IET BOJĀ.

The front airbag system consists of

9 Warning

ET: ÄRGE kasutage tahapoole

one airbag in the steering wheel and

suunatud lapseturvaistet istmel, mille

one in the instrument panel on the

Optimum protection is only

ees on AKTIIVSE TURVAPADJAGA

front passenger side. These can be

provided when the seat is in the

kaitstud iste, sest see võib

identified by the word AIRBAG.

proper position.

põhjustada LAPSE SURMA või

The front airbag system is triggered in

Seat position 3 47.

TÕSISE VIGASTUSE.

the event of a front-end impact of a

Keep the area in which the airbag

MT: QATT tuża trażżin għat-tfal li

certain severity. The ignition must be

inflates clear of obstructions.

jħares lejn in-naħa ta’ wara fuq sit

switched on.

Fit the seat belt correctly and

protett b’AIRBAG ATTIV quddiemu;

engage securely. Only then is the

dan jista’ jikkawża l-MEWT jew

airbag able to protect.

ĠRIEĦI SERJI lit-TFAL.

Beyond the warning required by

ECE R94.02, for safety reasons

never use a forward-facing child

restraint system on the passenger

seat with an active front airbag.

9 Danger

Do not use a child restraint system

on the passenger seat with active

front airbag.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats, restraints

61

Side airbag system

Curtain airbag system

The curtain airbag system consists of

an airbag in the roof frame on each

side. This can be identified by the

word AIRBAG on the roof pillars.

The curtain airbag system is triggered

in the event of a side-on impact of a

certain severity. The ignition must be

switched on.

The inflated airbags cushion the

impact, thereby reducing the risk of

The side airbag system consists of an

injury to the upper body and pelvis in

airbag in each front seat backrest and

the event of a side-on collision

in the rear outboard seat backrests.

considerably.

This can be identified by the word

AIRBAG.

9 Warning

The side airbag system is triggered in

the event of a side impact of a certain

Keep the area in which the airbag

severity. The ignition must be

inflates clear of obstructions.

switched on.

The inflated airbags cushion the

Notice

impact, thereby reducing the risk of

Only use protective seat covers that

injury to the head in the event of a

have been approved for the vehicle.

side-on impact considerably.

Be careful not to cover the airbags.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

62

Seats, restraints

Use the ignition key to choose the

9 Warning

position:

* : front passenger airbags are

Keep the area in which the airbag

deactivated and will not inflate in

inflates clear of obstructions.

the event of a collision. Control

The hooks on the handles in the

indicator * illuminates

roof frame are only suitable for

continuously. A child restraint

hanging up light articles of

system can be installed in

clothing, without coat hangers. Do

accordance with the chart Child

not keep any items in these

restraint installation locations

clothes.

3 65. No adult person is

allowed to occupy the front

Airbag deactivation

passenger seat

The front passenger airbag system

V : front passenger airbags are

Front airbag and side airbag systems

can be deactivated via a key-

active. Control indicator V

for the front passenger seat must be

operated switch on the right side of

deactivated if a child restraint system

the instrument panel.

illuminates continuously. A child

is to be fitted on this seat. The curtain

restraint system must not be

airbag system, the belt pretensioners

installed

and all driver airbag systems will

remain active.

9 Danger

Risk of fatal injury for a child using

a child restraint system on a seat

with activated front passenger

airbag.

Risk of fatal injury for an adult

person on a seat with deactivated

front passenger airbag.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats, restraints

63

Control indicator for airbag

Child restraints

deactivation 3 104.

Child restraint systems

We recommend the Vauxhall child

restraint system which is tailored

specifically to the vehicle.

When a child restraint system is being

used, pay attention to the following

usage and installation instructions

and also those supplied with the child

restraint system.

If the control indicator V illuminates,

Always comply with local or national

regulations. In some countries, the

the front passenger airbag system will

use of child restraint systems is

inflate in the event of a collision.

forbidden on certain seats.

If both control indicators are

illuminated simultaneously, there is a

9 Danger

system failure. The status of the

system is not discernible, therefore

When using a child restraint

no person is allowed to occupy the

system on the front passenger

front passenger seat. Contact a

seat, the airbag systems for the

workshop immediately.

front passenger seat must be

Consult a workshop immediately if

deactivated; if not, the triggering of

neither of the two control indicators

the airbags poses a risk of fatal

are illuminated.

injury to the child.

Change status only when the vehicle

This is especially the case if rear-

is stopped with the ignition off.

facing child restraint systems are

Status remains until the next change.

used on the front passenger seat.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats, restraints

65

Child restraint installation locations

Permissible options for fitting a child restraint system

On front passenger seat

Weight and age class

activated airbag deactivated airbag On rear outboard seats On rear centre seat

Group 0: up to 10 kg

X

U¹

U

U

or approx. 10 months

Group 0+: up to 13 kg

X

U¹

U

U

or approx. 2 years

Group I: 9 to 18 kg

X

U¹

U

U

or approx. 8 months to 4 years

Group II: 15 to 25 kg

X

X

U

U

or approx. 3 to 7 years

Group III: 22 to 36 kg

X

X

U

U

or approx. 6 to 12 years

1

: if the child restraint system is being secured using a three-point seat belt, move seat height adjustment to uppermost

position and ensure that vehicle safety belt runs forwards from the upper anchorage point. Adjust seat backrest

inclination as far as necessary to a vertical position to ensure that the belt is tight on the buckle side

U : universal suitability in conjunction with three-point seat belt

X : no child restraint system permitted in this weight class

-------------------------------------------------------------------------------------------------------------------------------------------------------------

66

Seats, restraints

Permissible options for fitting an ISOFIX child restraint system

Weight class

Size class Fixture On front passenger seat On rear outboard seats On rear centre seat

Group 0: up to 10 kg

E

ISO/R1

X

IL

IL

Group 0+: up to 13 kg E

ISO/R1

X

IL

IL

D

ISO/R2

X

IL

IL

C

ISO/R3

X

IL

IL

Group I: 9 to 18 kg

D

ISO/R2

X

IL

IL

C

ISO/R3

X

IL

IL

B

ISO/F2

X

IL, IUF

IL, IUF

B1

ISO/F2X X

IL, IUF

IL, IUF

A

ISO/F3

X

IL, IUF

IL, IUF

Group II: 15 to 25 kg

X

IL

X

or approx. 3 to 7 years

Group III: 22 to 36 kg

X

IL

X

or approx. 6 to 12 years

IL

: suitable for particular ISOFIX restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories.

The ISOFIX restraint system must be approved for the specific vehicle type

IUF : suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight class

X

: no ISOFIX child restraint system approved in this weight class

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

68

Seats, restraints

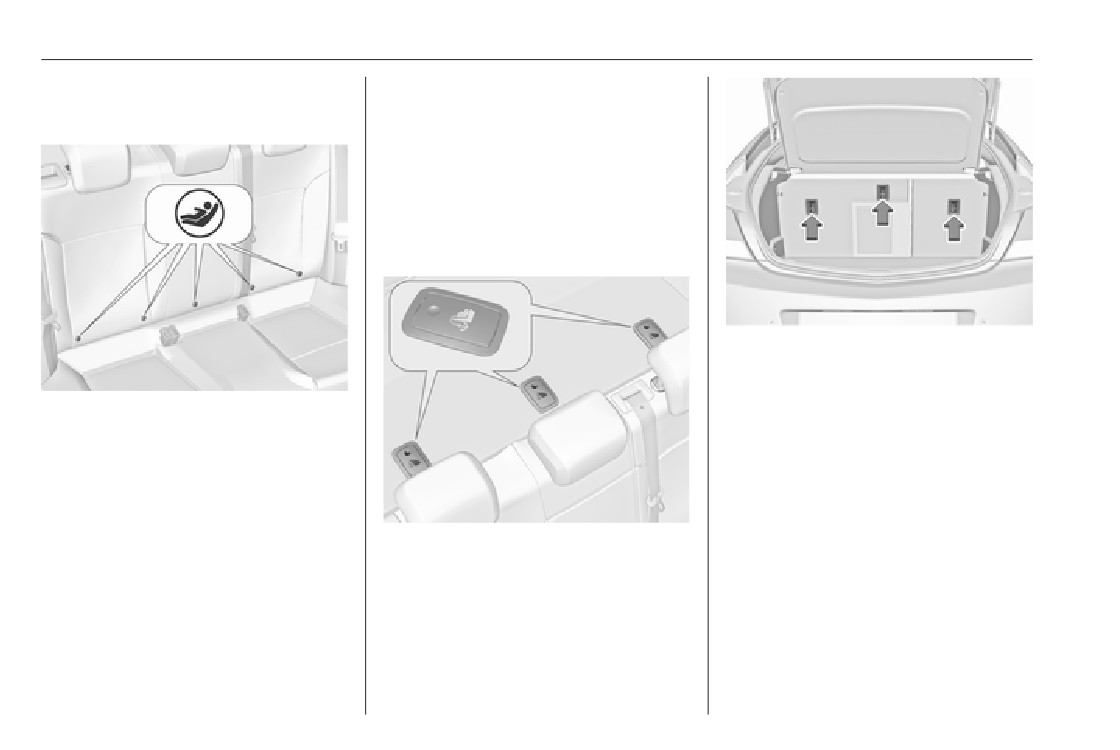

ISOFIX child restraint

Top-tether fastening eyes

systems

The vehicle has three fastening eyes

on the backside of the rear backrests

or in the area behind the head

restraints.

Top-Tether fastening eyes are

marked with the symbol : for a child

seat.

In addition to the ISOFIX mounting,

fasten the Top-Tether strap to the

Top-Tether fastening eyes. The strap

Fasten vehicle-approved ISOFIX

must run between the two guide rods

child restraint systems to the ISOFIX

of the head restraint.

mounting brackets. Specific vehicle

ISOFIX child restraint systems of

ISOFIX child restraint system

universal category positions are

positions are marked in the table by

marked in the table by IUF 3 65.

IL 3 65.

No more than two ISOFIX child

Open the flap of the required

restraint systems can be installed on

fastening eye, marked by the child

the rear seats at the same time,

seat symbol.

though not right next to each other.

ISOFIX mounting brackets are

indicated by a logo ISOFIX on the

backrest.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

69

The glovebox features a pen holder,

Storage

Storage compartments

a coin holder and an adapter for the

locking wheel nuts.

9 Warning

The glovebox should be closed whilst

Storage compartments

69

driving.

Glovebox

69

Do not store heavy or sharp

Cupholders

69

objects in the storage

Cupholders

Front storage

70

compartments. Otherwise, the

Armrest storage

70

storage compartment lid could

open and vehicle occupants could

Load compartment

71

be injured by objects being thrown

Load compartment cover

73

around in the event of hard

Rear floor storage cover

74

braking, a sudden change in

Lashing eyes

75

direction or an accident.

Cargo management system

75

Safety net

77

Warning triangle

80

Glovebox

First aid kit

80

Roof rack system

81

Roof rack

81

Loading information

82

Cupholders are located in the centre

console.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

70

Storage

A storage box is located behind a

Armrest storage

cover below the climate controls.

Press cover to open.

Storage in the front armrest

Additional cupholders are located in

the rear armrest. Fold down armrest.

Front storage

Another storage compartment is

Push button to fold up the armrest.

located next to the steering wheel.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

71

Storage in the rear armrest

Pull the release lever on one or both

Load compartment

sides and fold down the backrests

onto the seat cushion.

Folding down rear seat backrests

The rear seat backrest is divided into

two parts. Both parts can be folded

down.

Remove the load compartment cover

if necessary.

Press and hold the catch, then push

the head restraints down.

Fold up the rear armrest.

Fold down armrest and open cover.

Close cover before folding the

To fold up, raise backrests and guide

armrest up.

them into an upright position until they

engage audibly.

Ensure that the seat belts of the

outboard seats are placed in the

corresponding belt guides.

Put the seat belts of the outboard

seats into the belt guides.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

72

Storage

The backrests are properly engaged

The seat belt of the centre seat could

Pull grip and open the cover.

when both red marks on the side near

be blocked when the backrest is

Suitable for loading long, narrow

the release lever are no longer visible.

folded up too quickly. To unlock the

objects.

retractor, push in the seat belt or pull

Ensure the cover engages after

9 Warning

it out by approx. 20 mm and then

folding up.

release.

Only drive the vehicle when the

Opening the pass-through in the

backrests are securely locked into

position. Otherwise there is a risk

rear centre backrest

of personal injury or damage to the

Fold down rear armrest.

load or vehicle in the event of hard

braking or a collision.

Content      ..     2      3      4      5     ..
