Vauxhall Astra (2016 year). Manual

-------------------------------------------------------------------------------------------------------------------------------------------------------------

122

Instruments and controls

● Speed Warning: If exceeding the

Trip/Fuel Information Menu

preset speed, a warning chime

Press MENU to select the Trip/Fuel

will be activated.

Information Menu, or select

● Traffic Sign Assistant: Displays

Uplevel-Combi-Display.

detected traffic signs for the

Turn the adjuster wheel to select a

current route section. 3 211

submenu. Press SET/CLR to confirm.

● Remaining Oil Life: Indicates

when to change the engine oil

and filter 3 110.

● Following Dist.: Displays the

distance to a moving vehicle

● trip odometer 1

ahead 3 198.

● trip odometer 2

Selection and indication can be

● digital speed

different between Midlevel-Display

Trip odometer 2 and digital speed are

and Uplevel-Combi-Display.

only available on vehicles with

Uplevel-Combi-Display.

Reset trip odometer by pressing

SET/CLR on the turn signal lever for

a few seconds or by pressing the

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

123

reset knob between speedometer

Submenus are:

and Driver Information Centre with

the ignition on.

On vehicles with trip computer, more

submenus are available.

Selection and indication can be

different between Midlevel-Display

and Uplevel-Combi-Display.

Trip/Fuel Information Menu, Trip

Computer 3 130.

ECO Information Menu

●

Top Consumers: List of top

Press MENU to select

in the top

comfort consumers currently

●

Shift indication: Current gear is

line of the Uplevel-Combi-Display.

switched on is displayed in

indicated inside an arrow. The

Turn the adjuster wheel to select a

descending order. Fuel saving

figure above recommends

submenu. Press SET/CLR to confirm.

potential is indicated. A switched

upshifting for fuel saving

off consumer disappears from

reasons.

the list and the consumption

Eco index display: The current

value will be updated.

fuel consumption is indicated on

During sporadic driving

a segment display. For

conditions, the engine will

economical driving, adapt your

activate the heated rear window

driving characteristic to keep the

automatically to increase the

filled segments within the Eco

engine load. In this event, the

area. The more segments are

heated rear window is indicated

filled, the higher the fuel

as one of the top consumers,

consumption. Simultaneously

without activation by the driver.

the current consumption value is

indicated.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

124

Instruments and controls

Performance Menu

● Coolant Temp.: Display of

coolant temperature.

● Battery Volt.: Display of vehicle

battery voltage.

Graphic-Info-Display,

Colour-Info-Display

Depending on the vehicle

configuration the vehicle has a

Graphic-Info-Display or Colour-Info-

Display. The Info-Display is located in

●

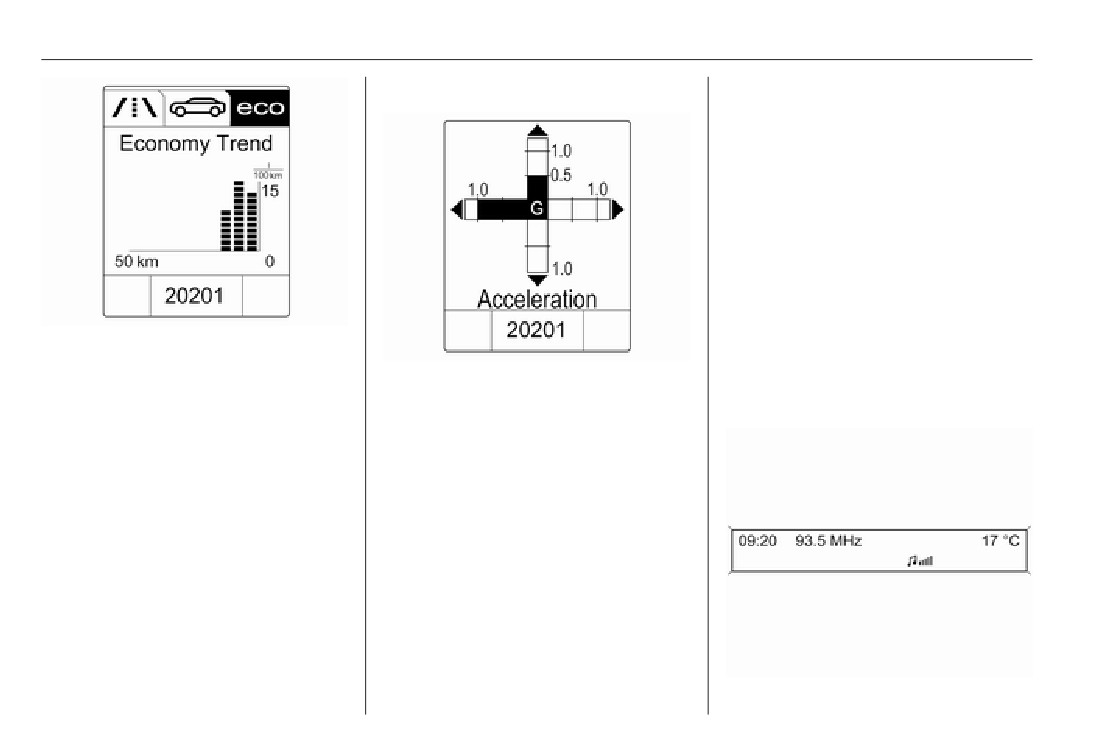

Economy Trend: Displays the

the instrument panel above the

average consumption

Infotainment system.

development over a distance of

Press MENU to select the

Performance Menu, or select

Graphic-Info-Display

50 miles. Filled segments display

the consumption in 5 mile steps

Uplevel-Combi-Display.

and shows the effect of

Turn the adjuster wheel to select a

topography or driving behaviour

submenu. Press SET/CLR to confirm.

on fuel consumption.

Submenus are:

● Acceleration: Display of current

acceleration in all directions.

● Lap Timer: Display of lap times,

top speed, average speed and

average time. Follow the

instructions given in the

submenu.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

125

Depending on the Infotainment

Colour-Info-Display

● vehicle messages 3 126

system, the Graphic-Info-Display is

● settings for vehicle

available in two versions.

personalisation 3 132

The type of information and how it is

displayed depends on the equipment

of the vehicle and the settings made.

Selecting menus and settings

Menus and settings are accessed via

the display.

The Colour-Info-Display indicates in

colour:

Graphic-Info-Display indicates:

● time 3 105

● outside temperature 3 104

● date 3 105

● Infotainment system, see

description in the Infotainment

manual

● navigation, see description in the

Selections are made via:

● settings for vehicle

Infotainment manual

● menus

personalisation 3 132

● system settings

● function buttons and

multifunction knob of the

Infotainment system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

126

Instruments and controls

Selecting with the Infotainment

Press (the outer ring)

Vehicle messages

system

● to select or activate the

highlighted option

Messages are indicated mainly in the

● to confirm a set value

Driver Information Centre, in some

cases together with a warning and

● to switch a system function on/off

signal buzzer.

BACK

Press BACK to:

● exit a menu without changing

settings

● return from a submenu to a

higher menu level

● delete the last character in a

character sequence

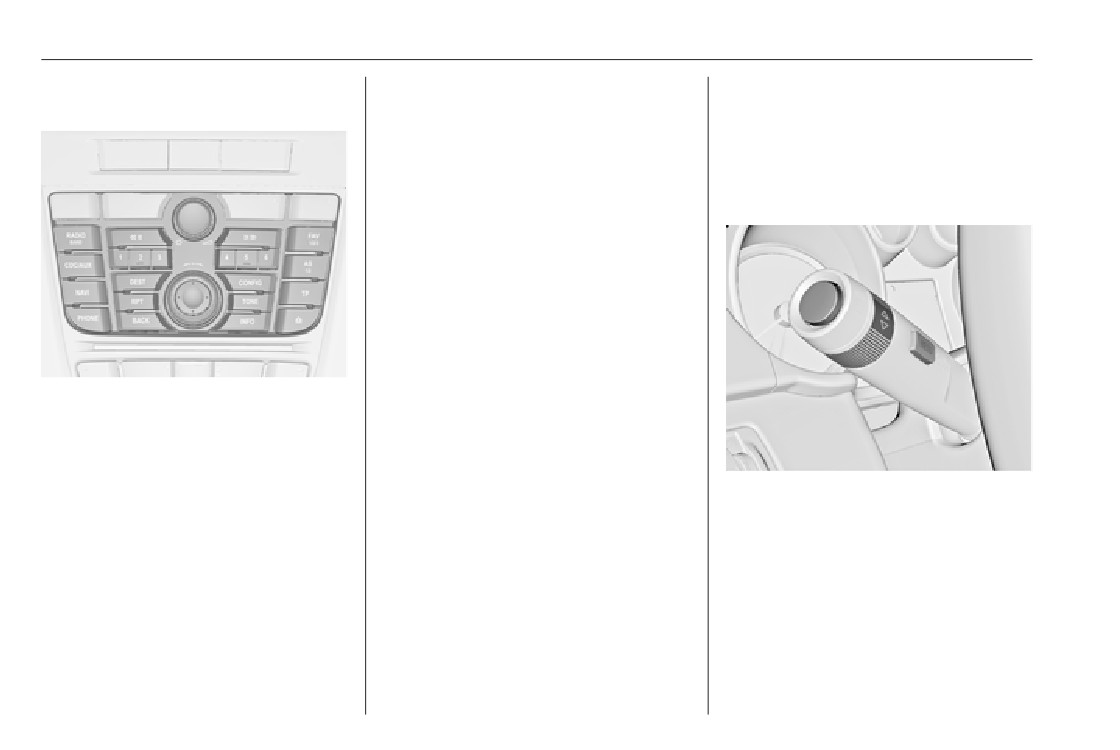

Select a function via the Infotainment

Press and hold the BACK for a few

system buttons. The menu of the

seconds to delete the entire entry.

selected function is displayed.

Vehicle personalisation 3 132.

The multifunction knob is used to

select an item and to confirm.

Memorised settings 3 22.

Press SET/CLR, MENU or turn the

adjuster wheel to confirm a message.

Multifunction knob

Smartphone controller

The multifunction knob is the central

control element for the menus:

The smartphone controller allows a

smartphone to access vehicle data

Turn

via WLAN or Bluetooth connection.

● to highlight a menu option

This data can then be displayed and

● to set a numeric value or to

analysed on the smartphone.

display a menu option

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

127

Vehicle messages on the

No.

Vehicle message

No.

Vehicle message

Midlevel-Display

Turn steering wheel, switch

Left rear turn signal failure

ignition off then on

Right front turn signal failure

Turn steering wheel, restart

Right rear turn signal failure

engine

Check trailer brake light

Vehicle overloaded

Check trailer reversing light

Compressor overheated

Check left trailer turn signal

Centre high-mounted brake

light failure

Check right trailer turn signal

Brake light failure

Check trailer rear fog light

Headlight levelling malfunction

Check trailer rear light

The vehicle messages are displayed

as code numbers.

Left low beam failure

Replace battery in radio remote

control

Rear fog light failure

No. Vehicle message

Clean side blind spot alert

Right low beam failure

No radio remote control

system

detected, depress clutch pedal

Left sidelight failure

to restart

Lane departure warning

Right sidelight failure

unavailable

Air conditioning off

Reversing light failure

Tighten fuel filler cap

Steering wheel is locked

Number plate light failure

Water in diesel fuel filter

Depress brake pedal to release

electric parking brake

Left front turn signal failure

Diesel particle filter is full

3 171

-------------------------------------------------------------------------------------------------------------------------------------------------------------

128

Instruments and controls

No.

Vehicle message

No.

Vehicle message

No. Vehicle message

Tyre pressure imbalance on

Service rear axle

145 Check washer fluid level

front axle

Service AFL

174 Low vehicle battery

Tyre pressure imbalance on

Service air conditioning

258 Parking assist off

rear axle

Service side blind spot alert

Tyres without TPMS sensors

Vehicle messages on the

system

detected

Uplevel-Combi-Display

Service lane departure warning

Open then close driver window

Top up engine oil

Open then close front

passenger window

Service transmission

Open then close rear left

Change engine oil soon

window

Service adaptive cruise control

Open then close rear right

window

Engine power is reduced

Theft attempted

Service vehicle soon

Service anti-theft alarm system

Shift to park position before

exiting

Service steering wheel lock

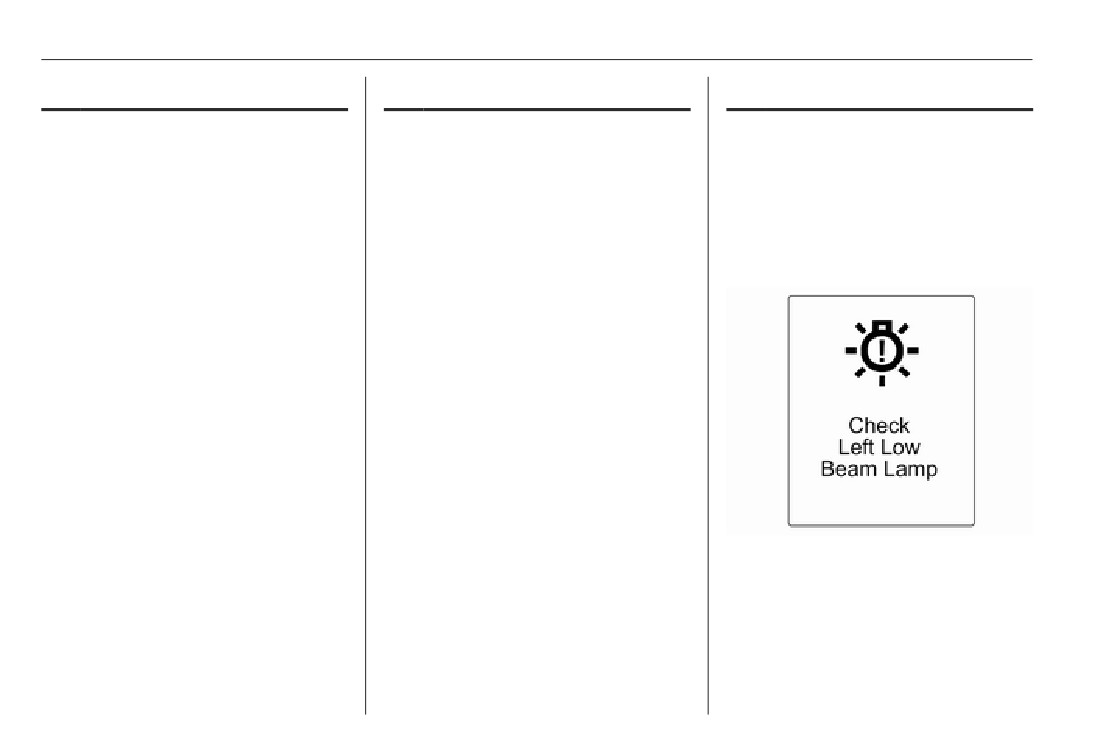

The vehicle messages are displayed

Service airbag

Service power steering

as text. Follow the instructions given

128

Bonnet open

in the messages.

Service suspension system

134

Park assist fault, clean bumper

Service level control system

136

Service parking assist

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

129

The system displays messages

Vehicle messages on the Colour-

●

If a warning message or a

regarding the following topics:

Info-Display

warning code appears in the

Driver Information Centre.

●

fluid levels

Some important messages appear

●

If the parking assist detects an

●

anti-theft alarm system

additionally in the Colour-Info-

object.

●

brakes

Display. Press the multifunction knob

to confirm a message. Some

●

If an unintended lane change

●

drive systems

messages only pop-up for a few

occurs.

●

ride control systems

seconds.

●

If the reverse gear is engaged

●

cruise control

and the rear carrier sytem

●

object detection systems

Warning chimes

extended.

●

lighting, bulb replacement

●

If the diesel particle filter has

When starting the engine or whilst

reached the maximum filling

●

wiper/washer system

driving

level.

●

doors, windows

Only one warning chime will sound at

When the vehicle is parked and/or

●

radio remote control

a time.

the driver's door is opened

●

seat belts

The warning chime regarding

●

airbag systems

unfastened seat belts has priority

● With exterior lights on.

●

engine and transmission

over any other warning chime.

During an Autostop

●

tyre pressure

● If seat belt is not fastened.

● If the driver's door is opened.

●

diesel particle filter

● If a door or the tailgate is not fully

closed when starting off.

●

vehicle battery status

Battery voltage

● If a certain speed is exceeded

with parking brake applied.

When the vehicle battery voltage is

running low, a warning message or

● If a programmed speed is

warning code 174 will appear in the

exceeded.

Driver Information Centre.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

130

Instruments and controls

1. Switch off immediately any

Trip computer

electric consumers which are not

required for a safe ride, e.g. seat

The menus and functions can be

heating, heated rear window or

selected via the buttons on the turn

other main consumers.

signal lever 3 120.

2. Charge the vehicle battery by

driving continuously for a while or

by using a charging device.

The warning message or warning

code will disappear after the engine

has been started twice consecutively

without a voltage drop.

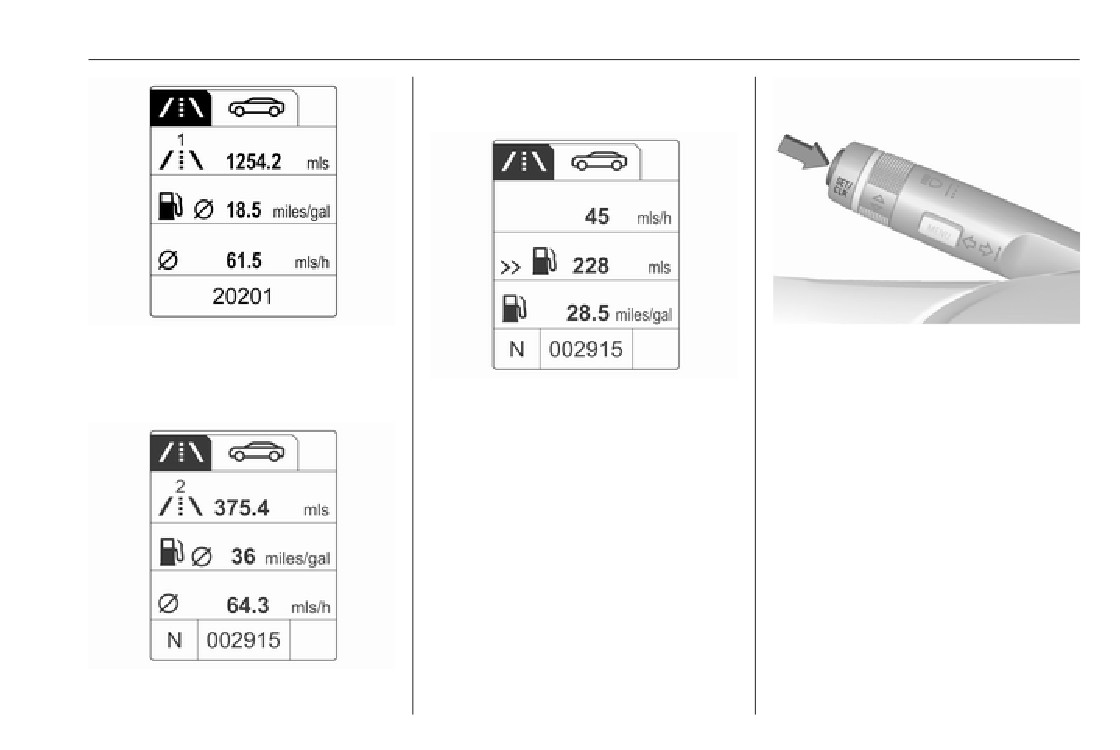

Trip/Fuel Information Menu on

If the vehicle battery cannot be

Uplevel-Combi-Display

recharged, have the cause of the fault

Turn the adjuster wheel to select the

remedied by a workshop.

submenus:

Press MENU to select the Trip/Fuel

Information Menu, or select

the Uplevel-Combi-Display.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

131

● average consumption 2

● average speed 2

●

trip odometer 1

Trip odometer

●

average consumption 1

Trip odometer displays the recorded

●

average speed 1

● digital speed

distance since a certain reset.

● range

Trip odometer counts up to a distance

● instantaneous consumption

of 2000 miles and then restarts at 0.

● route guidance

To reset, press SET/CLR for a few

seconds.

Trip computer 1 and 2

Range

The information of two trip computers

can be reset separately for odometer,

Range is calculated from current fuel

average consumption and average

tank content and current

speed by pressing SET/CLR, making

consumption. The display shows

it possible to display different trip

average values.

information for different drivers.

After refuelling, the range is updated

automatically after a brief delay.

●

trip odometer 2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

132

Instruments and controls

When the fuel level in the tank is low,

To reset, press SET/CLR for a few

Vehicle personalisation

a message appears on vehicles with

seconds.

Uplevel-Combi-Display.

The vehicle's behaviour can be

Digital speed

When the tank needs to be refuelled

personalised by changing the settings

immediately, a warning code or

Digital display of the instantaneous

in the Info-Display.

warning message is displayed on

speed.

Some of the personal settings for

vehicles with Midlevel-Display or

different drivers can be memorised

Uplevel-Combi-Display.

Traffic sign assistant

individually for each vehicle key.

Additionally, control indicator i

Indicates detected traffic signs for the

Memorised settings 3 22.

illuminates or flashes in the fuel

current route section 3 211.

Depending on vehicle equipment and

gauge3 118.

country-specific regulations some of

Route guidance

the functions described below may

Average consumption

In addition to the navigation

not be available.

Display of average consumption. The

information in the Colour-Info-

Some functions are only displayed or

measurement can be reset at any

Display, route guidance is displayed

active when the engine is running.

time and starts with a default value.

in the Driver Information Centre.

To reset, press SET/CLR for a few

Personal settings in the

seconds.

Graphic-Info-Display

Instantaneous consumption

CD 400plus/CD 400/CD 300

Display of the instantaneous

consumption.

Average speed

Display of average speed. The

measurement can be reset at any

time.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

133

The following settings can be

Languages

selected by turning and pressing the

Selection of the desired language.

multifunction knob:

Time Date

● Sport mode settings

See Clock 3 105.

● Languages

● Time Date

Radio settings

See description in the Infotainment

● Radio settings

manual for further information.

● Phone settings

● Vehicle settings

Phone settings

See description in the Infotainment

In the corresponding submenus the

manual for further information.

following settings can be changed:

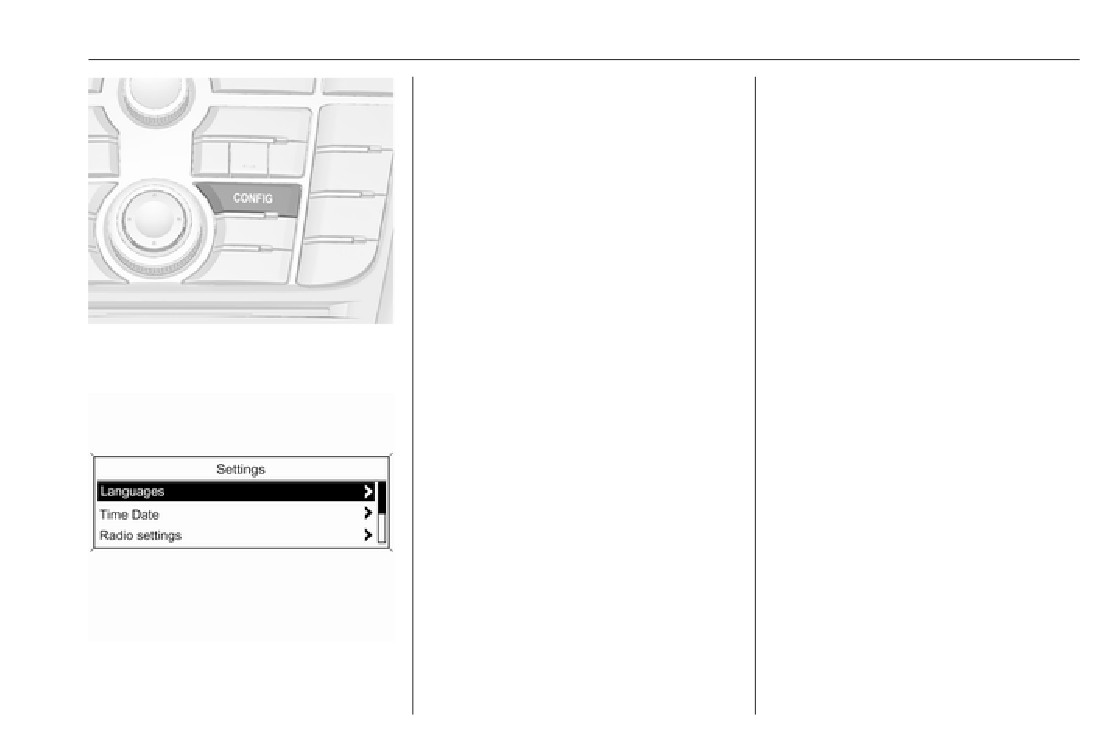

Press CONFIG. The menu Settings is

displayed.

Sport mode settings

The driver can select the functions

which will be activated in Sport mode

3 182.

● Sport suspension: Damping

becomes harder.

● Sport powertrain performance:

Accelerator pedal and gear

change characteristics become

more responsive.

● Sport steering: Steering support

is reduced.

● Swap backlight colour main

instr.: Changes the instrument

illumination colour.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

134

Instruments and controls

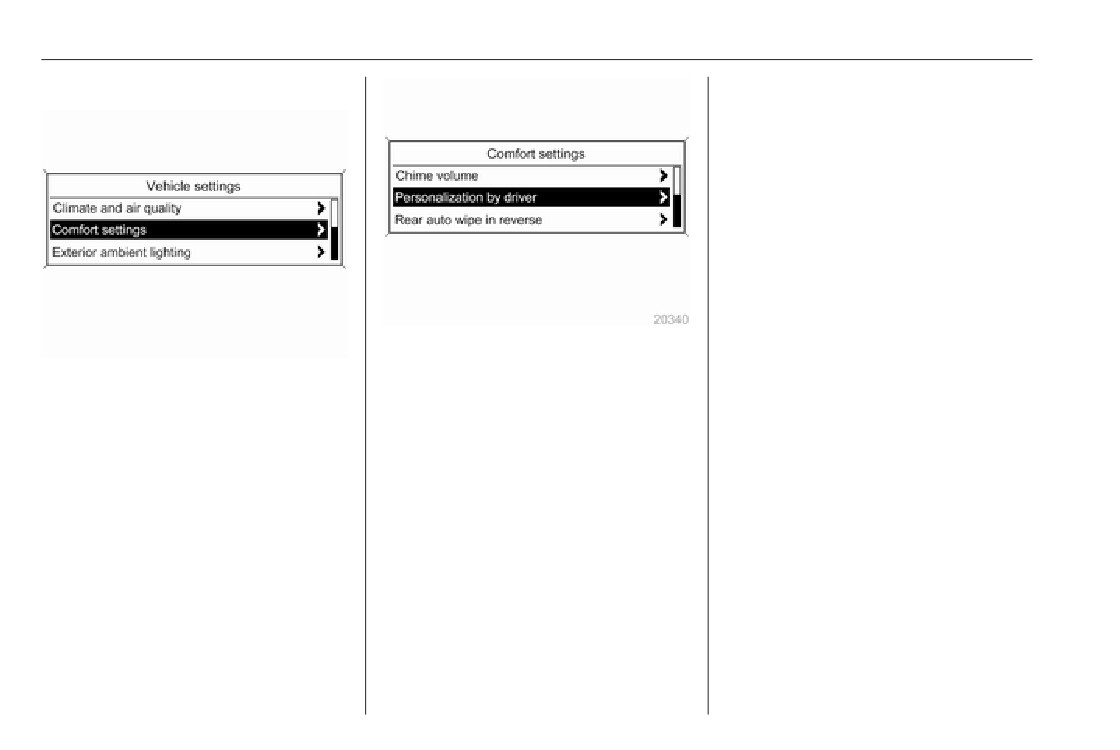

Vehicle settings

selectable with or without

attached trailer coupling.

Auto collision preparation:

Activates or deactivates the

automatic brake functionality of

the vehicle in the event of

imminent collision danger. The

following is selectable: the

system will take over brake

control, warn by chimes only or is

deactivated.

Side blind zone alert: Changes

●

Comfort settings

the settings for the side blind spot

Chime volume: Changes the

alert system.

●

Climate and air quality

volume of warning chimes.

●

Exterior ambient lighting

Auto fan speed: Modifies the

Personalization by driver:

Duration upon exit of vehicle:

level of the cabin airflow of the

Activates or deactivates the

Activates or deactivates and

climate control in automatic

personalisation function.

changes the duration of exit

mode.

Rear auto wipe in reverse:

lighting.

Climate control mode: Controls

Activates or deactivates

Exterior lighting by unlocking:

the state of the cooling

automatic switching on of the

Activates or deactivates the

compressor when the vehicle is

rear window wiper when reverse

welcome lighting.

started. Last setting

gear is engaged.

(recommended) or at vehicle

●

Power door locks

start is either always ON or

●

Park assist / Collision detection

Auto door lock: Activates or

always OFF.

Park assist: Activates or

deactivates the automatic door

Auto rear demist: Activates rear

deactivates the ultrasonic

unlocking function after switching

heated window automatically.

parking assist. Activation is

off ignition. Activates or

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

135

deactivates the automatic door

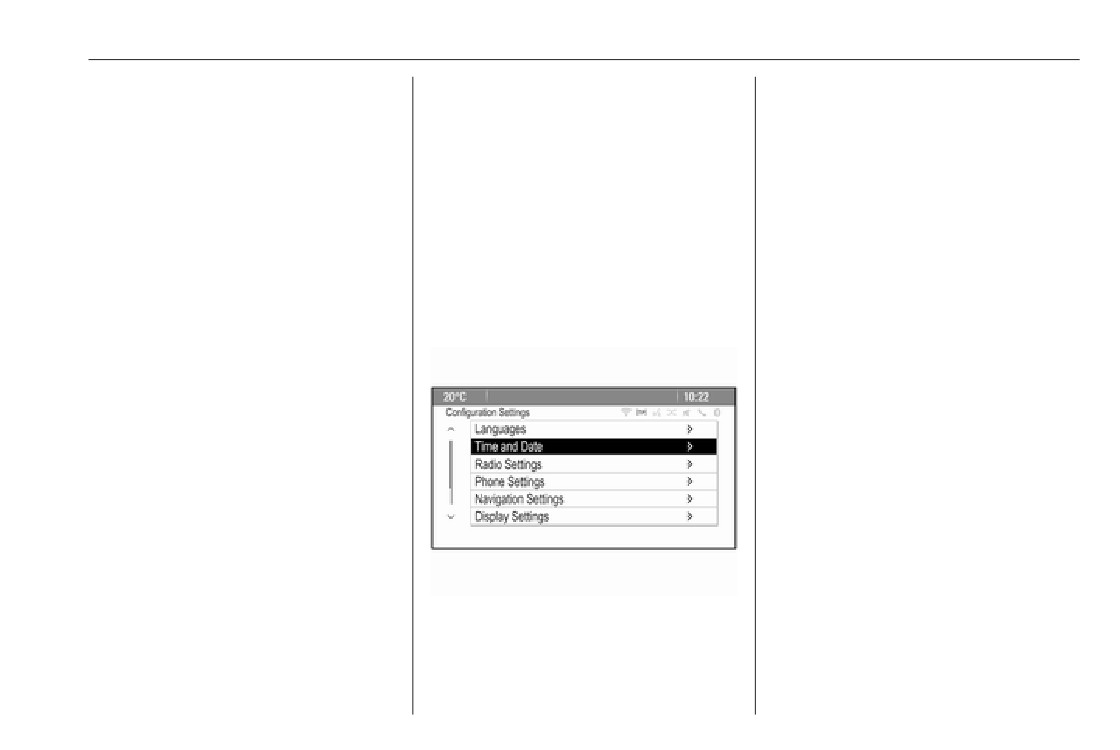

Settings in the Colour-Info-

● Phone Settings

locking function after driving-off.

Display

● Navigation Settings

Stop door lock if door open:

Navi 950/Navi 650/CD 600

● Display Settings

Activates or deactivates the

Press CONFIG on the Infotainment

● Vehicle Settings

automatic door locking function

while a door is open.

system faceplate to enter the

In the corresponding submenus the

Configuration menu.

following settings can be changed:

Delayed door lock: Activates or

deactivates the delayed door

Turn the multifunction knob to scroll

Sport Mode Profile

locking function.

upwards or downwards in the list.

● Engine Sport Performance:

Press the multifunction knob

●

Remote locking, unlocking,

(Navi 950 / Navi 650: press the outer

Accelerator pedal and gear

starting

ring) to select a menu item.

change characteristics become

Remote unlock feedback:

more responsive.

Activates or deactivates the

● Sport Mode Back Lighting:

hazard warning flasher feedback

whilst unlocking.

Changes the instrument

illumination colour.

Remote door unlock: Changes

the configuration to unlock only

● Sport Suspension: Damping

the driver's door or the whole

becomes harder.

vehicle whilst unlocking.

● Sport Steering: Steering support

Auto relock doors: Activates or

is reduced.

deactivates the automatic relock

Languages

function after unlocking without

Selection of the desired language.

opening the vehicle.

●

Restore factory settings

Time and Date

●

Sport Mode Profile

Restore factory settings: Resets

See Infotainment manual for further

●

Languages

all settings to the default settings.

information.

●

Time and Date

●

Radio Settings

-------------------------------------------------------------------------------------------------------------------------------------------------------------

136

Instruments and controls

Radio Settings

Vehicle Settings

●

Collision Detection Systems

See Infotainment manual for further

●

Climate and Air Quality

Park Assist: Activates or

information.

Auto Fan Speed: Modifies the fan

deactivates the ultrasonic

regulation. Changed setting will

sensors. Activation is selectable

Phone Settings

be active after switching the

with or without attached trailer

See Infotainment manual for further

ignition off and on again.

coupling.

information.

Air Conditioning Mode: Activates

Automatic Collision Preparation:

Navigation Settings

or deactivates cooling when

Activates or deactivates the

switching on the ignition or uses

automatic brake functionality of

See Infotainment manual for further

the last chosen setting.

the vehicle in the event of

information.

imminent collision danger. The

Auto Demist: Activates or

Display Settings

following is selectable: the

deactivates auto demist.

●

Home Page Menu:

system will take over brake

Auto Rear Demist: Activates the

control, warn by chimes only or is

See Infotainment manual for

rear heated window

deactivated completely.

further information.

automatically.

Side Blind Zone Alert: Activates

●

Rear Camera Options:

●

Comfort and Convenience

or deactivates the side blind spot

Press to adjust the rear camera

Chime Volume: Changes the

alert system.

options 3 209.

volume of warning chimes.

●

Lighting

●

Display Off:

Personalisation by Driver:

Vehicle Locator Lights: Activates

See Infotainment manual for

Activates or deactivates the

or deactivates the entry lighting.

further information.

personalisation function.

Exit Lighting: Activates or

●

Map Settings:

Auto Reverse Gear Wiper:

deactivates and changes the

Activates or deactivates

See Infotainment manual for

duration of exit lighting.

automatic switching on of the

further information.

●

Power Door Locks

rear window wiper when reverse

gear is engaged.

Open Door Anti Lock Out:

Activates or deactivates the

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

137

automatic door locking function

after unlocking without opening

OnStar

while a door is open.

the vehicle.

Auto Door Lock: Activates or

●

Return to Factory Settings?:

OnStar is a personal connectivity and

deactivates the automatic door

Resets all settings to the default

service assistant with integrated

unlocking function after switching

settings.

Wi-Fi hotspot. The OnStar service is

off ignition. Activates or

available 24 hours a day, seven days

deactivates the automatic door

a week.

locking function after driving-off.

Notice

Delay Door Lock: Activates or

OnStar is not available for all

deactivates the delayed door

markets. For further information,

locking function.

contact your workshop.

●

Remote Lock/Unlock/Start

Notice

Remote Lock Feedback:

In order to be available and

Activates or deactivates the

operational, OnStar needs a valid

hazard warning flasher feedback

OnStar subscription, functioning

whilst locking.

vehicle electrics, mobile service and

Remote Unlock Feedback:

GPS satellite link.

Activates or deactivates the

To activate the OnStar services and

hazard warning flasher feedback

set up an account, press Z and speak

whilst unlocking.

with an advisor.

Remote Door Unlock: Changes

Depending on the equipment of the

the configuration to unlock only

vehicle, the following services are

the driver's door or the whole

available:

vehicle whilst unlocking.

● Emergency services and support

Relock Remotely Unlocked

in the case of a vehicle

Doors: Activates or deactivates

breakdown

the automatic relock function

● Wi-Fi hotspot

-------------------------------------------------------------------------------------------------------------------------------------------------------------

138

Instruments and controls

● Smartphone application

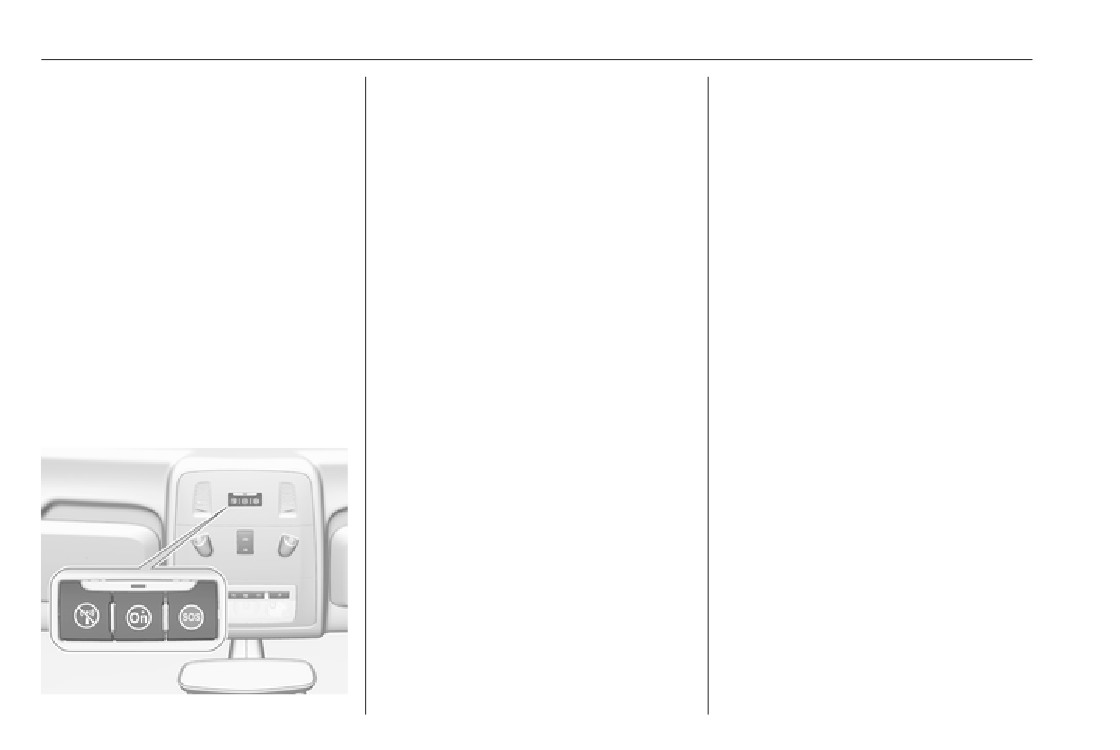

Notice

Red / green flashing for a short period

Depending on the equipment, the

of time: Transmission of the vehicle

● Remote control, e.g. location of

OnStar buttons can also be

location has been deactivated.

the vehicle, activation of horn and

integrated in the rear view mirror.

lights, control of central locking

OnStar services

system

Privacy button

● Stolen vehicle assistance

Press and hold j until a message is

General services

heard to activate or deactivate the

If you need any information

● Vehicle diagnostics

transmission of the vehicle location.

concerning e.g. opening hours, points

● Destination download

Press j to answer a call or to end a

of interest and destinations or if you

Notice

need any support e.g. in the case of a

call to an advisor.

The OnStar module of the vehicle is

vehicle breakdown, a flat tyre and

Press j to access the Wi-Fi settings.

deactivated after ten days without an

empty fuel tank, press Z to establish

ignition cycle. Functions requiring a

a connection to an advisor.

Service button

data connection will be available

Press Z to establish a connection to

again after switching on the ignition.

Emergency services

an advisor.

In the case of an emergency situation,

OnStar buttons

press [ and talk to an advisor. The

SOS button

advisor then contacts emergency or

Press [ to establish a priority

assistance service providers and

emergency connection to a specially

directs them to your vehicle.

trained emergency advisor.

In the case of an accident with

Status LED

activation of airbags or belt

Green: The system is ready.

tensioners, an automatic emergency

call is established. The advisor is

Green flashing: The system is on a

immediately connected to your

call.

vehicle to see whether help is

Red: A problem arose.

needed.

Off: System is in standby mode.

Vauxhall Astra (2016 year). Manual - part 8
