Vauxhall Combo (2014 year). Manual

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

To fold up, lower seats to the floor

Load compartment

until they engage audibly. Raise

backrests and guide them into an

Folding down rear seat

upright position until they engage

audibly.

backrests

The rear seat backrest is divided into

The backrests are properly engaged

two parts. Both parts can be folded

when both red marks on the release

down.

levers are no longer visible.

Remove the load compartment cover

Ensure that the seat belts are

if necessary.

positioned correctly before returning

the seats to the upright position.

Press and hold the catch, then push

the head restraints down.

Pull lever to release, the seat base is

9 Warning

tensioned and will start to rise

automatically.

Only drive the vehicle if the

backrests are securely locked into

position. Otherwise there is a risk

of personal injury or damage to the

load or vehicle in the event of

heavy braking or a collision.

Load compartment cover

Extendable load compartment

cover

Pull the release lever on one or both

Do not place any heavy or sharp-

sides and fold down the backrests

edged objects on the extendable load

onto the seat cushion.

compartment cover.

Fold the seat forward completely.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

Closing

Opening

Removing

Pull the cover towards the rear using

Remove load compartment cover

Open the load compartment cover.

the handle and engage it in the

from the retainers at the sides. Hold

Pull the release lever and lift cover

retainers at the sides.

the cover and guide it until it is fully

from retainers.

rolled up.

Installing

Insert either side of the load

compartment cover in the recess, pull

the release lever. Insert the load

compartment cover and engage.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

Rear parcel shelf

or the lower position. In the lower

The rear parcel shelf consists of two

position, the maximum load

parts - a front part and rear part. The

permissible is 70 kg.

front part can be opened or closed,

Removing

allowing for greater flexibility in the

If the rear seats are in the folded

load compartment.

position, remove the parcel shelf and

Do not place any excessively heavy

store it horizontally between the back

or sharp-edged objects on the rear

of the front seats and the folded rear

parcel shelf.

seats.

9 Warning

Caution

Always make sure that the load in

The rear parcel shelf can be installed

For safety reasons, do not place

the vehicle is securely stowed.

in 2 positions, i.e. the upper position

loads on the folded rear seats.

Otherwise objects can be thrown

around inside the vehicle and

cause personal injury or damage

to the load or car.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

To remove, lift the front part of the

The lashing eyes are designed to

Roof rack system

parcel shelf by releasing it from the

secure items against slippage, e.g.

front retainers (1) on both sides.

using lashing straps or a luggage net.

Roof rack

Lift the rear part of the parcel shelf by

Combo Tour

For safety reasons and to avoid

releasing it from the rear retainers (2

damage to the roof, the vehicle

and 3) on both sides.

approved roof rack system is

recommended. Contact a workshop

Installing

for further information.

Refit the parcel shelf by engaging in

front and rear retainers on both sides.

Follow the installation instructions

and remove the roof rack when not in

use.

Lashing eyes

Mounting roof rack

Van

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

To fasten a roof rack, insert the

■ The load must not obstruct the

Loading information

mounting bolts in the holes indicated

operation of the pedals, parking

in the illustration.

brake and gear selector, or hinder

■ Heavy objects in the load

the freedom of movement of the

compartment should be evenly

driver. Do not place any unsecured

distributed and placed as far

objects in the interior.

forward as possible. If objects can

be stacked, the heavier objects

■ Do not drive with an open load

should be placed at the bottom.

compartment.

■ Secure objects with lashing straps

9 Warning

attached to lashing eyes 3 58.

■ Secure loose objects in load

Always make sure that the load in

compartment to prevent them from

the vehicle is securely stowed.

sliding.

Otherwise objects can be thrown

■ When transporting objects in the

around inside the vehicle and

load compartment, the backrests of

cause personal injury or damage

the rear seats must not be tilted

to the load or car.

forwards or folded down.

■ The payload is the difference

■ Do not allow the load to protrude

between the permitted gross

above the upper edge of the

vehicle weight (see identification

backrests.

plate 3 161) and the EC kerb

■ Do not place any objects on the

weight.

extendable load compartment

To calculate the payload, enter the

cover 3 55 or the instrument panel,

data for your vehicle in the Weights

and do not cover the sensor on top

table at the front of this manual.

of the instrument panel 3 97.

The EC kerb weight includes

weights for the driver (68 kg),

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

luggage (7 kg) and all fluids (tank

90 % full).

Optional equipment and

accessories increase the kerb

weight.

■ Driving with a roof load increases

the sensitivity of the vehicle to

cross-winds and has a detrimental

effect on vehicle handling due to

the vehicle's higher centre of

gravity. Distribute the load evenly

and secure it properly with retaining

straps. Adjust the tyre pressure and

vehicle speed according to the load

conditions. Check and retighten the

straps frequently.

Do not drive faster than 75 mph.

The permissible roof load (which

includes the weight of the roof rack)

is 100 kg. The roof load is the

combined weight of the roof rack

and the load.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

Instruments and

Controls

Steering wheel controls

controls

Steering wheel adjustment

Controls

Warning lights, gauges and indi-

cators

Information displays

Vehicle messages

Trip computer

The Infotainment system and a

connected mobile phone can be

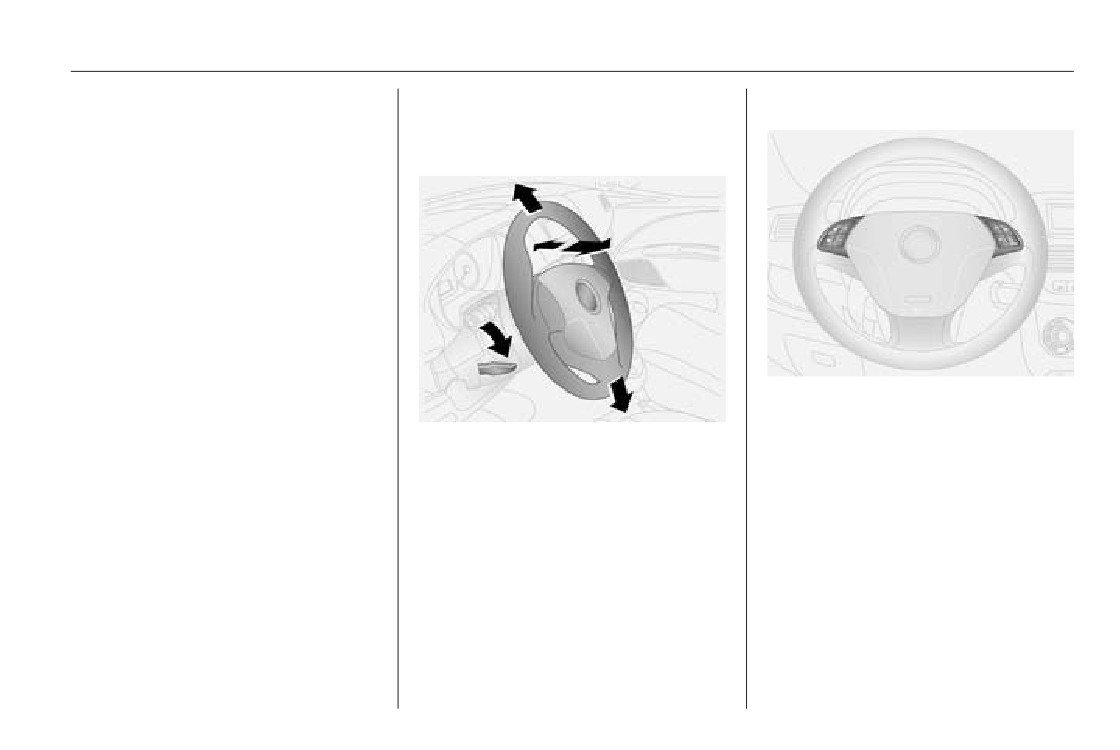

Unlock lever, adjust steering wheel,

operated via the controls on the

then engage lever and ensure it is

steering wheel.

fully locked.

Further information is available in the

Do not adjust steering wheel unless

Infotainment system manual.

vehicle is stationary and steering

wheel lock has been released.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

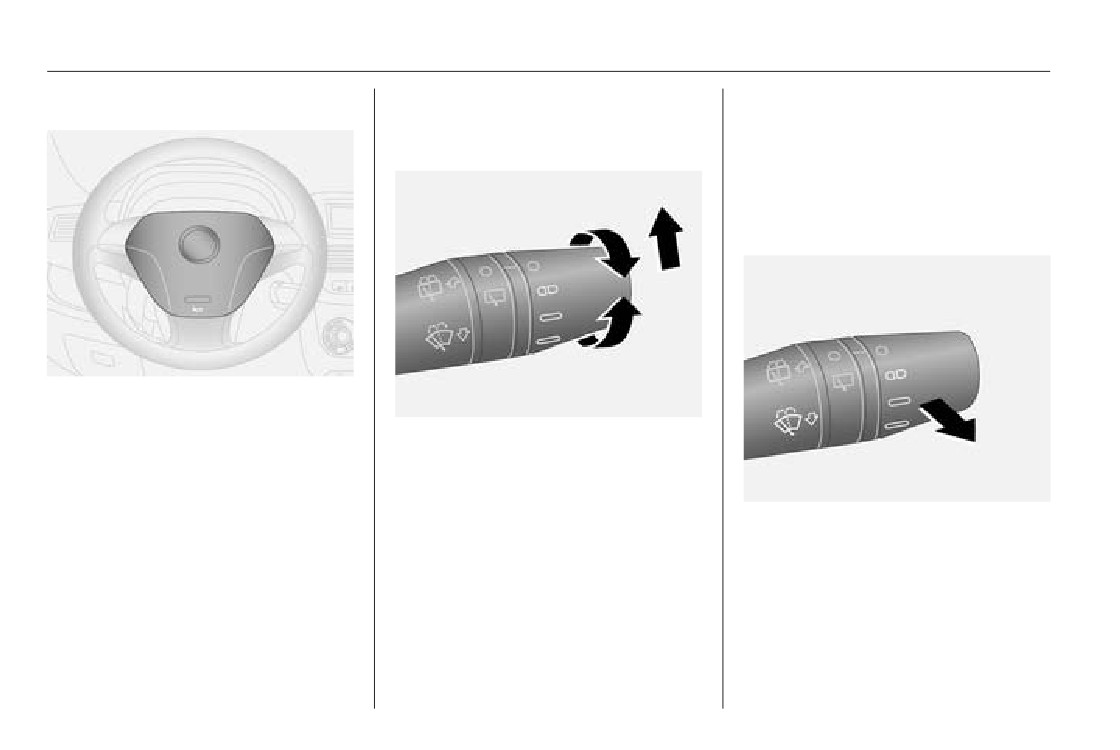

Adjustable wiper interval

Horn

Windscreen wiper/washer

Wiper lever in position

Windscreen wiper

The windscreen wiper will

automatically adapt to the speed of

the vehicle.

Windscreen washer

Press j.

Twist lever:

= off

= intermittent wiping

= slow

= fast

Pull lever briefly, washer fluid is

sprayed onto the windscreen and the

For a single wipe when the

wiper wipes a few times.

windscreen wiper is off, move the

Pull lever and hold, washer fluid is

lever up.

sprayed onto the windscreen and

Do not use if the windscreen is frozen.

wiper wipes until the lever is released.

Switch off in car washes.

Washer fluid 3 129, Wiper blade

replacement 3 131.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

Rear window wiper/washer

Outside temperature

Clock

Depending on model variant, the

current time and/or date may appear

in the Driver Information Centre

3 79.

Values can be adjusted via the

SETq, R and S buttons on the

instrument panel.

Twist to activate the rear window

Outside temperature is shown in the

wiper.

Driver Information Centre 3 79.

Push lever. Washer fluid is sprayed

onto the rear window and the wiper

9 Warning

wipes a few times.

The road surface may already be

Do not use if the rear window is

icy even though the display

frozen.

indicates a few degrees above

Switch off in car washes.

0 °C.

The rear window wiper comes on

automatically when the windscreen

wiper is switched on and reverse gear

is engaged.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

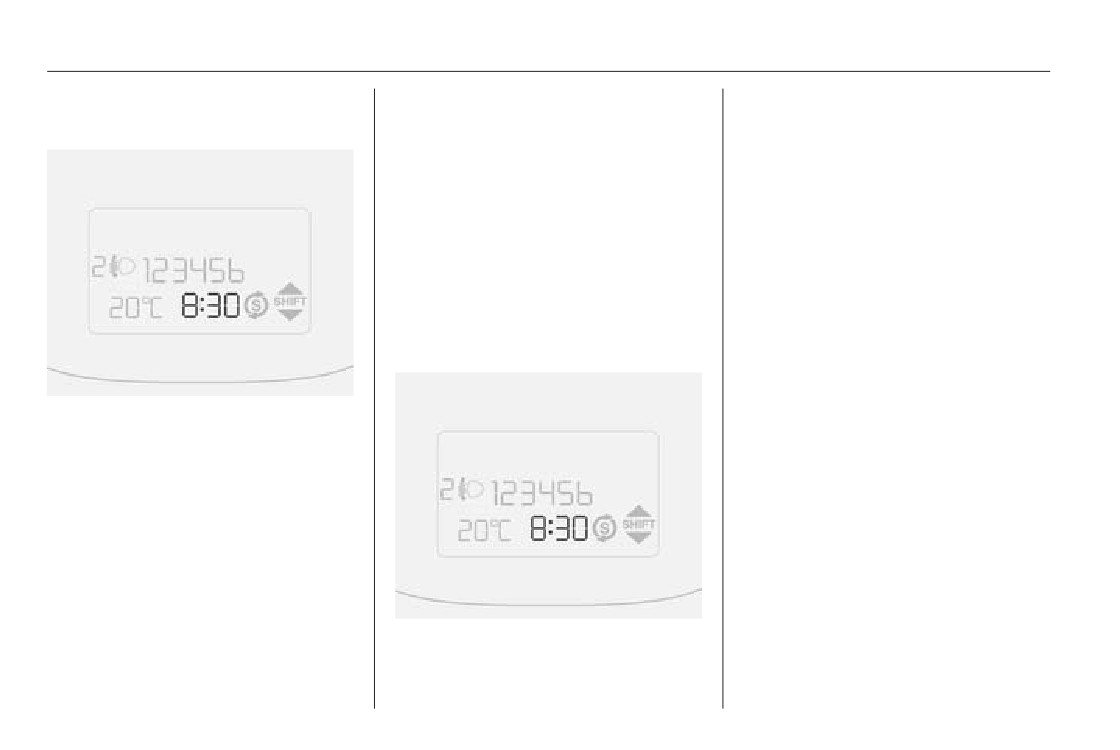

Set time in Driver Information

5. Press SETq to confirm changes;

Setting the time

the minutes will flash in the

After accessing this menu option, it is

Centre - Standard version

display.

possible to either set the time or

6. Press R or S to increase or

change the clock mode between

12 hour and 24 hour clock.

decrease the displayed value.

Press the SETq button once to

7. Press SETq briefly to confirm

access the settings menu.

changes and automatically return

to the previous display screen.

Scroll through the menu options using

the R or S buttons until Set time is

Set time and date in Driver

displayed.

Information Centre -

Press SETq to access this menu

Multifunction version

option; Time and Mode are displayed.

To set the time:

1. Press R or S to select Time and

1. Press the SETq button once to

press SETq to access this

access the settings menu.

submenu option; the hours will

2. Scroll through the menu options

flash in the display

using the R or S buttons

2. Press R or S to increase or

until HOUR is displayed.

decrease the displayed value.

3. Press SETq to access this menu

3. Press SETq to confirm changes;

option; the hours will flash in the

the minutes will flash in the

display.

4. Press R or S to increase or

decrease the displayed value.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

4. Press R or S to increase or

Power outlets

decrease the displayed value.

5. Press SETq briefly to confirm

5. Press SETq to confirm changes;

changes and automatically return

the month will flash in the display.

to the previous display screen.

6. Press R or S to increase or

To change the clock mode between

decrease the displayed value.

12 hour and 24 hour clock:

7. Press SETq to confirm changes;

1. Press R or S to select Mode and

the day will flash in the display.

press SETq to access this

8. Press R or S to increase or

submenu option; the display will

decrease the displayed value.

flash.

9. Press SETq briefly to confirm

2. Press R or S to change clock

changes and automatically return

mode between 12h and 24h.

to the previous display screen.

3. Press SETq briefly to confirm

A 12 Volt power outlet is located in the

changes and automatically return

centre console.

to the previous display screen.

Rear power outlets

Setting the date

Depending on model variant,12 Volt

1. Press the SETq button once to

power outlets are located at the

access the settings menu.

sidewall in the load compartment.

2. Scroll through the menu options

using the R or S buttons until Set

date is displayed.

3. Press SETq to access this menu

option; the year will flash in the

display.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

Short wheelbase van

Combo Tour

Do not damage the power outlets by

using unsuitable plugs.

If the tyre repair kit is in operation,

switch off all electrical consumers.

Tyre repair kit 3 145.

Cigarette lighter

Long wheelbase van

Do not exceed the maximum power

consumption of 180 watts.

With ignition off, the power outlets are

deactivated. Additionally the power

outlets are deactivated in the event of

low battery voltage.

Electrical accessories that are

The cigarette lighter is located in the

connected must comply with the

centre console.

electromagnetic compatibility

Press in cigarette lighter. It switches

requirements laid down in

off automatically once the element is

DIN VDE 40 839.

glowing. Pull out lighter.

Do not connect any current-delivering

accessories, e.g. electrical charging

devices or batteries.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

Ashtrays

Warning lights, gauges

Odometer

and indicators

Caution

Instrument cluster

To be used only for ash and not for

combustible rubbish.

The needles of the instruments briefly

rotate to the end position when the

ignition is switched on.

Speedometer

Displays the recorded distance in

miles.

H may appear in the display until the

vehicle has travelled 60 miles.

The portable ashtray should be

Trip odometer

placed in the cupholders in the centre

Displays the recorded distance since

console.

the last reset.

Indicates vehicle speed.

Depending on model variant, there

are two independent trip odometers

A or B which indicate how far the

vehicle has been driven since the last

reset.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

To reset the trip odometer, press and

During natural gas operation, the

Caution

hold the TRIP button for a few

system automatically switches over to

seconds while the relevant trip

petrol operation when the gas tanks

If the needle is in the red warning

odometer is displayed.

are empty 3 69. Fuel selector

zone, the maximum permitted

3 119.

engine speed is exceeded. Engine

Tachometer

at risk.

Control indicator $ illuminates if the

level in the tank is low.

Fuel gauge

Never run the tank dry.

Because of the fuel remaining in the

tank, the top-up quantity may be less

than the specified tank capacity.

The needle will point to 0 and control

indicator $ will flash to indicate a fault

in the system. Seek the assistance of

a workshop.

Low fuel control indicator $ 3 78.

Displays the engine speed.

Drive in a low engine speed range for

each gear as much as possible.

Displays the fuel level or gas level in

the tank depending on the operation

mode.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

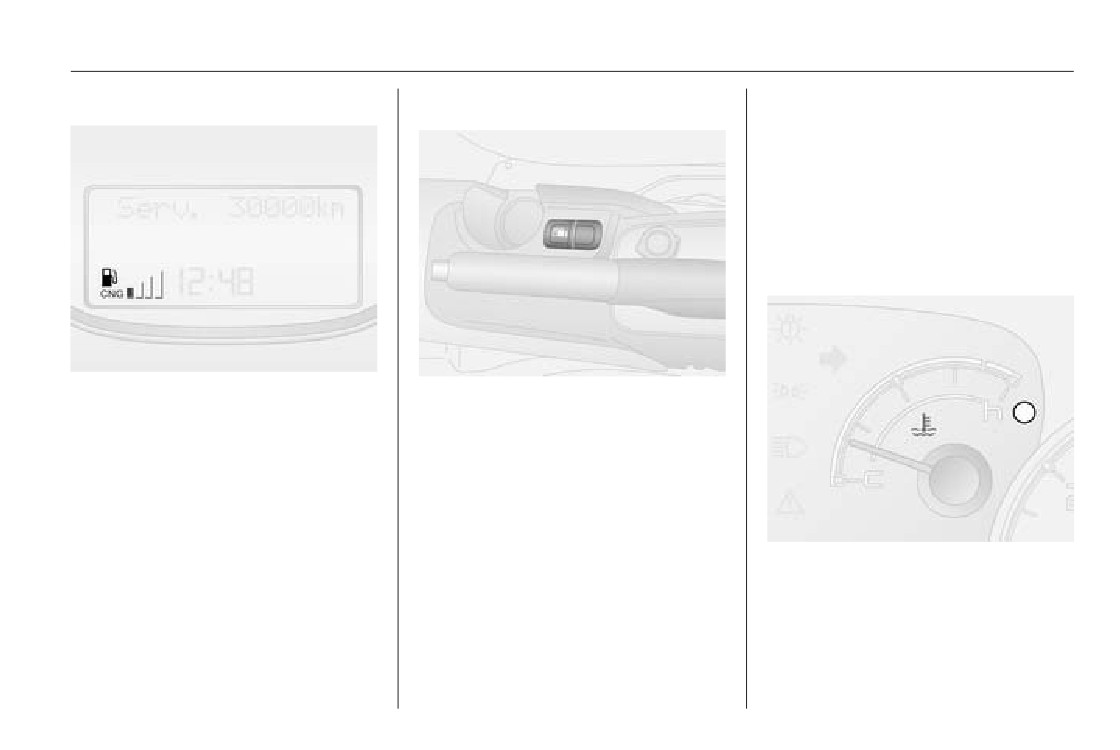

CNG fuel gauge

3 79, the natural gas tanks are

Fuel selector

empty and petrol operation is

automatically engaged.

Fuel for natural gas operation 3 119,

Refuelling 3 120.

Engine coolant

temperature gauge

In natural gas operation mode, the

Pressing button Y in the centre

four vertical bars next to CNG

console switches between petrol and

correspond to the methane level in

natural gas operation. The LED 1

the cylinders. As the fuel level

status shows the current operating

diminishes, the bars in the CNG fuel

mode.

gauge disappear.

1 off

= natural gas

CNG and the one remaining bar will

operation.

flash if the methane level in the

1 illumi-

= petrol operation.

cylinders is low.

Displays the coolant temperature.

nates

Refuelling 3 120.

During natural gas operation, if

control indicator Y illuminates in the

Driver Information Centre (DIC)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

= engine operating

every additional 125 miles and

Service display

temperature not yet

becomes more frequent when the

reached

remaining distance is below

central

= normal operating

125 miles.

area

temperature

The vehicle needs a service. Seek the

= temperature too high

assistance of a workshop.

If control indicator $ illuminates in

The remaining distance to the next

conjunction with a message in the

service may also be viewed in the

Driver Information Centre 3 79 the

Driver Information Centre by

coolant temperature is too high. Seek

selecting SERVICE from the settings

the assistance of a workshop.

menu options 3 79.

Resetting the service display

Caution

After a service, the service display

Service display is available in

must be reset by a workshop.

If engine coolant temperature is

vehicles with Multifunction version of

too high, stop vehicle, switch off

the Driver Information Centre 3 79.

engine. Danger to engine. Check

Control indicators

coolant level.

When the ignition is switched on, the

The control indicators described are

remaining distance before the next

not present in all vehicles. The

service is due is shown briefly. Based

description applies to all instrument

on driving conditions, the interval at

versions. Depending on the

which a service will be indicated can

equipment, the position of the control

vary considerably.

indicators may vary.

When the remaining distance before

When the ignition is switched on,

the next service is less than

most control indicators will illuminate

1,250 miles, Serv. appears in the

briefly as a functionality test.

Driver Information Centre. The

service reminder is repeated after

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vauxhall Combo (2014 year). Manual - part 4
