Vauxhall Antara (2014 year). Manual

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

Vehicle unlocking

Seat adjustment

Seat positioning

Initial drive information

Press button q to unlock the doors

and load compartment. Open the

doors by pulling the handles. To open

Pull handle, slide seat, release

the tailgate, operate button above

handle.

number plate.

Seat position 3 35, Seat adjustment

Radio remote control 3 20, Central

3 36.

locking system 3 21, Load

compartment 3 23.

9 Danger

Do not sit nearer than 25 cm from

the steering wheel, to permit safe

airbag deployment.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

Seat backrests

Seat height

Power seat adjustment

Lever pumping motion

Pull lever, adjust inclination and

Operate switches.

release lever. Allow the backrest to

= seat higher

engage audibly. Do not lean on the

down = seat lower

seat backrest whilst adjusting it.

Seat position 3 35, Seat adjustment

3 36.

3 36, Seat folding 3 37.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

Positioning

= move front switch

Head restraint adjustment

Seat belt

forwards/

backwards

Height of front

= move front part of

part of seat

front switch

upwards/

downwards

Height of rear

= move rear part of

part of seat

front switch

upwards/

downwards

Height of entire

= move entire front

seat

switch upwards/

downwards

Backrest

= move upper part of

Press release button, adjust height

Pull out the seat belt and engage in

rear switch

and engage.

belt buckle. The seat belt must not be

forwards/

twisted and must fit close against the

backwards

Head restraints 3 34.

body. The backrest must not be tilted

Seat position 3 35, Power seat

back too far (maximum approx. 25 °).

adjustment 3 38.

To release belt, press red button on

belt buckle.

Seat position 3 35, Seat belts

3 41, Airbag system 3 44.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

Mirror adjustment

Exterior mirrors

Steering wheel adjustment

Interior mirror

Select the relevant exterior mirror and

Unlock lever, adjust steering wheel,

adjust it.

then engage lever and ensure it is

To reduce dazzle, adjust the lever on

Convex exterior mirrors 3 28,

fully locked.

the underside of the mirror housing.

Electric adjustment 3 28, Folding

Do not adjust steering wheel unless

Interior mirror 3 29, Automatic anti-

exterior mirrors 3 28, Heated

vehicle is stationary and steering

dazzle interior mirror 3 30.

exterior mirrors 3 29.

wheel lock has been released.

Airbag system 3 44, Ignition

positions 3 124.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

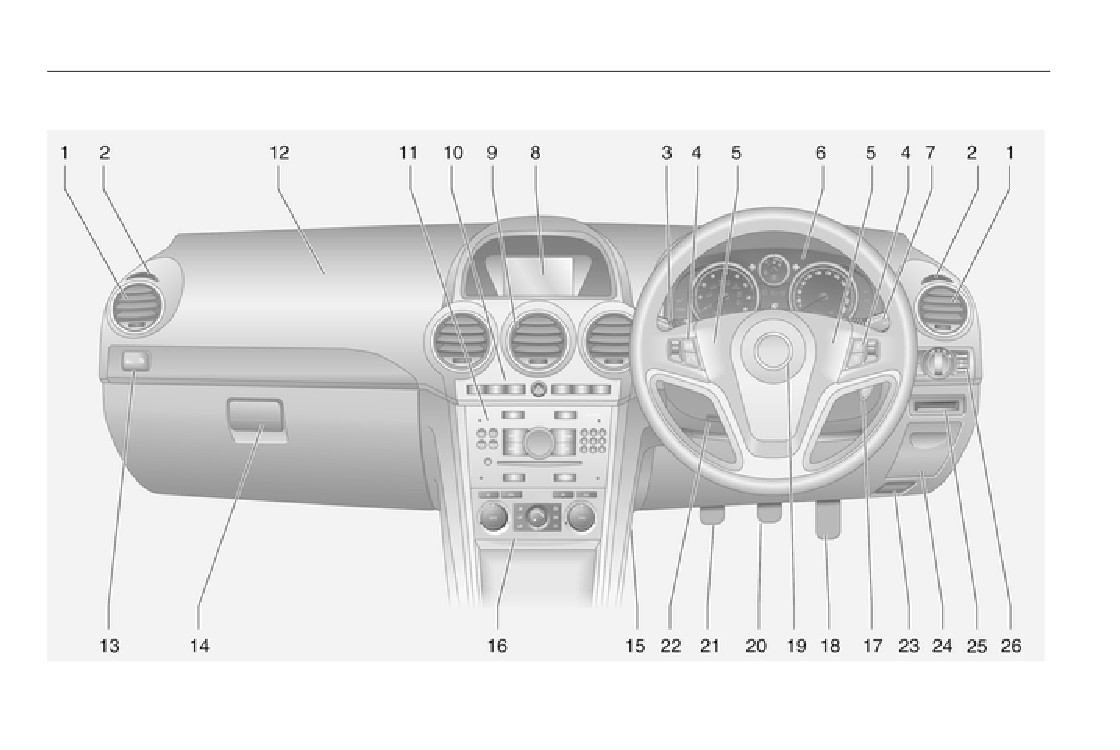

In brief

Side air vents

120

Info-Display

Fuse box

172

Fixed air vents

121

Climate control system

115

Check control, tyre

High beam

107

pressure monitoring

Ignition switch with

system

178

steering wheel lock

124

Headlight flash

107

Accelerator pedal

124

Trip computer

101

Turn and lane-change

Driver airbag

Centre air vents

120

signals

109

Brake pedal

137

Hazard warning flashers

108

Exit lighting

113

Clutch pedal

123

Parking assist

143

Parking lights

110

Steering wheel adjustment . . 73

Electronic Stability Control . 139

Cruise control

Bonnet release

154

Descent control system

140

Coin storage

Remote control on

steering wheel

Card holder

Status LED for anti-theft

alarm system

Light switch

106

Trip computer

101

Horn

Folding exterior mirrors

Automatic light control

106

Instruments

Eco button for stop/start

Instrument illumination

111

Windscreen wiper and

system

125

Rear fog light

110

washer system, headlight

Infotainment system

washer system

Front fog lights

109

Front passenger airbag

Rear window wiper and

Status LEDs for front

Headlight range

washer system

passenger airbag

adjustment

107

Control indicator for front

passenger seat belt

Glovebox

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

Lighting 3 106.

Headlight flash, high beam and

Exterior lighting

low beam

Turn light switch:

headlight flash

= pull lever

AUTO = Automatic light control:

high beam

= push lever

Headlights are switched on

low beam

= pull lever back

and off automatically

towards steering

depending on external

wheel

lighting conditions.

= Off (or deactivation of

Automatic light control 3 106, High

automatic light control)

beam 3 107, Headlight flash 3 107.

= Sidelights

= Headlights

Press button:

> = Front fog lights

r = Rear fog light

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

Washer and wiper systems

Windscreen and headlight

Rear window wiper and washer

washer systems

system

Windscreen wiper

Pull lever.

Wiper on

= push lever

& = fast

Wiper off

= pull lever

Windscreen and headlight washer

% = slow

Wash

= press and hold

system 3 74, Washer fluid 3 157.

$ = timed interval wiping or

button

automatic wiping with rain

sensor

Rear window wiper and washer

§ = off

system 3 76, Wiper blade

replacement 3 161, Washer fluid

For a single wipe when the

3 157.

windscreen wiper is off, press the

lever down.

Windscreen wiper 3 74, Wiper

blade replacement 3 161.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

Demisting and defrosting the

Close centre air vents, open side air

Climate control

vents and direct them towards the

windows

Heated rear window, heated

door windows.

exterior mirrors

Climate control system 3 115.

Air distribution to V (or l).

Cooling A/C (or n) and air

Heating is operated by pressing the

recirculation

are switched on

RÜ button.

automatically to improve defrosting

Heated rear window 3 32, Heated

efficiency (air recirculation

exterior mirrors 3 29.

automatically switched off in vehicles

with electronic climate control).

Set temperature to highest level.

Set fan speed to highest level.

Switch on heated rear window RÜ.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

Transmission

Automatic transmission

Starting off

Manual transmission

Check before starting off

■ Tyre pressure and condition 3 178,

3 210.

■ Engine oil level and fluid levels

3 154.

■ All windows, mirrors, exterior

lighting and number plates are free

from dirt, snow and ice and are

operational.

■ Proper position of mirrors, seats,

and seat belts 3 28, 3 35,

P = park

3 42.

R = reverse

■ Brake function at low speed,

Reverse: with the vehicle stationary,

N = neutral

particularly if the brakes are wet.

wait 3 seconds after depressing

D = drive

clutch pedal and engage the gear.

Manual mode: move selector lever

If the gear does not engage, set the

from D to the left.

lever to neutral, release the clutch

< = higher gear

pedal and depress again; then repeat

] = lower gear

gear selection.

Manual transmission 3 134.

The selector lever can only be moved

out of P when the ignition is on and

the foot brake is applied. To engage

P or R, push the release button.

Automatic transmission 3 130.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

Starting the engine

Stop-start system

Parking

9 Warning

■ Do not park the vehicle on an

easily ignitable surface. The

high temperature of the exhaust

system could ignite the surface.

■ Always apply the electrical

parking brake.

Pull switch m.

The electric parking brake is

applied when control indicator

■ Turn key to position ACC

If the vehicle is at a low speed or at a

m illuminates 3 86.

standstill and certain conditions are

■ move the steering wheel slightly to

For maximum force, e.g. parking

fulfilled, activate an Autostop as

release the steering wheel lock

with a trailer or on inclines, pull

follows:

■ manual transmission in neutral

switch m twice.

■ Depress the clutch pedal

■ operate clutch and brake pedals

■ Switch off the engine and turn

■ shift the selector lever to N

the ignition key to position

■ automatic transmission in P or N

■ release the clutch pedal

LOCK, push key into ignition

■ do not accelerate

switch and remove.

An Autostop is indicated by the

■ diesel engines: turn key to ON for

needle at the AUTOSTOP position in

Turn the steering wheel until the

preheating and wait until control

the tachometer.

steering wheel lock is felt to

indicator ! extinguishes

engage.

To restart the engine, depress the

■ turn key to START and release

clutch pedal again.

Starting the engine 3 124.

Stop-start system 3 125.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

■ The engine cooling fans may run

For vehicles with automatic

after the engine has been switched

transmission, depress foot

off 3 153.

brake and shift into P before

pushing key into ignition switch

■ After running at high engine speeds

and removing.

or with high engine loads, operate

the engine briefly at a low load or

■ If the vehicle is on a level

run in neutral for approx.

surface or uphill slope, engage

1 or 2 minutes, before switching off

first gear or move the selector

in order to protect the turbocharger.

lever to P before switching off

the ignition. On an uphill slope,

Keys, locks 3 19, Laying the vehicle

turn the front wheels away from

up for a long period of time 3 152.

the kerb.

If the vehicle is on a downhill

slope, engage reverse gear or

move the selector lever to P

before switching off the ignition.

Turn the front wheels towards

the kerb.

■ Close windows and sunroof.

■ Lock the vehicle with button p on

the radio remote control 3 21.

■ Activate the anti-theft alarm system

3 25.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Keys, doors and windows

Key with foldaway key section

Keys, doors and

Keys, locks

windows

Keys

Replacement keys

Keys, locks

The key number is specified in the

Car Pass or on a detachable tag.

Doors

The key number must be quoted

Vehicle security

when ordering replacement keys as it

Exterior mirrors

is a component of the immobiliser

Interior mirrors

system.

Windows

Locks 3 194.

Roof

Lock cylinders

Press button to extend. To fold the

Designed to free-wheel if they are

key, first press the button.

forcefully rotated without the correct

key or if the correct key is not fully

Car Pass

inserted. To reset, turn cylinder with

the correct key until its slot is vertical,

The Car Pass contains security

remove key and then re-insert it. If the

related vehicle data and should

cylinder still free-wheels, turn the key

therefore be kept in a safe place.

through 180° and repeat operation.

When the vehicle is taken to a

workshop, this vehicle data is needed

in order to perform certain operations.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Keys, doors and windows

Radio remote control

Fault

If the central locking system cannot

be operated with the radio remote

control, it may be due to the following:

■ Range exceeded.

■ Battery voltage too low.

Batteries do not belong in household

■ Frequent, repeated operation of the

waste. They must be disposed of at

radio remote control while not in

an appropriate recycling collection

range, which will require

point.

reprogramming. Seek the

assistance of a workshop.

Key with foldaway key section

■ Overload of the central locking

system by operating at frequent

Used to operate:

intervals, the power supply is

interrupted for a short time.

■ Central locking system

■ Interference from higher-power

■ Anti-theft locking system

radio waves from other sources.

■ Anti-theft alarm system

Unlocking 3 21.

The radio remote control has a range

of approx. 6 metres. This range can

Radio remote control battery

be affected by external influences.

replacement

The hazard warning flashers confirm

Replace the battery as soon as the

operation.

range reduces.

Handle with care, protect from

Extend the key and open the unit.

moisture and high temperatures and

Replace the battery (battery type

avoid unnecessary operation.

CR2032), paying attention to the

installation position. Close the unit.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Keys, doors and windows

Key with fixed key section

Unlocking

Locking

Open the unit with a small screwdriver

Close doors, load compartment, fuel

in the notch on the cover. Replace the

filler flap, bonnet, windows and

battery (battery type CR2032), paying

sunroof.

attention to the installation position.

Close the unit.

Central locking system

Unlocks and locks doors, load

compartment and fuel filler flap.

A pull on an interior door handle

unlocks the respective door. Pulling

the handle once more opens the door.

Press button q.

Notice

In the event of an accident in which

Notice

airbags or belt pretensioners are

If no door is opened within

Press button p.

deployed, the vehicle is

5 minutes after the vehicle has been

automatically unlocked.

unlocked, the vehicle is relocked

The central locking system can be

automatically (and the anti-theft

activated with the windows open.

alarm is reactivated).

When button q is pressed, the

instrument panel illuminates for

approx. 30 seconds or until ignition

switch is turned to position ACC.

Vauxhall Antara (2014 year). Manual - part 1
