Saturn Aura (2010 year). Manual

Exterior Lighting

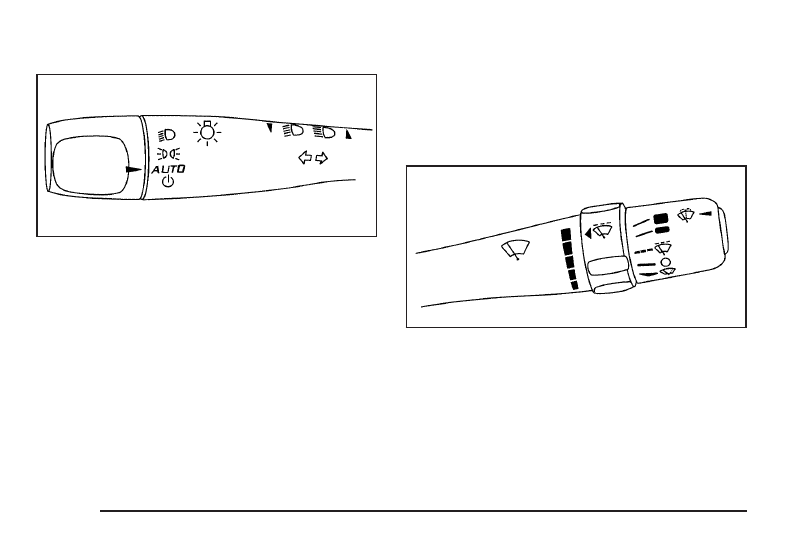

The lever is located on the left side of the steering
wheel.

: Turns on the headlamps, parking lamps, and

taillamps.

;

: Turns on the parking lamps and taillamps only.

AUTO: Automatically turns on the Daytime Running
Lamps during daytime, and the headlamps, parking
lamps, and taillamps at night.

: Turn the band to this position to turn the Automatic

Headlamp System on or off. In Canada, this position
only works when a vehicle is in the P (Park) position.

For more information, see:

•

Headlamps on page 4-10.

•

Daytime Running Lamps (DRL) on page 4-11.

•

Automatic Headlamp System on page 4-11.

Windshield Wiper/Washer

The windshield wiper lever is on the right side of the
steering column.

: Turns the wipers off.

: For intermittent or speed sensitive operation.

The amount of delay time varies between wiping cycles
due to the delay setting selected or the speed of the
vehicle. As vehicle speed is increased or decreased,
the wiper interval also increases or decreases.

1-12

-------------------------------------------------------------------------------------------------------------------------------------------------------------

: Move the lever to the

position, then turn

the

band up for more frequent wipes or down for

less frequent wipes.

: Slow wipes.

: Fast wipes.

: Single wipe, move the lever down, then release it.

Several wipes, hold the lever down.

Windshield Washer: Press the button at the end of the
lever until the washers begin.

See Windshield Wipers on page 4-5 and Windshield
Washer on page 4-6.

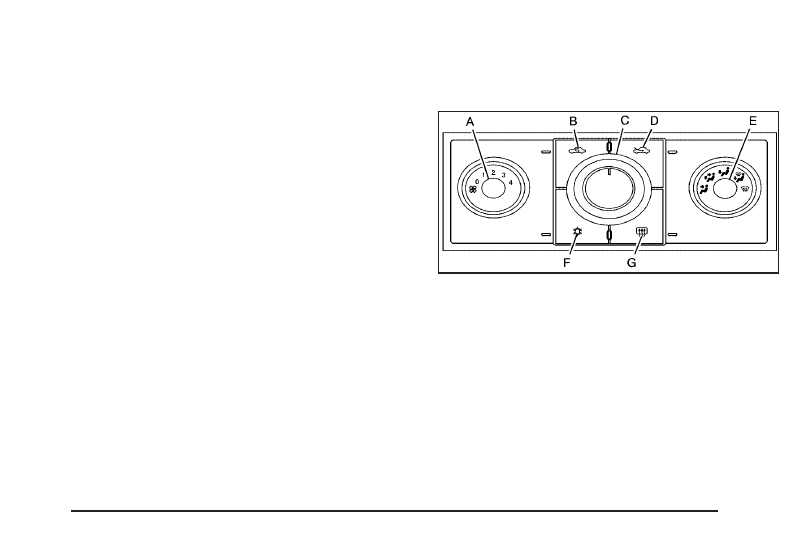

Climate Controls

The vehicle’s heating, cooling, and ventilation can be
automatically controlled with these systems.

A. Fan Control
B. Air Recirculation
C. Temperature

Control

D. Outside Air

E. Air Delivery Mode

Control

F. Air Conditioning
G. Rear Window

Defogger

1-13

-------------------------------------------------------------------------------------------------------------------------------------------------------------

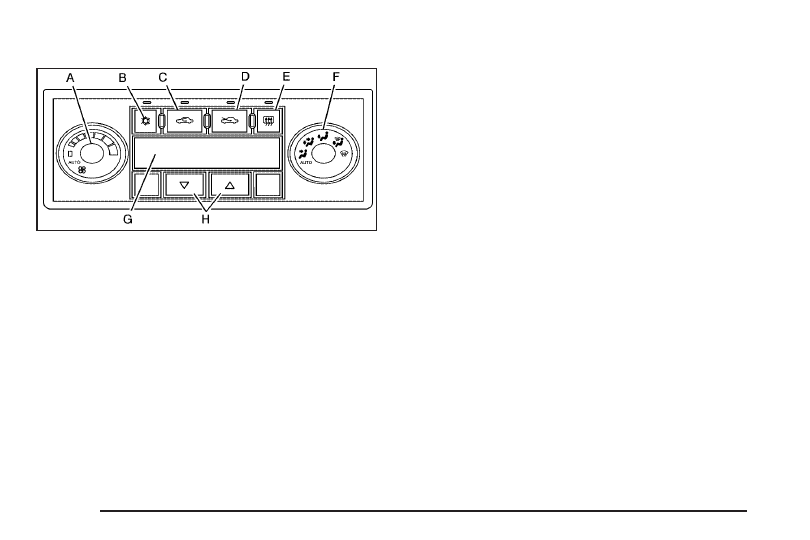

Automatic Climate Control System

A. Fan Control
B. Air Conditioning
C. Air Recirculation
D. Outside Air
E. Rear Window

Defogger

F. Air Delivery Mode

Control

G. Display
H. Temperature

Control

See Climate Control System on page 4-16 or Automatic
Climate Control System on page 4-19 (If Equipped).

Transmission

Driver Shift Control

Driver Shift Control (DSC) allows you manual control
over the automatic transmission.

1. Move the shift lever from D (Drive) rearward to

M (Manual).

The transmission will remain in the driver selected
gear. When coming to a stop in the manual
position, the vehicle will automatically shift into
1 (First) gear.

1-14

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2. Press the + (plus) paddle, located on top of the

steering wheel, forward to upshift, or push the
backside of the shift paddle rearward to downshift.

The transmission will only allow you to shift into gears
appropriate for the vehicle speed and engine revolutions
per minute (RPM). See Automatic Transmission
Operation (Six Speed Transmission) on page 3-23 for
more information.

Vehicle Features

Radio(s)

: Press to turn the system on and off. Turn to

increase or decrease the volume.

BAND: Press to choose between FM1, AM, or XM™,
if equipped.

Radio with CD (MP3) and USB Port shown

1-15

-------------------------------------------------------------------------------------------------------------------------------------------------------------

: Select radio stations.

: Seek or scan stations.

: For vehicles with XM, MP3, WMA, or RDS features,

press to display additional text information related to
the current FM-RDS or XM station; or CD, MP3, WMA
song. Song title information will be displayed on the
top line of the display while the artist information will
be displayed on the bottom line, if the information
is available during XM, CD, MP3, or WMA playback.
When information is not available, “No Info” displays.

For more information about these and other radio
features, see Audio System(s) on page 4-50 and
Radio(s) on page 4-52.

Storing a Favorite Station

A maximum of 36 stations can be stored as favorites
using the six softkeys located below the radio station
frequency tabs and by using the radio FAV button. Press
FAV to go through up to six pages of favorites, each
having six favorite stations available per page. Each page
of favorites can contain any combination of AM, FM, or
XM stations.

See Radio(s) on page 4-52.

Setting the Clock

1. Turn the ignition key to ACC/ACCESSORY or

ON/RUN.

2. Press

to turn the radio on.

3. Press

and the HR, MIN, MM, DD, YYYY

(hour, minute, month, day, and year) displays.

4. Press the softkey located below any one of the tabs

that you want to change.

5. Increase or decrease the time or date by

turning

clockwise or counterclockwise.

For detailed instructions on setting the clock for your
specific audio system, see Setting the Clock on
page 4-51.

1-16

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Satellite Radio

XM is a satellite radio service that is based in the
48 contiguous United States and 10 Canadian
provinces. XM satellite radio has a wide variety of
programming and commercial-free music,
coast-to-coast, and in digital-quality sound.

A fee is required to receive the XM service.

For more information, refer to:

•

www.xmradio.com or call 1-800-929-2100 (U.S.)

•

www.xmradio.ca or call 1-877-438-9677 (Canada)

See “XM Satellite Radio Service” under Radio(s)
on page 4-52.

Portable Audio Devices (Auxiliary
Input or USB Port)

This vehicle may have an auxiliary input jack and a
USB port, located on the audio faceplate. External
devices such as iPods

, laptop computers, MP3 players,

CD changers, USB storage devices, etc. can be
connected to the auxiliary input jack using a 3.5 mm
(1/8 in) cable or the USB port depending on the audio
system.

Press the CD/AUX button to play audio from the
portable player.

See “Using the Auxiliary Input Jack” and “Using the
USB Port” under Radio(s) on page 4-52.

Steering Wheel Controls

If equipped, some audio
controls can be adjusted
using the controls on
the right side of the
steering wheel.

+ /

−

: Increases or decreases volume.

: Press to change radio stations, select tracks

on a CD, or to select tracks and navigate folders on an
iPod

or USB device.

1-17

-------------------------------------------------------------------------------------------------------------------------------------------------------------

b g

: Press to silence the vehicle speakers only. Press

again to turn the sound on. Press and hold longer
than two seconds to interact with the OnStar

Bluetooth systems.

: Press to reject an incoming call, or to end a call.

For more information, see Audio Steering Wheel
Controls on page 4-82.

Bluetooth

For vehicles with an in-vehicle Bluetooth system, it
allows users with a Bluetooth enabled cell phone
to make and receive hands-free calls using the vehicle’s
audio system and controls.

The Bluetooth enabled cell phone must be paired with
the in-vehicle Bluetooth system before it can be used in
the vehicle. Not all phones will support all functions.
For more information visit www.gm.com/bluetooth.

For more information, see Bluetooth

on page 4-68.

Driver Information Center (DIC)

The DIC display is located at the bottom of the
instrument panel cluster. It shows the status of
many vehicle systems and enables access to the
personalization menu.

The DIC buttons are
located on the left side
of the steering wheel.

INFO: Press to scroll through the vehicle information
displays.

: Press to reset some vehicle information displays,

select a personalization setting, or acknowledge a
warning message.

For more information, see Driver Information Center
(DIC) on page 4-39.

1-18

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle Personalization

Some vehicle features can be programmed by using the
DIC buttons on the left side of the steering wheel.
These features include:

•

Oil Life Reset

•

Units

•

RKE Lock and Unlock Feedback

•

Door Lock and Unlock Settings

•

Language

See DIC Vehicle Personalization on page 4-46.

Cruise Control

The cruise control buttons
are located on the left side
of the steering wheel.

: On/Off.

RES+: Press to resume or accelerate speed.

SET

−

: Press to set or decrease speed.

For more information, see Cruise Control on page 4-7.

1-19

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Power Outlets

Accessory power outlets can be used to connect
auxiliary electrical equipment, such as a cellular
telephone.

There are two accessory power outlets. One accessory
power outlet is inside the center storage console and
the other is located on the center storage console below
the climate controls.

To use an outlet, lift the protective cap. The accessory
power outlet is operational at all times.

See Accessory Power Outlet(s) on page 4-15.

Performance and Maintenance

Traction Control System (TCS)

The traction control system limits wheel spin. The
system turns on automatically every time the vehicle
is started.

•

To turn off traction control, press and release

on the center console.

illuminates and

the appropriate DIC message displays. See
DIC Warnings and Messages on page 4-42.

•

Press and release the button again to turn on
traction control.

For more information, see Traction Control System
(TCS) on page 5-7.

1-20

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Electronic Stability Control (ESC)

The vehicle may have an Electronic Stability Control
system that assists with directional control of the vehicle
in difficult driving conditions. The system turns on
automatically every time the vehicle is started.

•

To turn off both traction control and Electronic

Stability Control, press and hold

, located on

the center console, until

illuminates and the

appropriate DIC message displays. See DIC
Warnings and Messages on page 4-42.

•

Press and release the button again to turn on both
systems.

For more information, see Electronic Stability Control
(ESC) on page 5-5.

Tire Pressure Monitor

This vehicle may have a Tire Pressure Monitor
System (TPMS).

The Tire Pressure Monitor
alerts you when a
significant reduction in
pressure occurs in one or
more of the vehicle’s tires
by illuminating the low tire
pressure warning light on
the instrument cluster.

The warning light will remain on until the tire pressure is
corrected. The proper tire pressures for your vehicle
are listed on the Tire and Loading Information label
located on the driver side center pillar (B pillar).
See Loading the Vehicle on page 5-19.

1-21

-------------------------------------------------------------------------------------------------------------------------------------------------------------

You may notice during cooler conditions that the low tire
pressure warning light will appear when the vehicle is
first started and then turn off as you drive. This may be
an early indicator that your tire pressures are getting
low and the tires need to be inflated to the proper
pressure.

Note: The Tire Pressure Monitor can alert you about
low tire pressure, but it does not replace normal monthly
tire maintenance. It is the driver’s responsibility to
maintain correct tire pressures.

See Tire Pressure Monitor System on page 6-53 and
Tire Pressure Monitor Operation on page 6-54.

Tire Sealant and Compressor Kit

This vehicle may come with a jack and spare tire or a
tire sealant and compressor kit. The kit can be used
to seal small punctures in the tread area of the tire.

See Tire Sealant and Compressor Kit on page 6-67 for
complete operating information.

Engine Oil Life System

The engine oil life system calculates engine oil life
based on vehicle use and displays a DIC message
when it is necessary to change the engine oil and filter.
The oil life system should be reset to 100% only
following an oil change.

Resetting the Oil Life System

1. Turn the ignition key to ON/RUN with the

engine off.

2. With the CHANGE OIL SOON message displayed,

press either of the DIC buttons to clear the
message. See DIC Warnings and Messages
on page 4-42.

3. Display OIL LIFE RESET on the DIC.

4. Press and hold the INFO button for at least one

second. An ACKNOWLEDGED message displays
for three seconds or until the next button is pressed.
This tells you the system has been reset.
See DIC Vehicle Personalization on page 4-46.

5. Turn the key to LOCK/OFF.

See Engine Oil Life System on page 6-20.

Fuel E85 (85% Ethanol)

If the vehicle has the 2.4L L4 engine (VIN Code 0),
you can use either unleaded gasoline or ethanol
fuel containing up to 85% ethanol (E85). See Fuel on
page 6-5. In all other engines, use only the unleaded
gasoline described under Gasoline Octane on page 6-6.

Vehicles that have the 2.4L L4 engine (VIN Code 0)
have a yellow fuel cap and can use 85% ethanol
fuel (E85). See Fuel E85 (85% Ethanol) on page 6-8.

1-22

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving for Better Fuel Economy

Driving habits can affect fuel mileage. Here are some
driving tips to get the best fuel economy possible.

•

Avoid fast starts and accelerate smoothly.

•

Brake gradually and avoid abrupt stops.

•

Avoid idling the engine for long periods of time.

•

When road and weather conditions are appropriate,
use cruise control, if equipped.

•

Always follow posted speed limits or drive more
slowly when conditions require.

•

Keep vehicle tires properly inflated.

•

Combine several trips into a single trip.

•

Replace the vehicle’s tires with the same
TPC Spec number molded into the tire’s
sidewall near the size.

•

Follow recommended scheduled maintenance.

Roadside Assistance Program

U.S.: 1-800-553-6000

TTY Users: 1-888-889-2438

Canada: 1-800-268-6800

As the owner of a new Saturn, you are automatically
enrolled in the Roadside Assistance program. This
program provides technically trained advisors who are
available 24 hours a day, 365 days a year, minor repair
information or towing arrangements.

Roadside Assistance and OnStar

If you have a current OnStar subscription, press the
OnStar button and the current GPS location will be sent
to an OnStar Advisor who will assess your problem,
contact Roadside Assistance, and relay exact location to
get you the help you need.

Online Owner Center

The Online Owner Center is a complimentary service
that includes online service reminders, vehicle
maintenance tips, online owner manual, special
privileges and more.

1-23

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OnStar

OnStar

uses several innovative technologies and live

advisors to provide a wide range of safety, security,
navigation, diagnostics, and calling services.

Automatic Crash Response

In a crash, built in sensors can automatically alert an
OnStar advisor who is immediately connected to
the vehicle to see if you need help.

How OnStar Service Works

: This blue button connects you to a specially

trained OnStar advisor to verify your account information
and to answer questions.

]

: Push this red emergency button to get priority help

from specially trained OnStar emergency advisors.

: Push this button for hands-free, voice-activated

calling and to give voice commands for turn-by-turn
navigation.

Crisis Assist, Stolen Vehicle Assistance, Vehicle
Diagnostics, Remote Door Unlock, Roadside Assistance,
Turn-by-Turn Navigation and Hands-Free Calling are
available on most vehicles. Not all OnStar services are
available on all vehicles. For more information see
the OnStar Owner’s Guide or visit www.onstar.com
(U.S.) or www.onstar.ca (Canada), contact OnStar
at 1-888-4-ONSTAR (1-888-466-7827) or TTY
1-877-248-2080, or press

to speak with an

OnStar advisor 24 hours a day, 7 days a week.

For a full description of OnStar services and system
limitations, see the OnStar Owner’s Guide in the
glove box.

OnStar service is subject to the OnStar terms and
conditions included in the OnStar Subscriber
Information.

OnStar service cannot work unless the vehicle is in a
place where OnStar has an agreement with a wireless
service provider for service in that area. OnStar service
also cannot work unless the vehicle is in a place where
the wireless service provider OnStar has hired for that
area has coverage, network capacity and reception when
the service is needed, and technology that is compatible
with the OnStar service. Not all services are available
everywhere, particularly in remote or enclosed areas,
or at all times.

1-24

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The OnStar system can record and transmit vehicle
information. This information is automatically sent to an
OnStar call center when

is pressed,

]

is pressed,

or if the airbags or ACR system deploy. This information
usually includes the vehicle’s GPS location and, in
the event of a crash, additional information regarding
the crash that the vehicle was involved in (e.g. the
direction from which the vehicle was hit). When
the virtual advisor feature of OnStar hands-free calling
is used, the vehicle also sends OnStar the vehicle’s
GPS location so they can provide services where it is
located.

Location information about the vehicle is only available
if the GPS satellite signals are unobstructed and
available.

The vehicle must have a working electrical system,
including adequate battery power, for the OnStar
equipment to operate. There are other problems OnStar
cannot control that may prevent OnStar from providing
OnStar service at any particular time or place. Some
examples are damage to important parts of the vehicle
in a crash, hills, tall buildings, tunnels, weather or
wireless phone network congestion.

OnStar Steering Wheel Controls

This vehicle may have a Talk/Mute button that can be
used to interact with OnStar hands-free calling. See
Audio Steering Wheel Controls on page 4-82 for more
information.

On some vehicles, the mute button can be used to dial
numbers into voice mail systems, or to dial phone
extensions. See the OnStar Owner’s Guide for more
information.

Your Responsibility

Increase the volume of the radio if the OnStar advisor
cannot be heard.

If the light next to the OnStar buttons is red, the system
may not be functioning properly. Press

and request

a vehicle diagnostic. If the light appears clear (no light is
appearing), your OnStar subscription has expired and
all services have been deactivated. Press

to confirm

that the OnStar equipment is active.

1-25

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Head Restraints

The front seats have adjustable head restraints in the
outboard seating positions.

{

WARNING:

With head restraints that are not installed and
adjusted properly, there is a greater chance that
occupants will suffer a neck/spinal injury in a
crash. Do not drive until the head restraints for all
occupants are installed and adjusted properly.

Adjust the head restraint so that the top of the restraint
is at the same height as the top of the occupant’s
head. This position reduces the chance of a neck injury
in a crash.

2-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Saturn Aura (2010 year). Manual - part 2
