Driving comfort
CONTROLS
Signal tones.
Overview
Visual display.
With front PDC: button in vehicle
General information
The ultrasound sensors for measuring the dis-
tances are located in the bumpers.
The maneuvering range, depending on obsta-
cles and environmental conditions, is approx.
6 ft/2 m.
An acoustic warning is first given in the follow-
ing situations:
By the front middle sensors and the two
Park assistance button
corner sensors at approx. 24 in/60 cm from
the object.
By the rear middle sensors at ap-
Ultrasound sensors
prox. 5 ft/1.50 m from the object.
Ultrasound sensors of the PDC,
When a collision is imminent.
for instance in the bumpers.
Safety information
WARNING
The system does not relieve from per-
sonal responsibility to assess the traffic situa-
Functional requirements
tion. There is a risk of an accident. Adjust driv-
Ensure full functionality:
ing style to traffic conditions. Watch traffic and
Do not cover sensors, for instance with
vehicle surroundings closely and actively inter-
stickers, bicycle racks.
vene where appropriate.
Keep the sensors clean and unobstructed.
WARNING
Switching on/off
Due to high speeds when PDC Park Dis-
tance Control is activated, the warning can be
Switching on automatically
delayed due to physical circumstances. There is
a risk of injury or risk of damage to property.
The system switches on automatically in the
Avoid approaching an object too fast. Avoid
following situations:
driving off fast while PDC Park Distance Control
If selector lever position R is engaged when
is not yet active.
the engine is running.
The rearview camera also switches on.
With front PDC: when obstacles are de-
tected behind or in front of the vehicle by
PDC and the speed is slower than approx.
2.5 mph/4 km/h.
147

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS
Driving comfort
With front PDC: automatic activation on obsta-
The signal tone is switched off, when selector
cle detection can be switched off. Via the Cen-
lever position P is engaged on vehicles with
tral Information Display (CID):
Steptronic transmission.
1.
"Settings"
Volume
2. "Parking"
The ratio of the PDC signal tone volume to the
3. Select setting.
entertainment volume can be adjusted.
The setting is stored for the driver profile
Via the Central Information Display (CID):
currently used.
1.
"Multimedia",
"Radio" or
"Settings"
Automatic deactivation during forward
travel
2. "Tone"
The system switches off when a certain driving
3. "Volume settings"
distance or speed is exceeded.
4. "PDC"
Switch the system back on, if needed.
5. To adjust: turn the Controller.
6. To store: press the Controller.
With front PDC: switching on/off
Settings are stored for the profile currently
manually
used.
Press park assistance button.
Visual warning
On: the LED lights up.
The approach of the vehicle to an object can be
Off: the LED goes out.
shown on the Control Display. Objects that are
The rearview camera image is displayed if the
farther away are already displayed on the Con-
reverse gear is engaged when pressing the
trol Display before a signal sounds.
park assistance button.
A display appears as soon as Park Distance
Control (PDC) is activated.
WARNING
The range of the sensors is represented in col-
ors: red, green and yellow.
Signal tones
When the image of the rearview camera is dis-
When approaching an object, an intermittent
played, the switch can be made to PDC:
sound indicates the position of the object. E.g.,
"Rear view camera"
if an object is detected to the left rear of the ve-
hicle, a signal tone sounds from the left rear
speaker.
System limits
The shorter the distance to the object, the
Safety information
shorter the intervals.
WARNING
If the distance to a detected object is less than
approx. 10 inches/25 cm, a continuous tone is
The system can react not at all, too late,
sounded.
incorrectly, or without justification due to the
system limits. There is a risk of accidents or risk
With front PDC: if objects are simultaneously lo-
of damage to property. Follow the information
cated both in front of and behind the vehicle,
regarding the system limits and actively inter-
an alternating continuous signal is sounded.
vene, if needed.
148

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving comfort
CONTROLS
Limits of ultrasonic measurement
In large buildings with right angles and
smooth walls, for instance in underground
Ultrasonic measuring might not function under
garages.
the following circumstances:
In automatic vehicle washes.
For small children and animals.
Due to heavy exhaust.
For persons with certain clothing, for in-
stance coats.
Due to other ultrasound sources, for in-
stance sweeping machines, high pressure
With external interference of the ultra-
steam cleaners or neon lights.
sound, for instance from passing vehicles or
loud machines.
The malfunction is signaled by a continuous
tone alternating between the front and rear
When sensors are dirty, iced over, damaged
speakers. As soon as the malfunction due
or out of position.
to other ultrasound sources is no longer
If cargo protrudes.
present, the system is again fully functional.
Under certain weather conditions such as
With front PDC: to reduce false alarms, switch
high relative humidity, wet conditions,
off automatic PDC activation on obstacle detec-
snowfall, extreme heat, or strong wind.
tion, for instance in vehicle washes; see Switch-
With tow bars and trailer couplings of other
ing on/off.
vehicles.
With thin or wedge-shaped objects.
Malfunction
With moving objects.
A Check Control message is displayed in the in-
strument cluster.
With elevated, protruding objects such as
ledges or cargo.
Red symbol is displayed, and the range
With objects with corners and sharp edges.
of the sensors is dimmed on the Control
Display.
With objects with a fine surface structure
such as fences.
PDC has failed. Have the system checked by a
For objects with porous surfaces.
dealer’s service center or another qualified
service center or repair shop.
Low objects already displayed, for instance
curbs, can move into the blind area of the
sensors before or after a continuous tone
sounds.
Rearview camera
False warnings
Concept
The system may issue a warning under the fol-
The rearview camera provides assistance in
lowing conditions even though there is no ob-
parking and maneuvering backwards. The area
stacle within the detection range:
behind the vehicle is shown on the Control Dis-
In heavy rain.
play.
When sensors are very dirty or covered with
Safety information
ice.
WARNING
When sensors are covered in snow.
The system does not relieve from per-
On rough road surfaces.
sonal responsibility to assess the traffic situa-
On uneven surfaces, such as speed bumps.
tion. There is a risk of an accident. Adjust driv-
149

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS
Driving comfort
ing style to traffic conditions. Watch traffic and
Automatic deactivation during forward
vehicle surroundings closely and actively inter-
travel
vene where appropriate.
The system switches off when a certain driving
distance or speed is exceeded.
Overview
Switch the system back on, if needed.
If the vehicle is equipped accordingly:
If the vehicle is equipped accordingly:
button in the vehicle
switching on/off manually
Press park assistance button.
On: the LED lights up.
Off: the LED goes out.
The PDC is shown on the Control Display.
The rearview camera image is displayed if the
reverse gear is engaged when pressing the
park assistance button.
Park assistance button
Switching the view via the Central
Information Display (CID)
Camera
With PDC Park Distance Control activated:
"Rear view camera"
The rearview camera image is displayed.
Display on the Control Display
Functional requirement
The rearview camera is switched on.
The tailgate is fully closed.
Keep the recording range of the camera
The camera lens is located in the handle of the
clear. Protruding cargo or carrier systems
tailgate.
and trailers that are not connected to a
The image quality may be impaired by dirt. If
trailer power socket can lead to malfunc-
necessary, clean the camera lens.
tions.
Switching on/off
Activating the assistance functions
More than one assistance function can be ac-
Switching on automatically
tive at the same time.
The system is switched on automatically if se-
Parking aid lines
lector lever position R is engaged when the en-
"Parking aid lines"
gine is running.
Lanes and turning radius are indicated.
Obstacle marking
150

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving comfort
CONTROLS
"Obstacle marking"
Obstacle marking
If the vehicle is equipped accordingly, ob-
stacles are highlighted.
Pathway lines
If the vehicle is equipped accordingly, obstacle
markings can be faded into the image of the
rearview camera.
The colored thresholds of the obstacle mark-
Pathway lines can be superimposed on the im-
ings match the markings of the PDC Park Dis-
age of the rearview camera.
tance Control.
Pathway lines help you to estimate the space
required when parking and maneuvering on
Parking using pathway and turning
level roads.
radius lines
Pathway lines depend on the current steering
1. Position the vehicle so that the turning ra-
angle and are continuously adjusted to the
dius lines lead to within the limits of the
steering wheel movements.
parking space.
Turning radius lines
2. Turn the steering wheel to the point where
the pathway line covers the corresponding
turning radius line.
Turning radius lines can be superimposed on
the image of the rearview camera.
Turning radius lines show the course of the
smallest possible turning radius on a level road.
Only one turning radius line is displayed after
the steering wheel is turned past a certain an-
gle.
151

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS
Driving comfort
Display settings
Parking assistant
Brightness
Concept
With the rearview camera switched on:
1.
Select the symbol.
2. Turn the Controller until the desired setting
is reached and press the Controller.
Contrast
With the rearview camera switched on:
1.
Select the symbol.
2. Turn the Controller until the desired setting
This system assists the driver in parking parallel
is reached and press the Controller.
to the road.
System limits
General information
Parking assistant handling is divided into three
Detection of objects
steps:
Very low obstacles or high, protruding objects
Switching on and activating.
such as ledges may not be recognized by the
Parking space search.
system.
Parking.
If the vehicle is equipped accordingly, certain
assistance functions also take into account data
Ultrasound sensors measure parking spaces on
from PDC Park Distance Control.
both sides of the vehicle.
Follow the notes in the PDC Park Distance Con-
The parking assistant calculates the best possi-
trol chapter.
ble parking line and takes control of steering
during the parking procedure.
The objects displayed on the Control Display
may be closer than they appear. Therefore, do
System status and instructions on required ac-
not estimate the distance from the objects on
tions are displayed on the Control Display.
the display.
A component of the parking assistant is the
PDC Park Distance Control.
Safety information
WARNING
The system does not relieve from per-
sonal responsibility to assess the traffic situa-
tion. Based on the limits of the system, it can-
not independently react to all traffic situations.
There is a risk of an accident. Adjust driving
style to traffic conditions. Watch traffic closely
and actively intervene where appropriate.
152

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving comfort
CONTROLS
NOTE
Keep the sensors clean and unobstructed.
The parking assistant can steer the vehi-
cle over or onto curbs. There is a risk of damage
For measuring parking spaces
to property. Watch traffic closely and actively
Maximum speed while driving forward ap-
intervene where appropriate.
prox. 22 mph/35 km/h.
Maximum distance to row of parked vehi-
The safety information of the PDC Park Dis-
cles: 5 ft/1.5 m.
tance Control applies in addition.
Suitable parking space
Overview
Gaps behind an object that has a min.
Button in the vehicle
length of 5 ft/1.5 m.
Gap between two objects with a minimum
length of approx. 5 ft/1.5 m.
Min. length of gap between two objects:
your vehicle's length plus approx.
3.3 ft/1.0 m.
Minimum depth: approx. 5 ft/1.5 m.
For parking
Doors and tailgate are closed.
Park assistance button
The parking brake is released.
When parking in parking spaces on the
driver's side, the corresponding turn signal
Ultrasound sensors
must be set.
Switching on and activating
Switching on with the button
Press park assistance button.
The LED lights up.
The current status of the parking space search
is indicated on the Control Display.
The ultrasound sensors for measuring parking
Parking assistant is activated automatically.
spaces are located on the wheel housing.
Switching on with reverse gear
Functional requirements
Shift into reverse.
The current status of the parking space search
Ultrasound sensors
is indicated on the Control Display.
Ensure full functionality:
To activate:
"Parking Assistant"
Do not cover sensors, for instance with
stickers.
153

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS
Driving comfort
Indicator on the Control Display
Parking using the parking assistant
System activated/deactivated
Parking
Symbol Meaning
1.
Press the park assistance button or
Gray: the system is not available.
shift into reverse gear to switch on the
parking assistant, refer to page 153. Acti-
White: the system is available but not
vate the parking assistant, if needed.
activated.
Parking assistant is activated.
The system is activated.
2.
Pass the row of parked vehicles at a speed
of up to approx. 22 mph/35 km/h and at a
Parking space search and system status
distance of maximum 5 ft/1.5 m.
The status of the parking space search and
possible parking spaces are displayed on
the display, refer to page 154.
3.
Follow the instructions on the display.
The best possible parking position will
come after gear change on the stationary
vehicle - wait for the automatic steering
wheel move.
The end of the parking procedure is indi-
Colored symbols, see arrows, on the side of
cated on the display.
the vehicle image; the parking assistant is
4.
Adjust the parking position yourself, if
activated and the parking space search is
needed.
active.
Control Display shows suitable parking
Interrupting manually
spaces at the edge of the road next to the
The parking assistant can be interrupted at any
vehicle symbol. When the parking assistant
time:
is active, suitable parking spaces are high-
lighted.
Press park assistance button.
The parking procedure is ac-
tive. Steering control has
"Parking Assistant"
been taken over by system.
Interrupting automatically
The system is interrupted automatically in the
Parking space search is always active
following situations:
whenever the vehicle is moving forward
If the driver grasps the steering wheel or
slow and straight, even if the system is de-
takes over steering.
activated. When the system is deactivated,
If a gear is selected that does not match the
the displays on the Control Display are
instruction on the display.
shown in gray.
If the vehicle speed exceeds approx.
6 mph/10 km/h.
154

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving comfort
CONTROLS
Possibly on snow-covered or slippery road
On bumpy road surfaces such as gravel
surfaces.
roads.
If a maximum number of parking attempts
On slippery ground.
or the time taken for parking is exceeded.
With accumulations of leaves/snow in the
If the PDC Park Distance Control displays
parking space.
clearances that are too small.
With a mounted emergency wheel.
When switching into other functions of the
With ditches or edges, for instance an edge
radio.
of a port.
A Check Control message is displayed.
Limits of ultrasonic measurement
Resuming
Ultrasonic measuring might not function under
An interrupted parking procedure can be con-
the following circumstances:
tinued, if needed.
For small children and animals.
Reactivate the parking assistant, refer to
For persons with certain clothing, for in-
page 153, and follow the instructions on the
stance coats.
display.
With external interference of the ultra-
sound, for instance from passing vehicles or
Switching off
loud machines.
The system can be switched off as follows:
When sensors are dirty, iced over, damaged
Press park assistance button.
or out of position.
If cargo protrudes.
Switching off the ignition.
Under certain weather conditions such as
high relative humidity, wet conditions,
System limits
snowfall, extreme heat, or strong wind.
Safety information
With tow bars and trailer couplings of other
vehicles.
WARNING
With thin or wedge-shaped objects.
The system can react not at all, too late,
With moving objects.
incorrectly, or without justification due to the
system limits. There is a risk of accidents or risk
With elevated, protruding objects such as
of damage to property. Follow the information
ledges or cargo.
regarding the system limits and actively inter-
With objects with corners and sharp edges.
vene, if needed.
With objects with a fine surface structure
such as fences.
No parking assistance
For objects with porous surfaces.
The parking assistant does not offer assistance
Low objects already displayed, for instance
in the following situations:
curbs, can move into the blind area of the
In tight curves.
sensors before or after a continuous tone
sounds.
Functional limitations
The parking assistant may identify parking
The system may not be fully functional in the
spaces that are not suitable for parking.
following situations:
155

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS
Driving comfort
Tire size
The parking position may vary depending on
the tire size.
Malfunction
A Check Control message is displayed.
The parking assistant failed. Have the system
checked by a dealer’s service center or another
qualified service center or repair shop.
156

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Climate control
CONTROLS
Climate control
Vehicle features and op-
Interior air quality
tions
The air quality inside the vehicle is improved by
an emissions-tested interior, a microfilter, and a
This chapter describes all standard, country-
climate-control system for regulating tempera-
specific and optional features offered with the
ture, air flow, and recirculated-air mode.
series. It also describes features that are not
necessarily available in your vehicle, e. g., due
In addition there are other functions which de-
to the selected options or country versions. This
pend on the vehicle's equipment, for instance
also applies to safety-related functions and sys-
microfilter/activated-charcoal filter, automatic
tems. When using these functions and systems,
climate control, and parked-car ventilation.
the applicable laws and regulations must be
observed.
Air conditioner
1
Air distribution settings
5
Air conditioning
2
Air flow
6
Recirculated-air mode
3
Temperature
7
Rear window defroster
4
Seat heating, right
57
8
Windshield defroster
157

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS
Climate control
9
Seat heating, left
57
Climate control functions in detail
Depending on the weather, the windshield may
fog up briefly when the engine is started.
Switching the system on/off
The air conditioner produces condensation wa-
ter, refer to page 187, that will exit from below
Switching on
the vehicle.
Set any air flow.
Recirculated-air mode
Switching off
Concept
Turn the wheel for air flow all the
way to the left.
You may react to unpleasant odors or pollu-
tants in the immediate environment by tempo-
rarily suspending the supply of outside air. The
system then recirculates the air flow within the
vehicle.
Temperature
Operation
Concept
Press button repeatedly to select an
The system heats or cools, depending on the
operating mode:
set temperature.
LED off: outside air flows in continuously.
Settings
LED on, recirculated-air mode: the supply
of outside air into the vehicle is perma-
Turn the ring to set the desired
nently blocked.
temperature.
To prevent window condensation, recirculated-
air mode switches off automatically after a cer-
tain amount of time, depending on the external
temperature.
Air conditioning
With constant recirculated-air mode, the air
quality in the car's interior deteriorates and the
Concept
fogging of the windows increases.
The air in the car's interior will be cooled and
If the windows fog over, switch off recirculated-
dehumidified and, depending on the tempera-
air mode and increase the air flow, if needed.
ture setting, warmed again.
The car's interior can only be cooled with the
Controlling the air flow manually
engine running.
Concept
Switching on/off
The air flow for climate control can be adjusted
manually.
Press button.
The LED is illuminated with air condi-
tioning switched on.
158

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Climate control
CONTROLS
Operation
Direct the air distribution onto the win-
dows.
Turn the ring to set the desired
air flow.
Increasing the air flow.
The higher the air flow, the more
Increase the temperature.
effective the heating or cooling
Switch on the air conditioning if needed.
will be.
Windshield defroster
The air flow from the air conditioner may be re-
duced automatically to save battery power.
Press button. The LED lights up.
The front window defroster switches
Controlling the air distribution manually
off automatically after a certain period of time.
Concept
Rear window defroster
The air distribution for climate control can be
Press button. The LED lights up.
adjusted manually.
The rear window defroster switches off
Operation
automatically after a certain period of time.
Turn the wheel to select the de-
When GREEN Mode is activated, the heater out-
sired program or the desired in-
put is reduced.
termediate setting.
Microfilter
In external and recirculated-air mode the mi-
Windows.
crofilter filters dust and pollen from the air.
Upper body region.
Have this filter changed during vehicle mainte-
Floor area.
nance, refer to page 231.
Windows, upper body region, and floor
area.
Defrosting windows and removing
condensation
Make the following settings to defrost the win-
dows and remove condensation:
159

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS

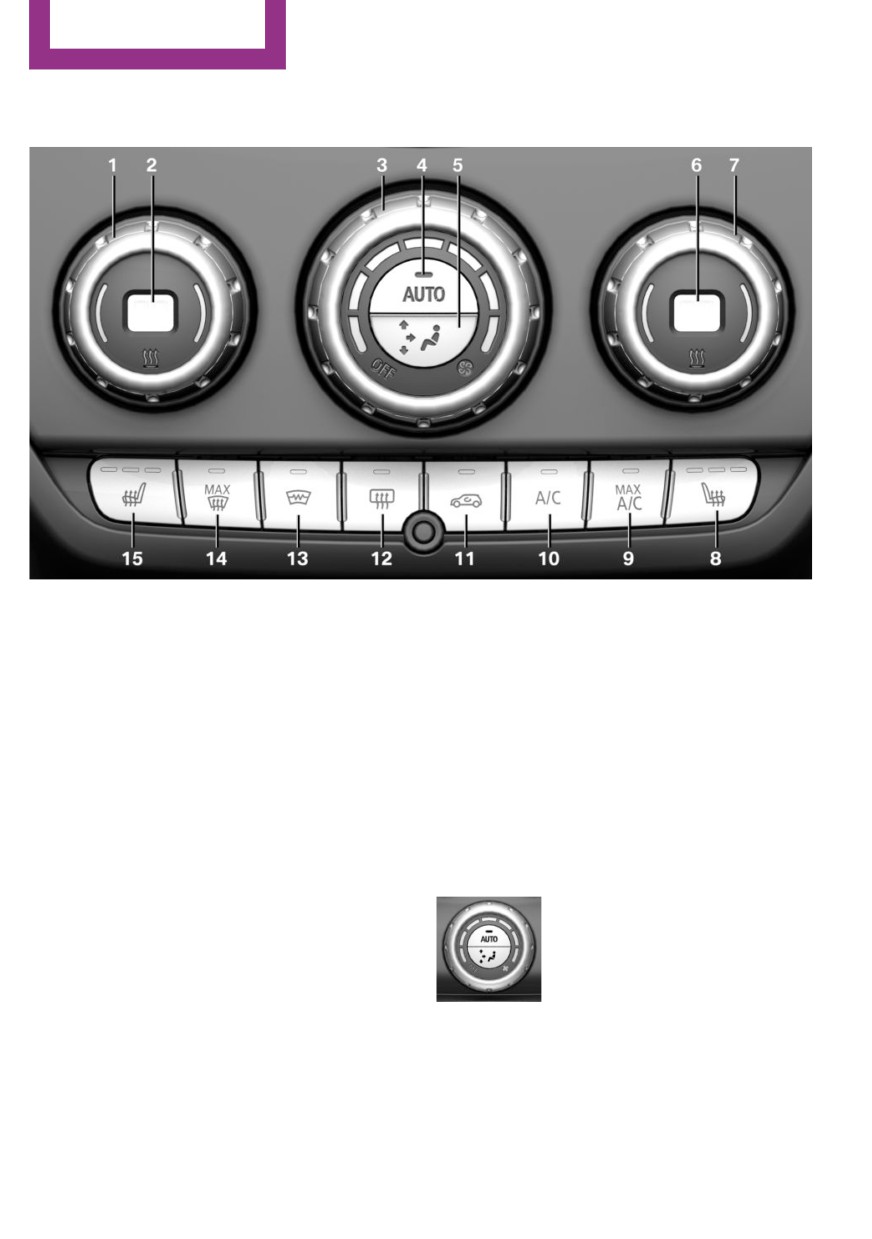

Climate control
Automatic climate control
1
Temperature, left
9
Maximum cooling
2
Display
10 Air conditioning
3
Air flow, AUTO intensity
11 Recirculated-air mode
4
AUTO program
12 Rear window defroster
5
Air distribution, manual
13 Windshield defroster
6
Display
14 Defrosting windows and removing conden-
sation
7
Temperature, right
15 Seat heating, left
57
8
Seat heating, right
57
Climate control functions in detail
Switching off
Turn wheel for air flow to the left
Switching the system on/off
until the control switches off.
Switching on
Set any air flow.
Temperature
Concept
The automatic climate control achieves the set
temperature as quickly as possible, if necessary
160

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Climate control
CONTROLS
by using the maximum cooling or heating
General information
power, and then keeps it constant.
The function is available with external tempera-
tures beyond approx. 32 ℉/0 ℃ and with the
Settings
engine running.
Turn the ring to set the desired
Air flows out of the vents to the upper body re-
temperature.
gion. The vents need to be open for this.
The air flow can be adjusted with the air flow
active.
Do not rapidly switch between different tem-
Switching on/off
perature settings. The automatic climate con-
Press button.
trol will not have sufficient time to adjust the
set temperature.
The LED is illuminated with the system
switched on.
Air conditioning
The system is set to the lowest temperature,
optimum air flow and air circulation mode.
Concept
The air in the car's interior will be cooled and
AUTO program
dehumidified and, depending on the tempera-
ture setting, warmed again.
Concept
The car's interior can only be cooled with the
Air flow, air distribution and temperature are
engine running.
controlled automatically.
Switching on/off
Switching on/off
Press button.
Press button.
The LED is illuminated with air condi-
The LED is illuminated with the AUTO
tioning switched on.
program switched on.
Depending on the weather, the windshield may
Depending on the selected temperature, AUTO
fog up briefly when the engine is started.
intensity and outside influences, the air is di-
The air conditioning is switched on automati-
rected to the windshield, side windows, upper
cally with the AUTO program.
body, and into the floor area.
When using the automatic climate control, con-
The following features are switched on auto-
densation water, refer to page 187, develops
matically with the AUTO program:
and drains underneath the vehicle. This is nor-
The air conditioning, refer to page 161.
mal.
To switch off the program: press the button
again or manually adjust the air distribution.
Maximum cooling
Intensity
Concept
With the AUTO program activated, the auto-
The system is set to the lowest temperature,
matic intensity control can be changed.
maximum air flow and recirculated-air mode.
161

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS
Climate control
Turn the ring to set the desired
Operation
intensity from soft to intensive.
Turn the ring to set the desired
air flow.
The set intensity is displayed via the position of
the illuminated LED segment.
The manually adjusted air flow is displayed via
illuminated LED segments.
Recirculated-air mode
The air flow of the automatic climate control
may be reduced automatically to save battery
Concept
power.
You may react to unpleasant odors or pollu-
tants in the immediate environment by tempo-
Controlling the air distribution manually
rarily suspending the supply of outside air. The
system then recirculates the air flow within the
Concept
vehicle.
The air distribution for climate control can be
adjusted manually.
Operation
Press button repeatedly to select an
Operation
operating mode:
Press button repeatedly to select a
LED off: outside air flows in continuously.
program:
LED on, recirculated-air mode: the supply
Windows, upper body region, and floor
of outside air into the vehicle is perma-
area.
nently blocked.
Upper body region and floor area.
To prevent window condensation, recirculated-
Floor area.
air mode switches off automatically after a cer-
tain amount of time, depending on the external
Windows and floor area.
temperature.
Windows.
With constant recirculated-air mode, the air
Windows and upper body region.
quality in the car's interior deteriorates and the
Upper body region.
fogging of the windows increases.
If the windows fog over, switch off recirculated-
Defrosting windows and removing
air mode and increase the air flow, if needed.
condensation
Controlling the air flow manually
Concept
Ice and condensation are quickly removed
Concept
from the windshield and the front side win-
The air flow for climate control can be adjusted
dows.
manually.
Switching on/off
General information
Press button.
To manually adjust air flow switch off AUTO
program first.
162

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Climate control
CONTROLS
The LED is illuminated with the system
If the vents are fully or partly closed, the air
switched on.
is directly routed into the car's interior.
Ice and condensation are quickly removed
from the windshield and the front side win-

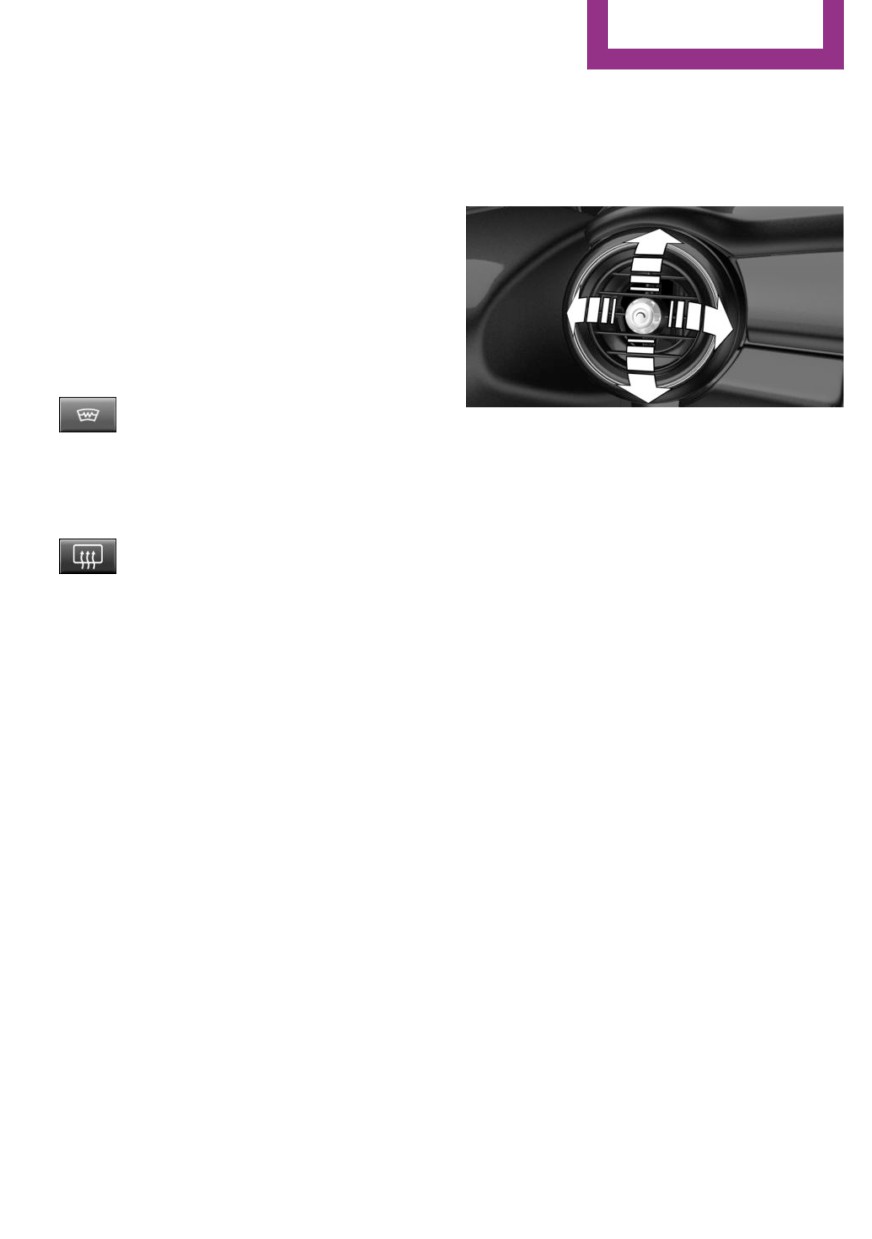

Front ventilation
dows.
The air flow can be adjusted with the air flow
active.
If there is window condensation, switch on the
air conditioning too.
Windshield defroster
Press button. The LED lights up.
The front window defroster switches
Turn knob for continuous opening and clos-
off automatically after a certain period of time.
ing of the vents.
Swivel the vents to alter the direction of the
vent flow, arrows.
Rear window defroster
Press button. The LED lights up.
The rear window defroster switches off
Parked-car ventilation
automatically after a certain period of time.
When GREEN Mode is activated, the heater out-
Concept
put is reduced.
The parked-car ventilation ventilates the car's
interior and lowers its temperature, if needed.
Microfilter/activated-charcoal filter
In external and recirculated-air mode the mi-
General information
crofilter/activated charcoal filter filters dust,
The parked-car ventilation can be switched on
pollen, and gaseous pollutants out of the air.
and off directly or by using two preset activa-
Have this filter changed during vehicle mainte-
tion times. The system remains switched on for
nance, refer to page 231.
30 minutes.
The parked-car ventilation system is operated
via the Central Information Display (CID).
Ventilation
Functional requirements
Setting
Direct operation: vehicle is in radio-ready
The air flow directions can be individually ad-
state.
justed:
Direct operation or preset activation time:
Direct ventilation:
does not depend on external temperature.
The air flow is directly pointed onto the per-
Battery is sufficiently charged.
son. The air flow heats or cools noticeably,
If parked-car ventilation is switched on, the
depending on the adjusted temperature.
vehicle battery will be discharged. Thus,
Indirect ventilation:
limit the maximum activation time to save
163















Content      ..     7      8      9      10     ..
