MINI Countryman (2018 year). Manual - part 15





-------------------------------------------------------------------------------------------------------------------------------------------------------------

Replacing components
MOBILITY
4. Turn the bulb holder counterclockwise, ar-
Replacing the bulbs
row 1, and remove, arrow 2.

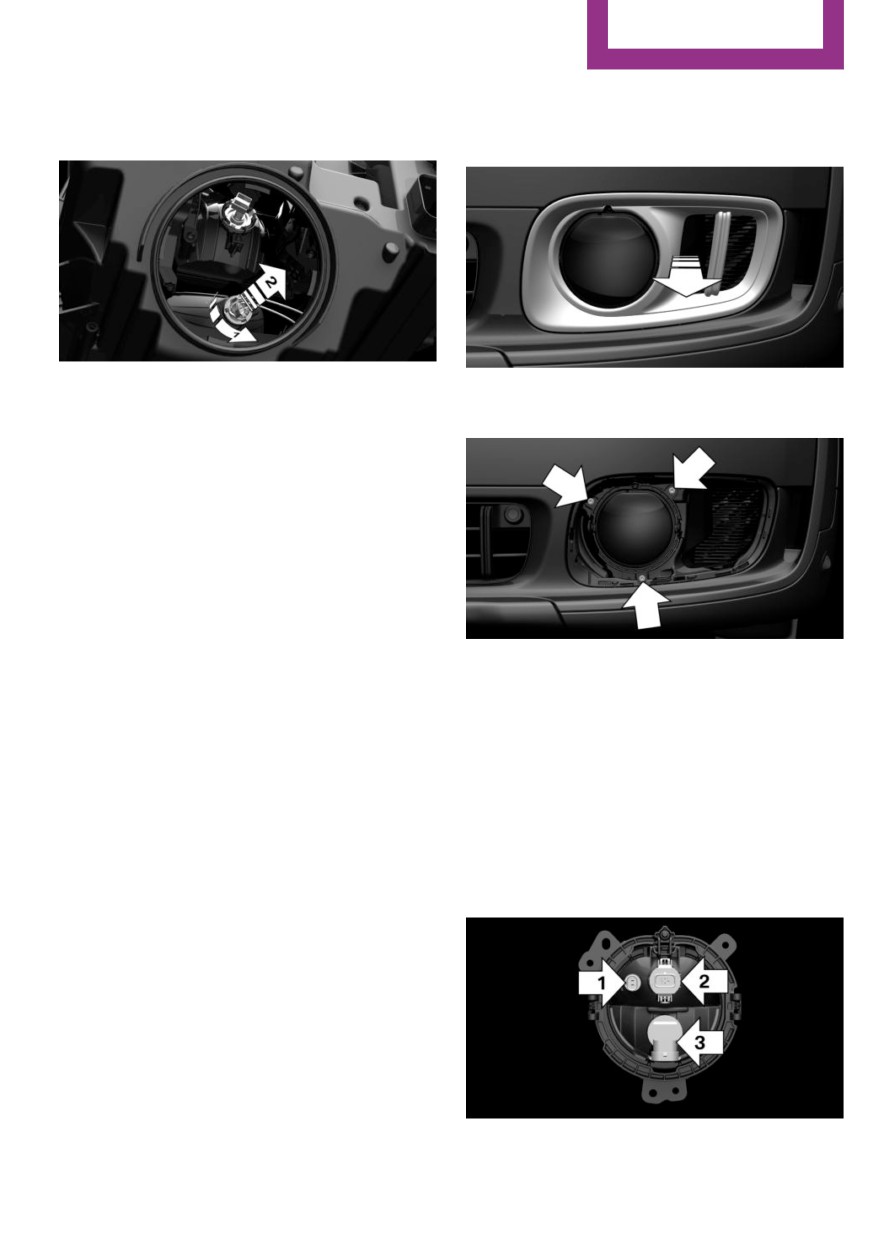

1. Pull the cover forward out of the bumper.
5. Press the bulb gently into the bulb holder,
2.
Remove the screws and take out the front
turn counterclockwise and remove.
light.
6. Insert the new bulb and install the covers in
the reverse order. Make sure that the cov-
ers engage.
Parking lights/fog lights/daytime
running lights
Follow the general instructions on lights and
bulbs, refer to page 252.
Bulbs:
Parking lights: W5W
3.
Remove the bulb holder.
Daytime running light: PSX24W.
Parking lights: turn the bulb holder, ar-
Fog light: H8.
row 1, counterclockwise and remove.
Daytime running lights: squeeze the
upper and lower locks of the bulb, ar-
row 2, and remove the bulb.
For better accessibility, remove the bulb
of the fog light as needed.
Fog lights: turn the bulb, arrow 3, coun-
terclockwise and remove it.
255

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOBILITY
Replacing components
4.
Parking lights: pull the bulb out of the
LED bug light
fixture.
Fog lights and daytime running lights:
disconnect the bulb from the cable.
5. Insert the new bulb and install the cover in
the reverse order.
The daytime running lights bulb holder en-
gages audibly, first below, then above.
LED front lights, bulb replacement
1
Parking lights
General information
2
Fog lights
The following lights feature LED technology:
Daytime running lights
Turn signal
High beams
Follow the general instructions on lights and
Low beams
bulbs, refer to page 252.
Cornering light
Bulbs: PWY24W.
Parking lights
1. Open the hood, refer to page 242.
Fog lights
2. Turn the lid counterclockwise and remove.
In the case of a malfunction, contact a dealer’s
service center or another qualified service cen-
ter or repair shop.

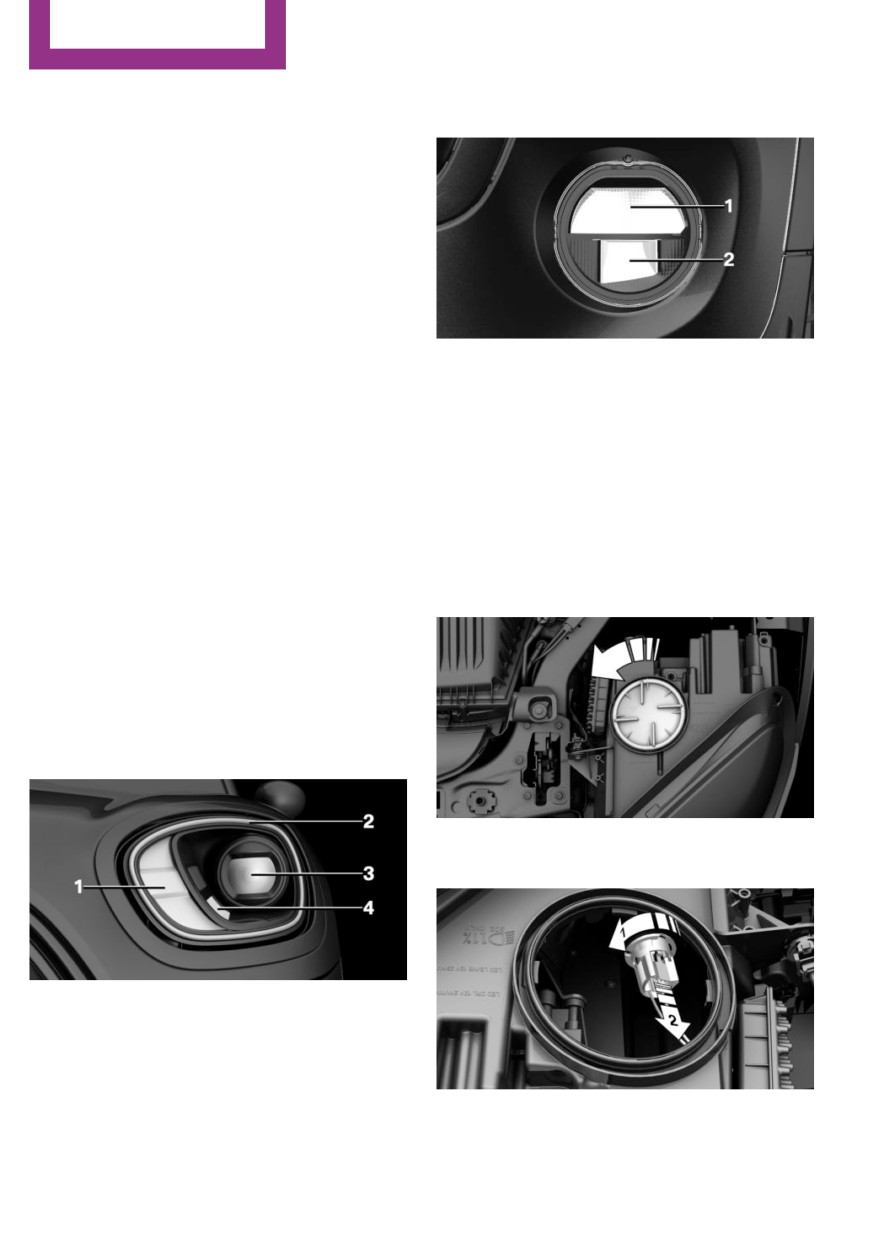

Overview
Position of the headlights
3. Turn the bulb holder counterclockwise, ar-
row 1, and remove, arrow 2.
1
Turn signal
2
Daytime running lights
3
Low beams/high beams
4
Cornering light
256

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Replacing components
MOBILITY
4. Press the bulb gently into the bulb holder,
Side LED tail lights
turn counterclockwise and remove.
5. Insert the new bulb and install the cover in
the reverse order.

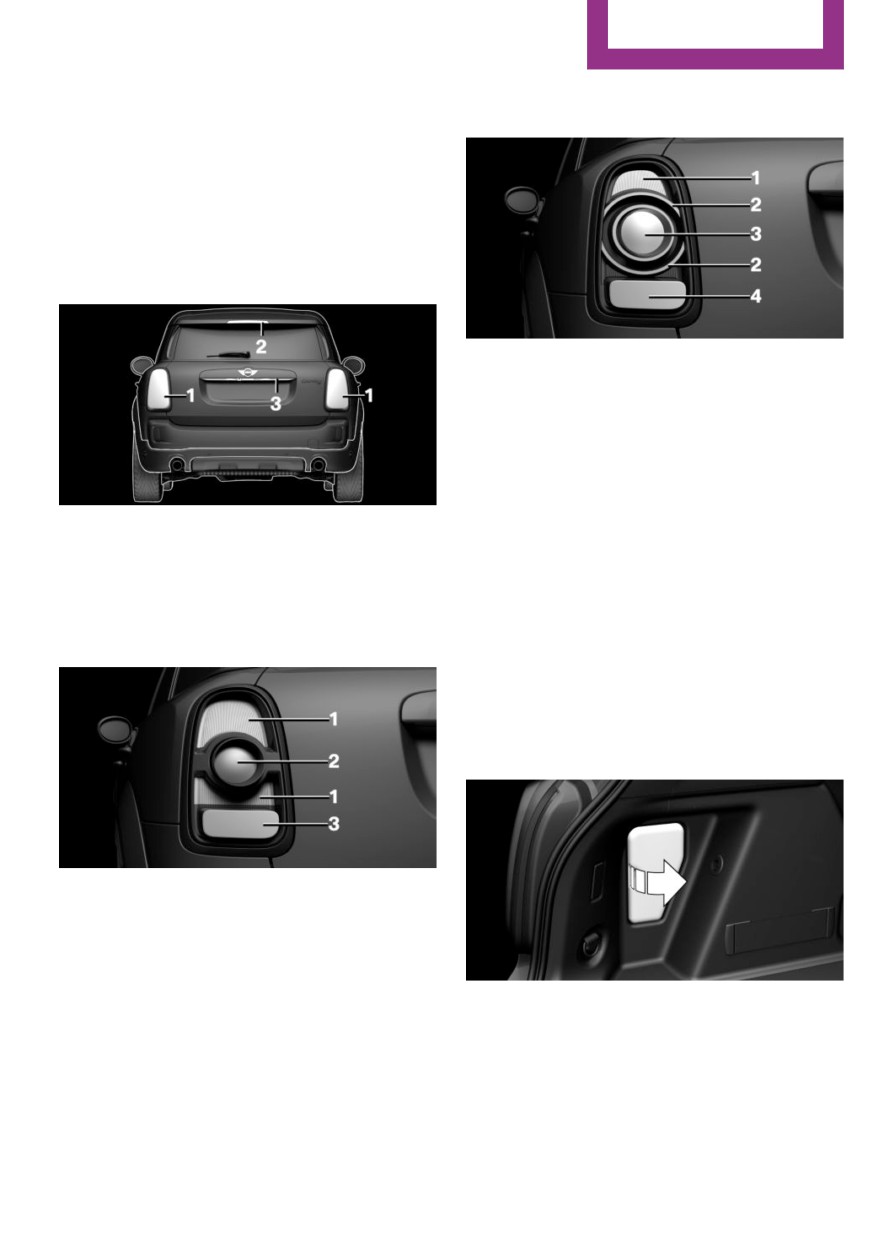

Tail lights, bulb replacement
Overview
1
Brake light
2
Tail lights
3
Turn signal
4
Reversing lights
Side tail lights
1
Side tail lights
Follow the general instructions on lights and
2
Center brake light
bulbs, refer to page 252.
3
License plate light
Bulb, brake lights/rear lights, tail lights:
P21W
Side tail lights
Bulb, brake lights/LED tail lights: H21W
Bulb, turn signal: P21W
Bulb, reversing lights: P21W
1. Open the tailgate.
2. Remove left or right cover.
1
Brake lights/tail lights
2
Turn signal
3
Reversing lights

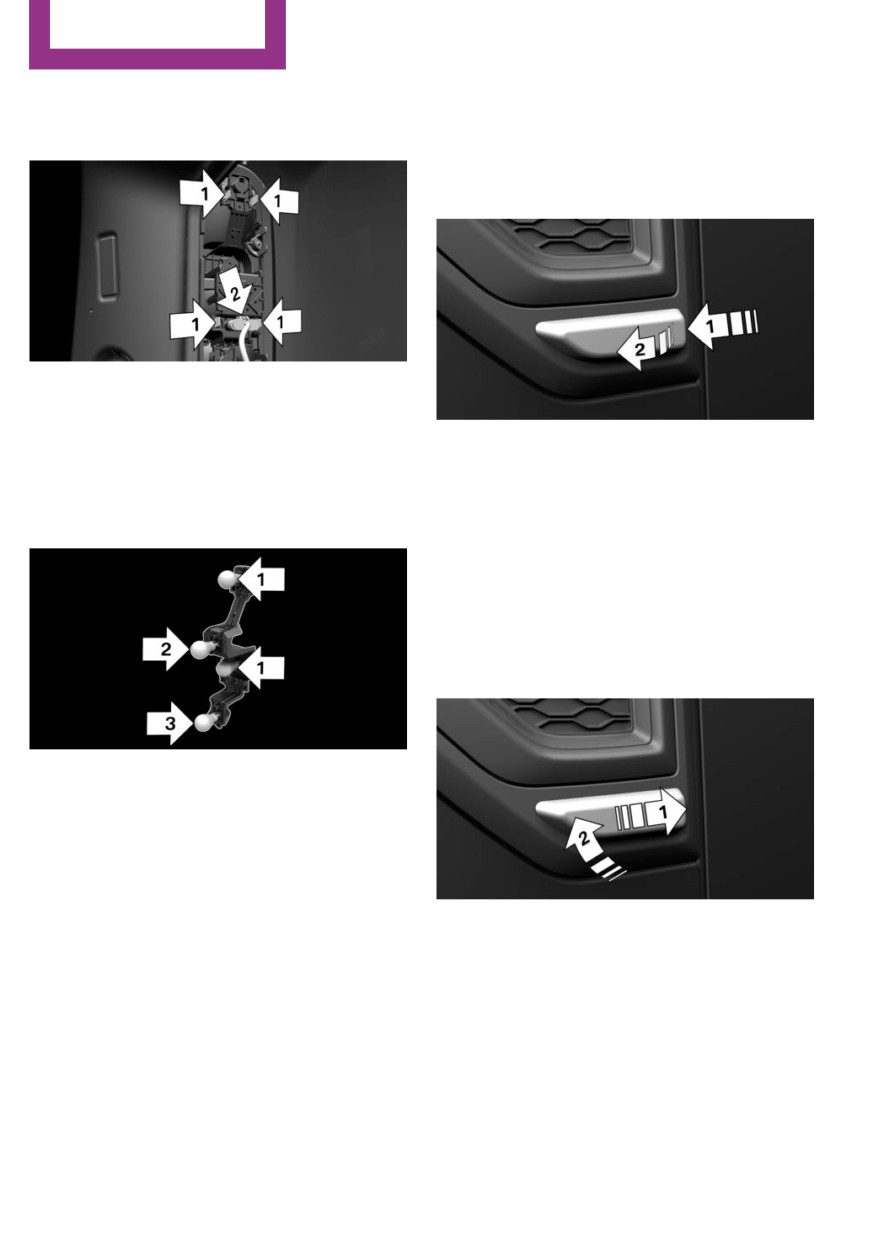

3. Through the opening, loosen the plug con-
nector, arrow 2 on the bulb holder.
257

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOBILITY
Replacing components
Press the latches together, arrows 1, and
Bulb: WY5W
remove the bulb holder.
1. Push the side turn signal forward in the
driving direction, arrow 1, and swing it out-
ward, arrow 2.
4. Remove the bulb holder from the opening.
5. Press the nonworking bulb gently into the
socket, turn counterclockwise and remove.
2.
On the left facing the driving direction:
Arrow 1: brake lights/tail lights.
turn the bulb holder clockwise and re-
move.
Arrow 2: turn signal.
On the right facing the driving direc-
Arrow 3: reversing light.
tion: turn the bulb holder counterclock-
wise and remove.
3. Replace the bulb.
4. Insert the bulb holder.
5. Insert the rear side turn signal, arrow 1, and
swing it forward, arrow 2.
6. Proceed in the reverse order to insert the
new bulb and attach the bulb holder. Make
sure that the bulb holder engages in all fas-
teners.
Central brake light and license plate
lights
Follow the general instructions on lights and
bulbs, refer to page 252.
Vehicle battery
The lights feature LED technology. In the case
of a malfunction, contact a dealer’s service cen-
Maintenance
ter or another qualified service center or repair
The battery is maintenance-free.
shop.
The added amount of acid is sufficient for the
service life of the battery.
Side turn signal, bulb replacement
Follow the general instructions on lights and
bulbs, refer to page 252.
258

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Replacing components
MOBILITY
More information about the battery can be re-
Steptronic transmission: when parked for
quested from a dealer’s service center or an-
long periods of time in selector lever posi-
other qualified service center or repair shop.
tion D, R or N.
Replacing the vehicle battery
Safety information
NOTE
General information
Battery chargers for the vehicle battery
The manufacturer of your vehicle recommends
can work with high voltages and currents,
that you have a dealer’s service center or an-
which means that the 12 volt on-board net-
other qualified service center or repair shop
work can be overloaded or damaged. There is a
register the vehicle battery to the vehicle after
risk of damage to property. Only connect bat-
the battery has been replaced. Once the bat-
tery chargers for the vehicle battery to the
tery has been registered again, all comfort fea-
starting aid terminals in the engine compart-
tures will be available without restriction and
ment.
any Check Control messages displayed which
relate to comfort features will disappear.
Starting aid terminals
Safety information
In the vehicle, only charge the battery via the
starting aid terminals, refer to page 262, in the
NOTE
engine compartment with the engine off.
Vehicle batteries that are not compatible
can damage vehicle systems and impair vehicle
Power failure
functions. There is a risk of personal and prop-
After a power loss, some equipment needs to
erty damage. Only vehicle batteries that are
be newly initialized or individual settings up-
compatible with your vehicle type should be in-
dated, for example:
stalled in your vehicle. Information on compati-
ble vehicle batteries is available at your dealer’s
Time: update.
service center.
Date: update.
Seat and mirror memory: store the posi-
Charging the battery
tions again.
Glass sunroof: initialize the system.
General information
Make sure that the battery is always sufficiently
Disposing of old batteries
charged to guarantee that the battery remains
Have old batteries disposed of by a
usable for its full service life.
dealer’s service center or another quali-
A discharged battery is indicated by a
fied service center or repair shop or
red indicator light.
take them to a collection point.
Maintain the battery in an upright position for
The battery may need to be charged in the fol-
transport and storage. Secure the battery so
lowing cases:
that it does not tip over during transport.
When making frequent short-distance
drives.
If the vehicle is not used for more than a
month.
259

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOBILITY
Replacing components
Fuses
Safety information
WARNING
Incorrect and repaired fuses can overload
electrical lines and components. There is a risk
of fire. Never attempt to repair a blown fuse.
Do not replace a nonworking fuse with a sub-
stitute of another color or amperage rating.
Accessing the fuses
The fuses are located in the glove compart-
ment.
1. Open the glove compartment.
2. Swing the cover down, arrow.
Plastic tweezers and information on the fuse
types and locations are stored in the fuse box.
Replacing fuses
The vehicle manufacturer recommends that
you have a dealer's service center or another
qualified service center or repair shop replace
the fuses.
260

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Breakdown assistance
MOBILITY
Breakdown assistance
Vehicle features and op-
Warning triangle
tions
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your vehicle, e. g., due
to the selected options or country versions. This
also applies to safety-related functions and sys-
tems. When using these functions and systems,
the applicable laws and regulations must be
observed.
The warning triangle is located in the tailgate.
To remove, loosen the brackets.
Hazard warning flash-
ers
First-aid kit
General information
Some of the articles have a limited service life.
Check the expiration dates of the contents reg-
ularly and replace any expired items promptly.
Storage
The first-aid kit is located in the cargo area.
The button is located above the Control Dis-
play.
Jump-starting
The red light in the button flashes when the
General information
hazard warning flashers are activated.
If the battery is discharged, the engine can be
started using the battery of another vehicle and
two jumper cables. Only use jumper cables with
Roadside Assistance
fully insulated clamp handles.
General information
Roadside Assistance can be reached around the
clock in many countries. You can obtain assis-
tance there in the event of a vehicle break-
down.
261

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOBILITY
Breakdown assistance
Safety information
DANGER
Contact with live components can lead to
an electric shock. There is a risk of injuries or
danger to life. Do not touch any components
that are under voltage.
WARNING
If the jumper cables are connected in the
A special connection on the body acts as the
incorrect order, sparking may occur. There is a
battery negative terminal.
risk of injury. Pay attention to the correct order
during connection.
Connecting the cables
NOTE
To prevent personal injury or damage to both
In the case of body contact between the
vehicles, adhere strictly to the following proce-
two vehicles, a short circuit can occur during
dure.
jump-starting. There is a risk of damage to
property. Make sure that no body contact oc-
1. Pull off the lid of the starting aid terminal.
curs.
2. Attach one terminal clamp of the positive
jumper cable to the positive terminal of the
battery, or to the corresponding starting aid
Preparation
terminal of the vehicle providing assistance.
1. Check whether the battery of the other ve-
hicle has a voltage of 12 volts. The voltage
3. Attach the terminal clamp on the other end
information can be found on the battery.
of the cable to the positive terminal of the
battery, or to the corresponding starting aid
2. Switch off the engine of the assisting vehi-
terminal of the vehicle to be started.
cle.
4. Attach one terminal clamp of the negative
3. Switch off any electronic systems/power
jumper cable to the negative terminal of
consumers in both vehicles.
the battery, or to the corresponding engine
or body ground of assisting vehicle.
Starting aid terminals
5. Attach the second terminal clamp to the
negative terminal of the battery, or to the
corresponding engine or body ground of
the vehicle to be started.
Starting the engine
Never use spray fluids to start the engine.
1. Start the engine of the assisting vehicle and
let it run for several minutes at an increased
The starting aid terminal in the engine com-
idle speed.
partment acts as the battery's positive terminal.
2. Start the engine of the vehicle that is to be
Open the cover of the starting aid terminal.
started in the usual way.
262

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Breakdown assistance
MOBILITY
If the first starting attempt is not successful,
Tow truck
wait a few minutes before making another
attempt in order to allow the discharged
battery to recharge.
3. Let both engines run for several minutes.
4. Disconnect the jumper cables in the reverse
order.
Check the battery and recharge, if needed.
Your vehicle should be transported with a tow
Tow-starting and towing
truck with a so-called lift bar or on a flat bed.
Safety information
NOTE
WARNING
The vehicle can become damaged when
lifting and securing it.
Due to system limits, individual functions
can malfunction during tow-starting/towing
There is a risk of damage to property.
with the Intelligent Safety systems activated.
Lift the vehicle using suitable means.
There is a risk of an accident. Switch all Intelli-
Do not lift or secure the vehicle by its tow
gent Safety systems off prior to tow-starting/
fitting, body parts, or suspension parts.
towing.
Steptronic transmission with ALL4:
Steptronic transmission with driven
transporting the vehicle
front axle: transporting the vehicle
General information
General information
The vehicle is not permitted to be towed.
The vehicle must not be towed if the front
wheels are touching the ground.
Pushing the vehicle
Safety information
To remove a broken-down vehicle from the
danger area, it can be pushed for a short dis-
NOTE
tance.
The vehicle can be damaged when tow-
Roll or push, refer to page 105, the vehicle.
ing the vehicle with a lifted rear axle. There is a
risk of damage to property. Have vehicle trans-
ported only with lifted front axle or on a load-
ing platform.
Pushing the vehicle
To remove a broken-down vehicle from the
danger area, it can be pushed for a short dis-
tance.
Roll or push, refer to page 105, the vehicle.
263

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOBILITY
Breakdown assistance
Tow truck
needs to be applied when braking and
steering.
Larger steering wheel movements are re-
quired.
The towing vehicle must not be lighter than
the vehicle being towed; otherwise, it will
not be possible to control the vehicle's re-
sponse.
Do not exceed a towing speed of
30 mph/50 km/h.
The vehicle should only be transported on a
Do not exceed a towing distance of
loading platform.
30 miles/50 km.
NOTE
Tow truck
The vehicle can become damaged when
lifting and securing it.
With driven front axle
There is a risk of damage to property.
Lift the vehicle using suitable means.
Do not lift or secure the vehicle by its tow
fitting, body parts, or suspension parts.
Manual transmission
Towing or pushing the vehicle
A broken-down vehicle can be towed or
pushed.
Have your vehicle transported with a tow truck
with a so-called lift bar or on a flat bed.
Roll or push, refer to page 103, the vehicle.
NOTE
NOTE
The vehicle can become damaged when
If manual unlocking of the parking brake
lifting and securing it.
is not possible, the vehicle cannot be moved or
towed. There is a risk of damage to property.
There is a risk of damage to property.
The vehicle should only be transported on a
Lift the vehicle using suitable means.
loading platform.
Do not lift or secure the vehicle by its tow
Follow the following instructions:
fitting, body parts, or suspension parts.
Make sure that the ignition is switched on;
otherwise, the low beams, tail lights, turn
signals, and wipers may be unavailable.
Do not tow the vehicle with the rear axle
tilted, as the front wheels could turn.
When the engine is stopped, there is no
power assist. Consequently, more force
264

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Breakdown assistance
MOBILITY
With ALL4
sponse. There is a risk of an accident! Make
sure that the gross vehicle weight of the towing
vehicle is heavier than the vehicle to be
towed.
NOTE
If the tow bar or tow rope is attached in-
correctly, damage to other vehicle parts can oc-
cur. There is a risk of damage to property. Cor-
rectly attach the tow bar or tow rope to the tow
fitting.
Have your vehicle transported on a flatbed sur-
face only
Tow bar
NOTE
The tow fittings used should be on the same
side on both vehicles.
The vehicle can be damaged when tow-
ing the vehicle with a single lifted axle. There is
Should it prove impossible to avoid mounting
a risk of damage to property. The vehicle
the tow bar at an offset angle, please follow the
should only be transported on a loading plat-
following:
form.
Maneuvering capability is limited going
around corners.
NOTE
The tow bar will generate lateral forces if it
The vehicle can become damaged when
is secured with an offset.
lifting and securing it.
There is a risk of damage to property.
Tow rope
Lift the vehicle using suitable means.
When starting to tow the vehicle, make sure
Do not lift or secure the vehicle by its tow
that the tow rope is taut.
fitting, body parts, or suspension parts.
Use nylon ropes or straps, which will enable the
vehicle to be towed without jerking.
Towing other vehicles
Tow fitting
General information
Switch on the hazard warning system, depend-
General information
ing on local regulations.
If the electrical system has failed, clearly iden-
tify the vehicle being towed by placing a sign or
a warning triangle in the rear window.
Safety information
WARNING
If the approved gross vehicle weight of
the towing vehicle is lighter than the vehicle to
The screw-in tow fitting should always be car-
be towed, the tow fitting can tear off or it will
ried in the vehicle.
not be possible to control the vehicle's re-
265

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOBILITY
Breakdown assistance
The tow fitting can be screwed in at the front or
Tow-starting the engine is not possible due to
rear of the vehicle.
the Steptronic transmission.
The tow fitting and the onboard vehicle tool kit,
Have the reasons for the starting difficulties
refer to page 251, are together in the cargo
corrected by a dealer’s service center or an-
area.
other qualified service center or repair shop.
Use of the tow fitting:
Manual transmission
Use only the tow fitting provided with the
If possible, do not tow-start the vehicle but
vehicle and screw it all the way in.
start the engine by jump-starting, refer to
Use the tow fitting for towing on paved
page 261. If the vehicle is equipped with a cat-
roads only.
alytic converter, only tow-start while the engine
Avoid lateral loading of the tow fitting, for
is cold.
instance do not lift the vehicle by the tow
1. Switch on the hazard warning system and
fitting.
comply with local regulations.
2. Switch on the ignition, refer to page 88.
Safety information
3. Engage third gear.
NOTE
4. Have the vehicle tow-started with the
If the tow fitting is not used as intended,
clutch pedal pressed and slowly release the
there may be damage to the vehicle or to the
pedal. After the engine starts, immediately
tow fitting. There is a risk of damage to prop-
press on the clutch pedal again.
erty. Follow the notes on using the tow fitting.
5. Stop at a suitable location, remove the tow
bar or rope, and switch off the hazard
Screw thread for tow fitting
warning system.
6. Have the vehicle checked by a dealer’s
service center or another qualified service
center or repair shop.
Threaded holes for the tow fitting are located in
the front and rear of the vehicle on the right
side with respect to the direction of travel.
Press on the mark on the edge of the cover to
push it out.
Tow-starting
Steptronic transmission
Do not tow-start the vehicle.
266

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Care
MOBILITY
Care
Minimum distance from glass sunroof:
Vehicle features and op-
31.5 in/80 cm.
tions
Automatic vehicle washes
This chapter describes all standard, country-
specific and optional features offered with the
Safety information
series. It also describes features that are not
necessarily available in your vehicle, e. g., due
NOTE
to the selected options or country versions. This
Improper use of automatic vehicle
also applies to safety-related functions and sys-
washes can cause damage to the vehicle. There
tems. When using these functions and systems,
is a risk of damage to property. Follow the fol-
the applicable laws and regulations must be
lowing instructions:
observed.
Give preference to cloth vehicle washes or
those that use soft brushes in order to
avoid paint damage.
Washing the vehicle
Avoid vehicle washes with guide rails
higher than 4 in/10 cm to avoid damage to
General information
the chassis.
Regularly remove foreign objects such as leaves
Observe the tire width of the guide rail to
in the area below the windshield when the
avoid damage to tires and rims.
hood is raised.
Fold in exterior mirrors to avoid damage to
Wash your vehicle frequently, particularly in
the exterior mirrors.
winter. Intense soiling and road salt can dam-
age the vehicle.
With rod antenna: unscrew the rod antenna
to avoid rod antenna breakage.
Steam jets or high-pressure washers
Deactivate the wiper and, if necessary, rain
sensor to avoid damage to the wiper sys-
Safety information
tem.
NOTE
Driving into a vehicle wash with a
When cleaning with high-pressure wash-
manual transmission
ers, components can be damaged due to the
In vehicle washes, the vehicle must be able to
pressure or temperatures being too high. There
roll freely.
is a risk of damage to property. Maintain suffi-
cient distance and do not spray too long con-
Rolling or pushing the vehicle, refer to
tinuously. Follow the operating instructions for
page 103.
the high-pressure washer.
Driving into a vehicle wash with a
Steptronic transmission
Distances and temperature
In vehicle washes, the vehicle must be able to
Maximum temperature: 140 ℉/60 ℃.
roll freely.
Minimum distance from sensors, cameras,
seals: 12 inches/30 cm.
267

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOBILITY
Care
Rolling or pushing the vehicle, refer to
Safety information
page 105.
WARNING
Some vehicle washes do not permit persons in
Cleansers can contain substances that are
the vehicle. The vehicle cannot be locked from
dangerous and harmful to your health. There is
the outside when in selector lever position N. A
a risk of injury. When cleaning the interior,
signal is sounded when an attempt is made to
open the doors or windows. Only use products
lock the vehicle.
intended for cleaning vehicles. Follow the in-
structions on the container.
Driving out of a vehicle wash
Ensure that the vehicle key is in the car.
Vehicle paint
Start the engine, refer to page 89.
General information
Headlights
Regular care contributes to driving safety and
Do not rub wet headlights dry and do not use
value retention. Environmental influences in
abrasive or acidic cleaning agents.
areas with elevated air pollution or natural con-
Soak areas that have been dirtied, for instance
taminants, such as tree resin or pollen can af-
from insects, with shampoo and wash off with
fect the vehicle's paintwork. Tailor the fre-
water.
quency and extent of your vehicle care to these
influences.
Thaw ice with de-icing spray; do not use an ice
scraper.
Aggressive substances such as spilled fuel, oil,
grease or bird droppings, must be removed im-
After washing the vehicle
mediately to prevent the finish from being al-
tered or discolored.
After washing the vehicle, apply the brakes
briefly to dry them; otherwise, braking action
Matte finish
can be reduced. The heat generated during
braking dries brake discs and brake pads and
Only use cleaning and care products suitable
protects them against corrosion.
for vehicles with matte finish.
Completely remove all residues on the win-
Leather care
dows, to minimize loss of visibility due to
smearing and to reduce wiper noises and wiper
Remove dust from the leather regularly, using a
blade wear.
cloth or vacuum cleaner.
Otherwise, particles of dust and road grime
chafe in pores and folds, and lead to increased
Vehicle care
wear and premature degradation of the leather
surface.
Vehicle care products
To guard against discoloration, such as from
clothing, clean leather and provide leather care
General information
roughly every two months.
MINI recommends using vehicle care and
Clean light-colored leather more frequently be-
cleaning products from MINI. Suitable care
cause soiling on such surfaces is substantially
products are available from a dealer’s service
more visible.
center or another qualified service center or re-
pair shop.
268

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Care
MOBILITY
Use leather care products; otherwise, dirt and
ularly when they have been exposed to road
grease will gradually break down the protective
salt.
layer of the leather surface.
Rubber components
Upholstery material care
Environmental influences can cause surface
soiling of rubber parts and a loss of gloss. Use
General information
only water and suitable cleaning agents for
Vacuum the upholstery regularly with a vac-
cleaning.
uum cleaner.
Treat especially worn rubber parts with rubber
If upholstery is very dirty, for instance with bev-
care agents at regular intervals. When cleaning
erage stains, use a soft sponge or microfiber
rubber seals, do not use any silicon-containing
cloth with a suitable interior cleaner.
vehicle care products in order to avoid damage
or noises.
Clean the upholstery down to the seams using
large sweeping motions. Avoid rubbing the ma-
terial vigorously.
Fine wood parts
Clean fine wood facing and fine wood compo-
Safety information
nents only with a moist rag. Then dry with a
soft cloth.
NOTE
Open Velcro® fasteners on articles of
Plastic components
clothing can damage the seat covers. There is a
NOTE
risk of damage to property. Ensure that any
Velcro® fasteners are closed.
Cleansers that contain alcohol or solvents,
such as lacquer thinners, heavy-duty grease re-
movers, fuel, or such, can damage plastic parts.
Caring for special components
There is a risk of damage to property. Clean
with a microfiber cloth. Dampen cloth lightly
Light-alloy wheels
with water.
When cleaning the vehicle, use only neutral
wheel cleaners having a pH value from 5 to 9.
Plastic components are e.g.:
Do not use abrasive cleaning agents or steam
Imitation leather surfaces.
jets above 140 ℉/60 ℃. Follow the manufac-
Roofliner.
turer's instructions.
Light lenses.
Aggressive, acidic or alkaline cleaning agents
can destroy the protective layer of adjacent
Instrument cluster cover.
components, such as the brake disc.
Matt black spray-coated components.
After cleaning, apply the brakes briefly to dry
Painted parts in the car's interior.
them. The heat generated during braking dries
Clean with a microfiber cloth.
brake discs and brake pads and protects them
Dampen cloth lightly with water.
against corrosion.
Do not soak the roofliner.
Chrome surfaces
Carefully clean components such as the radia-
tor grille or door handles with an ample supply
of water, possibly with shampoo added, partic-
269

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOBILITY
Care
Safety belts
Displays/Screens/Projection lenses
WARNING
NOTE
Chemical cleansers can destroy the safety
Chemical cleansers, moisture or fluids of
belt webbing. Missing protective effect of the
any kind can damage the surface of displays
safety belts. There is a risk of injuries or danger
and screens. There is a risk of damage to prop-
to life. Use only a mild soapy solution for clean-
erty. Clean with a clean, antistatic microfiber
ing the safety belts.
cloth.
Dirty belt straps impede the reeling action and
NOTE
thus have a negative impact on safety.
The surface of displays can be damaged
Use only a mild soapy solution, with the safety
with improper cleaning. There is a risk of dam-
belts clipped into their buckles.
age to property. Avoid pressure that is too high
Safety belts should only be allowed to retract if
and do not use any scratching materials.
they are dry.
Clean with a clean, antistatic microfiber cloth.
For stubborn soiling on the projection lens of
Carpets and floor mats
the Head-up Display, dampen the microfiber
WARNING
cloth with alcohol. Projection lens, refer to
Objects in the driver's floor area can limit
page 123.
the pedal distance or block a depressed pedal.
There is a risk of an accident. Stow objects in
Long-term vehicle storage
the vehicle such that they are secured and can-
When the vehicle is shut down for longer than
not enter into the driver's floor area. Use floor
three months, special measures must be taken.
mats that are suitable for the vehicle and can
Further information is available from a dealer’s
be safely attached to the floor. Do not use
service center or another qualified service cen-
loose floor mats and do not layer several floor
ter or repair shop.
mats. Make sure that there is sufficient clear-
ance for the pedals. Ensure that the floor mats
are securely fastened again after they were re-
moved, for instance for cleaning.
Floor mats can be removed from the car's inte-
rior for cleaning.
If the floor carpets are very dirty, clean with a
microfiber cloth and water or a textile cleaner.
To prevent matting of the carpet, rub back and
forth in the direction of travel only.
Sensor/camera lenses
To clean sensors and camera lenses, use a cloth
moistened with a small amount of glass deter-
gent.
270

-------------------------------------------------------------------------------------------------------------------------------------------------------------

REFERENCE
Technical data
Technical data
necessarily available in your vehicle, e. g., due
Vehicle features and op-
to the selected options or country versions. This
tions
also applies to safety-related functions and sys-
tems. When using these functions and systems,
This chapter describes all standard, country-
the applicable laws and regulations must be
specific and optional features offered with the
observed.
series. It also describes features that are not
General information
The technical data and specifications in this
the vehicle or can be obtained from a dealer’s
Owner's Manual are used as guidance values.
service center or another qualified service cen-
The vehicle-specific data can deviate from this,
ter or repair shop.
for instance due to the selected special equip-
The information in the vehicle documents al-
ment, country version or country-specific
ways has priority over the information in this
measurement method. Detailed values can be
Owner's Manual.
found in the approval documents, on labels on
Dimensions
The dimensions can vary depending on the
roof racks or spoiler. The heights can deviate,
model version, equipment or country-specific
for instance due to the selected special equip-
measurement method.
ment, tires, load and chassis version.
The specified heights do not take into account
attached parts, for instance a roof antenna,
MINI Countryman
Width with mirrors
inches/mm
78.9/2,005
Width without mirrors
inches/mm
71.7/1,822
Height
inches/mm
61.3/1,557
Length
inches/mm
169.8/4,314
Wheelbase
inches/mm
105.1/2,670
Smallest turning radius diam.
ft/m
37.5/11.4
274















Content      ..     13      14      15      16     ..
