MINI Countryman (2018 year). Manual - part 11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Climate control

CONTROLS

Turn the ring to set the desired

To prevent window condensation, recirculated-

intensity from soft to intensive.

air mode switches off automatically after a cer-

tain amount of time, depending on the external

temperature.

If windows are fogged over, switch off the recir-

The set intensity is displayed via the position of

culating mode and press the AUTO button.

the illuminated LED segment.

Make sure that air can flow to the windshield.

Automatic recirculated-air control/

Controlling the air flow manually

recirculated-air mode

Concept

Concept

The air flow for climate control can be adjusted

The automatic recirculated-air control AUC rec-

manually.

ognizes odors or pollutants in the outside air.

The outside air supply is shut off and the inte-

General information

rior air is recirculated.

To manually adjust air flow switch off AUTO

program first.

General information

If the system is activated, a sensor detects pol-

Operation

lutants in the outside air and controls the shut-

Turn the ring to set the desired

off automatically.

air flow.

If the system is deactivated, outside air contin-

uously flows into the car's interior.

With constant recirculated-air mode, the air

quality in the car's interior deteriorates and the

The manually adjusted air flow is displayed via

fogging of the windows increases.

illuminated LED segments.

You may react to unpleasant odors or pollu-

The air flow of the automatic climate control

tants in the immediate environment by tempo-

may be reduced automatically to save battery

rarily suspending the supply of outside air. The

power.

system then recirculates the air flow within the

vehicle.

Controlling the air distribution manually

Switching on/off

Concept

Press button repeatedly to select an

The air distribution for climate control can be

operating mode:

adjusted manually.

▷ LEDs off: outside air flows in continuously.

Operation

▷ Left LED on, automatic recirculated-air con-

Press button repeatedly to select a

trol: a sensor detects pollutants in the out-

program:

side air and shuts off automatically.

▷ Right LED on, recirculated-air mode: the

▷ Windows, upper body region, and floor

supply of outside air into the vehicle is per-

area.

manently blocked.

▷ Upper body region and floor area.

181

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS

Climate control

▷ Floor area.

The rear window defroster can only be acti-

vated continuously at an external temperature

▷ Windows and floor area.

below approx. 41 ℉/5 ℃.

▷ Windows.

▷ Windows and upper body region.

When GREEN Mode is activated, the heater out-

put is reduced.

▷ Upper body region.

Microfilter/activated-charcoal filter

Defrosting windows and removing

condensation

In external and recirculated-air mode the mi-

crofilter/activated charcoal filter filters dust,

Concept

pollen, and gaseous pollutants out of the air.

Ice and condensation are quickly removed

Have this filter changed during vehicle mainte-

from the windshield and the front side win-

nance, refer to page 249.

dows.

Switching on/off

Ventilation

Press button.

Setting

The LED is illuminated with the system

switched on.

The air flow directions can be individually ad-

justed:

Ice and condensation are quickly removed

from the windshield and the front side win-

▷ Direct ventilation:

dows.

The air flow is directly pointed onto the per-

son. The air flow heats or cools noticeably,

The air flow can be adjusted with the air flow

depending on the adjusted temperature.

active.

▷ Indirect ventilation:

If there is window condensation, switch on the

If the vents are fully or partly closed, the air

air conditioning too.

is directly routed into the car's interior.

Windshield defroster

Front ventilation

Press button. The LED lights up.

The front window defroster switches

off automatically after a certain period of time.

Rear window defroster

Press button. The LED lights up.

The rear window defroster switches off

automatically after a certain period of time.

For permanent activation, press the button for

▷ Turn knob for continuous opening and clos-

longer than 3 seconds. To deactivate, press the

ing of the vents.

button again.

▷ Swivel the vents to alter the direction of the

vent flow, arrows.

182

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Climate control

CONTROLS

Ventilation in the rear

▷ Make sure that the vehicle's date and time

are set correctly.

▷ Open the vents to allow air to flow out.

Switching on/off directly

Via the Central Information Display (CID):

1.

"My MINI"

2. "Vehicle settings"

3. If necessary, "Climate functions"

▷ Lever for changing the air flow direction,

4. "Activate comfort ventilation now"

arrow 1.

The symbol on the automatic climate con-

▷ Thumbwheel for variable opening and clos-

trol flashes if the system is switched on.

ing of the vents, arrow 2.

Preselecting the activation time

Via the Central Information Display (CID):

Parked-car ventilation

1.

"My MINI"

2. "Vehicle settings"

Concept

3. If necessary, "Climate functions"

The parked-car ventilation ventilates the car's

4. "Comfort ventilation"

interior and lowers its temperature, if needed.

5. Select the desired activation time.

General information

6. Set the desired time.

The parked-car ventilation can be switched on

and off directly or by using two preset activa-

Activating the activation time

tion times. The system remains switched on for

Via the Central Information Display (CID):

30 minutes.

1.

"My MINI"

The parked-car ventilation system is operated

2. "Vehicle settings"

via the Central Information Display (CID).

3. If necessary, "Climate functions"

Functional requirements

4. "For start time at:"

▷ Direct operation: vehicle is in radio-ready

Activate the desired activation time.

state.

The symbol on the automatic climate con-

▷ Direct operation or preset activation time:

trol lights up when the activation time is acti-

does not depend on external temperature.

vated.

▷ Battery is sufficiently charged.

The symbol on the automatic climate con-

If parked-car ventilation is switched on, the

trol flashes when the system has been switched

vehicle battery will be discharged. Thus,

on.

limit the maximum activation time to save

The system will only be switched on within the

the vehicle battery. The system will be

next 24 hours. After that, it needs to be reacti-

available again after the engine is started or

vated.

after a short trip.

183

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS

Interior equipment

Interior equipment

during programming and operation. Also follow

Vehicle features and op-

the safety information of the hand-held trans-

tions

mitter.◀

This chapter describes all standard, country-

specific and optional features offered with the

Compatibility

series. It also describes features that are not

If this symbol is printed on the packag-

necessarily available in your vehicle, e. g., due

ing or in the owner's manual of the sys-

to the selected options or country versions. This

tem to be controlled, the system is gen-

also applies to safety-related functions and sys-

erally compatible with the integrated Universal

tems. When using these functions and systems,

Remote Control.

the applicable laws and regulations must be

If you have any questions, please contact:

observed.

▷ A dealer’s service center or another quali-

fied service center or repair shop.

Integrated Universal Re-

▷

www.homelink.com on the Internet.

mote Control

HomeLink is a registered trademark of Gentex

Corporation.

Concept

The integrated Universal Remote Control in the

Overview

interior mirror can operate up to 3 functions of

remote-controlled systems, such as garage

door drives, barriers, or lighting systems. The

integrated Universal Remote Control replaces

up to 3 different hand-held transmitters. To op-

erate the remote control, the buttons on the in-

terior mirror must be programmed with the de-

sired functions. The hand-held transmitter for

the particular system is required in order to

program the remote control.

1

LED

Before selling the vehicle, delete the stored

2

Programmable keys

functions for the sake of security.

3

Hand-held transmitters of the system

Safety information

WARNING

Programming

Body parts can be jammed when operat-

ing remote-controlled systems, such as the ga-

General information

rage door, using the integrated Universal Re-

1. Switch on the ignition.

mote Control. There is a risk of injury or risk of

2. Initial setup:

damage to property. Make sure that the area of

Press and hold the two outer buttons on

movement of the respective system is clear

the interior mirror simultaneously for ap-

184

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS

Interior equipment

4.

Likewise, press and hold the button of the

20 seconds until the LED on the interior mirror

desired function on the hand-held trans-

flashes rapidly. All stored functions will be de-

mitter.

leted. The functions cannot be deleted individ-

ually.

5.

Release both buttons as soon as the interior

mirror LED flashes more rapidly. The LED

flashing faster indicates that the button on

the interior mirror has been programmed.

Digital compass

The system can then be controlled by the

button on the interior mirror.

Overview

If the LED does not flash faster after at most

60 seconds, change the distance and re-

peat the programming starting with step 4.

Several more attempts at different distan-

ces may be necessary. Wait at least 15 sec-

onds between attempts.

Canada: if programming with the hand-

held transmitter was interrupted, hold

down the interior mirror button and repeat-

edly press and release the hand-held trans-

1

Control button

mitter button for 2 seconds.

2

Mirror display

Operation

Mirror display

WARNING

The point of the compass is displayed in the

Body parts can be jammed when operat-

mirror when driving straight.

ing remote-controlled systems, such as the ga-

rage door, using the integrated Universal Re-

Operating concept

mote Control. There is a risk of injury or risk of

damage to property. Make sure that the area of

Various functions can be called up by pressing

movement of the respective system is clear

the control button with a pointed object, such

during programming and operation. Also follow

as the tip of a ballpoint pen or similar object.

the safety information of the hand-held trans-

The following setting options are displayed in

mitter.◀

succession, depending on how long the control

button is pressed:

The system, such as the garage door, can be

▷ Pressed briefly: turns display on/off.

operated using the button on the interior mir-

ror while the engine is running or when the ig-

▷

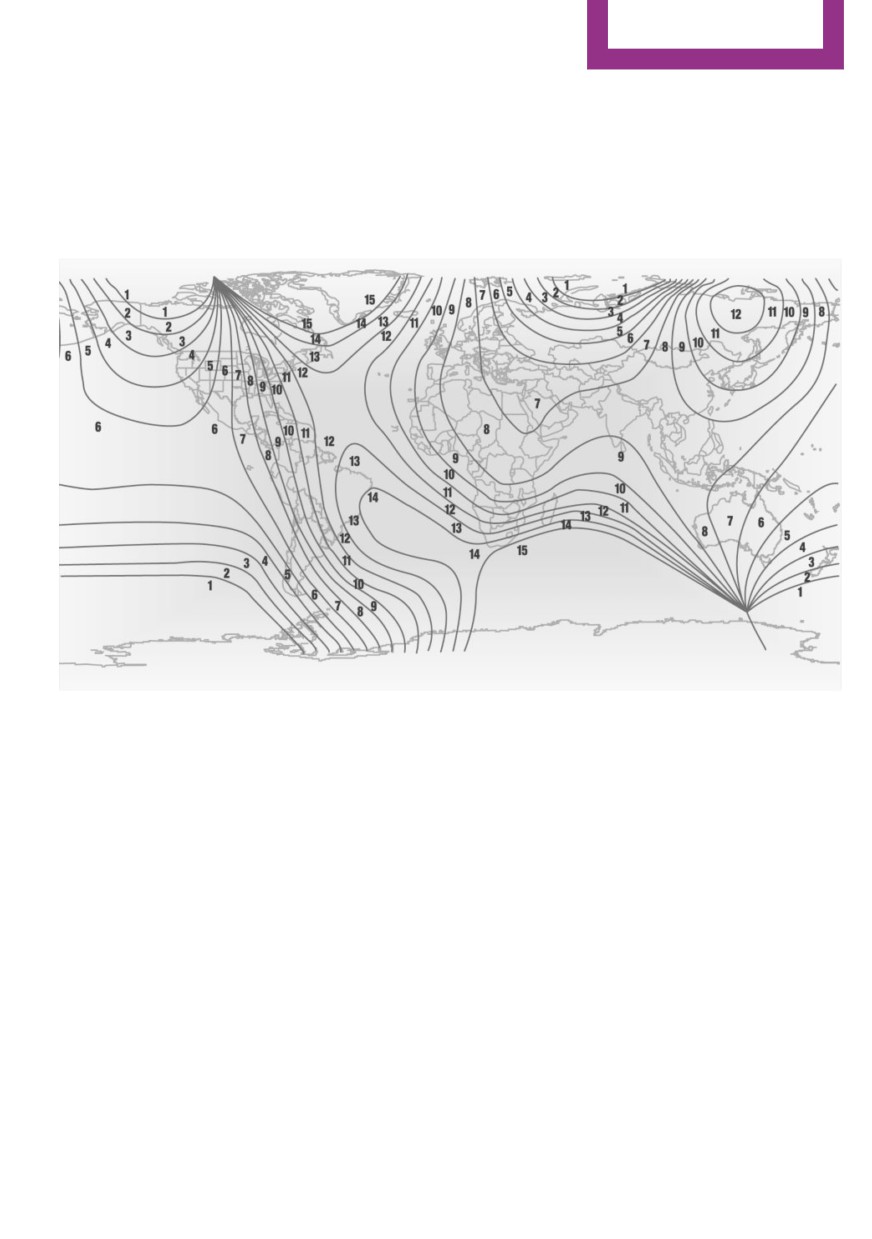

3 to 6 seconds: compass zone setting.

nition is started. To do this, hold down the but-

▷

6 to 9 seconds: compass calibration.

ton within receiving range of the system until

▷

9 to 12 seconds: left/right-hand steering

the function is activated. The interior mirror

setting.

LED stays lit while the wireless signal is being

▷

12 to 15 seconds: language setting.

transmitted.

Deleting stored functions

Press and hold the two outer buttons on the in-

terior mirror simultaneously for approximately

186

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Interior equipment

CONTROLS

Setting the compass zones

Sets the particular compass zones on the vehi-

cle so that the compass operates correctly; re-

fer to World map with compass zones.

World map with magnetic zones

Procedure

▷ The point of the compass displayed does

not change despite changing the direction

1. Press and hold the control button for ap-

of travel.

prox. 3 to 4 seconds. The number of the set

compass zone appears in the mirror.

▷ Not all points of the compass are displayed.

2. To change the zone setting, press the con-

trol button quickly and repeatedly until the

Procedure

number of the compass zone that corre-

1. Make sure that there are no large metallic

sponds with your location appears in the

objects or overhead power lines near the

mirror.

vehicle and that there is sufficient room to

drive around in a circle.

The set zone is stored automatically. The com-

pass is ready for use again after approximately

2. Set the currently applicable compass zone.

10 seconds.

3. Press and hold the control button for ap-

prox. 6 to 7 seconds so that "C" appears on

Calibrating the digital compass

the display. Next, drive in a complete circle

The digital compass must be calibrated in the

at least once at a speed of no more than

event of the following:

4 mph/7 km/h. If calibration is successful,

the "C" is replaced by the points of the

▷ The wrong compass point is displayed.

compass.

187

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS

Interior equipment

Left/right-hand steering

Ashtray

The digital compass is already set for right or

In order to empty the ashtray, remove the ash-

left-hand steering at the factory.

tray from the cup holder.

Setting the language

Cigarette lighter

Press and hold the control button for approx.

12 to 13 seconds. Briefly press the control but-

Safety information

ton again to switch between English "E" and

WARNING

German "O".

Contact with the hot heating element or

Settings are stored automatically after approxi-

the hot socket of the cigarette lighter can cause

mately 10 seconds.

burns. Flammable materials can ignite if the

cigarette lighter falls down or is held against

the respective objects. There is a risk of fire and

Sun visor

injuries. Take hold of the cigarette lighter by its

handle. Make sure that children do not use the

Glare shield

cigarette lighter and burn themselves.◀

To provide protection against glare, fold the

NOTE

sun visor down or pivot it to the side.

If metal objects fall into the socket, they

can cause a short circuit. There is a risk of dam-

Vanity mirror

age to property. Replace the cigarette lighter or

A vanity mirror is located in the sun visor be-

socket cover again after using the socket.◀

hind a cover.

When the cover is opened, the mirror lighting

Operation

switches on.

Push in the cigarette lighter.

The cigarette lighter can be re-

Ashtray/cigarette

moved as soon as it pops back

out.

lighter

Overview

Sockets

Concept

The lighter socket can be used as a socket for

electrical equipment while the ignition is

switched on or the engine is running.

General information

The total load of all sockets must not exceed

The ashtray is located in one of the frontal cup

140 watts at 12 volts.

holders, the cigarette lighter above it in the

Do not damage the socket by using non-com-

center console.

patible connectors.

188

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Interior equipment

CONTROLS

Safety information

In the rear center console

WARNING

Devices and cables in the unfolding area

of the airbags, such as portable navigation de-

vices, can hinder the unfolding of the airbag or

be thrown around in the car's interior during

unfolding. There is a risk of injury. Make sure

that devices and cables are not in the airbag's

area of unfolding.◀

NOTE

Remove the cover.

Battery chargers for the vehicle battery

can work with high voltages and currents,

In the cargo area

which means that the 12 volt on-board net-

work can be overloaded or damaged. There is a

risk of damage to property. Only connect bat-

tery chargers for the vehicle battery to the

starting aid terminals in the engine compart-

ment.◀

NOTE

If metal objects fall into the socket, they

can cause a short circuit. There is a risk of dam-

age to property. Replace the cigarette lighter or

The socket is located on the right side in the

socket cover again after using the socket.◀

cargo area.

In the front center console

USB interface/AUX-IN port

Concept

Mobile devices with USB port can be connected

to the USB interface.

A mobile audio device, for instance a MP3

player, can be connected using the AUX-IN

port.

Remove the cover or cigarette lighter.

General information

Follow the information regarding the connec-

tion of mobile devices to the USB interface in

the section on USB connections, refer to

page 38.

189

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS

Interior equipment

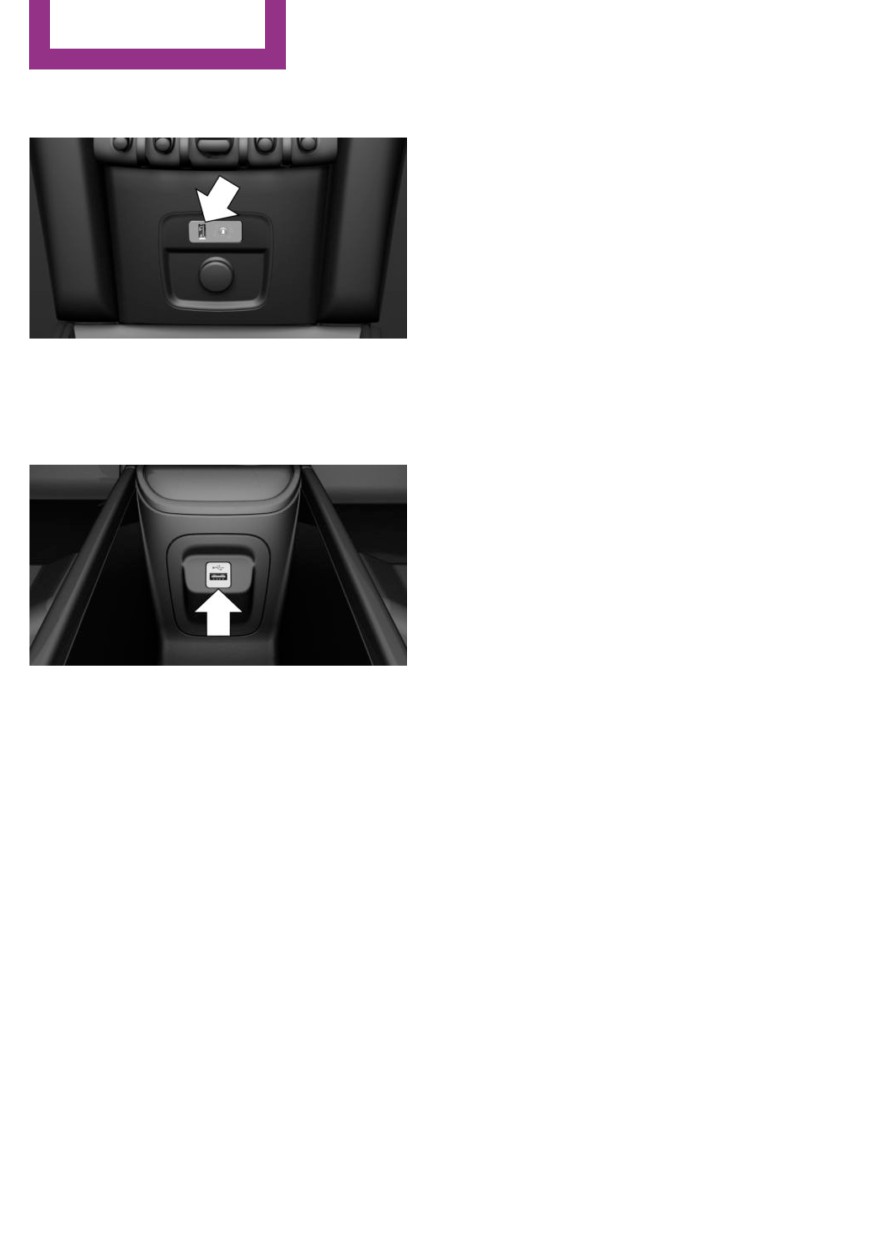

In the center console

The USB interface and the AUX-IN port are lo-

cated at the front in the center console.

Under the center armrest

The USB interface is located under the center

armrest.

190

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage compartments

CONTROLS

Storage compartments

▷ Storage compartment in the center arm-

Vehicle features and op-

rest.

tions

▷ Storage compartment in front of the cup

This chapter describes all standard, country-

holders.

specific and optional features offered with the

▷ Clothes hooks

series. It also describes features that are not

▷ Storage compartments in the cargo area.

necessarily available in your vehicle, e. g., due

▷ Storage tray in the center console.

to the selected options or country versions. This

also applies to safety-related functions and sys-

▷ Pockets on the backrests of the front seats.

tems. When using these functions and systems,

the applicable laws and regulations must be

observed.

Glove compartment

Safety information

Safety information

WARNING

WARNING

Folded open, the glove compartment

Loose objects or devices with a cable

protrudes in the car's interior. Objects in the

connection to the vehicle, for instance mobile

glove compartment can be thrown into the

phones, can be thrown into the car's interior

car's interior while driving, for instance in the

while driving, for instance in the event of an ac-

event of an accident or during braking and eva-

cident or during braking and evasive maneu-

sive maneuvers. There is a risk of injury. Always

vers. There is a risk of injury. Secure loose ob-

close the glove compartment immediately after

jects or devices with a cable connection to the

using it.◀

vehicle in the car's interior.◀

Opening

NOTE

Anti-slip pads such as anti-slip mats can

damage the dashboard. There is a risk of dam-

age to property. Do not use anti-slip pads.◀

Overview

The following storage compartments are avail-

able in the car's interior:

Pull the handle.

▷ Glove compartment on the front passenger

side.

The light in the glove compartment switches

on.

▷ Storage compartment under the driver's

seat.

▷ Compartments in the doors.

191

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS

Storage compartments

Closing

Set the incline

Fold up the cover.

The center armrest can be adjusted in several

tilt settings.

Driver's seat

Cup holders

There is a storage compartment under the driv-

er's seat.

Safety information

WARNING

Compartments in the

Unsuitable containers in the cup holder

and hot beverages can damage the cup holder

doors

and increase the risk of injury in the event of an

WARNING

accident. There is a risk of injury or risk of dam-

age to property. Use light-weight, unbreakable,

Breakable objects, such as glass bottles or

and sealable containers. Do not transport hot

glasses, can break in the event of an accident

beverages. Do not force objects into the cup

or a braking or evasive maneuver. Broken glass

holder.◀

can be scattered in the car's interior. There is a

risk of injury or risk of damage to property. Do

not use any breakable objects while driving.

Front

Only stow breakable objects in closed storage

compartments.◀

Center armrest

General information

The center armrest contains a storage compart-

ment.

In the center console.

Opening

Rear

General information

The cup holder is located in the center armrest.

Press button, arrow 1, and open center armrest

upward, arrow 2.

192

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage compartments

CONTROLS

hang lightweight objects, for instance clothing

articles, from the clothes hooks.◀

Pull the center armrest forward at the strap.

To open: press the button.

To close: push both covers back in, one after

the other.

Safety information

NOTE

With an open cup holder, the center arm-

rest cannot be folded back up. There is a risk of

damage to property. Press back the covers be-

fore the center armrest is folded up.◀

Clothes hooks

General information

The clothes hooks are located above the rear

doors.

Safety information

WARNING

Clothing articles on the clothes hooks can

obstruct the view while driving. There is a risk

of an accident. When suspending clothing arti-

cles from the clothes hooks, ensure that they

will not obstruct the driver's view.◀

WARNING

Improper use of the clothes hooks can

lead to a risk of objects flying about during

braking and evasive maneuvers. There is a risk

of injury and risk of damage to property. Only

193

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS

Cargo area

Cargo area

WARNING

Vehicle features and op-

Improperly stowed objects can shift and

tions

be thrown into the car's interior, for instance in

This chapter describes all standard, country-

the event of an accident or during braking and

specific and optional features offered with the

evasive maneuvers. Vehicle occupants can be

series. It also describes features that are not

hit and injured. There is a risk of injury. Stow

necessarily available in your vehicle, e. g., due

and secure objects and cargo properly.◀

to the selected options or country versions. This

NOTE

also applies to safety-related functions and sys-

tems. When using these functions and systems,

Fluids in the cargo area can cause dam-

the applicable laws and regulations must be

age. There is a risk of damage to property.

observed.

Make sure that no fluids leak in the cargo

area.◀

Loading

Steps for Determining Correct Load

Limit

Safety information

1.

Locate the statement “The combined

weight of occupants and cargo should

WARNING

never exceed XXX kg or XXX lbs.” on your

High gross weight can overheat the tires,

vehicle’s placard.

damage them internally and cause a sudden

2.

Determine the combined weight of the

drop in tire inflation pressure. Driving charac-

driver and passengers that will be riding in

teristics may be negatively impacted, reducing

your vehicle.

lane stability, lengthening the braking distances

and changing the steering response. There is a

3.

Subtract the combined weight of the driver

risk of an accident. Pay attention to the permit-

and passengers from XXX kg or XXX lbs.

ted load capacity of the tires and never exceed

4.

The resulting figure equals the available

the permitted gross weight.◀

amount of cargo and luggage load ca-

pacity. For example, if the “XXX” amount

WARNING

equals 1,400 lbs. and there will be five

Loose objects or devices with a cable

150 lb passengers in your vehicle, the

connection to the vehicle, for instance mobile

amount of available cargo and luggage

phones, can be thrown into the car's interior

load capacity is 650 lbs. (1,400-750 (5 x

while driving, for instance in the event of an ac-

150) = 650 lbs.)

cident or during braking and evasive maneu-

5.

Determine the combined weight of luggage

vers. There is a risk of injury. Secure loose ob-

and cargo being loaded on the vehicle.

jects or devices with a cable connection to the

That weight may not safely exceed the

vehicle in the car's interior.◀

available cargo and luggage load capacity

calculated in Step 4.

6.

If your vehicle will be towing a trailer, load

from your trailer will be transferred to your

vehicle. Consult this manual to determine

194

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Cargo area

CONTROLS

how this reduces the available cargo and

Lashing eyes in the cargo

luggage load capacity of your vehicle.

area

Load

With storage compartment package: to secure

the cargo there are four lashing eyes in the

cargo area.

The maximum load is the sum of the weight of

the occupants and the cargo.

Attach load securing aids, such as lashing

straps, retaining straps, draw straps or cargo

The greater the weight of the occupants, the

nets, to the lashing eyes in the cargo area.

less cargo that can be transported.

Stowing and securing cargo

Cargo cover

▷

Cover sharp edges and corners on the

cargo.

General information

▷

Heavy cargo: stow as far forward as possi-

When the tailgate is opened, the cargo cover is

ble, directly behind and at the bottom of

raised.

the rear passenger seat backrests.

▷

Very heavy cargo: when the rear seat is not

Safety information

occupied, secure each of the outer safety

belts in the opposite buckle.

WARNING

▷

If necessary, fold down the rear backrests

Loose objects or devices with a cable

to stow cargo.

connection to the vehicle, for instance mobile

phones, can be thrown into the car's interior

▷

Do not stack cargo above the top edge of

while driving, for instance in the event of an ac-

the backrests.

cident or during braking and evasive maneu-

▷

Small and light cargo: secure with ratchet

vers. There is a risk of injury. Secure loose ob-

straps or draw straps.

jects or devices with a cable connection to the

▷

Larger and heavy cargo: secure with cargo

vehicle in the car's interior.◀

straps.

Removing

For storing bulky objects the cargo cover can

be removed.

1. Detach the left and right retaining straps at

the tailgate.

195

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS

Cargo area

2. Pull the cargo cover out of the brackets on

the left and right.

The cargo area contains two multi-function

hooks.

Installing

1. Slide the cargo cover forward horizontally

Enlarging the cargo

into the two side brackets until it audibly

area

engages.

2. Attach the left and right retaining straps at

Concept

the tailgate.

Depending on the vehicle equipment, the

cargo area can be enlarged as follows:

▷ The rear seat backrests can be folded

Storage compartments in

down.

the cargo area

▷ The rear seat backrests can be moved into

an upright loading position using the cargo

Storage compartment on the side

setting.

A storage compartment is located on the left

side.

General information

The rear seat backrest is divided at a ratio of

Multi-function hook

40-20-40. The side rear seat backrests and the

WARNING

center section can be folded down separately.

Improper use of the multi-function hooks

The rear seat backrests can be folded down

can lead to a risk of objects flying about during

from the rear.

braking and evasive maneuvers, for example.

There is a risk of injury and risk of damage to

Safety information

property. Only hang lightweight objects,

WARNING

such as shopping bags, from the multi-function

Danger of jamming with folding down the

hooks. Only transport heavy luggage in the

backrests. There is a risk of injury or risk of

cargo area if it has been appropriately se-

damage to property. Make sure that the area of

cured.◀

movement of the rear backrest and the of the

head restraint is clear prior to folding down.◀

196

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Cargo area

CONTROLS

WARNING

Folding down the rear seat backrest

If a rear seat backrest is not locked, unse-

from the rear

cured cargo can be thrown into the car's inte-

rior; for instance, in the event of an accident,

braking or an evasive maneuver. There is a risk

of injury. Make sure that the rear seat backrest

is locked after folding it back.◀

WARNING

Unexpected movements of the backrest

while driving may occur due to unintentional

unlocking of the rear backrests by the straps.

Pull the strap forward. The rear seat backrest

There is a risk of injury. Do not fasten any ob-

folds forward.

jects to the straps for unlocking the rear back-

rests.◀

Cargo position

WARNING

The stability of the child restraint system

Concept

is limited or compromised with incorrect seat

The rear seat backrests can be separately

adjustment or improper installation of the child

moved through several tilt stages into an up-

seat. There is a risk of injuries or danger to life.

right loading position.

Make sure that the child restraint system fits

securely against the backrest. If possible, adjust

Settings

the backrest tilt for all affected backrests and

1. Pull the strap.

correctly adjust the seats. Make sure that seats

and backrests are securely engaged or locked.

If possible, adjust the height of the head re-

straints or remove them.◀

WARNING

Body parts can be jammed when moving

the head restraint. There is a risk of injury.

Make sure that the area of movement is clear

when moving the head restraint.◀

2. Set the loading position of the rear seat

backrest as required.

3. Latch the rear seat backrest.

197

Content      ..     9      10      11      12     ..
