MINI Clubman (2018 year). Manual - part 14





-------------------------------------------------------------------------------------------------------------------------------------------------------------

Engine compartment
MOBILITY
Engine compartment
necessarily available in your vehicle, e. g., due
Vehicle features and op-
to the selected options or country versions. This
tions
also applies to safety-related functions and sys-
tems. When using these functions and systems,
This chapter describes all standard, country-
the applicable laws and regulations must be
specific and optional features offered with the
observed.
series. It also describes features that are not
Important features in the engine compartment
1
Filler neck for washer fluid
4
Jump-starting, positive terminal
2
Vehicle identification number
5
Jump-starting, negative terminal
3
Oil filler neck
6
Coolant reservoir
personal and property damage. The manufac-
Hood
turer of your vehicle recommends that, in the
effort to avoid such risks, work in the engine
Safety information
compartment be performed by a dealer’s serv-
WARNING
ice center or another qualified service center or
Improperly executed work in the engine
repair shop.
compartment can damage vehicle components
and impair vehicle functions. There is a risk of
235

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOBILITY
Engine compartment
WARNING
Hood is unlocked.
The engine compartment accommodates
moving components. Certain components in
the engine compartment can also move with
the vehicle switched off, for instance the radia-
tor fan. There is a risk of injury. Do not reach
into the area of moving parts. Keep articles of
clothing and hair away from moving parts.
WARNING
There are protruding parts, for instance
2. After the lever is released, pull the lever
locking hook, on the inside of the hood. There
again, arrow 2.
is a risk of injury. If the hood is open, pay atten-
tion to protruding parts and keep clear of these
Hood can be opened.
areas.
Indicator/warning lights
WARNING
When the hood is opened, a Check Control
An incorrectly locked hood can open
message is displayed.
while driving and restrict visibility. There is a
risk of an accident. Stop immediately and cor-
Closing the hood
rectly close the hood.
WARNING
Body parts can be jammed when opening
and closing the hood. There is a risk of injury.
Make sure that the area of movement of the
hood is clear during opening and closing.
NOTE
Folded-away wipers can be jammed
when the hood is opened. There is a risk of
Let the hood fall from approx. 16 inches/40 cm,
damage to property. Make sure that the wipers
arrow.
with the wiper blades mounted are folded
The hood must engage on both sides.
down onto the windshield before opening the
hood.
NOTE
When the hood is closed, it must engage
on both sides. Pressing again can damage the
hood. There is a risk of damage to property.
Open the hood again and then close it energet-
ically. Avoid pressing again.
Opening the hood
1. Pull lever, arrow 1.
236

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Engine oil
MOBILITY
Engine oil
NOTE
Vehicle features and op-
Too much engine oil can damage the en-
tions
gine or the catalytic converter. There is a risk of
This chapter describes all standard, country-
damage to property. Do not add too much en-
specific and optional features offered with the
gine oil. When too much engine oil is added,
series. It also describes features that are not
have the engine oil level corrected by a dealer’s
necessarily available in your vehicle, e. g., due
service center or another qualified service cen-
to the selected options or country versions. This
ter or repair shop.
also applies to safety-related functions and sys-
tems. When using these functions and systems,
the applicable laws and regulations must be
Electronic oil measure-
observed.
ment
General information
General information
The electronic oil measurement has two meas-
The engine oil consumption is dependent on
uring principles:
your driving style and driving conditions.
Monitoring.
Therefore, regularly check the engine oil level
Detailed measurement.
after refueling by taking a detailed measure-
ment.
When making frequent short-distance trips or
using a dynamic driving style, for instance
The engine oil consumption can increase in the
when taking curves aggressively, regularly per-
following situations, for example:
form a detailed measurement.
Sporty driving style.
Break-in of the engine.
Monitoring
Idling of the engine.
Concept
With use of engine oil types that are classi-
The engine oil level is monitored electronically
fied as not suitable.
while driving and can be shown on the Control
Different Check Control messages appear, de-
Display.
pending on the engine oil level.
If the engine oil level is outside its permissible
operating range, a Check Control message is
displayed.
Safety information
NOTE
Functional requirements
An engine oil level that is too low causes
A current measured value is available after ap-
engine damage. There is a risk of damage to
prox. 30 minutes of normal driving.
property. Immediately add engine oil.
237

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOBILITY
Engine oil
Displaying the engine oil level
Performing a detailed measurement
Via the Central Information Display (CID):
Via the Central Information Display (CID):
1.
"My MINI"
1.
"My MINI"
2. "Vehicle status"
2. "Vehicle status"
3.
"Engine oil level"
3.
"Engine oil level"
The engine oil level is displayed.
4. "Measure engine oil level"
5. "Start measurement"
System limits
The engine oil level is checked and displayed
When making frequent short-distance trips or
via a scale.
using a dynamic driving style, it may not be
possible to calculate a measured value. In this
case, the measured value for the last, suffi-
Adding engine oil
ciently long trip is displayed.
General information
Detailed measurement
Only add engine oil when the message is dis-
Concept
played in the instrument cluster. The quantity
to be added is indicated in the message dis-
The engine oil level is checked when the vehi-
played in the instrument cluster.
cle is stationary and displayed via a scale.
Only add suitable types of engine oil, refer to
If the engine oil level is outside its permissible
page 239.
operating range, a Check Control message is
displayed.
Safely park the vehicle and switch off the igni-
tion before adding engine oil.
General information
Take care not to add too much engine oil.
During the measurement, the idle speed is in-
creased somewhat.
Safety information
WARNING
Functional requirements
Operating materials, for instance oils,
Vehicle is parked in a horizontal position.
greases, coolants, fuels, can contain harmful in-
Manual transmission: shift lever in neutral
gredients. There is a risk of injuries or danger to
position, clutch and accelerator pedals not
life. Follow the instructions on the containers.
depressed.
Avoid the contact of articles of clothing, skin or
Steptronic transmission: selector lever in se-
eyes with operating materials. Do not refill op-
lector lever position N or P and accelerator
erating materials into different bottles. Store
pedal not depressed.
operating materials out of reach of children.
Engine is running and is at operating tem-
NOTE
perature.
An engine oil level that is too low causes
engine damage. There is a risk of damage to
property. Immediately add engine oil.
238

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Engine oil
MOBILITY
NOTE
NOTE
Too much engine oil can damage the en-
Incorrect engine oil can cause malfunc-
gine or the catalytic converter. There is a risk of
tions in the engine or damage it. There is a risk
damage to property. Do not add too much en-
of damage to property. When selecting an en-
gine oil. When too much engine oil is added,
gine oil, make sure that the engine oil has the
have the engine oil level corrected by a dealer’s
correct oil rating.
service center or another qualified service cen-
ter or repair shop.
Suitable engine oil types
Add engine oils that meet the following oil rat-
Overview
ing standards:
The oil filler neck is located in the engine com-
Gasoline engine
partment, refer to page 235.
BMW Longlife-01 FE.
Adding engine oil
BMW Longlife-14 FE+.
1. Open the hood, refer to page 235.
2. Open the lid counterclockwise, arrow.
More information about suitable engine oil rat-
ings and viscosities of engine oils can be re-
quested from a dealer’s service center or an-
other qualified service center or repair shop.
Alternative engine oil types
If an engine oil suitable for continuous use is
not available, up to 1 US quart/liter of an en-
gine oil with the following oil rating can be
added:
3. Add engine oil.
Gasoline engine
4. Close the cap.
BMW Longlife-01.
API SL, API SM, or API SN.
Engine oil types to add
Viscosity grades
General information
Gasoline engine:
The engine oil quality is critical for the life of the
When selecting an engine oil, make sure that
engine.
the engine oil has the viscosity grade SAE
0W-30 or SAE 0W-20. The suitable viscosity
Safety information
grade is indicated on a label in the engine com-
partment.
NOTE
Viscosity class SAE 0W-20 is only suitable for
Oil additives can damage the engine.
particular engines.
There is a risk of damage to property. Do not
use oil additives.
More information about suitable engine oil rat-
ings and viscosities of engine oils can be re-
239

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOBILITY
Engine oil
quested from a dealer’s service center or an-
other qualified service center or repair shop.
Engine oil change
NOTE
Engine oil that is not changed in timely
fashion can cause increased engine wear and
thus engine damage. There is a risk of damage
to property. Do not exceed the service data in-
dicated in the vehicle.
The vehicle manufacturer recommends that
you have a dealer’s service center or another
qualified service center or repair shop change
the engine oil.
240

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Coolant
MOBILITY
Coolant
Vehicle features and op-
Coolant level
tions
Overview
This chapter describes all standard, country-
The coolant reservoir is in the engine compart-
specific and optional features offered with the
ment, refer to page 235.
series. It also describes features that are not
Open the hood, refer to page 235.
necessarily available in your vehicle, e. g., due
to the selected options or country versions. This
Checking
also applies to safety-related functions and sys-
tems. When using these functions and systems,
There are yellow Min and Max marks in the
the applicable laws and regulations must be
coolant reservoir.
observed.
1. Let the engine cool.
2. Turn the lid of the coolant reservoir slightly
counterclockwise to allow any excess pres-
General information
sure to dissipate, then open it.
Coolant consists of water and additives.
Not all commercially available additives are
suitable for the vehicle. Information about suit-
able additives is available from a dealer’s serv-
ice center or another qualified service center or
repair shop.
Safety information
3. Open the coolant reservoir lid.
WARNING
4. The coolant level is correct if it lies between
With the engine hot and the cooling sys-
the minimum and maximum marks in the
tem open, coolant can escape and lead to
filler neck.
scalding. There is a risk of injury. Only open the
cooling system with the engine cooled down.
WARNING
Additives are harmful and incorrect addi-
tives can damage the engine. There is a risk of
injury and risk of damage to property. Do not
allow additives to come into contact with skin,
eyes or articles of clothing. Use suitable addi-
tives only.
241

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOBILITY
Coolant
Adding
1. Let the engine cool.
2. Turn the lid of the coolant reservoir slightly
counterclockwise to allow any excess pres-
sure to dissipate, then open it.
3. If the coolant is low, slowly add coolant up
to the specified level; do not overfill.
4. Close the cap.
5. Have the cause of the coolant loss elimi-
nated as soon as possible.
Disposal
Comply with the relevant environmen-
tal protection regulations when dispos-
ing of coolant and coolant additives.
242

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance
MOBILITY
Maintenance
General information
Vehicle features and op-
Information on service requirements, refer to
tions
page 112, can be displayed on the Control Dis-
This chapter describes all standard, country-
play.
specific and optional features offered with the
series. It also describes features that are not
Service data in the remote control
necessarily available in your vehicle, e. g., due
Information on the required maintenance is
to the selected options or country versions. This
continuously stored in the remote control. The
also applies to safety-related functions and sys-
dealer’s service center can read this data out
tems. When using these functions and systems,
and suggest an optimized maintenance scope
the applicable laws and regulations must be
for the vehicle.
observed.
Therefore, hand the service advisor the remote
control with which the vehicle was driven most
recently.
MINI maintenance system
Storage periods
The maintenance system indicates required
maintenance measures, and thereby provides
Storage periods during which the vehicle bat-
support in maintaining road safety and the op-
tery was disconnected are not taken into ac-
erational reliability of the vehicle.
count.
In some cases, scopes and intervals may vary
If this occurs, have a dealer's service center or
according to the country-specific version. Re-
another qualified service center or repair shop
placement work, spare parts, fuels and lubri-
update the time-dependent maintenance pro-
cants, and wear materials are calculated sepa-
cedures, such as checking brake fluid and, if
rately. Further information is available from a
necessary, changing the engine oil and the mi-
dealer’s service center or another qualified
crofilter/activated-charcoal filter.
service center or repair shop.
Service and Warranty In-
Condition Based Service
formation Booklet for
CBS
US models and Warranty
and Service Guide Book-
Concept
let for Canadian models
Sensors and special algorithms take into ac-
count the driving conditions of the vehicle. CBS
Please consult your Service and Warranty Infor-
uses these to calculate the need for mainte-
mation Booklet for US models and Warranty
nance.
and Service Guide Booklet for Canadian models
The system makes it possible to adapt the
for additional information on service require-
amount of maintenance corresponding to your
ments.
user profile.
The manufacturer of your vehicle recommends
that maintenance and repair be performed by a
243

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOBILITY
Maintenance
dealer’s service center or another qualified
Emissions
service center or repair shop. Records of regu-
The warning light lights up:
lar maintenance and repair work should be re-
Emissions are deteriorating. Have
tained.
the vehicle checked as soon as pos-
sible.
The warning light flashes under certain cir-
Socket for OBD Onboard
cumstances:
Diagnosis
This indicates that there is excessive misfir-
ing in the engine.
Safety information
Reduce the vehicle speed and have the sys-
NOTE
tem checked immediately; otherwise, seri-
The socket for Onboard Diagnosis is an
ous engine misfiring within a brief period
intricate component intended to be used in
can seriously damage emission control
conjunction with specialized equipment to
components, in particular the catalytic con-
check the vehicle’s primary emissions system.
verter.
Improper use of the socket for Onboard Diag-
nosis, or contact with the socket for Onboard
Diagnosis for other than its intended purpose,
can cause vehicle malfunctions and creates
risks of personal and property damage. Given
the foregoing, the manufacture of your vehicle
strongly recommends that access to the socket
for Onboard Diagnosis be limited to a dealer's
service center or another qualified service cen-
ter or repair shop or other persons that have
the specialized training and equipment for pur-
poses of properly utilizing the socket for On-
board Diagnosis.
Position
There is an OBD socket on the driver's side for
checking the primary components in the vehi-
cle's emissions.
244

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Replacing components
MOBILITY
Replacing components
blade. Do not fold or switch on the wiper with-
Vehicle features and op-
out a wiper blade installed.
tions
NOTE
This chapter describes all standard, country-
Folded-away wipers can be jammed
specific and optional features offered with the
when the hood is opened. There is a risk of
series. It also describes features that are not
damage to property. Make sure that the wipers
necessarily available in your vehicle, e. g., due
with the wiper blades mounted are folded
to the selected options or country versions. This
down onto the windshield before opening the
also applies to safety-related functions and sys-
hood.
tems. When using these functions and systems,
the applicable laws and regulations must be
observed.
Front wiper blades
1. To change the wiper blades, fold up the
wiper arms.
Onboard vehicle tool kit
2. Fold up and hold the wiper arm firmly.
3. Press button, arrow 1, and pull out the
wiper blade, arrow 2.
The bag containing the onboard vehicle tool kit
is located beneath the cargo floor panel.
4. Attach a new wiper blade. The wiper blade
After use, secure the bag with the onboard ve-
must engage audibly.
hicle tool kit on a lashing eye again.
5. Fold down the wiper arm.
Wiper blade replacement
Safety information
NOTE
The window may sustain damage if the
wiper falls onto it without the wiper blade in-
stalled. There is a risk of damage to property.
Hold the wiper firmly when changing the wiper
245

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOBILITY
Replacing components
Rear wiper blades
These light-emitting diodes are related to con-
ventional lasers and are officially designated as
1. Fold up and hold the wiper arm firmly.
Class 1 light-emitting diodes.
2. Turn the wiper blade all the way back.
Follow the safety information, refer to
page 246.
Safety information
Lights and bulbs
WARNING
Bulbs can get hot during operation. Con-
tact with the bulbs can cause burns. There is a
risk of injury. Only change bulbs after they have
3. Push the wiper blade out of the fastening
cooled off.
by continuing to turn it all the way.
4. Insert the new wiper blade by following the
WARNING
steps in reverse order. The wiper blade
Work on switched-on lighting systems
must engage audibly.
can cause short circuits. There is a risk of injury
5. Fold down the wiper arm.
or risk of damage to property. When working
on the lighting system, switch off the lights in
question. If necessary, heed the bulb manufac-
Light and bulb replace-
turer's instructions.
ment
NOTE
Dirty bulbs have a reduced service life.
General information
There is a risk of damage to property. Do not
hold new bulbs with your bare hands. Use a
Lights and bulbs
clean cloth or something similar, or hold the
Lights and bulbs make an essential contribution
bulb by its base.
to vehicle safety.
The manufacturer of the vehicle recommends
Light-emitting diodes (LEDs)
that you have appropriate work performed by a
WARNING
dealer’s service center or another qualified
service center or repair shop if you are unfami-
Too intensive brightness can irritate or
liar with it or if it has not been described here.
damage the retina of the eye. There is a risk of
injury. Do not look directly into the headlights
A spare light box is available from a dealer’s
or other light sources. Do not remove the LED
service center or another qualified service cen-
covers.
ter or repair shop.
Follow the safety information, refer to
Headlight glass
page 246.
Condensation can form on the inside of the ex-
ternal lights in cool or humid weather. When
Light-emitting diodes (LEDs)
driving with the lights switched on, the conden-
Some items of equipment use light-emitting di-
sation evaporates after a short time. The head-
odes installed behind a cover as a light source.
light glass does not need to be changed.
246

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Replacing components
MOBILITY
If despite driving with the headlights switched
Bug light
on, increasing humidity forms, for instance wa-
ter droplets in the light, have the headlights
checked.
Headlight setting
The headlight adjustments can be affected by
changing lights and bulbs. After the headlight
adjustment was changed, have it checked and,
if necessary, corrected by a dealer’s service
center or another qualified service center or re-
1
Parking lights
pair shop.
2
Daytime running lights
Front halogen lights, bulb replacement
3
Fog lights
Overview
Low beams/high beams
Halogen headlights
Follow the general instructions on lights and
bulbs, refer to page 246.
Bulbs: H4
1. Open the hood, refer to page 236.
2. Turn the lid counterclockwise, arrow, and
remove.
1
Low beams/high beams
2
Turn signal
3. Pull off the connector.
4. Unclip spring clip, arrow, and fold down.
247

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOBILITY
Replacing components
5. Remove the bulb from the headlight hous-
4. Pull bulb holder out of the bulb housing; if
ing.
needed, loosen it with small tilting move-
ments if possible.
6. Insert the new bulb and install the cover in
the reverse order.
Turn signal
Follow the general instructions on lights and
bulbs, refer to page 246.
Bulbs: PWY24W
1.
Turn the steering wheel.
2.
Turn the lid counterclockwise, arrow 1, and
remove.
5. Pull the bulb out of the fixture.
6. Insert the new bulb and install the cover in
the reverse order.
Parking lights/fog lights/daytime
running lights
Follow the general instructions on lights and
bulbs, refer to page 246.
Bulbs:
Parking lights for halogen headlights: W5W
3.
Unscrew the inner cover counterclockwise,
Parking lights for LED headlights:
and remove it.
W5W NBV.
Daytime running light: PSX24W.
Fog light: H8.
Replacing the bulbs
1. Turn the steering wheel.
2. Turn the lid counterclockwise, arrow 2, and
remove.
3. Pull off the connector.
4. Remove the bulb holder.
248

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Replacing components
MOBILITY
Parking lights: turn the bulb holder, ar-
Overview
row 1, counterclockwise and remove.
Position of the headlights
Daytime running lights: squeeze the
upper and lower locks of the bulb
holder, arrow 2, and remove the bulb
holder.
For better accessibility, remove the bulb
of the fog light as needed.
Fog lights: turn the bulb holder, ar-
row 3, counterclockwise and remove.
1
Daytime running lights
2
Low beams/high beams
3
Turn signal
LED bug light
5. Pull the bulb out of the fixture.
6. Insert the new bulb and install the cover in
the reverse order.
The daytime running lights bulb holder en-
gages audibly, first below, then above.
LED front lights, bulb replacement
1
Parking lights
General information
2
Fog lights
The following lights feature LED technology:
Daytime running lights
Turn signal
High beams
Follow the general instructions on lights and
Low beams
bulbs, refer to page 246.
Parking lights
Fog lights
In the case of a malfunction, contact a dealer’s
service center or another qualified service cen-
ter or repair shop.
249

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOBILITY
Replacing components
Bulbs: PWY24W

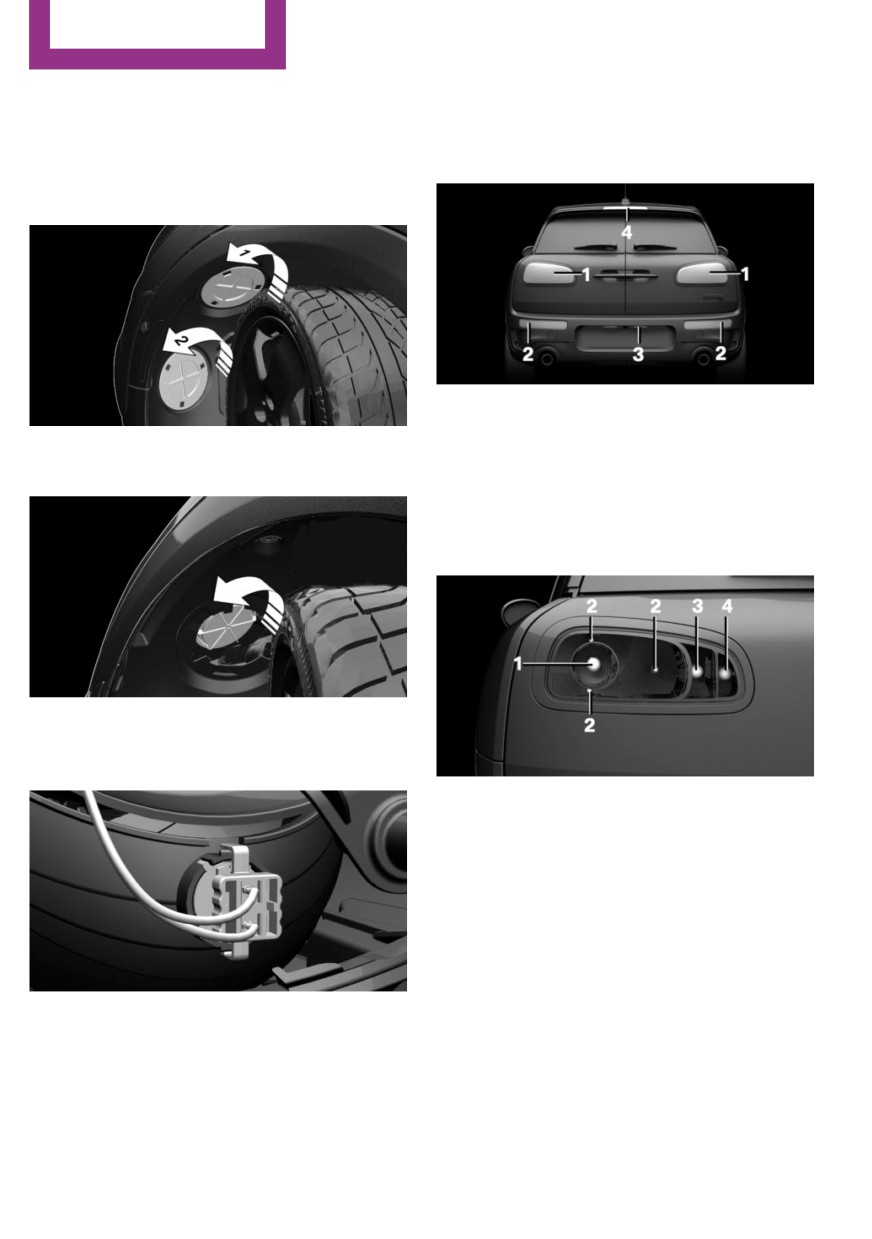

Tail lights, bulb replacement
1. Turn the steering wheel.
Overview
2. Turn the lid counterclockwise, arrow 1, and
remove.
1
Tail lights in split doors
2
Tail lights in bumpers
3. Unscrew the inner cover counterclockwise,
3
License plate light
and remove it.
4
Center brake light
Tail lights in split doors
4. Pull bulb holder out of the bulb housing; if
needed, loosen it with small tilting move-
ments if possible.
1
Turn signal
2
Tail lights
3
Rear fog light
4
Reversing lights
5. Pull the bulb out of the fixture.
6. Insert the new bulb and install the cover in
the reverse order.
250

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Replacing components
MOBILITY

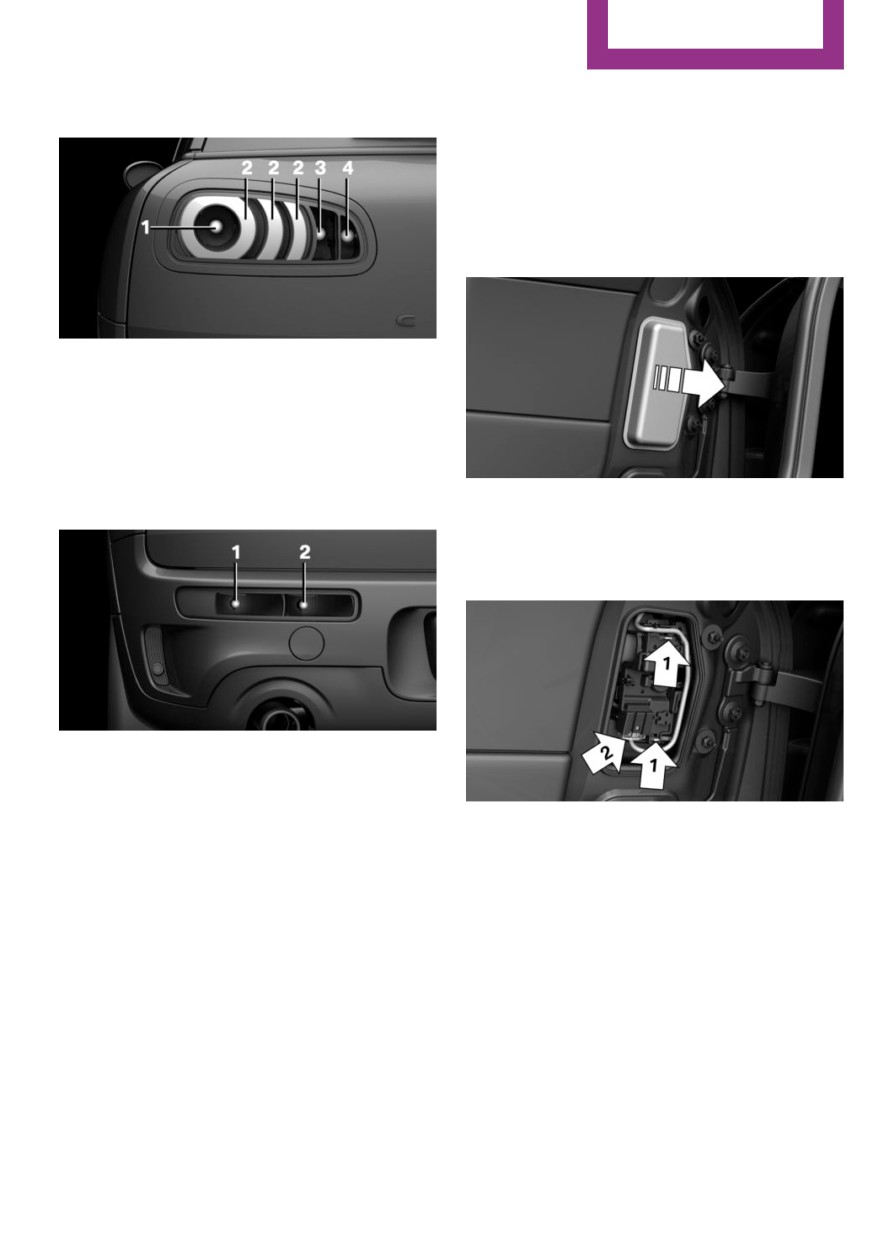

LED tail lights in the split doors
Turn signals/tail lights
Bulbs: P21W/W5W
1. Open the split doors.
2. Remove left or right cover. If necessary, it is
then possible to pry the cover off using a
screwdriver or a similar plastic tool.
1
Turn signal
2
Tail lights
3
Rear fog light
4
Reversing lights
Tail lights in bumpers
3. Press the latches together upward, arrow 1,
and remove the bulb holder.
Loosen the plug connector, arrow 2, on the
bulb holder.
1
Tail lights/brake lights
2
Turn signal
In addition, the tail lights in the bumper assume
4. Remove the bulb holder from the opening.
the functions of tail light and turn signals, if the
5. Press the nonworking bulb gently into the
split doors are open.
socket, turn counterclockwise and remove.
Arrow 1: turn signal.
Tail lights in split doors
Note the safety information on lights and bulbs,
refer to page 246.
251















Content      ..     12      13      14      15     ..
