Diagnostic system: reading out fault memory and activating systems

Subsequent work for ventilation cover

3521

- Preliminary work
- Removing fresh/recirc. air servo motor
- Installing fresh/recirc. air servo motor
- Subsequent work

Preliminary work

Preliminary work for fresh/recirc. air servo motor

1. Remove heater/air-conditioning unit. → 851519 Removing and installing heating/fresh-air unit - chapter on

"Removing"

Removing fresh/recirc. air servo motor

Removing fresh/recirc. air servo motor

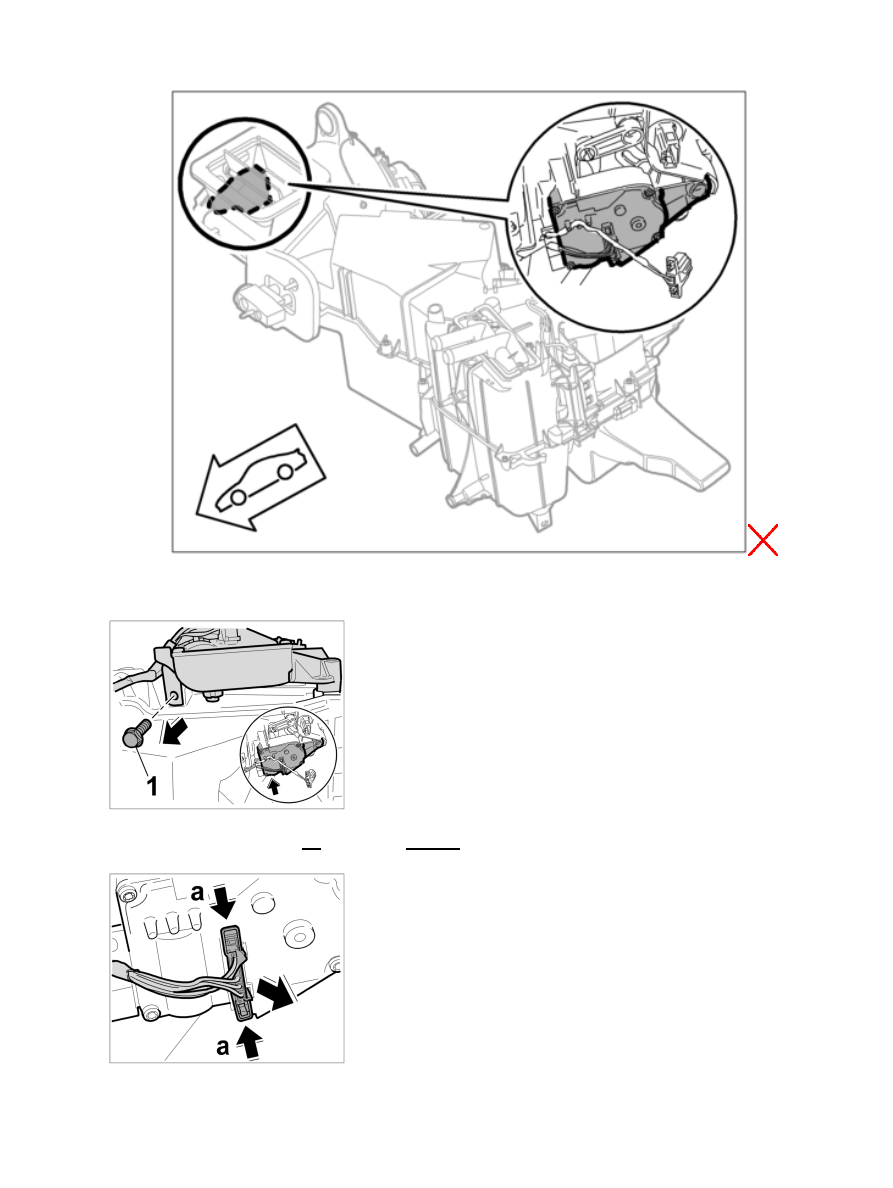

Installation Location:

3522

Installation position

1. Switch off ignition and remove ignition key.

Unscrewing fastening screws

2. Unscrew fastening screw -1- from below -arrow- .

Unlocking the electric connector

Diagnostic system: reading out fault memory and activating systems

Removing fresh/recirc. air servo motor

3523

3. Release and unplug electric connector -a- .

Disengaging actuating lever

4. Press the locking mechanism of the servo motor actuating lever and press it out from the deflector of the

recirculation flap.

Removing servo motor

5. Swing down the servo motor and remove from the heater/air-conditioning unit.

Installing fresh/recirc. air servo motor

Installing fresh/recirc. air servo motor

Diagnostic system: reading out fault memory and activating systems

 Installing fresh/recirc. air servo motor

3524
